The 4.0L V6 in the fifth-generation 4Runner is not known for picking up easy horsepower, which makes SXTH Element's dyno results for this CPLT intake worth looking at. Their test showed an increase of 10.58 peak wheel horsepower and 9.68 lb-ft of peak wheel torque compared to the factory intake.

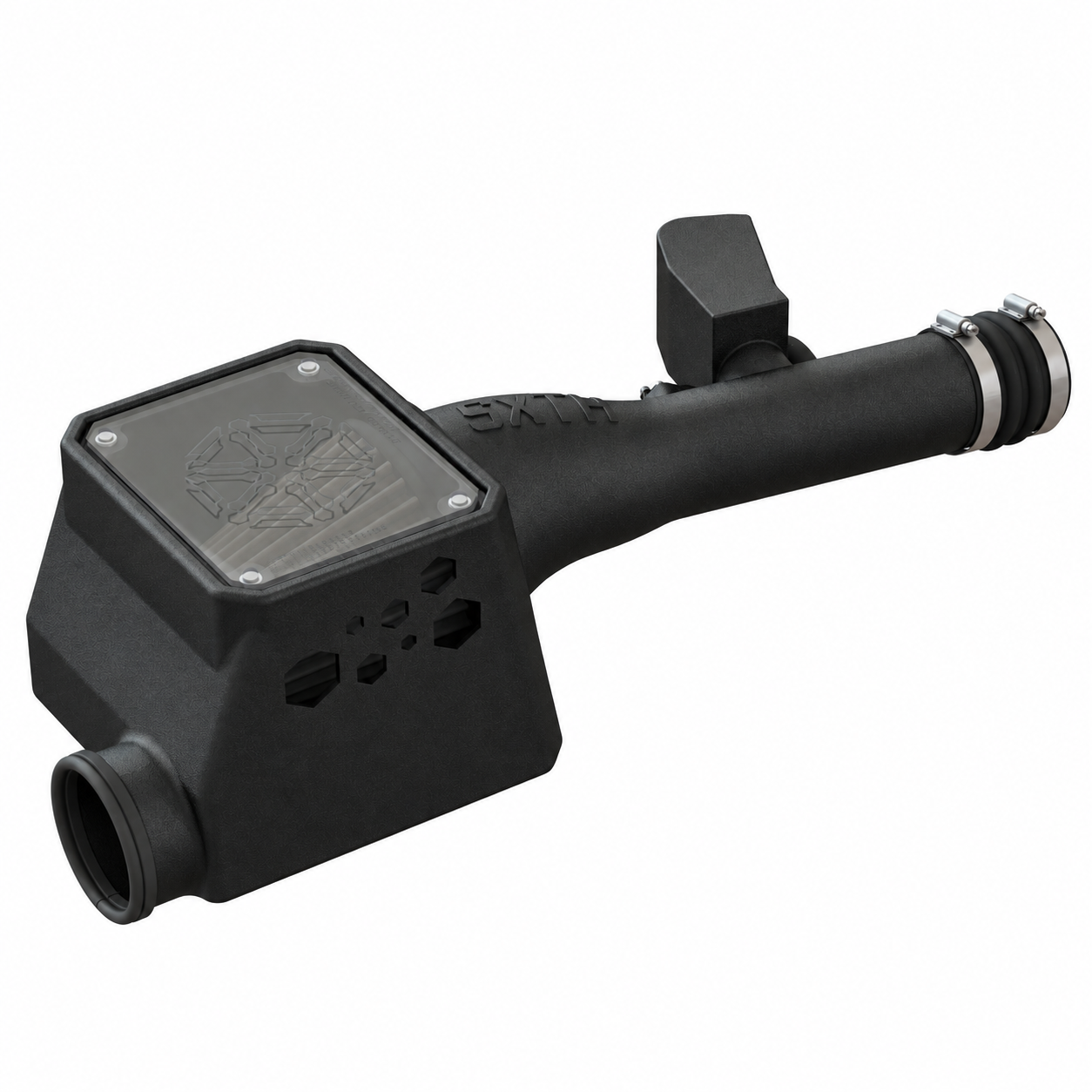

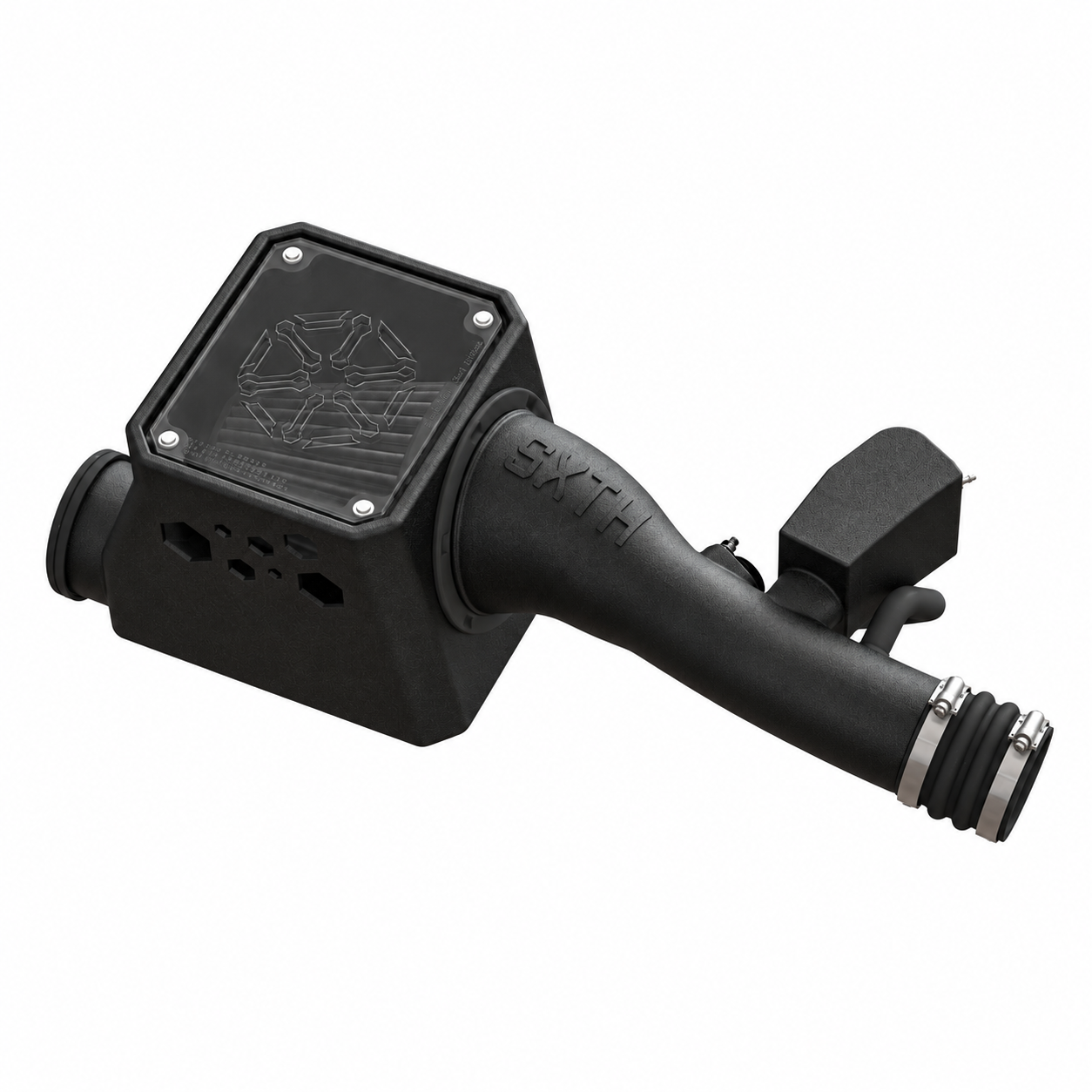

The complete intake replaces the factory airbox and intake tube with a molded XLPE system, a large dry-flow filter and a magnetic airbox lid. You get more airflow and a stronger 1GR-FE intake sound, while the built-in Helmholtz resonator helps control the harsh resonance that can show up around 3,800 to 4,000 RPM with other aftermarket intakes.
Fitment Information
- Toyota 4Runner N280 5th Gen 4.0L V6 (2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024)
Fitment Notes
- Fits fifth-generation Toyota 4Runner models with the naturally aspirated 4.0L 1GR-FE V6
- Fits 2WD and 4WD models
- Fits factory 4.0L trims including SR5, Trail, TRD Off-Road, TRD Pro and Limited
- Does not fit the 2025 and newer sixth-generation 4Runner
- No ECU tuning is required
Emissions Compliance
This intake is not currently CARB approved and is not legal for sale or use on emissions-controlled vehicles in California.

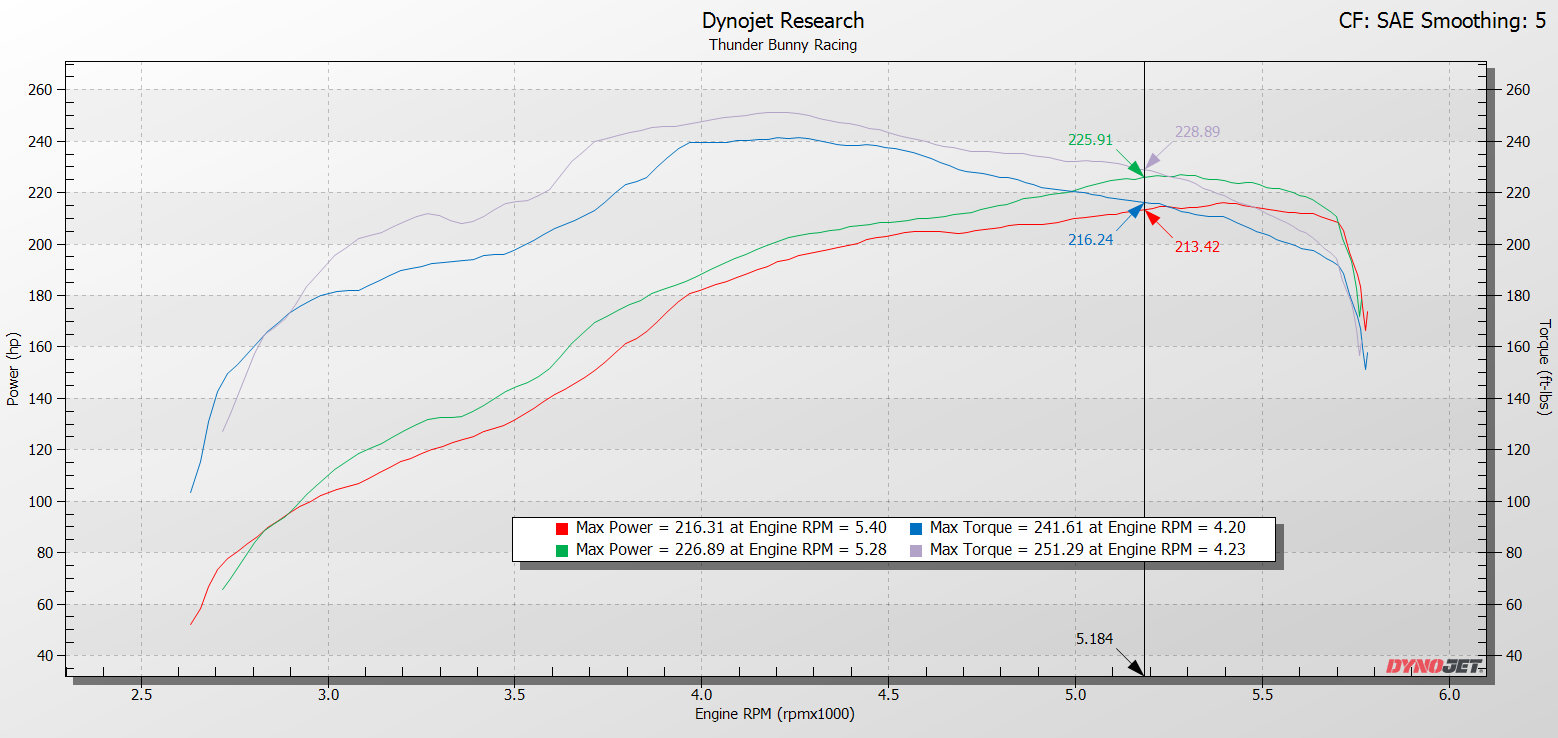

Dyno Results
- Factory intake: 216.31 peak wheel horsepower
- SXTH CPLT intake: 226.89 peak wheel horsepower
- Peak horsepower gain: 10.58 wheel horsepower
- Factory intake: 241.61 lb-ft of peak wheel torque
- SXTH CPLT intake: 251.29 lb-ft of peak wheel torque
- Peak torque gain: 9.68 lb-ft
These results come from SXTH Element's Dynojet comparison using its test vehicle and test conditions. The gains are most noticeable through the upper RPM range.

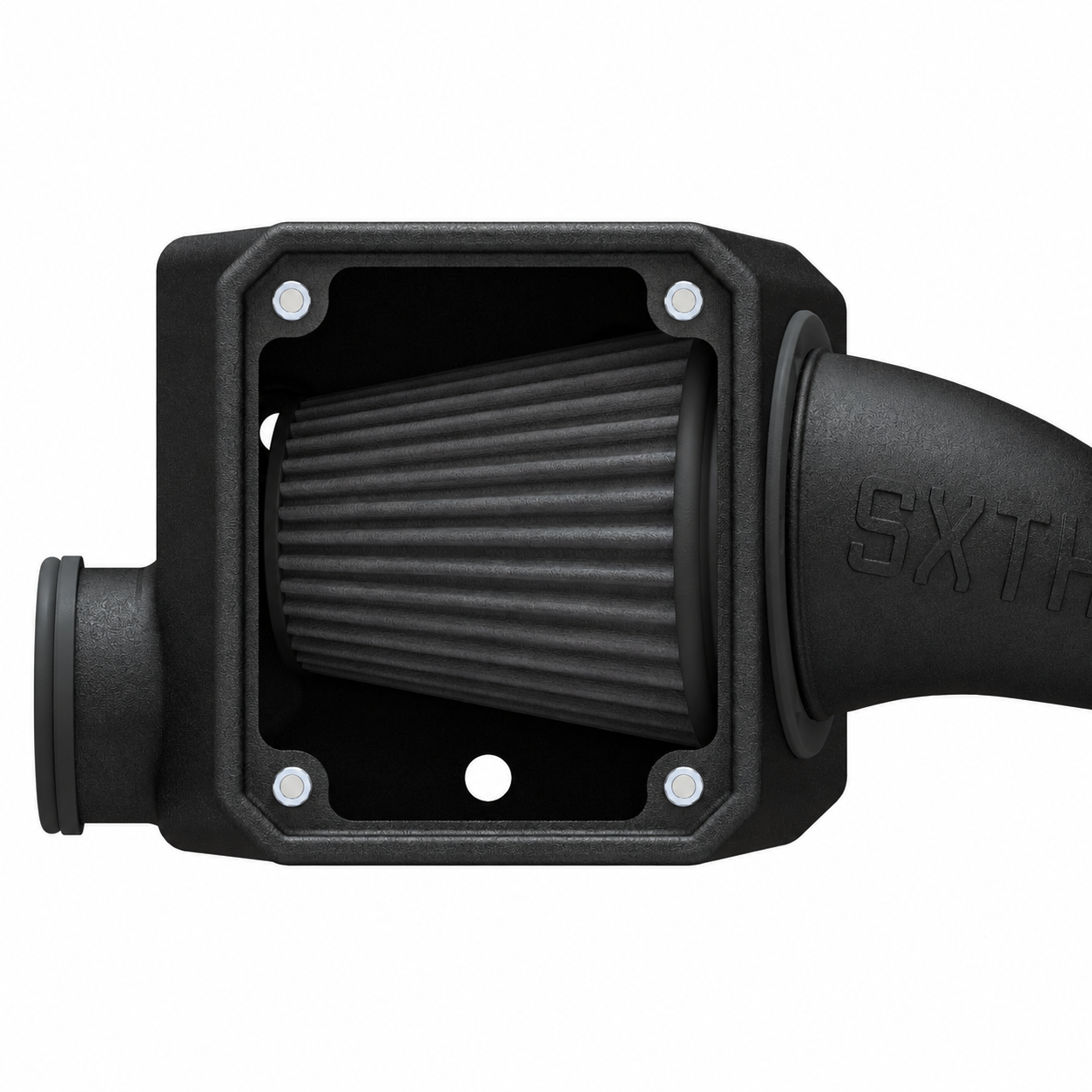

Dry-Flow Air Filter
The large dry-flow filter uses a six-inch inlet that tapers down smoothly to the factory MAF sensor diameter. It does not require filter oil, making regular inspection and maintenance less messy.
SXTH reports up to 99.52% filtration efficiency from laboratory testing performed under ISO 5011 and SAE J726 standards. The test was conducted at an airflow rate of 300 m³/h.
Specs & Features
- Complete cold air intake system
- Designed for the 4.0L 1GR-FE V6
- 10.58 peak wheel horsepower gain in SXTH testing
- 9.68 lb-ft peak wheel torque gain in SXTH testing
- Large dry-flow air filter
- Six-inch filter inlet
- Up to 99.52% filtration efficiency in published laboratory testing
- Molded XLPE airbox and intake tube

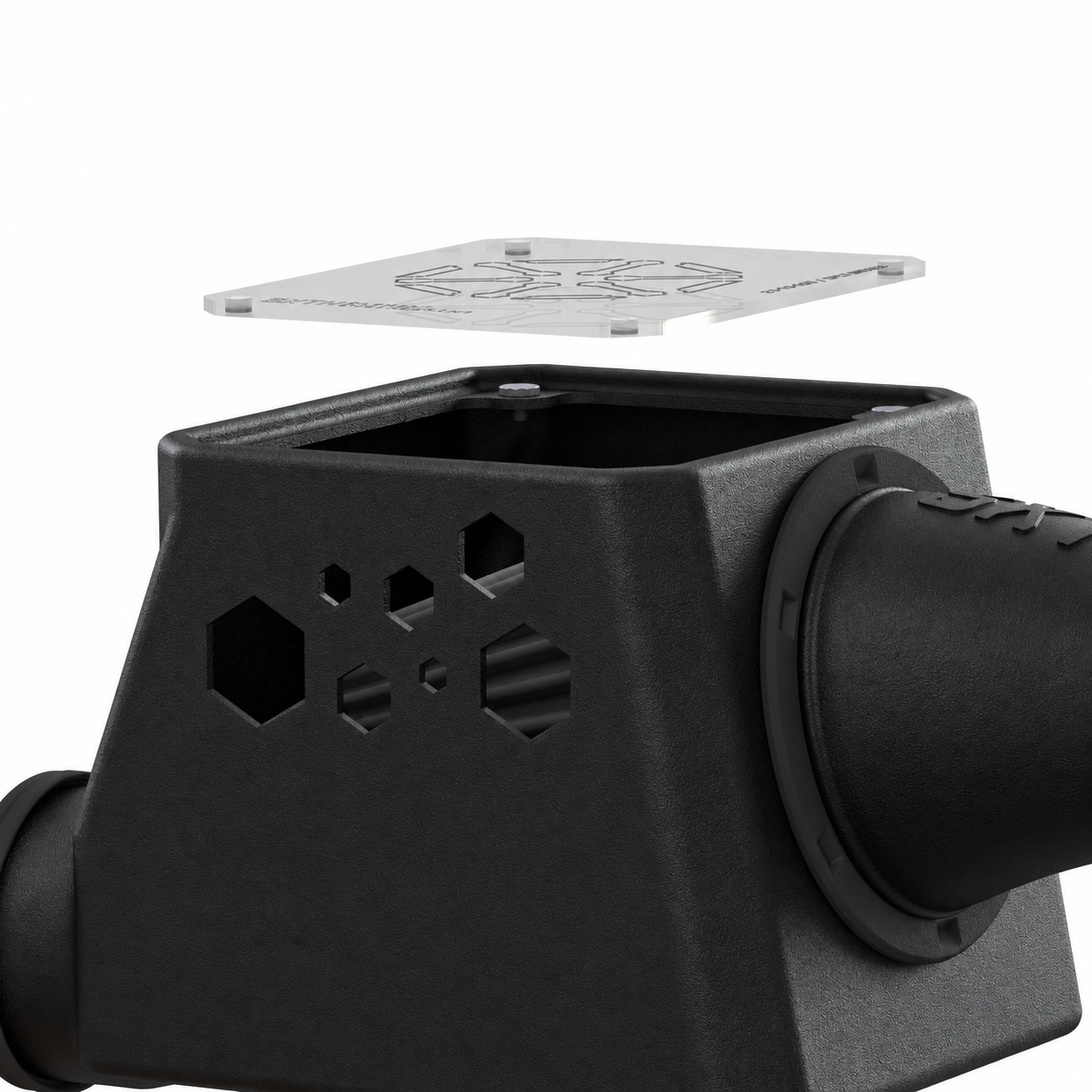

- Magnetic airbox lid for quick filter access

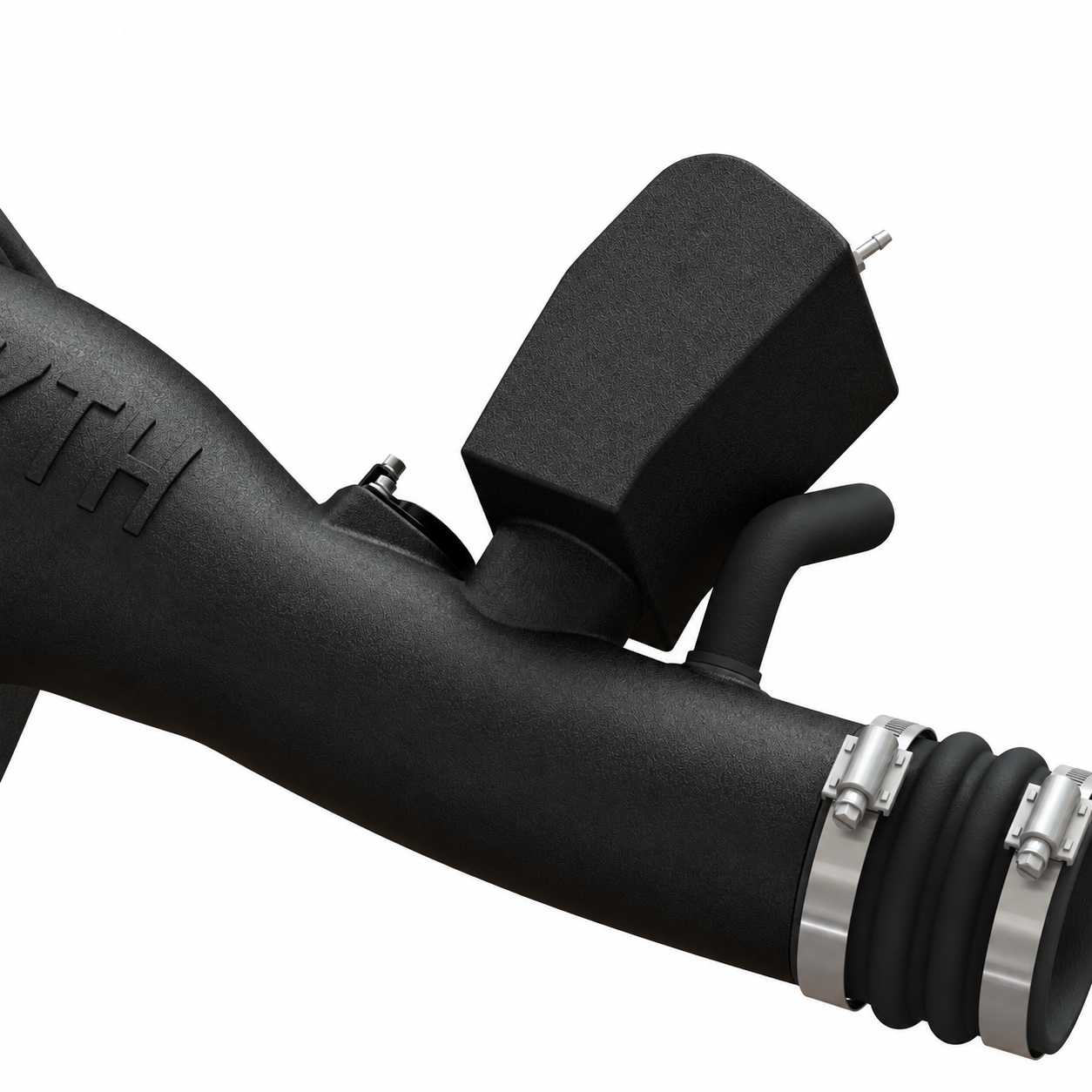

- Integrated Helmholtz resonator
- Designed to reduce unwanted resonance around 3,800 to 4,000 RPM
- Retains the factory MAF sensor
- Works with the factory ECU calibration
- No tune required
- Manufacturer part number: 21-19-100
What’s Included
- SXTH molded XLPE airbox
- Magnetic airbox lid
- Molded intake tube
- Integrated Helmholtz resonator
- Six-inch inlet dry-flow air filter
- Couplers and clamps
- Required installation hardware
Installation
The SXTH CPLT intake installs in place of the factory airbox and intake tube without requiring permanent vehicle modifications. It retains the factory mounting points and MAF sensor, and the MAF section is sized to work with the stock ECU calibration. No tuning is required after installation.
Pairs Well With
- MBRP High-Clearance Catback Exhaust for Toyota 4Runner 4.0L - Pair the SXTH intake with a high-clearance exhaust for more 1GR-FE sound and better clearance behind the rear bumper when driving off-road.
- STILLEN TruPedal Throttle Controller for Toyota 4Runner - Adjust the electronic throttle response to make the 4Runner feel quicker off the pedal without changing the factory ECU tune.
- Bilstein B8 6112 Front Lift Kit for Toyota 4Runner 5th Gen - Add front ride height, make room for larger tires and improve suspension control on the street or trail.
About SXTH Element
SXTH Element develops vehicle-specific performance parts using airflow testing, dyno testing and its own engineering work. The CPLT intake is its complete intake design, replacing the factory airbox and tubing instead of adding a filter to the original intake system.
