M&R Automotive LED Fog Light Kit for Ford F-150 Tremor 14th Gen (24-26) Standard Bumper

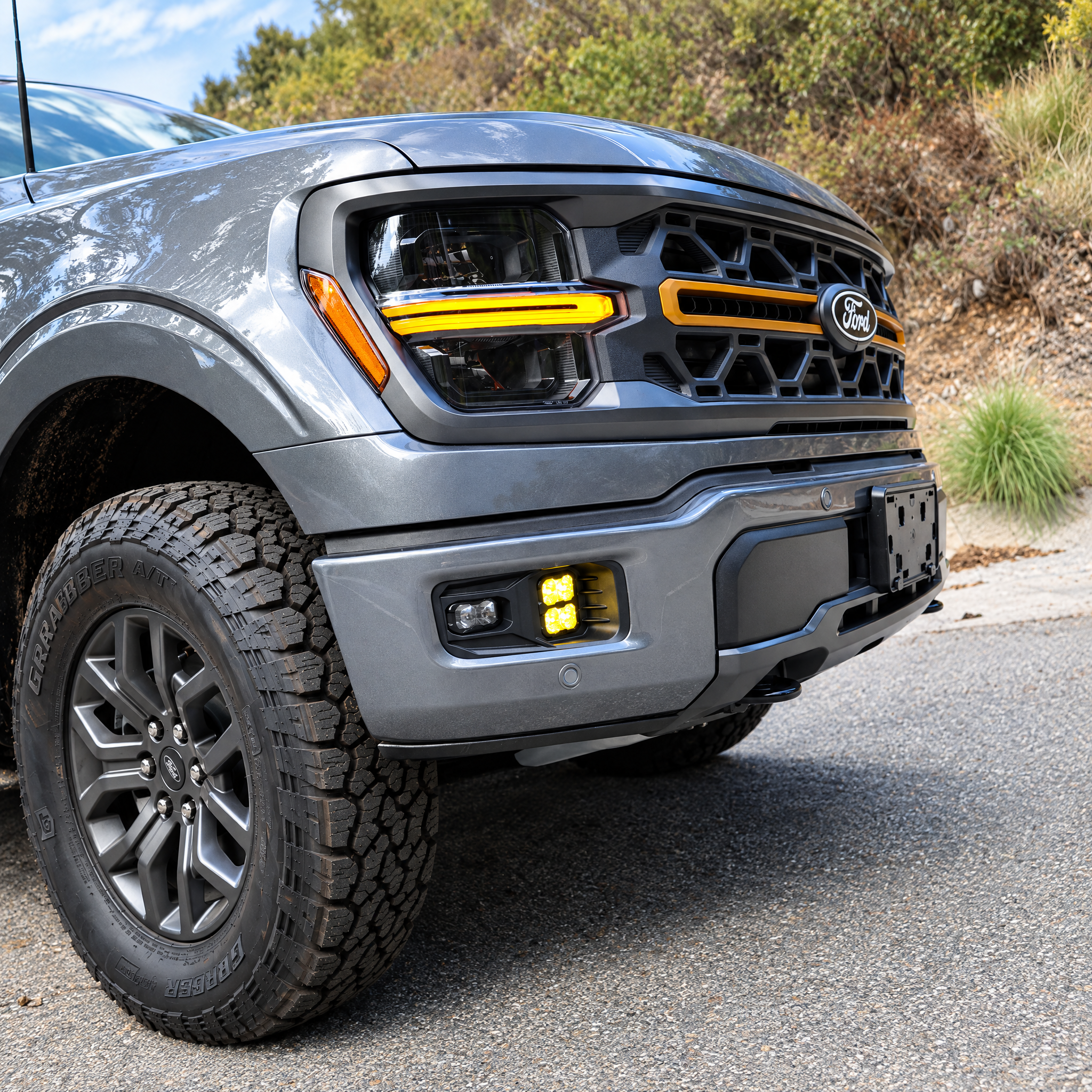

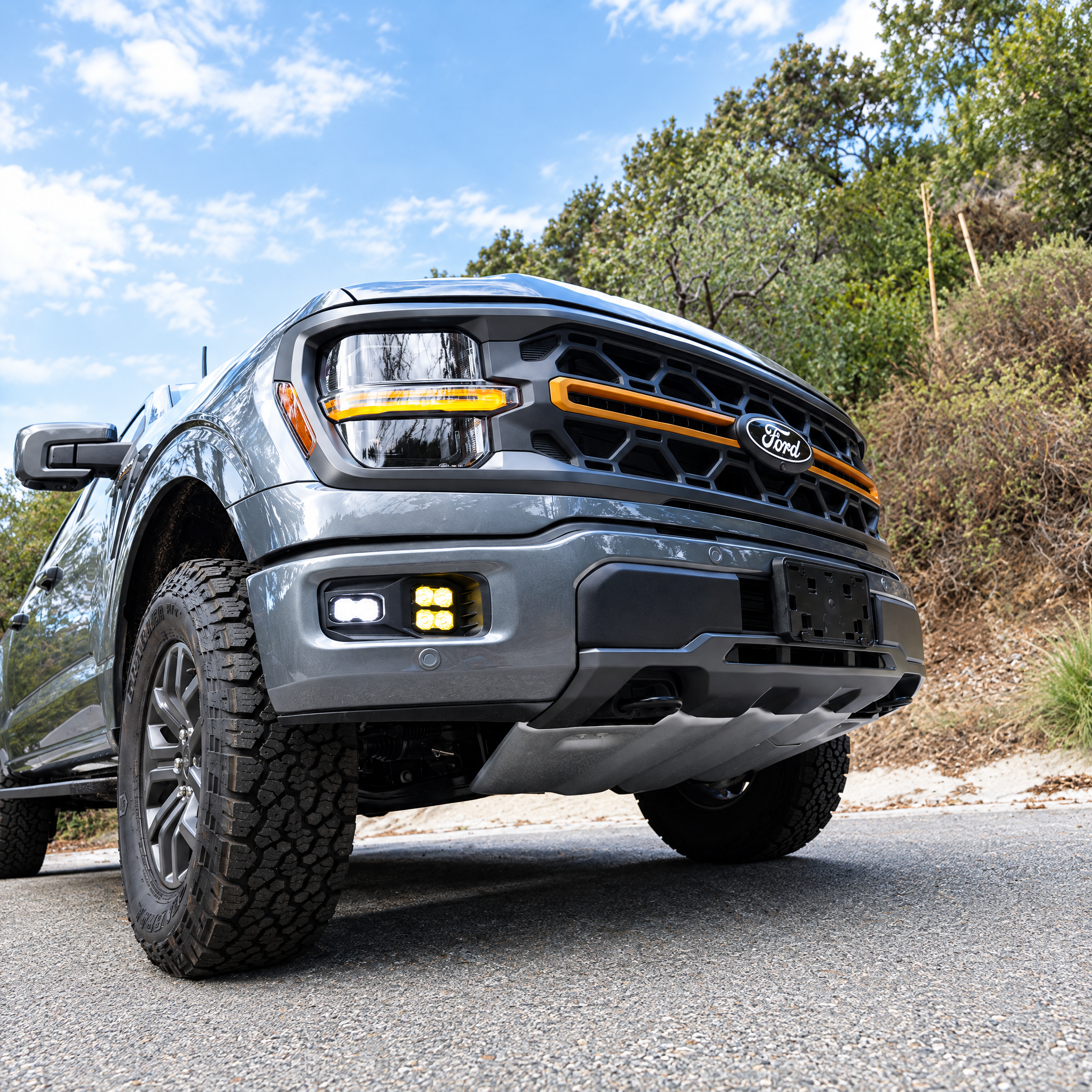

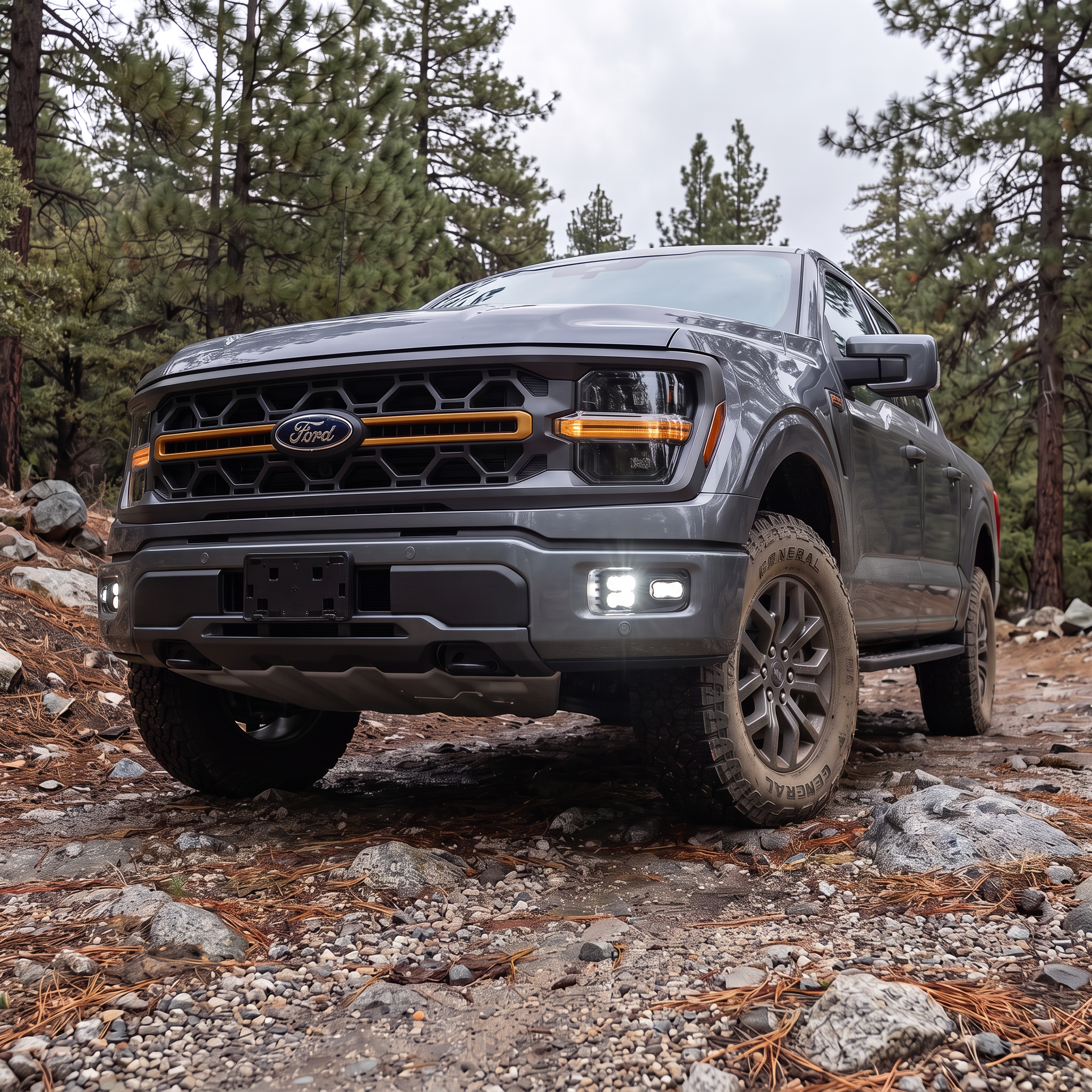

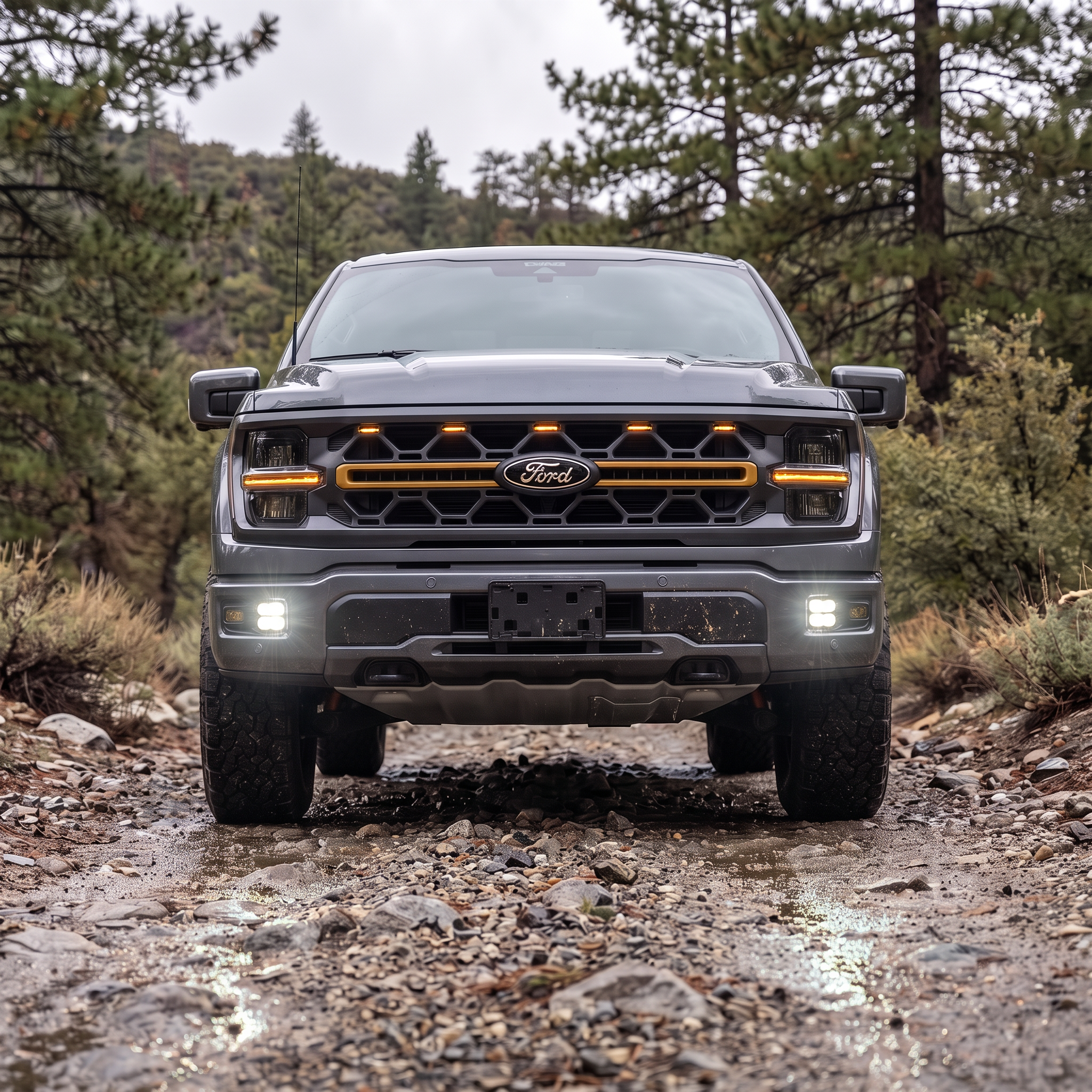

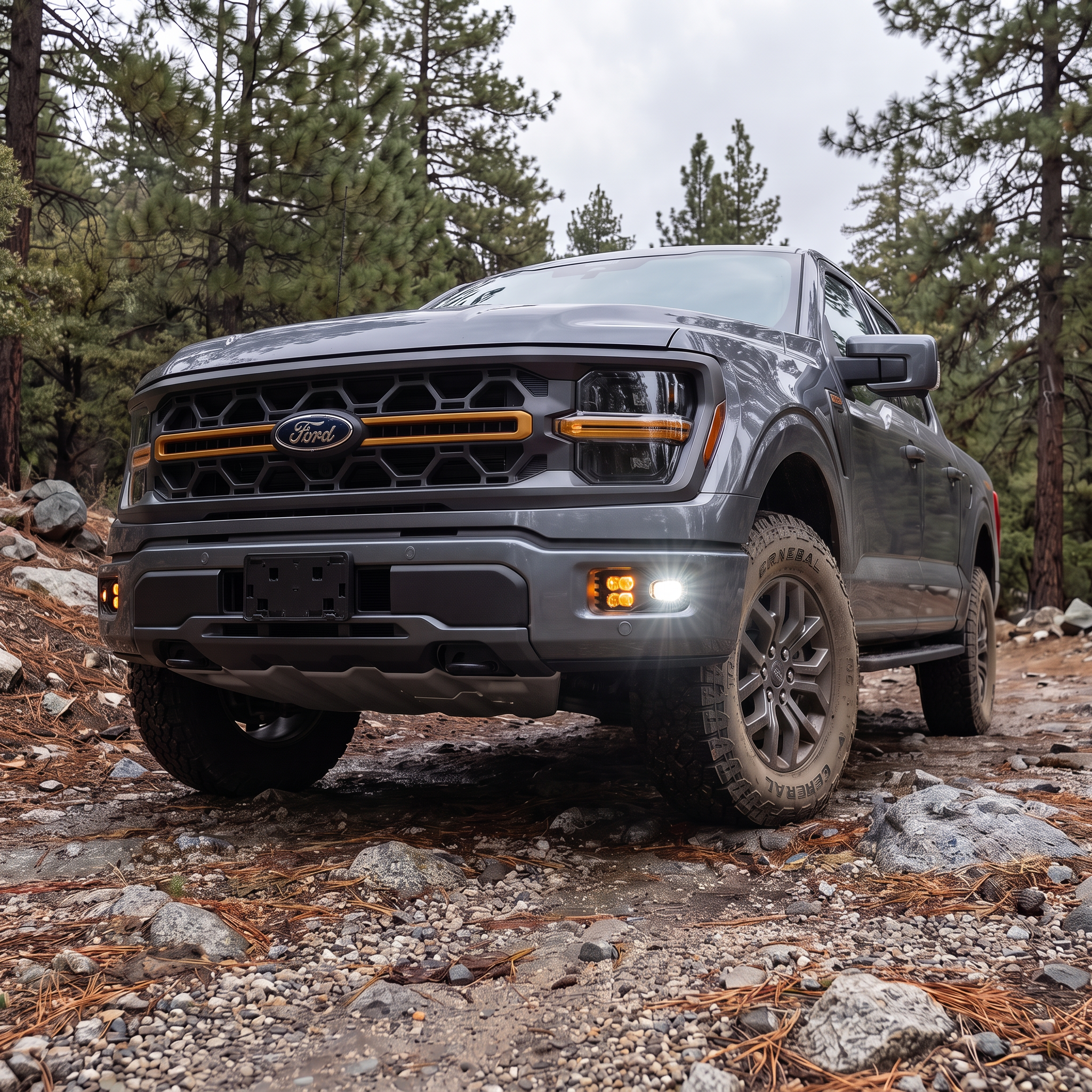

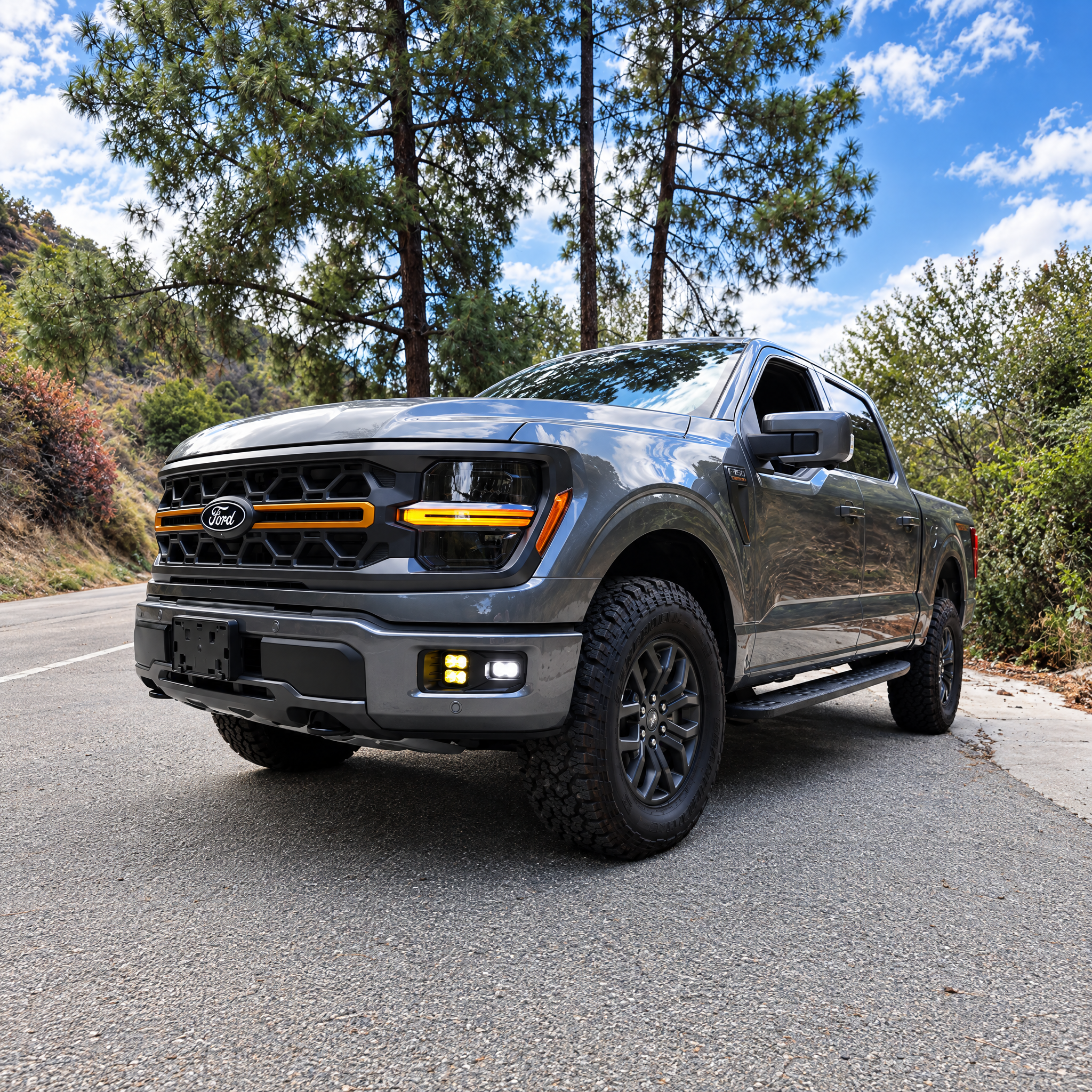

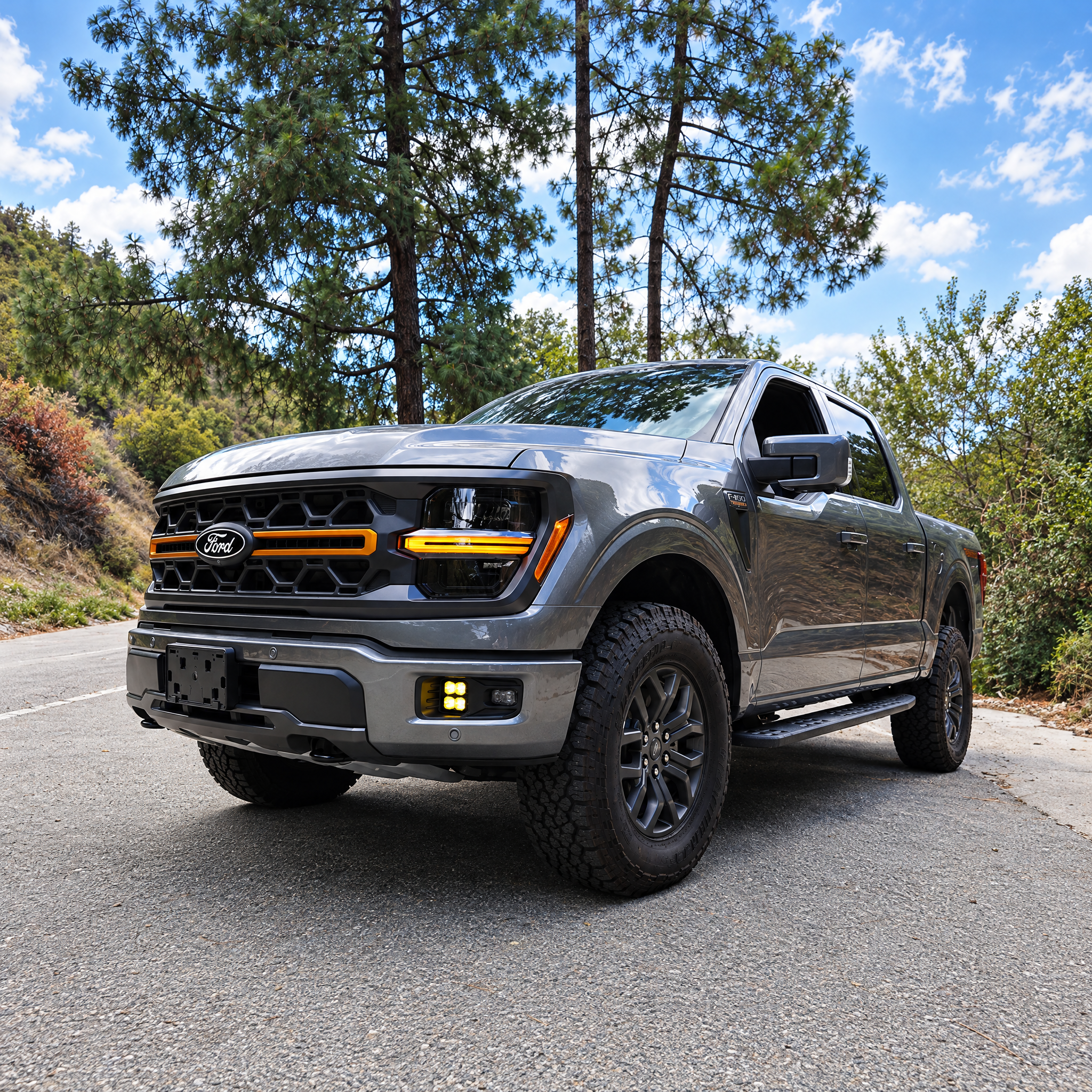

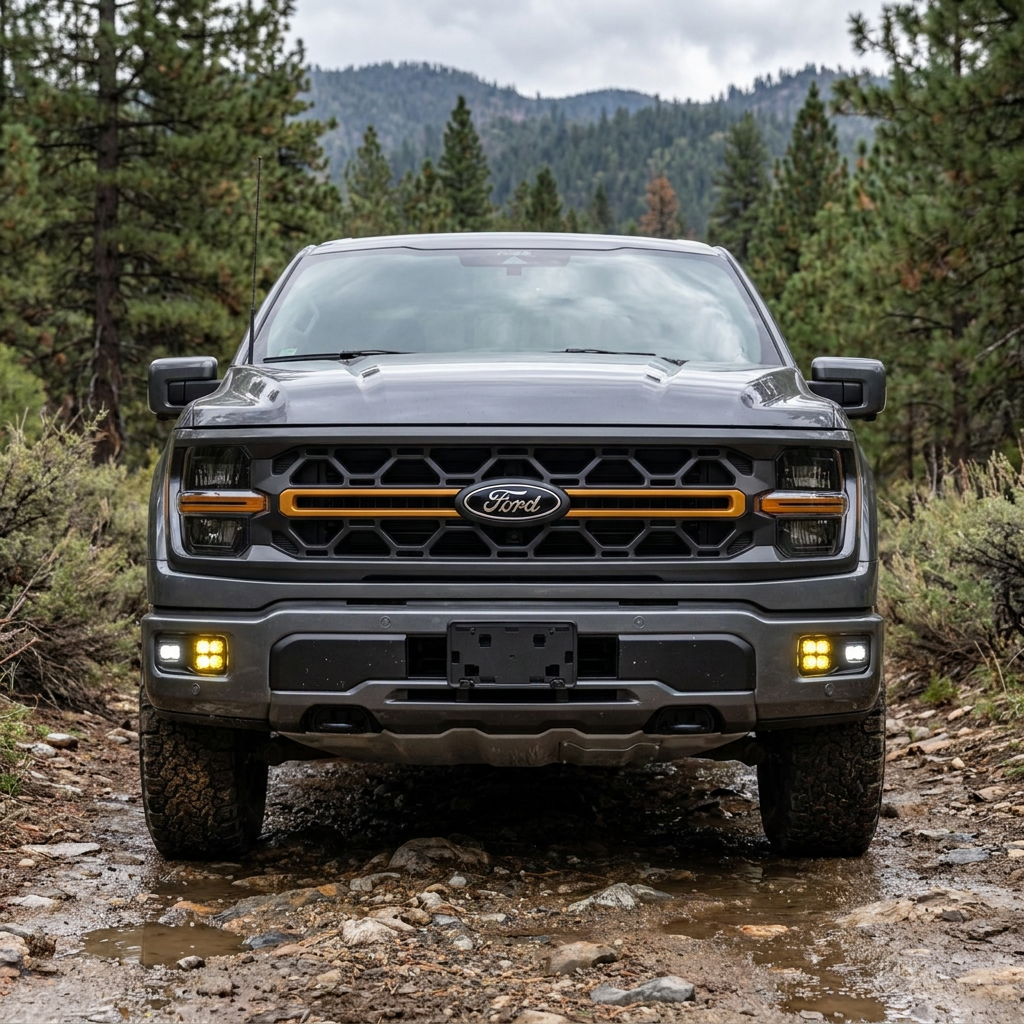

Replace the factory fog lights on your 2024+ F-150 Tremor with four M&R PRO pods that give you a wider fog beam and more light down the trail. Each side gets a 20W pod angled outward for close-range coverage and a 40W pod pointed straight ahead for distance.

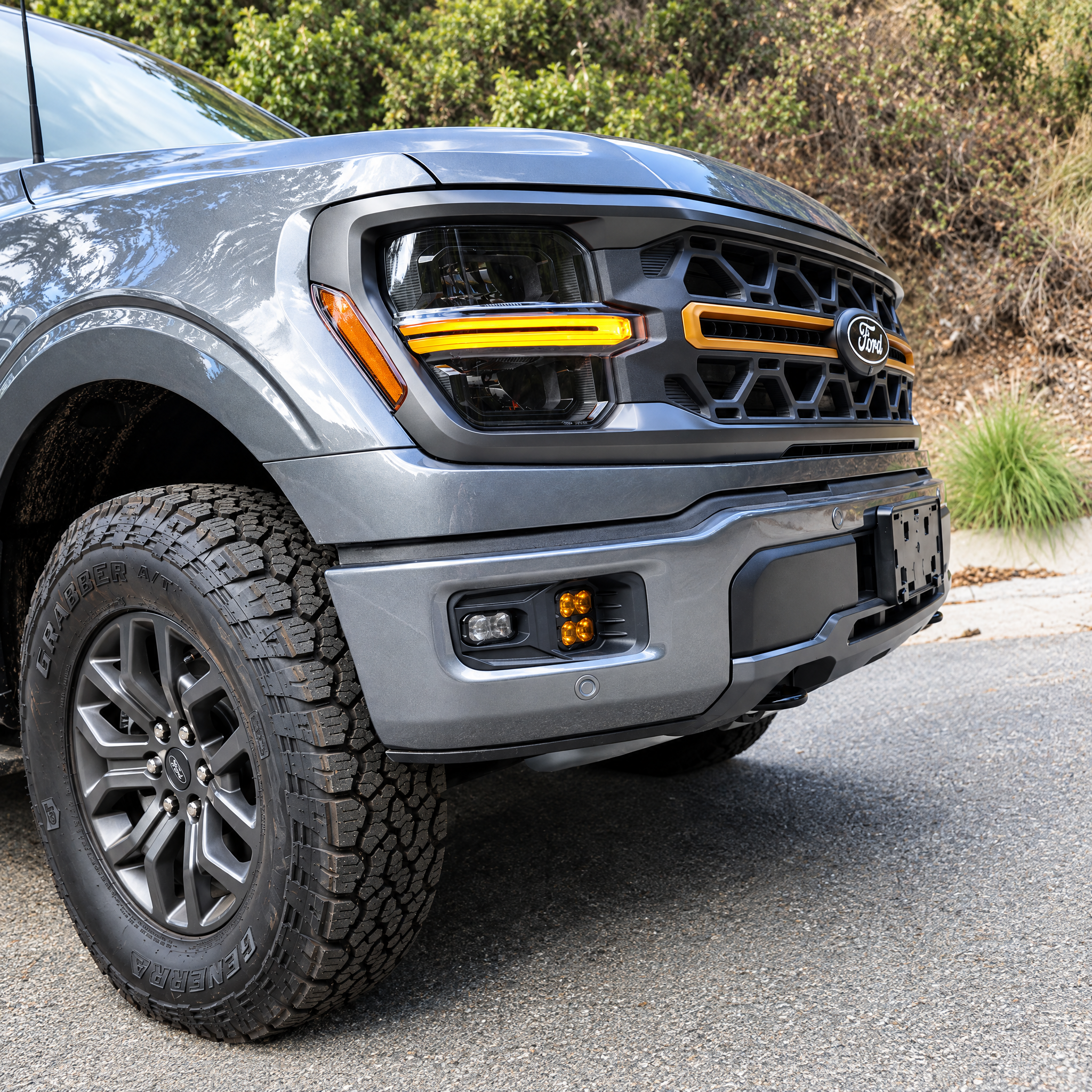

The pods sit inside vehicle-specific shrouds made for the standard Tremor bumper, so the finished setup fits cleanly into the factory fog light openings. It bolts in using the original bolts and clips with no cutting or drilling required.

Fitment Information

• Ford F-150 Tremor 14th Gen with standard front bumper (2024, 2025, 2026)
• Fits the Tremor trim only
• Fits trucks equipped with the standard bumper only

Fitment Note: This kit does not fit the modular Tremor bumper. M&R offers a separate fog light kit for trucks equipped with the modular bumper.

Four-Pod Fog and Driving Light Setup

• Two 20W PRO pods: Angled 15 degrees outward with a flood-style fog beam for wider coverage near the truck
• Two 40W PRO pods: Pointed straight ahead with a driving beam for additional distance

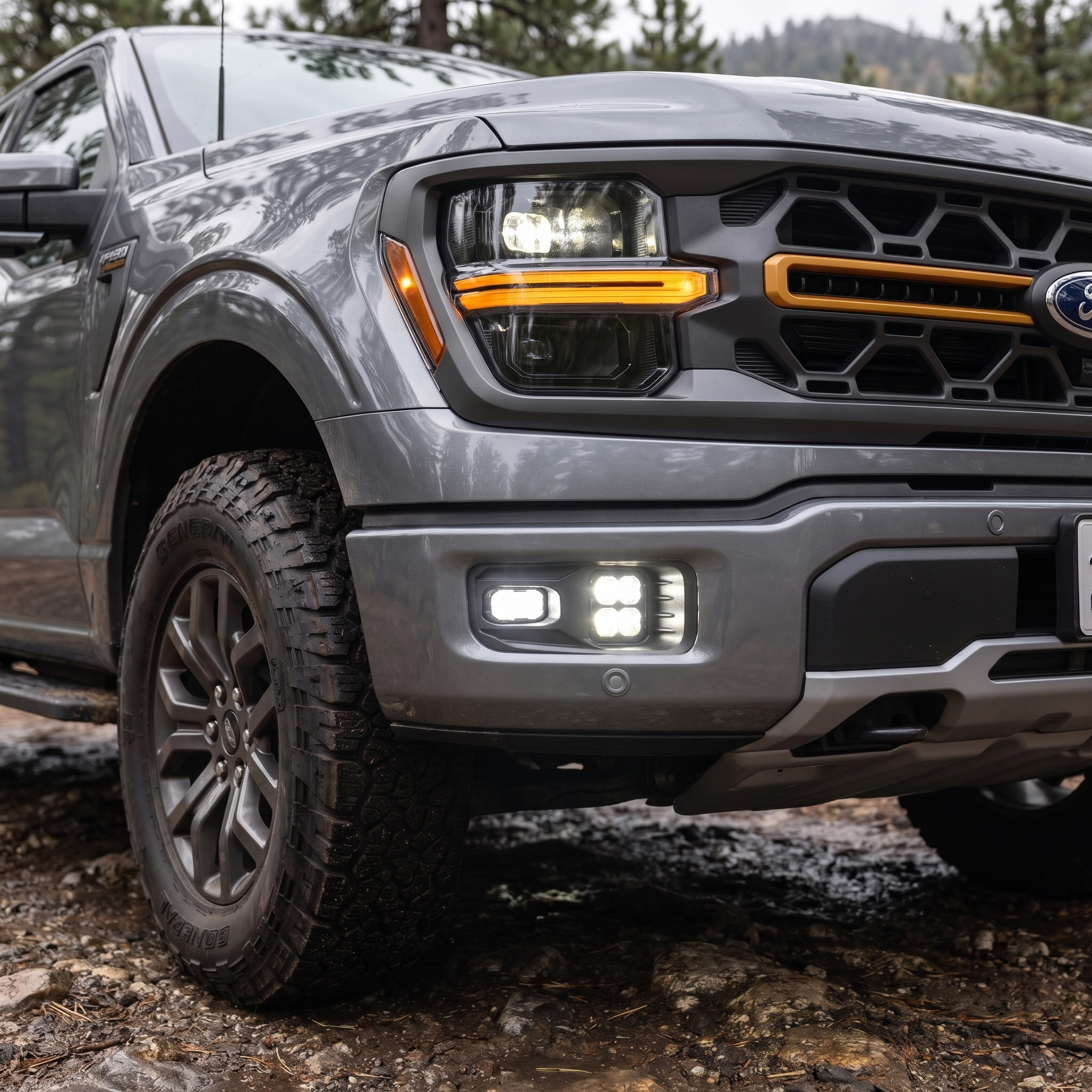

• One 20W and one 40W pod are installed on each side
• Sold as a complete driver- and passenger-side set

Choose Your Light Output

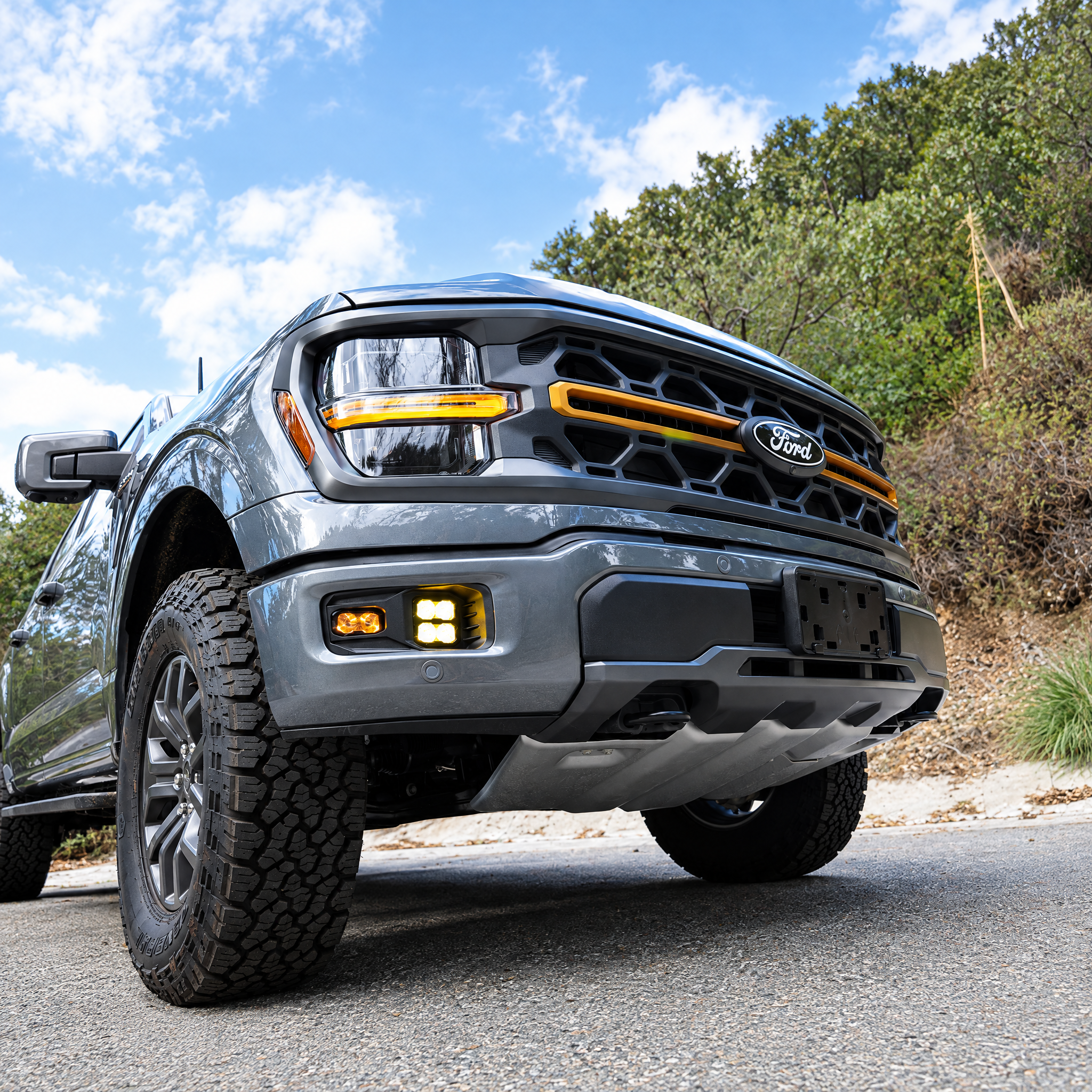

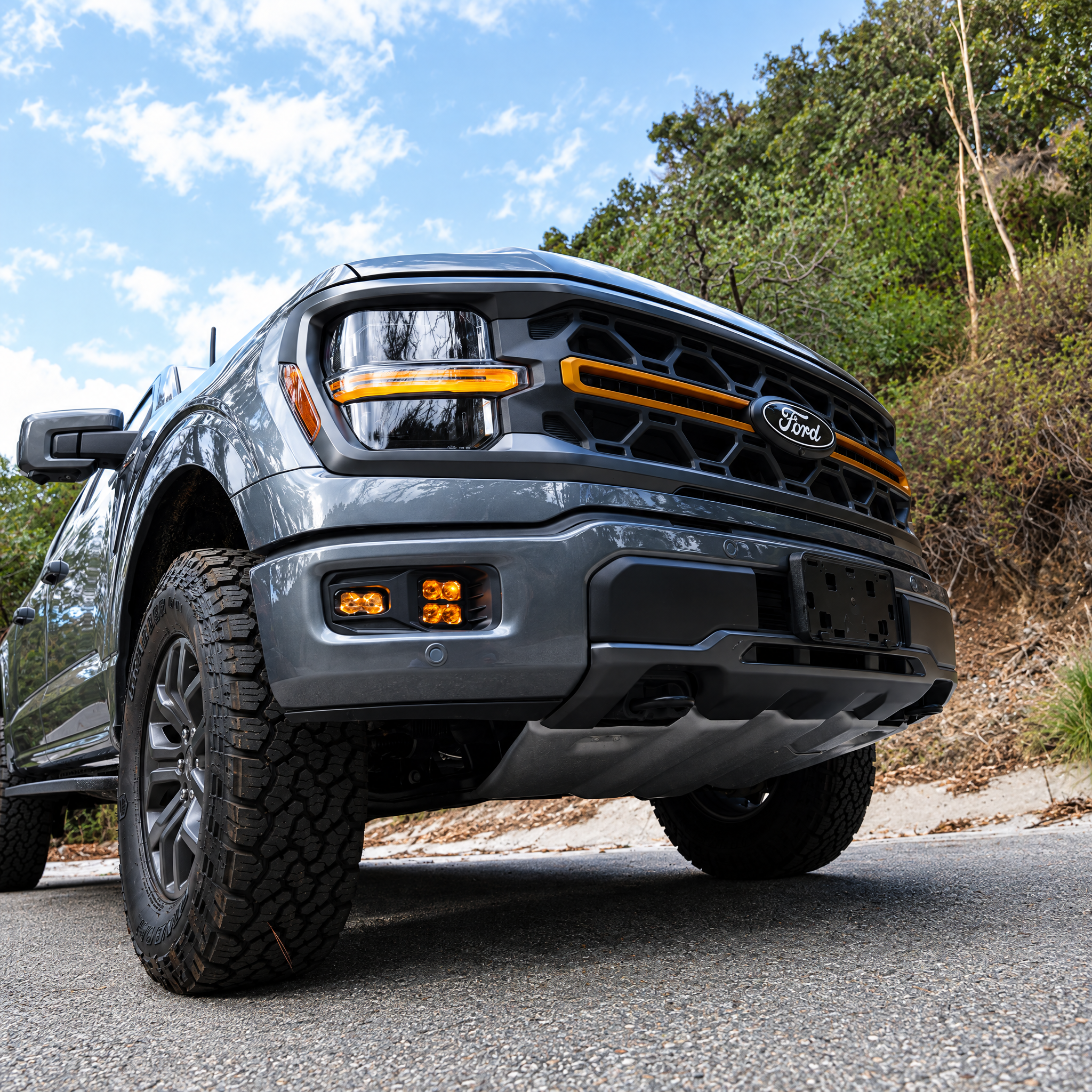

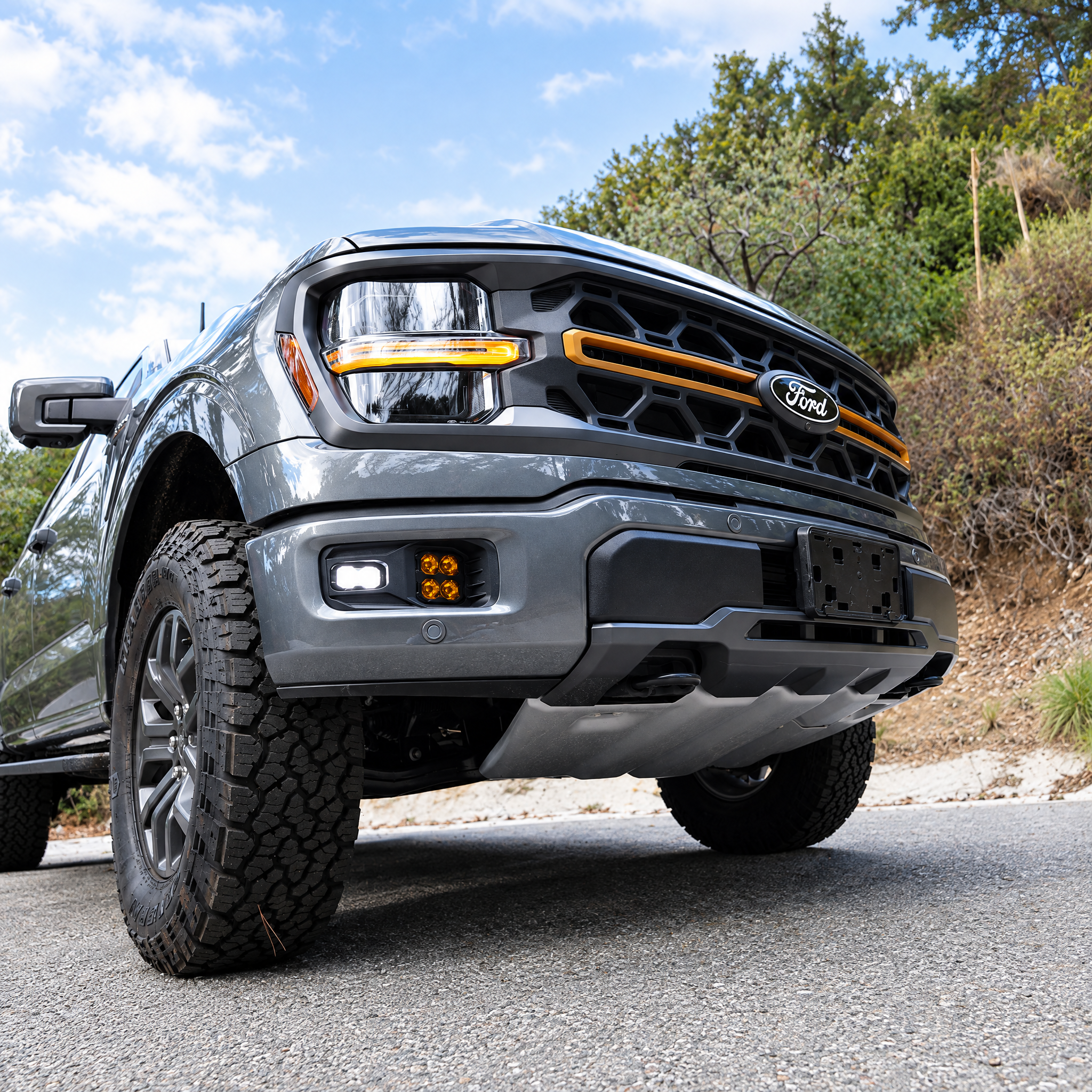

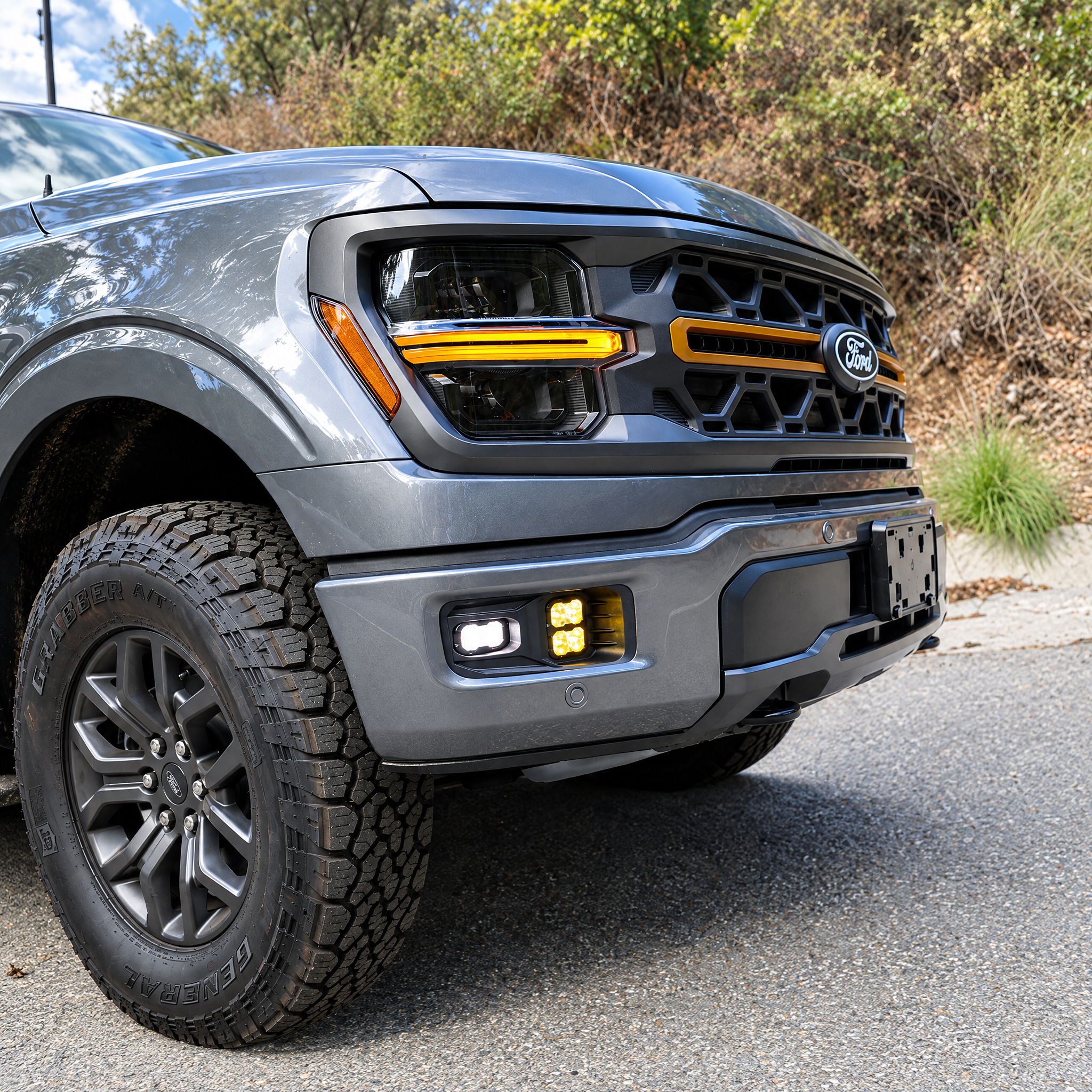

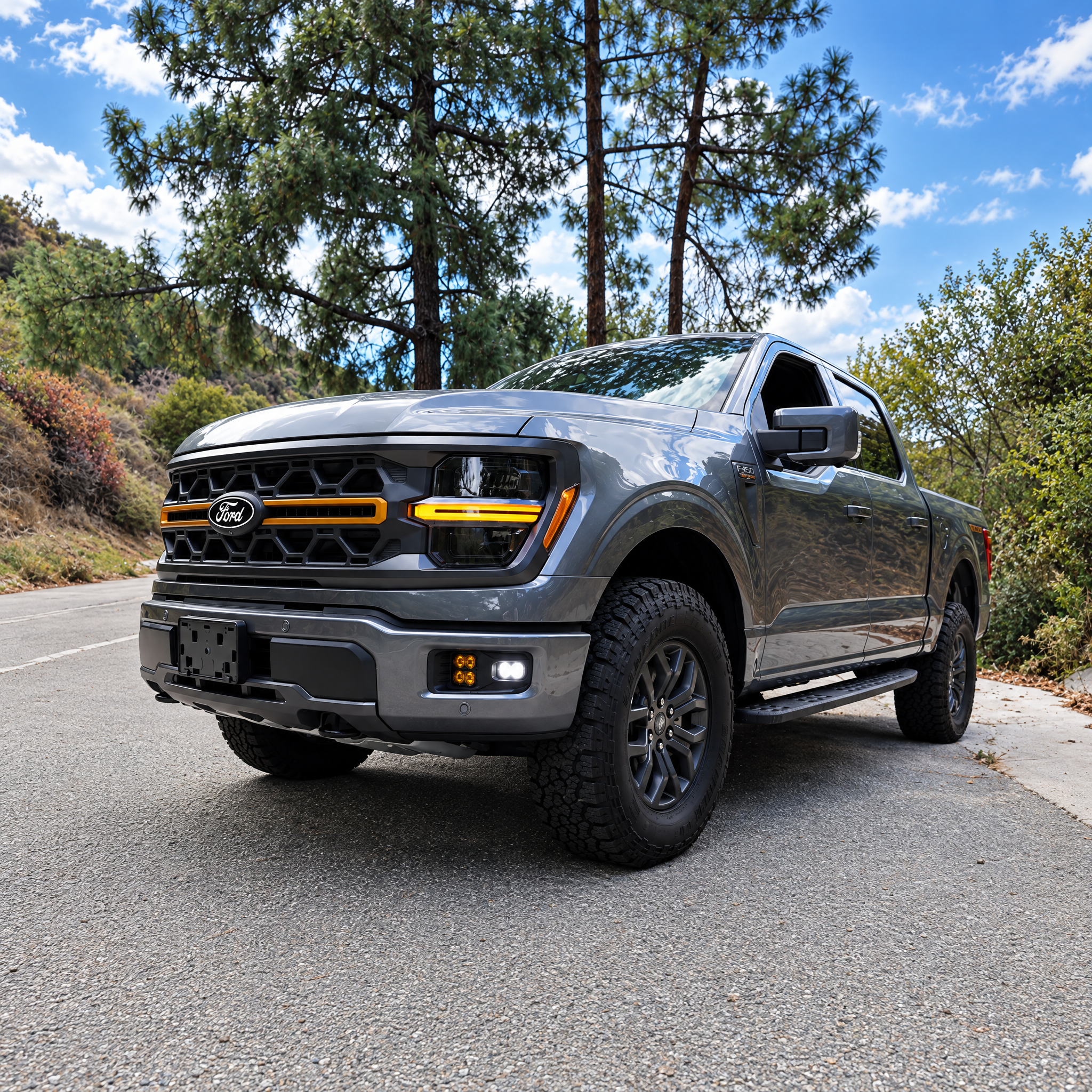

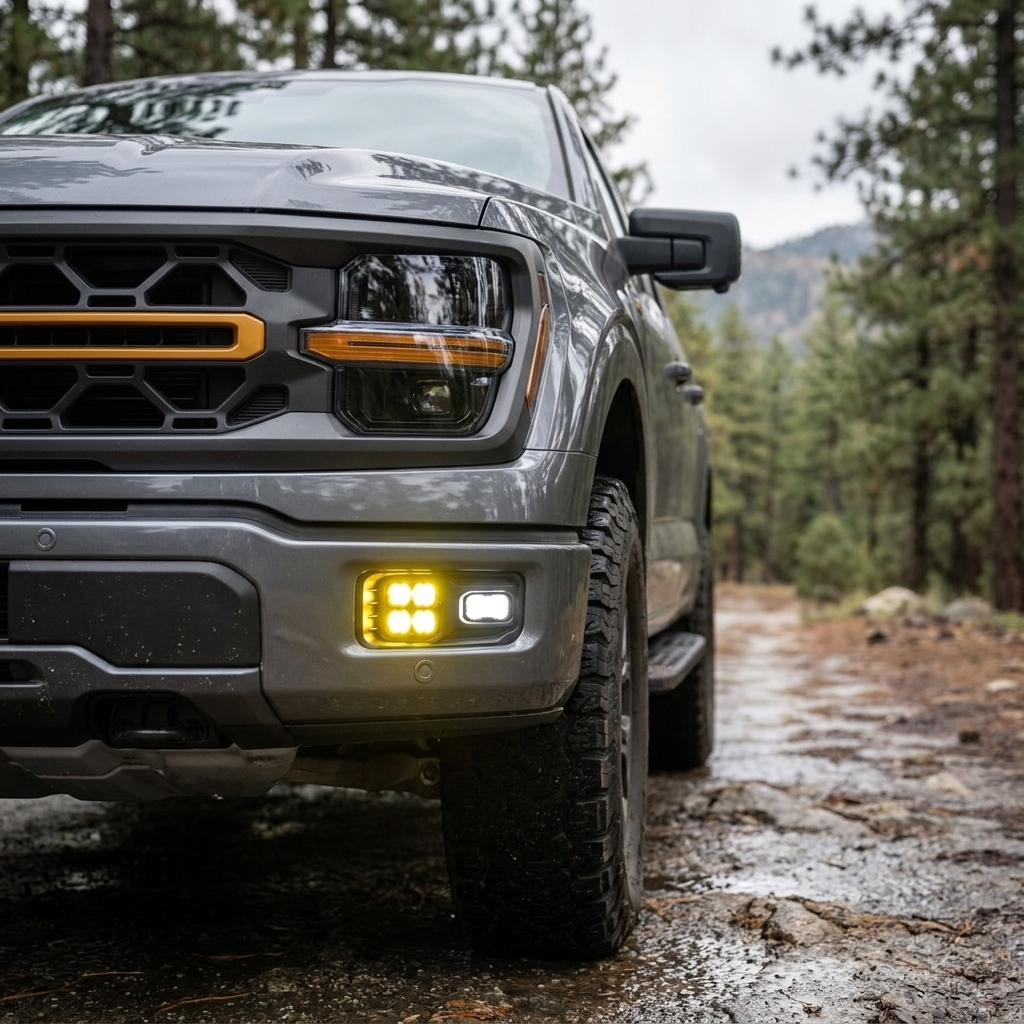

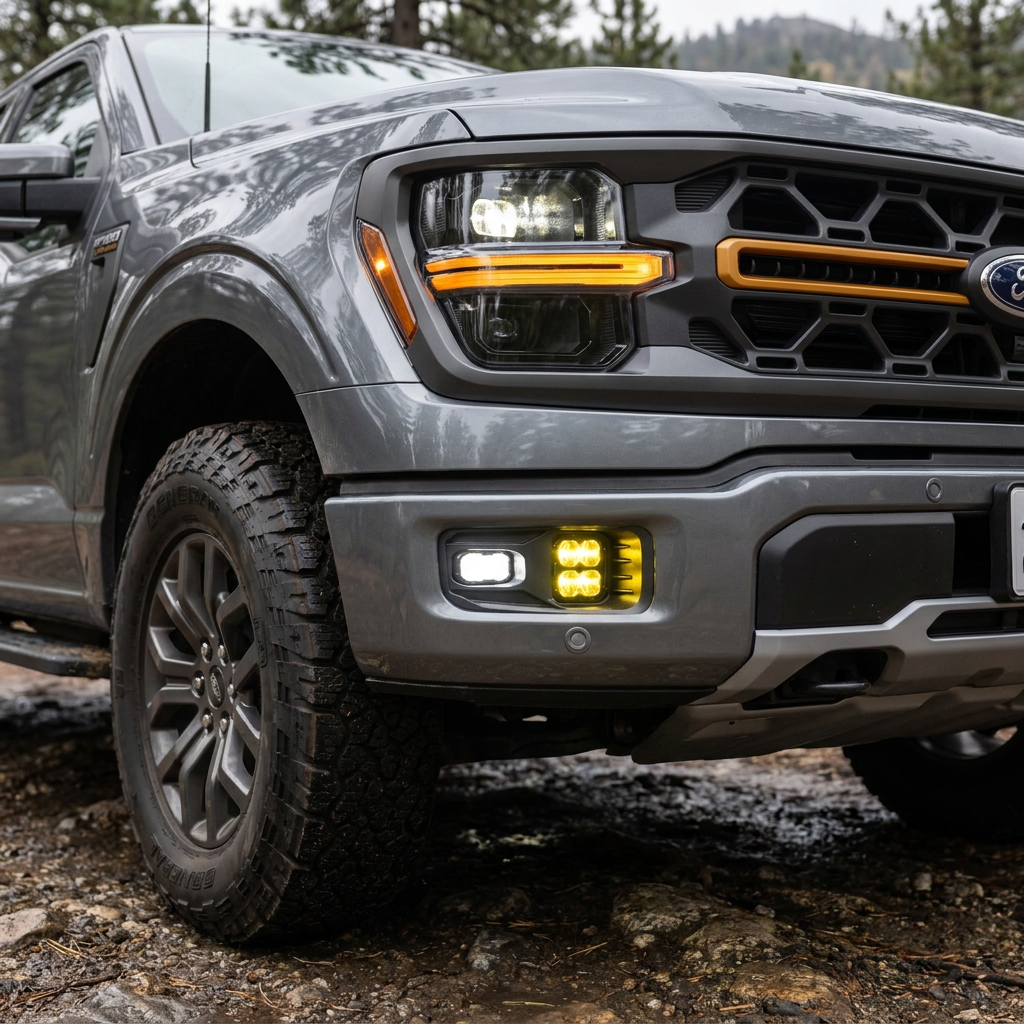

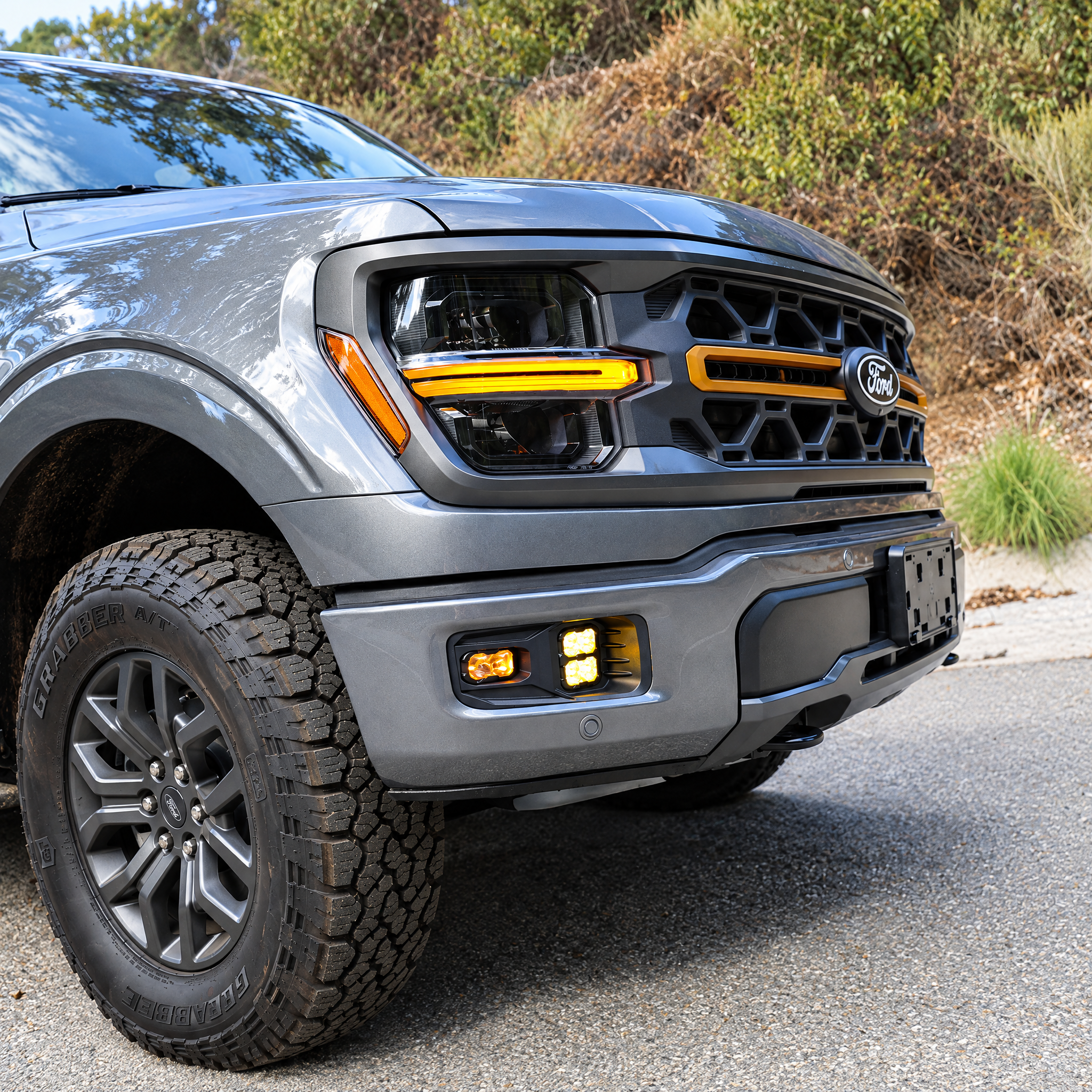

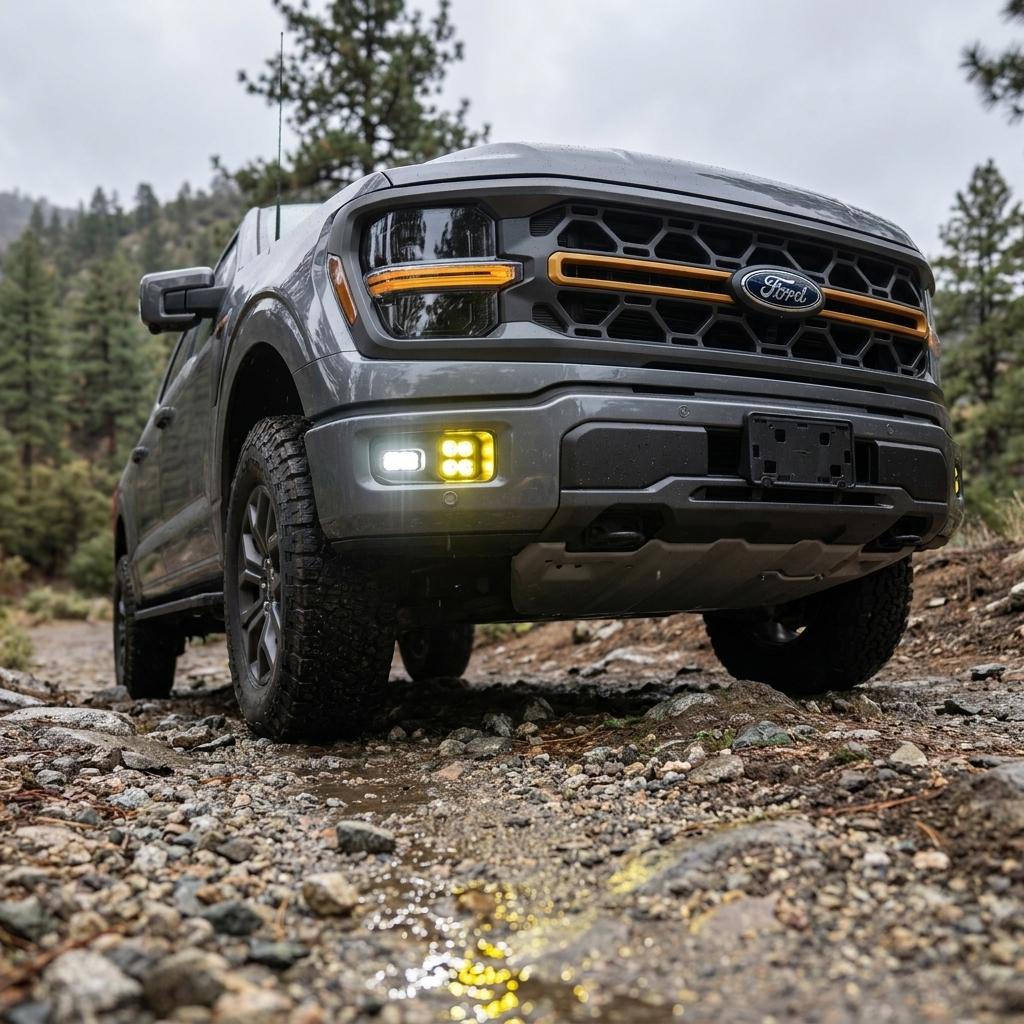

The 20W and 40W pod colors are selected separately, so they do not have to match. You can run white on both pairs, yellow on both pairs or mix white and yellow.

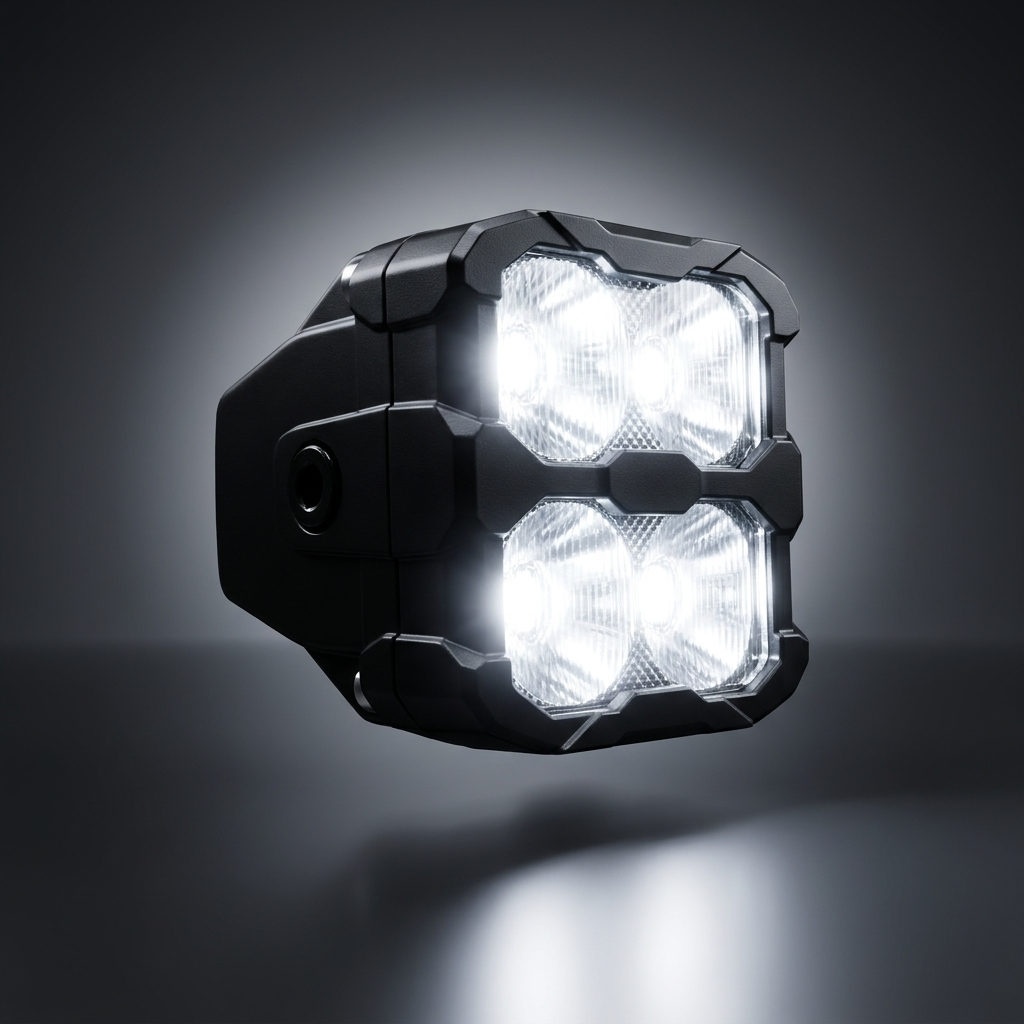

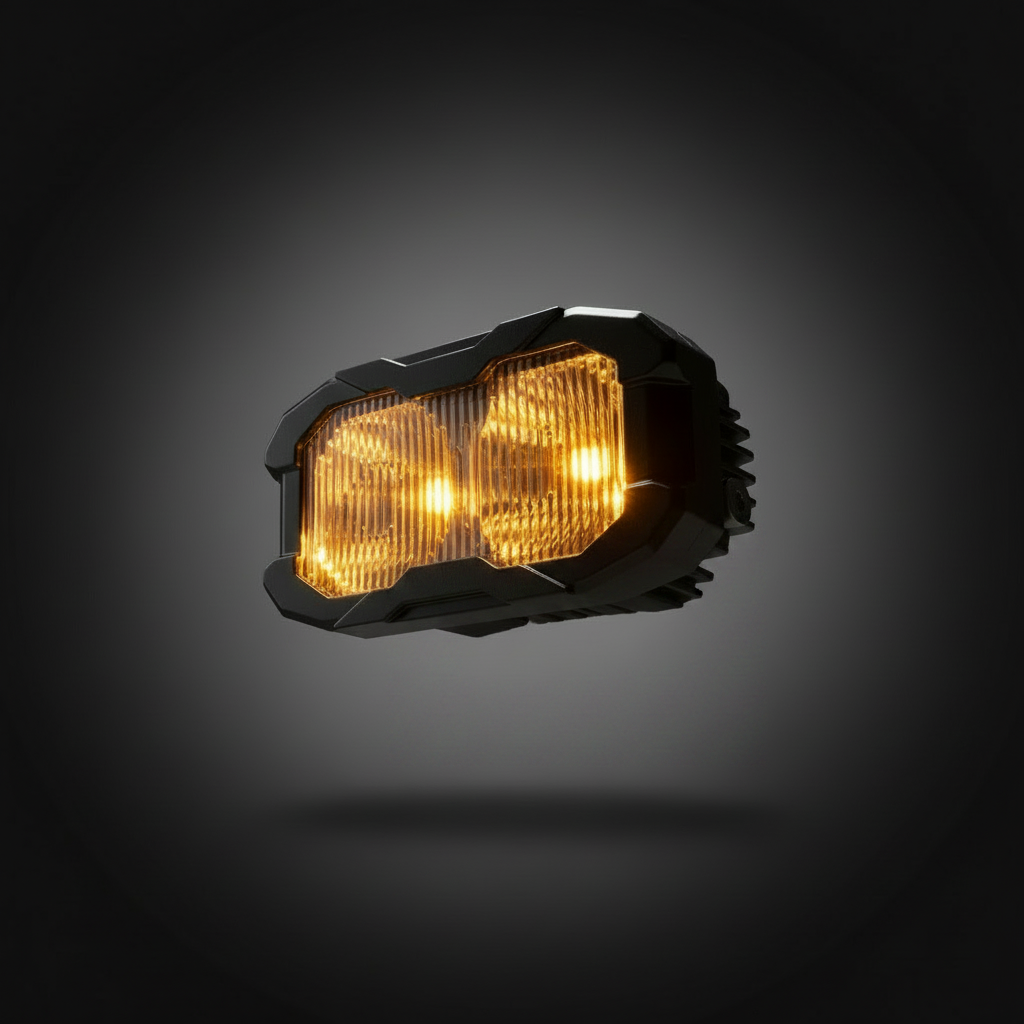

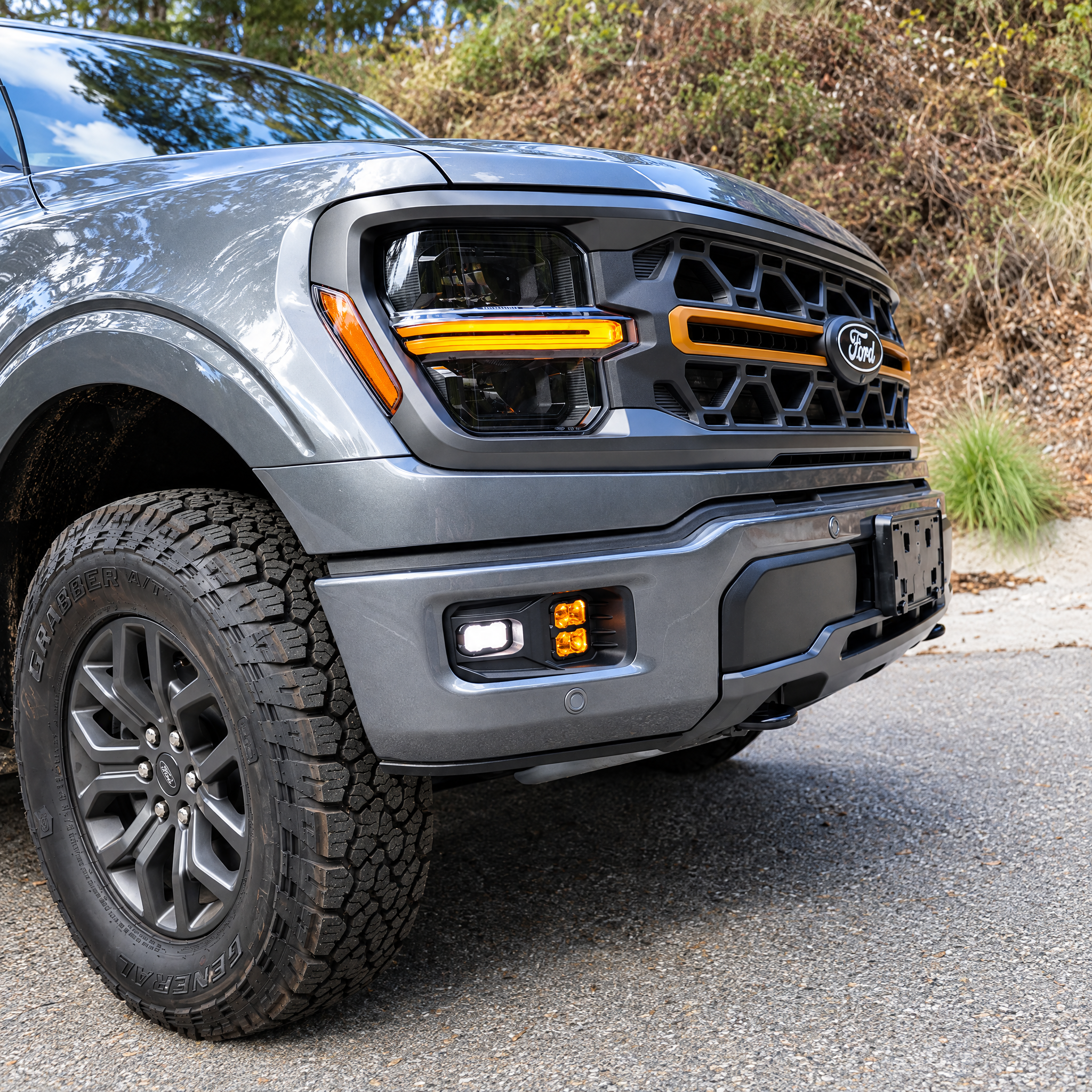

• White with Amber DRL: Crisp white main light with a separate amber daytime running light backglow

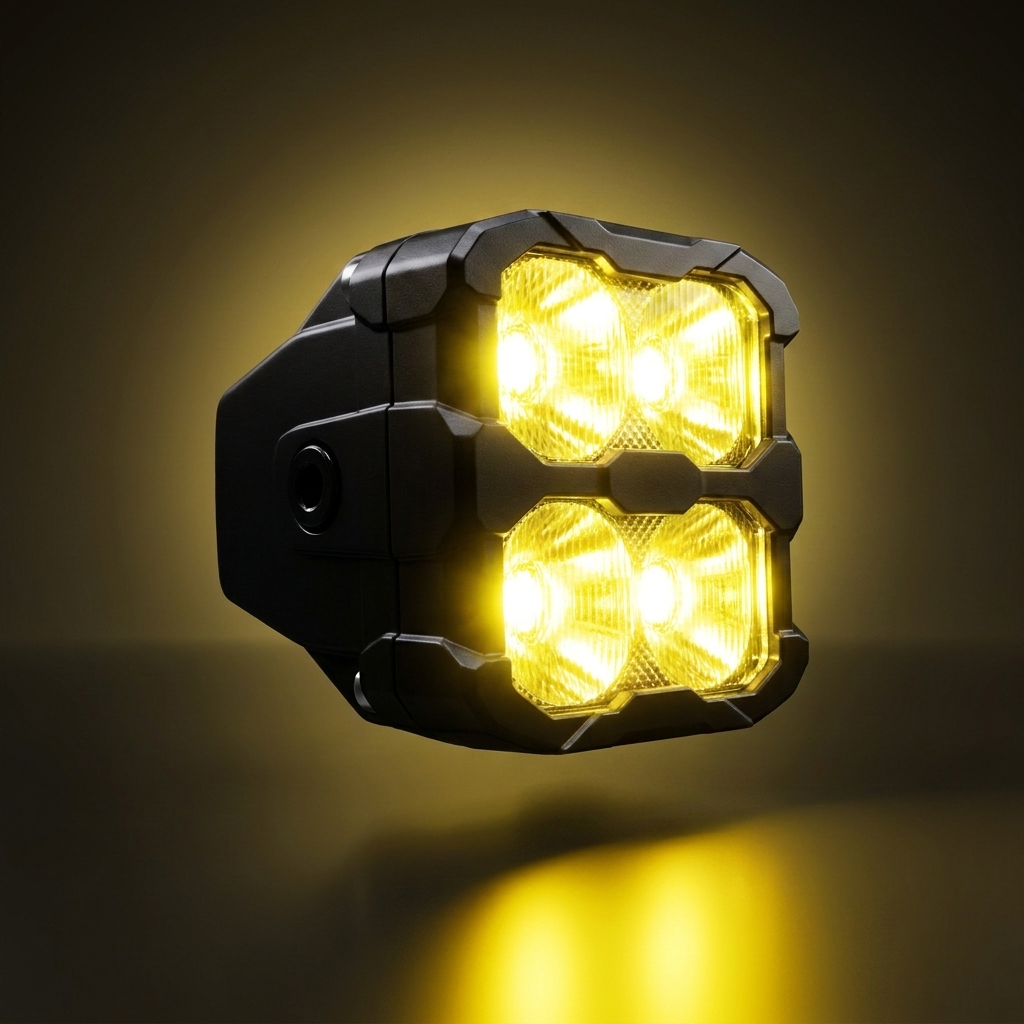

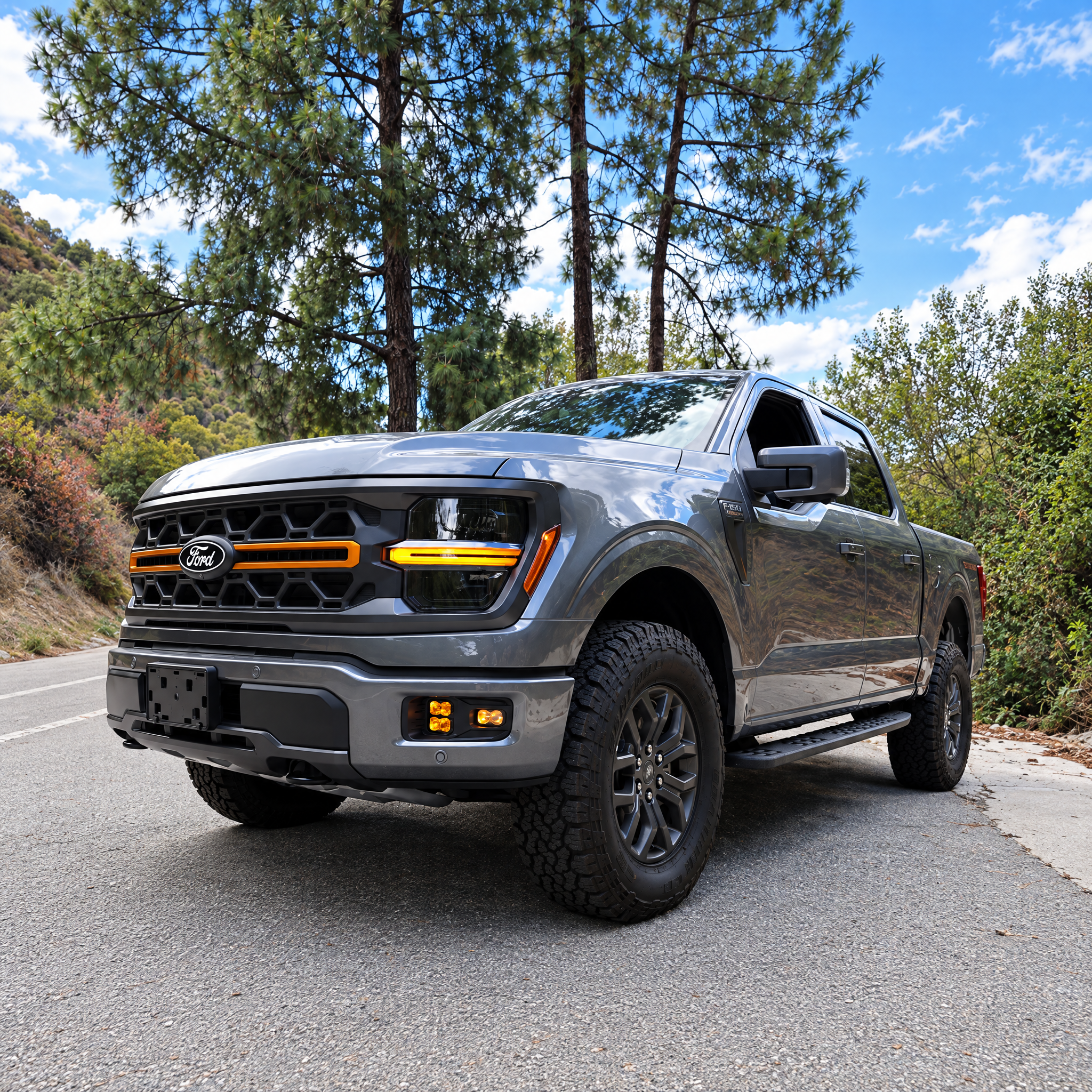

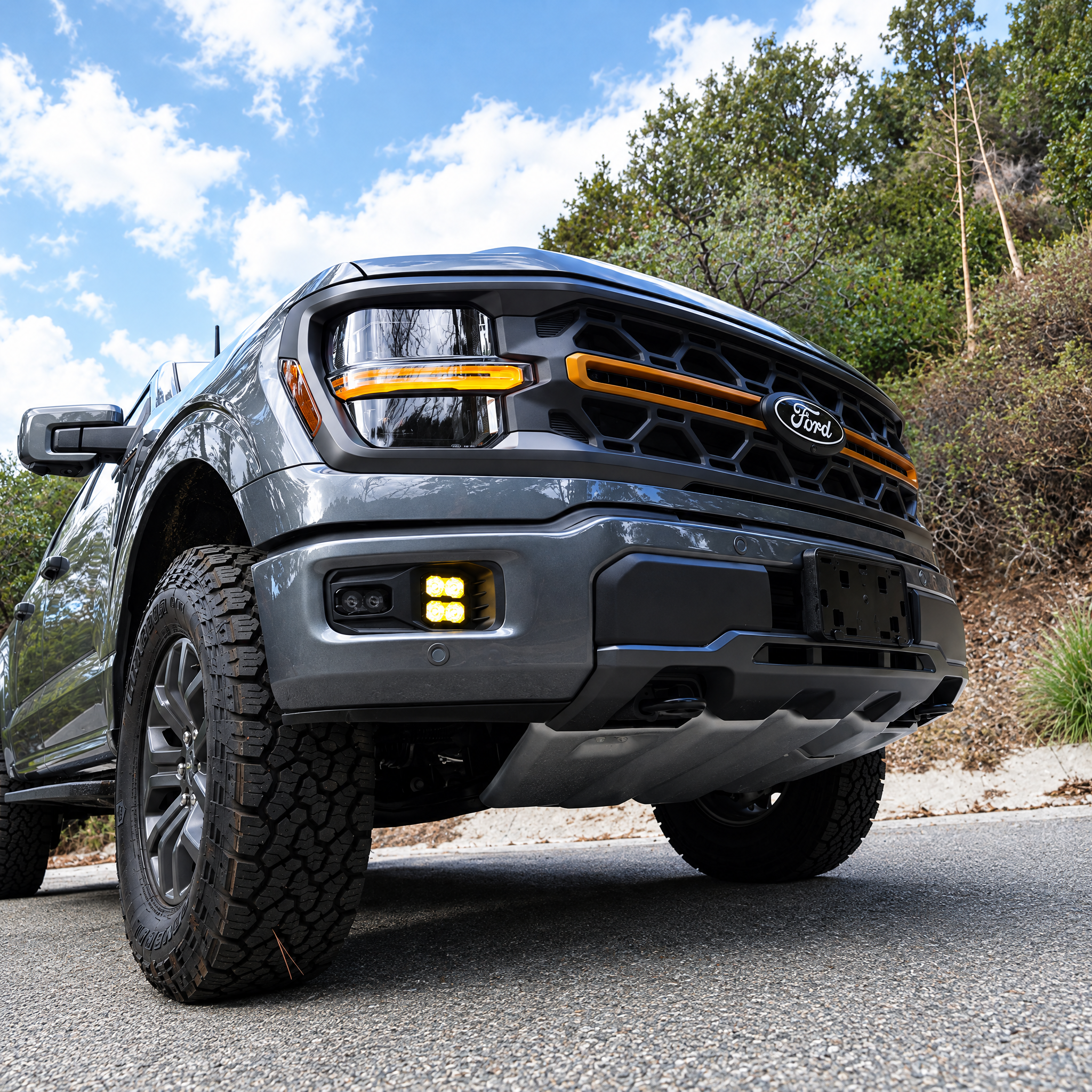

• Yellow with Amber DRL: Yellow main light for better contrast in dust, fog, rain and snow, plus the same amber backglow

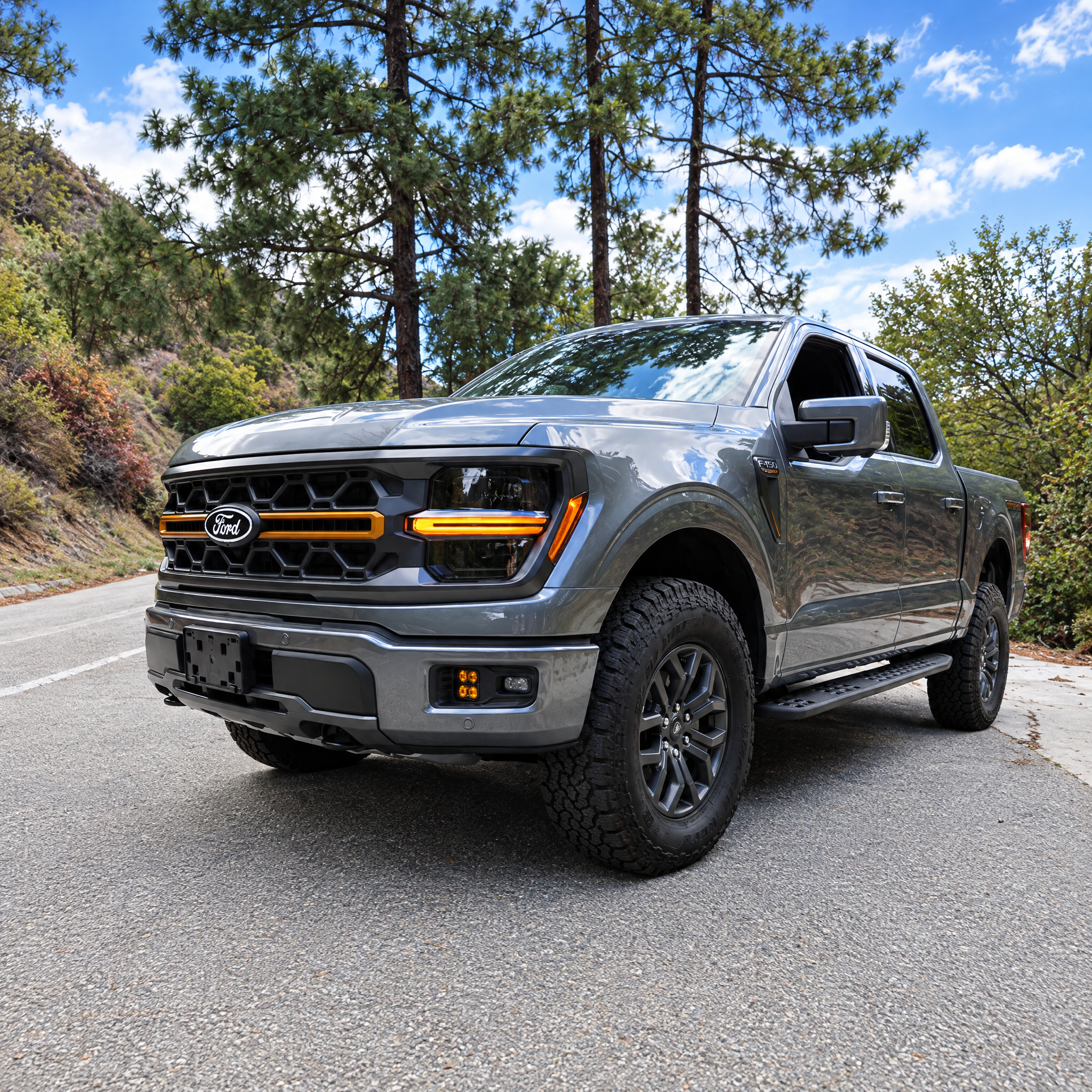

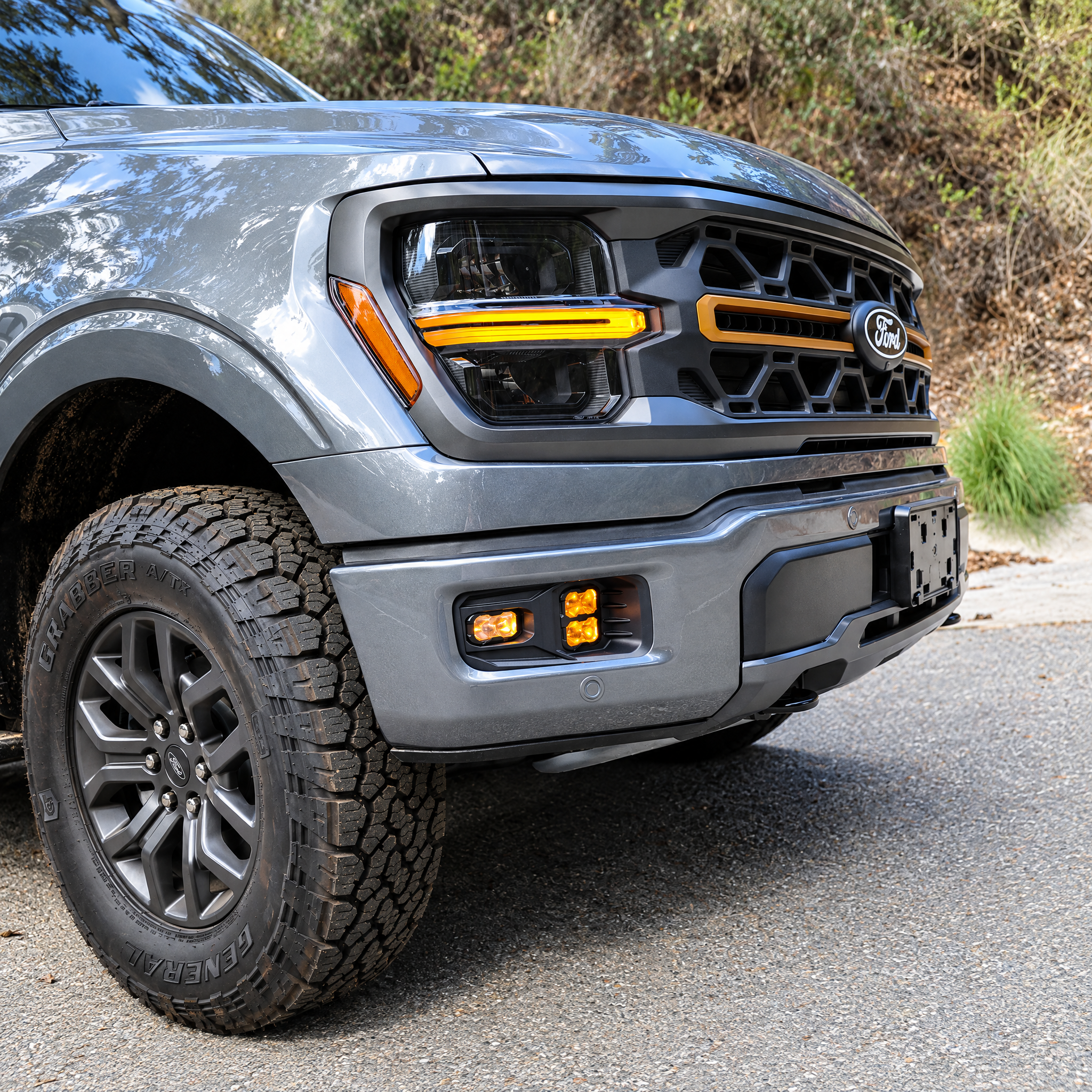

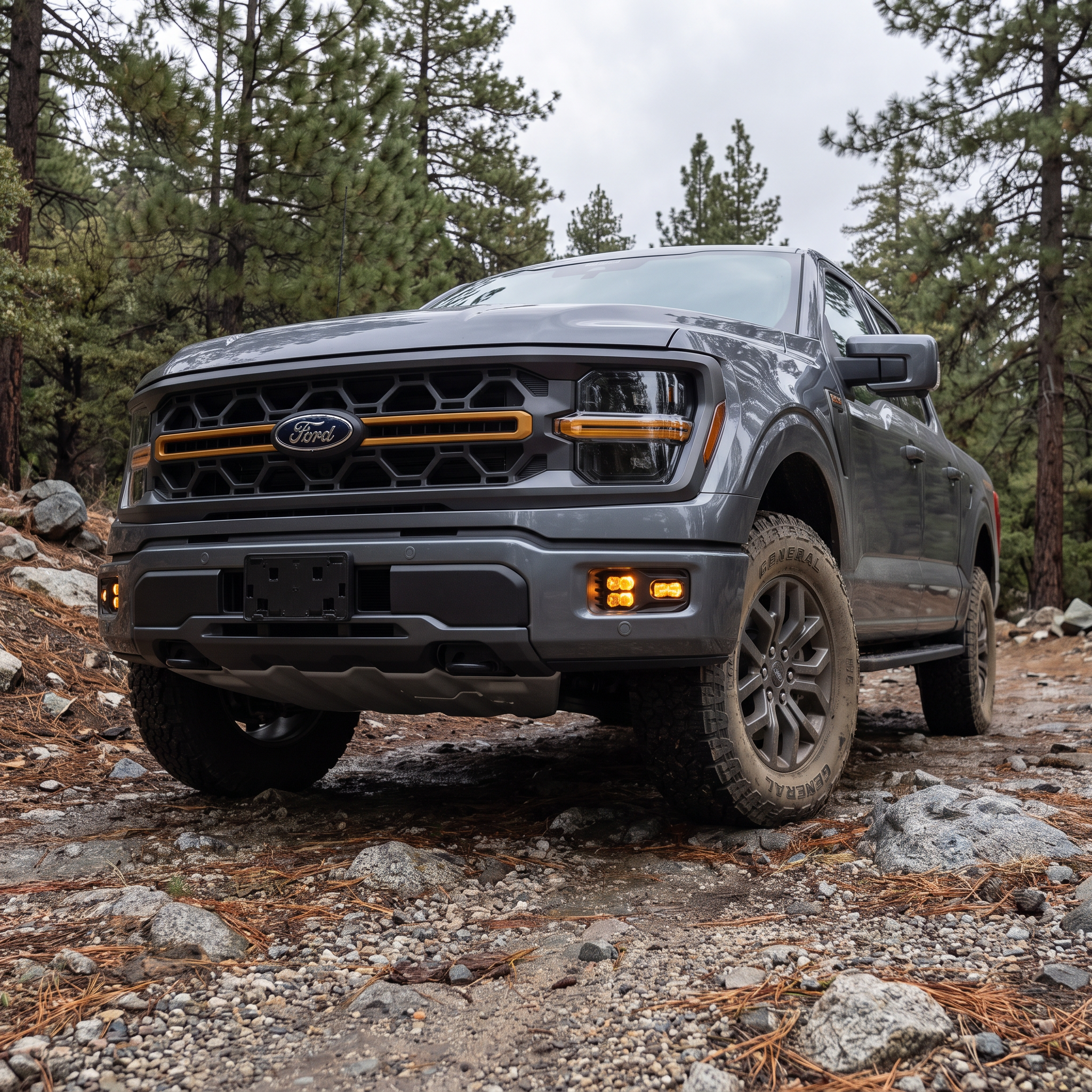

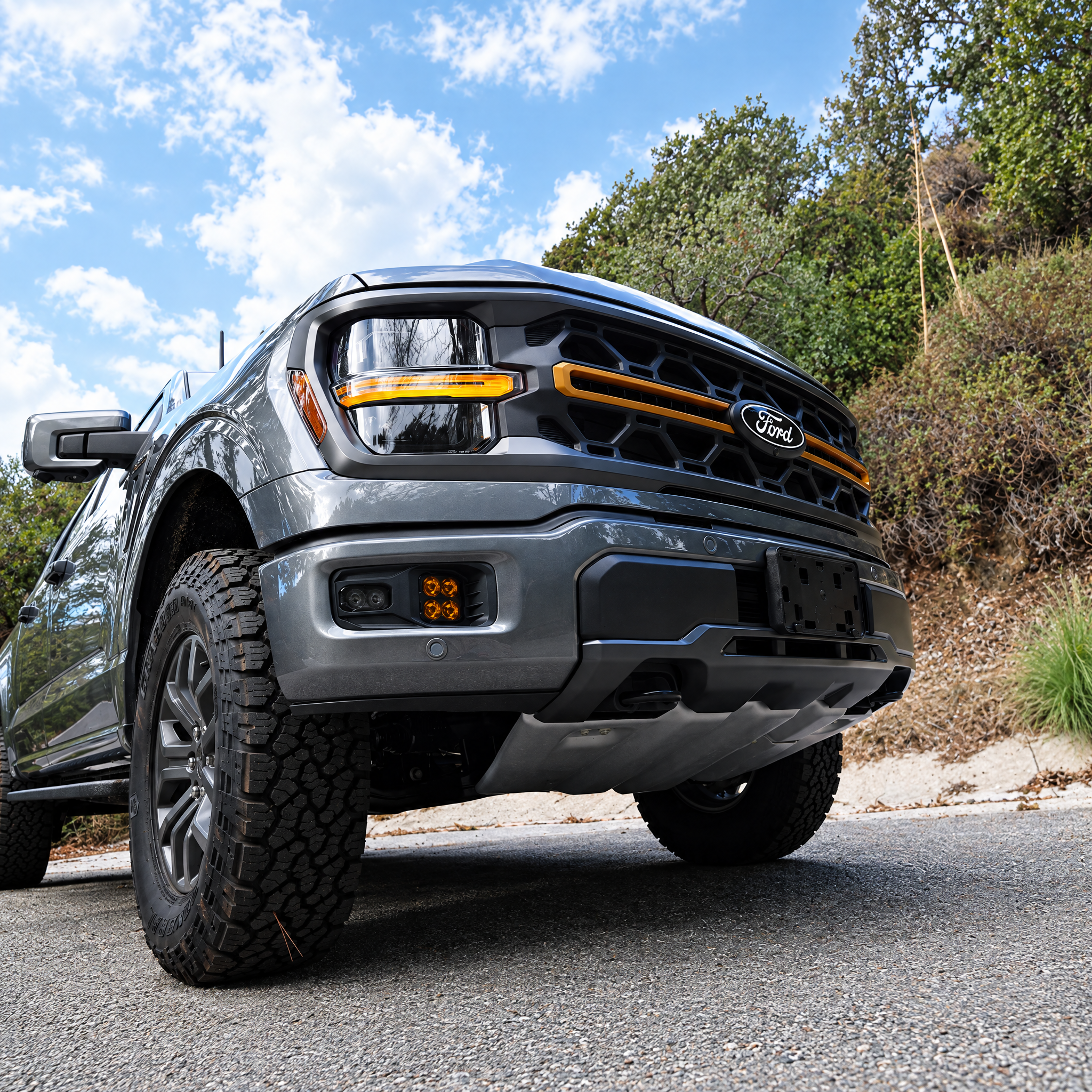

• Amber DRL: A low-output accent light that adds an amber glow without functioning as the main forward light

Off-Road Use Only: The high-output white and yellow main beams are bright enough to blind oncoming drivers and are not intended for use on public roads.

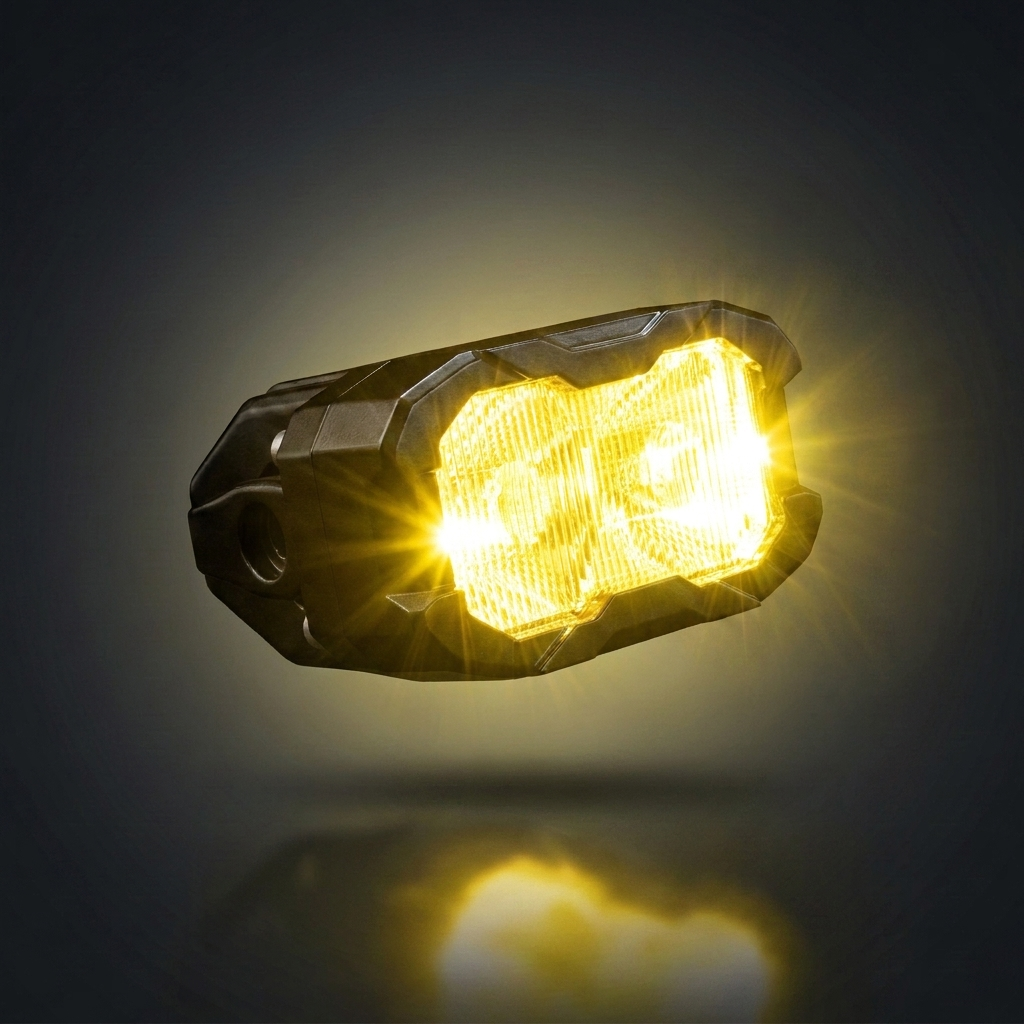

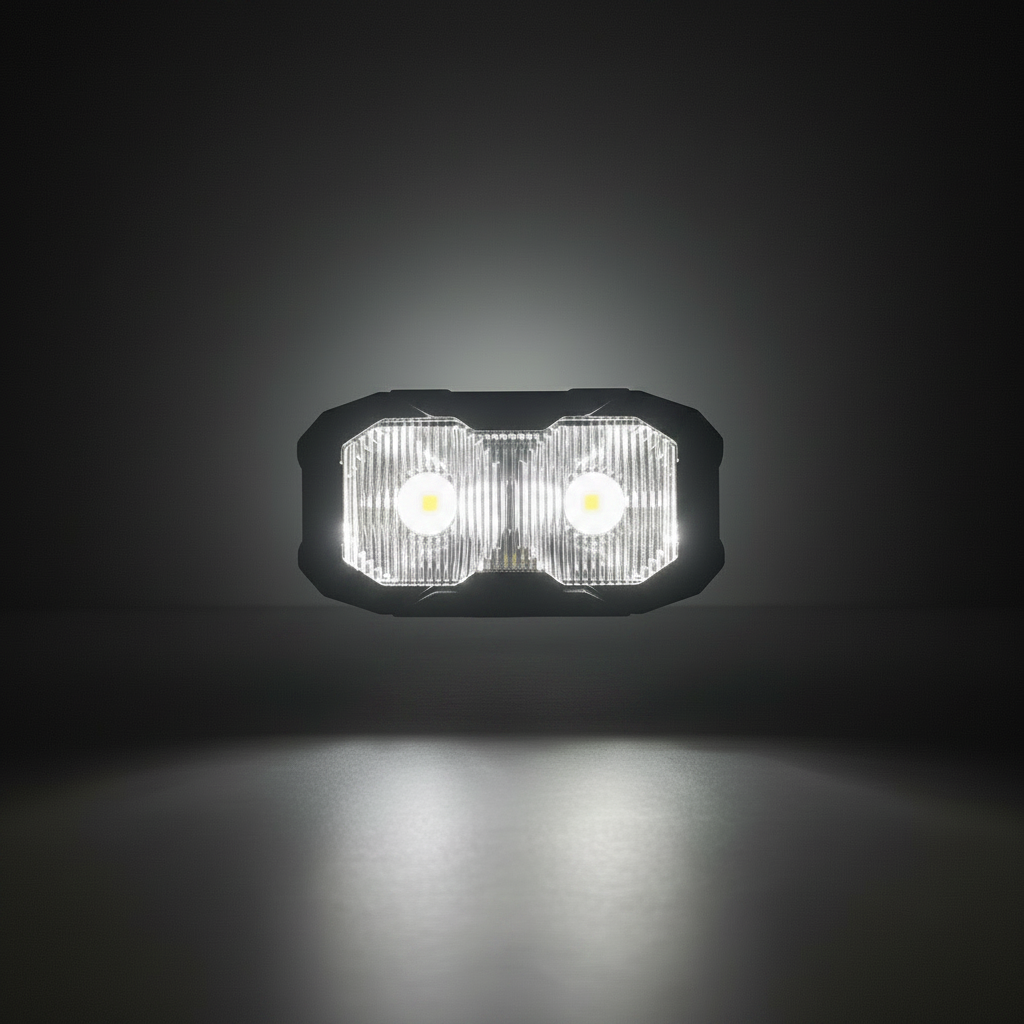

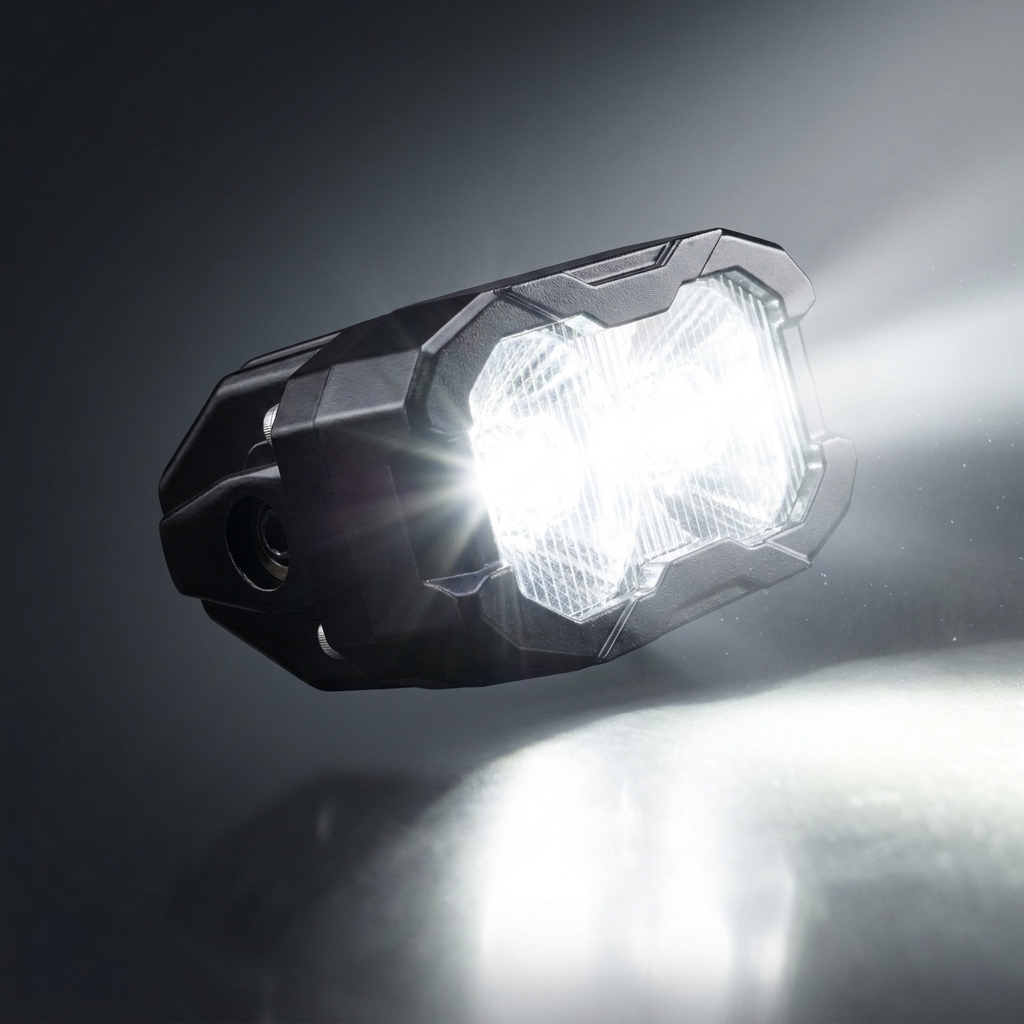

20W PRO Pod Specifications

• Beam pattern: Flood
• Actual power: 19.8 watts per pod
• Theoretical maximum power: 20 watts per pod
• Main-light current draw: 2.06 amps per pod at 12 volts
• Amber DRL current draw: 0.03 amps per pod at 12 volts
• Theoretical maximum output: 2,184 lumens per pod
• Measured output without lens: 1,970 lumens per pod
• Measured output with lens: 1,474 lumens per pod
• LED type: Two Luminus SST-20 LEDs per pod
• White-light color temperature: 6000K
• Dimensions: 3.25 × 1.69 × 2.78 inches

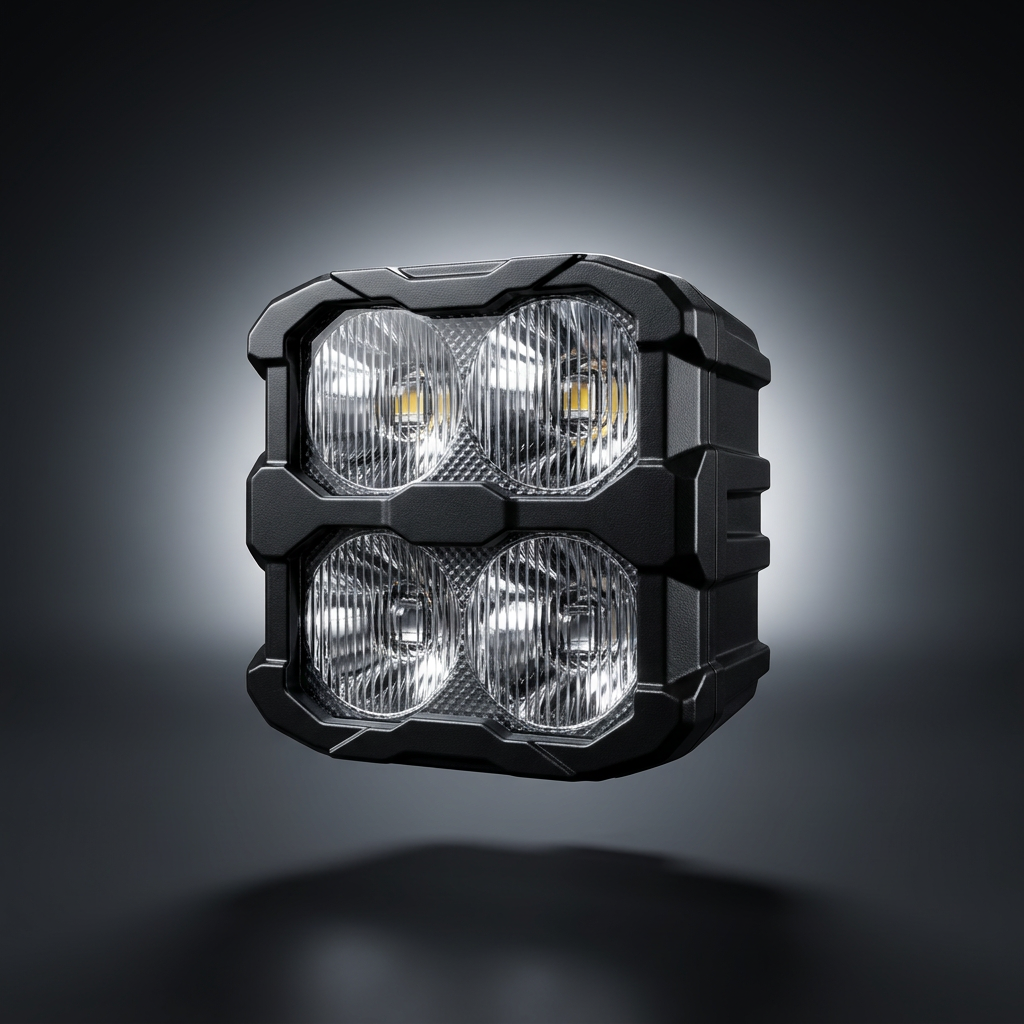

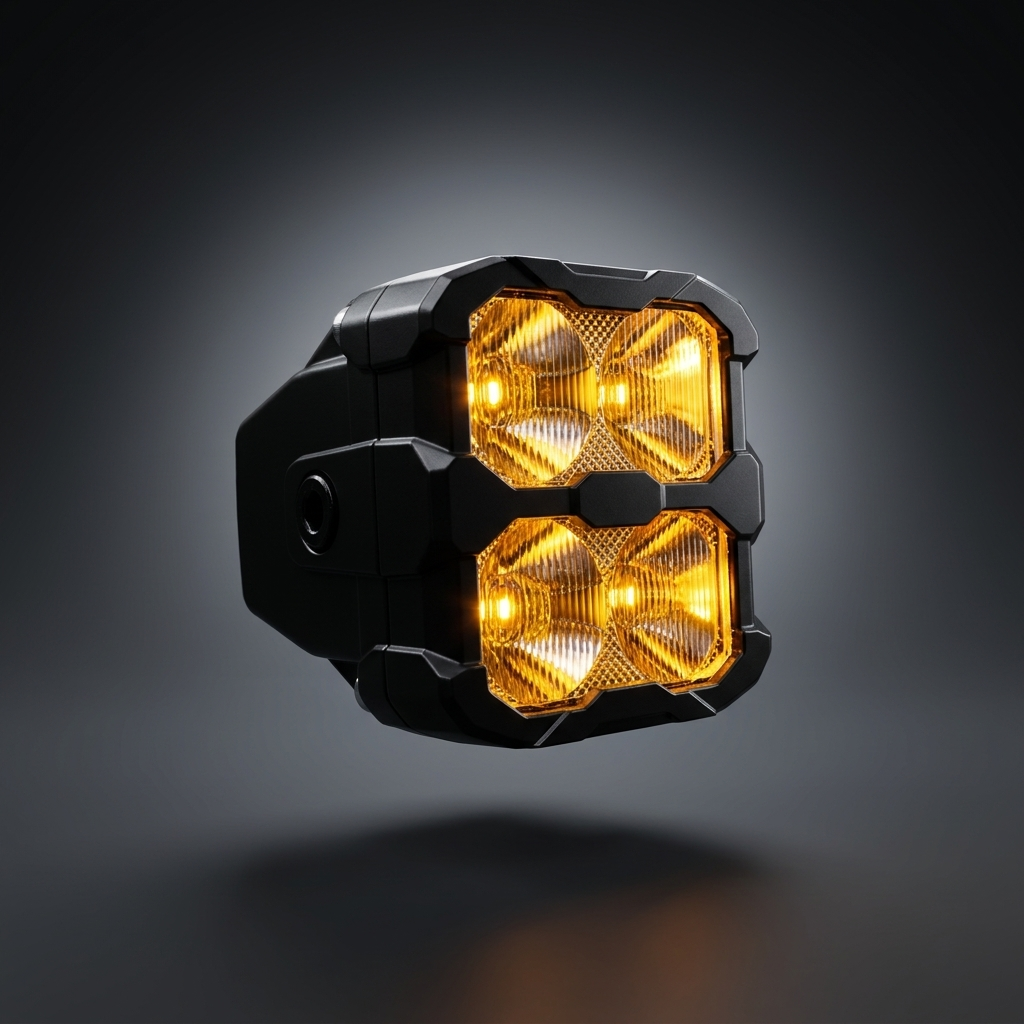

40W PRO Pod Specifications

• Beam pattern: Driving
• Actual power: 39.2 watts per pod
• Theoretical maximum power: 40 watts per pod
• Main-light current draw: 3.30 amps per pod at 12 volts
• Amber DRL current draw: 0.07 amps per pod at 12 volts
• Theoretical maximum output: 4,368 lumens per pod
• Measured output without lens: 3,940 lumens per pod
• Measured output with lens: 2,949 lumens per pod
• LED type: Four Luminus SST-20 LEDs per pod
• White-light color temperature: 6000K
• Dimensions: 3.25 × 3.15 × 2.78 inches

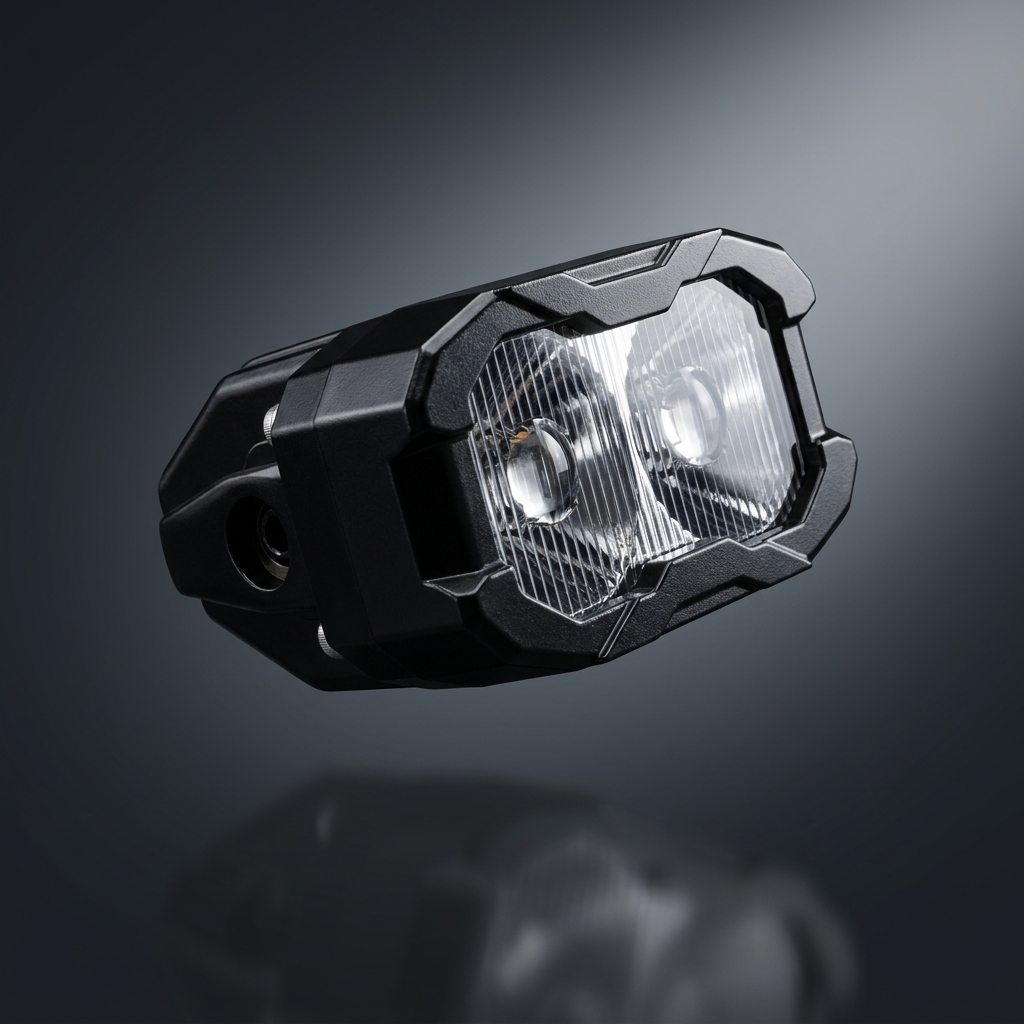

Pod Construction

• TIR optics help direct the light forward while reducing wasted light and glare
• Aluminum housings with UV-resistant polyester powder coating
• Resistant to corrosion, fading, scratches and weather exposure
• Built-in thermal management adjusts output based on outside temperature
• IP68-rated construction
• Rated lifespan of up to 50,000 hours

ASA-GF Fog Light Shrouds

• Vehicle-specific shape for the standard F-150 Tremor bumper
• Made from glass-fiber-reinforced ASA
• UV and weather resistant
• Designed to handle heat, vibration and outdoor exposure
• More rigid and heat stable than common PLA or PETG printed parts
• OEM-style finish that fits into the factory fog light openings

What's Included

• Two 20W M&R PRO LED pods
• Two 40W M&R PRO LED pods
• Two metal mounting brackets
• Driver- and passenger-side ASA-GF fog light shrouds
• Wiring harness connecting both sides of the kit
• Two H11 factory fog light adapters
• Required mounting hardware

Wiring Information

• The included H11 adapters plug into the factory fog light connectors, allowing one pod circuit to be controlled by the factory fog light switch.
• The included wiring harness connects the driver and passenger sides and extends into the engine bay for the truck's auxiliary-switch wiring.
• The 20W pair, 40W pair and amber DRLs can be controlled independently.
• Pod wiring colors: red for the white or yellow main light, black for ground and white for the amber DRL.
• Trucks without factory auxiliary switches will need an additional switch harness or the separately available M&R wireless harness.

Important Wiring Note: Do not connect the main output from all four pods to one factory fog light or auxiliary-switch circuit. The four main lights draw approximately 10.7 amps together. Keep the 20W pair and 40W pair on separate circuits. All four low-draw amber DRLs can share one circuit.

Watch the Wiring Video

Here is a wiring video from M&R Automotive showing how the fog light pod circuits can be connected and controlled.

Pairs Well With

• Eibach Pro-Truck Lift Kit for Ford F-150 14th Gen – Add ground clearance and improve suspension control on a Tremor that sees regular trail use.
• Oracle Flush-Mount LED Tail Lights for Ford F-150 – Complete the lighting upgrades with low-profile LED tail lights for 2024–2025 F-150 models.

About M&R Automotive

M&R Automotive builds vehicle-specific off-road lighting kits for trucks and SUVs. Their kits combine LED pods or light bars with brackets, shrouds and wiring made for the vehicle, giving you a cleaner installation than piecing together universal lights and mounts.
