Granatelli Electric Exhaust Cutout Kit 2.25" / 2.5" / 3" Stainless Slip-Fit - Single or Dual

If you want the car to run through the mufflers most of the time but get loud when you feel like opening up the exhaust, this Granatelli electric cutout gives you both from one rocker switch. Close the valve and the exhaust follows its normal path. Open it and the exhaust exits through the stainless turndown ahead of the mufflers for a much louder and more direct exhaust sound.

The Smart-Chip rocker switch opens or closes the valve with one touch and stops the motor automatically. You don't have to hold the switch down and risk driving the gears against the stop. Choose the size that matches your exhaust tubing, then select a single kit for one exhaust pipe or a dual kit for a true dual exhaust.

Fitment Information

• Custom exhaust systems using 2.25-inch, 2.5-inch or 3-inch round tubing
• Match the cutout size to the outside diameter of the exhaust pipe at the installation point
• Single kit: One cutout for a single-exit exhaust or a dual exhaust that merges into one pipe
• Dual kit: Two cutouts for a true dual exhaust system, with both valves operated together
• Slip-fit installation requires cutting the existing exhaust but does not require welding
• Check available space, ground clearance and exhaust routing before installation

Size, Configuration & SKU Options

• 2.25" Single Cutout: 302522
• 2.25" Dual Cutouts: 302522D
• 2.5" Single Cutout: 302525
• 2.5" Dual Cutouts: 302525K
• 3" Single Cutout: 302530
• 3" Dual Cutouts: 302530K

Specs & Features

• Electric exhaust cutout with one-touch open and close control
• Smart-Chip rocker switch automatically stops the motor at the fully open or closed position
• Stainless steel slip-fit exhaust piping and clamps

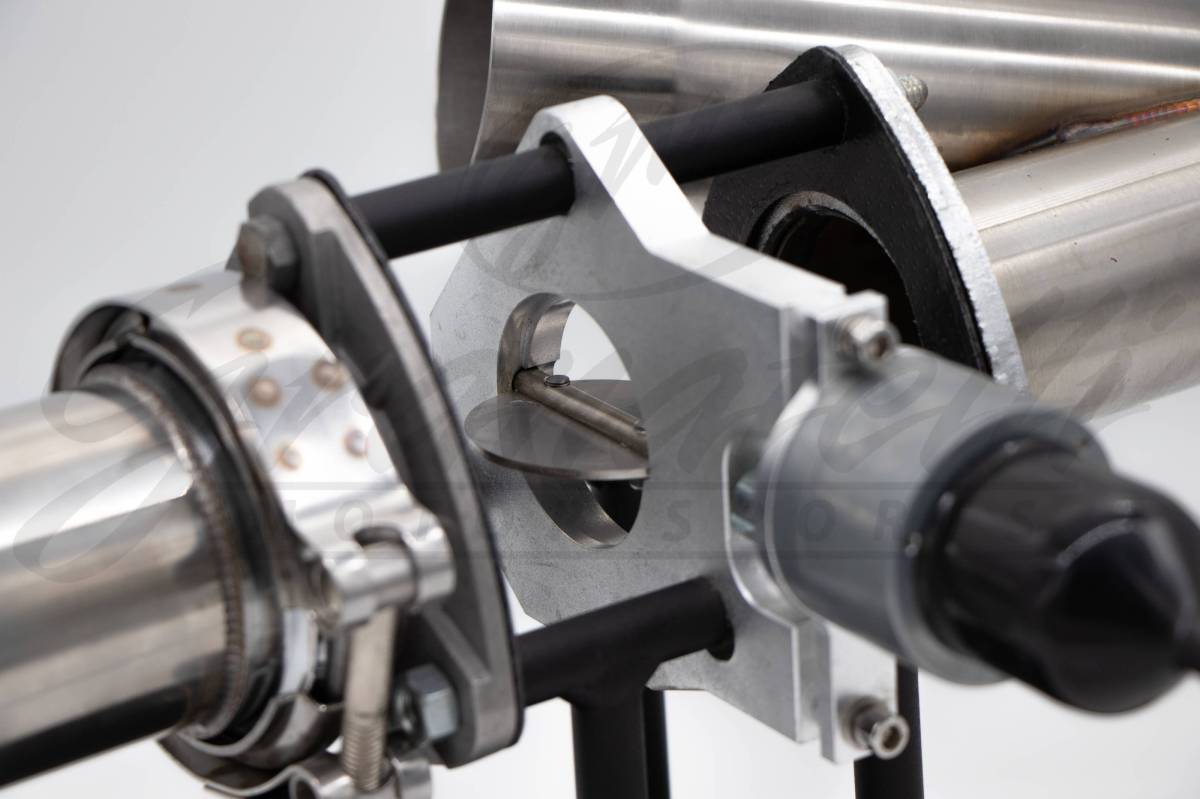

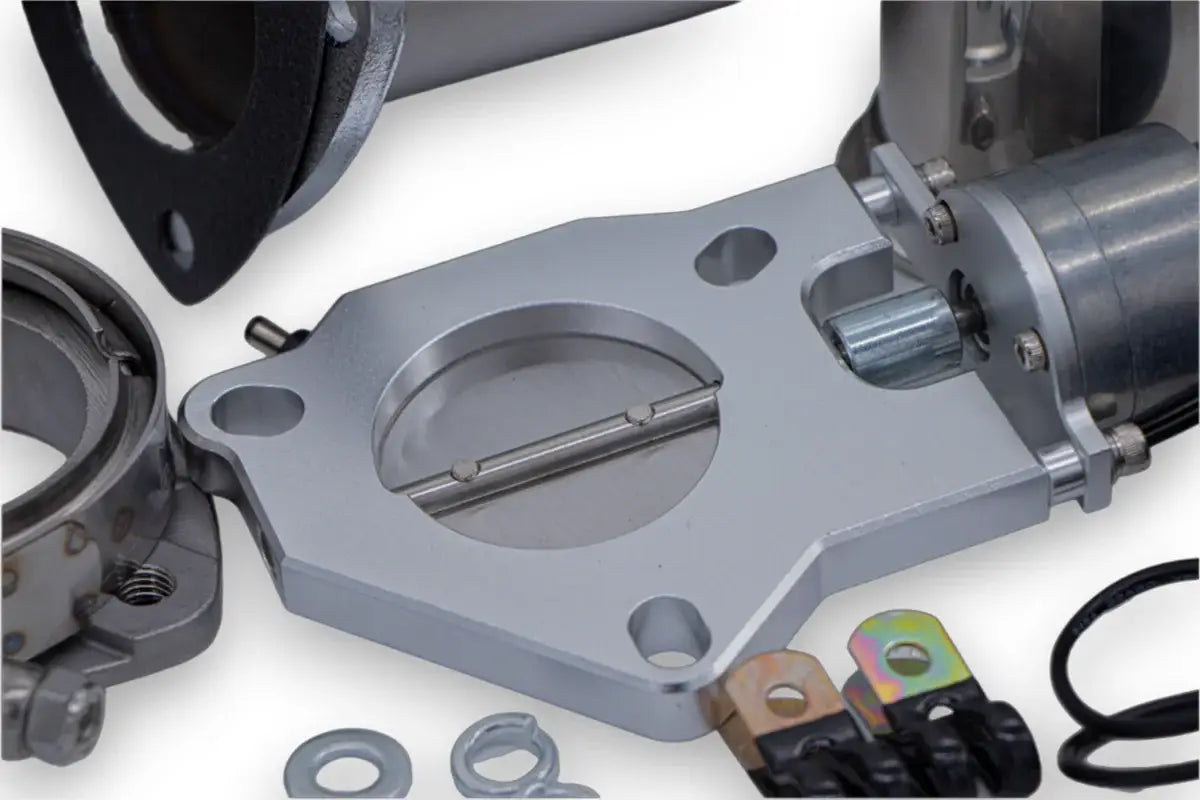

• CNC-machined 6061 aluminum cutout body

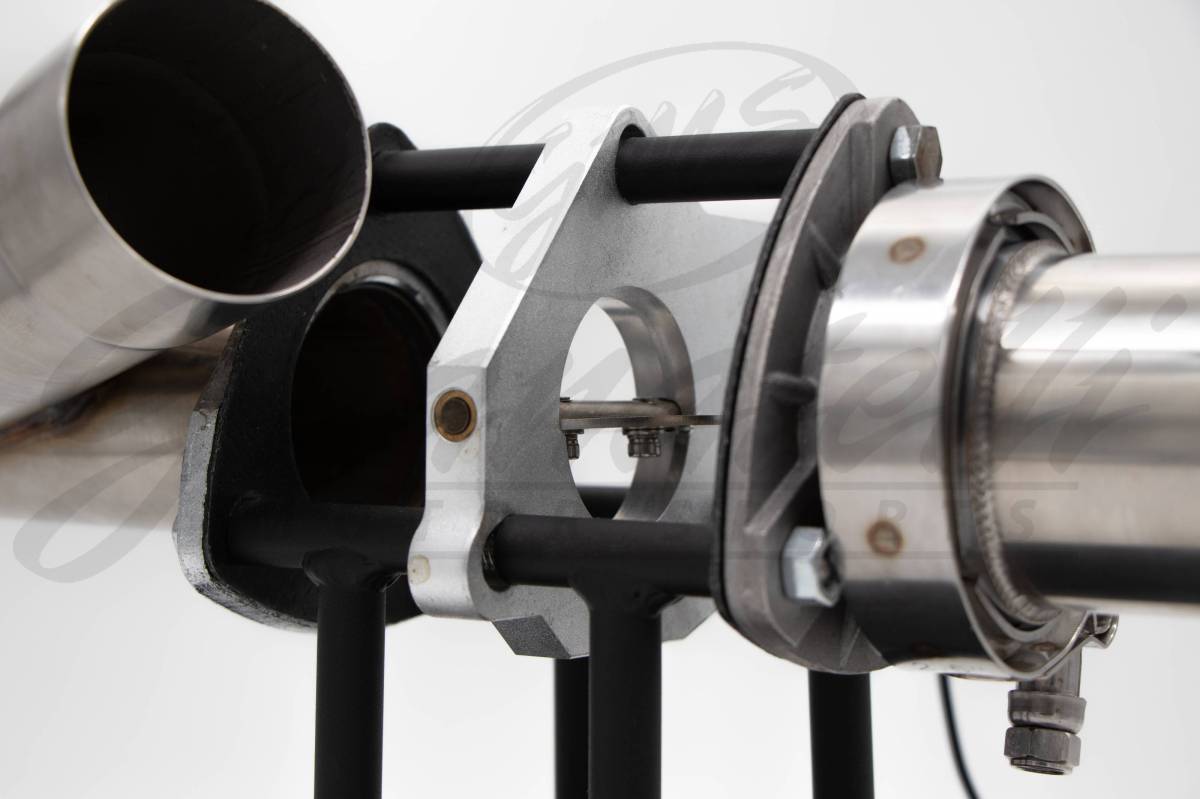

• Stainless steel butterfly plate and shaft
• High-temperature carbon-steel drive gears
• High-torque DC gear-reduction motor
• Bronze shaft bearings

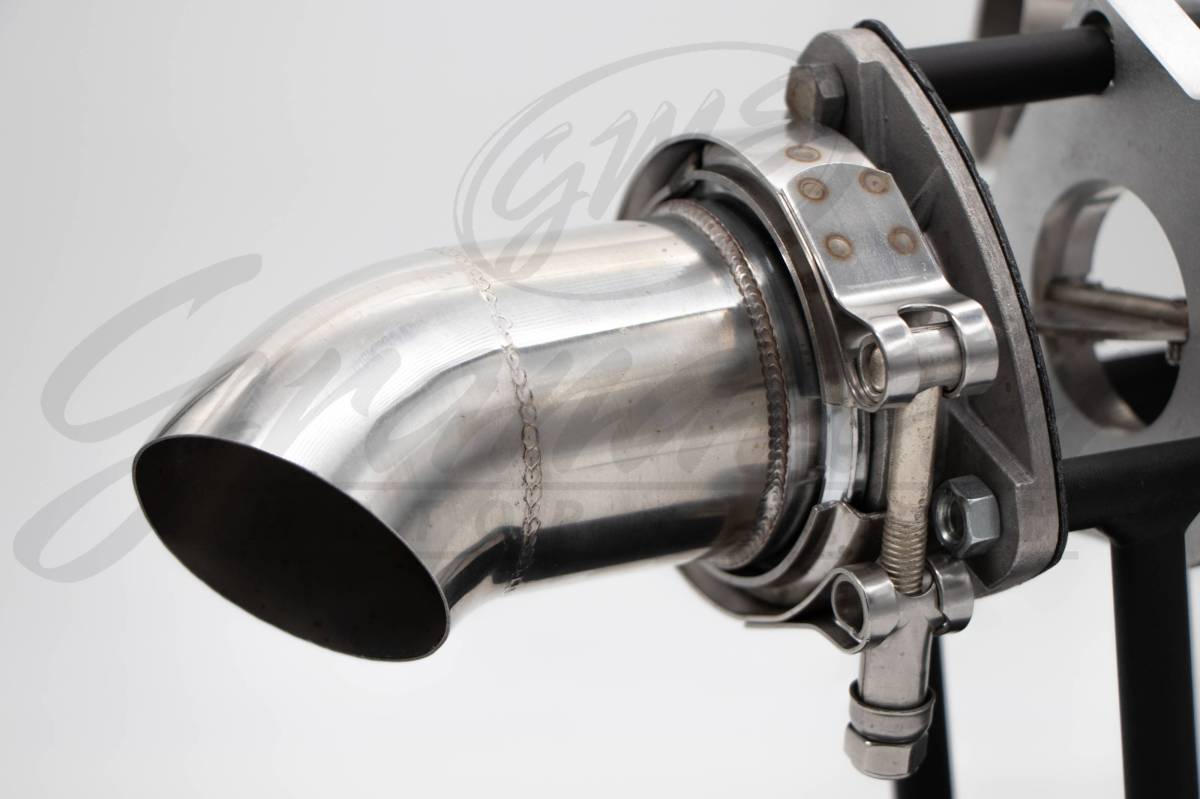

• Polished stainless steel turndown with a 45-degree outlet
• V-band connection lets the turndown rotate 360 degrees
• Plug-and-play wiring connections
• 15-foot wiring connection provides room to route the switch into the interior
• Made in the USA
• 90-day Granatelli manufacturer warranty

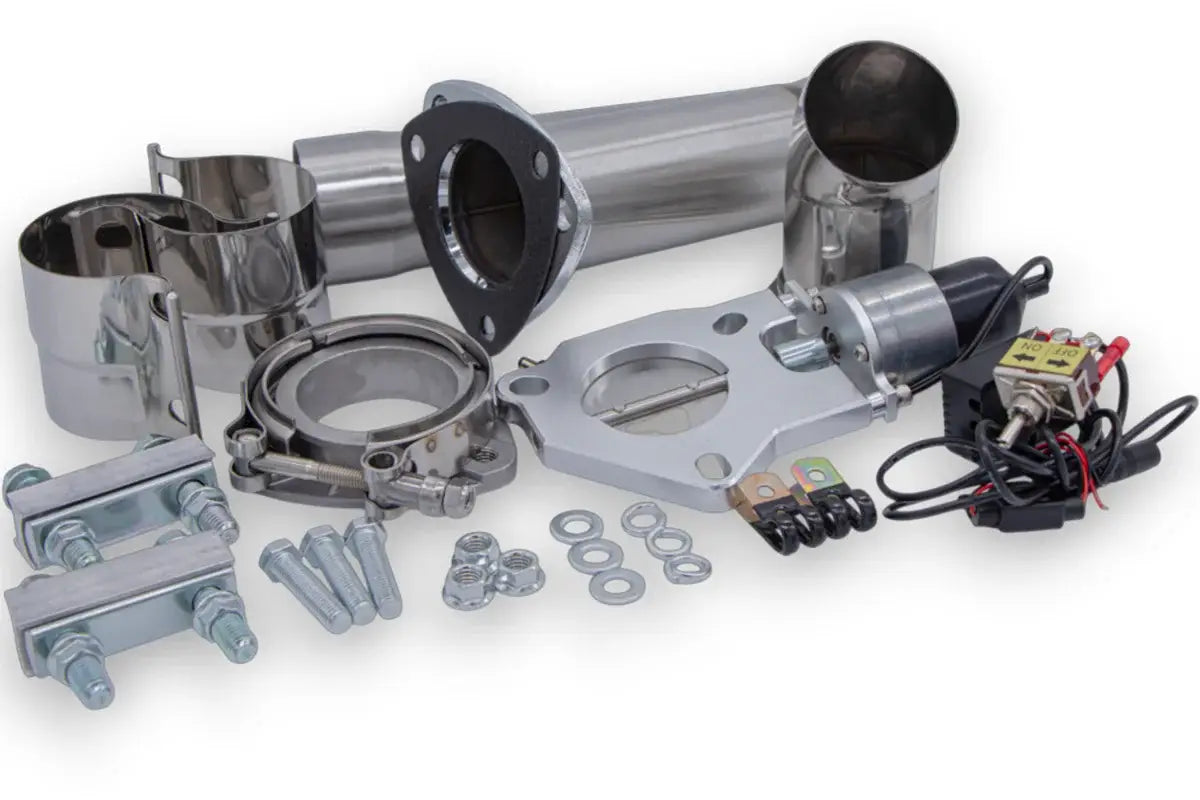

What's Included

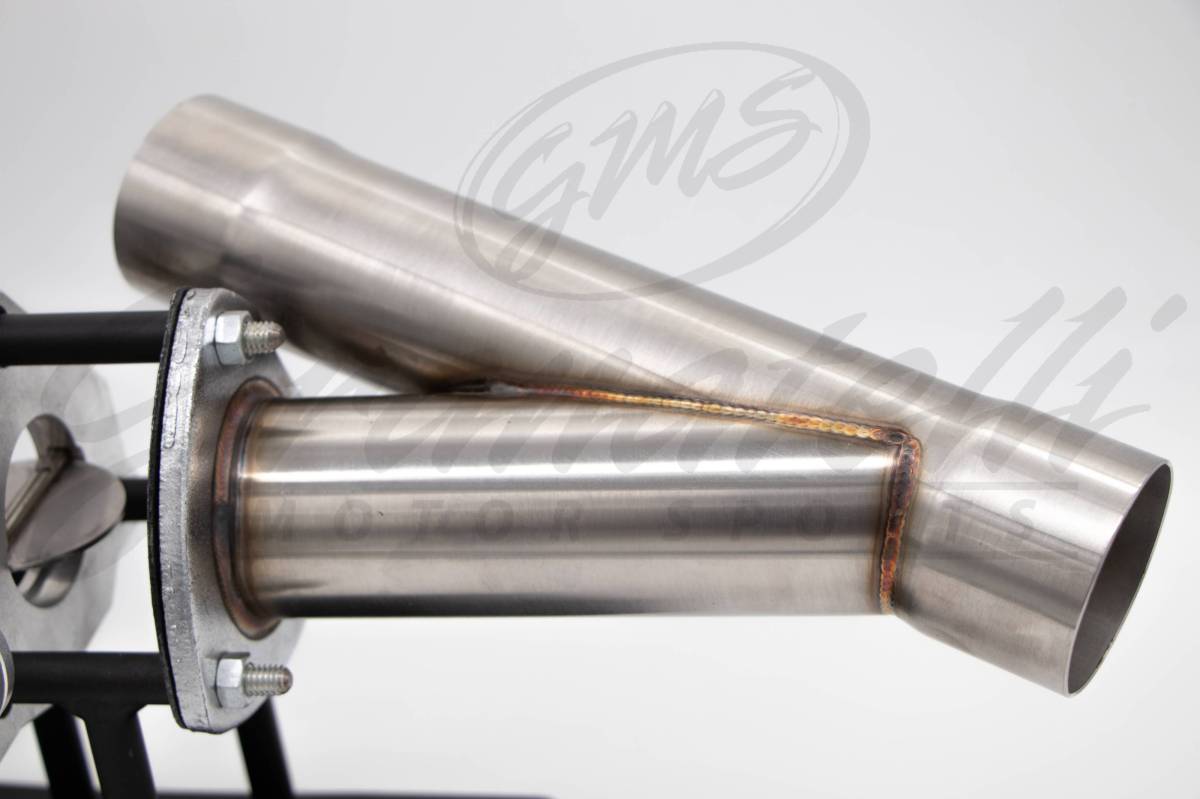

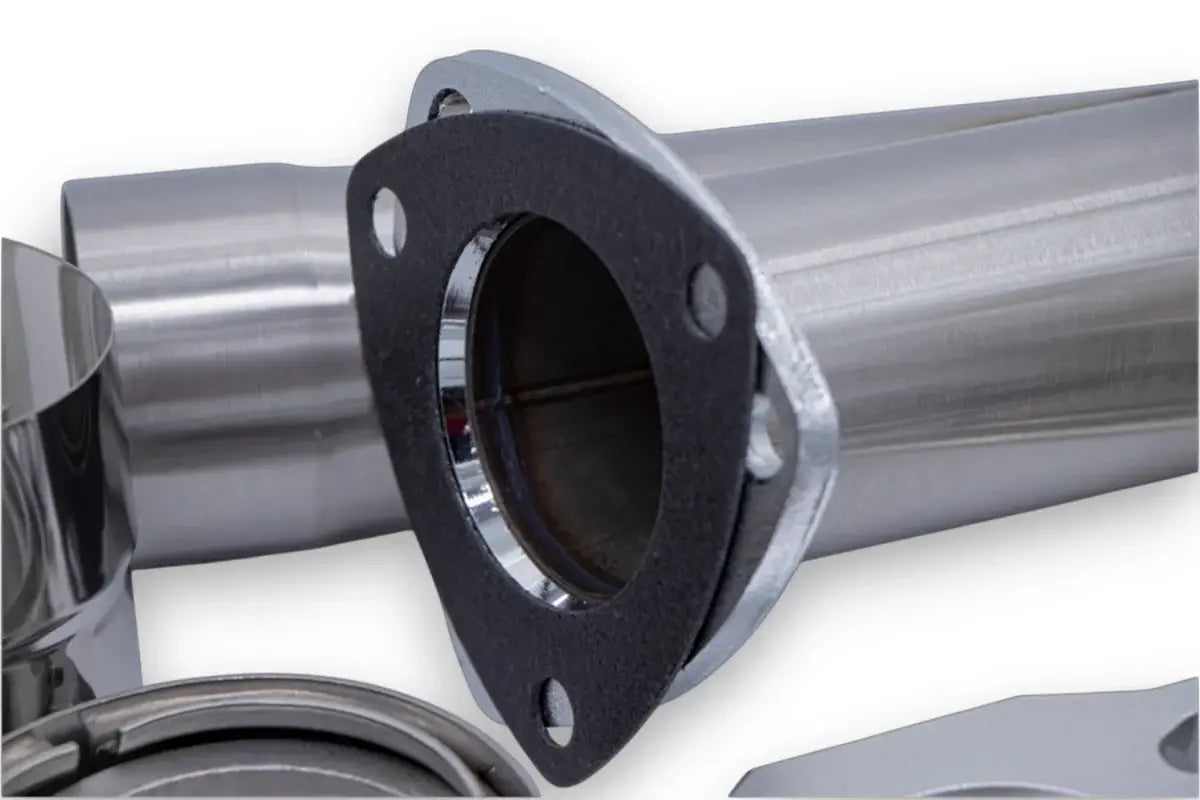

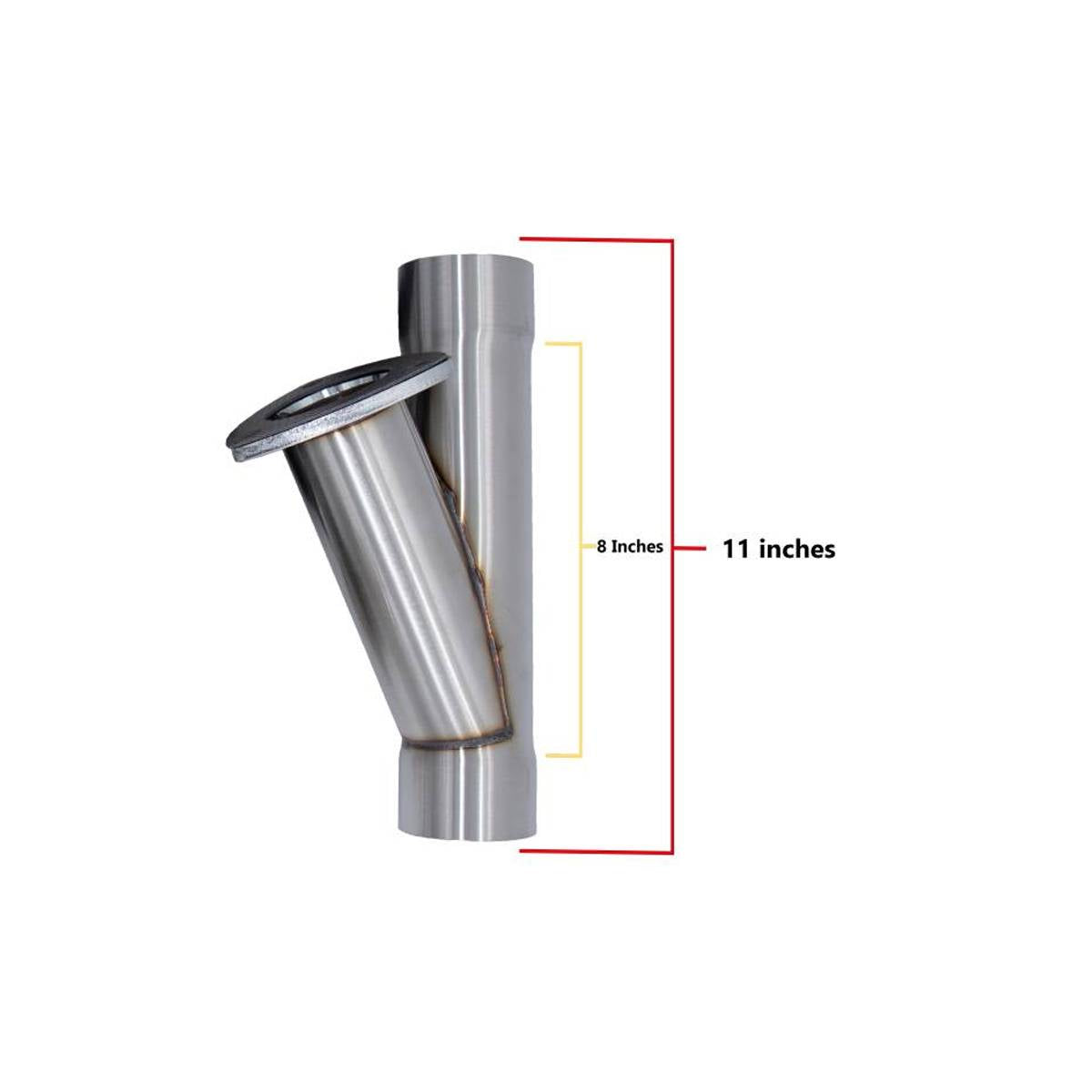

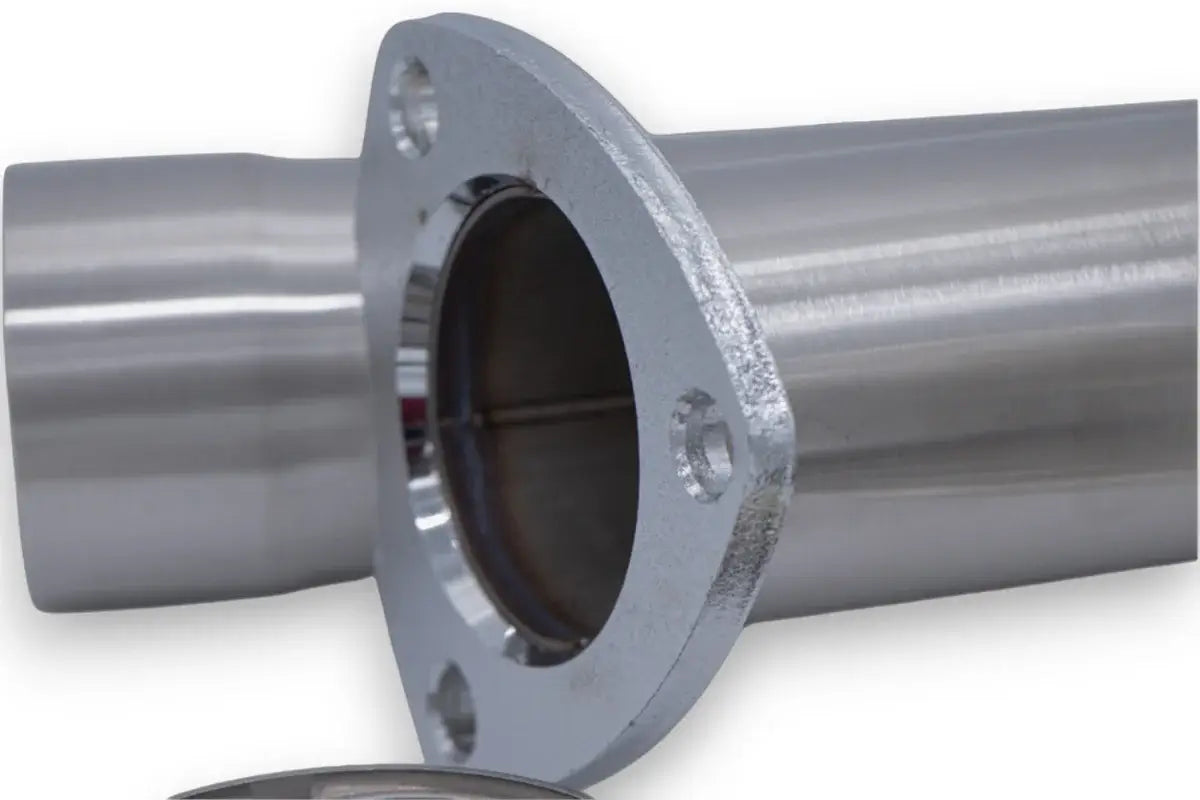

• Stainless steel slip-fit cutout pipe assembly

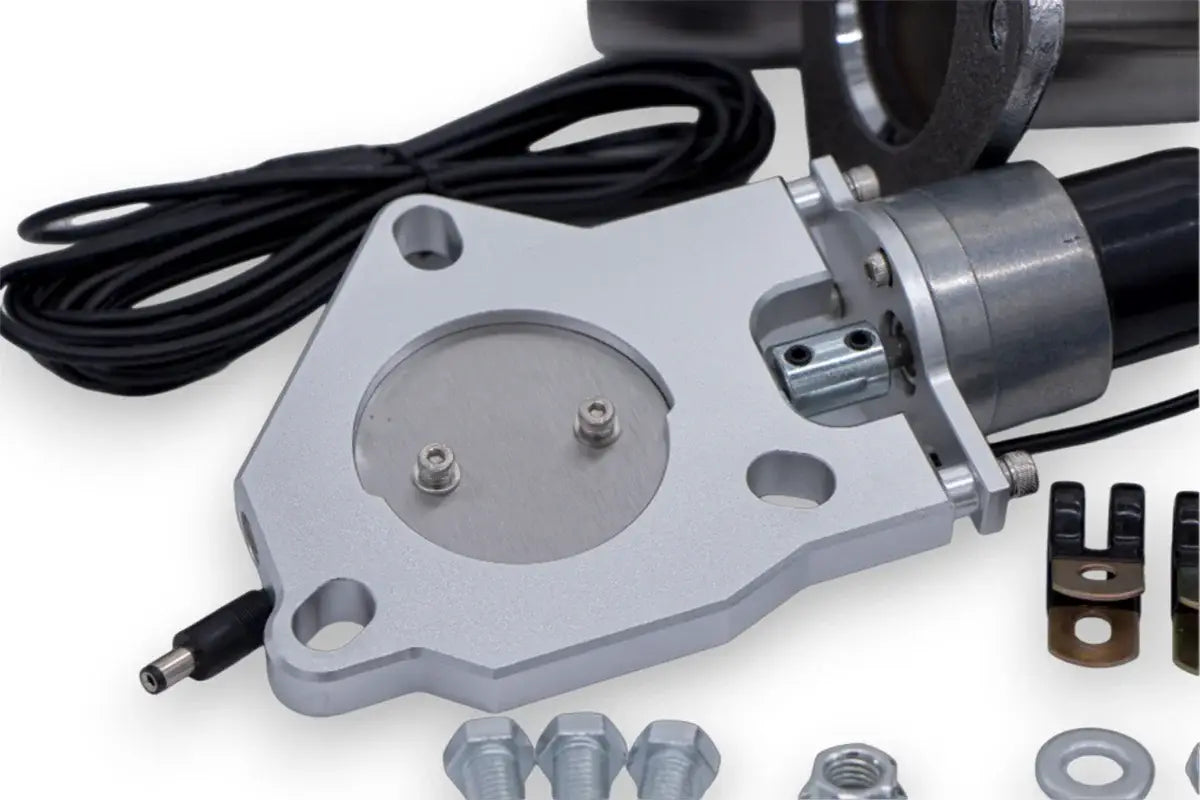

• Electric cutout gate and motor
• Polished stainless steel 45-degree turndown
• V-band clamp
• Slip-fit exhaust clamps
• Smart-Chip rocker switch
• Main and extension wiring harnesses
• Exhaust gaskets and installation hardware

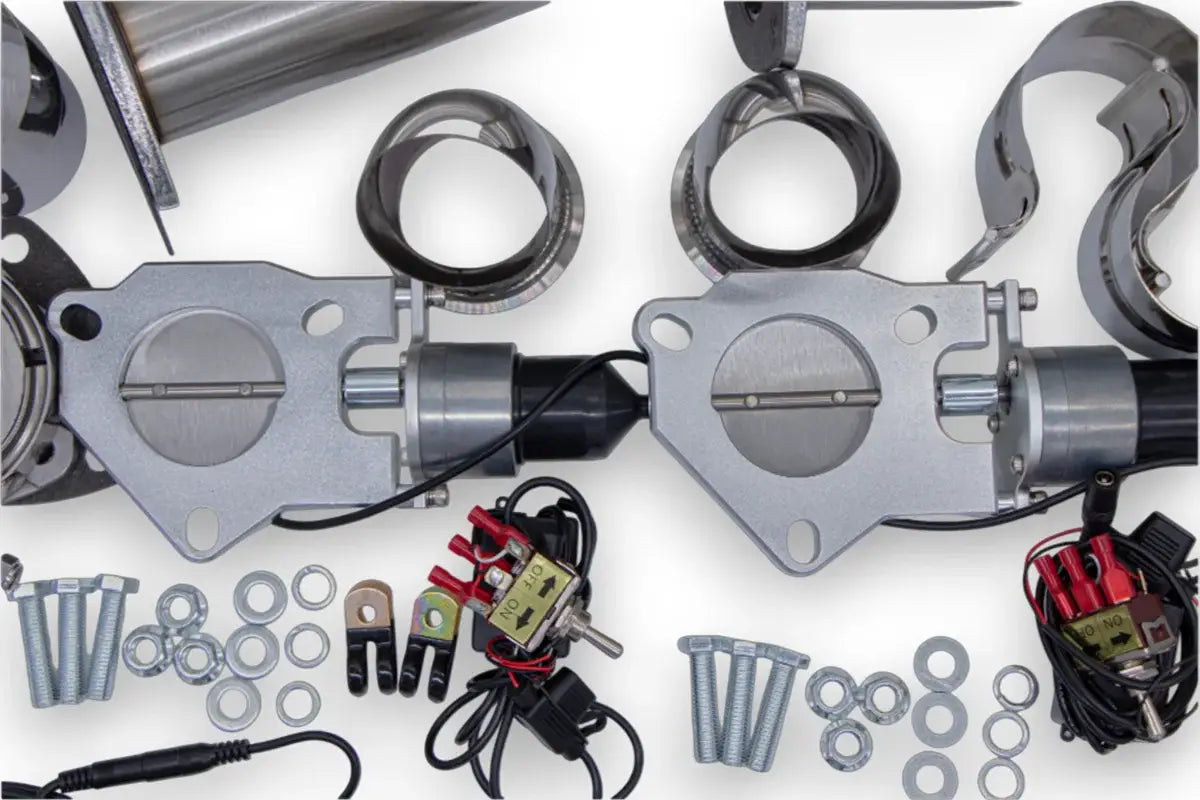

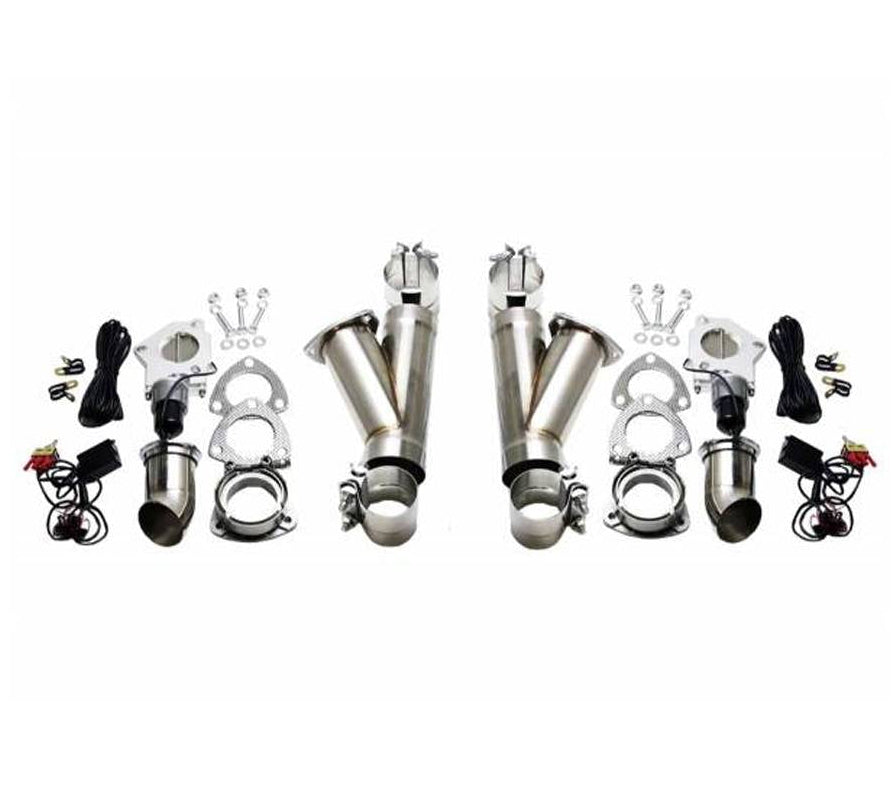

• Dual kits include two cutout assemblies and the wiring needed to operate both valves together

Watch the Video

Here is a video from Granatelli showing how its electronic exhaust cutout system works and what comes with the kit.

Emissions & Street Use

• Install the cutout after the factory catalytic converters and oxygen sensors.
• When properly installed downstream, this kit does not remove or replace the factory catalytic converters or oxygen sensors.
• Granatelli states that no ECU calibration or tune is required when the cutout is installed after the catalytic converters.
• Never install the cutout upstream of a catalytic converter or oxygen sensor.
• An open exhaust cutout can exceed local exhaust-noise limits. Check your state and local laws before using it on public roads.  Not designed to be used on any public road.  Race track use only.
• Does not ship to California.

Before You Buy

• Measure the outside diameter of your exhaust pipe. A 3-inch pipe needs the 3-inch cutout.
• The wireless remote is optional and is not included with these kits. Standard operation is through the included rocker switch.
• Granatelli recommends mounting the electric gate at least 18 inches from the header collectors and after all factory emissions equipment.
• Position the turndown so hot exhaust is directed away from fuel lines, brake lines, wiring, the driveshaft, suspension bushings and the floor of the vehicle.
• Professional exhaust installation is recommended if you are not comfortable cutting and clamping exhaust tubing.

Pairs Well With

• Vibrant 2.5" Bottle Style Resonator - If the normal closed exhaust path still has too much rasp or drone, this 18-inch resonator can help smooth out the sound on a 2.5-inch system.
• Vibrant 3" Bottle Style Resonator - A straight-through resonator for a custom 3-inch exhaust that needs less rasp and a smoother exhaust note when the cutout is closed.

About Granatelli Motor Sports

Granatelli Motor Sports builds ignition, exhaust, suspension and billet parts in Oxnard, California. Its exhaust cutout lineup includes electric, vacuum-controlled and manual systems in multiple sizes, with both slip-fit and weld-in installation options.
