BOOST Products Inline Turbo Oil Feed Filter Kit - 4AN or 6AN / 30, 80 & 150 Micron

Keep dirt, metal particles and other debris out of your turbo's oil supply with this inline oil feed filter from BOOST Products. It installs in a -4AN or -6AN oil feed line and comes with three different stainless steel filter inserts, so you can match the filtration level to the oil and turbo setup.

You get 30, 80 and 150-micron inserts with the kit. You only run one insert at a time. The 30-micron filter catches smaller particles but can reduce oil flow more than the larger filters, so don't automatically use the finest one without checking what your turbo needs.

Application Information

• Custom turbocharger oil feed systems
• Available for -4AN and -6AN oil lines
• Can also be used in compatible E85 fuel and pneumatic systems

Fitment Note: Choose the version that matches the AN size of your existing oil feed line. This is a fabrication component and is not made for one specific vehicle or turbocharger.

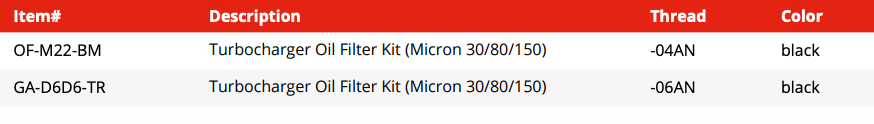

Available Options

• -4AN / Dash 4: GA-D4D4-TR
• -6AN / Dash 6: GA-D6D6-TR

Specs and Features

• Inline turbo oil feed filter
• Black aluminum housing
• Stainless steel filter inserts
• Includes 30, 80 and 150-micron filter options
• Two included adapters allow male-to-male or female-to-male connections
• Directional flow arrow marked on the housing
• Serviceable design for inspection and cleaning

Choosing a Filter Insert

• 30 micron: BOOST Products recommends this insert for lower-viscosity oil. It provides the finest filtration but can also restrict flow more than the other inserts.
• 80 micron: The middle option when you need more flow than the 30-micron filter while still catching smaller debris than the 150-micron insert.
• 150 micron: BOOST Products recommends this insert for higher-viscosity oil where maintaining oil flow is the bigger concern.

Check the turbo manufacturer's oil-feed requirements before choosing an insert. Too much restriction can leave the turbo short on oil, which defeats the entire point of adding a filter.

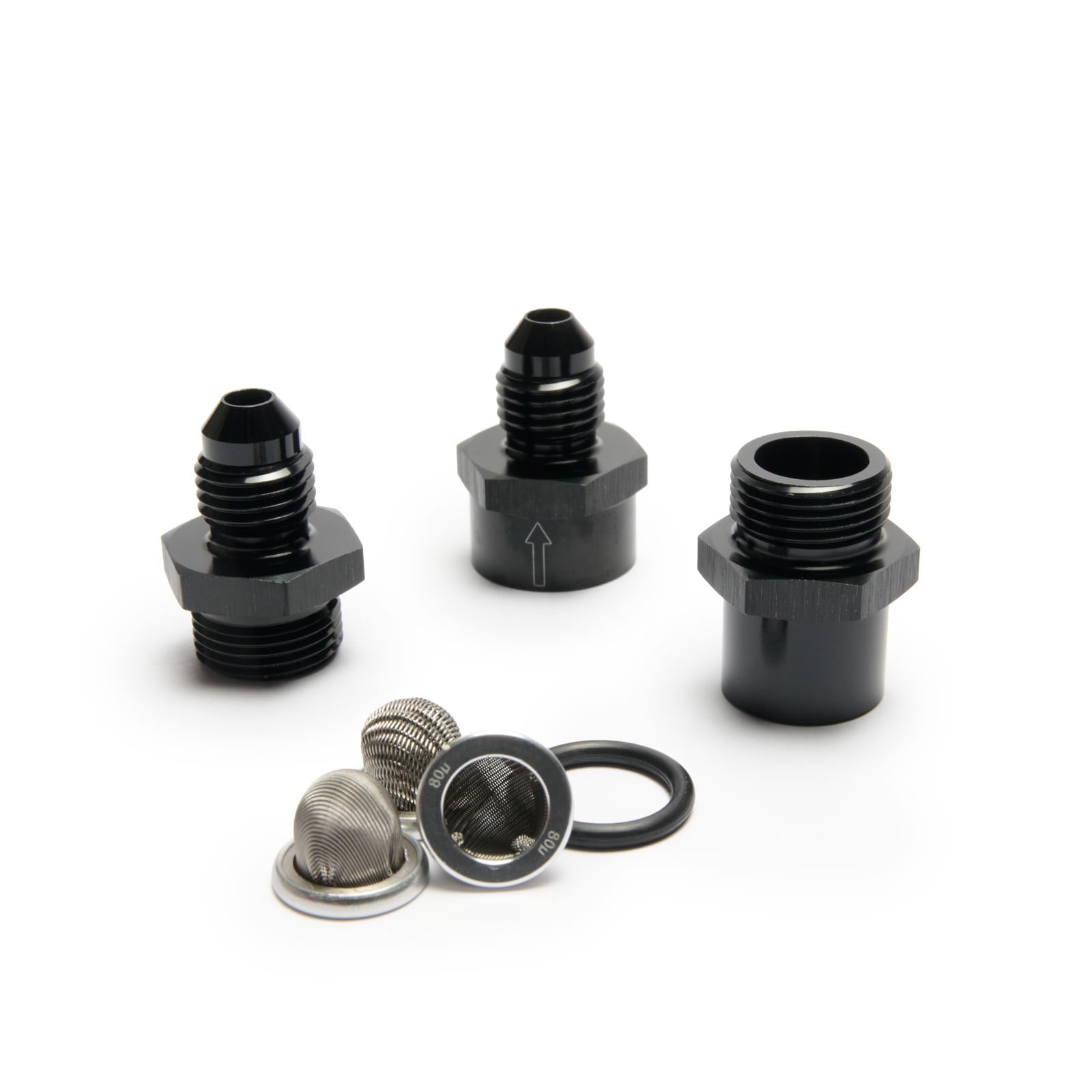

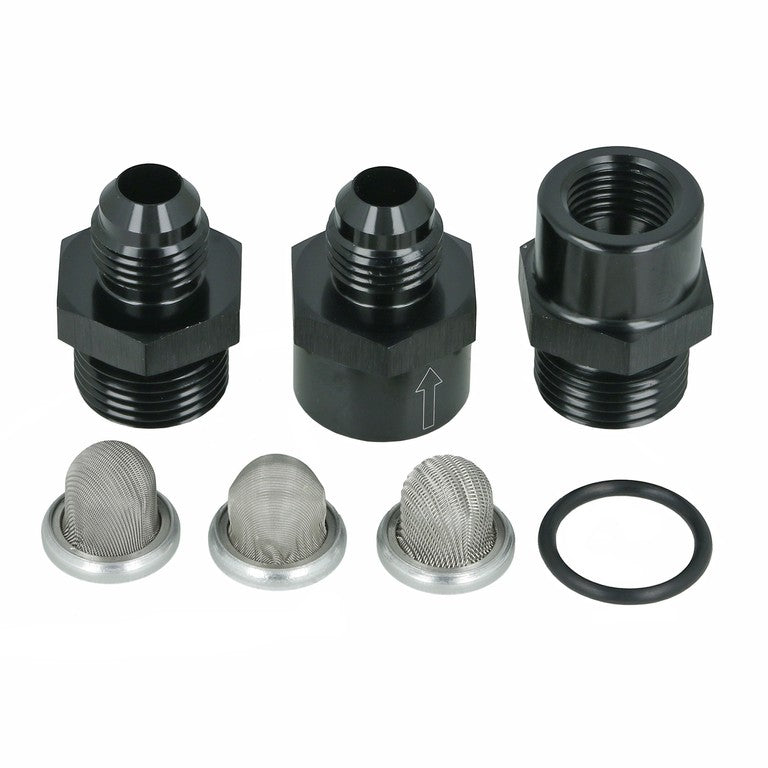

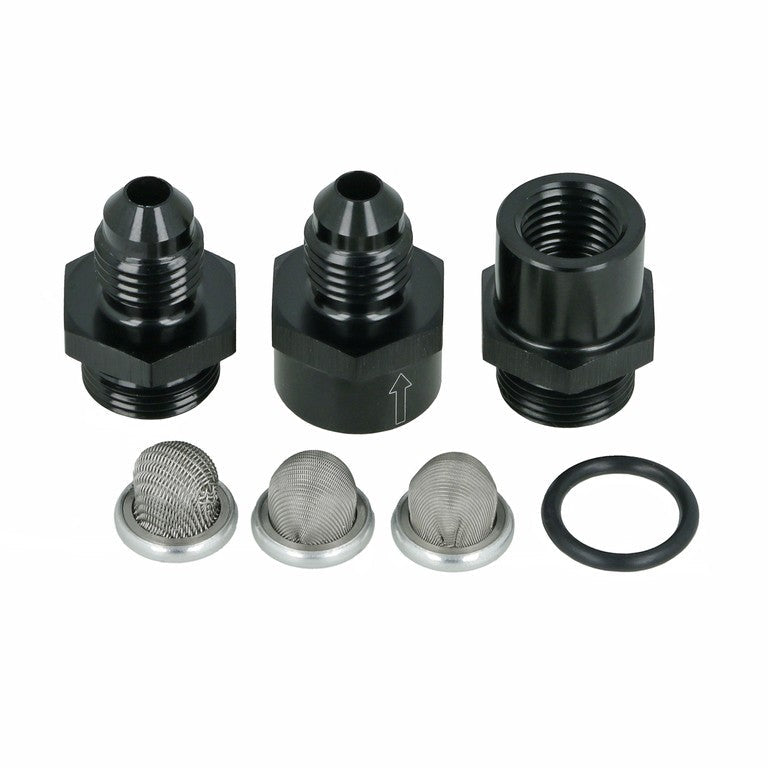

Included in the Kit

• Black aluminum inline filter housing
• Connection adapters
• 30-micron stainless steel filter insert
• 80-micron stainless steel filter insert
• 150-micron stainless steel filter insert

Installation Notes

• Install the filter in the turbo oil feed line before the oil reaches the turbocharger
• Follow the flow-direction arrow marked on the housing
• Use the filter insert that matches the turbo's required oil flow and the oil being used
• Inspect and clean the filter regularly
• Check the assembled oil line for leaks and proper flow before running the engine under boost

Pairs Well With

• ISR Turbo Line Kit for Nissan 240SX SR20DET - Replaces the turbo oil and coolant lines on an SR20DET setup. Confirm the AN connection size before adding this filter to the oil feed side.
• Rev9 TX-60-62 Turbocharger - If you're piecing together a custom T3/T4 turbo setup, this filter can be worked into the oil feed line while the fittings and hose routing are being planned.
• BOOST Products Titanium Turbo Blanket - Helps keep turbine housing heat away from nearby oil lines, wiring and other parts around the turbo.
