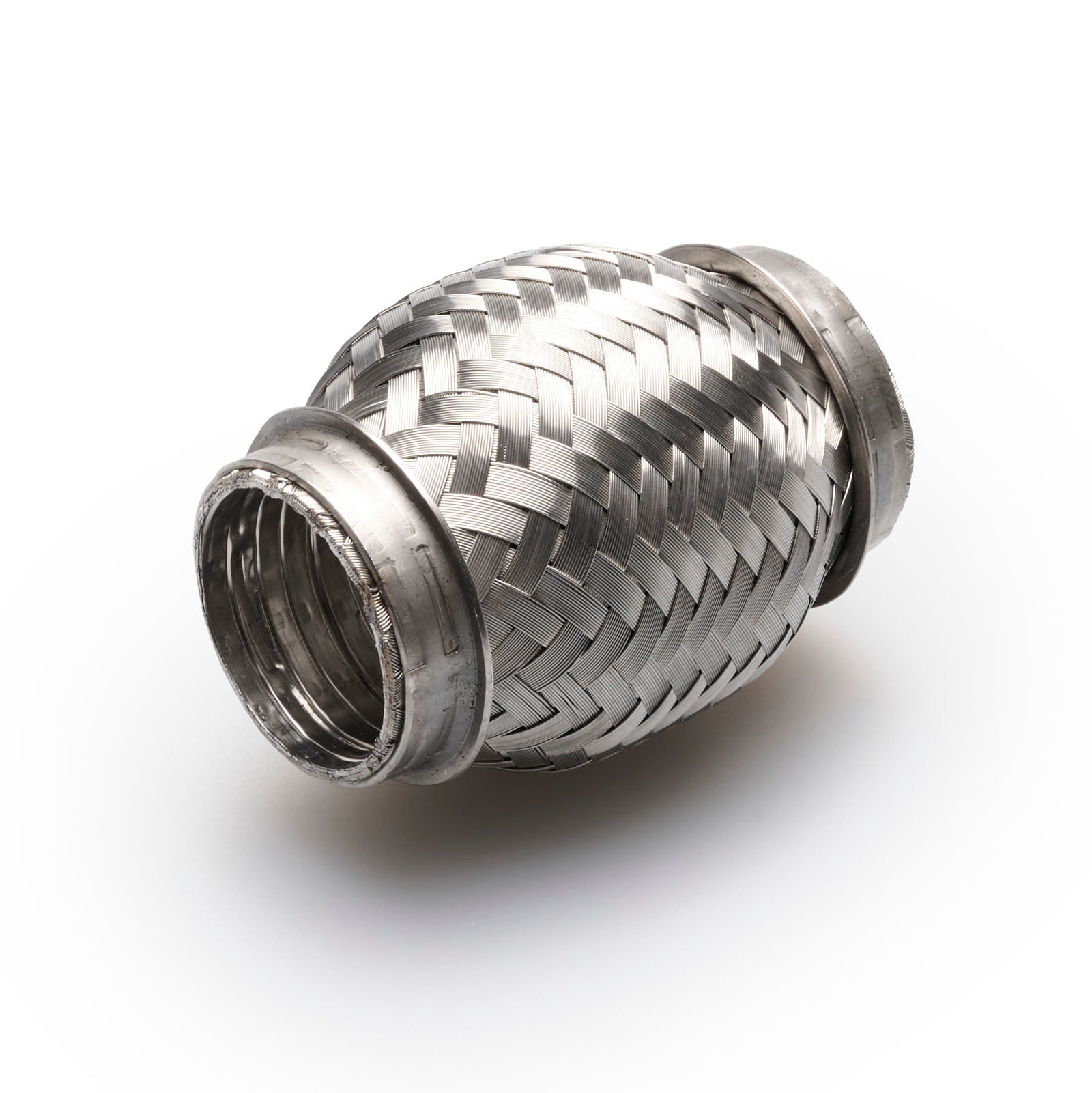

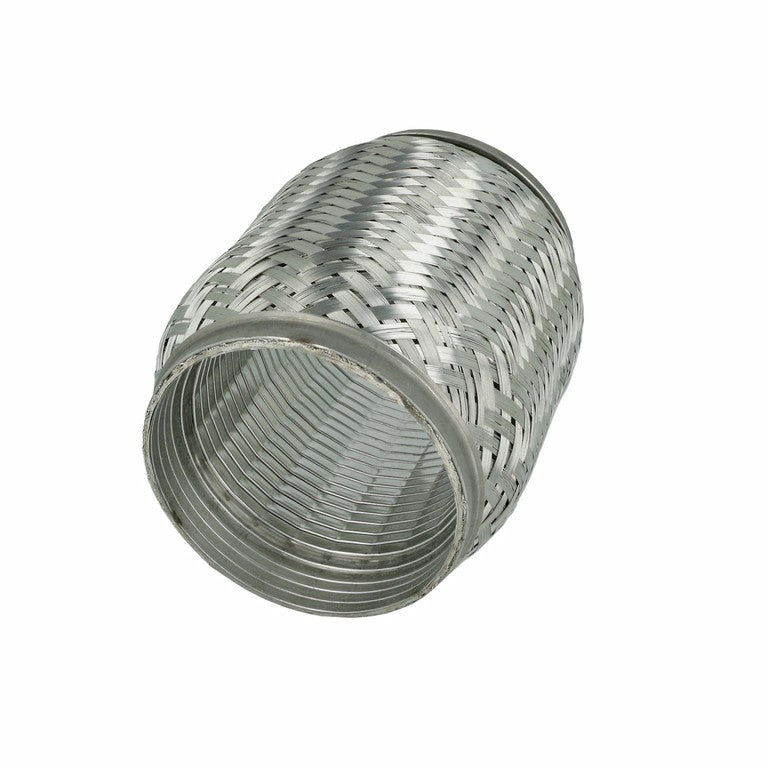

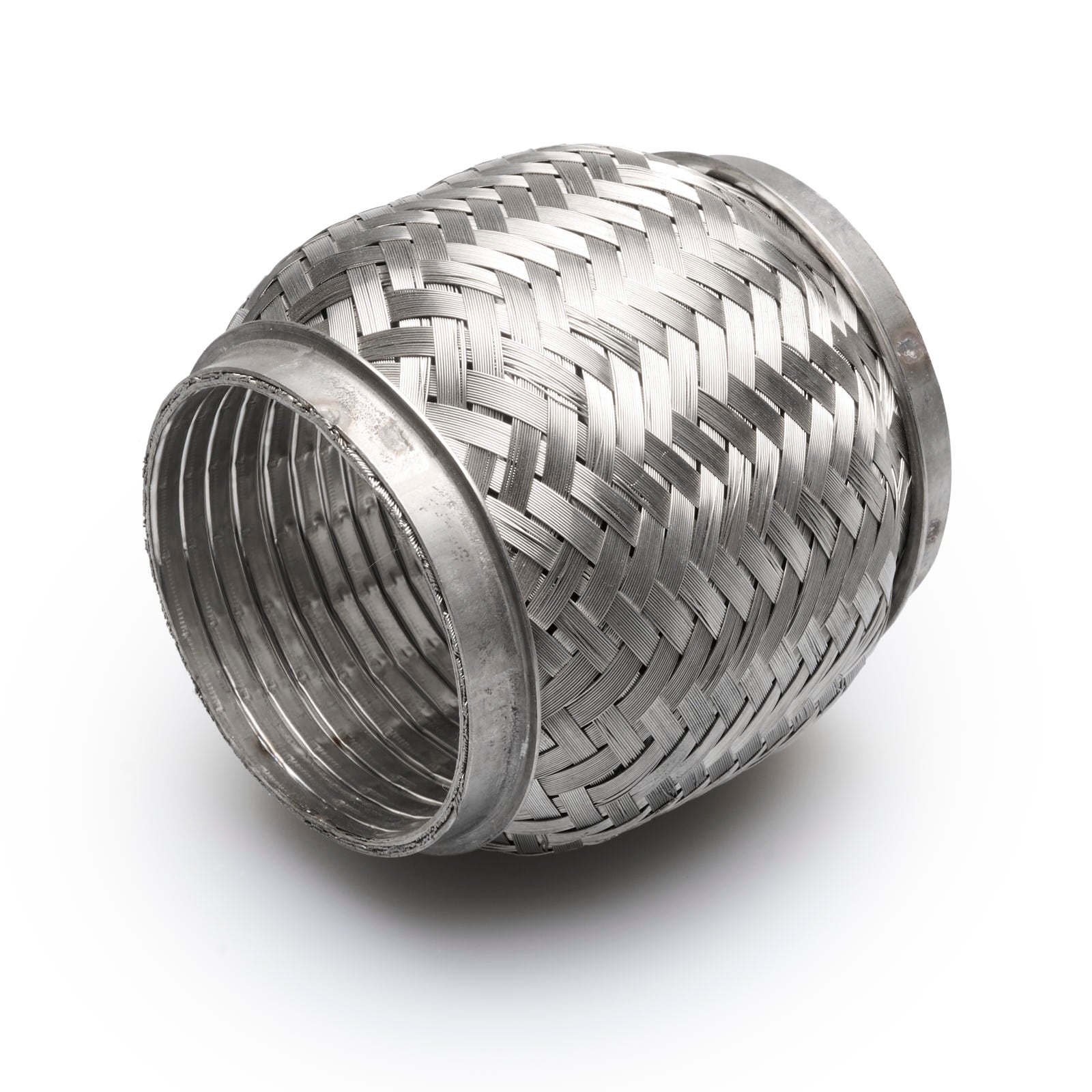

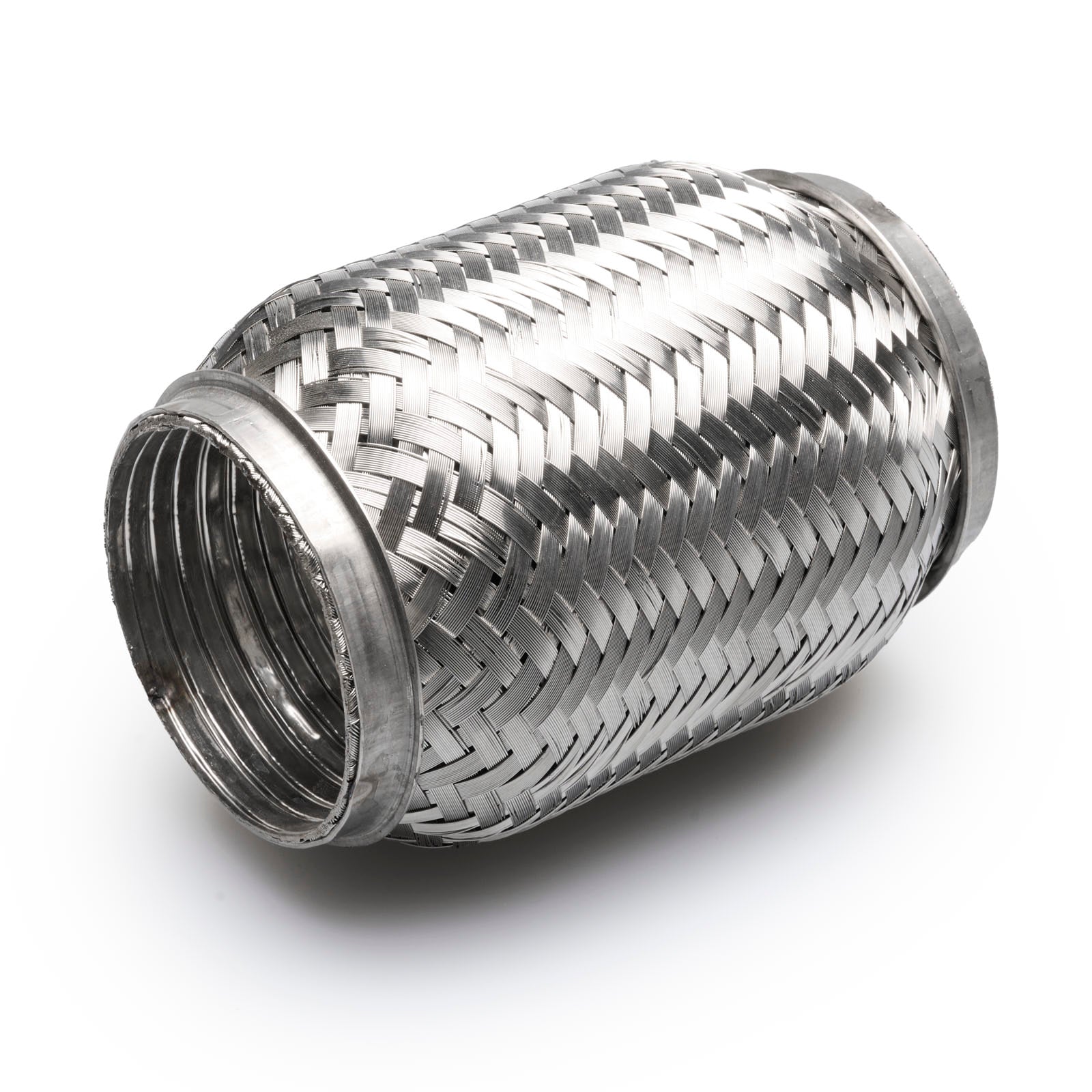

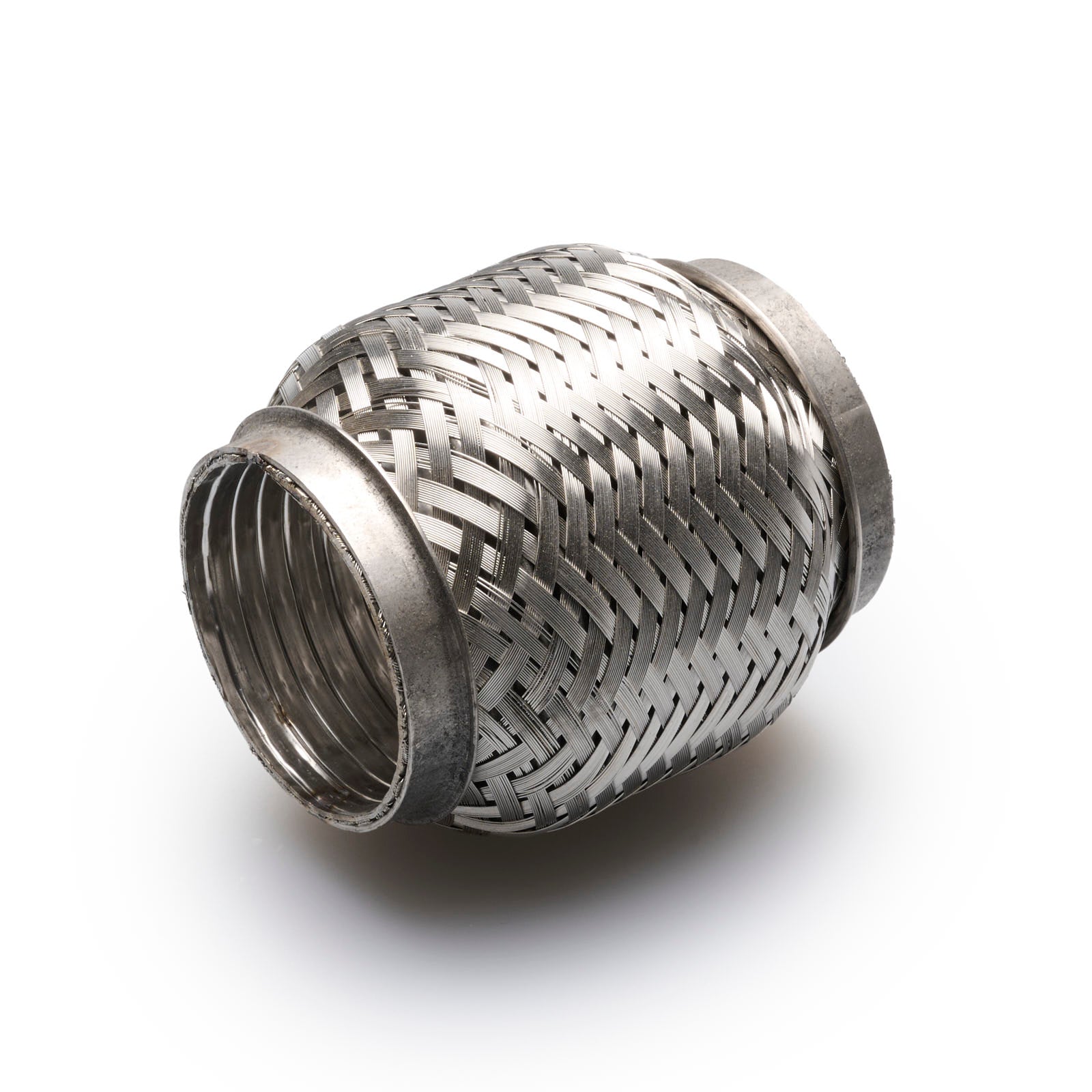

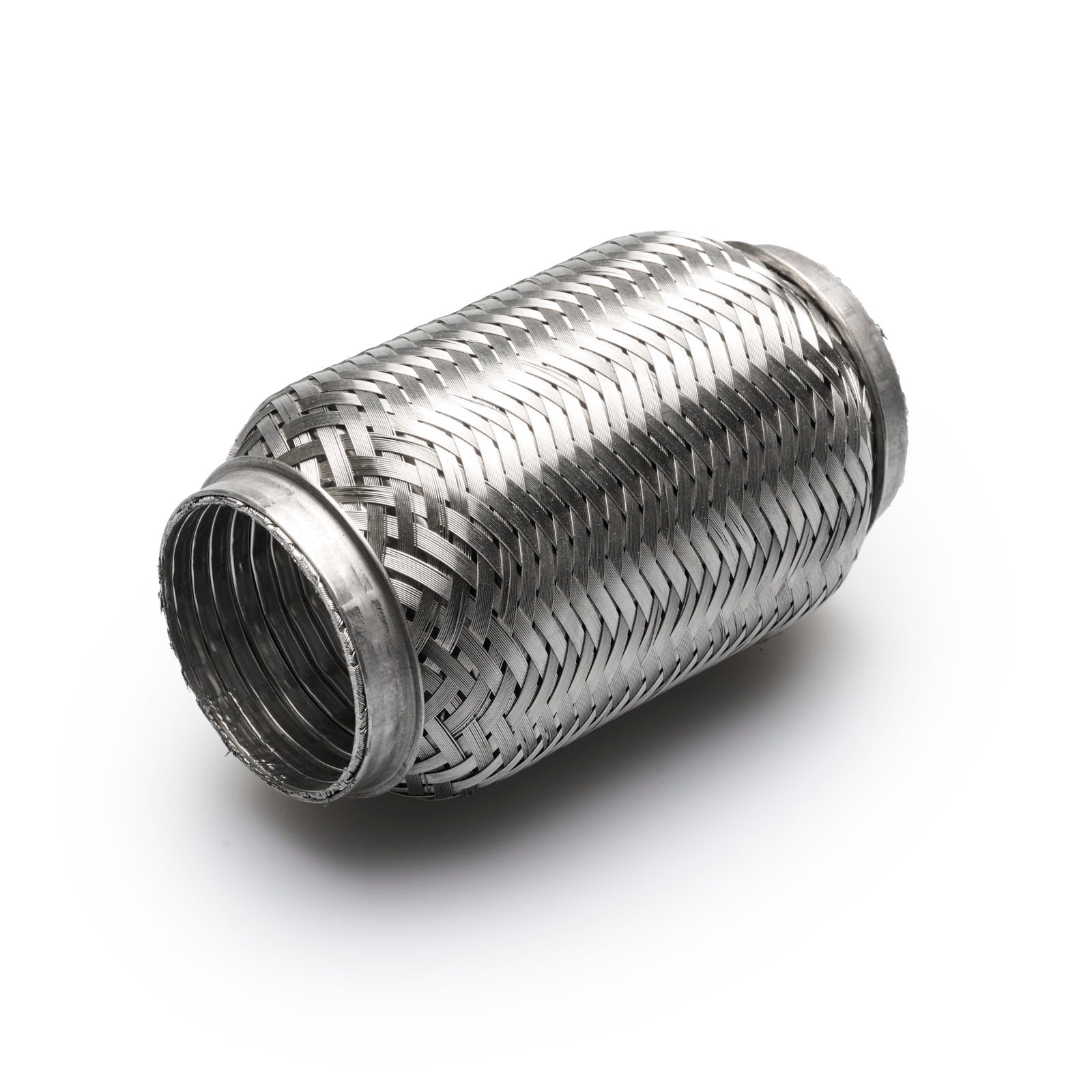

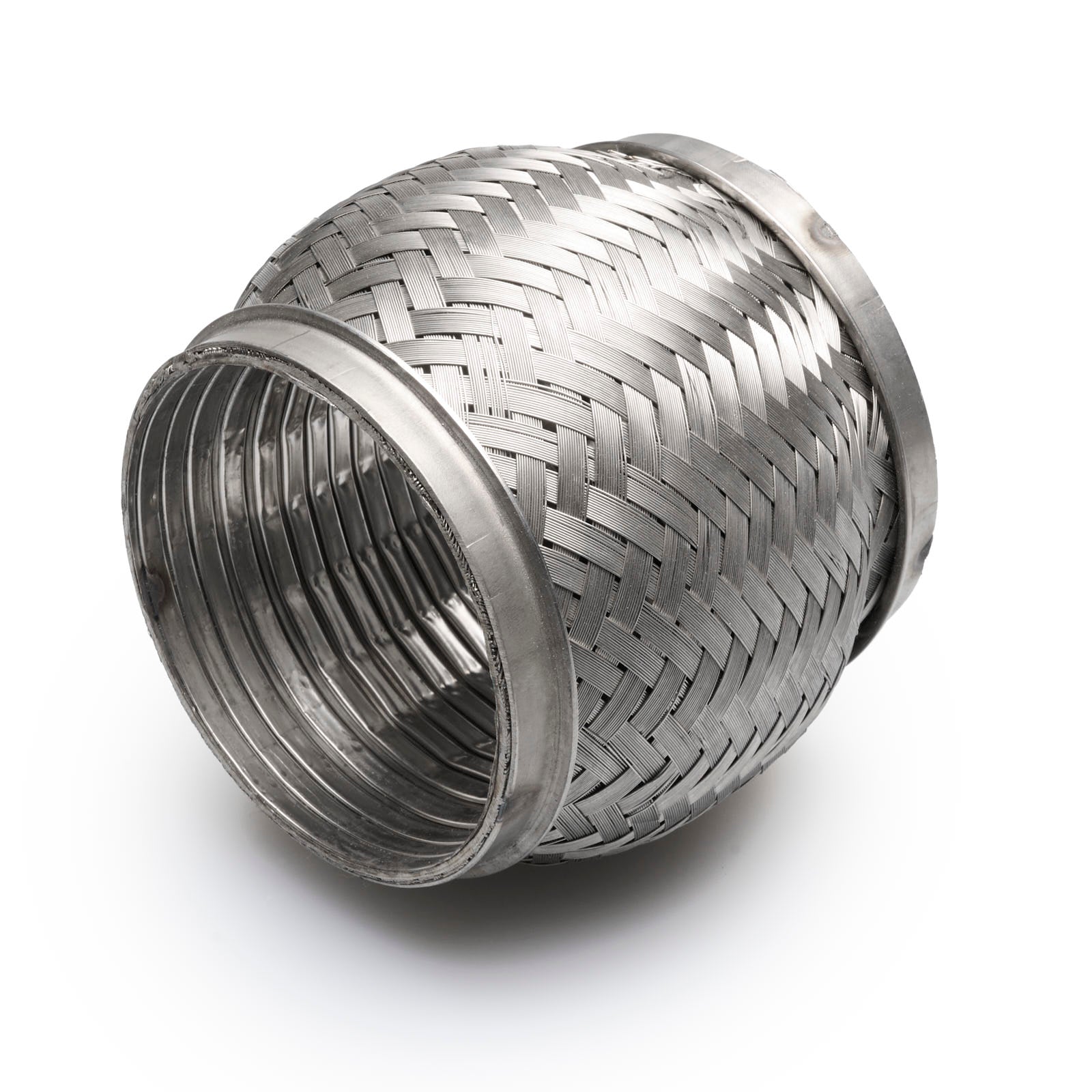

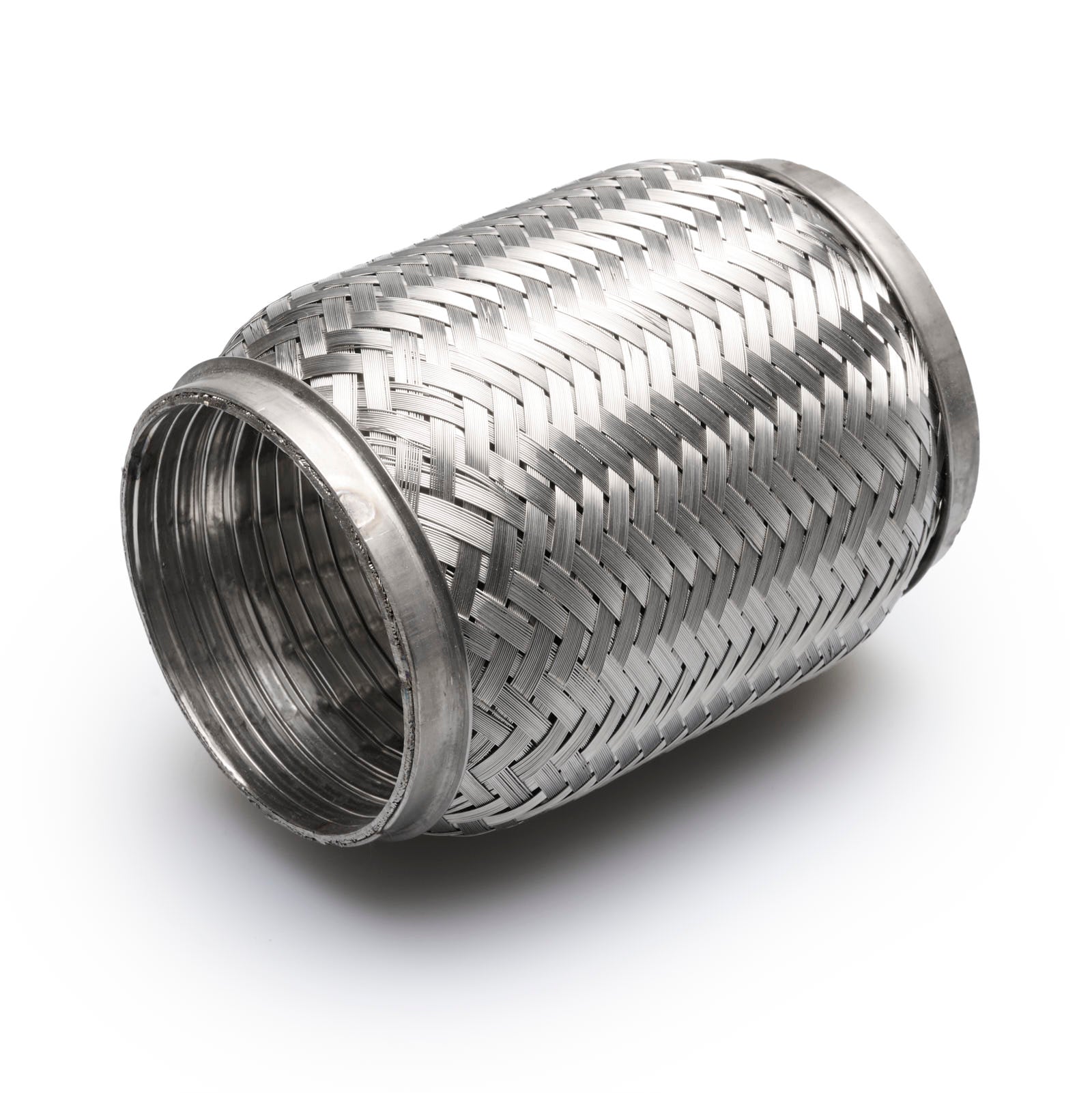

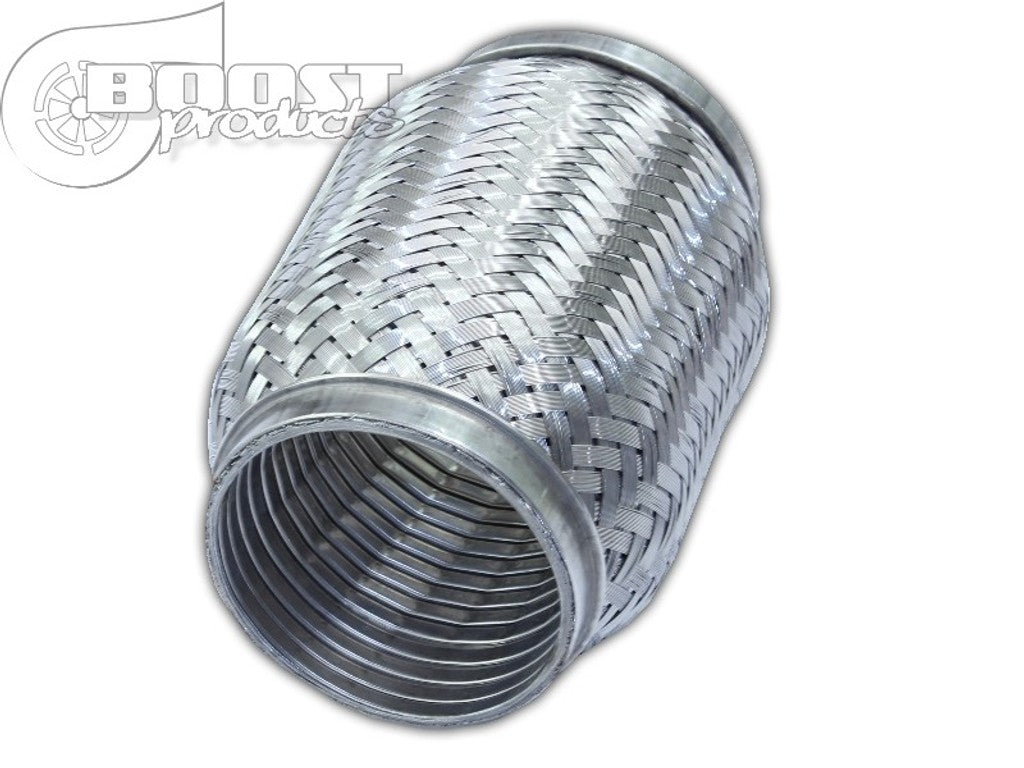

BOOST Products Exhaust Flex Pipe Section Interlock 304 Stainless Weld-On - 1.5" to 4"

Add some movement to a custom exhaust or downpipe without putting all that stress into the welds, turbo flange or exhaust manifold. This weld-in flex pipe from BOOST Products uses a four-layer stainless steel design with an interlock liner that keeps the inside of the pipe smooth while still allowing the exhaust to move as the engine shifts and the piping expands from heat.

The entire flex section is made from 304 stainless steel, including the gas-tight spiral wall and internal reinforcement. It can be used in naturally aspirated exhaust systems, high-horsepower turbo builds and supercharged applications. It can also handle the heat of being installed in a downpipe close to the turbocharger.

Fitment Information

• Universal weld-in exhaust fabrication component
• Custom exhaust systems
• Turbocharger downpipes
• Wastegate and exhaust dump pipes
• Naturally aspirated, turbocharged and supercharged applications

Fitment Note

This is a weld-in fabrication part, not a clamp-on exhaust repair sleeve. Match the outside diameter of the flex pipe to the outside diameter of your exhaust tubing.

Make sure there is enough room for the selected overall length and that the flex section is installed without being stretched, compressed or forced out of alignment.

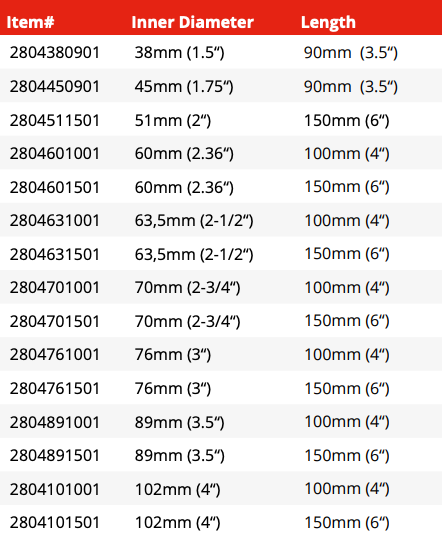

Available Sizes

• 38mm outer diameter, approximately 1.5" x 90mm long, approximately 3.54"
• 45mm outer diameter, approximately 1.75" x 90mm long, approximately 3.54"
• 51mm outer diameter, approximately 2" x 100mm long, approximately 3.94"
• 51mm outer diameter, approximately 2" x 150mm long, approximately 5.91"
• 60mm outer diameter, approximately 2.36" x 100mm long, approximately 3.94"
• 60mm outer diameter, approximately 2.36" x 150mm long, approximately 5.91"
• 63.5mm outer diameter, approximately 2.5" x 100mm long, approximately 3.94"
• 63.5mm outer diameter, approximately 2.5" x 150mm long, approximately 5.91"
• 70mm outer diameter, approximately 2.75" x 100mm long, approximately 3.94"
• 70mm outer diameter, approximately 2.75" x 150mm long, approximately 5.91"
• 76mm outer diameter, approximately 3" x 100mm long, approximately 3.94"
• 76mm outer diameter, approximately 3" x 150mm long, approximately 5.91"
• 89mm outer diameter, approximately 3.5" x 100mm long, approximately 3.94"
• 89mm outer diameter, approximately 3.5" x 150mm long, approximately 5.91"
• 102mm outer diameter, approximately 4" x 100mm long, approximately 3.94"
• 102mm outer diameter, approximately 4" x 150mm long, approximately 5.91"

Specs and Features

• Weld-in exhaust flex pipe
• 100% 304 stainless steel construction
• Four-layer construction
• Continuous interlock inner liner
• Gas-tight spiral wall
• Smooth internal exhaust path
• Flexible while remaining stable under load
• Built to handle high exhaust temperatures
• Suitable for turbo and supercharger builds
• Can be installed in a downpipe after the turbocharger
• Available in diameters from approximately 1.5" to 4"

Why Use an Interlock Flex Pipe?

Engine movement and heat expansion can put a lot of stress into a rigid exhaust system, especially when the exhaust is mounted directly to a turbocharger. Adding a flex section gives the piping room to move and helps reduce the load placed on welds, flanges, manifolds and turbo housings.

The interlock liner also gives the inside of the flex pipe a smoother path than an exposed braided flex section. That makes it a good choice for higher-flow exhaust systems where durability and clean exhaust flow both matter.

Warranty

BOOST Products includes a five-year warranty in addition to the applicable legal guarantee. Warranty claims are handled directly through BOOST Products GmbH in Germany.

Before You Buy

• Confirm the outside diameter of your exhaust tubing.
• Confirm the available installation space and required flex-pipe length.
• This part requires welding and custom fabrication.
• Do not install the flex section in a stretched, compressed or misaligned position.

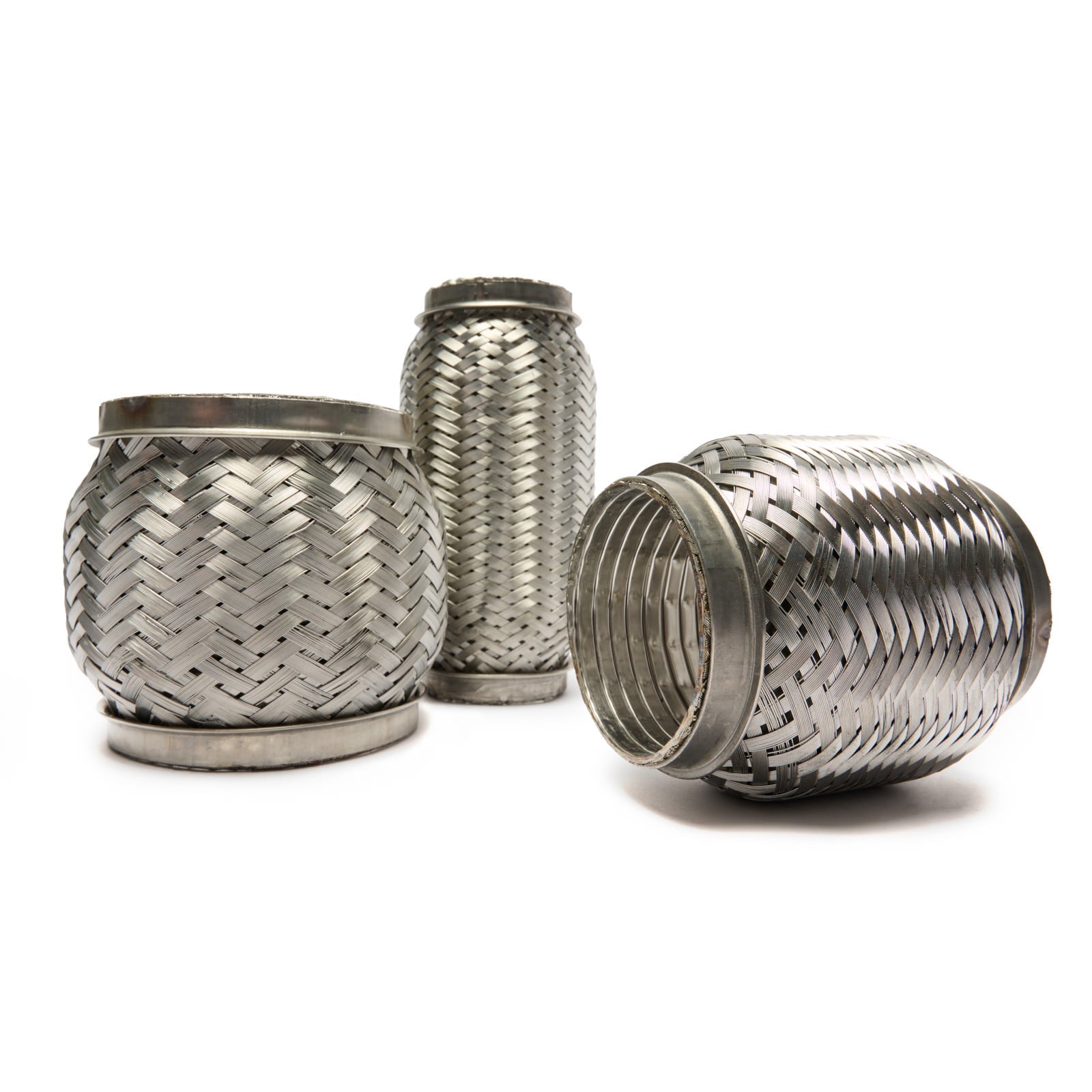

• Product photos may show a different size, so the proportions can vary between options.
