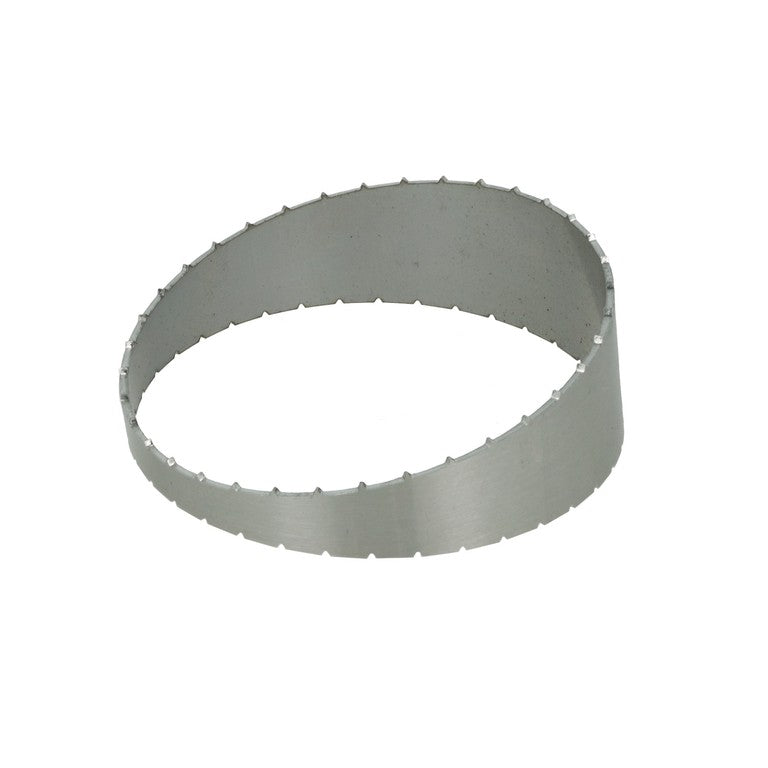

BOOST Products 15° Stainless Steel Pie Cut with Spigot - Super Tight Radius

Build a tight exhaust bend without having to measure and cut every pie section yourself with these 15-degree stainless steel pie cuts from BOOST Products.

The spigot design helps each piece line up with the next one, making it easier to mock up the bend, hold everything in place and get consistent weld joints. These are a good option when a normal mandrel bend takes up too much room or the piping needs to work around a tight engine bay, subframe or suspension setup.

Fitment Information

• Universal fabrication component
• Designed for custom exhaust systems, downpipes, charge pipes, intake pipes and coolant lines
• Requires welding and custom fabrication
• Match the outside diameter to the rest of your piping before ordering

Specs and Features

• 15-degree pie-cut segment
• Super-tight bend radius for builds with limited space
• 1.4301 stainless steel construction
• 1.5mm wall thickness
• Precision-cut for consistent sizing
• Built-in spigot helps align adjoining segments
• Useful for building complete bends or making smaller changes to piping direction
• Compatible with BOOST Products spigot pie cuts of the same size
• Sold individually

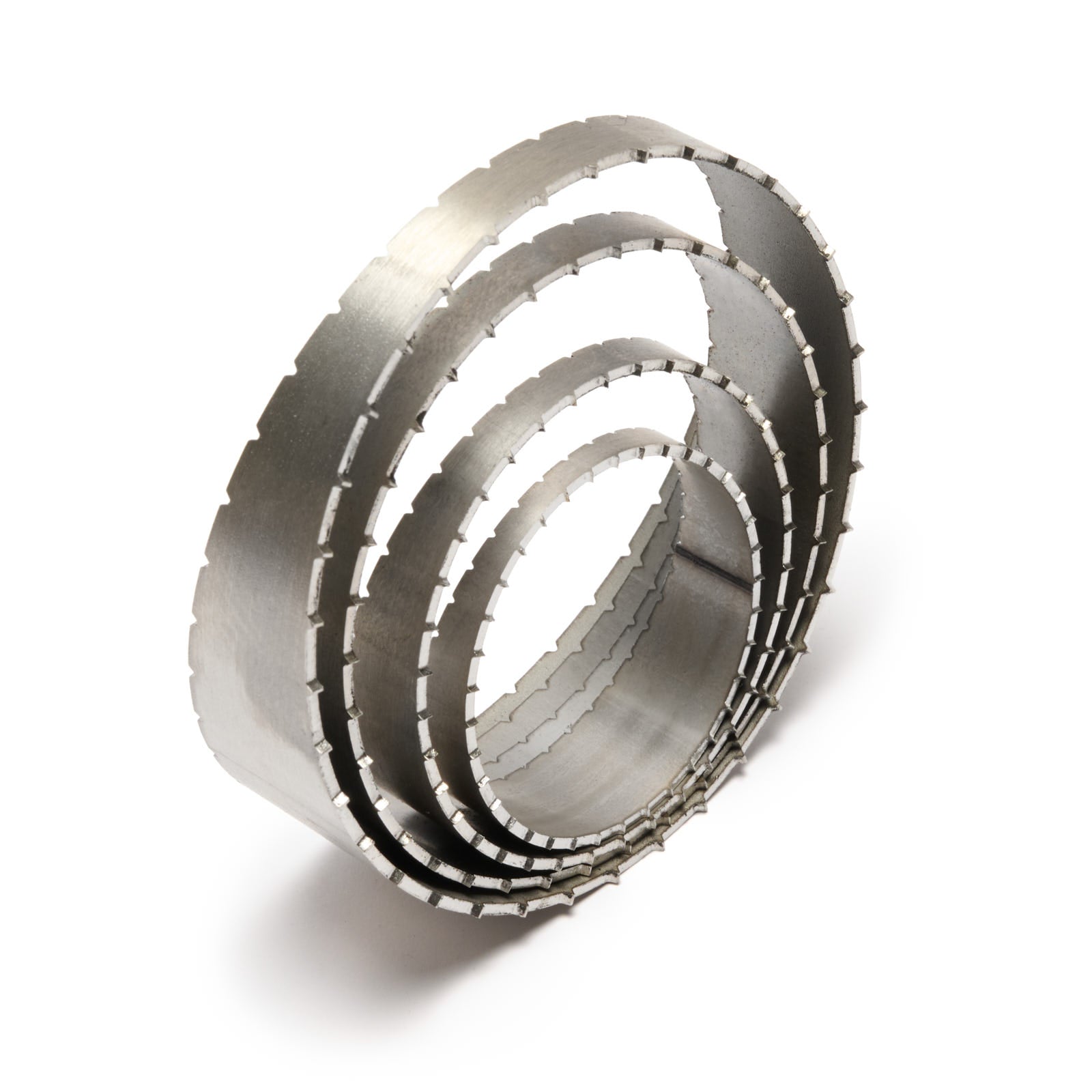

Available Sizes

• 1.67" (42.4mm) outside diameter, 0.75D bend radius - EX-PI-42-15
• 1.9" (48.3mm) outside diameter, 0.79D bend radius - EX-PI-48-15
• 2.36" (60mm) outside diameter, 0.85D bend radius - EX-PI-60-15
• 2.5" (63.5mm) outside diameter, 0.87D bend radius - EX-PI-63-15
• 2.75" (70mm) outside diameter, 0.93D bend radius - EX-PI-70-15
• 3" (76mm) outside diameter, 0.83D bend radius - EX-PI-76-15
• 3.5" (89mm) outside diameter, 0.85D bend radius - EX-PI-89-15
• 4" (102mm) outside diameter, 0.93D bend radius - EX-PI-02-15
• 4.5" (114mm) outside diameter, 0.89D bend radius - EX-PI-14-15

Why Use Spigot Pie Cuts?

Regular pie cuts can move around while you are trying to mock up and tack the bend. The spigot on these pieces helps keep the adjoining sections centered, so it is easier to check the routing before everything gets welded together. You still get the pie-cut look, but with less time spent fighting gaps and alignment.

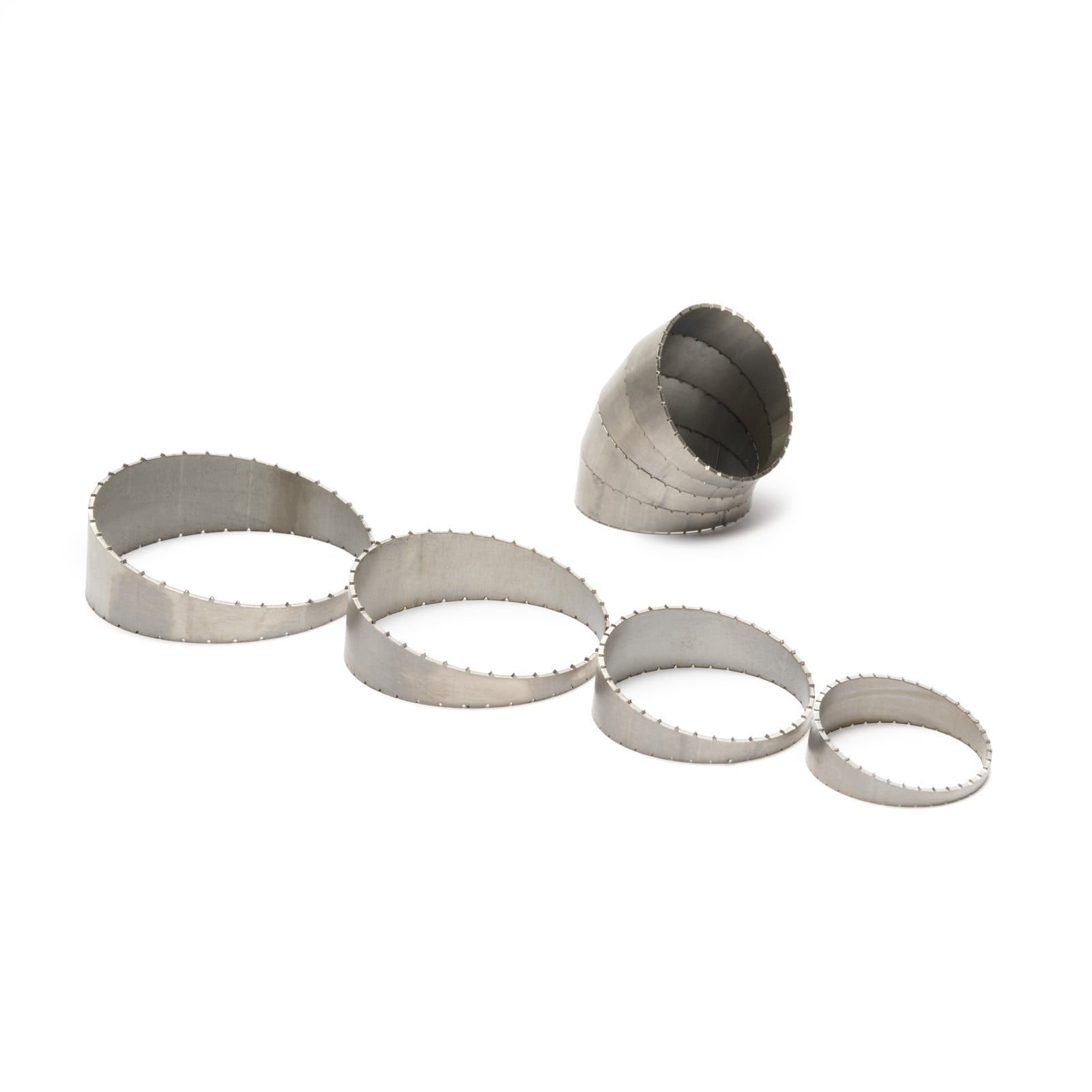

Each segment changes the pipe direction by 15 degrees. Six segments can be used to build a 90-degree bend, or you can use fewer pieces when the piping only needs a smaller change in direction.

Installation Notes

• Mock up the complete bend before final welding
• Confirm pipe diameter, bend direction and available clearance before fabrication
• Tack each joint in several places to help keep the assembly from moving
• TIG welding and back purging are recommended when building stainless exhaust piping
• Professional fabrication is recommended if you do not have the proper welding equipment or experience

Pairs Well With

• Vibrant Performance V-Band Flange Assembly - Add a removable connection to your custom exhaust after the pie-cut section is welded together.
• Vibrant 2.5" TurboFlex Coupling - A good match for the 2.5-inch pie cuts when the exhaust needs a flex section to handle engine movement.
• Vibrant 3" TurboFlex Coupling - Use this with the 3-inch pie cuts when building a custom downpipe or exhaust section that needs some flexibility.

About BOOST Products

BOOST Products makes exhaust, intercooler and intake fabrication parts for custom street and motorsport builds. Their spigot pie cuts are made to simplify tight-radius piping work while giving fabricators consistent pieces that are easier to line up and weld.
