Move more air through your radiator, oil cooler or intercooler with this brushless motorsport fan from BOOST Products. It is available in 10-inch and 12-inch sizes, with built-in PWM speed control that lets a compatible PDM or controller vary the fan speed based on how much cooling the car actually needs.
The brushless motor uses less current than many comparable brushed fans and has a soft-start function that keeps it from hitting the electrical system with a large current spike every time it turns on. The slim puller design also makes it easier to fit behind a radiator when space between the engine and cooling system is tight.
Fitment Information
- For custom automotive and motorsport cooling systems
- Can be used with a water radiator, oil cooler or intercooler

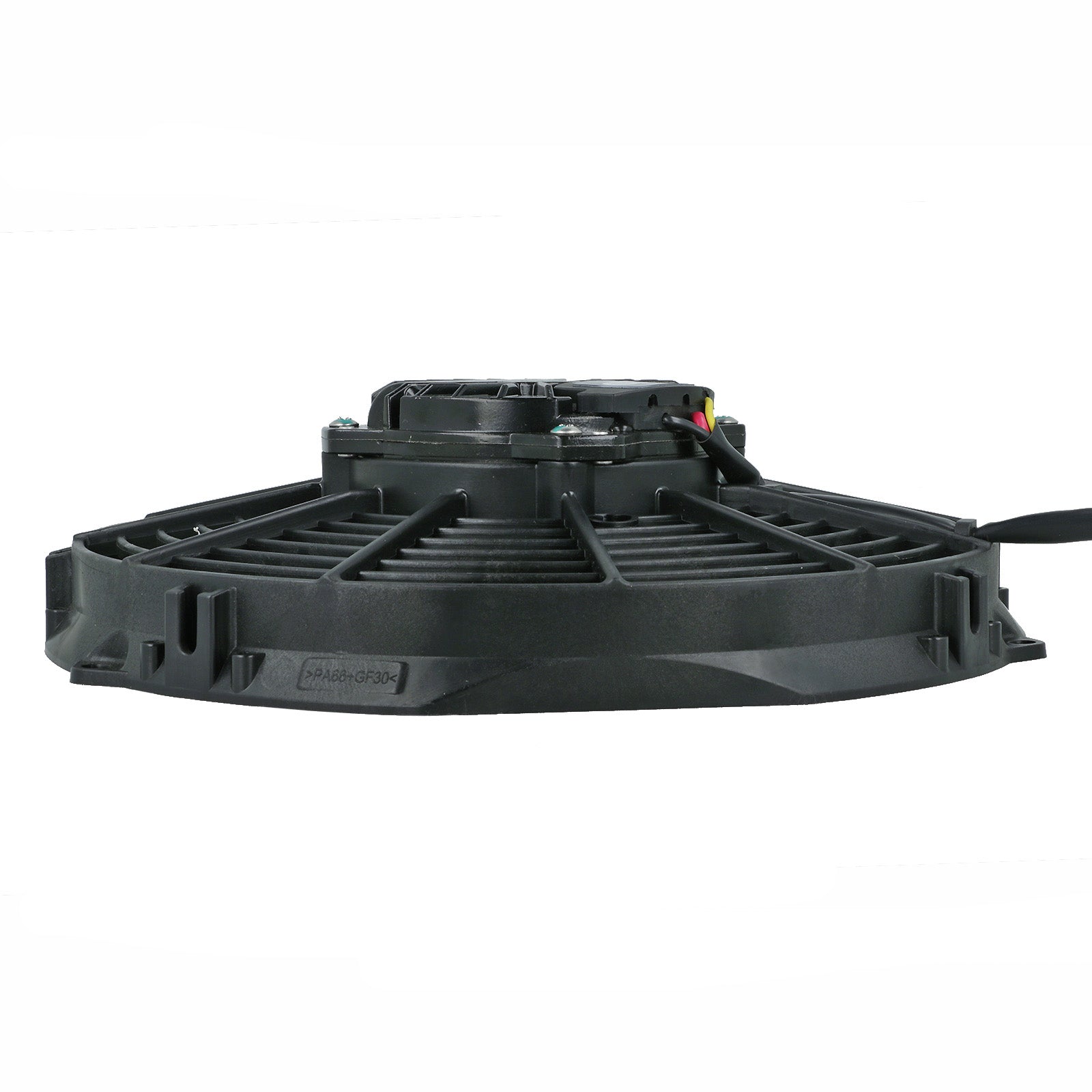

- Designed to mount behind the cooler as a puller fan
- Compatible with 10 to 16-volt DC electrical systems
- Requires custom mounting and wiring

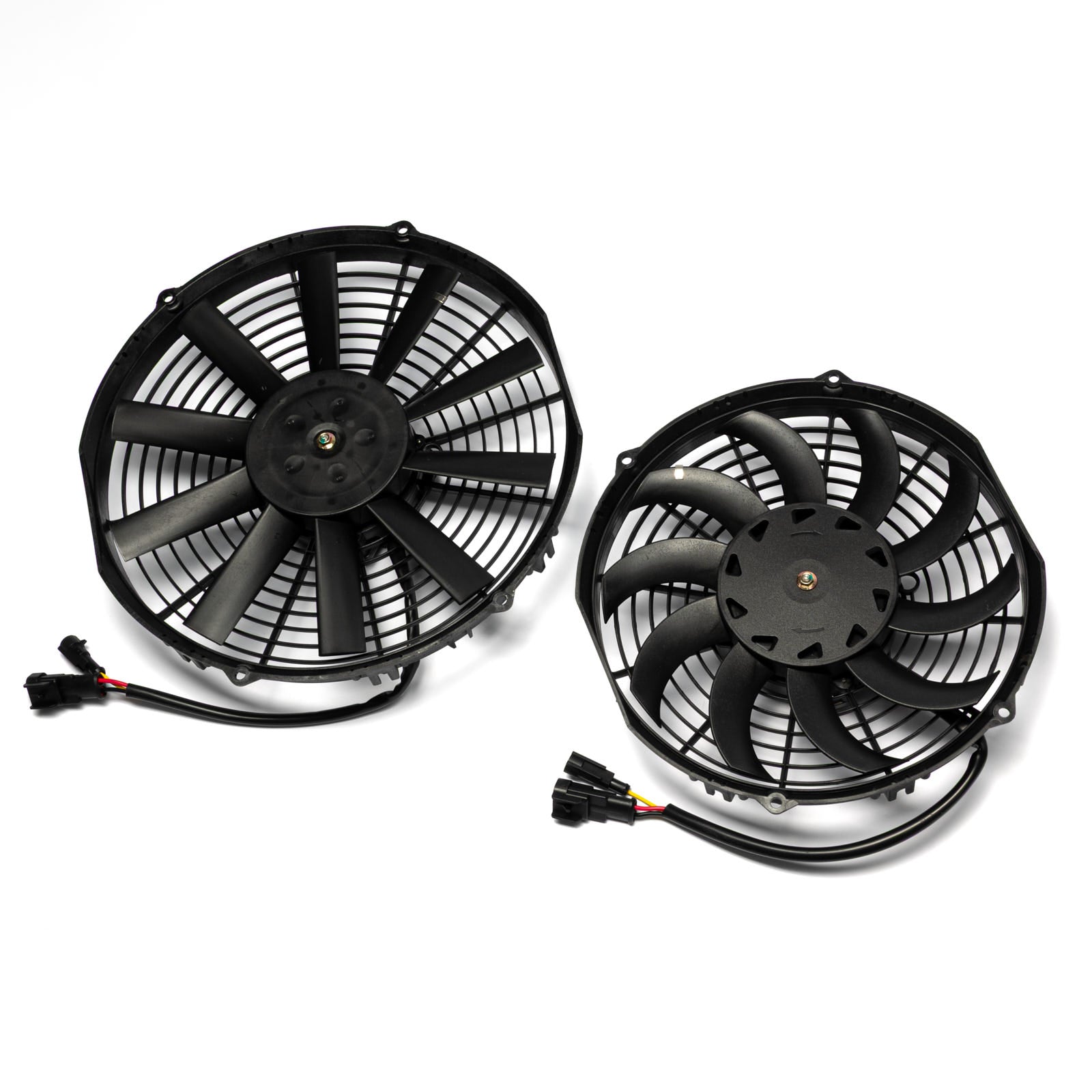

Available Sizes
- 10" / 25cm Brushless Puller Fan: LF-SA-25
- 12" / 30cm Brushless Puller Fan: LF-SA-30
10" Fan Specifications
- Part Number: LF-SA-25
- Maximum Airflow: 1150 CFM
- Minimum Airflow: 756 CFM
- Overall Height: 10.85"
- Overall Width: 9.68"
- Overall Depth: 2.92"
- Current Draw: 10 amps at 13.5 volts
- Weight: Approximately 3.64 pounds / 1.65 kg
- Operating Voltage: 10 to 16 volts DC
12" Fan Specifications
- Part Number: LF-SA-30
- Maximum Airflow: 1470 CFM
- Minimum Airflow: 910 CFM
- Overall Height: 11.52"
- Overall Width: 12.55"
- Overall Depth: 2.83"
- Current Draw: 13 amps at 13.5 volts
- Weight: Approximately 4.08 pounds / 1.85 kg
- Operating Voltage: 10 to 16 volts DC
Specs & Features

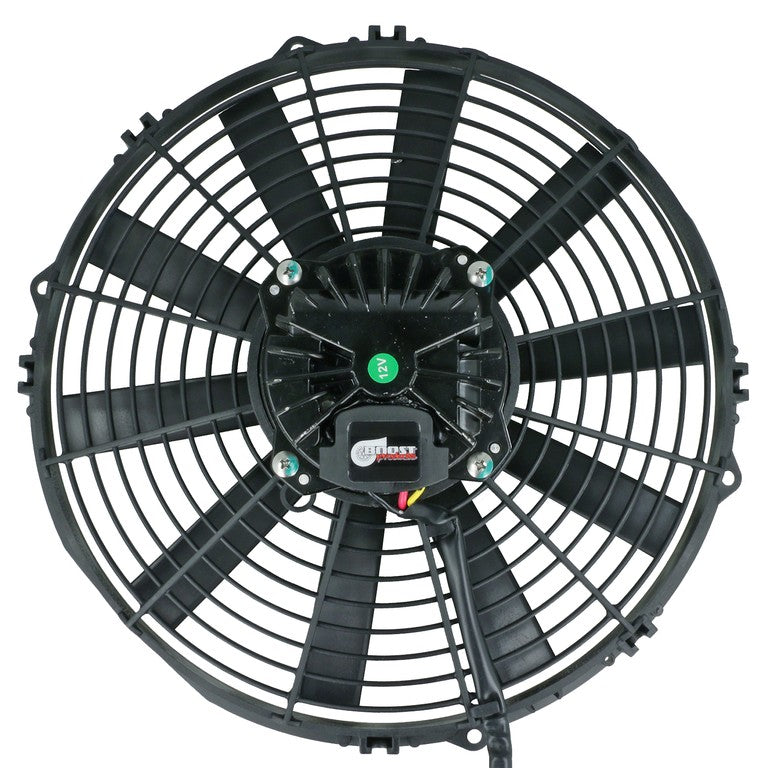

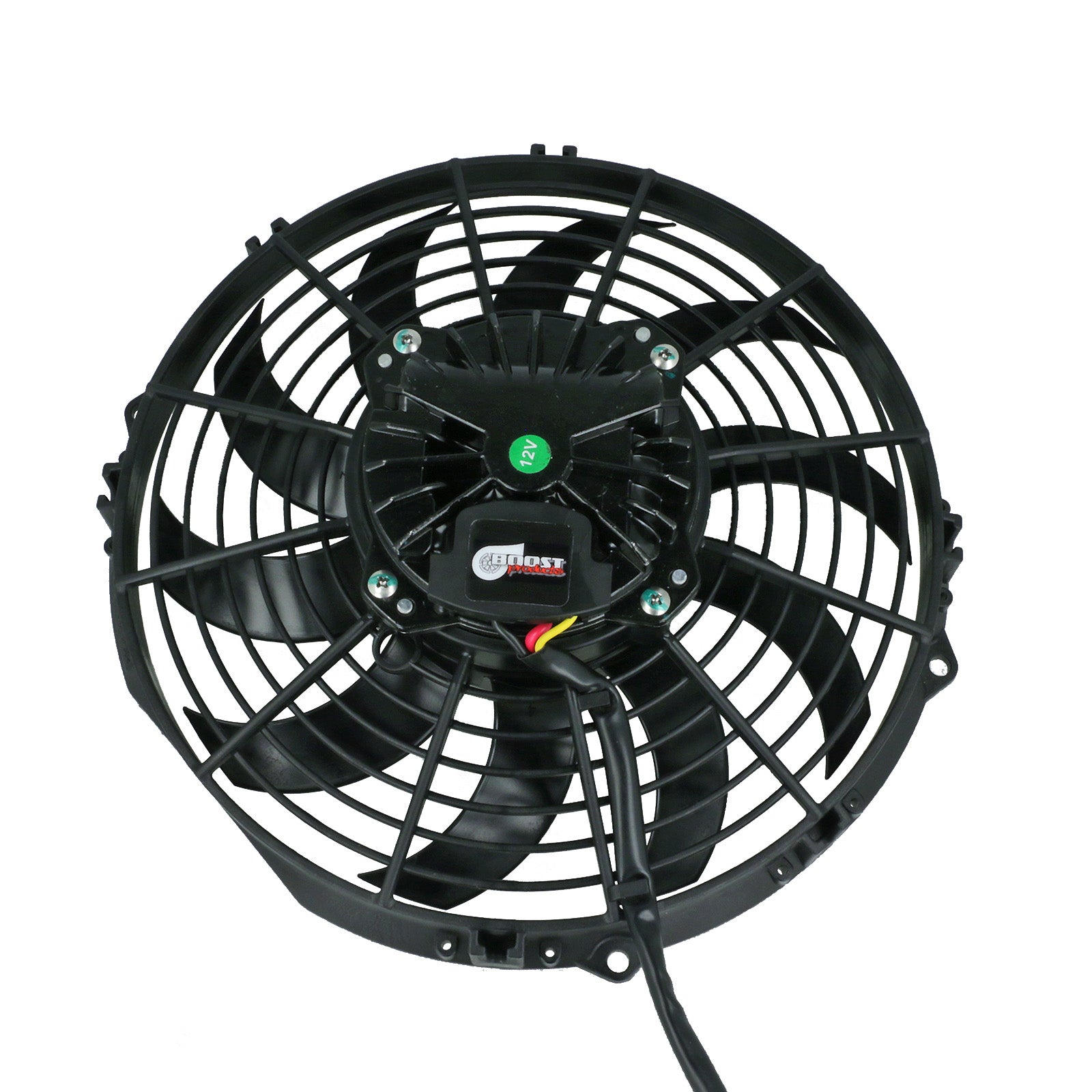

- High-output brushless electric motor
- Puller-style fan configuration
- Variable-speed PWM control
- Can also be configured for full-speed instant-on operation
- Soft-start function reduces sudden current spikes

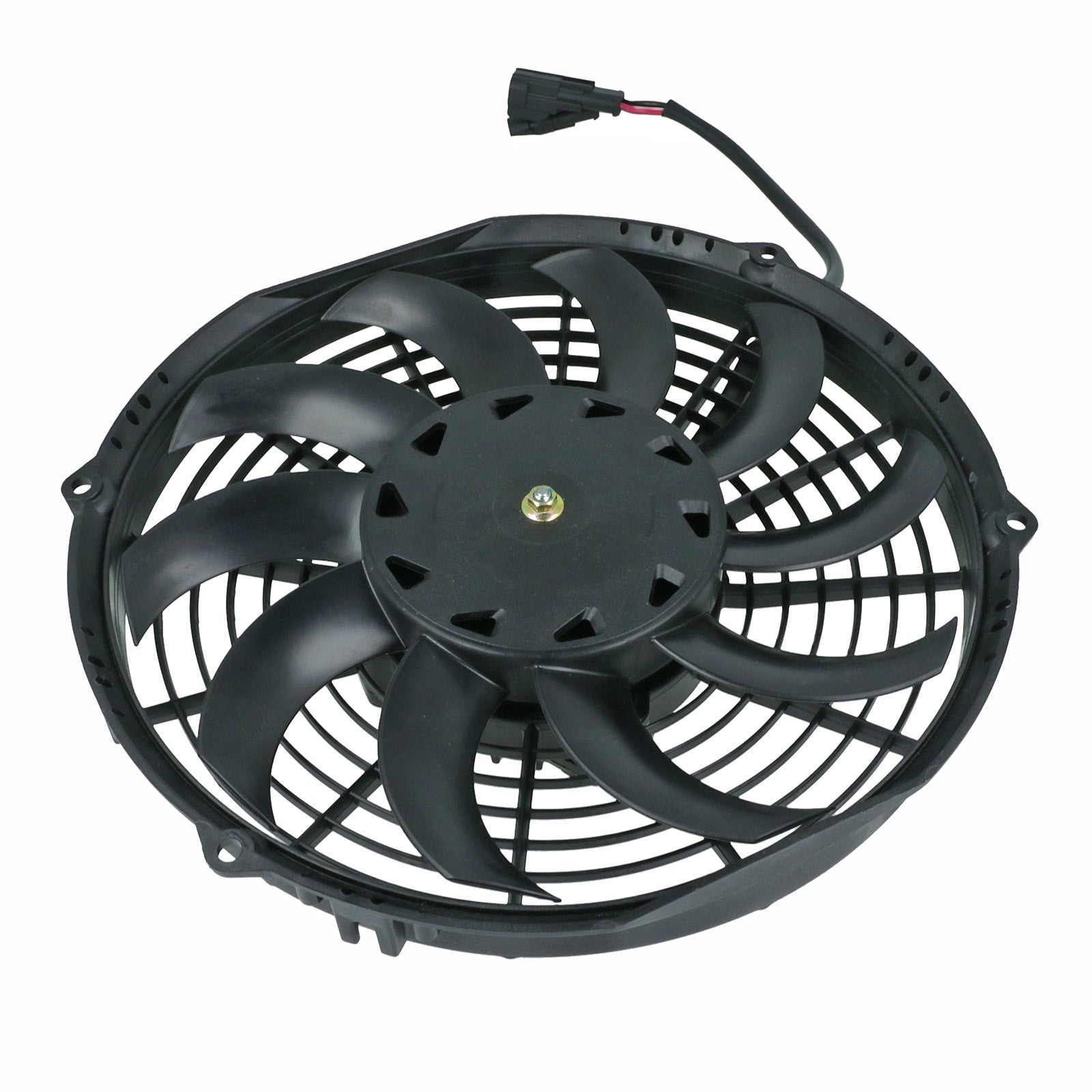

- Curved fan blades designed for efficient airflow
- Slim housing for tight engine-bay installations
- Integrated power and control electronics
- Sealed motor housing
- IP68 protection against water, dust and dirt
- Designed to handle sand, mud, moisture, fog and automotive chemicals
- Operating temperature range of -40°F to 257°F
- Rated for more than 20,000 operating hours
PWM Control Information
- PWM frequency range: 50 to 1000 Hz
- Typical PWM frequency: 100 Hz
- PWM duty-cycle range: 15% to 100%
- Fan starts operating at approximately 15% duty cycle
- Fan reaches full speed at 100% duty cycle
- Built-in fail-safe runs the fan at full speed if the PWM signal is lost
The PWM input can be controlled by a compatible PDM, ECU output or standalone fan controller. The control system must be configured for the required frequency, voltage levels and duty-cycle range.
Choosing the Correct Size
The 10-inch fan is the better choice when mounting space is limited or when adding airflow to a smaller oil cooler, intercooler or compact radiator. The 12-inch fan provides more airflow and is a better option when the cooler has enough surface area and room for the larger housing.
Measure the complete mounting area instead of selecting the fan by blade diameter alone. Leave clearance for the motor housing, mounting tabs, hoses, engine movement and any surrounding belts or pulleys.
Installation Notes
- This is a puller fan and should normally be mounted behind the radiator or cooler.
- Custom brackets, a fan shroud or fabricated mounting points may be required.

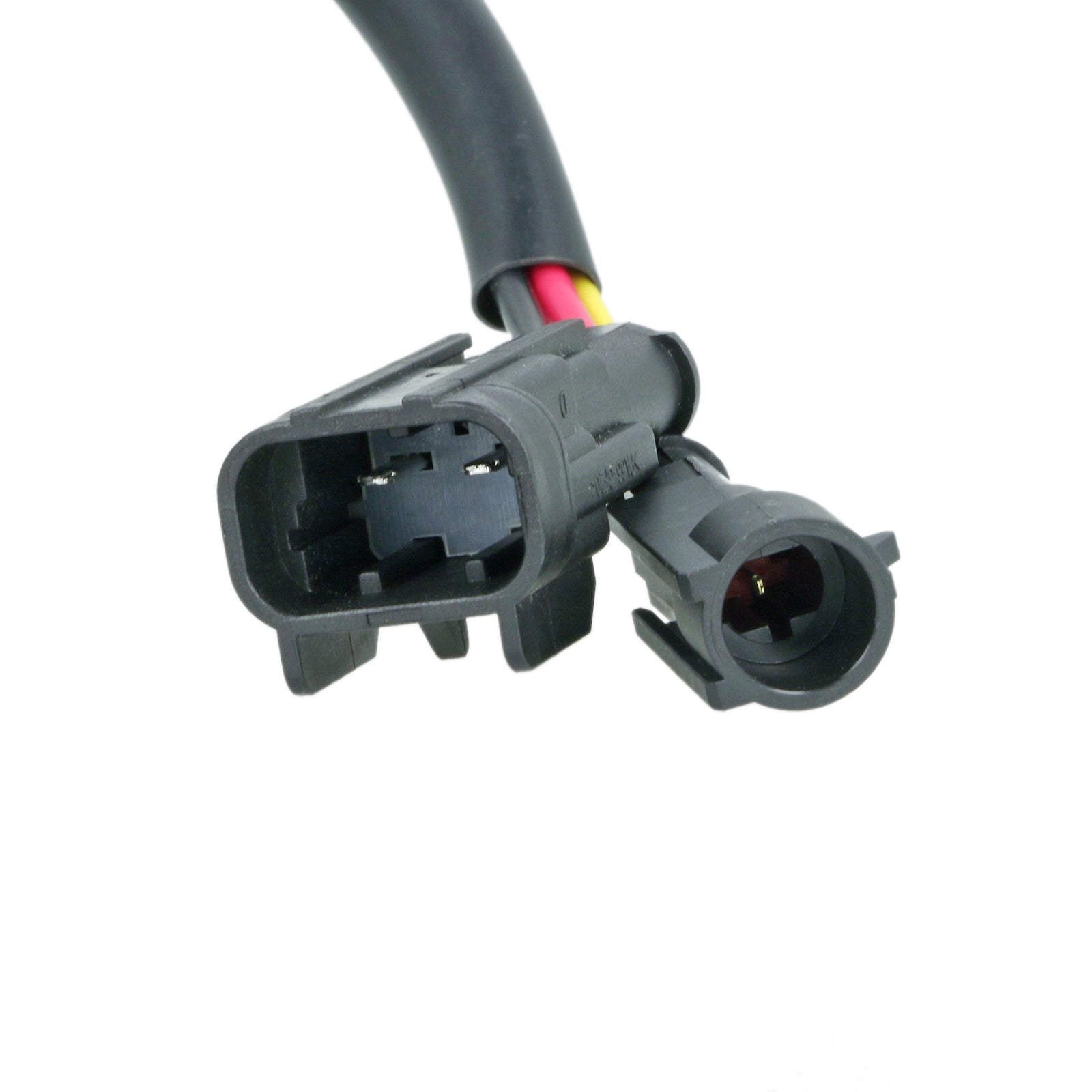

- Use wiring and circuit protection rated for the selected fan's current draw.
- Do not mount the fan directly through a radiator core unless the cooler manufacturer approves that mounting method.
- Check clearance with the engine running and under load, since the engine can move on its mounts.
- A properly designed shroud will help the fan pull air through more of the radiator or cooler surface.
- Test the PWM operation and fail-safe mode before driving the vehicle.
What's Included
- One BOOST Products brushless puller fan in the selected size
- Integrated fan motor and control electronics
Pairs Well With
- CSF Universal Triple-Pass Competition Radiator – Build a complete custom cooling system by adding a high-output brushless fan to this aluminum motorsport radiator.
- BOOST Products Competition Series Intercooler – Add fan-assisted airflow to a custom intercooler setup that does not always receive enough air at low vehicle speeds.
- CSF Universal Dual-Pass Oil Cooler – Pair the oil cooler with the 10-inch fan when the cooler is mounted in an area with limited natural airflow.
About BOOST Products
BOOST Products makes cooling, intake, exhaust and fabrication parts for custom street and motorsport builds. Its lineup includes intercoolers, silicone hoses, aluminum piping, exhaust components and the smaller parts needed to put a complete system together.
