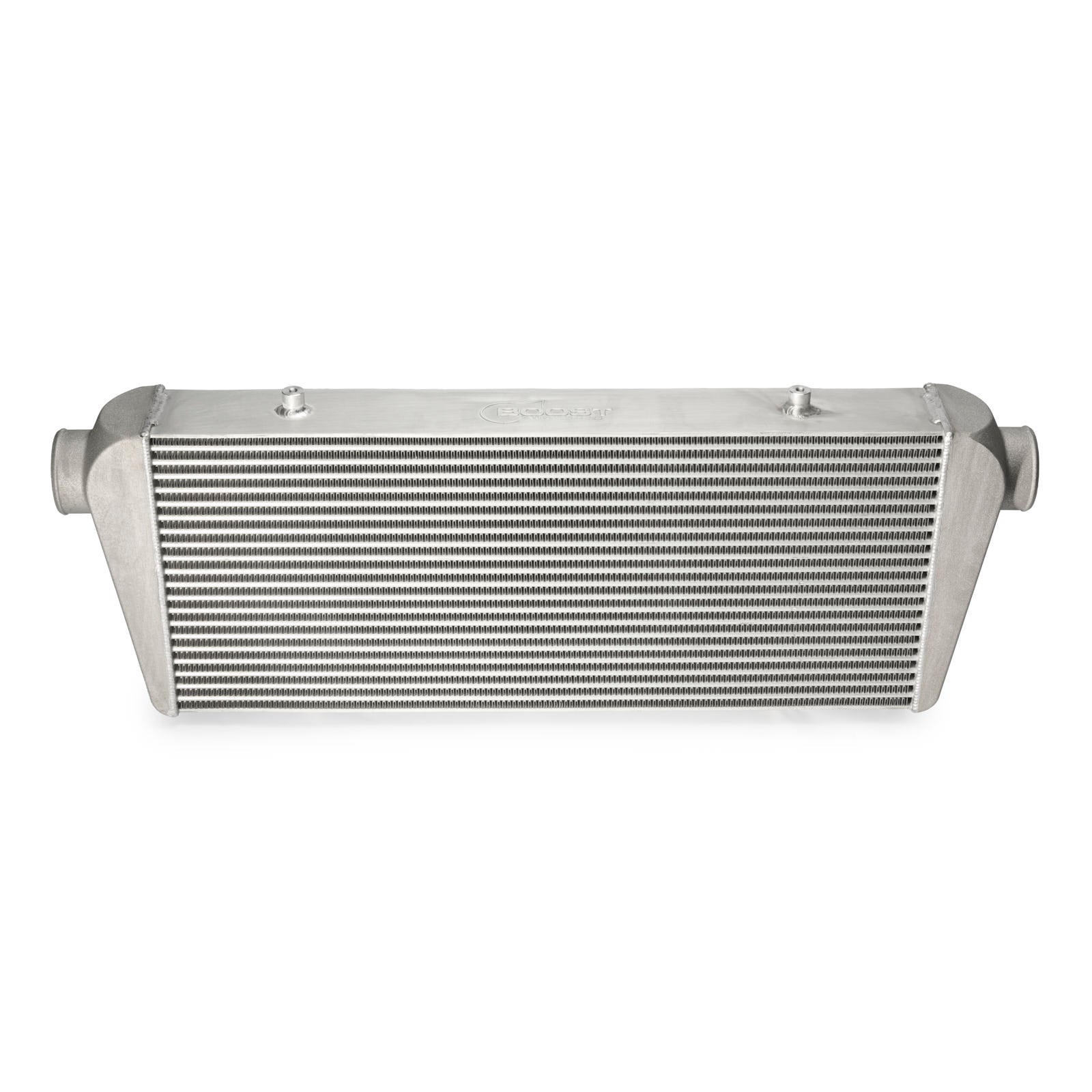

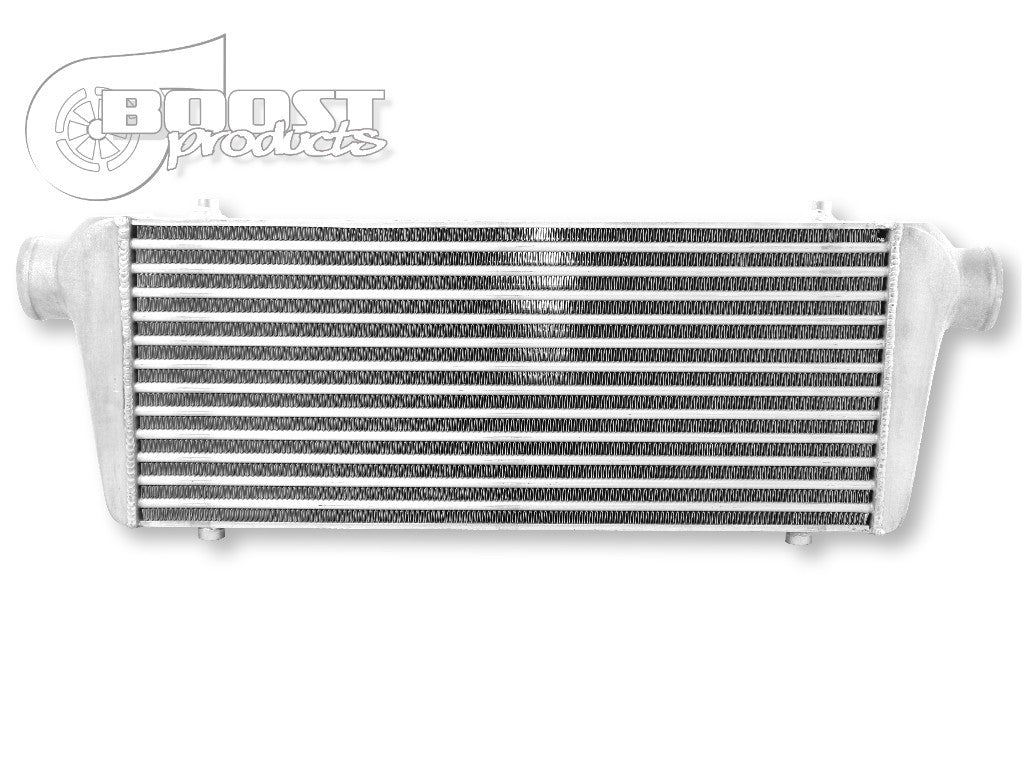

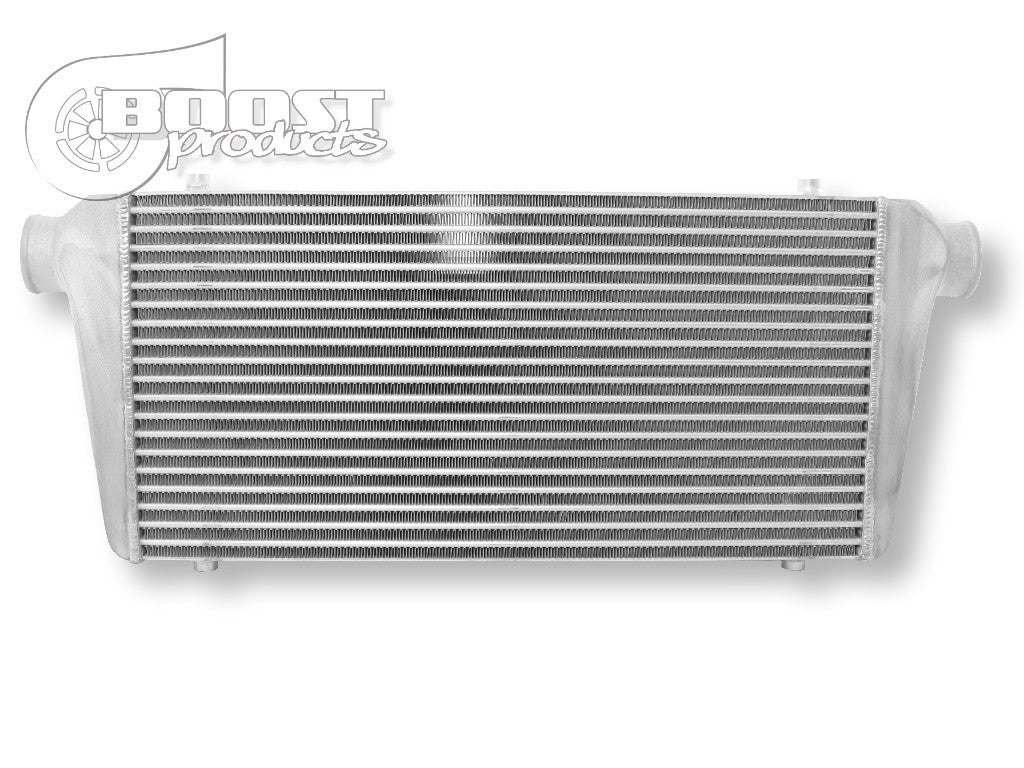

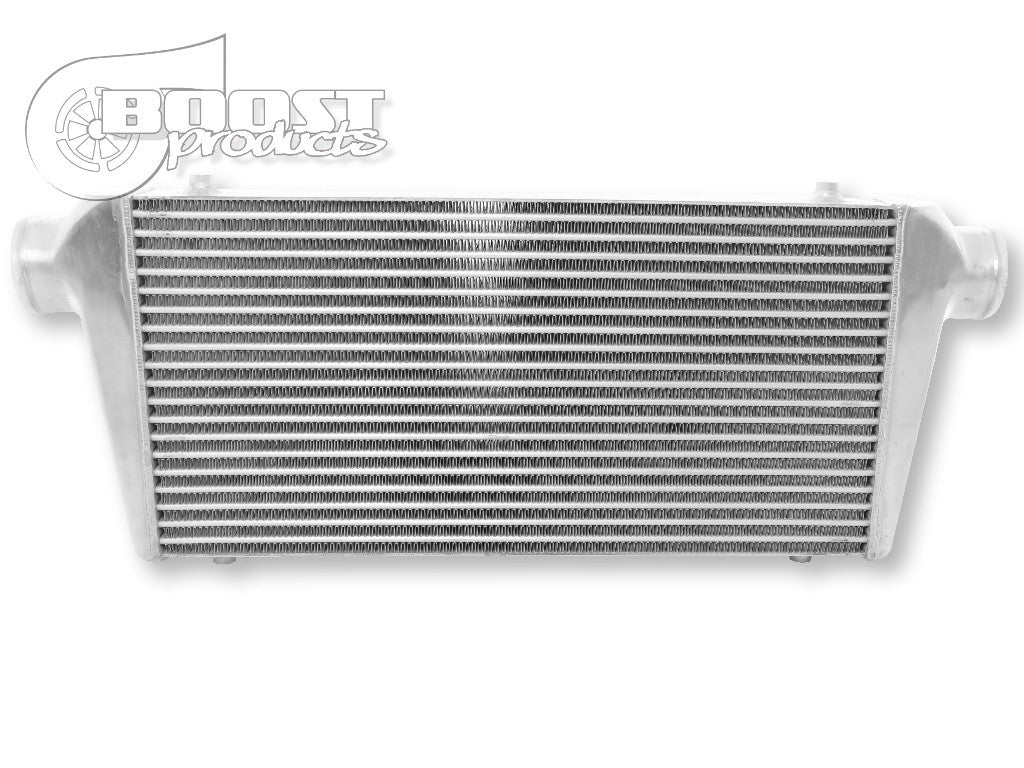

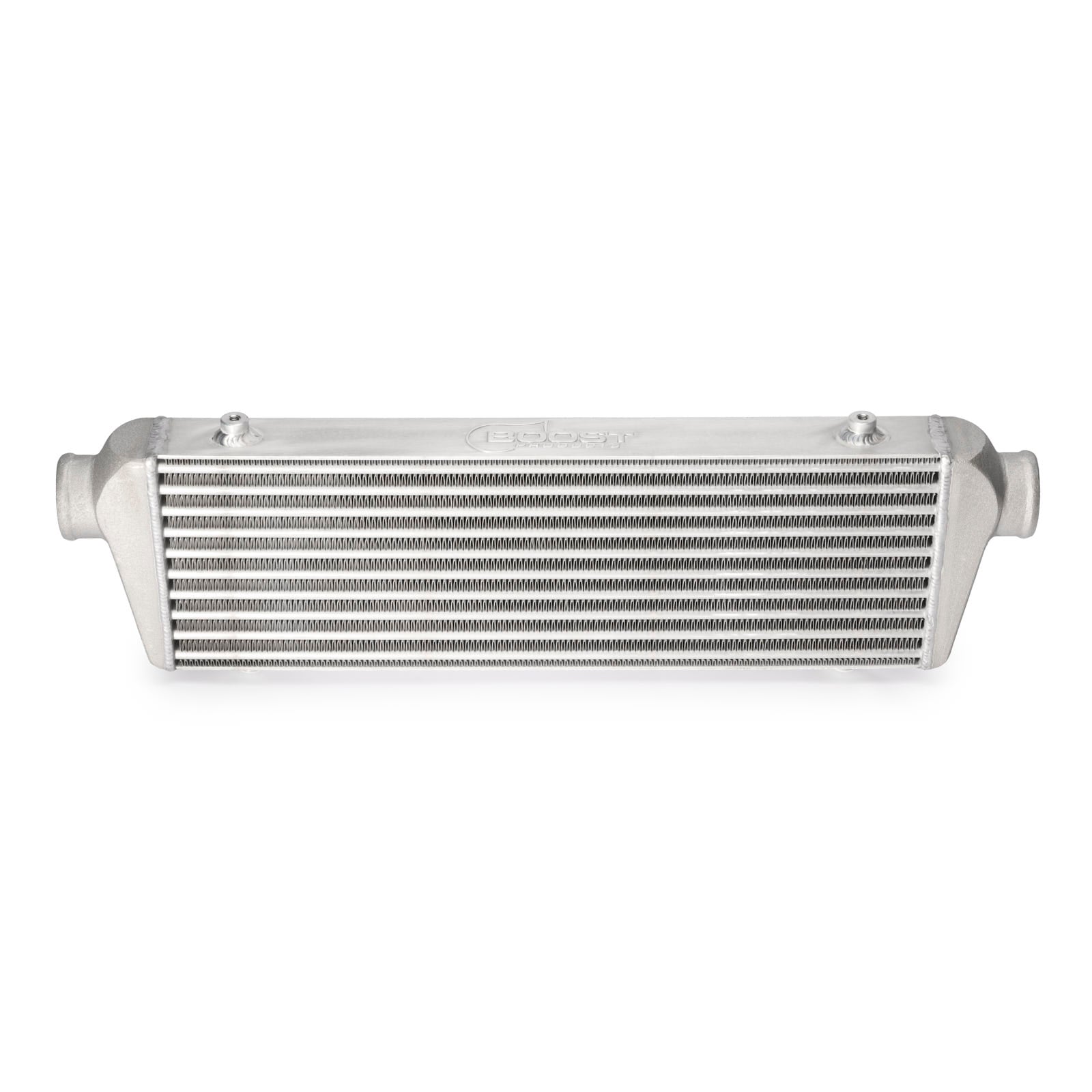

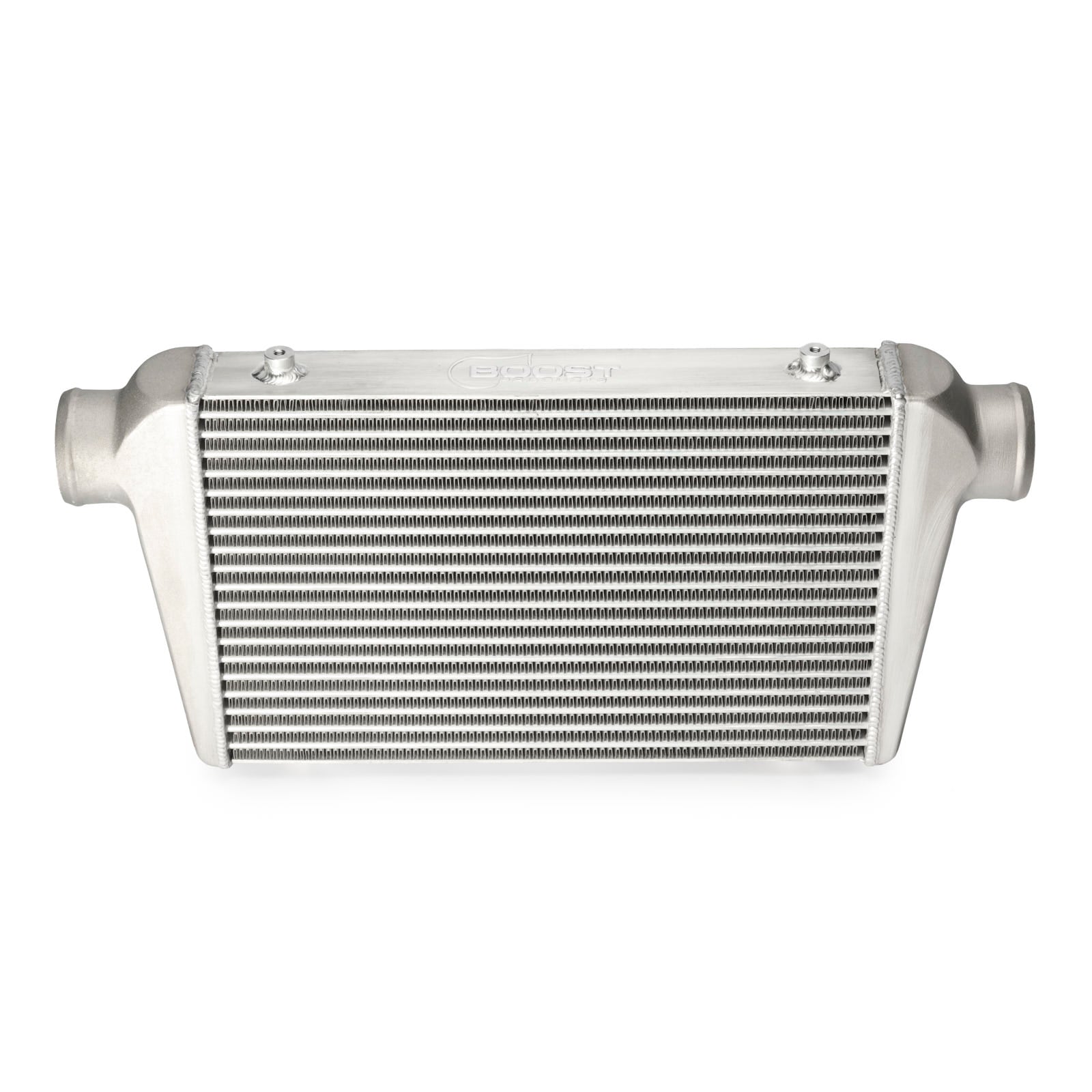

BOOST Products Universal Front Mount Intercooler (300-1000 HP) Competition Series

Build your custom charge-air system around a lightweight BOOST Products Competition Series intercooler, available in multiple core sizes for applications from 300 to 1,000 HP.

Fitment Information

• Universal air-to-air intercooler for custom turbocharged and supercharged applications
• Suitable for front-mount and other custom intercooler layouts
• Available with horsepower recommendations ranging from 300 to 1,000 HP
• Select the core dimensions and inlet/outlet diameter that match your available space and charge-pipe layout

Fitment Note

This is a universal fabrication component, not a vehicle-specific bolt-on intercooler kit. Custom piping, couplers, clamps, brackets and fabrication may be required. Measure the complete installation area and plan the charge-pipe routing before selecting a size.

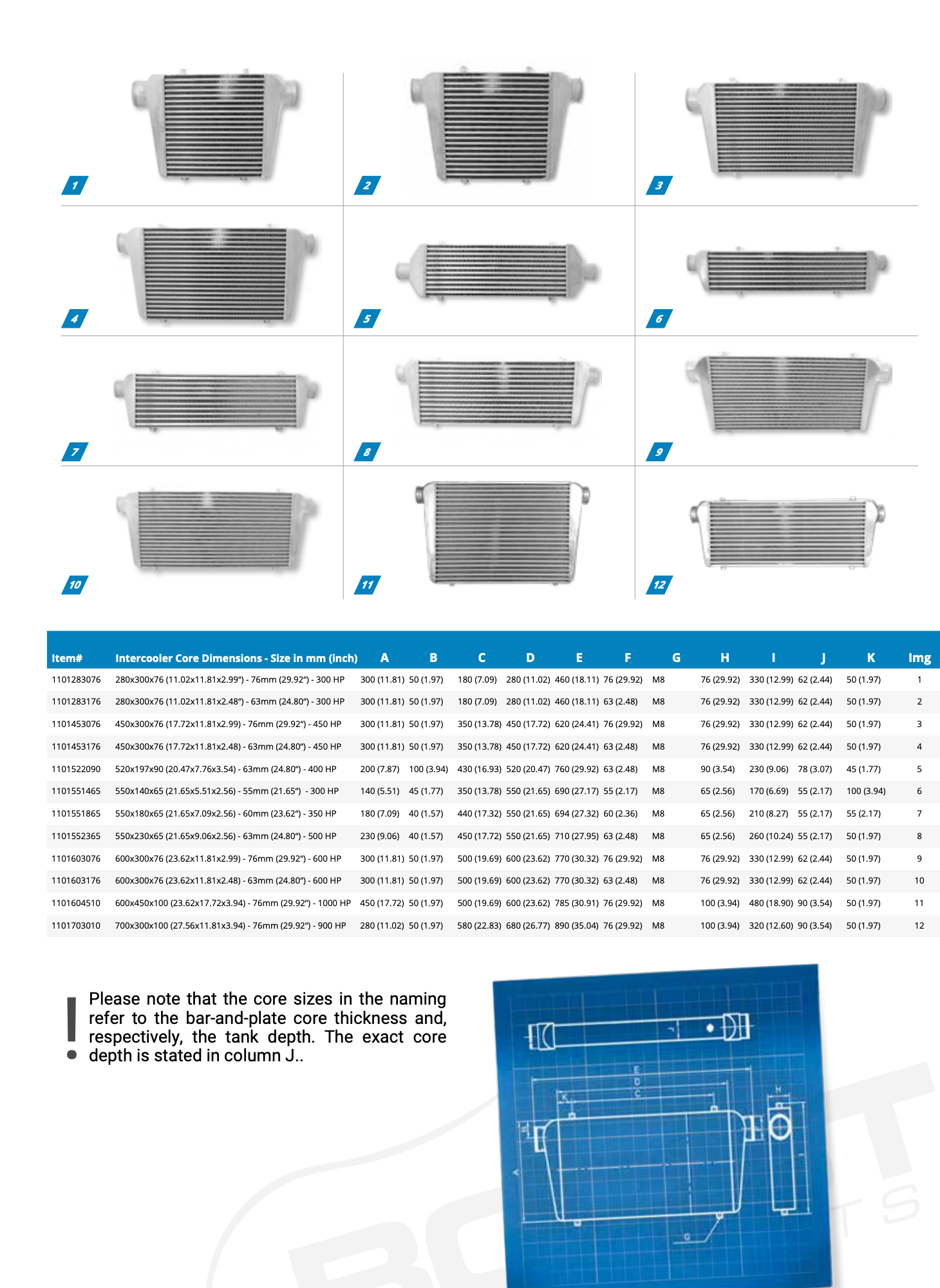

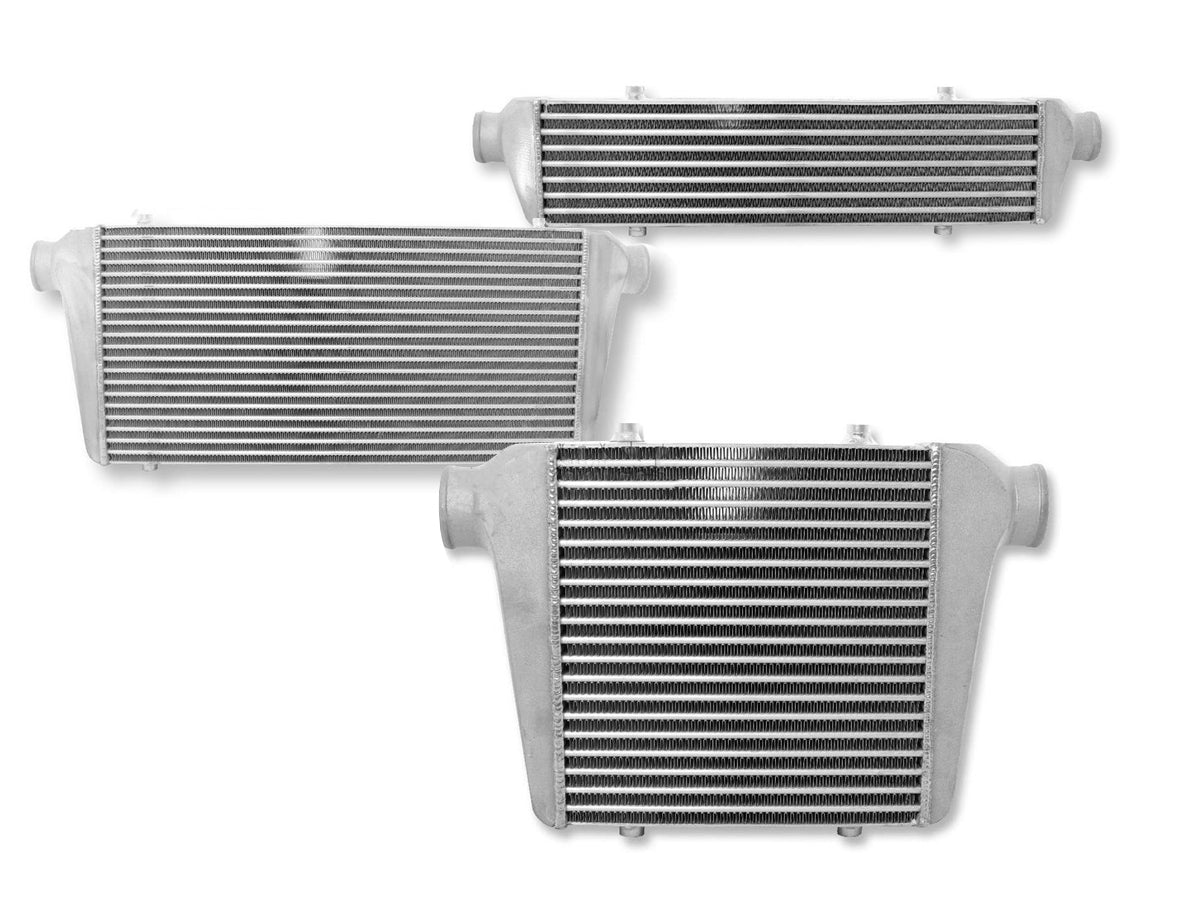

Available Sizes

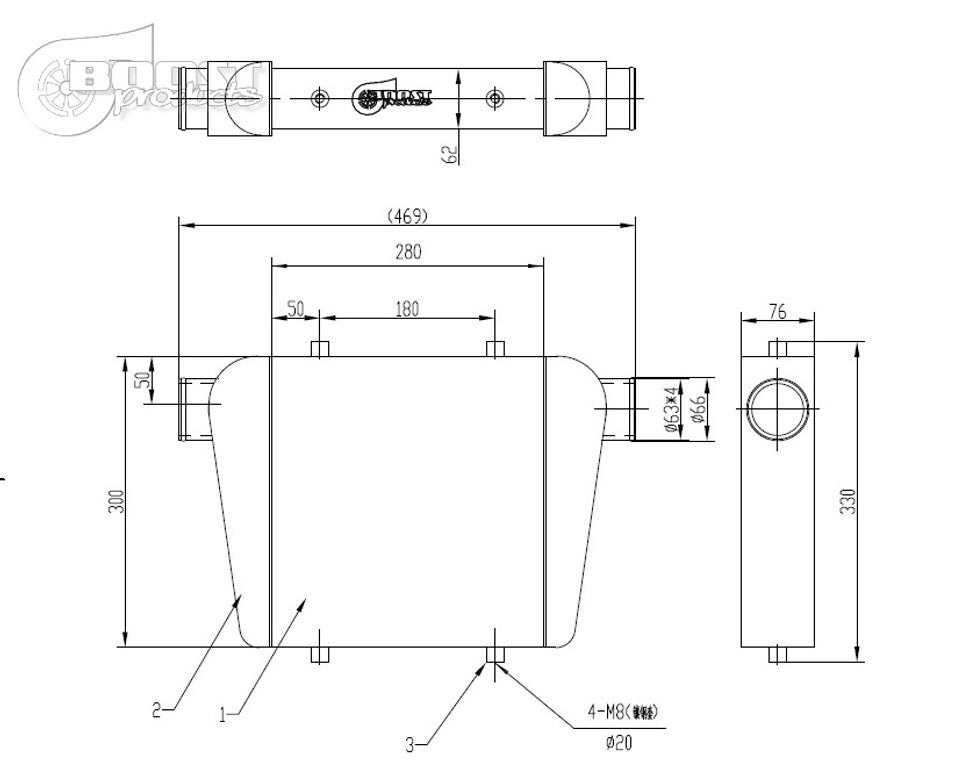

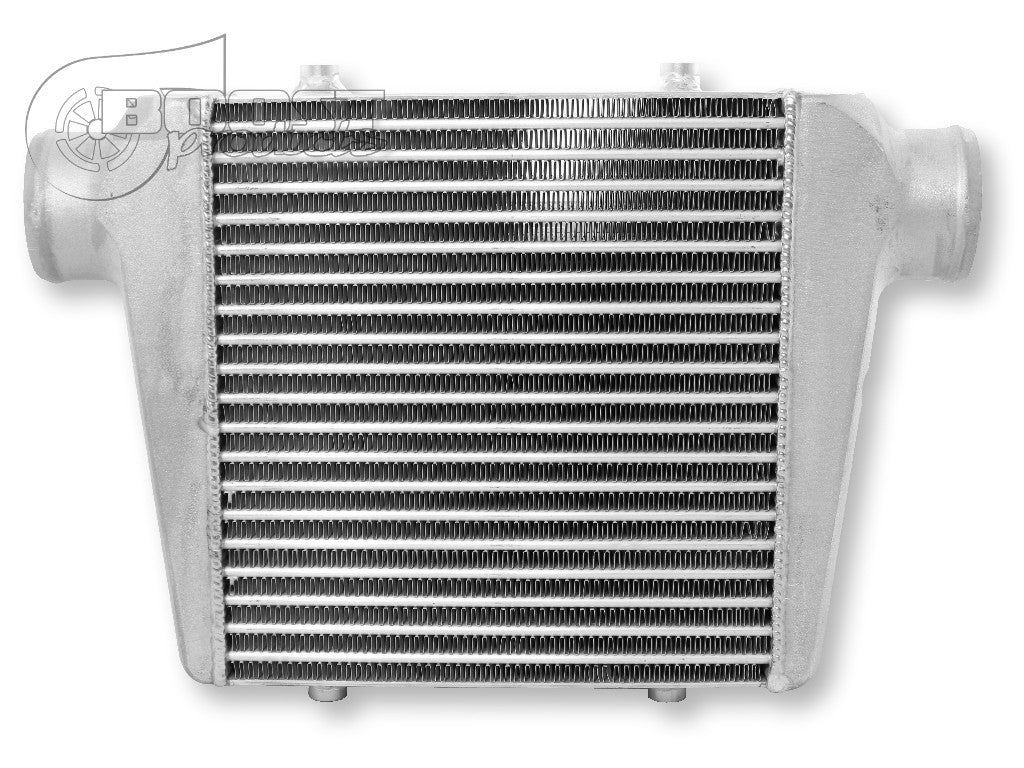

• 11" x 12" x 3" core with 2.5" inlet/outlet - Recommended for up to 300 HP
• 11" x 12" x 3" core with 3" inlet/outlet - Recommended for up to 300 HP

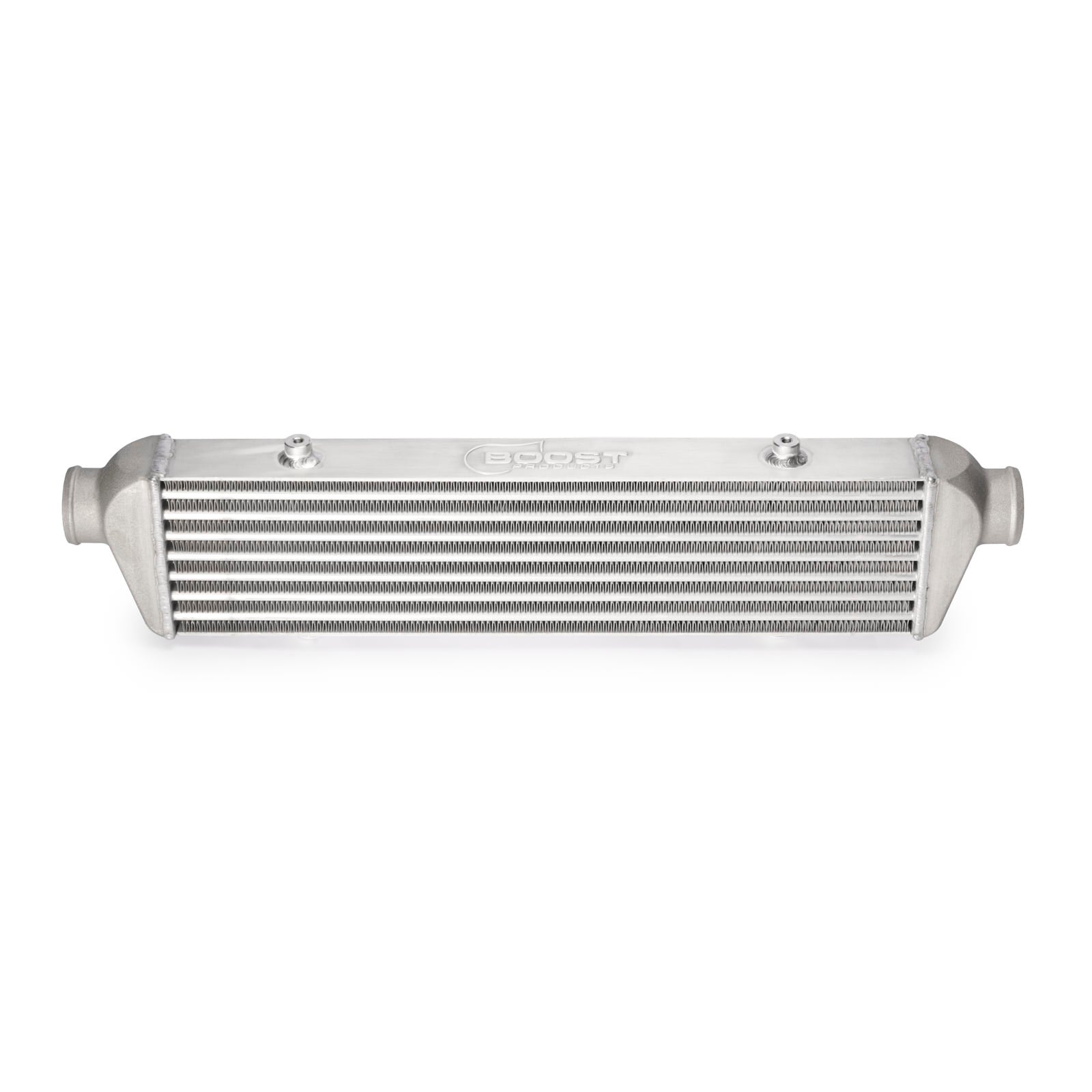

• 22" x 5.5" x 2.5" core with 2.175" inlet/outlet - Recommended for up to 300 HP
• 22" x 7" x 2.5" core with 2.36" inlet/outlet - Recommended for up to 350 HP
• 21" x 8" x 3.5" core with 2.5" inlet/outlet - Recommended for up to 400 HP
• 18" x 12" x 3" core with 2.5" inlet/outlet - Recommended for up to 450 HP
• 18" x 12" x 3" core with 3" inlet/outlet - Recommended for up to 450 HP
• 22" x 9" x 3" core with 2.36" inlet/outlet - Recommended for up to 500 HP
• 22" x 12" x 3" core with 2.5" inlet/outlet - Recommended for up to 600 HP
• 24" x 12" x 3" core with 3" inlet/outlet - Recommended for up to 600 HP

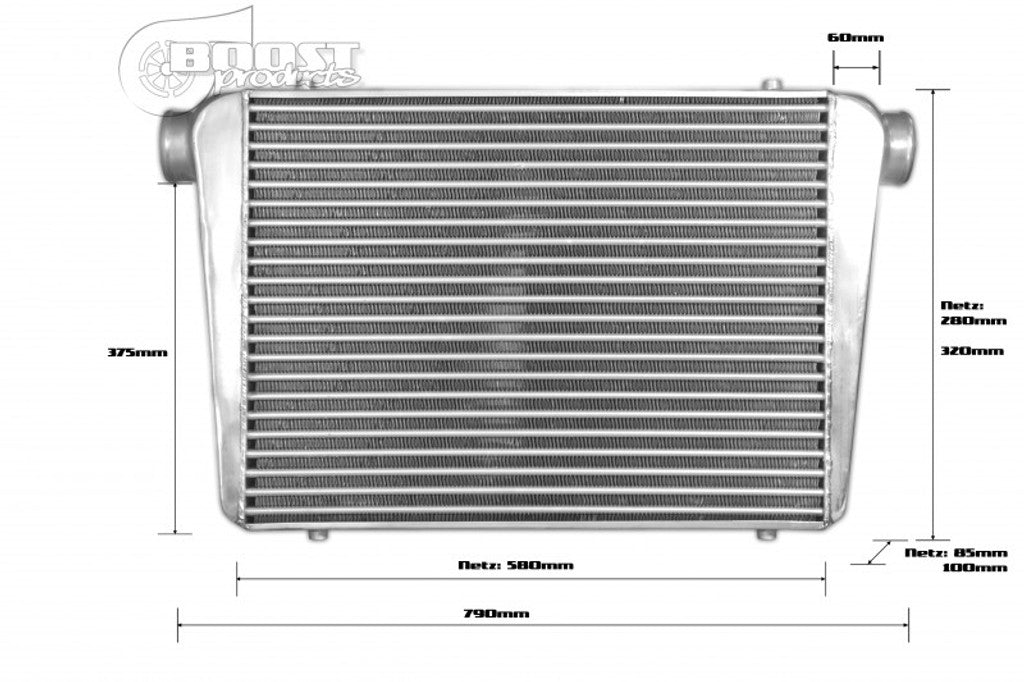

• 28" x 12" x 4" core with 3" inlet/outlet - Recommended for up to 900 HP
• 24" x 18" x 4" core with 3" inlet/outlet - Recommended for up to 1,000 HP

Specs and Features

• Competition Series tube-and-fin intercooler core
• Lightweight core construction with internal turbulators
• Lamellar external fin structure designed to make effective use of incoming airflow
• Designed for efficient charge-air cooling with low pressure drop
• 3mm-thick cast-aluminum end tanks
• Matte aluminum finish
• Pressure-tested to 5 bar, approximately 72.5 psi
• Multiple core and connection sizes available
• Horsepower recommendation varies by selected size
• Part number and UPC vary by selected configuration

Product Description

The BOOST Products Competition Series gives fabricators a selection of universal front mount intercoolers for everything from compact street builds to four-digit-horsepower projects. Each version combines a lightweight tube-and-fin core with internal turbulators and a lamellar fin structure to balance cooling performance, airflow and response.

The cast-aluminum end tanks use 3mm-thick construction and each intercooler is tested to withstand 5 bar of pressure. Multiple core dimensions and connection diameters make it easier to select an intercooler around the available space, planned charge-pipe size and intended power level of your build.

Choosing the Correct Intercooler

• Start with the realistic horsepower goal for the finished build.
• Measure the width, height and depth available behind the bumper or grille.
• Account for the additional width of the end tanks, not only the advertised core dimensions.
• Match the inlet and outlet diameter to the planned charge-pipe size whenever possible.
• Confirm that the pipe route will clear the radiator, condenser, crash structure, bumper cover and surrounding components.
• Leave enough airflow behind the intercooler for the radiator and air-conditioning condenser.

What's Included

• One BOOST Products Competition Series intercooler in the selected size

Before You Buy

• This intercooler does not include vehicle-specific piping or installation hardware.
• Core dimensions are not the same as the intercooler's complete end-to-end dimensions.
• Do not select an intercooler solely from its horsepower recommendation.
• Horsepower figures are sizing guidelines and do not guarantee that a vehicle will produce the listed power.
• Final cooling performance depends on airflow, boost pressure, turbocharger efficiency, vehicle speed, ducting and the rest of the charge-air system.
• Professional fabrication and installation are recommended.
• Pressure-test the completed charge-air system before operating the vehicle under boost.

Pairs Well With

• BOOST Products Cobra Head 90-Degree Silicone Elbow Hose - A compact coupler option for routing intercooler piping through tight engine-bay spaces.
• Vibrant Performance Straight Aluminum Tubing - Available in multiple diameters for fabricating a custom charge-pipe system.

About BOOST Products

BOOST Products develops silicone hoses, intercoolers, aluminum fabrication components, clamps and other hardware for custom turbocharged street and motorsport builds. Its catalog focuses on the individual components needed to design and assemble complete intake and charge-air systems.
