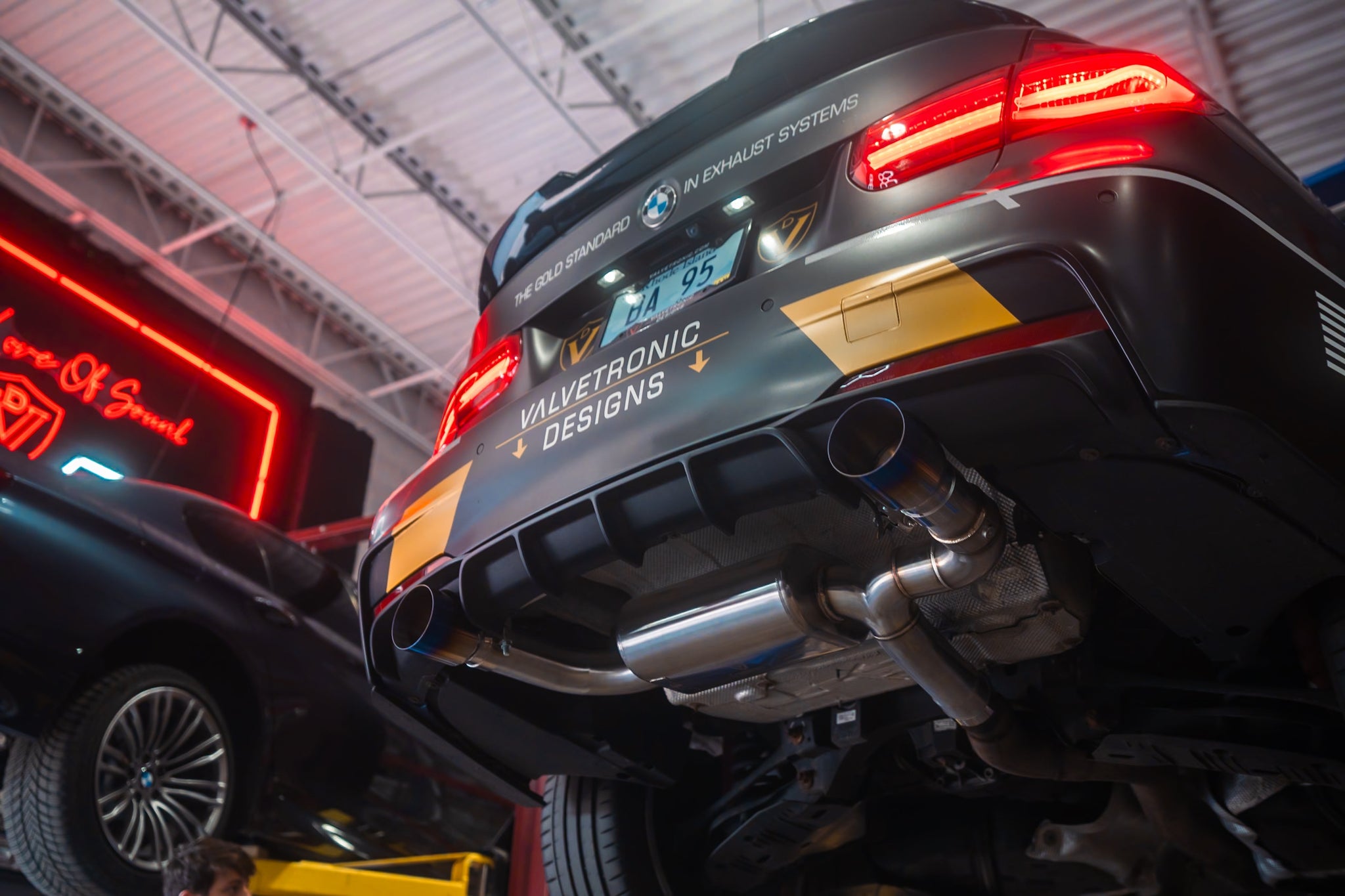

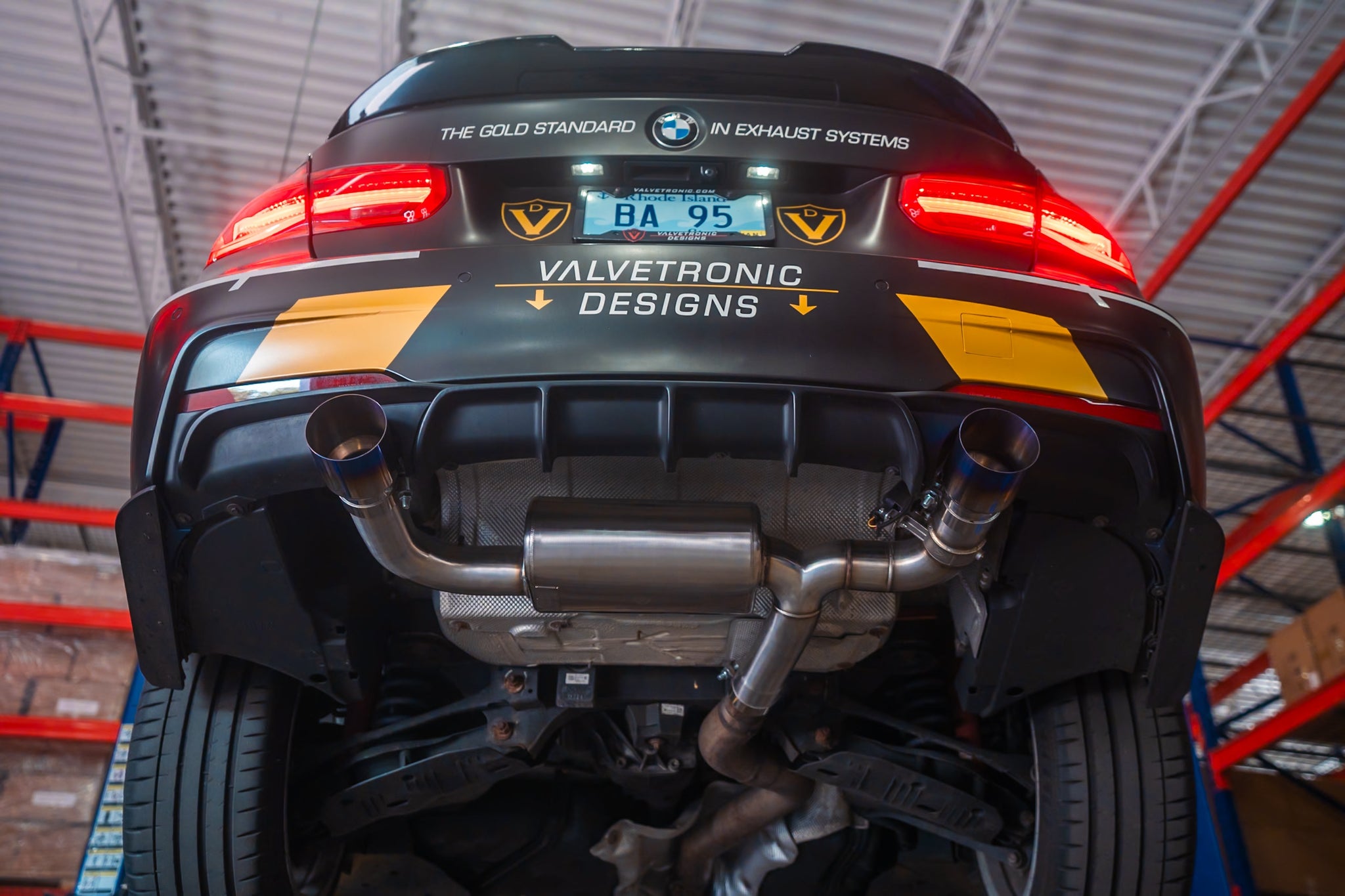

Make your F-chassis BMW loud when you want to hear it, then close the valve when you want the car closer to its factory sound. This Version 2 valved axle-back from Valvetronic Designs works with four-cylinder, N55 and B58-powered BMW models, including the 320i, 328i, 335i, 340i, 428i, 435i, 440i, M235i and M240i.

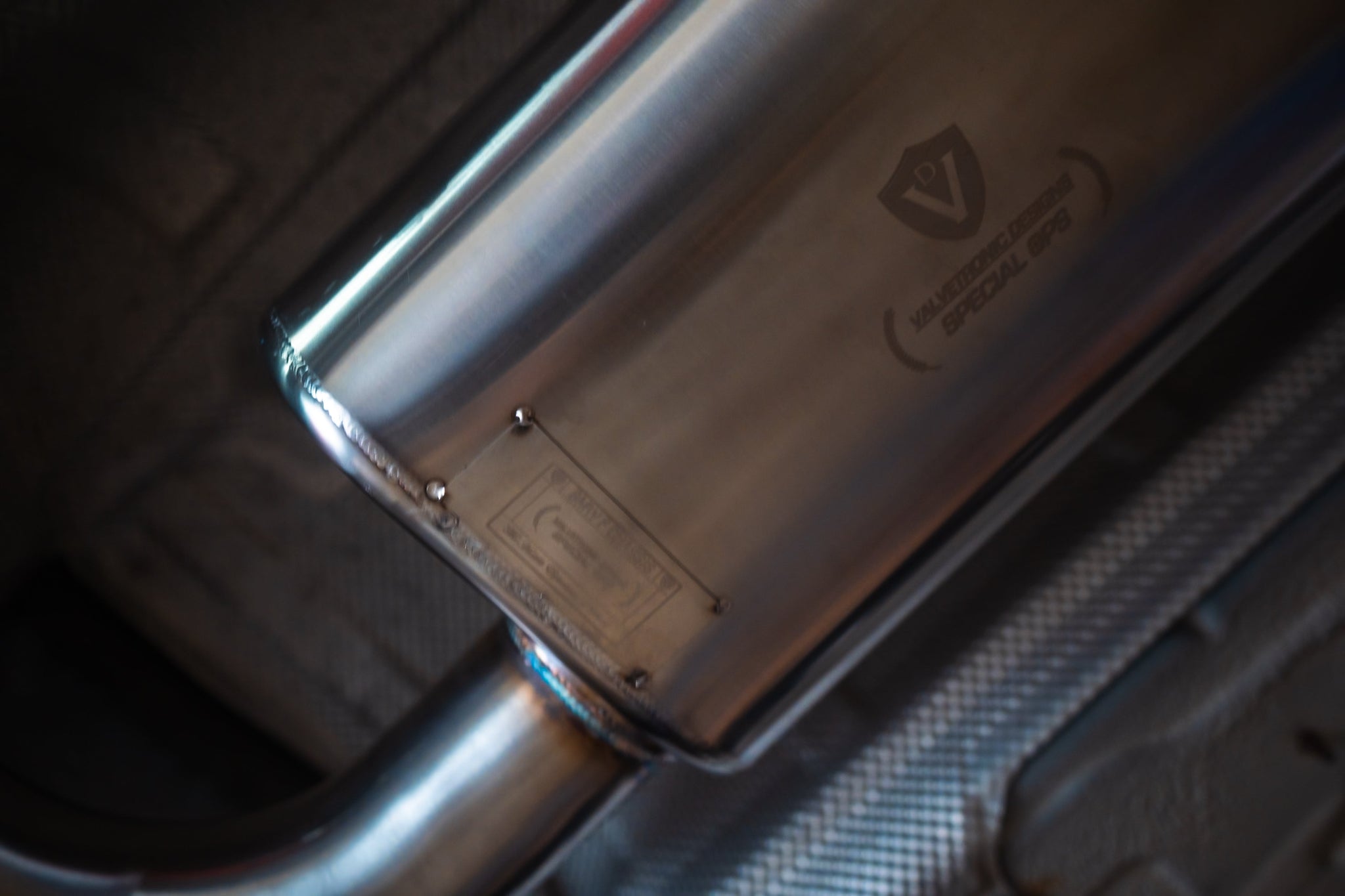

The V2 system has revised muffler internals that make the exhaust smoother and quieter with the valve closed. Open the valve and the exhaust takes on a deeper, more aggressive sound with louder shifts, pops and overrun sounds.

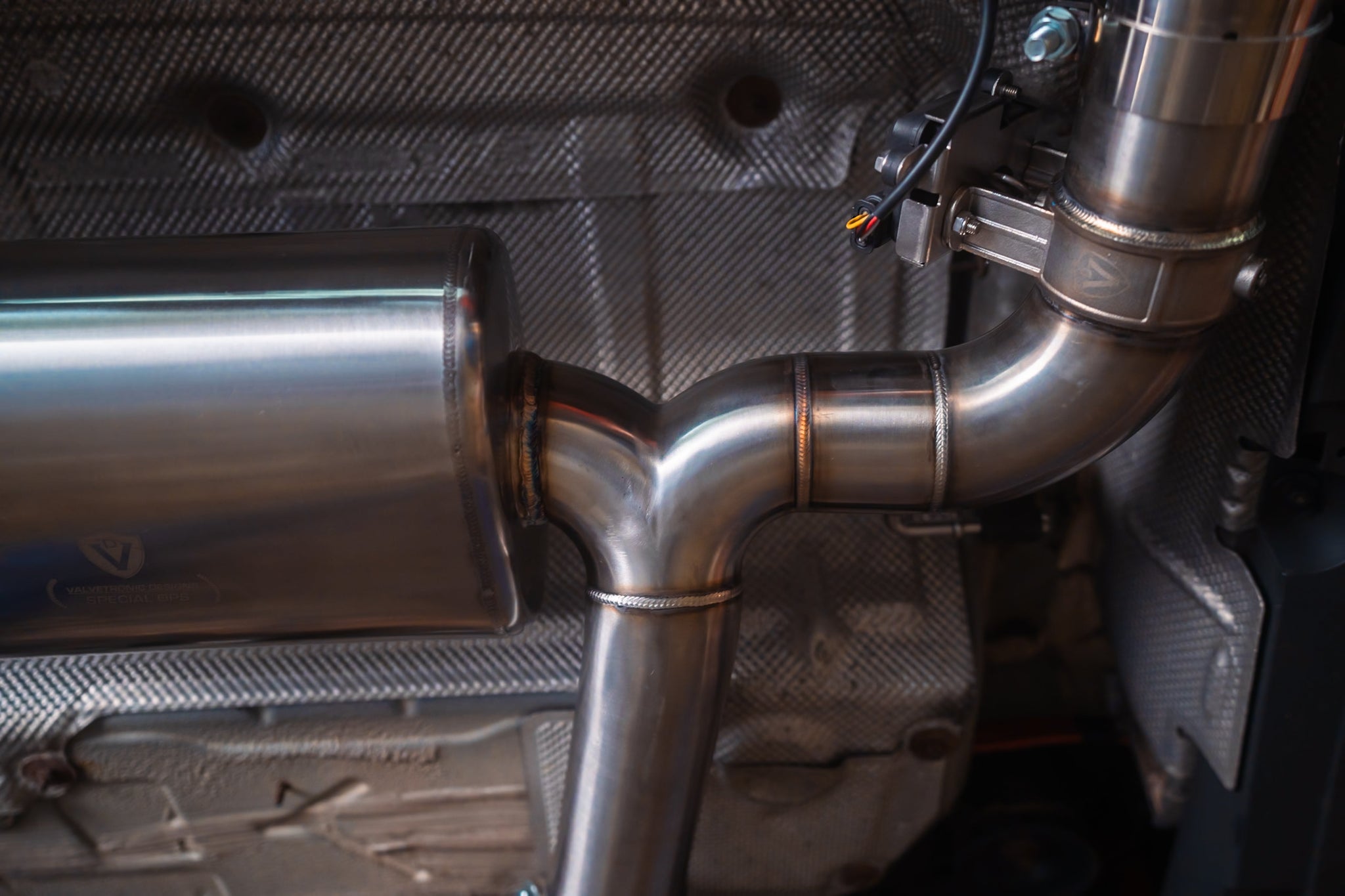

Valvetronic also updated the valve design, moved the hangers and added a cast Y-pipe for better flow and a cleaner exhaust tone. The complete axle-back is made from brushed T304 stainless steel and comes with your choice of 3.5-inch exhaust tips.
Fitment Information
- BMW 320i F30 (2012, 2013, 2014, 2015, 2016)
- BMW 328i F30 (2012, 2013, 2014, 2015, 2016)
- BMW 330i F30 (2016, 2017, 2018)
- BMW 335i F30 (2012, 2013, 2014, 2015, 2016)
- BMW 340i F30 (2016, 2017, 2018)
- BMW 420i F32 / F33 / F36 (2012, 2013, 2014, 2015, 2016, 2017)
- BMW 428i F32 / F33 / F36 (2012, 2013, 2014, 2015, 2016, 2017)
- BMW 430i F32 / F33 / F36 (2017, 2018, 2019, 2020)
- BMW 435i F32 / F33 / F36 (2012, 2013, 2014, 2015, 2016, 2017)
- BMW 440i F32 / F33 / F36 (2017, 2018, 2019, 2020)
- BMW 228i F22 (2014, 2015, 2016)
- BMW 230i F22 (2016, 2017, 2018, 2019)
- BMW M235i F22 (2014, 2015, 2016)
- BMW M240i F22 (2017, 2018, 2019)
- BMW M135i F20 (2014, 2015, 2016, 2017)
- BMW M140i F20 (2017, 2018, 2019)
- Fits applicable rear-wheel-drive and xDrive models
Important Fitment Notes
- Cars equipped with the factory electronic exhaust valve can connect the supplied extension harness to the factory valve wiring.
- Cars without a factory exhaust valve require a separate electronic valve control kit to operate the valve from inside the car.
- Four-cylinder applications include an adapter pipe. Valvetronic recommends welding the adapter during installation.
- Four-cylinder cars require a six-cylinder-style rear diffuser or modification of the existing diffuser to clear the dual exhaust outlets.
- B46 and B58 applications require minor modification of the factory mid-pipe.
- Cars equipped with the BMW M Performance Power and Sound Kit require additional exhaust modification.
- The system fits the factory mid-pipe and most aftermarket mid-pipes that retain the factory connection and dimensions.
How the Valved Exhaust Works

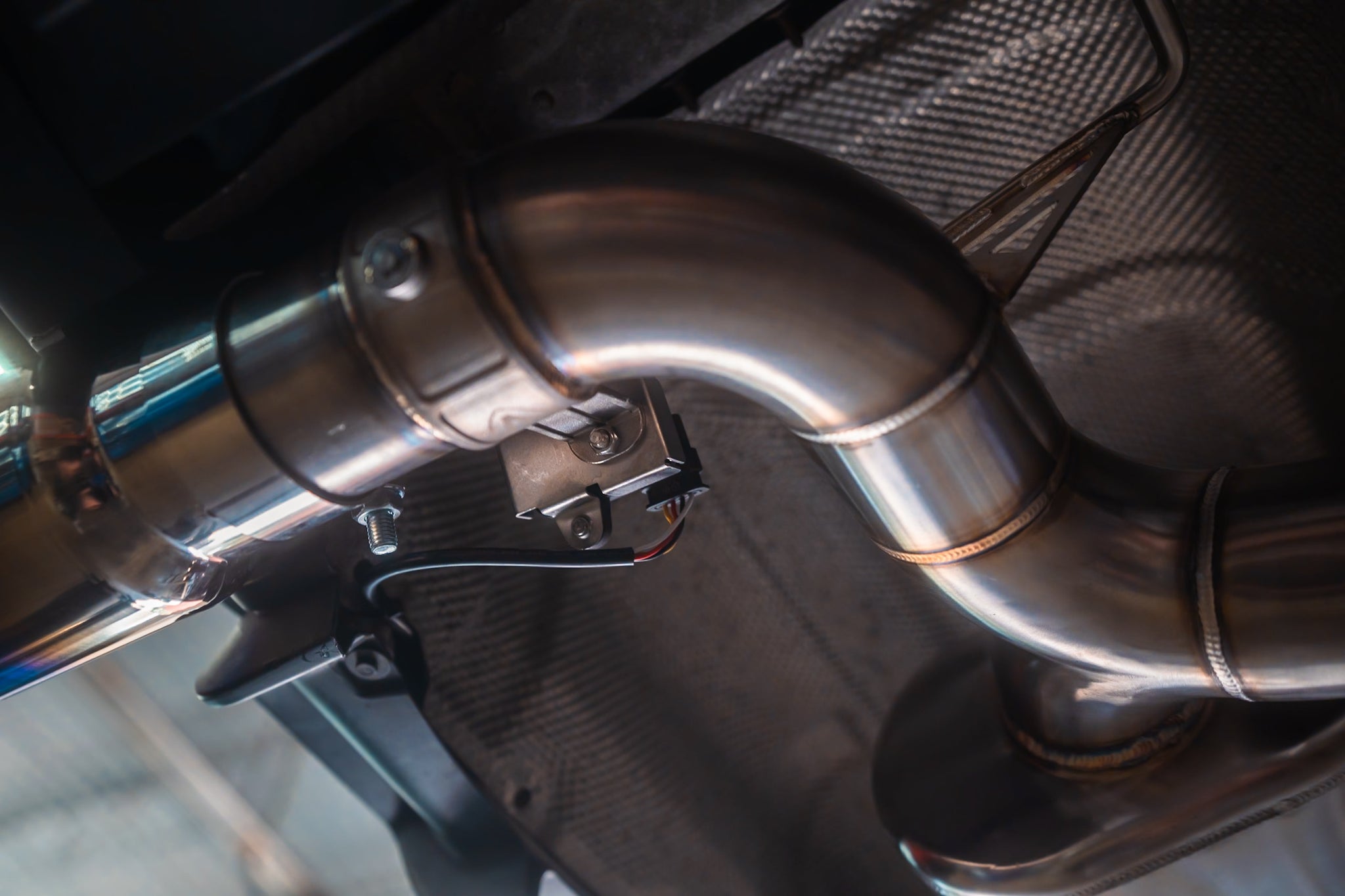

This system uses an OEM-style electronic exhaust valve. On cars with factory valve wiring, the supplied extension harness allows the exhaust to work with the BMW drive-mode controls.
- Valve open: Exhaust bypasses the quieter muffler path for a deeper and much louder sound with more noticeable shifts, pops and overrun sounds.
- Valve closed: Exhaust is routed through the revised muffler for a smoother tone and sound levels closer to the factory exhaust.
If your BMW did not come with a factory exhaust valve, you will need the optional electronic valve controller. That kit gives you a wireless remote so you can open or close the valve yourself.
Specs & Features
- Version 2 F-chassis valved axle-back exhaust
- Brushed T304 stainless steel construction
- Precision TIG-welded connections
- Mandrel-bent exhaust piping

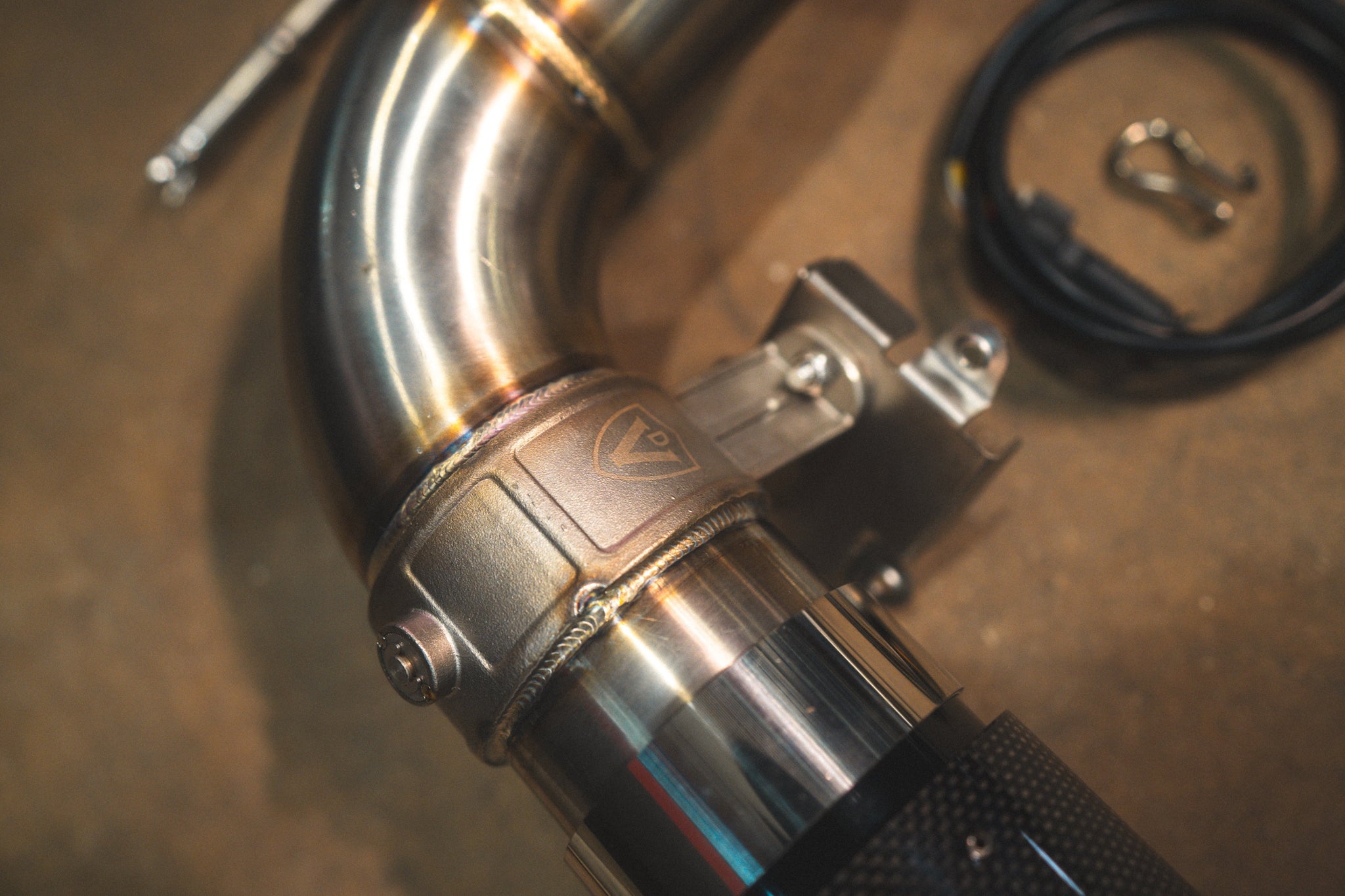

- New OEM-style electronic valve design

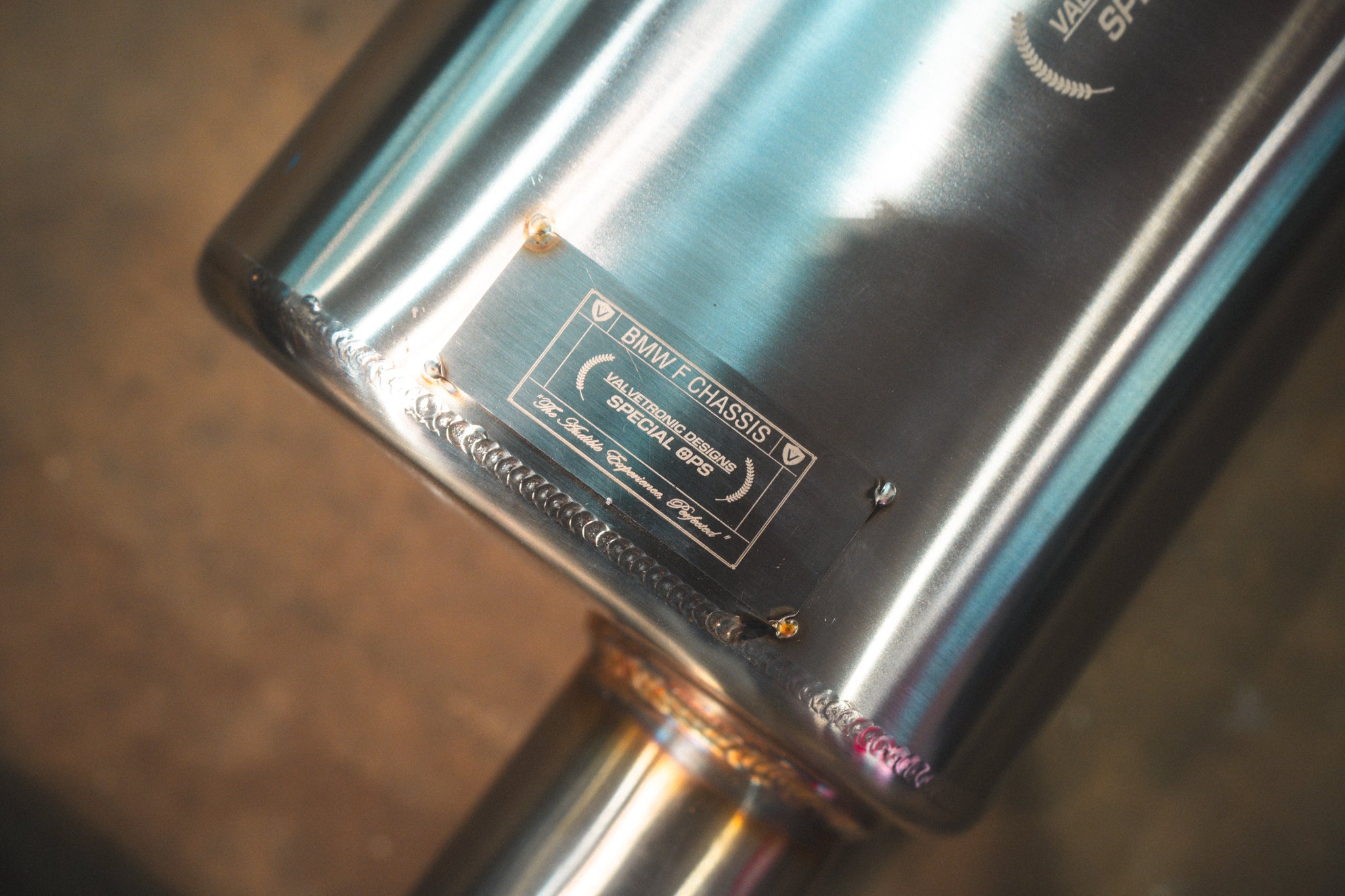

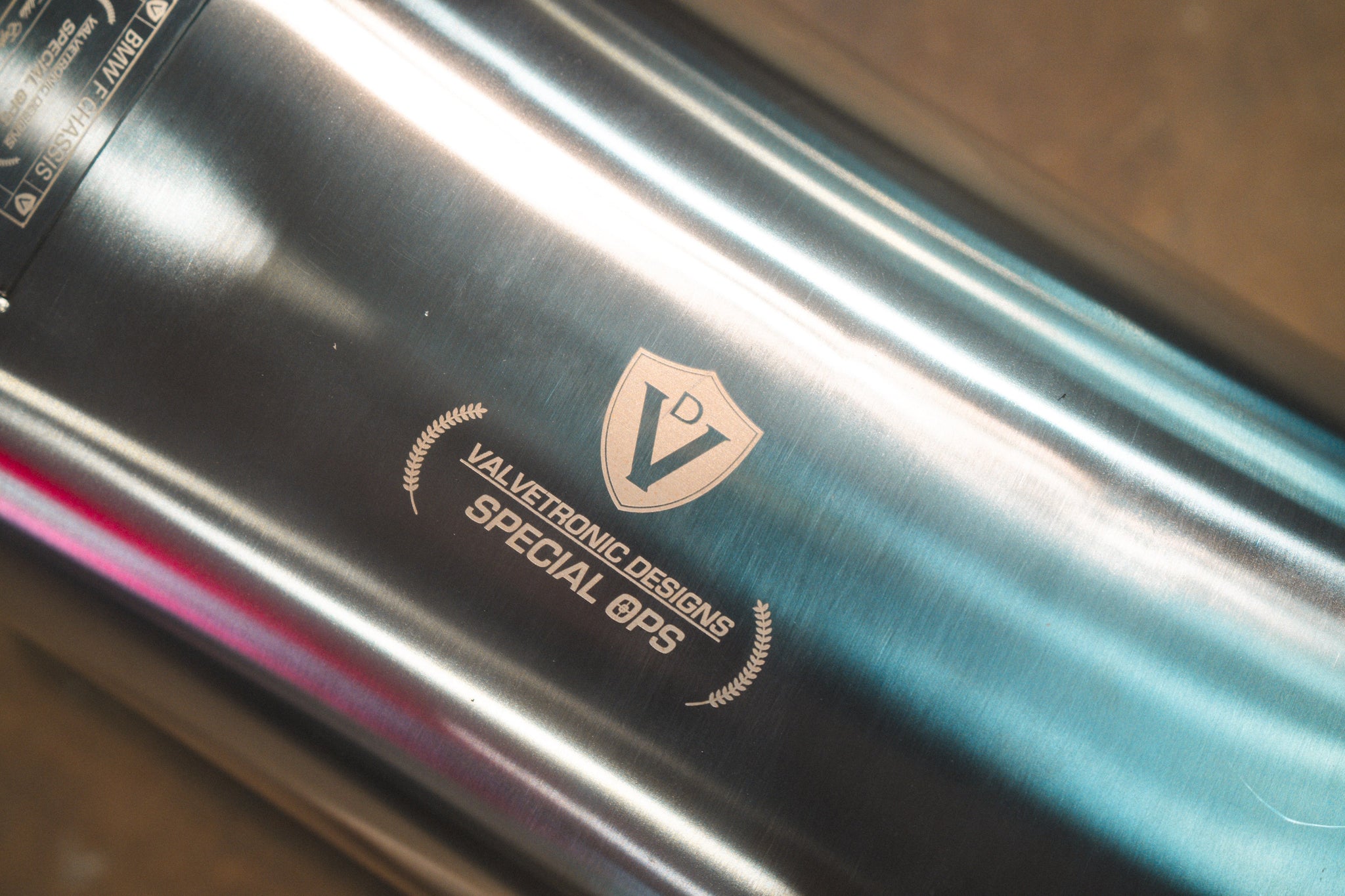

- Revised muffler internals for a quieter closed-valve sound

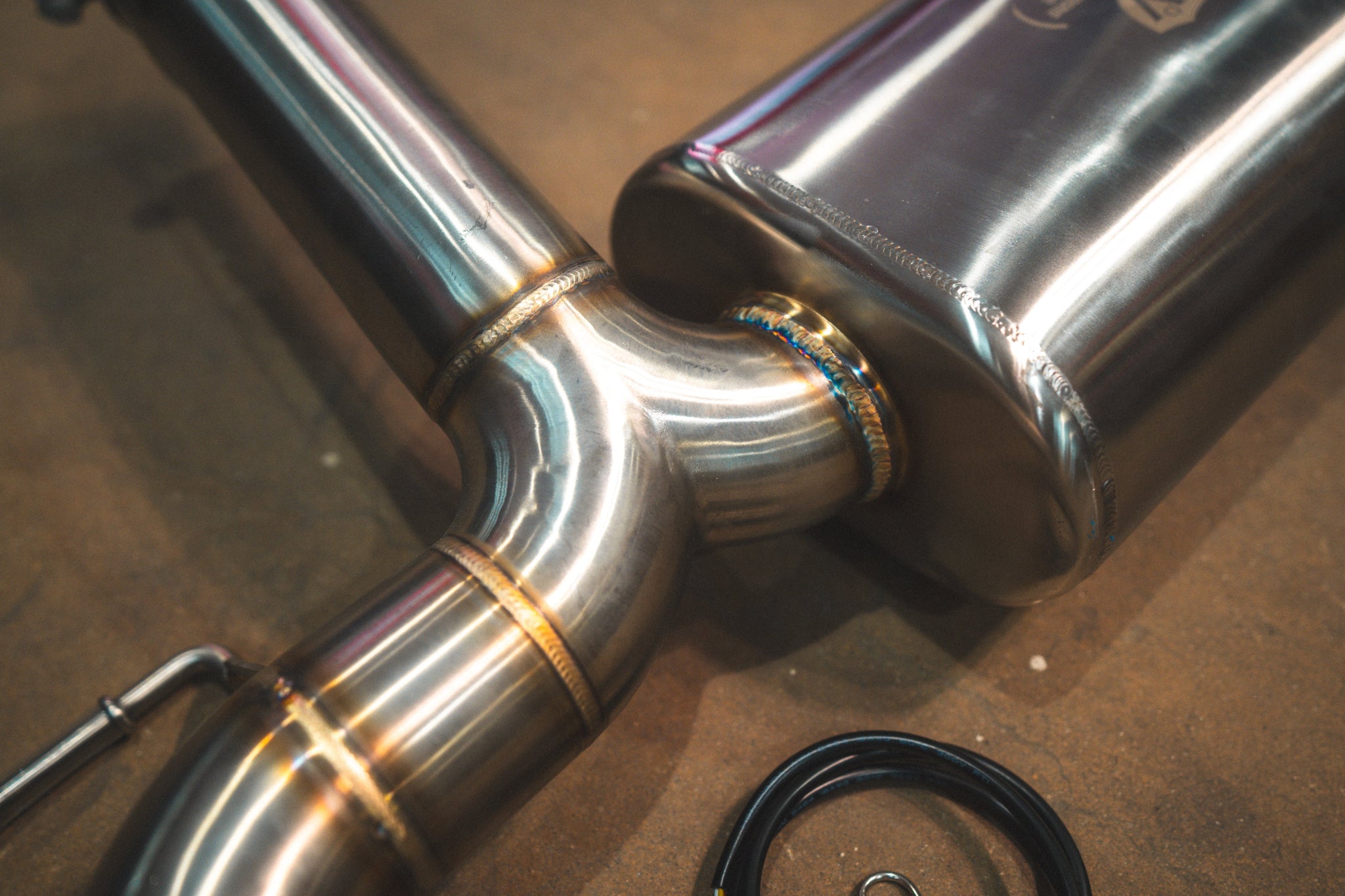

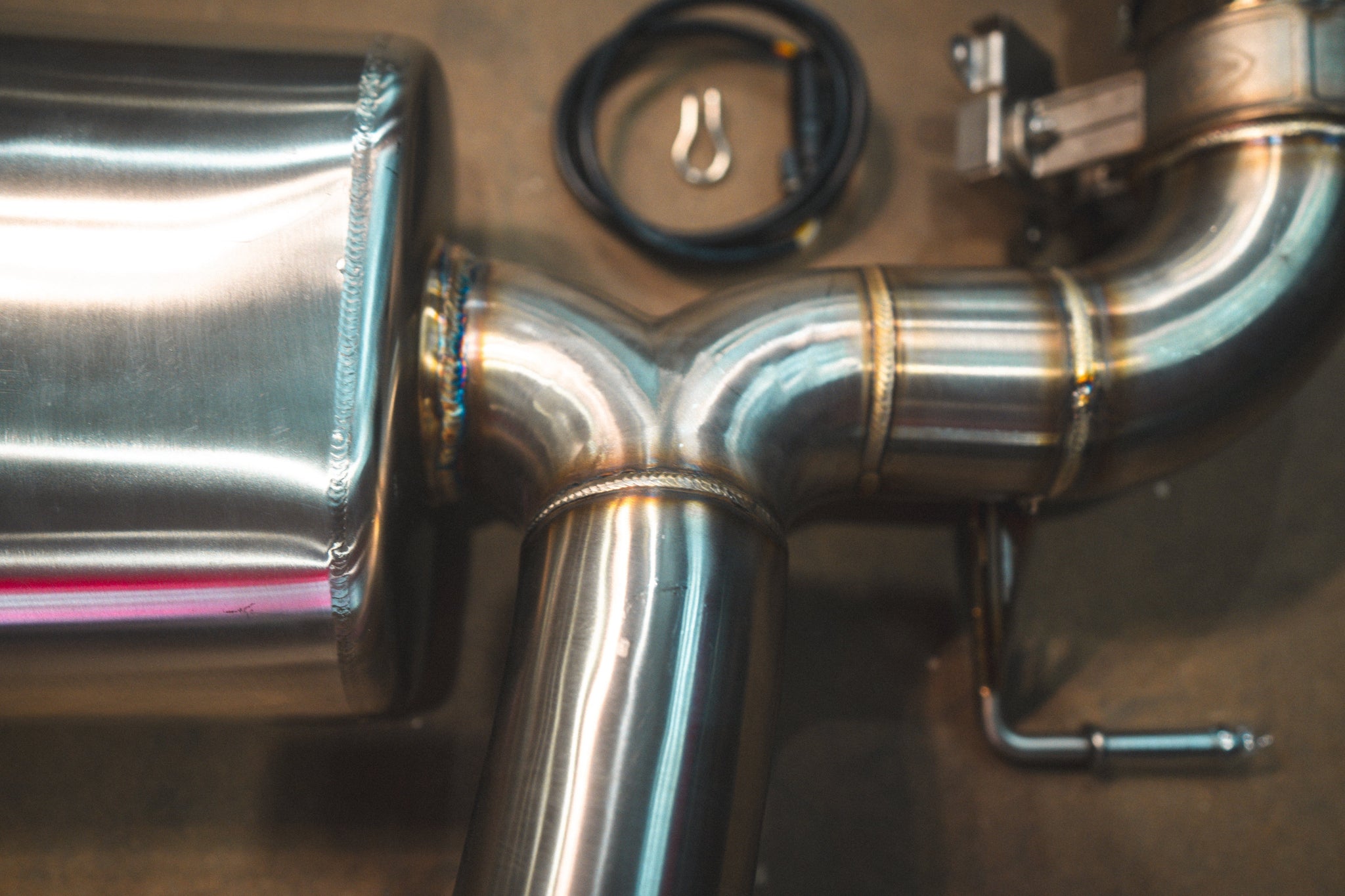

- Cast Y-pipe for smoother exhaust flow
- Relocated exhaust hangers
- Integrates with BMW drive modes on factory-valve cars

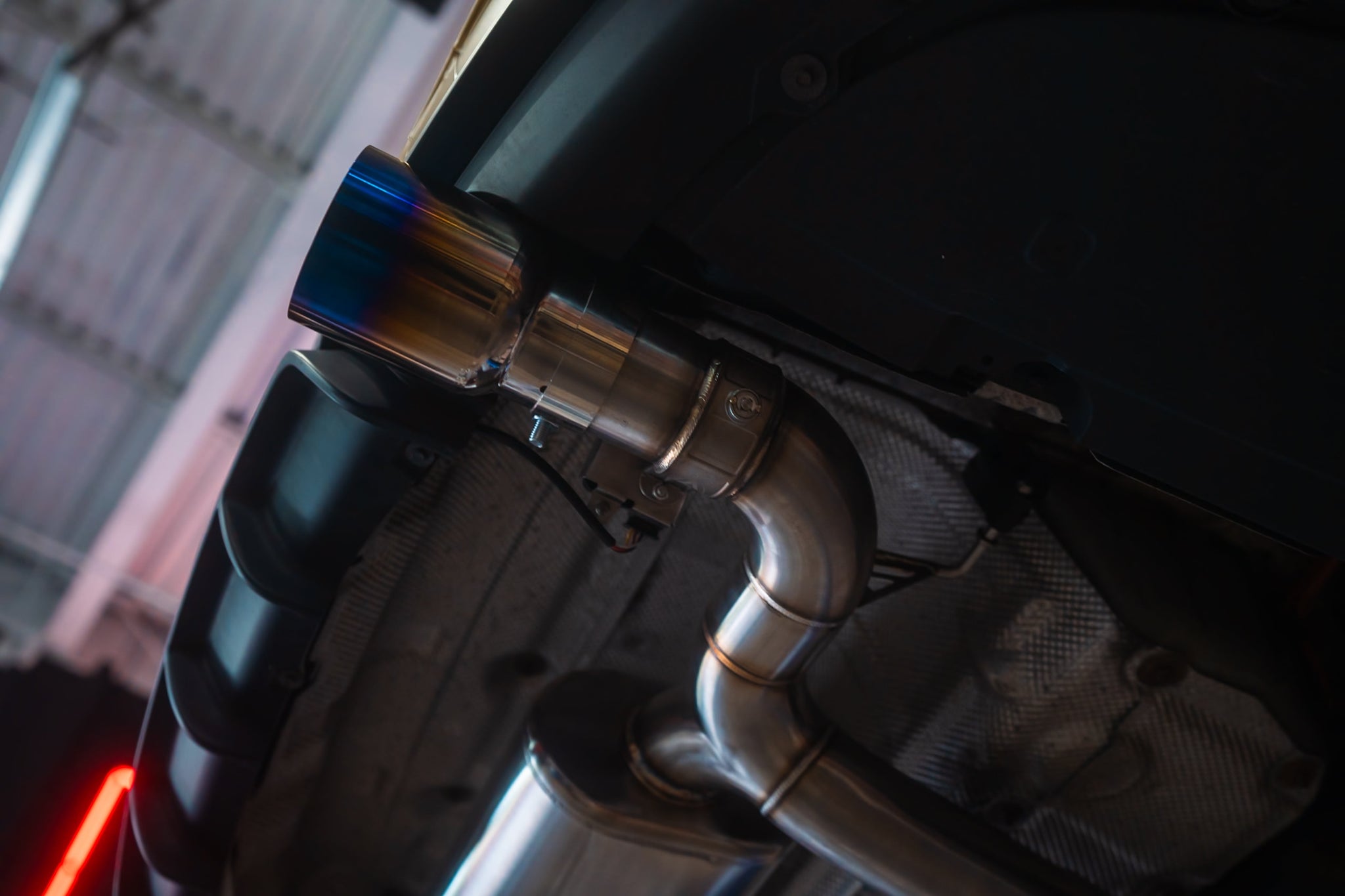

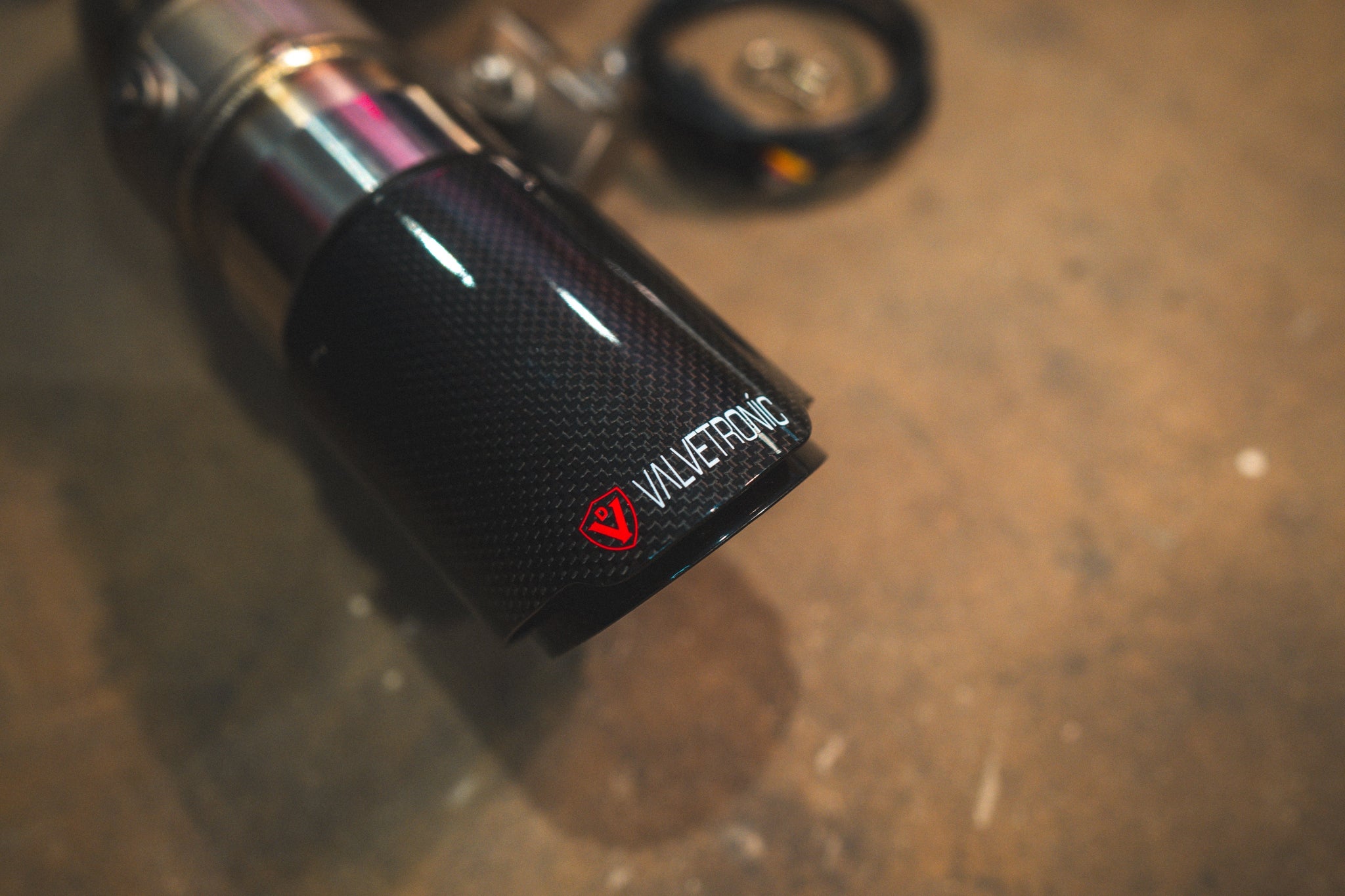

- Dual 3.5-inch sleeve-style exhaust tips
- Fits applicable rear-wheel-drive and xDrive models
Exhaust Tip Options

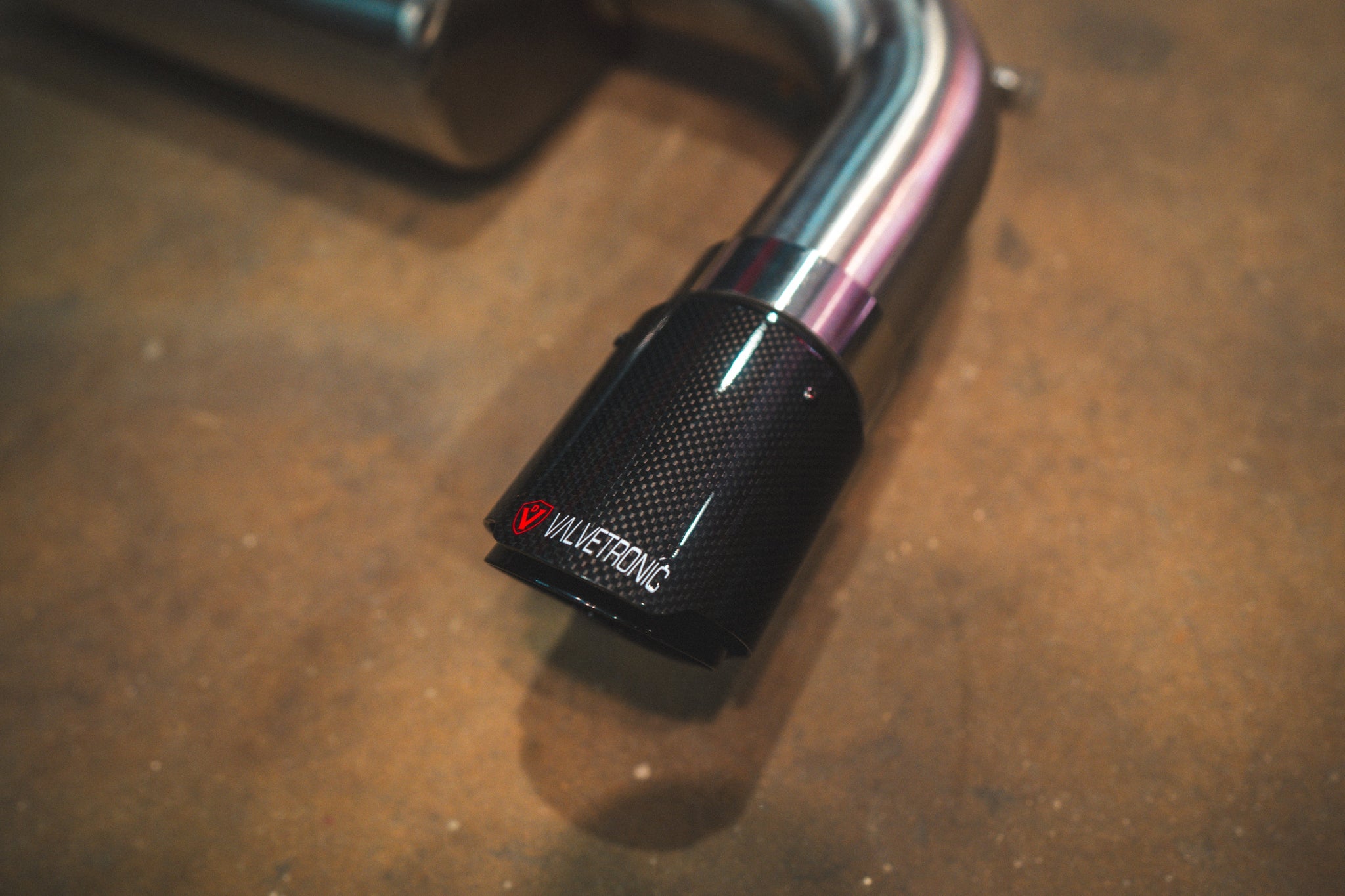

- Carbon fiber 1x1 weave 3.5-inch tips
- Brushed stainless steel 3.5-inch tips
- Burnt-finish 3.5-inch tips
- Black 3.5-inch tips
- Forged carbon fiber 3.5-inch tips

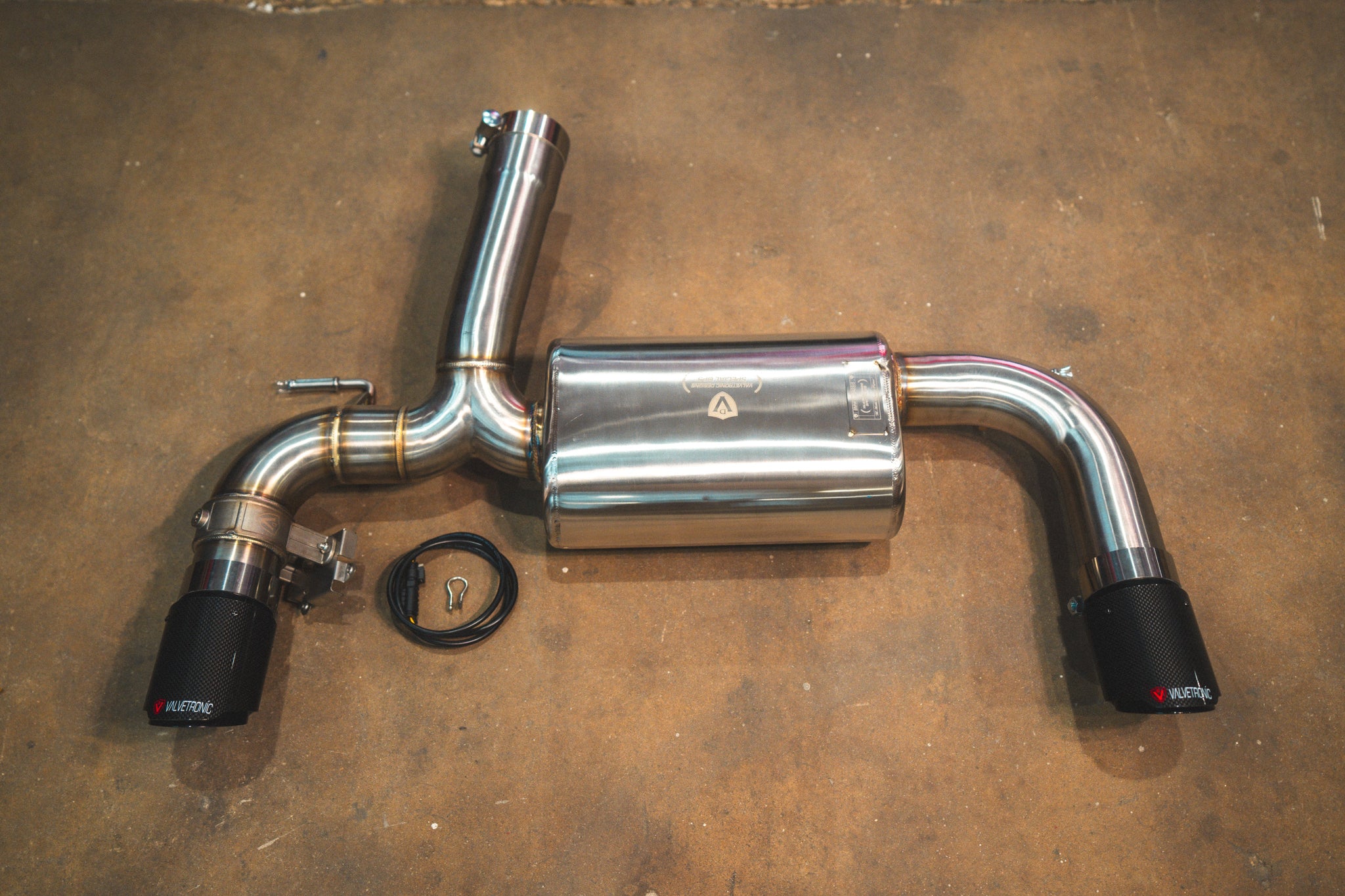

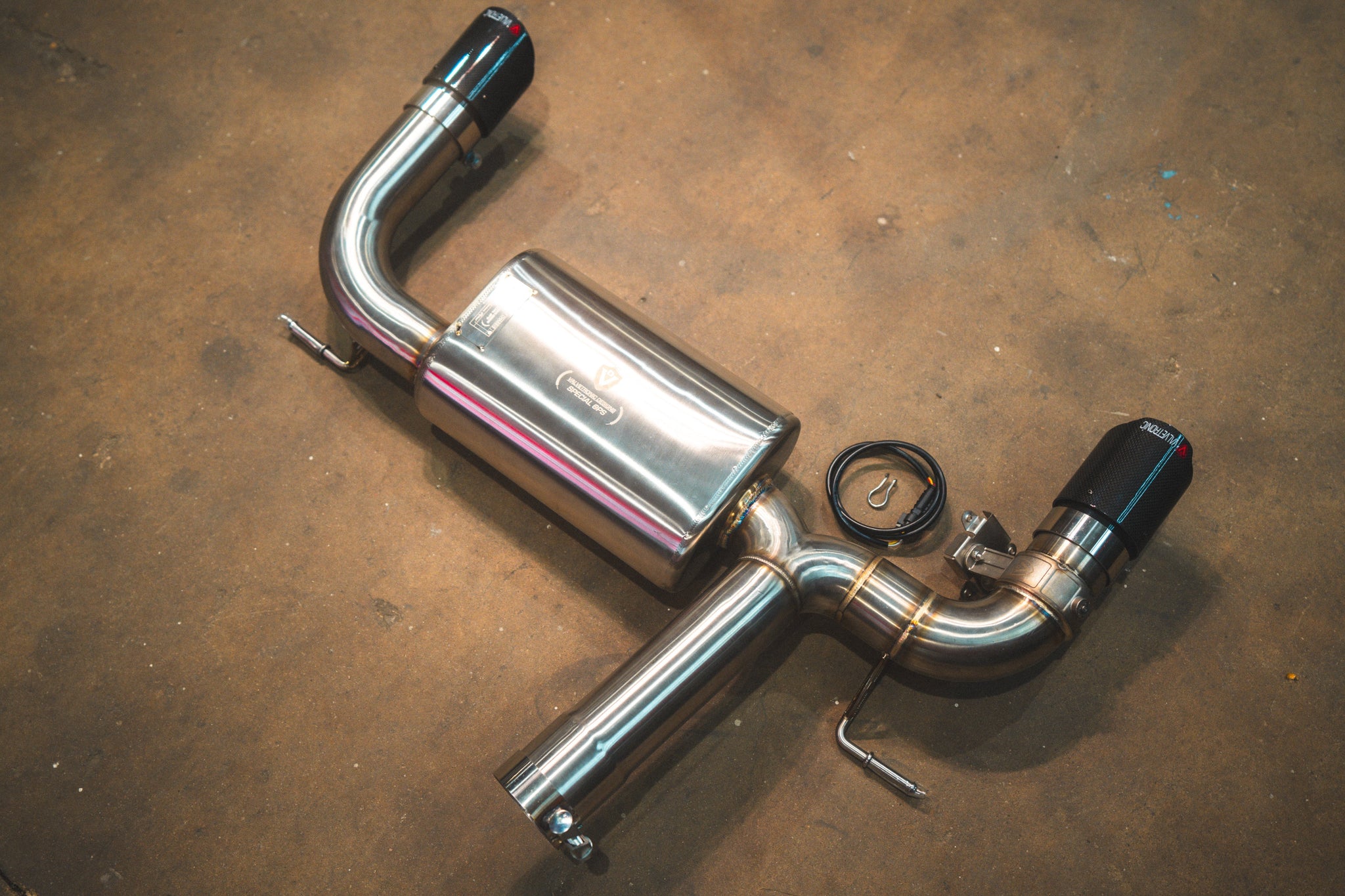

What Is Included

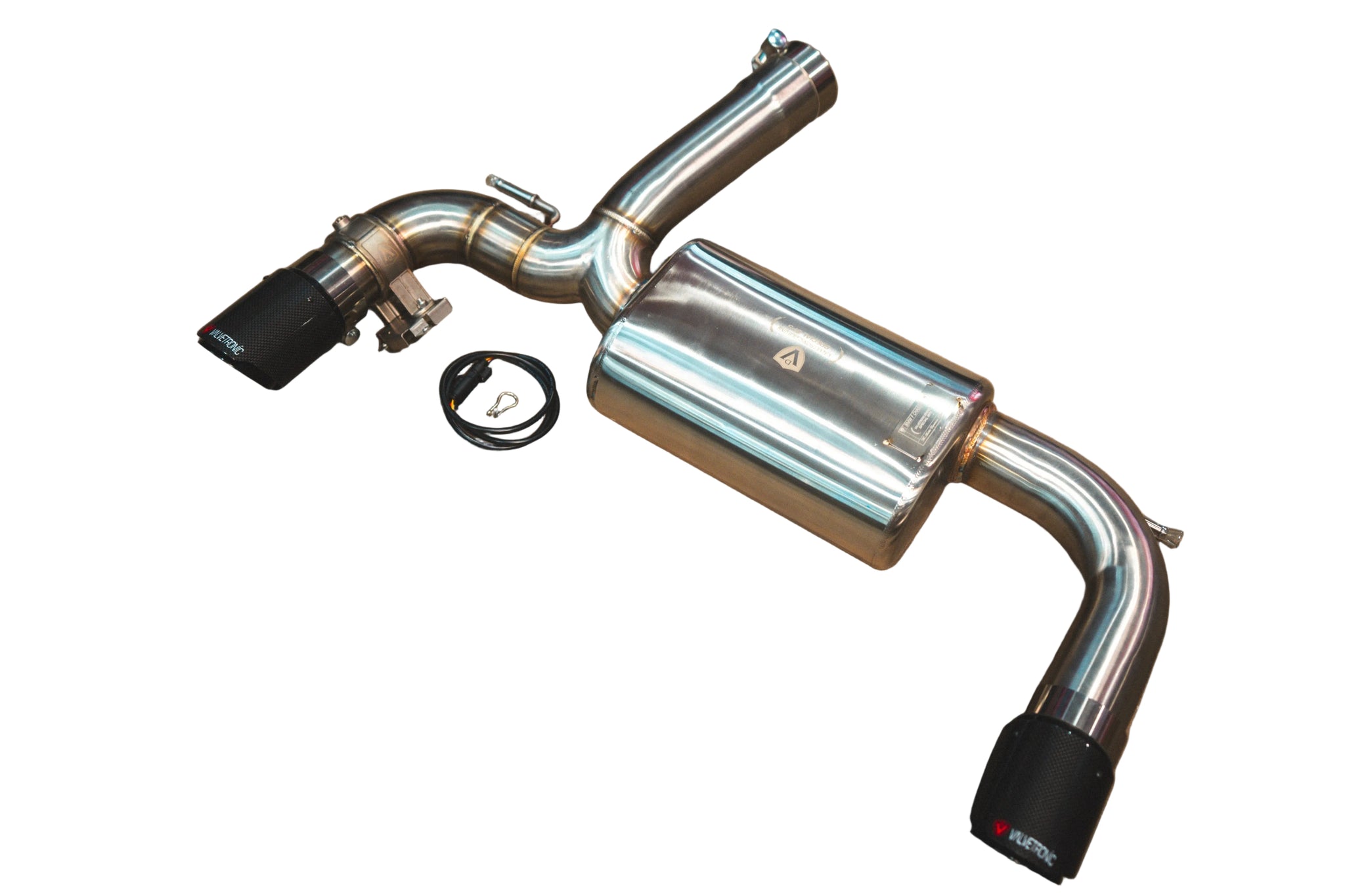

- T304 stainless steel valved axle-back exhaust
- Cast Y-pipe assembly
- OEM-style electronic exhaust valve

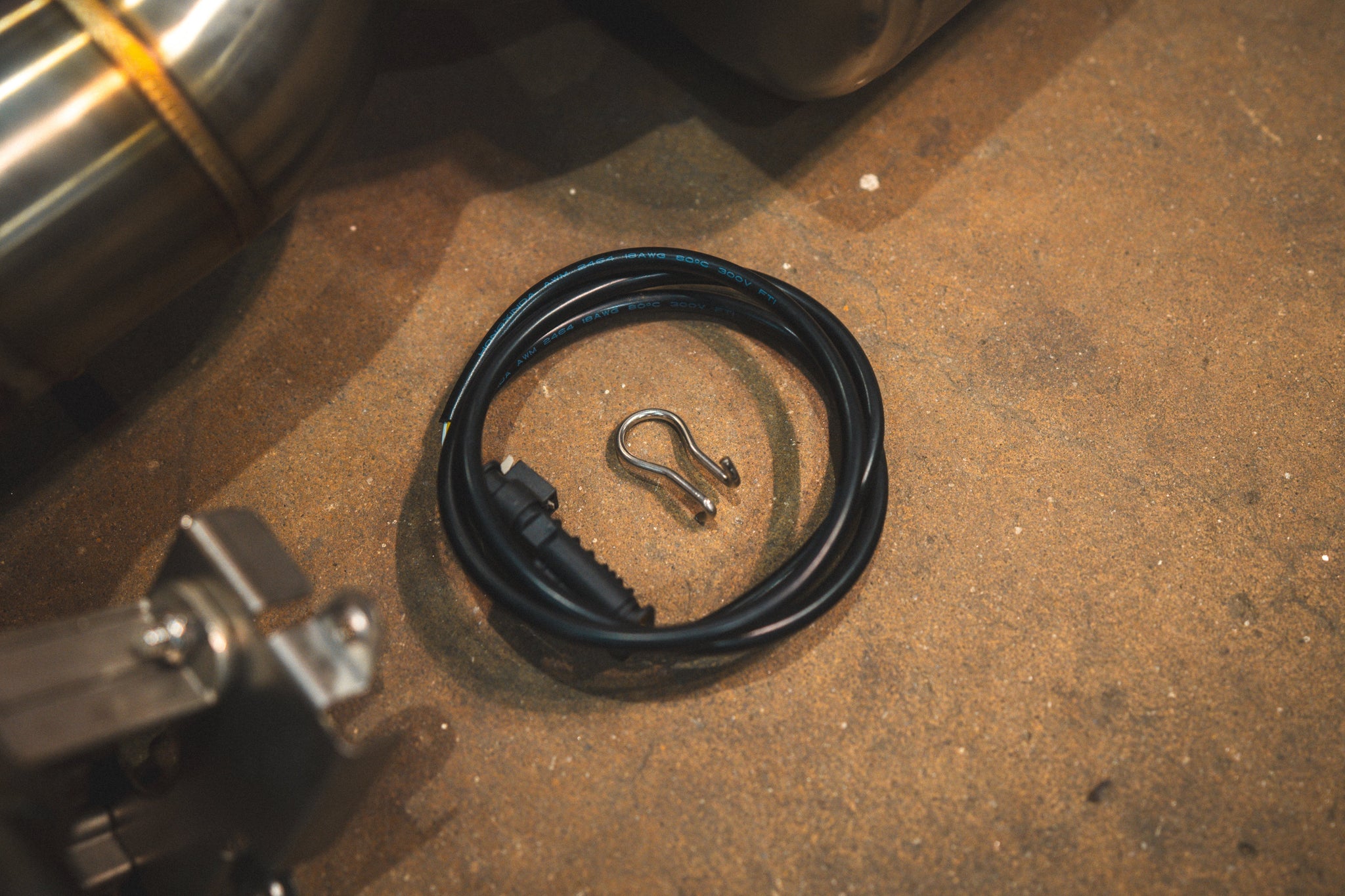

- Extension harness for factory valve integration

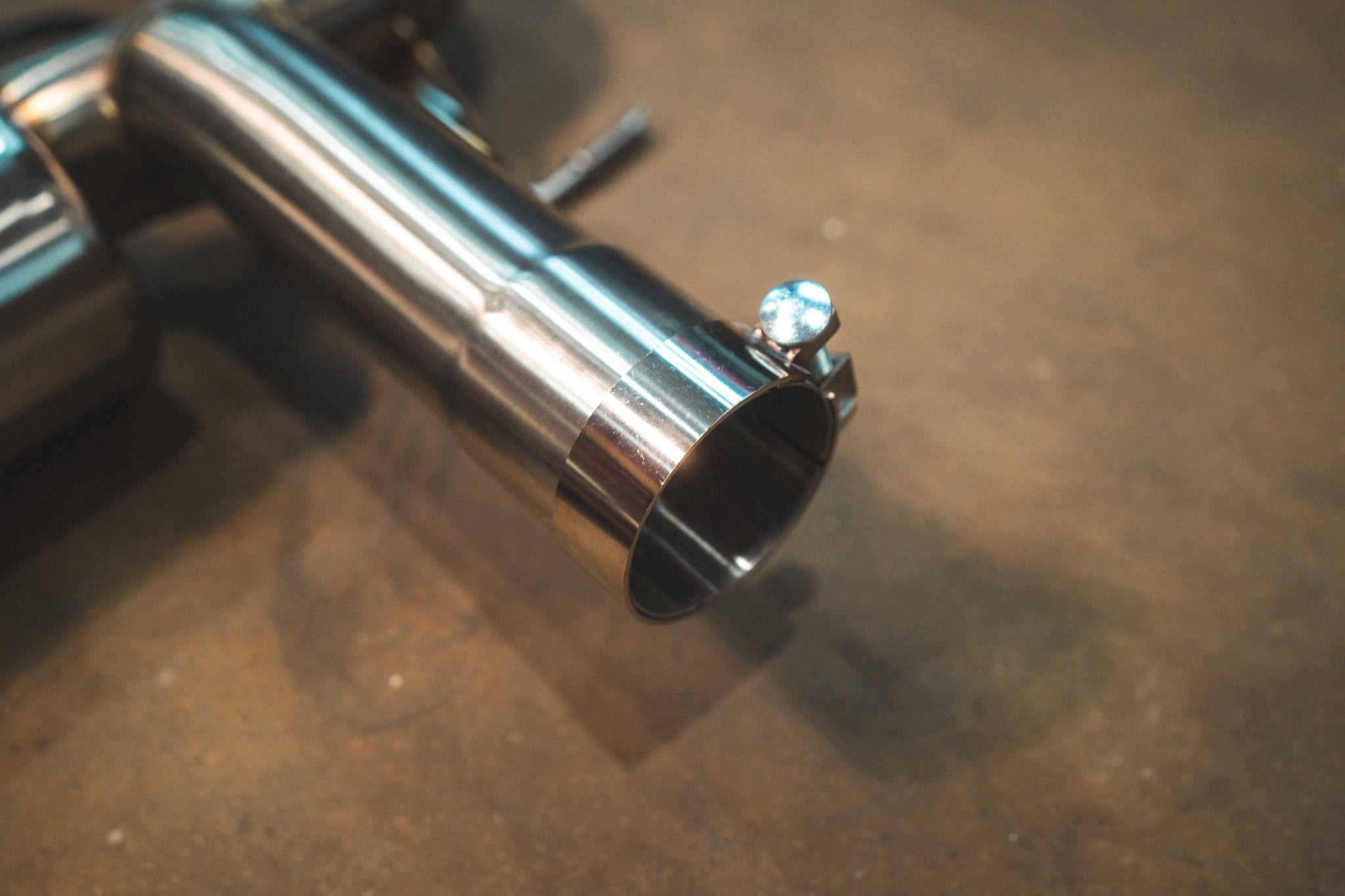

- Four-cylinder adapter pipe
- Selected sleeve-style exhaust tips
- Required clamps and installation hardware
Installation
This is an axle-back system, but the installation requirements depend on your engine and factory exhaust setup. Six-cylinder N55 cars with the correct factory connection have the most straightforward installation. B46 and B58 cars need minor mid-pipe modification, while four-cylinder cars use the included adapter pipe and should have it welded in place.
Check the rear diffuser before starting the installation. Cars that originally came with a single exhaust outlet need a six-cylinder-style diffuser or an existing diffuser modified for the second outlet.
Video
Here is a video from Valvetronic Designs showing how their valved axle-back exhaust sounds on a BMW F30 340i.
This car is also equipped with Valvetronic's free-flow exhaust section, so a car with the factory mid-pipe may sound different.
Pairs Well With
- Valvetronic Electronic Exhaust Valve Control Kit – Required if your BMW did not come with factory electronic exhaust-valve wiring. The controller and wireless remote let you open or close the valve yourself.
- MAD N20 Intake for BMW 228i, 328i and 428i – Add more turbo and intake sound to an N20-powered F-chassis BMW to go with the deeper Valvetronic exhaust note.
- Injen Intake for BMW 335i and 435i N55 – A good match for N55-powered F30 and F32 builds that need more intake sound without changing the exhaust setup.
- Valvetronic B58 EPA-Compliant 400-Cell Catted Downpipe – Pair the axle-back with a high-flow catted downpipe on compatible B58-powered 340i, 440i, M140i and M240i models.
Warranty
- Stainless steel exhaust tubing and welds carry a limited lifetime-of-ownership warranty against manufacturing defects and penetrating rust.
- Mufflers carry a three-year limited warranty.
- Electronic valves, controllers and remotes carry a one-year limited warranty.
- Exhaust tip finishes carry a one-year limited warranty.
About Valvetronic Designs
Valvetronic Designs makes exhaust systems that let you choose how loud you want your car to be. Open the valve when you want to hear the engine and close it when you want less exhaust sound, all without swapping parts or changing the rest of the exhaust.
Check your local exhaust sound and emissions regulations before installation.
