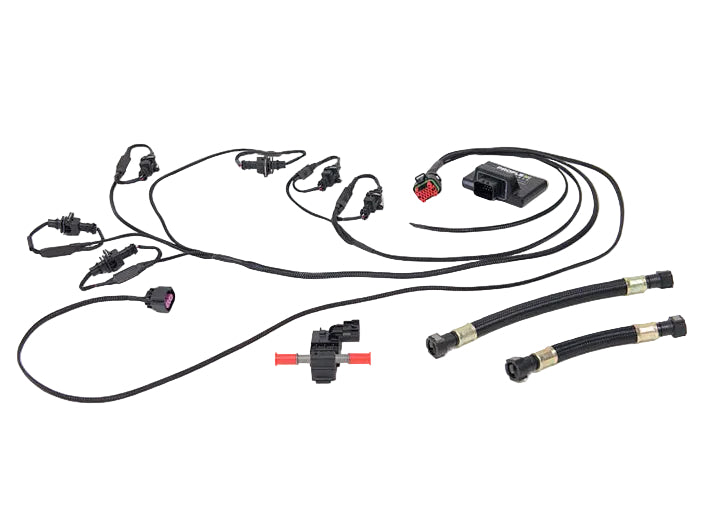

Advanced Fuel Dynamics ProFlex Commander for BMW E46 M3 S54 (01-06) E85 Flex Fuel System

Run gasoline, E85 or any mixture of the two in your E46 M3 without switching maps every time you fill up. The Advanced Fuel Dynamics ProFlex Commander reads the ethanol content in the fuel and adjusts injector operation as the mixture changes.

AFD’s E46 M3 dyno testing showed gains of more than 20 wheel horsepower on E85. You also get more of that S54 sound and response without being locked into running full E85 every time you drive the car.

Fitment Information

BMW M3 E46 Coupe, 3.2L S54 (2001, 2002, 2003, 2004, 2005, 2006)

BMW M3 E46 Convertible, 3.2L S54 (2001, 2002, 2003, 2004, 2005, 2006)

Fitment Note

The years above reflect U.S.-market E46 M3 fitment. Advanced Fuel Dynamics lists the application as 2000–2006 to cover markets where the E46 M3 was available earlier.

This kit is made for the E46 M3 with the 3.2L S54 engine. It does not fit non-M E46 models such as the 325i, 328i or 330i.

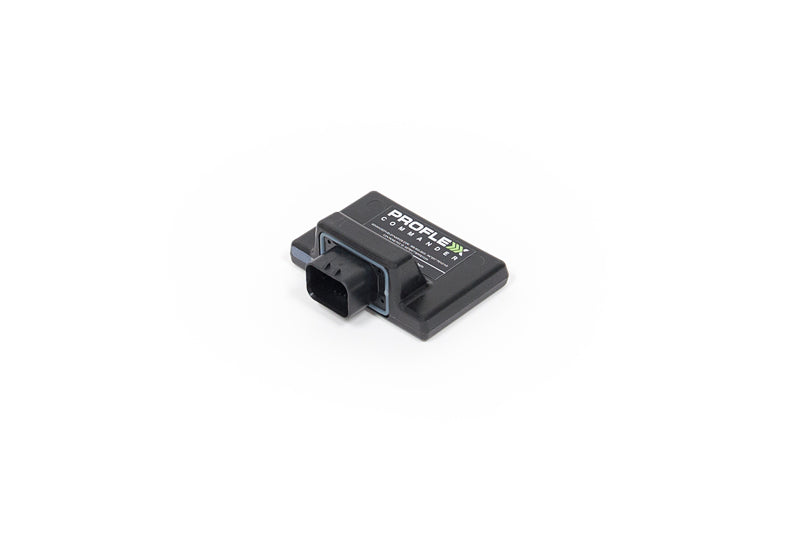

Commander Options

• Standard Commander: Made for naturally aspirated E46 M3s with factory injectors or mild bolt-on upgrades. This is the right choice for most street-driven S54 builds.
• Commander Pro: Made for supercharged, turbocharged or heavily modified builds using 600cc, 60 lb/hr or larger injectors. It provides more precise control when running larger injectors.

Sensor Options

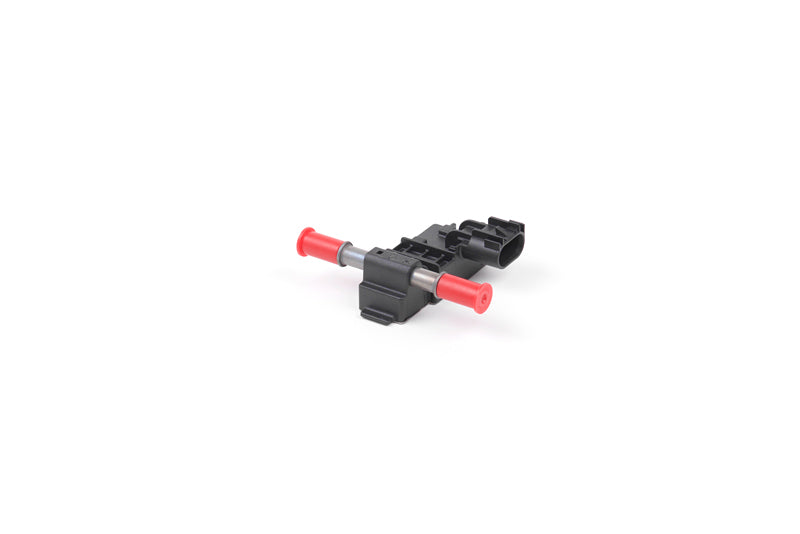

• Standard Sensor: Provides accurate ethanol-content readings and works well with stock or mildly modified fuel systems.
• E-SENSE Sensor: The better choice for modified and higher-flow fuel systems. It adds fuel-temperature monitoring and additional live data through the ProFlex Connect app.

Features

• Run gasoline, E85 or any mixture of the two
• No switching between separate gasoline and E85 maps
• No additional tune required for a naturally aspirated vehicle with a compatible stock or performance gasoline tune
• AFD dyno testing showed gains of more than 20 wheel horsepower on an E46 M3
• AFD reports typical gains of 7–10% in wheel horsepower and torque on E85
• BlendSense technology updates ethanol-content data every 30 milliseconds
• Adjusts injector operation as the ethanol mixture changes
• Cold Start Plus helps with cold starts on higher ethanol blends

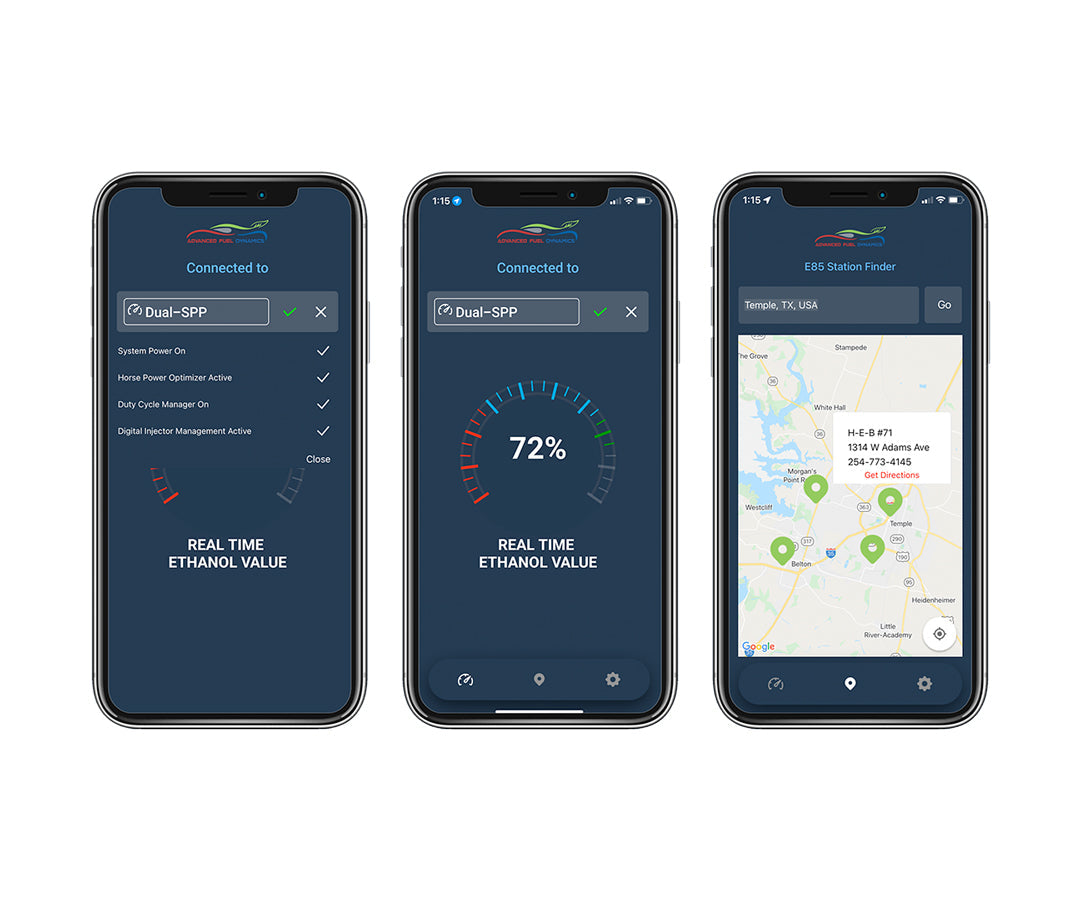

• ProFlex Connect app displays real-time ethanol content
• Bluetooth connectivity for Apple iOS and Android devices
• Compatible with naturally aspirated, supercharged and turbocharged builds when the correct Commander is selected
• AFD estimates installation at under one hour using common tools
• 12-month limited warranty

How the ProFlex Commander Works

The ethanol sensor measures the actual mixture of gasoline and ethanol in the fuel system. The ProFlex Commander uses that reading to adjust injector operation, whether the tank contains pump gas, full E85 or anything in between.

The system works with compatible factory and performance gasoline tunes. If you change the blend on your next fill-up, the Commander adjusts automatically instead of making you drain the tank or load another map.

Fuel System Requirements

A naturally aspirated E46 M3 with factory injectors can use the Standard Commander. Supercharged, turbocharged and higher-horsepower cars may need larger injectors, a higher-flow fuel pump or other fuel-system upgrades to safely run full E85.

AFD recommends dyno testing or data logging a supercharged E46 M3 to make sure the fuel pump and injectors can keep up with the additional fuel demand.

Emissions Information

The ProFlex Commander does not remove or replace emissions equipment. It reads the ethanol content in the fuel and electronically adjusts injector operation so the engine can run gasoline, E85 or any mixture of the two.

Advanced Fuel Dynamics does not publish a CARB Executive Order number for this kit. California emissions compliance will depend on the engine, vehicle and approval status of the complete setup.

Watch the Video

Here is a video from Advanced Fuel Dynamics showing an E46 M3 running full E85 on the dyno with the ProFlex Commander.

Before You Buy

• Choose the Standard Commander for a naturally aspirated E46 M3 with factory injectors or mild bolt-on upgrades.
• Choose the Commander Pro for forced-induction builds or injectors rated at 600cc, 60 lb/hr or larger.
• Select the sensor that matches the fuel flow and monitoring needs of your build.
• Supercharged and turbocharged cars should be logged or tested on a dyno before running full E85.
• The ProFlex Commander manages changing ethanol content, but it does not replace the proper tuning required for forced induction or major engine modifications.

Pairs Well With

• Advanced Fuel Dynamics E-SENSE Ethanol Content Sensor – A higher-flow sensor option for modified S54 fuel systems that also adds fuel-temperature monitoring through the ProFlex Connect app.
• Radium Engineering Fuel Rail for BMW S54 – An E85-compatible fuel rail for E46 M3 builds running upgraded injectors or a custom fuel system.
• Radium Engineering Fuel Rail Plumbing Kit for BMW S54 – Connects the Radium S54 fuel rail to the E46 M3’s factory feed line and regulator while keeping the fuel-system installation clean.
• Radium Engineering Fuel Pressure Regulator and Filter for BMW E46 M3 – A bolt-in, E85-compatible regulator and filter assembly made specifically for the 2001–2006 E46 M3.

About Advanced Fuel Dynamics

Advanced Fuel Dynamics developed its flex-fuel products after finding that the actual ethanol content in pump E85 can change from one fill-up to another. Its systems measure the fuel that is actually in the car instead of assuming every tank has the same ethanol percentage.

AFD develops its ProFlex Commander systems, FlexLink modules and E-SENSE sensors in Salado, Texas.
