Measure ethanol content without putting a restrictive factory-style sensor in the middle of a high-flow fuel system.

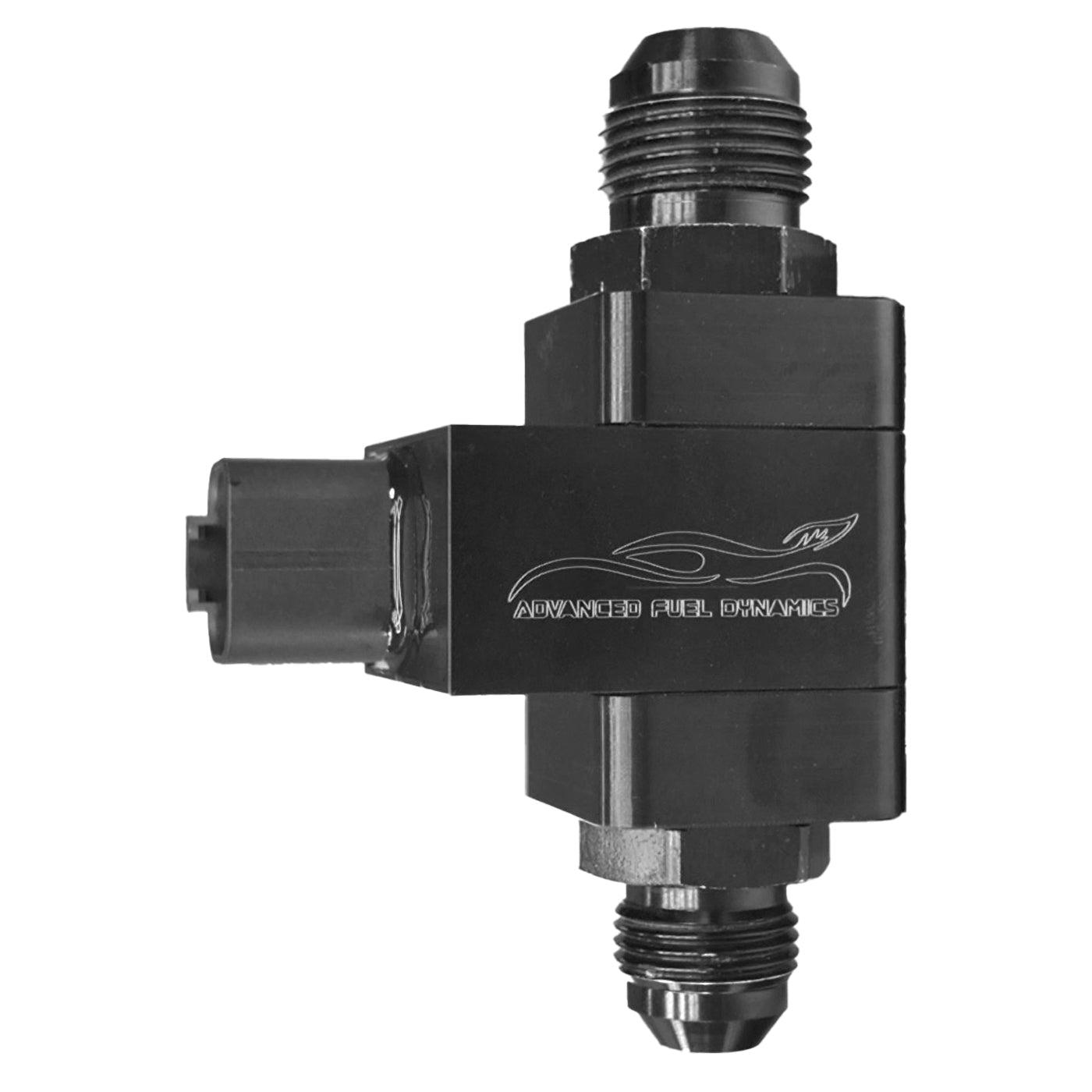

The Advanced Fuel Dynamics E-SENSE is a billet E85 flex fuel content sensor built for modified and high-horsepower fuel systems. AFD rates it for up to 12 times the fuel flow of a conventional GM/Continental sensor, so it can be installed directly in the main fuel line without building a separate bypass around the sensor.

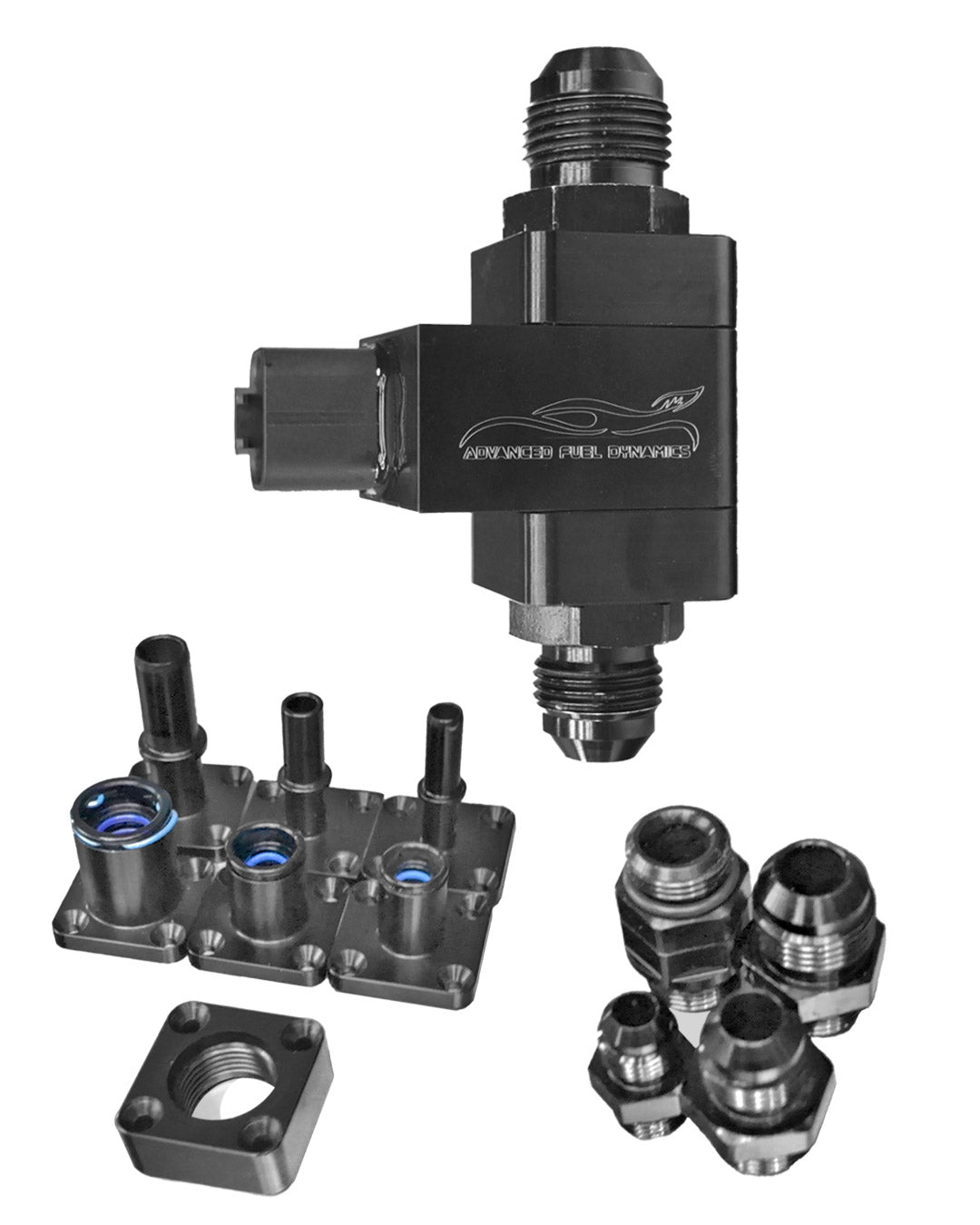

It measures ethanol content and fuel temperature, then sends that information to a compatible ECU, flex-fuel controller or data-logging system. The modular design also lets you match the sensor to anything from an OE-style quick-connect fuel line to a -12AN system.
Fitment Information
- Universal fitment for compatible gasoline and E85 fuel systems
- Compatible with systems using a GM/Continental-style 50–150 Hz ethanol-content signal

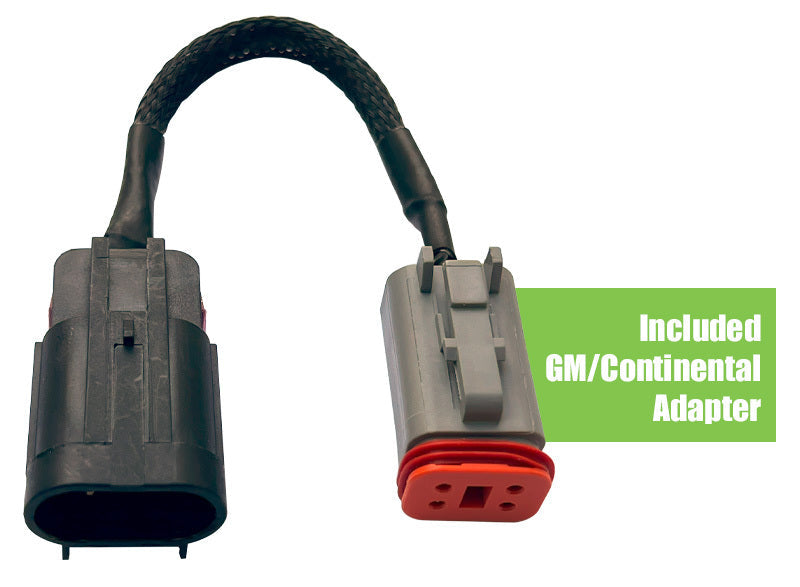

- Adapts to the GM/Continental sensor harness connector
- Can be used with compatible GM ECUs and standalone systems from Holley EFI, Haltech, FuelTech, MoTeC, Link ECU and others
Fitment Note
This is the ethanol-content sensor, not a complete vehicle-specific flex-fuel kit. Your ECU, flex-fuel controller or data-logging system must support the sensor's output, and the vehicle will need the proper flex-fuel calibration before it can automatically adjust for different ethanol blends.
Features
- Up to 12 times the fuel flow of a conventional GM/Continental sensor
- High-flow design reduces fuel restriction and turbulence
- Can be installed directly in the main fuel feed without a separate bypass
- Measures ethanol content and fuel temperature
- Uses the same 50–150 Hz output range as a Continental sensor
- Separate 0–5V analog output for compatible ECUs and data loggers
- 0.5V represents 0% ethanol and 4.5V represents 100% ethanol
- Temperature-compensated ethanol-content measurement
- Compact billet aluminum housing
- Hardened electronics with OE-quality components
- Made in the USA
- Patent number 12,693,253

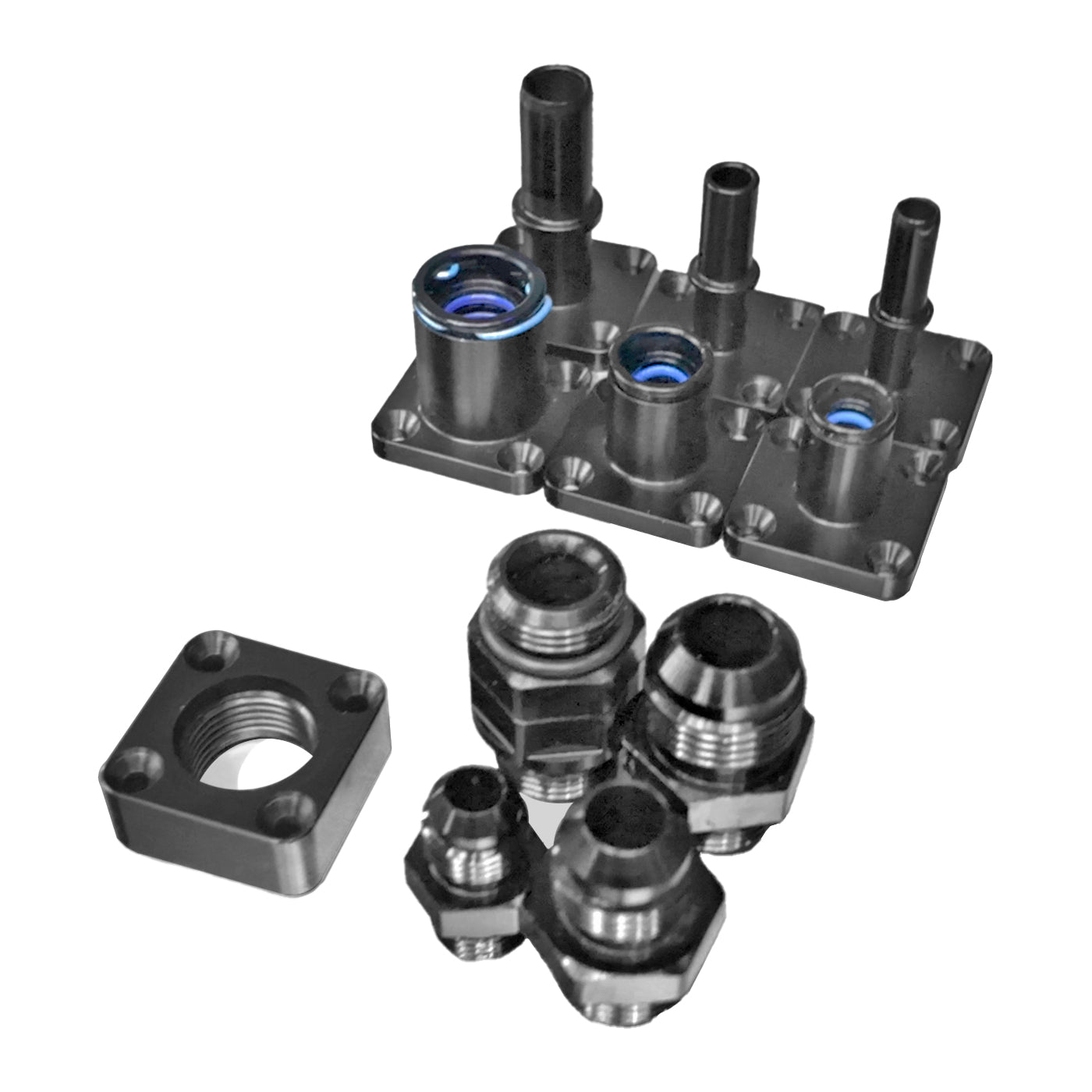

Available Fitting Sizes
- 5/16-inch OE-style quick connect
- 3/8-inch OE-style quick connect
- 1/2-inch OE-style quick connect
- -6AN
- -8AN
- -10AN
- -12AN
- -8AN ORB
How the E-SENSE Works
The E-SENSE measures the actual percentage of ethanol passing through the fuel line. It sends that information to a compatible ECU or controller, which can then adjust the vehicle's flex-fuel tables for the mixture currently in the tank.
The separate analog output can also be used for ethanol-content and fuel-temperature data logging. Add the AFD FlexLink module if you want to see that information wirelessly through the ProFlex Connect app.
Emissions Information
The E-SENSE does not remove or replace emissions equipment. It measures ethanol content and fuel temperature, then sends that information to a compatible ECU, controller or data-logging system. The sensor does not change fuel delivery or make a vehicle flex-fuel by itself.
Advanced Fuel Dynamics does not publish a CARB Executive Order number for this sensor. Emissions compliance will depend on the vehicle, fuel-system configuration and ECU calibration.
Watch the Video
Here is a video from Advanced Fuel Dynamics showing how the E-SENSE compares with a conventional flex fuel sensor.
Before You Buy
- Confirm that your ECU, controller or data logger supports the 50–150 Hz or 0–5V sensor output.
- Choose the inlet and outlet fittings that match your fuel-line size.
- The sensor does not include a vehicle-specific flex-fuel tune.
- A compatible ECU calibration or flex-fuel controller is required to adjust fueling for different ethanol percentages.
- The FlexLink wireless communication module is sold separately.
Pairs Well With
-
Advanced Fuel Dynamics FlexLink Ethanol Gauge
Add Bluetooth monitoring so you can see ethanol content and fuel temperature through the ProFlex Connect app on your phone. -
Advanced Fuel Dynamics ProFlex Commander Kits
ProFlex Commander kits use the ethanol-content signal to adjust injector operation as the mixture of gasoline and E85 changes.
About Advanced Fuel Dynamics
Advanced Fuel Dynamics developed its flex-fuel products after finding that the actual ethanol content in pump E85 can change from one fill-up to another. Its systems measure the fuel that is actually in the car instead of assuming every tank has the same ethanol percentage.
AFD develops its ProFlex Commander systems, FlexLink modules and E-SENSE sensors in Salado, Texas.
