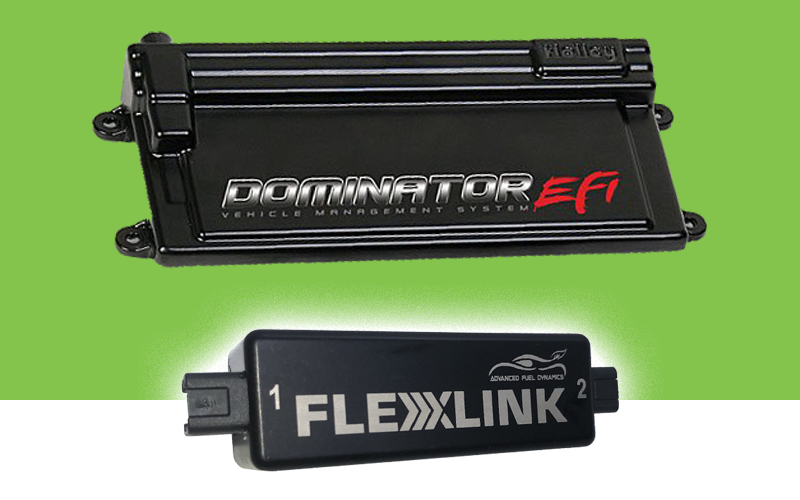

Add flex-fuel input to your standalone ECU while also seeing the actual ethanol percentage on your phone. The Advanced Fuel Dynamics FlexLink kit measures the gasoline and ethanol mixture in the fuel system, then sends that information to an ECU that has been set up for flex-fuel management.
This is the complete standalone ECU kit. It includes the FlexLink module, a genuine GM/Continental ethanol-content sensor, quick-connect fuel lines and the wiring harness needed for power and data transfer.
Fitment Information
Compatible with the following standalone ECUs when equipped with flex-fuel capability and a dedicated sensor input:
- Holley Dominator
- Holley Terminator
- Holley HP
- AEM
- MoTeC
- FAST
- Haltech
- MegaSquirt
- GoTech
- Other compatible standalone ECUs
Fitment Note
Your ECU must have a flex-fuel feature, an available ethanol-sensor input and enough room in the calibration for a flex-fuel map. Confirm compatibility with your ECU manufacturer or tuner before selecting the Other option.
This kit provides the ethanol-content data needed by the ECU. It does not load a flex-fuel map or tune the engine for E85.
ECU Options
- Holley Dominator
- Holley Terminator
- Holley HP
- AEM
- MoTeC
- FAST
- Haltech
- MegaSquirt
- GoTech
- Other
Select the ECU used in your vehicle so the kit is supplied with the correct wiring configuration.

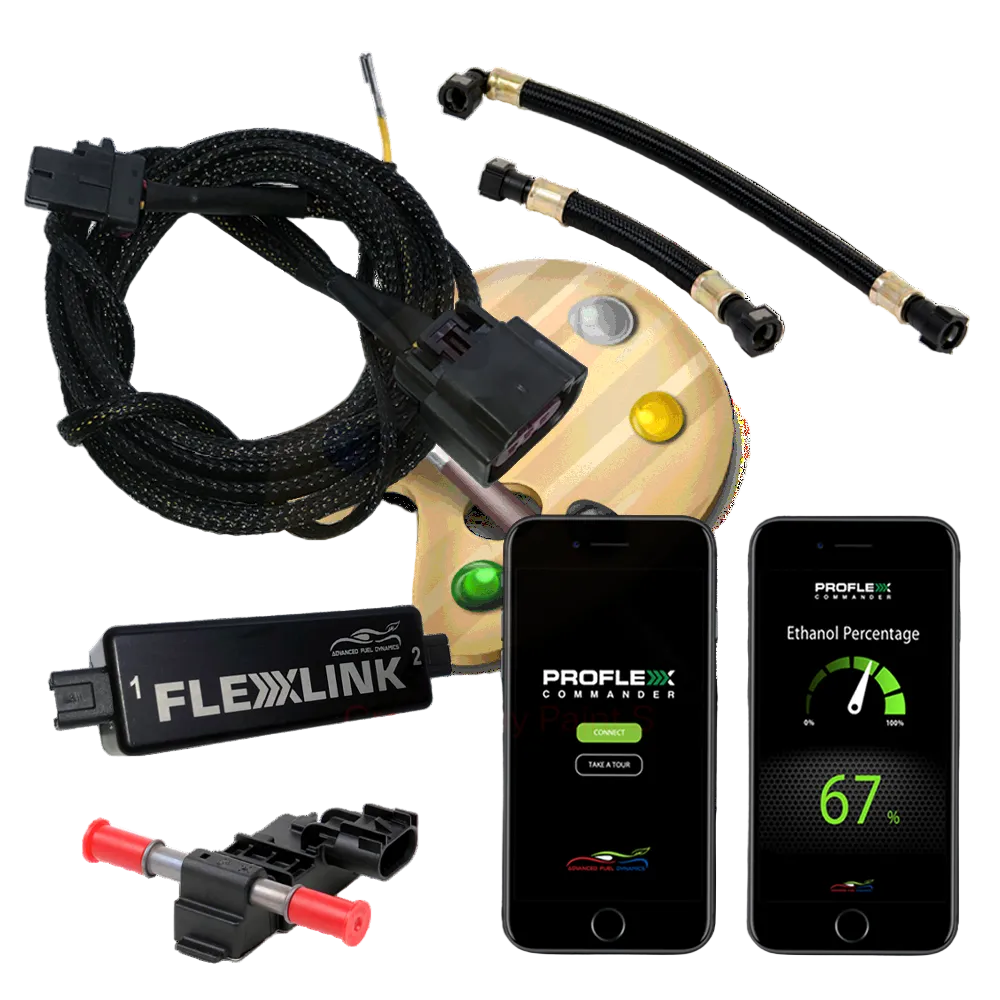

What Is Included

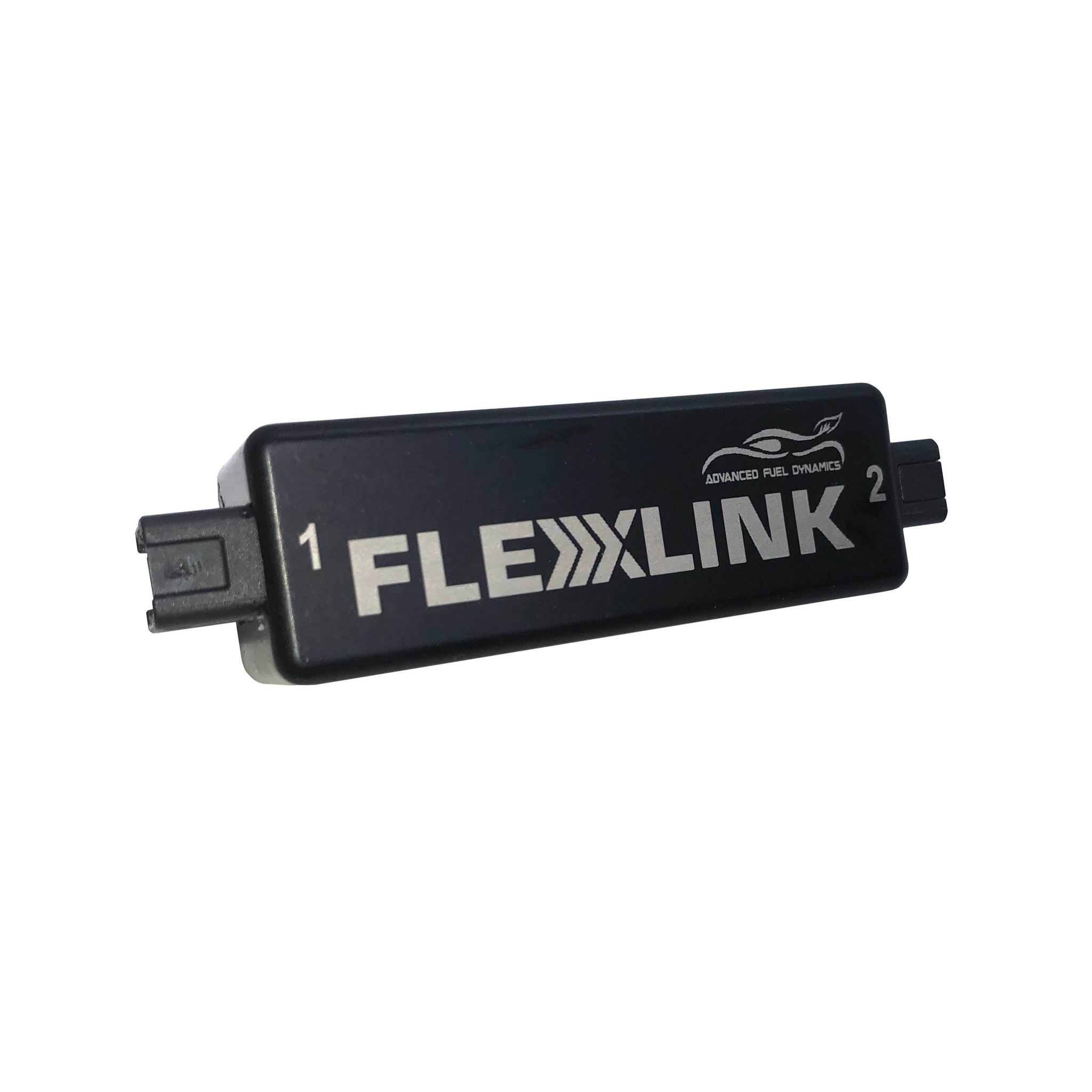

- FlexLink communication module with wireless and wired output
- Genuine GM/Continental ethanol-content sensor
- Quick-connect sensor fuel lines
- Plug-and-play wiring harnesses for power and data transfer
Features
- Provides ethanol-content data to a compatible standalone ECU
- Supports flex-fuel management when properly configured in the ECU
- Bluetooth connection to the ProFlex Connect app

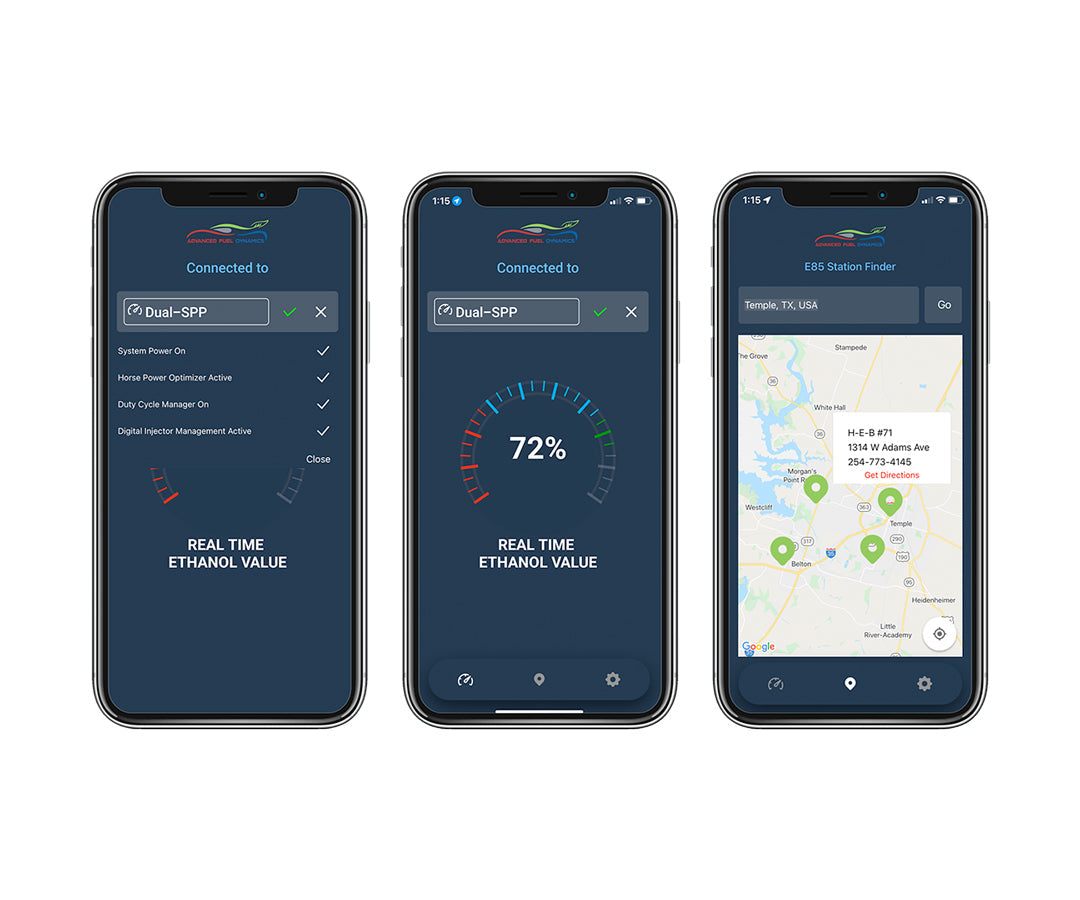

- Displays ethanol percentage on Apple iOS and Android devices
- Wired 5V input and output for compatible ECUs and data loggers
- Supports ethanol-content and fuel-temperature data
- Accurate real-time data with a 30-millisecond refresh rate
- Billet aluminum FlexLink housing
- Manufacturer part number FLSA-60001
How the FlexLink Kit Works
The GM/Continental sensor measures the amount of ethanol in the fuel. The FlexLink module interprets that signal and sends the data to the standalone ECU in a format it can use.
Once the ECU has been properly configured by your tuner, it can adjust the flex-fuel tables for the mixture currently in the tank. The same information is sent through Bluetooth to the ProFlex Connect app, so you can check the ethanol percentage from your phone.
Fuel System Requirements
Running E85 usually requires more fuel volume than gasoline. Make sure the fuel pump, injectors, lines, seals and other fuel-system components have enough capacity and are compatible with ethanol.
The FlexLink kit tells the ECU how much ethanol is in the fuel. It does not increase injector or fuel-pump capacity.
Emissions Information
The FlexLink kit does not remove or replace emissions equipment. It measures ethanol content and sends that information to a compatible standalone ECU. The ECU calibration controls any changes to fuel delivery and ignition timing.
Advanced Fuel Dynamics does not publish a CARB Executive Order number for this kit. California emissions compliance will depend on the vehicle, engine, standalone ECU, fuel-system configuration and calibration.
Before You Buy
- Select the standalone ECU used in your vehicle.
- Confirm that the ECU supports flex-fuel mapping.
- Confirm that the ECU harness has a dedicated ethanol-sensor input.
- A flex-fuel calibration must be loaded by your tuner.
- Make sure the fuel pump, injectors and fuel lines can support E85 and the horsepower level of the engine.
- Custom fuel-system installation may be required depending on the vehicle.
Pairs Well With
- Advanced Fuel Dynamics E-SENSE High-Flow Ethanol Content Sensor – A high-flow alternative for fuel systems where a conventional GM/Continental sensor may become a restriction. Confirm the sensor and wiring setup with AFD or your tuner.
- AEM 340 LPH E85-Compatible In-Tank Fuel Pump – Adds fuel capacity for custom E85 builds using a compatible in-tank pump setup. Check the pump dimensions, pressure and flow requirements for your engine.
- Radium Engineering PTFE Fuel Hose – Available in -6AN, -8AN and -10AN sizes for custom fuel-system plumbing. The PTFE hose is compatible with gasoline, ethanol and E85.
- Radium Engineering High-Flow Fuel Filter – An E85-compatible fuel filter with several filtration options for custom high-flow fuel systems.
About Advanced Fuel Dynamics
Advanced Fuel Dynamics developed its flex-fuel products after finding that the actual ethanol content in pump E85 can change from one fill-up to another. Its systems measure the fuel that is actually in the car instead of assuming every tank has the same ethanol percentage.
AFD develops its ProFlex Commander systems, FlexLink modules and E-SENSE sensors in Salado, Texas.
