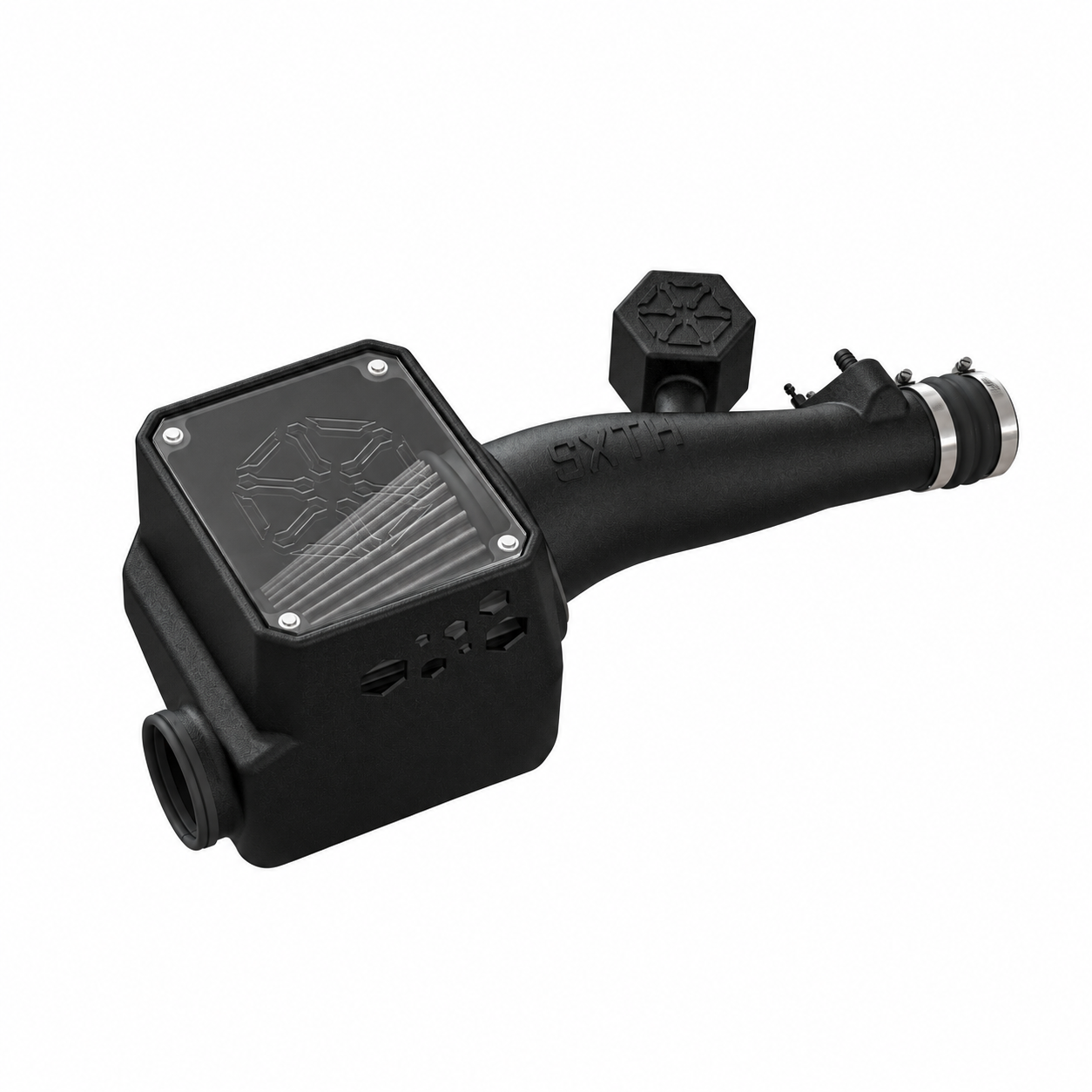

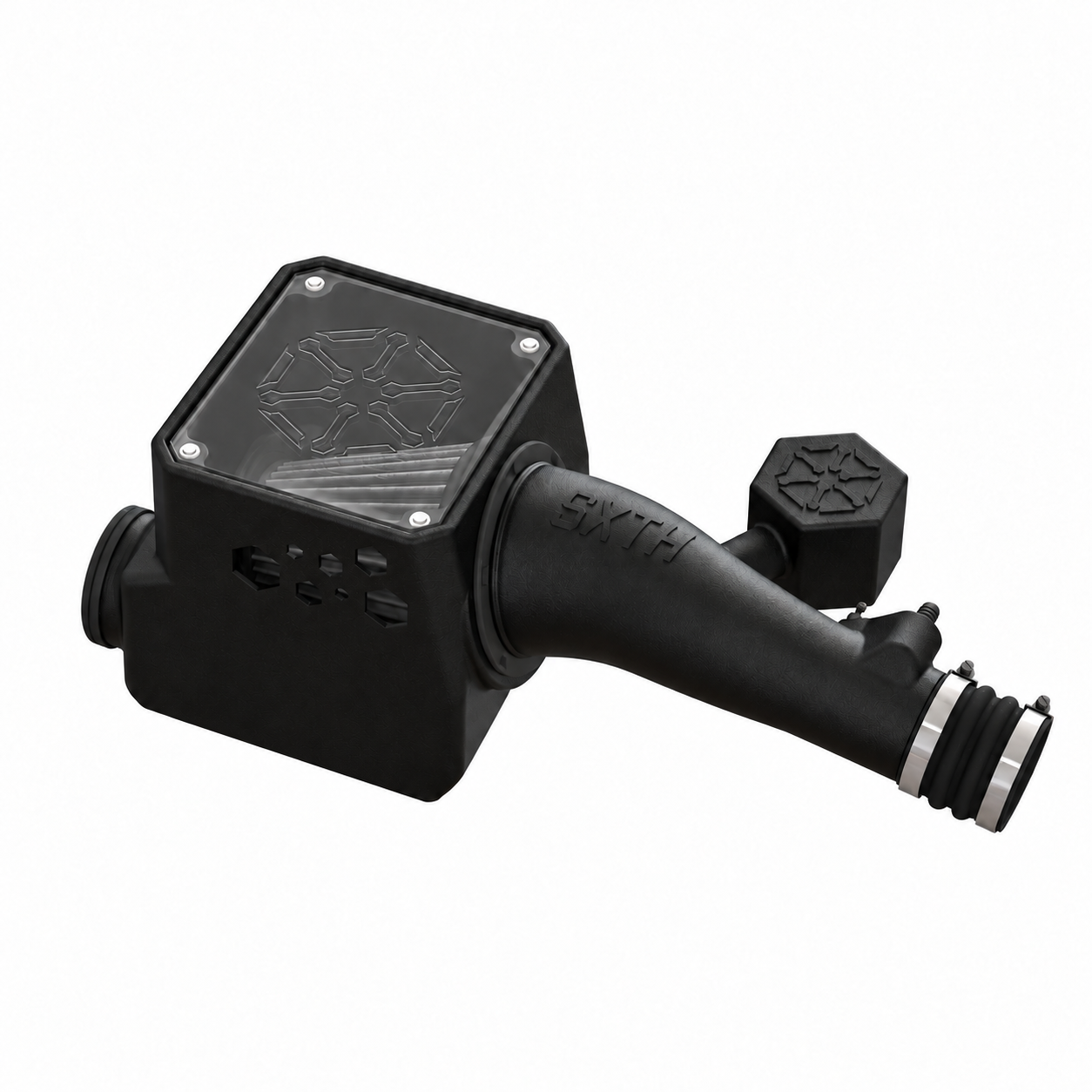

SXTH CPLT Cold Air Intake for Toyota Tacoma 3rd Gen 3.5L V6 (16-23) +13.62whp +6.16wtq

Add more power and bring out the sound of the 3.5L V6 with the SXTH CPLT intake for the third-generation Tacoma. SXTH recorded a gain of 13.62 peak wheel horsepower in its back-to-back dyno testing, and the intake works with the factory ECU calibration without requiring a tune.

This is not just a large filter attached to an open pipe. SXTH uses an enclosed molded airbox, a six-inch dry filter and a Helmholtz resonator designed specifically for the Tacoma’s 3.5L V6. You get a stronger intake sound when you get into the throttle without the harsh resonance some intakes produce around 3,800 to 4,000 RPM.

Fitment Information

• Toyota Tacoma 3rd Gen 3.5L V6 (2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023)

Fitment Notes

• Fits models equipped with the naturally aspirated 3.5L 2GR-FKS V6 engine
• Does not fit Tacoma models equipped with the 2.7L four-cylinder engine
• Works with the factory ECU calibration
• No aftermarket tuning required
• Retains the factory MAF sensor and related OEM connections

Emissions Compliance

This intake does not have a CARB Executive Order number. It is not legal for use in California and cannot be sold or shipped to California.

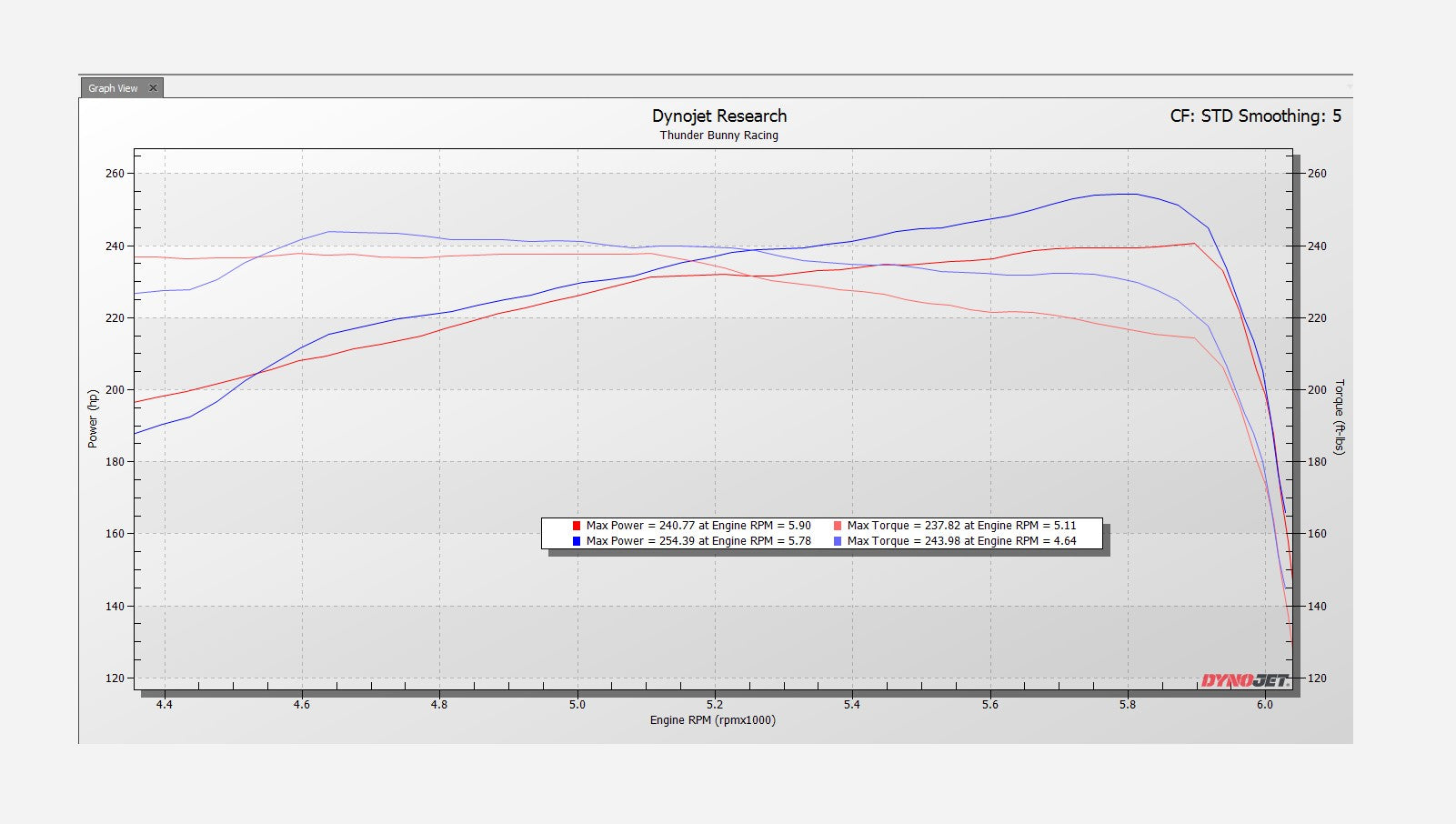

Dyno-Tested Performance

• SXTH CPLT intake: 254.39 peak wheel horsepower
• Factory intake: 240.77 peak wheel horsepower
• Peak gain: 13.62 wheel horsepower
• SXTH CPLT intake: 243.98 lb-ft peak wheel torque
• Factory intake: 237.82 lb-ft peak wheel torque
• Peak-to-peak gain: 6.16 lb-ft of wheel torque

These numbers come from SXTH’s Dynojet comparison between the factory intake and CPLT intake on the tested Tacoma. The graph focuses on the upper RPM range because the initial throttle roll-in was affected by the automatic transmission kicking down. Actual results can vary based on the truck, fuel, weather and testing conditions.

Specs and Features

• Complete enclosed cold air intake system
• Designed for the 3.5L 2GR-FKS V6
• Massive dry-flow air filter with a six-inch inlet
• Smooth transition from the filter to the factory MAF diameter
• Up to 99.52% filtration efficiency in SXTH’s published laboratory testing
• Filter technology tested using ISO 5011 and SAE J726 standards

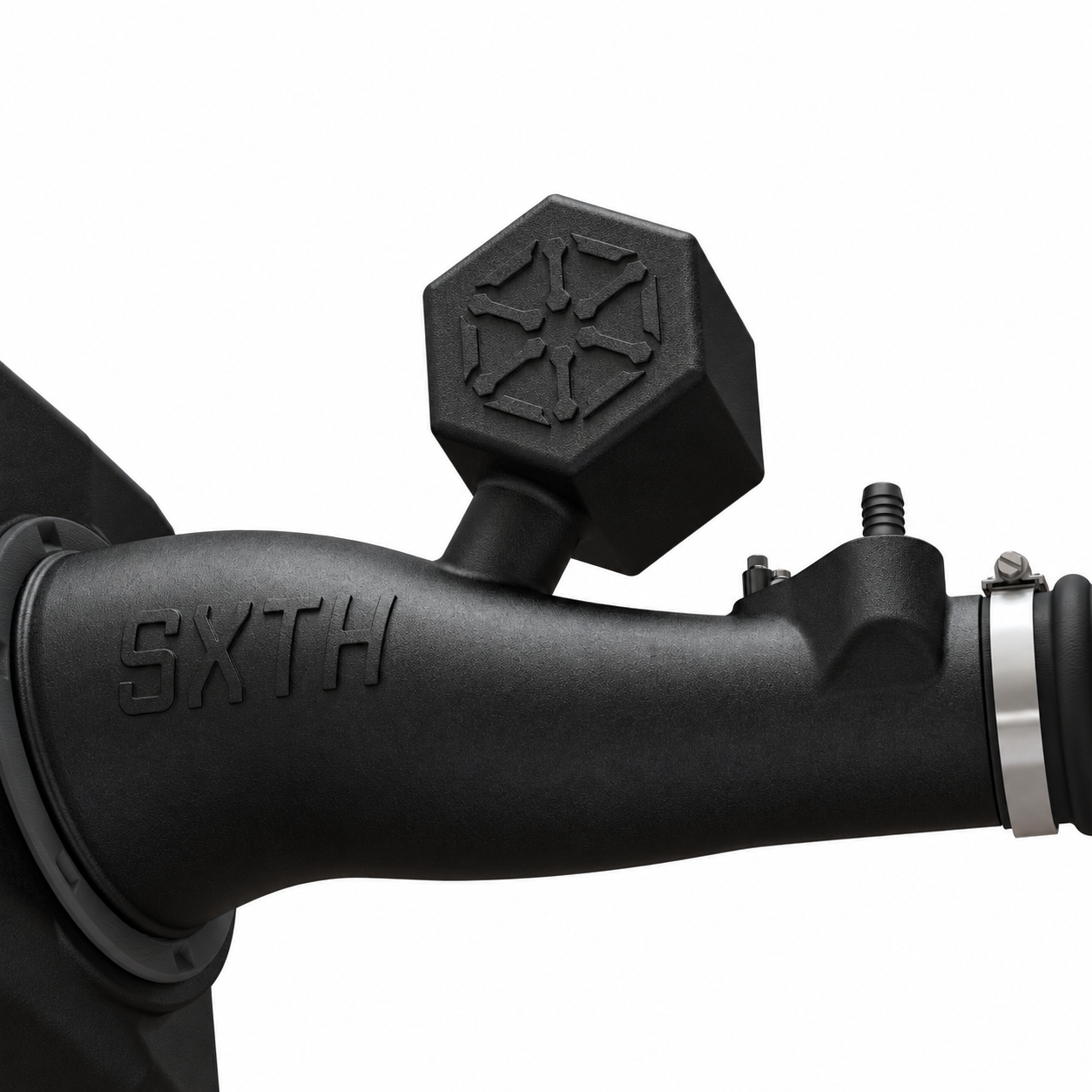

• Integrated Helmholtz resonator reduces unwanted intake resonance
• Stronger V6 intake sound under acceleration
• QuickSnap magnetic airbox lid
• Molded XLPE airbox and intake tube
• No filter oil required
• No ECU tuning required

QuickSnap Magnetic Airbox Lid

The magnetic lid makes checking the filter much easier than removing a row of screws or clips. Lift the lid when you need access to the filter, then let the magnets pull it back into place when you are finished.

What’s Included

• SXTH molded XLPE intake tube
• SXTH enclosed airbox
• Six-inch-inlet dry-flow air filter
• QuickSnap magnetic airbox lid
• Vehicle-specific Helmholtz resonator
• Couplers, clamps and installation hardware

Installation

The CPLT intake bolts into the Tacoma without cutting or permanent modifications. It retains the required factory connections and uses a MAF housing designed to work with the stock ECU calibration. No tuning is required after installation.

Pairs Well With

• AWE 0FG Catback Exhaust for Toyota Tacoma 3.5L – Adds a deeper exhaust note to go with the stronger V6 intake sound while the BashGuard option keeps the rear of the system tucked up for trail clearance.
• HPS Oil Catch Can Kit for Toyota Tacoma 3.5L – Helps separate oil vapor before it reaches the intake tract and is built specifically around the Tacoma’s 2GR-FKS V6.
• Banks PedalMonster for Toyota Tacoma – Sharpens accelerator response and makes the truck react more quickly to pedal input without changing the ECU tune.

About SXTH Element

SXTH Element develops vehicle-specific performance parts with an emphasis on proper testing and clean installation. Their CPLT intake systems combine large dry filters, enclosed airboxes and platform-specific sound control instead of using the same basic intake design across different vehicles.
