The SXTH AV6 replaces the factory bypass valve with a true atmospheric blow-off valve, giving the Hyundai 2.0T N models a sharp turbo release sound when you shift or lift off the throttle. This is a complete replacement valve, not a spacer installed behind the factory part.
The compact body is machined from billet 6061 aluminum and uses a lightweight brass piston for quick response. It bolts to the factory valve location, reuses the original gasket and works with either the stock tune or an aftermarket tune.
Fitment Information
- Hyundai Elantra N CN7 7th Gen 2.0L Turbo with DCT or manual transmission (2022, 2023, 2024, 2025, 2026)
- Hyundai Veloster N JS 2nd Gen 2.0L Turbo with DCT or manual transmission (2019, 2020, 2021, 2022)
- Hyundai Kona N OS 1st Gen 2.0L Turbo with DCT (2022, 2023)
Fitment Notes
- Fits the 2.0L turbocharged Hyundai N models listed above
- Does not fit the Elantra N-Line with the 1.6L turbo engine
- Does not fit the Kona N-Line with the 1.6L turbo engine
- Does not fit standard naturally aspirated Elantra, Veloster or Kona models
- No ECU tuning is required
- This valve removes the factory recirculation connection
- If your intake has a recirculation port, that opening must be sealed with the SXTH BPV plug or another correctly sized plug
Emissions Compliance
This blow-off valve is not CARB approved and is not legal for street use on emissions-controlled vehicles in California.
How the AV6 Changes the Turbo Sound
The factory bypass valve routes released boost pressure back into the intake, which keeps the car quieter. The AV6 vents that pressure to the atmosphere, giving you the blow-off valve sound when you let off the throttle or shift under boost. AV stands for atmospheric valve.
Color Options

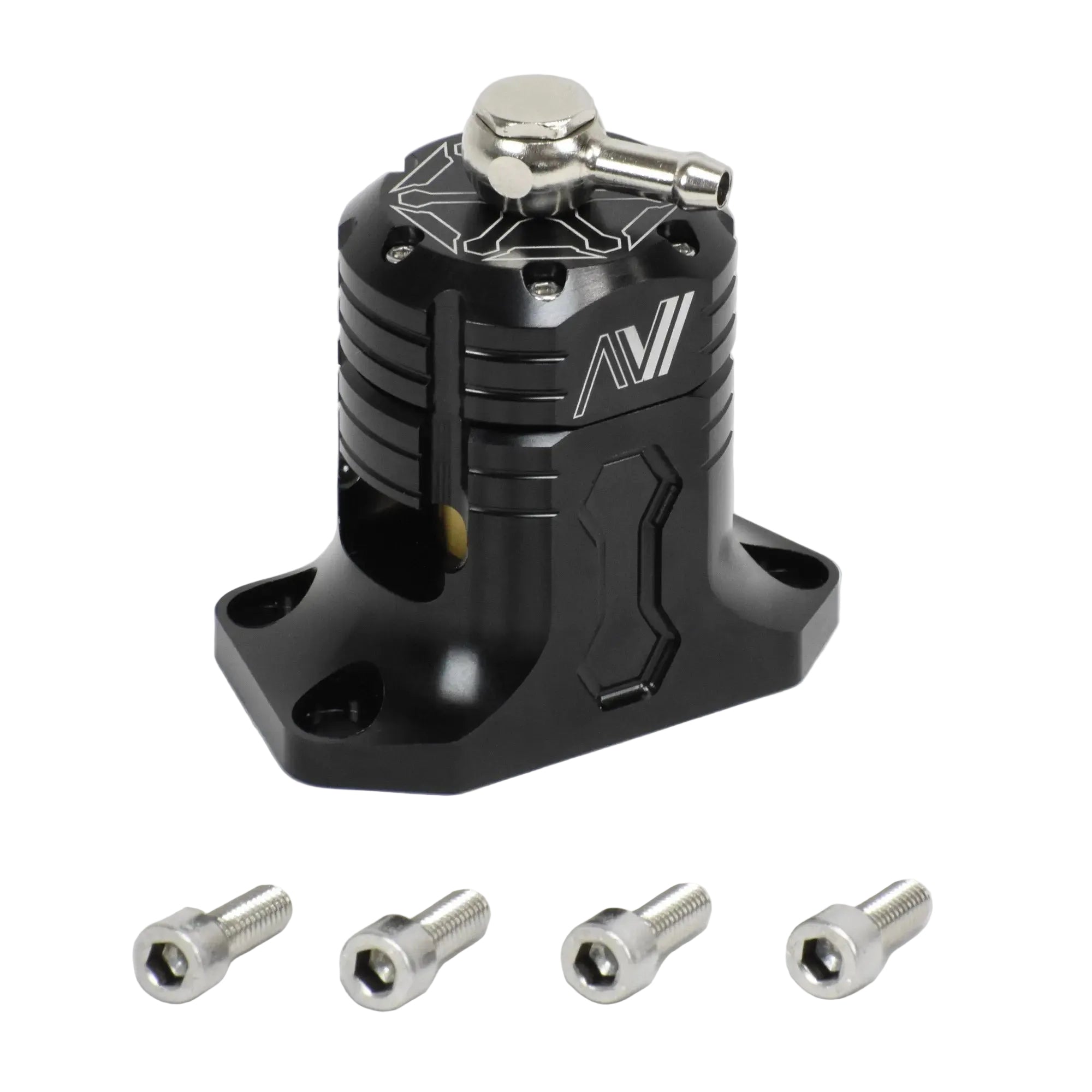

- Black: Black anodized finish, part number 14-03-703-BLK

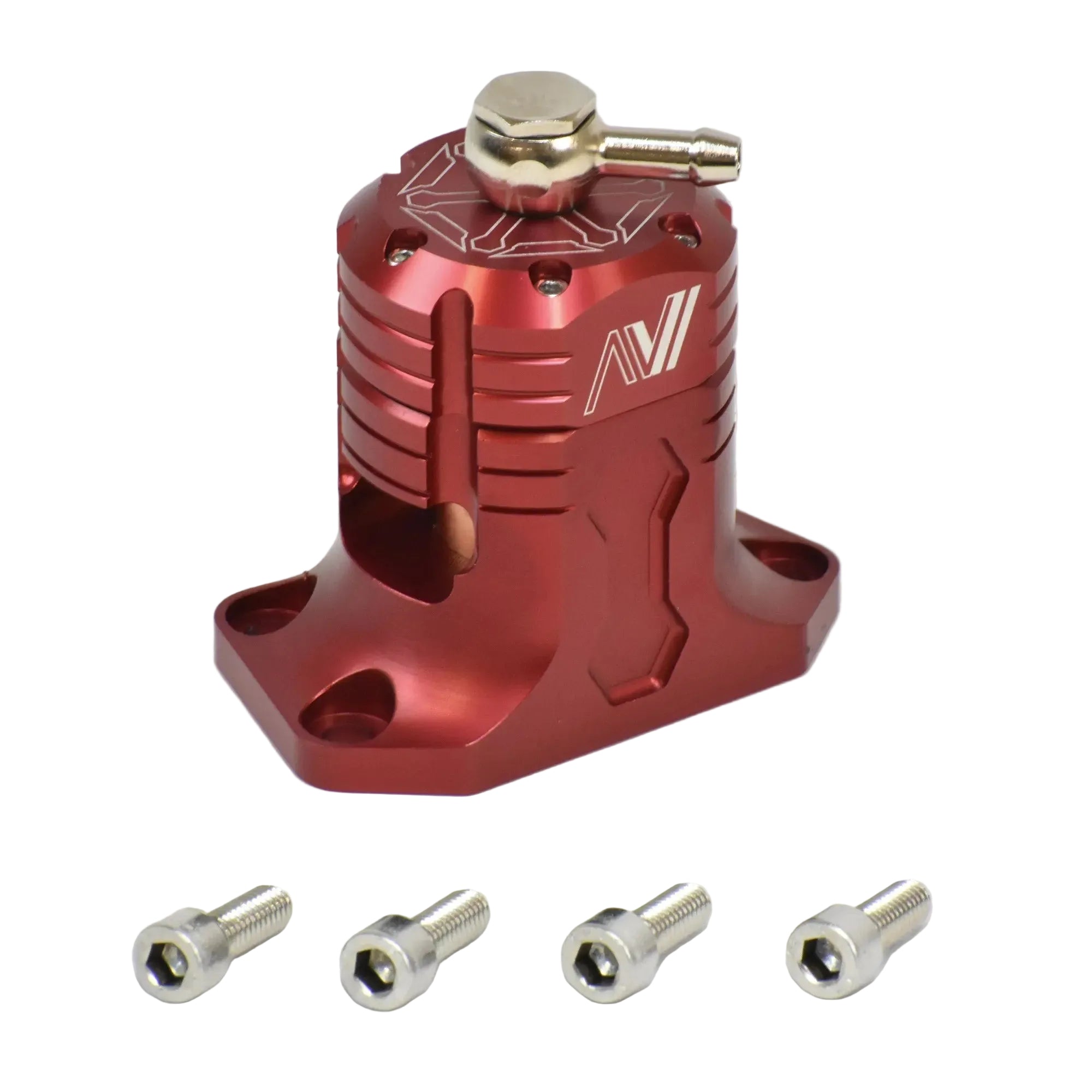

- Red: Red anodized finish, part number 14-03-703-RD
Specs & Features
- Direct replacement for the factory bypass valve
- Atmospheric vent-to-air design
- Clean blow-off sound when shifting or lifting under boost
- Approximately 70% the size of many competing blow-off valves
- Billet 6061 aluminum valve body
- Lightweight brass piston
- Engine-specific CAD-designed mounting base
- Uses the factory bypass valve gasket
- Works with DCT and manual transmissions where listed
- Compatible with factory and aftermarket ECU tuning
- No ECU tuning required
- Available in black or red
What’s Included
- SXTH Element AV6 atmospheric blow-off valve
- Engine-specific mounting base
- Replacement fasteners
- Vacuum line
Note: A plug for the factory intake recirculation port is not included. If your intake retains this port, it must be properly capped after installing the AV6.
Installation
The AV6 replaces the original bypass valve and reuses the factory gasket. SXTH includes the required fasteners and vacuum line for installation. Once the new valve is installed, make sure the unused recirculation port on the intake is properly sealed before driving the car.
Pairs Well With
- SXTH Turbo Inlet V2.0 for Hyundai Elantra N - Increase the size of the intake path ahead of the turbo and pair it with the AV6 for more noticeable turbo and blow-off valve sound.
- aFe Takeda Cold Air Intake for Hyundai Elantra N - The less restrictive intake makes the turbo easier to hear and gives the AV6 blow-off sound a clearer path out of the engine bay.
- BC Racing BR Coilovers for Hyundai Veloster N - Add adjustable ride height and damping to the Veloster N while tightening up the handling for street or track use.
About SXTH Element
SXTH Element develops vehicle-specific performance parts for modern turbocharged cars. Its lineup includes intake systems, turbo inlet pipes, intercoolers, blow-off valves and tuning components designed around factory fitment and straightforward installation.
