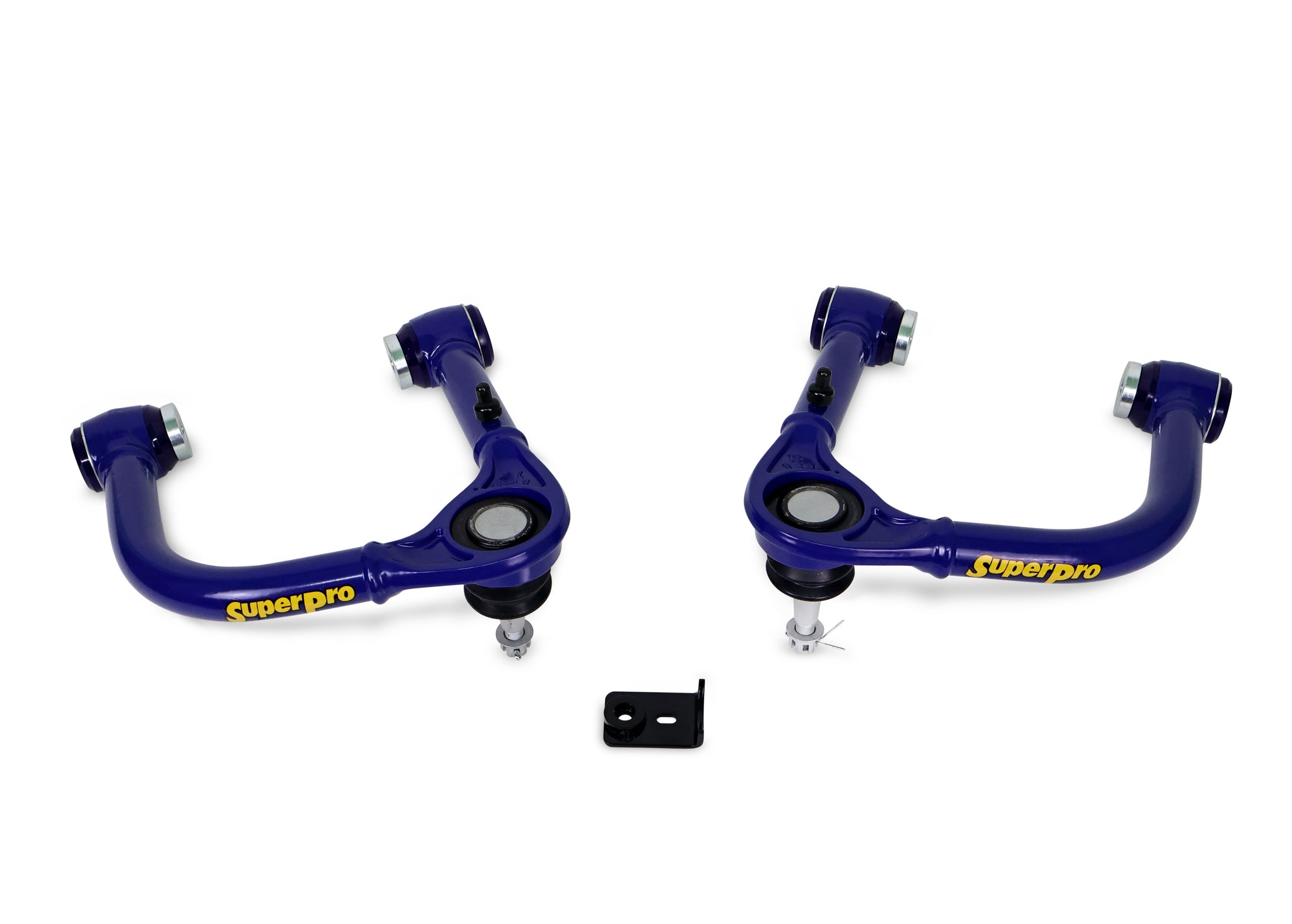

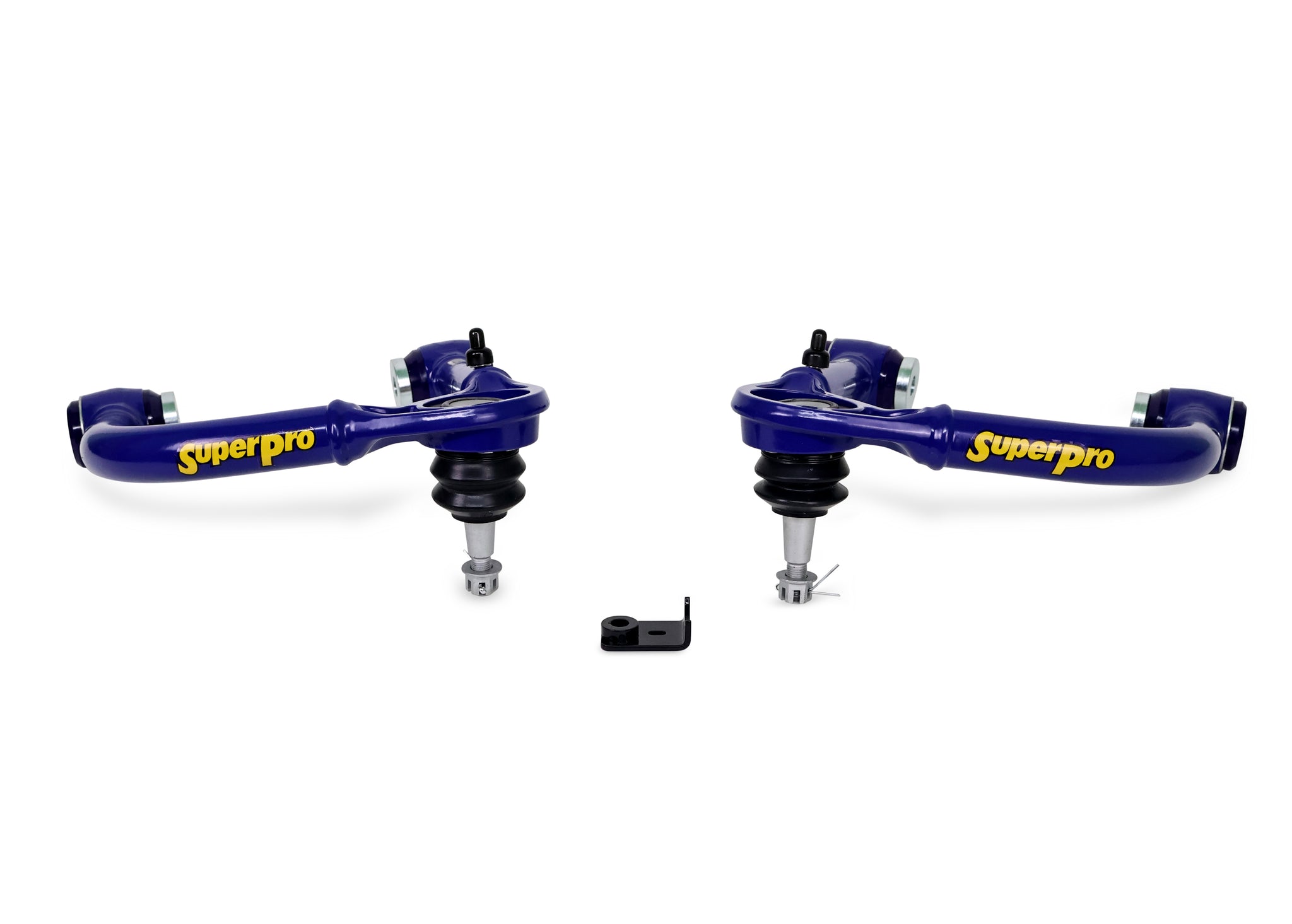

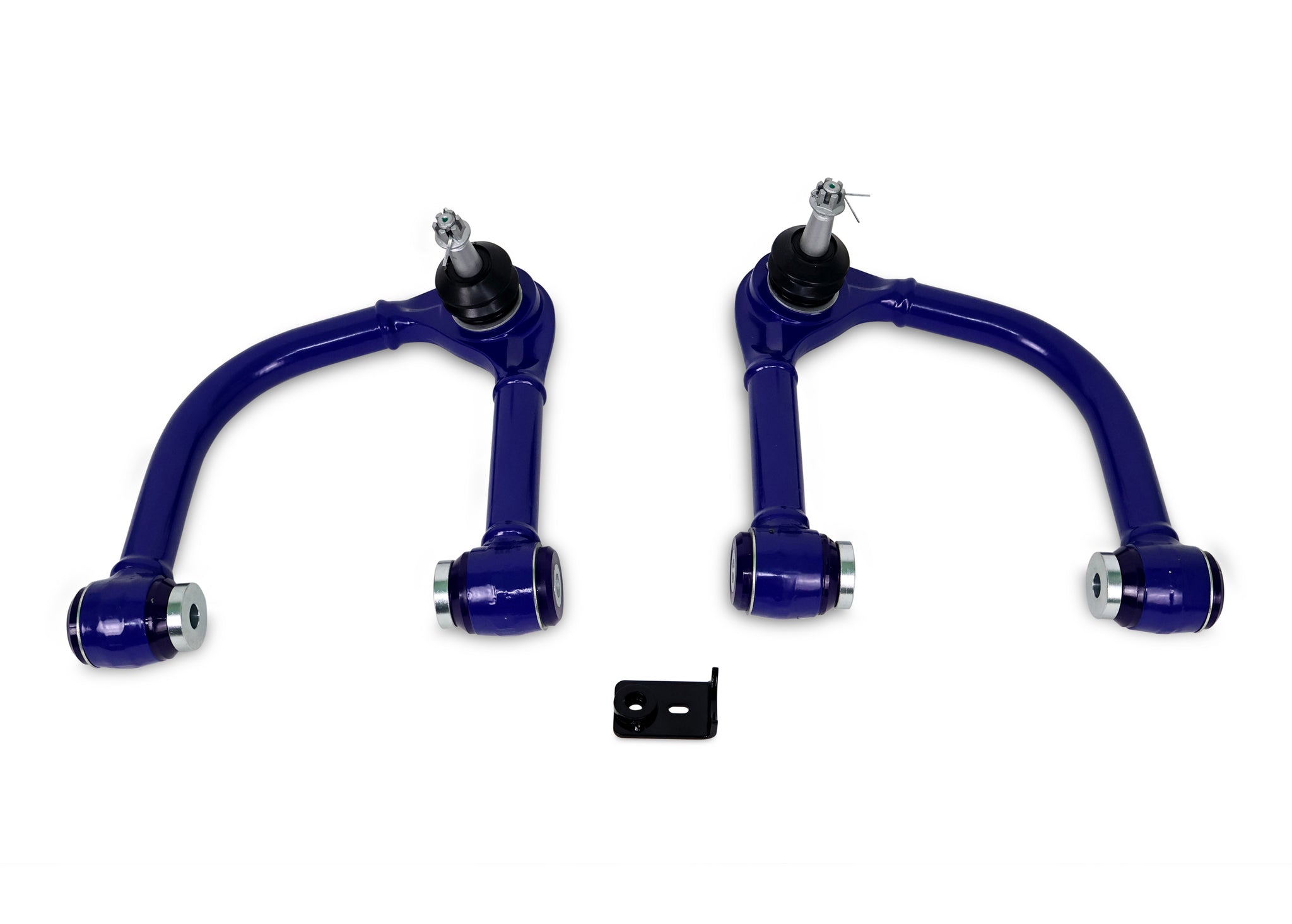

SuperPro Fixed Offset Control Arms for Ford Ranger 5th Gen (24-26) Rear Upper TRC6750

SuperPro TRC6750 fixed-offset upper control arms correct caster and camber geometry on a 2024-2026 Ford Ranger 5th Gen with a 2 to 3-inch lift.

Fitment Information

• Ford Ranger 5th Gen (2024, 2025, 2026)

Fitment Note

TRC6750 is a fixed-offset front upper control arm kit for Rangers lifted approximately 2 to 3 inches, 50 to 75mm. It is not ride-height adjustable. A professional alignment is required after installation. Confirm your exact Ranger configuration and final lift height before ordering.

Specs and Features

• Control Arm Kit
  • SuperPro fixed-offset front upper control arm kit
  • Manufacturer part number: TRC6750
  • Fixed alignment-correction geometry
  • Direct bolt-on design for the intended 2 to 3-inch lift range
  • Includes SuperPro bushings and heavy-duty, high-articulation ball joints
• Alignment Correction
  • Built-in caster and camber change for lifted Rangers
  • Approximately 2.5 to 3.5 degrees of additional caster with a 50mm lift
  • Up to 1.5 degrees of additional negative camber with a 50mm lift
  • Figures vary with final ride height and alignment settings
• Clearance and Articulation
  • Increases clearance between the coilover spring and control arm at full articulation
  • Designed to support additional front-suspension articulation on and off road
• Warranty
  • Three-year SuperPro warranty

Product Description

When a 5th Gen Ranger is lifted, the factory upper control arms can limit the alignment shop’s ability to bring caster and camber back where they need to be. SuperPro TRC6750 addresses that with fixed geometry built around a 2 to 3-inch lift, rather than relying on an adjustable arm that has to be dialed in from scratch.

The built-in correction adds positive caster for better straight-line stability and steering return while also adding negative camber correction. The arms also create more space around the coilover spring at full suspension travel and use SuperPro bushings with heavy-duty high-articulation ball joints.

Before You Buy

These are fixed-offset arms, so they are intended for a specific lifted-height range rather than every Ranger ride height. If your truck is stock height, substantially above a 3-inch lift, or has other suspension changes, confirm the alignment needs with your installer first. Schedule an alignment immediately after installation.

Installation

Installation requires removal and replacement of the factory front upper control arms. View the SuperPro TRC6750 installation guide before beginning the job.
