Fitment Information
- Mazda 3 BL 2nd Gen, all trims (2010, 2011, 2012, 2013)
- front lower control arms, FWD
Specs & Features
- SuperPro has a complete replacement and repair upgrade solution for control arms.
- The SuperPro kit comes with arms with heavy duty ball joints, brackets and bushes.
- The complete arm kit is fitted with SuperPro bushings to positively locate the rear of the arm and eliminate the unwanted flex that comes with the O.E rubber bushing.
-
Kit Includes:

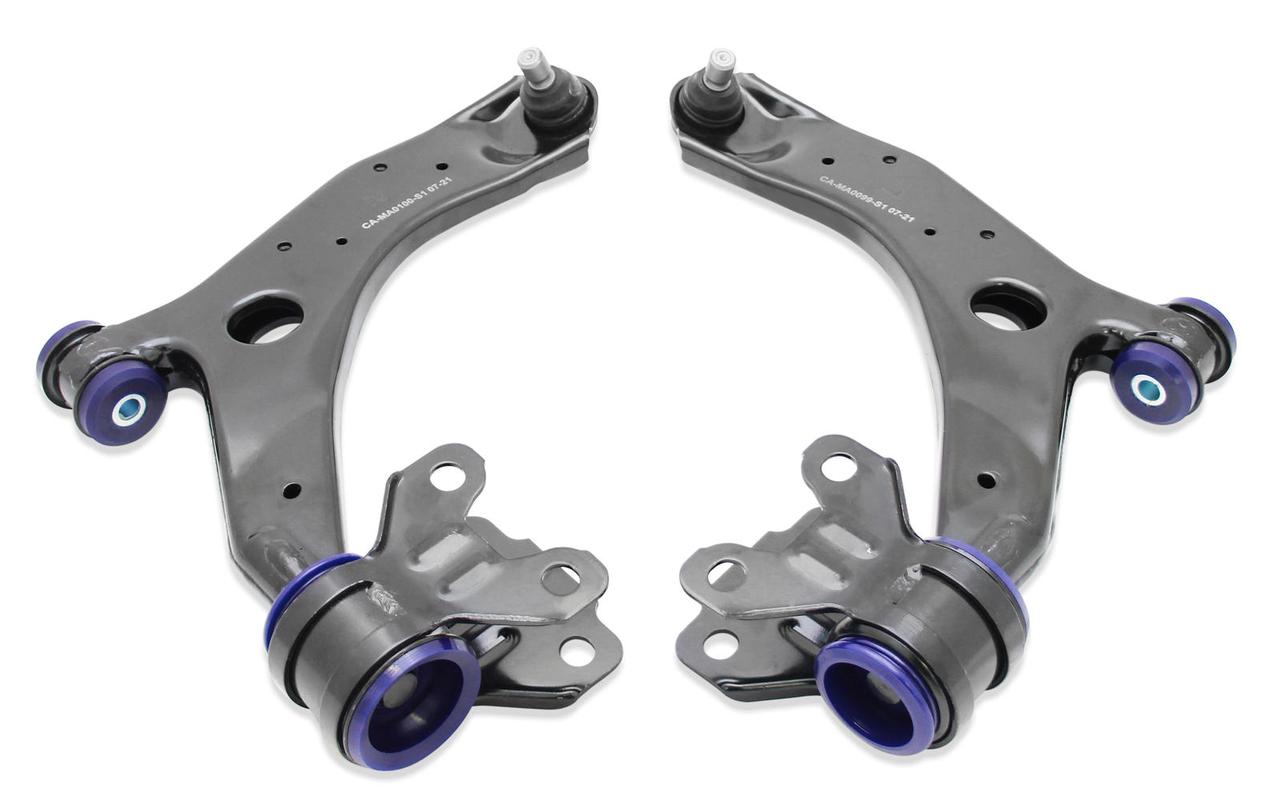

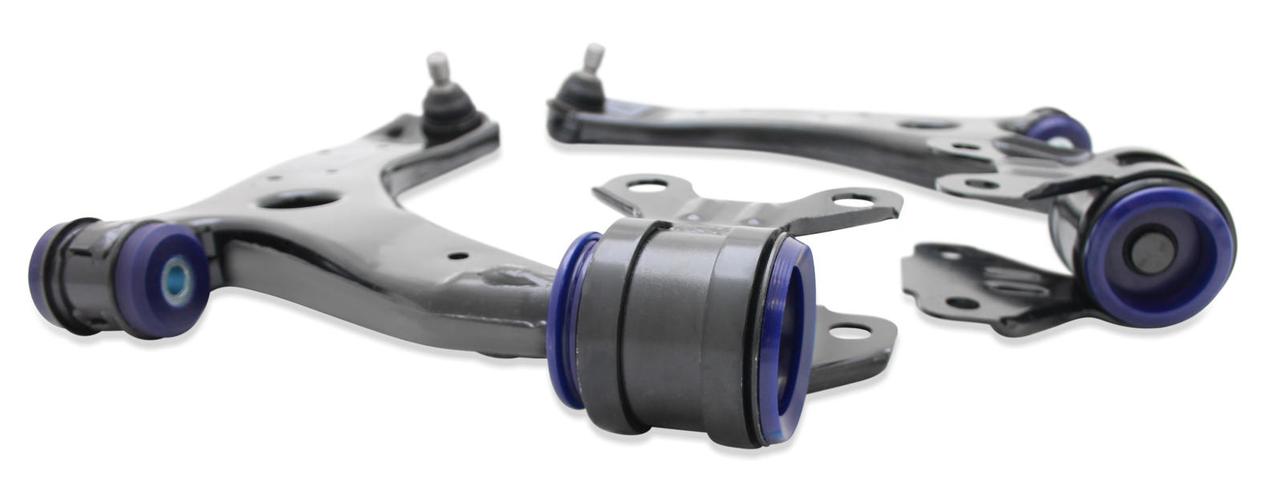

- 2 x Arms
- 2 x Brackets
- 2 x Ball Joints
- 4 x Polyurethane Bushes
- 4 x Steel Tubes
- Front lower control arm kit covering both the driver and passenger side.
- Arms arrive fully assembled with SuperPro proprietary bushings and uprated ball joints pre-installed.
- There is no pressing required during installation since everything comes ready to bolt on.
- This is a direct replacement for the OEM front lower control arms and is also a meaningful performance upgrade.
- The SuperPro polyurethane bushings eliminate the flex and deflection that develops in aging OEM rubber bushings, restoring precise steering geometry and improving front end response.
- The uprated ball joints are more robust than the OEM units and resist wear better under both daily driving and loaded conditions.
- Comes with new mounting bolts.
- A professional wheel alignment is required after installation since replacing the front control arms affects alignment.
- Backed by SuperPro's 3-year or 36,000 mile warranty on metal components including ball joints, and SuperPro's lifetime warranty on all polyurethane bushings.
- Made in Australia.
Pairs well with:
- SuperPro Bushing Kit Mazda 3 BK/BL Front Control Arm (2003-2013) KIT171K If you're doing a full front suspension refresh and want to replace the inner front subframe bushings at the same time as the control arms, the KIT171K covers the lower control arm inner bushing positions. Note that the front bushings in the TRC1051 are already replaced by the SuperPro units in this kit, so KIT171K would be for buyers refreshing additional bushing positions beyond the control arm itself.
OEM Part Numbers Cross Reference
- Mazda 3 BL Front Lower Control Arm Driver (Left): Mazda BBM4-34-350A (confirmed for BL 2010-2013 front lower arm)
- Mazda 3 BL Front Lower Control Arm Passenger (Right): Mazda BBM4-34-300A (confirmed for BL 2010-2013 front lower arm)
These OEM part numbers apply to the front lower control arm assemblies on the 2010-2013 Mazda 3 BL. Buyers can verify at mazdausa.com with their VIN before cross-referencing.
Frequently Asked Questions
-
Do I need to press in bushings myself?
No. That's one of the main reasons to buy this kit over sourcing arms and bushings separately. The SuperPro bushings and new ball joints come pre-installed in the arms at the factory. You unbox them and bolt them on. Much cleaner install, especially for a home garage build without a press. -
How is this different from just replacing the OEM rubber bushings?
The OEM rubber bushings are soft by design for NVH comfort. Over time they deteriorate and allow the arm to flex in ways it shouldn't, which shows up as vague steering and inconsistent handling. SuperPro's polyurethane bushings hold the arm in position much more precisely and last significantly longer than OEM rubber. You'll feel the difference in steering response immediately, especially in hard corners or during quick direction changes. -
Does this fit the Mazdaspeed 3?
We would recommend verifying directly with SuperPro before ordering the TRC1051 on a Mazdaspeed 3. The BL Mazdaspeed 3 has different front suspension geometry compared to the standard Mazda 3. Reach out to us and we can confirm whether this kit works for your specific car before you commit. -
Do I need an alignment after installing these?
Yes. Replacing front control arms changes the suspension geometry and will push your alignment out of spec. Always budget for a four-wheel alignment as part of this job. Do not drive far on a car with fresh control arms and no alignment.
Product Description
The TRC1051 replaces the factory front lower control arms on the BL Mazda 3 with a fully assembled SuperPro unit that drops straight in. No press. No sourcing separate bushings. The SuperPro bushings and uprated ball joints are already installed when they leave the factory, so you're not fighting with a hydraulic press or a rubber mallet in the driveway.
The OEM rubber bushings are fine when new but they deteriorate over time and let the arm flex when it shouldn't. That shows up as vague steering and front end wander. SuperPro polyurethane holds the arm where it's supposed to be and lasts a lot longer than rubber.
Kit covers both sides and comes with new mounting bolts. Wheel alignment is required after installation.
Backed by SuperPro's 3-year warranty on metal components and a lifetime warranty on the polyurethane bushings. Made in Australia.
SuperPro repair/upgrade arms supplied with ball joints and SuperPro bushes pre-fitted.
The SuperPro front lower control arm kit has been designed to be an easy repair solution.
Offering both alignment and vehicle handling improvements. Designed not just as a repair solution but as an upgrade!
Supplied as a complete kit and fully assembled with special uprated ball joints and proprietary SuperPro bushings. We have made this kit by far the best choice on the market.
These arms utilize the SuperPro bushings and are manufactured from a high-strength material.
By eliminating the O.E style rubber bushing, these arms have been optimized for longevity, durability and performance, without any unwanted NVH.
SuperPro Control Arms are perfectly suited as a standard replacement and are an upgrade from the factory arms, eliminating the undesirable arm movement to maintain better steering geometry in all driving conditions.
SuperPro offers a lifetime warranty on all Polyurethane products and a 3 year or 36,000 mile warranty on all metal products, end links and ball joints. This warranty covers the cost of replacing the parts in the case of manufacturing defects, material defects and is subject to a Fair Use assessment.
Better Through Design, Made in Australia. Since 1970.
SuperPro is an innovative Australian manufacturer of automotive polyurethane suspension bushings, control arms, swaybars and other suspension components for both 4x4 and performance vehicles. SuperPro is based in Brisbane, Queensland and does all engineering and manufacturing on site, ensuring the best quality product. Engineered to outperform, SuperPro's specially formulated and high-quality components are designed to create suspension solutions for better stability, handling and control in both on and off-road applications.
We are proud of the fact that SuperPro is 100% Australian owned and manufactured. All our suspension parts are meticulously tested and trialed in the harshest Australian conditions, ensuring our products will perform to the highest ability, no matter the task or terrain. Keeping the designing and manufacturing processes in Australia ensures that every one of our products is perfect through a very high-level production process.
SuperPro R & D includes rigorous testing in the lab, on the street and on the track. SuperPro innovates with the latest technology in polyurethane & suspension design to give our customers the best possible suspension and chassis solutions
- Experience with leading automotive manufacturers
- Innovations that are tested in the most extreme conditions; from Antarctica to the Sahara
- Flexible, state-of-the-art manufacturing facilities underpin superior quality.
