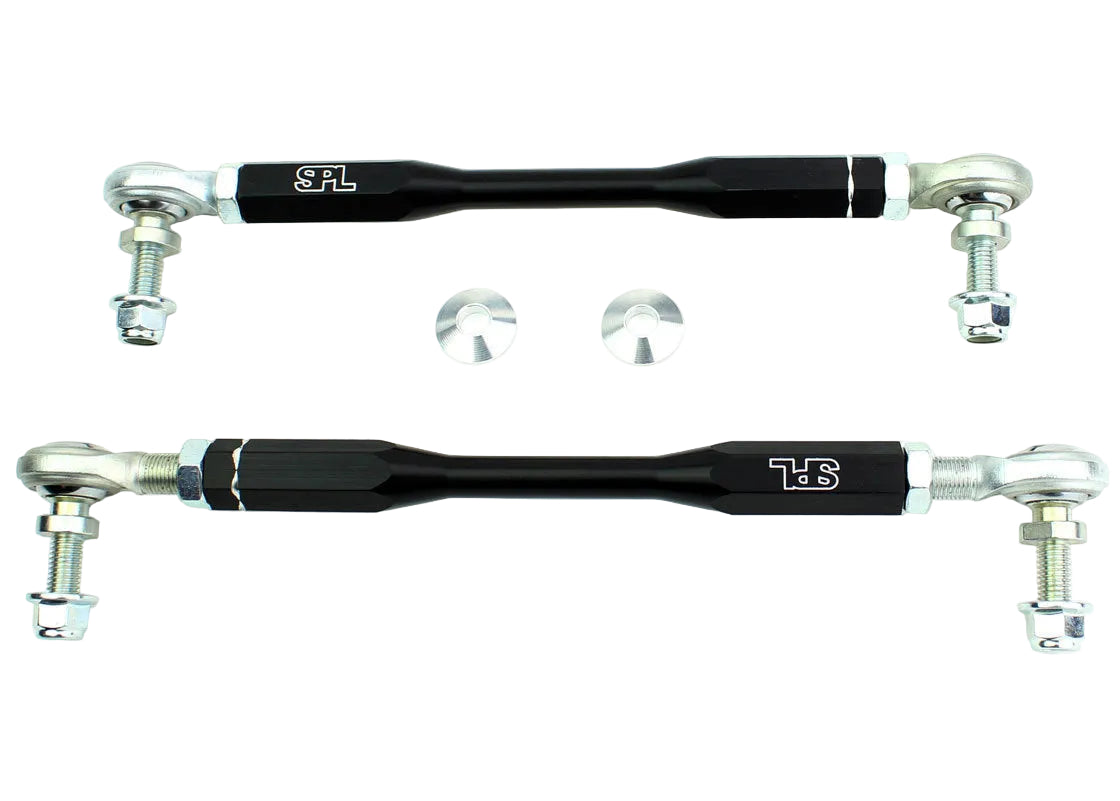

SPL Front Sway Bar Endlinks for BMW 325i 328i 330i 335i (06-13) E90 E91 E92 E93 SPL FE E9X

If your E9X BMW is lowered or running an aftermarket sway bar, these adjustable front endlinks from SPL Parts let you set the sway bar up without unwanted preload or binding. They replace the factory links with aluminum turnbuckles, FK bearings and high-misalignment chromoly studs built for both street and track use.

The left- and right-hand threads let you adjust the length without removing the endlinks from the car. This makes it much easier to get both sides even with the suspension sitting at its normal ride height, especially after installing coilovers or corner balancing the car.

Fitment Information

• BMW 325i / 325xi E90 Sedan (2006)
• BMW 325xi E91 Wagon (2006)
• BMW 328i / 328xi / 328i xDrive E90 Sedan (2007, 2008, 2009, 2010, 2011)
• BMW 328i / 328xi / 328i xDrive E91 Wagon (2007, 2008, 2009, 2010, 2011, 2012)
• BMW 328i / 328xi / 328i xDrive E92 Coupe (2007, 2008, 2009, 2010, 2011, 2012, 2013)
• BMW 328i E93 Convertible (2007, 2008, 2009, 2010, 2011, 2012, 2013)
• BMW 330i / 330xi E90 Sedan (2006)
• BMW 335i / 335xi / 335i xDrive E90 Sedan (2007, 2008, 2009, 2010, 2011)
• BMW 335i / 335xi / 335i xDrive E92 Coupe (2007, 2008, 2009, 2010, 2011, 2012, 2013)
• BMW 335i E93 Convertible (2007, 2008, 2009, 2010, 2011, 2012, 2013)
• BMW 335is E92 Coupe (2011, 2012, 2013)
• BMW 335is E93 Convertible (2011, 2012, 2013)
• BMW 335d E90 Sedan (2009, 2010, 2011)

Fitment Notes

• Fits non-M BMW E9X 3 Series models only
• Does not fit the E90, E92 or E93 M3
• Sold as a pair for the front suspension
• Compatible length range is approximately 10.4 to 11.9 inches
• Aftermarket shocks and coilovers can move the endlink mounting point
• Measure between the sway bar and strut mounting points before ordering if the car has aftermarket suspension

Specs & Features

• Length-adjustable front sway bar endlinks
• Helps remove sway bar preload after lowering or corner balancing the car
• PTFE-lined FK 1/2-inch spherical bearings
• Heat-treated chromoly high-misalignment studs
• Up to 65 degrees of articulation
• Helps prevent binding with adjustable aftermarket sway bars
• Black-anodized 6061-T6 aluminum turnbuckles
• Left- and right-hand threads allow adjustment while installed
• Suitable for stock and aftermarket front sway bars
• Made in the USA
• Sold as a pair

Why Install Adjustable Endlinks?

Lowering springs and coilovers can leave the front sway bar loaded even when the car is sitting straight and level. That preload can make the car react differently when turning left versus right and can also put the endlinks at a bad angle.

These adjustable SPL endlinks let you set the correct length with the suspension at ride height. They are also a good match for a stiffer sway bar, where the factory rubber-jointed links can add unwanted movement.

Installation Notes

• Measure the required endlink length before installation, especially with aftermarket coilovers.
• Set both endlinks to an equal starting length.
• Complete the final adjustment with the vehicle sitting at normal ride height.
• Adjust the links so the sway bar is not preloaded while the steering is centered.
• Make sure the bearings and studs have enough clearance throughout the full steering and suspension travel.
• Tighten the mounting hardware and turnbuckle jam nuts to the manufacturer’s specifications.
• Recheck the hardware after the first drive or track session.

What's Included

• Driver-side adjustable front endlink
• Passenger-side adjustable front endlink
• Chromoly high-misalignment mounting studs
• Required endlink mounting hardware

Pairs Well With

• Whiteline Sway Bar Kit for BMW E90 / E91 / E92 / E93 Non-M – Add larger front and rear sway bars, then use the adjustable SPL endlinks to get the front bar sitting correctly without preload.
• BC Racing Coilovers for BMW E90 / E92 RWD – Lower the car and adjust the damping, then set the SPL endlinks to match the new ride height.
• SPL Front Lower Control Arms for BMW E9X – Add front camber and track-width adjustment for a more complete street or track suspension setup.

About SPL Parts

SPL Parts builds adjustable suspension components for cars that see everything from daily driving to time attack and road racing. Their parts use quality rod ends, machined aluminum construction and adjustment systems that make it easier to get the alignment and suspension setup where you actually want it.
