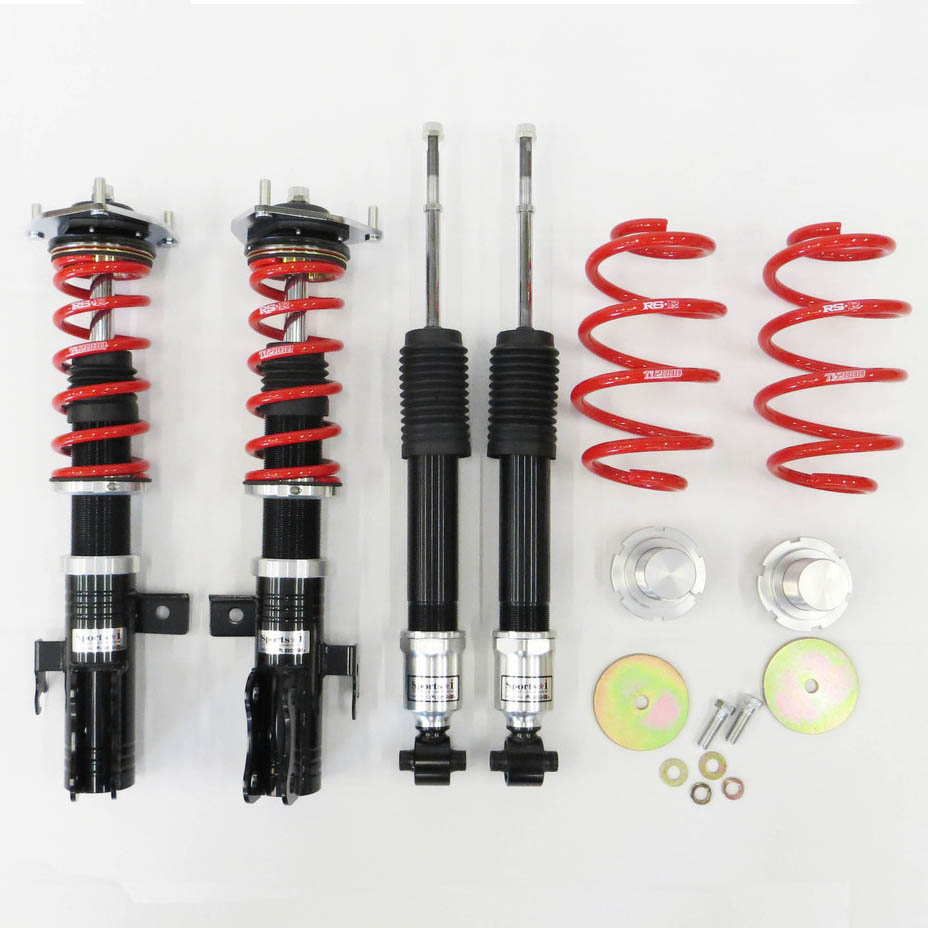

RS-R Sports*I Coilovers Toyota Prius V (2012-2017) XBIT086M

Vendor
RS-R
Regular price
$1,799.00
Sale price
$1,799.00

Free shipping

Quantity must be 1 or more

Spirited weekend track drives do not have to sacrifice daily driving comfort or performance.  Designed for the performance enthusiast in mind, the RS-R Sports-I coilover system provides a comfortable ride for everyday use, yet is sufficient enough for those effervescent track days.

Fitment Information

  • Toyota Prius V (2012, 2013, 2014, 2015, 2016, 2017)

Specs & Features

Chassis code: ZVW41W

Preset Approximate Height From RS-R:
Front -35mm (-1.4inch)
Rear -35mm (-1.4inch)

Maximum Adjustment Ranges:
Front +10mm to -90mm (+0.4inch to -3.6inch)
Rear -15mm to -60mm (-0.6inch to -2.4inch)

Recommended Adjustments for Optimal Ride-ability:
Front -5mm to -50mm (-0.2inch to -2.0inch)
Rear -15mm to -60mm (-0.6inch to -2.4inch)

Spring Rates:
Front 5.00kg/mm
Rear 3.00kg/mm

Note

  • Dampers are 36 way adjustable in the front and the rear.
  • Warranty 1 Year / 12,000 miles from the day of purchase.

              Product Description

              TECHNOLOGY OF RS-R’S HAND ASSEMBLED MONO-TUBE DAMPERS

              Quality and Detail

              The RS-R coilovers are all Monotube hand assembled systems specifically designed to improve ride quality, performance, and comfort.  Utilizing components such as; laser cut upper mounts, hand welded lower brackets, vehicle specific valving, are all assembled by hand to ensure quality and detail.

              Urethane Bushing Technology

              Utilizing Urethane bushing instead of bearing to reduce excessive vibrations from every day driving, as well as minimizing noises from suspension movements.

              The Silent Roller Bearings

              On MacPherson type suspension, as the suspension rotates along with the steering wheel, the coil springs may be prone to twisting.  RS-R suspension utilizes roller bearings to eliminate spring twist noise.

              Comfort and Adjustment

              Rubber padding is utilized to help eliminate potential noise from suspension movements. Damper adjustment dials are up to 36 way adjustable to tune the shocks compression and rebound to each individuals needs for almost any driving condition.

              Damping Adjustment

              Damper adjustment dials are up to 36 way adjustable to tune the shocks compression and rebound to each individuals needs for almost any driving condition.

              Refined Camber Tuning

              If desired, the upper mounts on select vehicles can add 1.5 degree of camber from the preset setting by unbolting the upper mount and rotating the plate 180 degrees.  (for more precise control of camber, adjustable camber plates are available for select models)

                    RS-R Brand Logo
