RS-R Lowering Springs for Toyota GR Supra A90/A91 (20-25) Down Sus / Super Down T215D / T215S

RS-R gives the 2020-2025 GR Supra a choice between the street-friendly Down Sus drop and the more aggressive Super Down stance, with spring rates tuned for the A90/A91 platform.

Fitment Information

• Toyota GR Supra A90 / A91 RWD 2.0L turbo, DB22 / DB23 (2020, 2021, 2022, 2023, 2024, 2025)
• Toyota GR Supra A90 / A91 RWD 3.0L turbo, DB42 / DB43 (2020, 2021, 2022, 2023, 2024, 2025)

Fitment Note

Both spring options are fixed-height kits and include four springs. They are designed for A90/A91 GR Supra 2.0T and 3.0T models, not the BMW Z4. Select Down Sus or Super Down before ordering.

Choose Your RS-R Springs

• Down Sus, T215D: The milder option for a lowered stance with everyday street use in mind.
• Super Down Sus, T215S: The lower, more aggressive option for owners who want to reduce fender gap further.

Drop and Spring Rates

• Down Sus, T215D
  • 2.0T DB22 / DB23: approximately 0.4 to 0.6 inch front drop and 1.0 to 1.2 inch rear drop
  • 3.0T DB42 / DB43: approximately 0.6 to 0.8 inch front and rear drop
  • Front spring rate: 3.53 kg/mm
  • Rear spring rate: 12.2 kg/mm
• Super Down Sus, T215S
  • 2.0T DB22 / DB23: approximately 1.0 to 1.2 inch front drop and 1.4 to 1.6 inch rear drop
  • 3.0T DB42 / DB43: approximately 1.2 to 1.4 inch front and rear drop
  • Front spring rate: 3.83 kg/mm
  • Rear spring rate: 12.2 kg/mm

Specs and Features

• RS-R lowering spring set
• Down Sus part number: T215D
• Super Down Sus part number: T215S

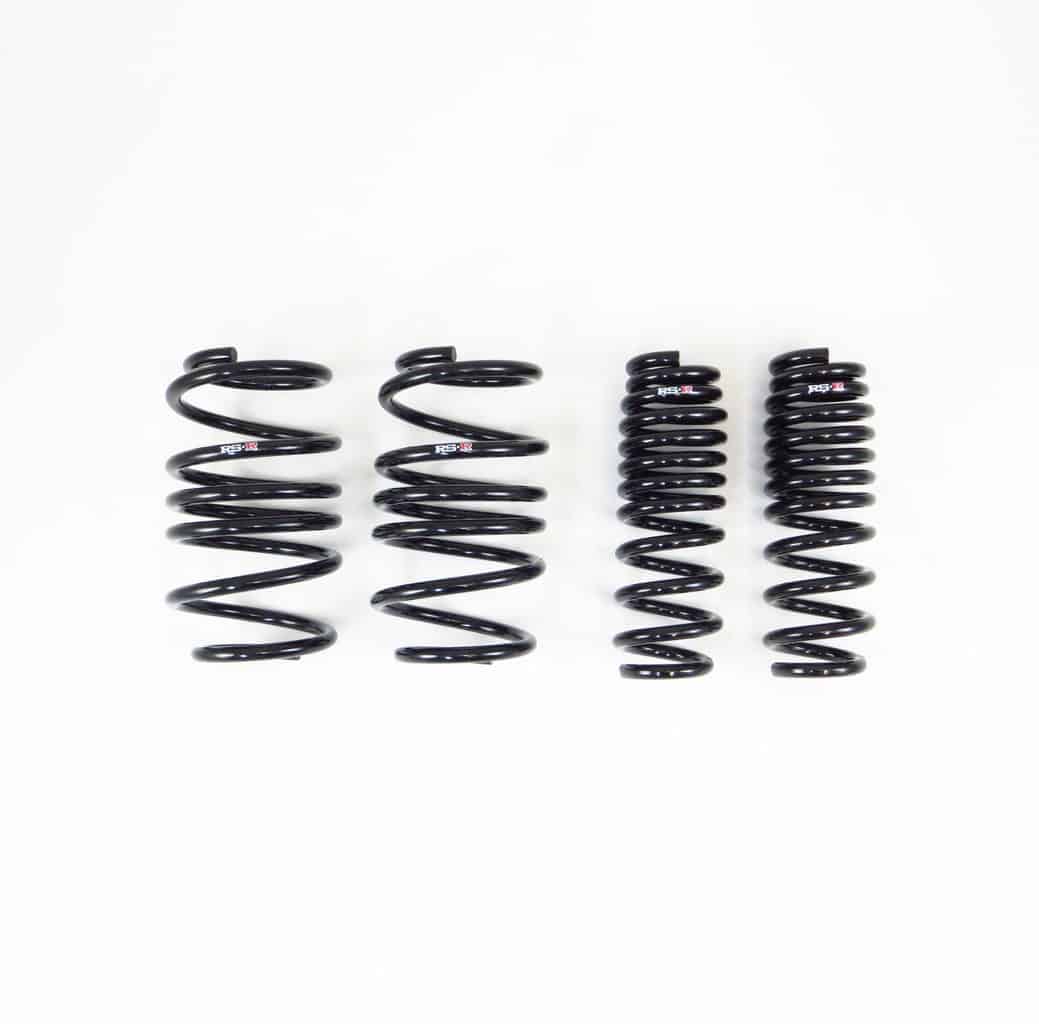

• Includes two front and two rear springs
• Designed to work with factory shocks and struts
• Fixed ride height, not adjustable
• Three-year, 36,000-mile warranty when purchased through an authorized dealer such as Redline360

Product Description

RS-R spring kits are for Supra owners who want to close up factory wheel gap without moving to coilovers. Down Sus T215D gives the A90/A91 a milder drop, while Super Down T215S brings the car down further for a more pronounced stance.

The drop is not identical on every Supra. RS-R uses separate measurements for the 2.0T and 3.0T chassis, which is why the 2.0T has a different rear drop than the 3.0T. Choose the spring option based on how low you want the car to sit, then use the engine-specific figures above as your guide.

Installation Notes

Plan on a professional alignment after installation and once the springs have settled. Final ride height can vary slightly with trim, factory suspension condition, wheel and tire setup, and vehicle equipment. Super Down Sus has substantially less clearance than Down Sus, so check tire and wheel clearance before selecting that option.

Related Upgrades for Your GR Supra

• Eibach anti-roll sway bar kit for Toyota GR Supra - A front and rear handling upgrade that pairs well with a lowered A90/A91 suspension setup.

About RS-R

RS-R is a Japanese suspension brand known for vehicle-specific lowering springs and coilover systems. Its Down Sus and Super Down lines are designed for drivers who want a lower stance with spring rates tailored to the vehicle’s factory suspension layout.
