Radium Engineering Single Catch Can (Fluid Lock) - 6AN/ 8AN/ 10AN Kit

Fitment Information

• Universal oil catch can kits

Specifications

Radium Catch Can Features

• The catch cans are machined from solid 6061 aluminum. The 2 halves and all ports are O-ring sealed, thus safe for pressurized (forced induction) applications. The main inlet and outlet ports are 10AN ORB (7/8"-14) female threads. An integrated dipstick unscrews for a quick way to check oil level.

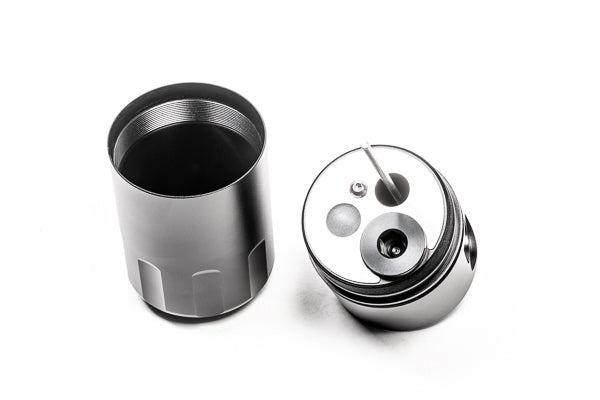

• These catch cans feature advanced air/oil separation. As shown below, there is an integrated stainless steel baffle plate.
• The Radium-only Fluid Lock® mechanism keeps oil trapped in the catch can and prevents collected oil from "dumping" into the breather hoses when the catch can is full

Radium Catch Can Servicing

• These catch cans feature Radium Engineering's patent pending Fluid Lock® technology. If the catch can fills up and is not emptied, an internal valve closes and eliminates the contaminants from exiting the catch can and entering the engine. Furthermore, it maintains normal venting through the catch can prohibiting engine damage.

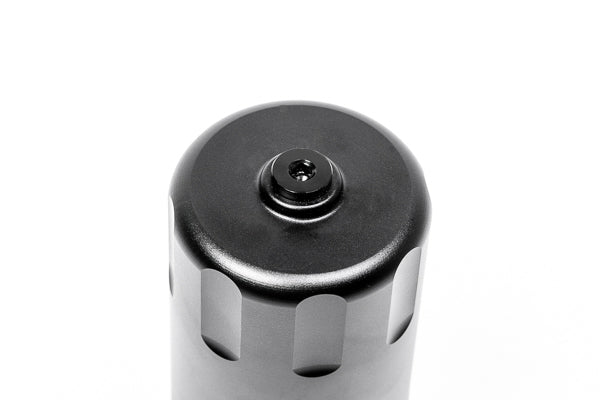

• For draining, there are a couple options depending on the application. If there is space, the lower half of the body that holds all of the contaminants simply unscrews. However, if there is no room to remove the lower half of the catch can, there is a 4AN ORB (7/16"-20) female threaded drain port. A 4AN ORB plug is provided.
• For remote draining, consider this petcock drain kit

Radium Catch Can Dimensions

• Capacity: 7 fluid ounces

• Height (without fittings): 4.9 inches

• Outside Diameter: 2.45 inches

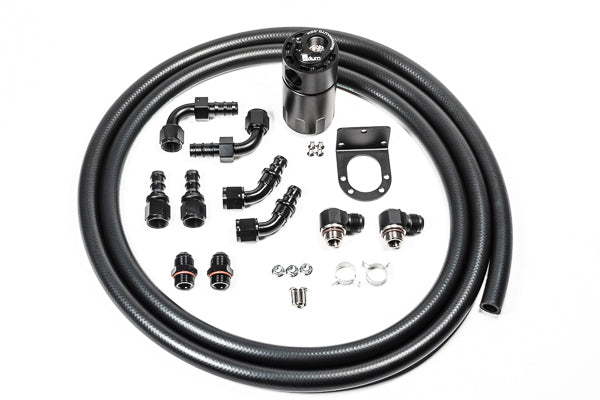

20-1806-FL SINGLE CATCH CAN, FLUID LOCK - 6AN KIT

• This catch can kit is perfect for custom applications. It is designed for engines that use 3/8" (10mm) lines for the crankcase ventilation system. It is recommended to measure the engine vent lines first prior to ordering.

• Includes:
  • 1x Oil Catch Can, Fluid Lock

  • 2x 10AN ORB to 6AN Male Banjos

  • 2x 10AN ORB to 6AN Male Fittings

  • 2x 6AN PushLok, Straight Hose Ends

  • 2x 6AN PushLok, 45 Degree Hose Ends

  • 2x 6AN PushLok, 90 Degree Hose Ends

  • 2x Spring Clamps For 3/8" Hose

  • 1x Aluminum Mounting Bracket

  • 3x Stainless M6x1mm Bolts

  • 3x Flanged M6x1mm Nuts

  • 1x Service Interval Decal

  • 10ft PCV Hose, 3/8" ID

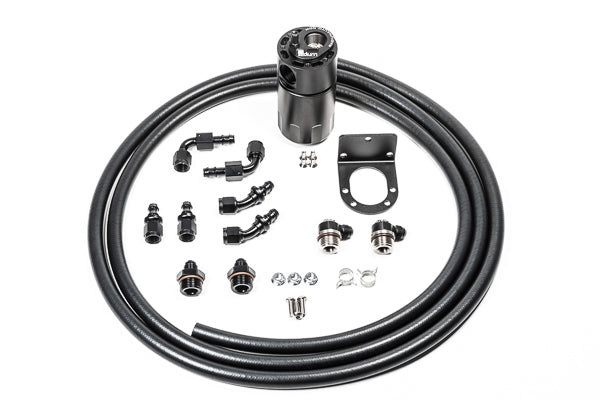

20-1808-FL SINGLE CATCH CAN, FLUID LOCK - 8AN KIT

• This catch can kit is perfect for custom applications. It is designed for engines that use 1/2" (13mm) lines for the crankcase ventilation system. It is recommended to measure the engine vent lines first prior to ordering.
• Includes:
  • 1x Oil Catch Can, Fluid Lock

  • 2x 10AN ORB to 8AN Male Banjos

  • 2x 10AN ORB to 8AN Male Fittings

  • 2x 8AN PushLok, Straight Hose Ends

  • 2x 8AN PushLok, 45 Degree Hose Ends

  • 2x 8AN PushLok, 90 Degree Hose Ends

  • 2x Spring Clamps For 1/2" Hose

  • 1x Aluminum Mounting Bracket

  • 3x Stainless M6x1mm Bolts

  • 3x Flanged M6x1mm Nuts

  • 1x Service Interval Decal

  • 10ft PCV Hose, 1/2" ID

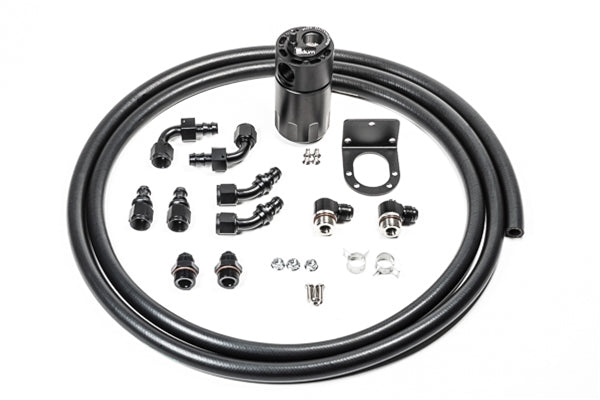

20-1810-FL SINGLE CATCH CAN, FLUID LOCK - 10AN KIT

• This catch can kit is perfect for custom applications. It is designed for engines that use 5/8" (16mm) lines for the crankcase ventilation system. It is recommended to measure the engine vent lines first prior to ordering.
• Includes:
  • 1x Oil Catch Can, Fluid Lock

  • 2x 10AN ORB to 10AN Male Banjos

  • 2x 10AN ORB to 10AN Male Fittings

  • 2x 10AN PushLok, Straight Hose Ends

  • 2x 10AN PushLok, 60 Degree Hose Ends

  • 2x 10AN PushLok, 90 Degree Hose Ends

  • 2x Spring Clamps For 5/8" Hose

  • 1x Aluminum Mounting Bracket

  • 3x Stainless M6x1mm Bolts

  • 3x Flanged M6x1mm Nuts

  • 1x Service Interval Decal

  • 10ft PCV Hose, 5/8" ID

Product Description

These universal oil catch can kits are designed for installation in cars that are experiencing oil build-up from the crankcase ventilation system. For more information on why you might need an oil catch can and how they work.

Radium Engineering offers bolt-in oil catch can kits for many different applications. For vehicles that are not covered, these universal kits are the next best option. Each kit includes Radium Engineering's patented universal Fluid Lock® oil catch can with universal mounting bracket, a length of PCV hose, a selection of adapter fittings and hose-ends.
A variety of adapter fittings and hose-ends are provided so optimum hose routing can be achieved. Some fittings will not be used. Additional fittings can be purchased from Radium Engineering.

To select the correct kit, simply measure the fitting diameters on the engine. EXAMPLE: If installing the catch can kit on the PCV valve hose and the diameter of the PCV valve hose barb measures 10mm, 10mm is very close to 3/8" and 3/8" is 6AN size. So select the 6AN version of the kit. 8AN is for 1/2" ID hose, and 10AN is for 5/8" ID hose.

NOTES:
1. Depending on the PCV system design, some engines may require multiple catch cans.
2. Catch cans are NOT designed to be used with aftermarket crankcase vacuum pumps.
3. For PCV valves that secure to Radium Engineering catch cans.
