Radium Engineering Port Injection Kit Ford EcoBoost - 20-0326

Fitment Information

• Ford Focus ST EcoBoost (2013 and up)

• Ford Focus RS EcoBoost (2016 and up)

• Ford Mustang EcoBoost (2015 and up)


Specifications

Ports and Fittings

• The fuel rail ports are tapped for 8AN ORB.

  • 8AN ORB Adapter Fittings

  • 8AN ORB Direct Mount Regulators

  • Fuel Pressure Gauge Adapters

  • Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators and fuel pressure gauges. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.


Product Description

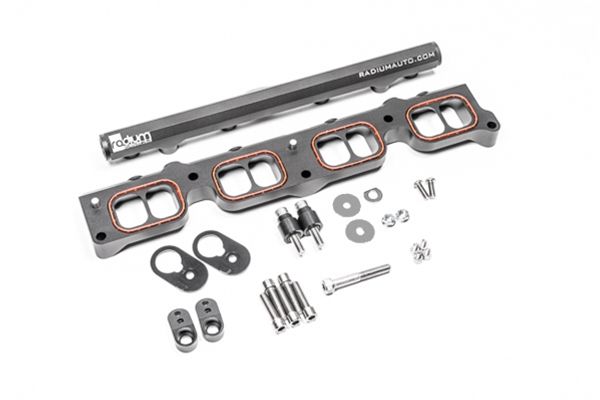

The Radium Engineering Port Injection Kit (PIK) installs between the intake manifold and the cylinder head and permits the use of port injectors to add additional fuel for high-horsepower Ford EcoBoost engines. This kit does NOT replace the OEM direction injection system. It includes the PIK adapter plate, custom fuel rail, fuel rail mounting hardware, and OEM Ford gaskets, as shown in the below picture. Stainless steel dowels are pressed into the adapter plate to make alignment during installation easier. It is compatible with all fuel types including popular alcohol mixtures such as E85.

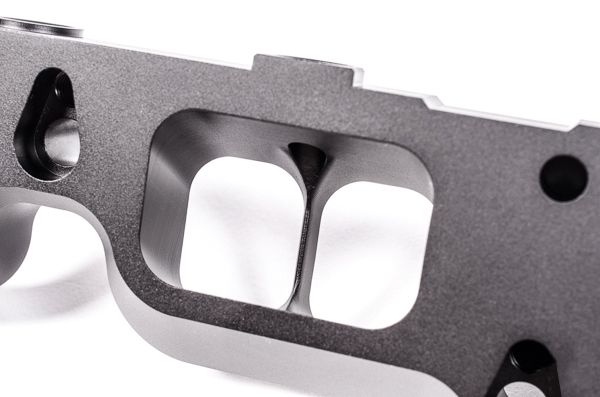

The 6061 CNC machined aluminum adapter features a smoothed port divider promoting laminar flow into the combustion chambers. The injector spray pattern is divided evenly into each runner.

The angled air flow passages through the PIK adapter plate (shown in green) are CAD matched to the intake ports and manifold to minimize any impact to air flow through the ports.

The fuel rail features a large 0.69" internal diameter bore. It is CNC machined from extruded 6063 aluminum and laser etched for a high quality surface finish. All 3 ports (ends and center) are machined with an 8AN ORB (3/4-16 female) port. For a list of 8AN ORB adapter fittings, go HERE. Machined insulating mounting spacers and washers are included to completely isolate fuel created by the cylinder head and transferred through the mounting bolts. The injectors are at a max angle to ensure proper spray into the ports.

Special CNC machined aluminum adapter brackets (shown below) are included to relocate the mounting grommets. This allows the OEM Ford Focus Engine Covers (ONLY) to be reused for a stealth appearance.
