Fitment Information
- This universal Radium Fuel Pressure Regulator (FPR) is built around the common OEM Bosch regulator inserts. These Bosch units are found in many applications, including:
- Audi 1.8L Turbo
- Ford Falcon BA, BF, FG XR6 Turbo
- Ford Territory Turbo
- FPV F6 Typhoon Turbo
- Volkswagen 1.8L Turbo
- Audi 1.8L Turbo
Specifications
- This product is not recommended for fuel pumps with more than 255 LPH (at 3 Bar) rated flow.
20-0014
- If a regulator top is not needed (already have one from another source), select Radium 20-0014. This option includes everything needed with the exception of the regulator top.
20-0010-00 and 20-0010-01
- These come assembled with the Bosch regulator unit installed in the housing.

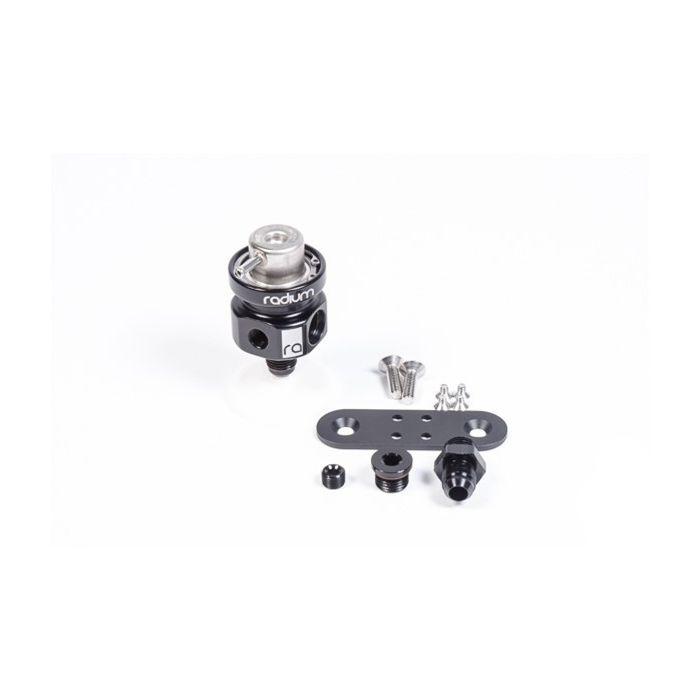

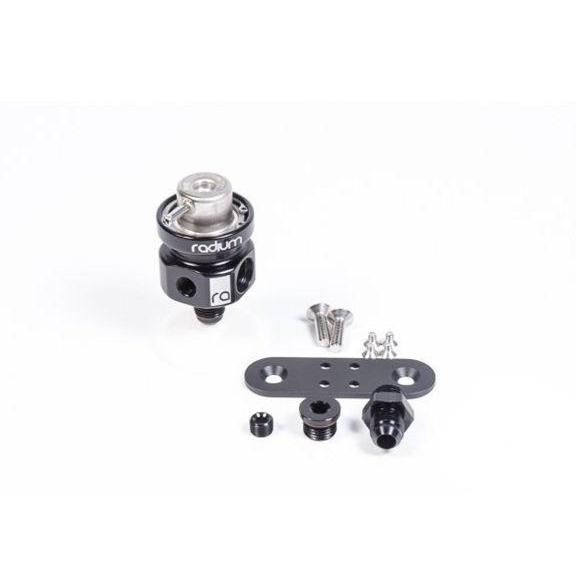

What's Included?
-
Billet 6061 Aluminum Housing
-
6AN Male Adapter Fitting
-
6AN ORB Plug Fitting
-
1/8-27 NPT Port Plug
-
Integrated -6AN Male Return Port
-
Stainless Steel Mounting Hardware
-
Stainless Steel Snap Retaining Ring
- Anodized Aluminum Mounting Bracket
Product Description
Alternatively, Radium offers two GENUINE Bosch regulator tops: 3.0 Bar (43.5 psi) static and 4.0 Bar (58.2 psi) static. These Bosch regulator tops are vacuum referenced with a 1:1 ratio and are NOT adjustable.
The compact Radium Engineering billet aluminum FPR housing provides a convenient package for plumbing and mounting. The regulator top is secured with a stainless steel snap ring and can easily be removed using snap-ring pliers. The two main high pressure ports are threaded for 6AN ORB. The 6AN male return port is integrated into the housing. There is also a 1/8 NPT female port for a gauge, pressure transducer, etc. Each FPR housing is laser etched and anodized for a superior finish.
NOTE: The exact min, static, and max pressures are influenced by the flow rate of the fuel pump being used. These FPRs are tested using a common Walbro 255lph pump. If a higher flowing pump is used, the minimum pressure ratings may be higher than advertised. For applications with more pump flow, consider a high flow fuel pressure regulator.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.More in this category
Radium Engineering Fuel Pressure Regulator
