Fitment Information
- The fuel level float shroud from Radium 20-0847-XXX is only compatible with newer Radium FCSTs (20-099X-XX).
- For previous Radium 20-049X-XX and 20-069X-XX FCST versions, the non-shrouded Radium 20-0747-XXX must be used.
- Non-shrouded Radium 20-0747-203 and 20-0747-297 level senders are compatible with all Radium FCST part numbers.
Specifications
- Probe Material: 304 Stainless Steel
- Float Material: Plastic Buna-N
- Mounting Flange: 5-Bolt SAE
- Mounting Gasket: FKM

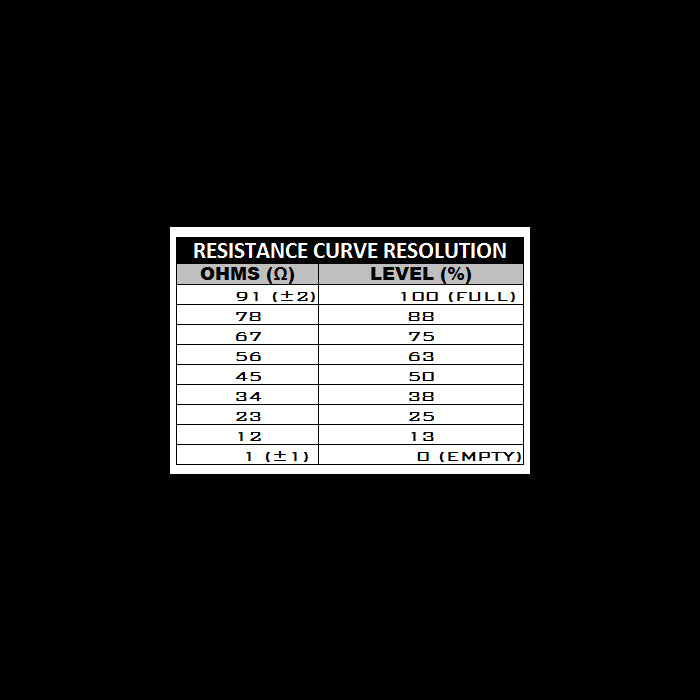

- Resistance: 0 (Empty)-90 (Full) Ohms
- PVC Wires: 18" (460mm) with PA Cover
- Connectors: Deutsch DT, 2P
- Operating Temp: -40F to +185F
- Full stainless steel sealed construction with magnetic float.
- Suitable for use with gasoline, diesel, water, and all alcohol based fuels including methanol, ethanol, E85, etc.
- All level senders are 0 ohms empty to 90 ohms full (common with many aftermarket gauges.)
- Radium does not sell fuel level gauges, but a popular option is this Autometer Fuel Level Gauge
- To test the sender, measure the resistance between the two wires while tipping the sender to allow the float to move.

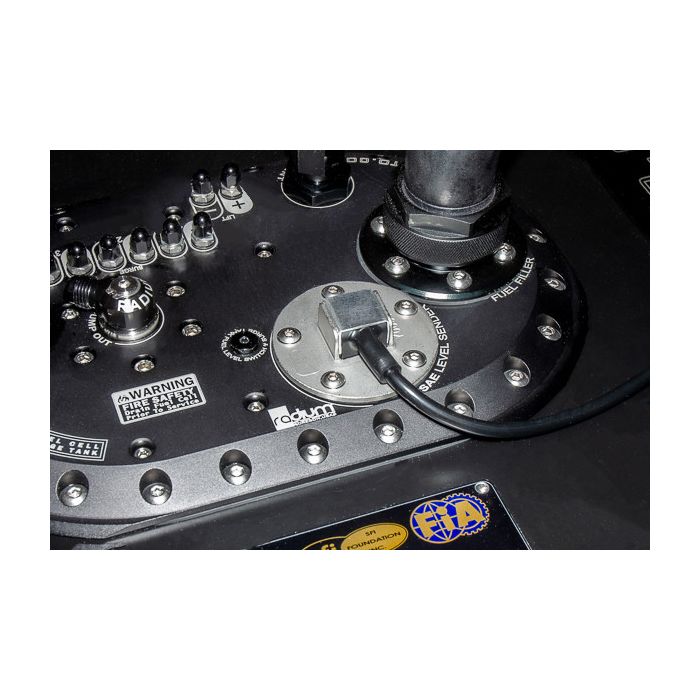

- If purchased with a Radium Fuel Cell Surge Tank (FCST), the sender will come pre-installed.
- If the output of this sender is not compatible with your OEM fuel gauge, consider a resistance signal converter.
- Note: Radium Engineering does not have experience with this product, contact Classic Instruments for more information
What Include's
- SAE 5-Bolt Gasket
- Deutsch DT 2P Connector
- Stainless Bolts 10-32 (x5)
- Deutsch DT Sockets (x2)
-
Level Sensing Probe
Product Description

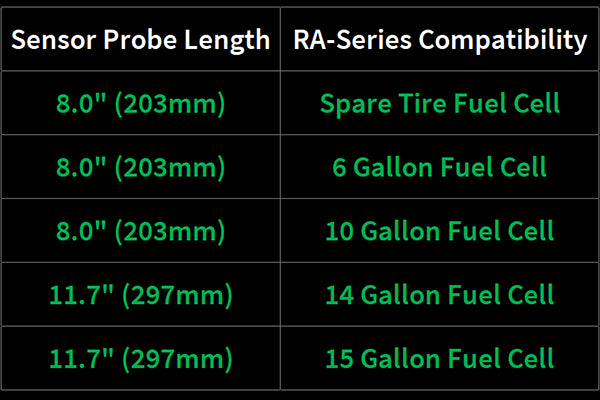

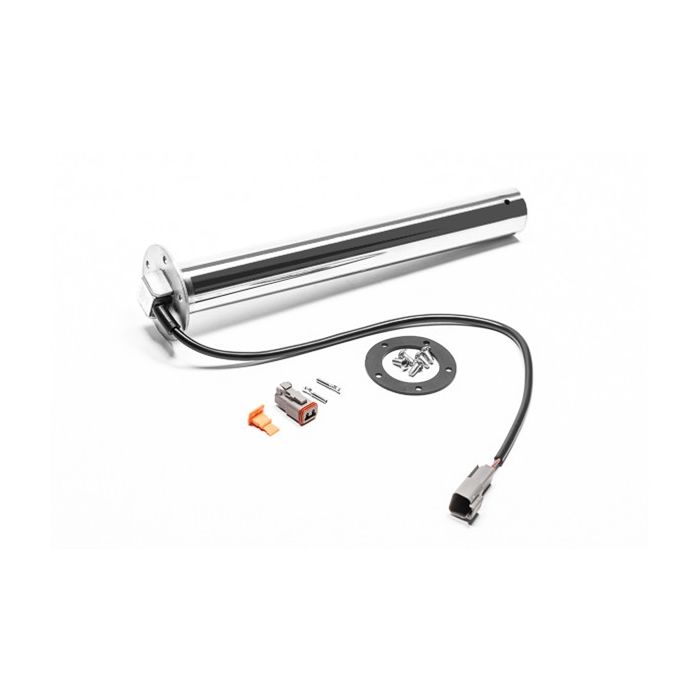

Stainless steel fuel level sender for Radium fuel cells. 8" long. Suitable for Radium 6 gallon, 10 gallon and spare tire fuel cells.
