Radium Engineering Fuel Cell Subharness Kit - 20-0774

Fitment Information

• FCST-X (or FCST)
  Each of the 26 preterminated 10awg wires has a unique identification labels associated with the FCST-X labeling. However, they can still be used with the older FCST that has slightly different labeling.

• RADIUM ENGINEERING RA-SERIES FUEL CELLS
  Designed specifically to mount on the perimeter of RA-Series Fuel Cells. For another fuel cell to be directly compatible, the bolt spacing must be 3.6"-5.7" (91-145mm). The bolt hole distance of the bulkhead mount is compatible with all Radium Engineering RA-series fuel cells. It can be mounted anywhere along the perimeter of the fuel cell. Furthermore, the mount can be rotated inwards or outwards for a 3in (76mm) location difference.

How Assembly Works

• Install the labeled ring terminal wires to the FCST-X studs.

• Install the mount using the fuel cell hardware.

• Assemble the bulkhead connector to the mount.

• Cut and crimp the contacts to the wires

• Install the contacts into the connector.

• Install the plug seals into all open cavities.

• Assemble and populate the chassis harness.

What is Needed

• For the stamped contacts, an open barrel style crimper is required.

• Although contacts are provided for the connector, wiring is not included for the chassis harness.

• Although not required, wire loom (expandable sleeving, adhesive cloth tape, etc.) is not included.

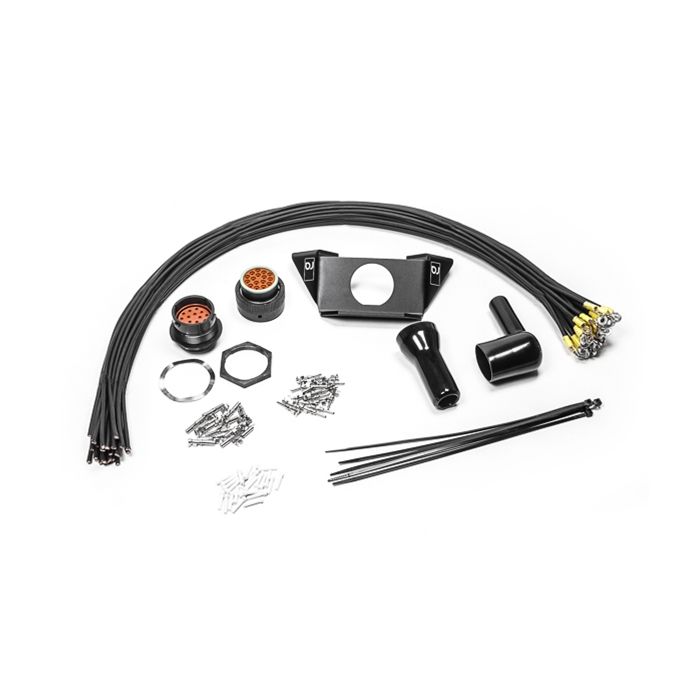

What Include's

• Anodized aluminum fuel cell mounting bracket

• Environmentally sealed female CPC bulkhead connector

• Environmentally sealed male CPC connector

• Stamped 14-10awg open barrel female contacts (x16)

• Stamped 14-10awg open barrel male contacts (x16)

• Black rubber boot, straight

• Black rubber boot, right angle

• Bulkhead panel hex nut

• Bulkhead locking wave washer

• Plugs for empty cavities (x25)

• Cable zip-ties (x5)

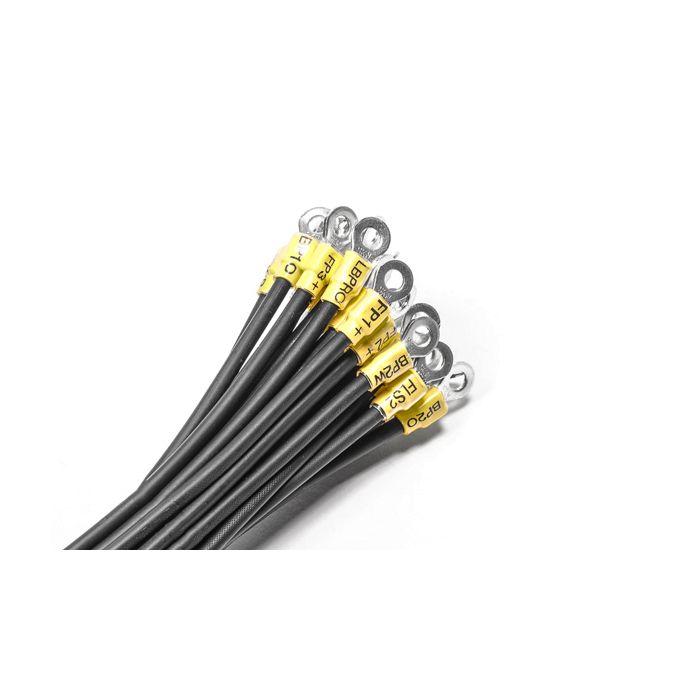

• Labeled 10awg wire with preterminated ring terminals (x26)


Product Description

The fuel cell subharness kit is a great addition for quicker pit stops. It is common for racers to have a spare drop-in FCST-X fuel pump module in the pit in case there is an issue with a fuel pump, electrical wiring, etc. With a subharness on both FCST-X units, the entire pump assembly can be swapped quicly without any tools.
