Radium Engineering Air Oil Separator AOS-R Kit Subaru XT (2004-2008) WRX STi (2002-2007) 20-0207-02

Fitment Information

• Subaru Impreza WRX (2002-2007)

• Subaru Impreza WRX STi (2002-2007)

• Subaru Forester XT (2004-2008)

• Saab 9-2X Aero (2005-2006)

Specifications

• Effectively raises the octane and increases engine performance with cleaner inlet air.

• Prevents oil buildup in the intake or intercooler system walls, throttle body, intake manifold, etc.

• Lowers hydrocarbon emissions
• Dimensions

  • AOS Height: 6.3" (without fittings)

  • AOS Diameter: 3.45" Round

  • AOS Capacity: 20.3 oz (600mL)
• Ports

  • Inlet: 7/8"-14 threaded for 10AN ORB fittings

  • Outlet: 7/8"-14 threaded for 10AN ORB fittings

  • Return: 7/8"-14 threaded for 10AN ORB fittings

  • Coolant: 7/16"-20 threaded for 4AN ORB fittings (x2)

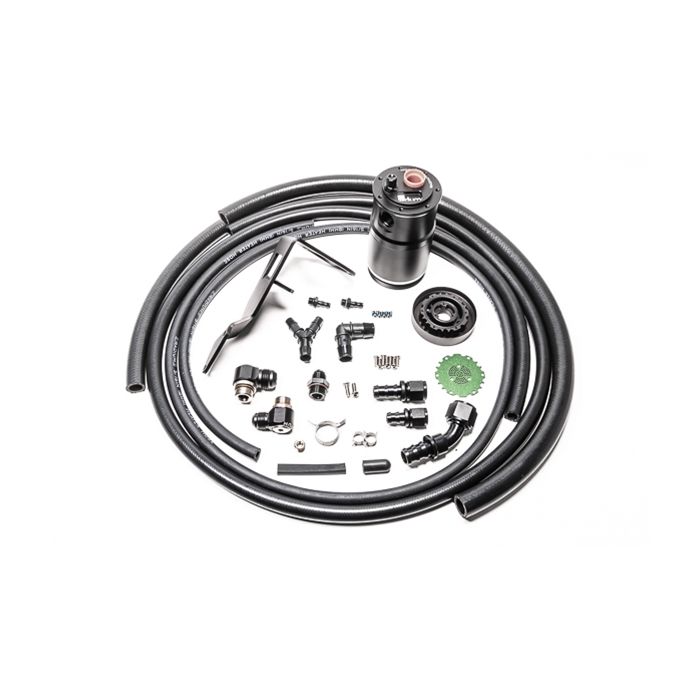

What's Included?

• Machined alumium Radium Engineering Air Oil Separator

• Subaru specifically designed mounting bracket

• All necessary SAE J30R7 rated PCV/Emissions hose

• Coolant hoses and fittings

• All necessary aluminum fittings and hose-ends

• Stainless steel mounting hardware

Product Description

High-powered modified Subaru engines tend to generate excessive blow-by oil and gasses. In these cases, an ordinary small catch can may quickly fill with oil and not be adequate. Like the Radium Engineering Subaru Dual Catch Can Kit, the AOS (Air Oil Separator) kit is responsible for keeping blow-by oil and other pollutants out of the intake pipe, manifold, turbocharger, and intercooler during all engine loads. The main difference is that an AOS-"R" system "returns" what is collected back into the oil pan so there is no servicing required. The built-in heater keeps water from condensing in the AOS. And because water is more dense than oil, there is an integrated water trap found around the bottom perimeter of the can.

This prevents water from descending into the oil pan if ever present. Furthermore, because the water is trapped against the heater, it will eventually boil and evaporate out of the system. The AOS is constructed of three CNC machined sections that screw together and are sealed with O-rings.
