In Northern California? Get this professionally set up & installed!
Like our standard version, it still mounts in stock position. Supercharged Mercedes AMG's tend to overheat under hot weather or extreme driving conditions. If you increase boost or horsepower, expect your intake charge temp to rise even further. The solution is to add the upgraded PLM Power Driven heat exchanger. This heat exchanger will significantly reduce intake charge temps allowing you to keep power when needed. The Private Label Mfg. Power Driven heat exchangers use non epoxied furnace brazed cores resulting in better heat dissipation and are welded with CNC precision machined billet aluminum necks. It has a 2.25 liter fluid capacity and 4000 square inches of fin area to help battle heat soak issues! Installation requires basic hand tools and is the ONLY heat exchanger on the market that's affordable & does not require any cutting or modifications to vehicle to install. Get yours today and lower IAT (Intake Air Temp.)
Fitment Information
- Mercedes E55/CLS55/SL55 AMG
- Select fitment option in drop down before ordering
- Install Note:
- The side brackets on our heat exchangers are made to bolt-on to E55. If you have a CLS55 or SL55, you will need to make 2 new holes on our brackets. There is no modification to your car as the installation is still bolt-on.
- On the SL55, because one of the hose connection is on the driver side, you will need a longer hose. We are happy to provide the hose at no extra cost if you have a SL55, just select SL55 when you place the order.
Specs & Features
- PLM Dual Core/Quad Padd Heat Exchanger
- Dual Core/Quad Pass Coolant Technology for Better Air Flow
- 100% TIG WELDED
- High DENSITY FIN CORE
- Designed to Purge all air when installed properly
- Available in Version:
- 25% BIGGER in this "XL" Extra Large version.
-

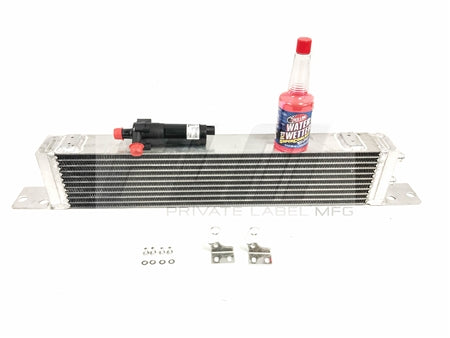

Johnson Pump & Water wetter is recommended
- XL: 2.25-liter fluid capacity and 4000 square inches of fin area
-
Heat Exchanger Dimension:
- Overall length: 35.5"
- Core (with end tanks): 28.5"
- Height: 5.5"

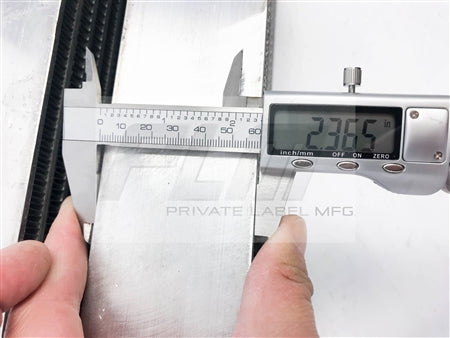

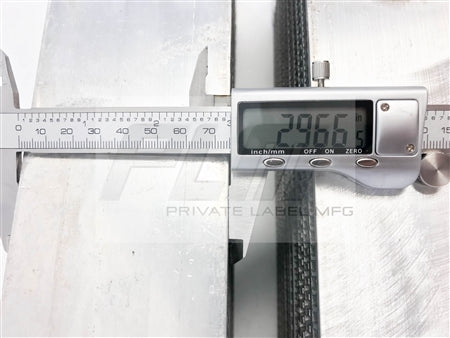

- Core Thickness 3" on the XL version
Product Description
Designed after our best selling, best performing AMG heat exchangers for over 10+ years! - This PLM Mercedes Benz 5.5L AMG HEAT EXCHANGER for E55 CLS55 SL55 is now 25% Bigger in our XL Extra Large version.
Like our standard version, it still mounts in stock position. Supercharged Mercedes AMG's tend to overheat under hot weather or extreme driving conditions. If you increase boost or horsepower, expect your intake charge temp to rise even further. The solution is to add the upgraded PLM Power Driven heat exchanger. This heat exchanger will significantly reduce intake charge temps allowing you to keep power when needed. The Private Label Mfg. Power Driven heat exchangers use non epoxied furnace brazed cores resulting in better heat dissipation and are welded with CNC precision machined billet aluminum necks. It has a 2.25 liter fluid capacity and 4000 square inches of fin area to help battle heat soak issues! Installation requires basic hand tools and is the ONLY heat exchanger on the market that's affordable & does not require any cutting or modifications to vehicle to install. Get yours today and lower IAT (Intake Air Temp.)
