Fitment Information
- Subaru WRX (2022, 2023, 2024, 2025)
Note:
- The Front Mounted Oil Cooler will not fit with HELLA Horn Brackets
- The installation of the PERRIN Top Mount Oil Cooler kit requires vehicles to be equipped with a front mount intercooler and a strut bar with a 1" diameter.
Specs & Features
- Oil Cooler Core Dimensions: 9.5" x 4.75" x 2.2"
- Core Delta PSI: 3.0/3.5 PSI
- Core BTU/hr Range: 22,000-29,000
- Additional Oil Required: 1 quart
- Mounting Brackets: 304 Stainless Steel
- Filter Spacer: 6061 T6 Aluminum
- Oil Cooler Thermostat: 85°C Activation Temp
- Hose Size: -10
- Hose Construction: AQP Elastomer Tube, Textile Braid Reinforcement, AQP Elastomer Cover
What's included?

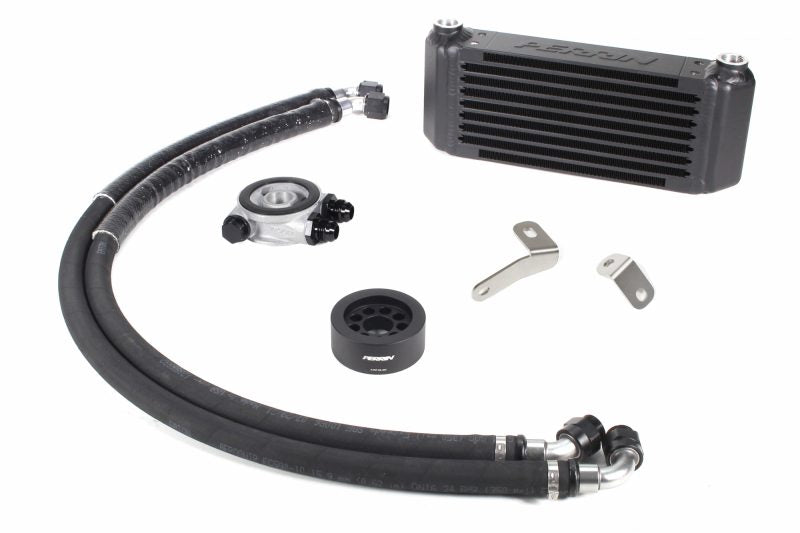

- Front Mount Kit:
- (1) PERRIN Oil Cooler Core
- (1) PERRIN Oil Filter Spacer
- (1) Oil Line Assembly, Short
- (1) Oil Line Assembly, Long
- (2) PERRIN Mounting Brackets
- All Hardware for Installation
- Warranty & Instructions
- Top Mount Kit:
- (1) PERRIN Oil Cooler Core
- (1) PERRIN Oil Filer Spacer
- (2) Oil Feed Pipes
- (1) Oil Line, Left
- (1) Oil Line, Right
- (2) PERRIN Mounting Brackets
- All Hardware for Installation
- Warranty & Instructions
Product Description
In racing conditions engine oil temperature skyrockets, especially when aftermarket turbo and supercharger kits are installed. This causes decreased engine performance and reduces the oil's ability to properly lubricate. A well designed engine oil cooling system like the PERRIN Oil Cooler Kit will help keep temperatures within the desired temperature range, thus maintaining performance and prolonging engine life. Most setups can see a drop of approximately 15°-20°F at 7000 RPM.

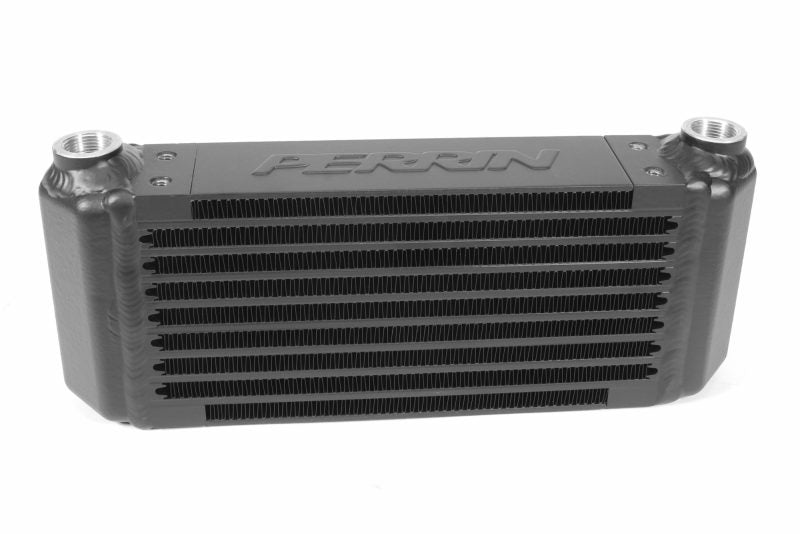

Using a bar and plate core maximizes heat dissipation without pressure build-up. Oil-ways are interspaced with in-line turbulators to gently stir the fluid being cooled, thereby ensuring that the fluid has exposure to the entire internal surface area of the oil cooler with low pressure lost.

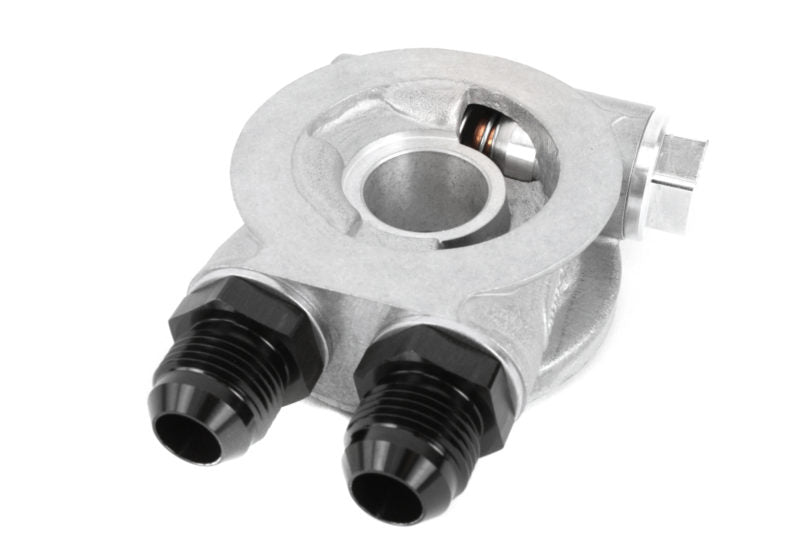

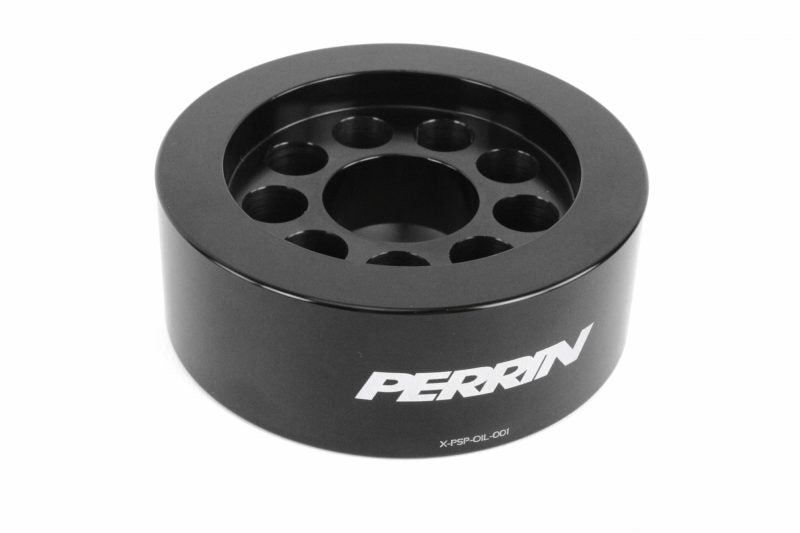

The PERRIN Filter Adapter features an integrated 85°C (185°F) thermostat. This means your oil will reach it’s optimum operating temperature of 85°C within the engine before it is released to the oil cooler. In addition to a new OEM oil filter from Subaru, we Include a PERRIN oil spacer which allows for easy installation of the thermostat-filter assembly.
The PERRIN Oil Cooler comes with custom brackets that allow the oil cooler core to mount directly to existing holes in the OEM core support of your vehicle. Made from CNC machined 6061 T6 aluminum, the brackets look sleek and stylish while blending seamlessly behind your bumper.

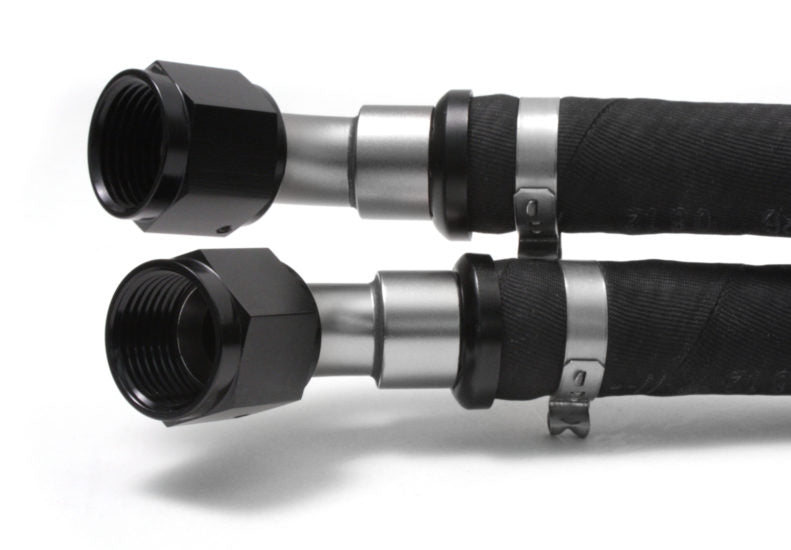

The PERRIN Oil Cooler Kit features lightweight Aeroquip brand -10 hose that are rated for 250psi and 300°F continuous temperature. Each hose comes pre-assembled and wrapped with our Industrial grade Pyrojacket that can withstand continuous exposure to 500° F (260°C) and up to 2000°F (1090°C) for 15-20 minutes.
Redline360 sells only genuine and authentic PERRIN Performance products.
