The PERRIN corner-mount jack pad kit protects vulnerable pinch-weld jack points and gives you four permanent, easy-to-find lifting locations for routine maintenance and track-day wheel changes.
Fitment Information
-
Subaru
- Impreza (1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026)
- WRX (2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026)
- WRX STI (2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021)
- Legacy (1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025)
- Outback (2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026)
- Forester (2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026)
- XV Crosstrek (2013, 2014, 2015)
- Crosstrek (2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026)
- BRZ (2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2022, 2023, 2024, 2025, 2026)
-
Scion
- FR-S (2013, 2014, 2015, 2016)
-
Toyota
- 86 (2017, 2018, 2019, 2020)
- GR86 (2022, 2023, 2024, 2025, 2026)
- GR Corolla (2023, 2024, 2025, 2026)
Fitment Note
Fits applicable trims with compatible factory pinch-weld lifting points. Confirm the pinch weld is 0.150 to 0.380 inches thick, less than 0.380 inches wide at the lip, and at least 0.600 inches tall. The pinch weld and surrounding sheet metal must be straight and in good condition before installation.
Specs and Features
-
Kit Details

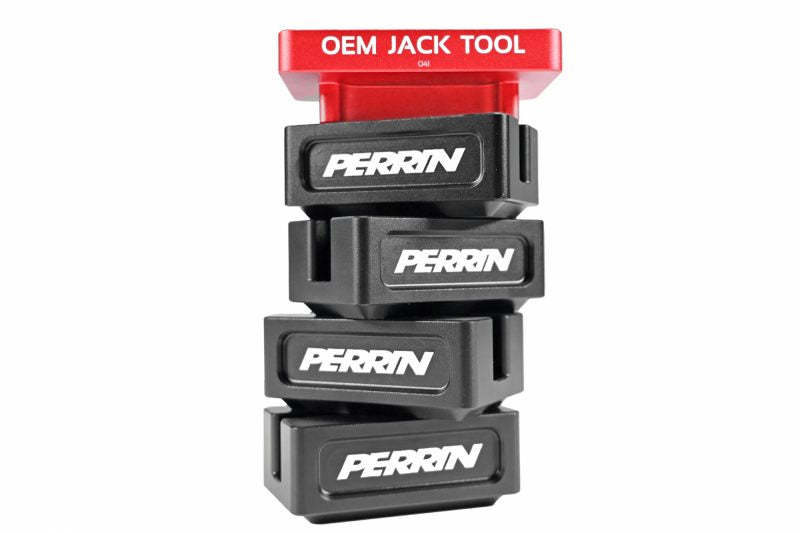

- PERRIN corner-mount jack pad kit
- Manufacturer part number: PSP-BDY-040BK
- Black finish
- Four permanently mounted jack pads
- One red PERRIN OEM jack adapter
-
Included Components
- Four PERRIN jack pads
- Eight stainless socket-cap screws
- Blue thread-locking compound
- OEM jack adapter
- Installation instructions and warranty information
-
Warranty
- PERRIN five-year warranty
Product Description

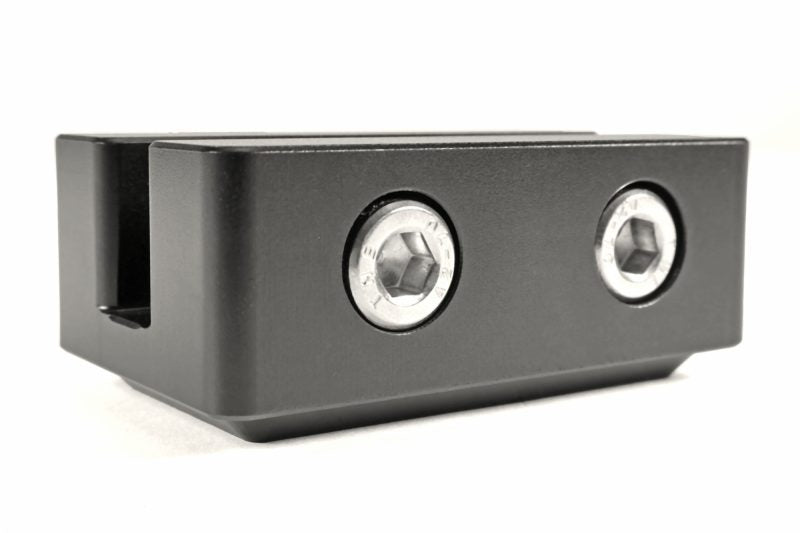

Factory pinch-weld lift points are easy to bend, especially on cars that see frequent tire changes, brake work, or track-day prep. This PERRIN kit mounts one pad at each factory corner lifting location, creating a more obvious contact point for a floor jack or jack stands while helping protect the surrounding pinch weld.

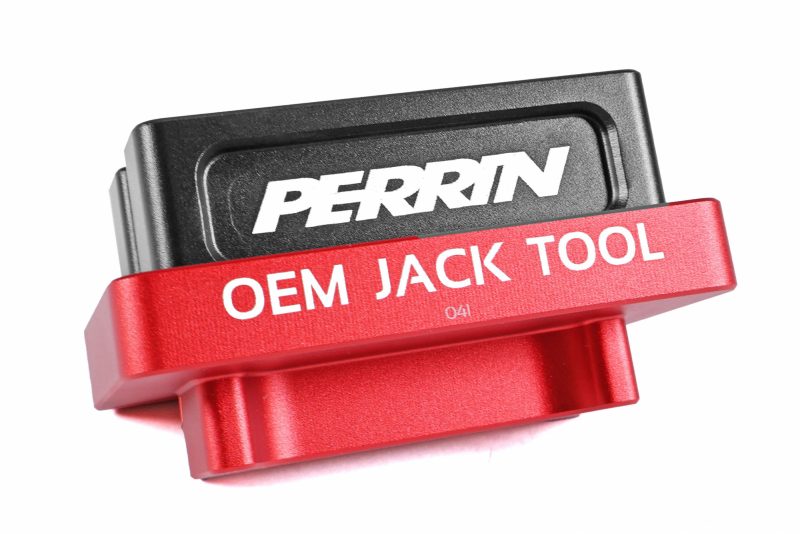

The kit includes a dedicated adapter for compatible OEM scissor jacks. Keep that adapter with the factory jack so it is available if you ever need to use the OEM lifting equipment away from home.
Installation and Safety Notes
Do not place an OEM jack directly against a PERRIN jack pad. Use the supplied PERRIN OEM jack adapter only after confirming that it fits the slot in your vehicle's OEM jack. If the adapter does not fit, position the OEM jack beside the pad on the factory pinch-weld area and follow the vehicle manufacturer's lifting instructions.
After installation, PERRIN specifies tightening each pad's hardware to 15 lb-ft and rechecking the hardware after a couple weeks of driving. The kit is not compatible with the Subaru Ascent OEM jack stand.
Related Upgrades for Subaru Owners
- PERRIN tow hook upgrade kit for Subaru WRX and WRX STI - A chassis-specific accessory for compatible WRX and STI track-day builds.
- PERRIN front tow hooks for Subaru Crosstrek - A model-specific exterior upgrade for compatible Crosstrek owners.
About PERRIN
PERRIN Performance builds Subaru and Toyota-focused performance, exterior, and maintenance components. Its jack pads are made for owners who work on their cars regularly and want to protect factory lifting points from unnecessary damage.
