PCI Racing Front Lower Control Arms & Camber Arms Honda Civic EK (1996-2000) Black Pair

Looking to dial in razor-sharp alignment, maximize cornering grip, and upgrade your suspension with race-proven hardware? The PCI Racing Front Upper Camber/Caster Arms and Front Lower Spherical Control Arms combo for the 1996–2000 Honda Civic EK is built for track junkies, street warriors, and daily drivers alike. This setup doesn’t just fine-tune your alignment—it transforms the way your Civic handles, responds, and performs under pressure.

Fitment Information

• Honda Civic (1996, 1997, 1998, 1999, 2000)
• Select option in drop down before ordering

Specs & Features

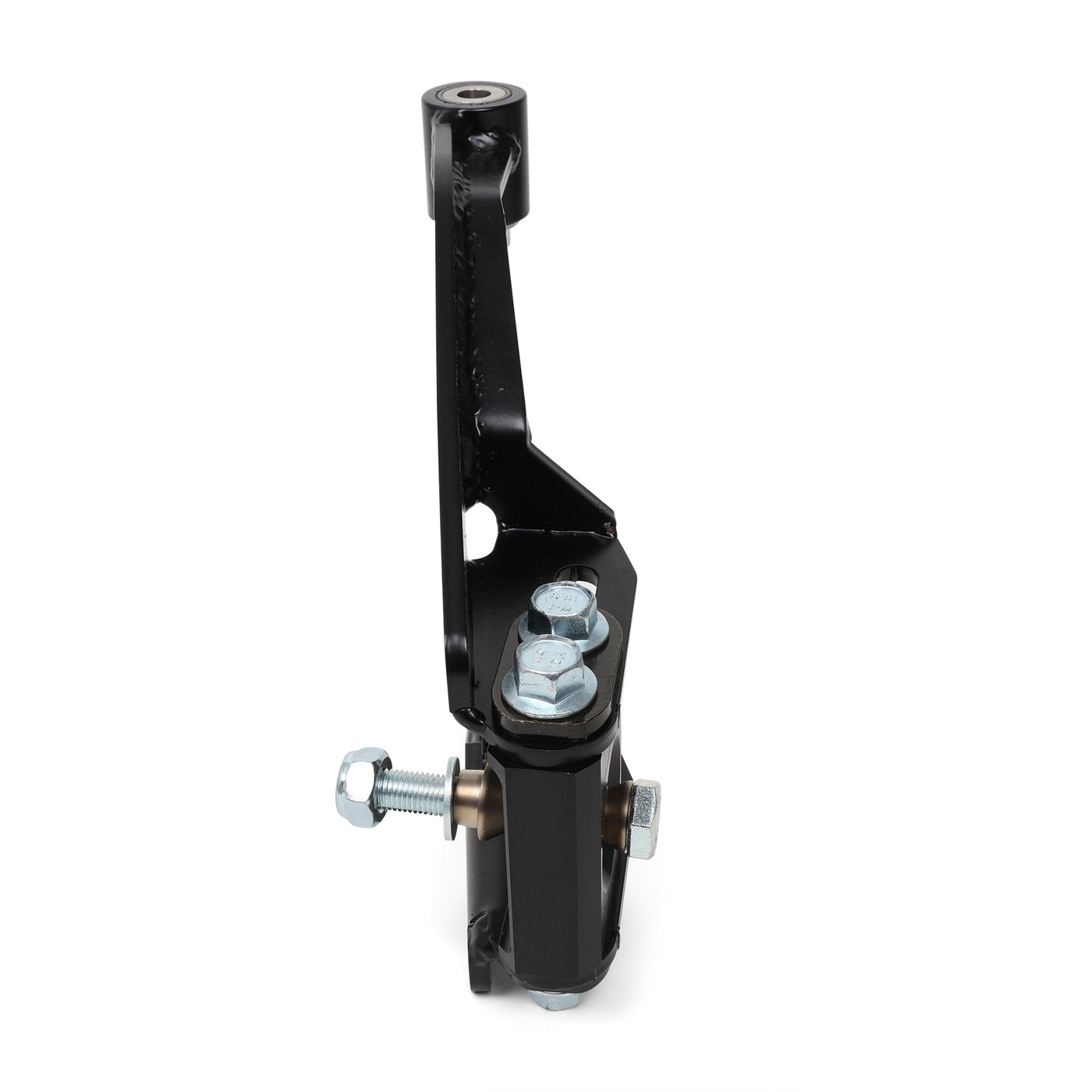

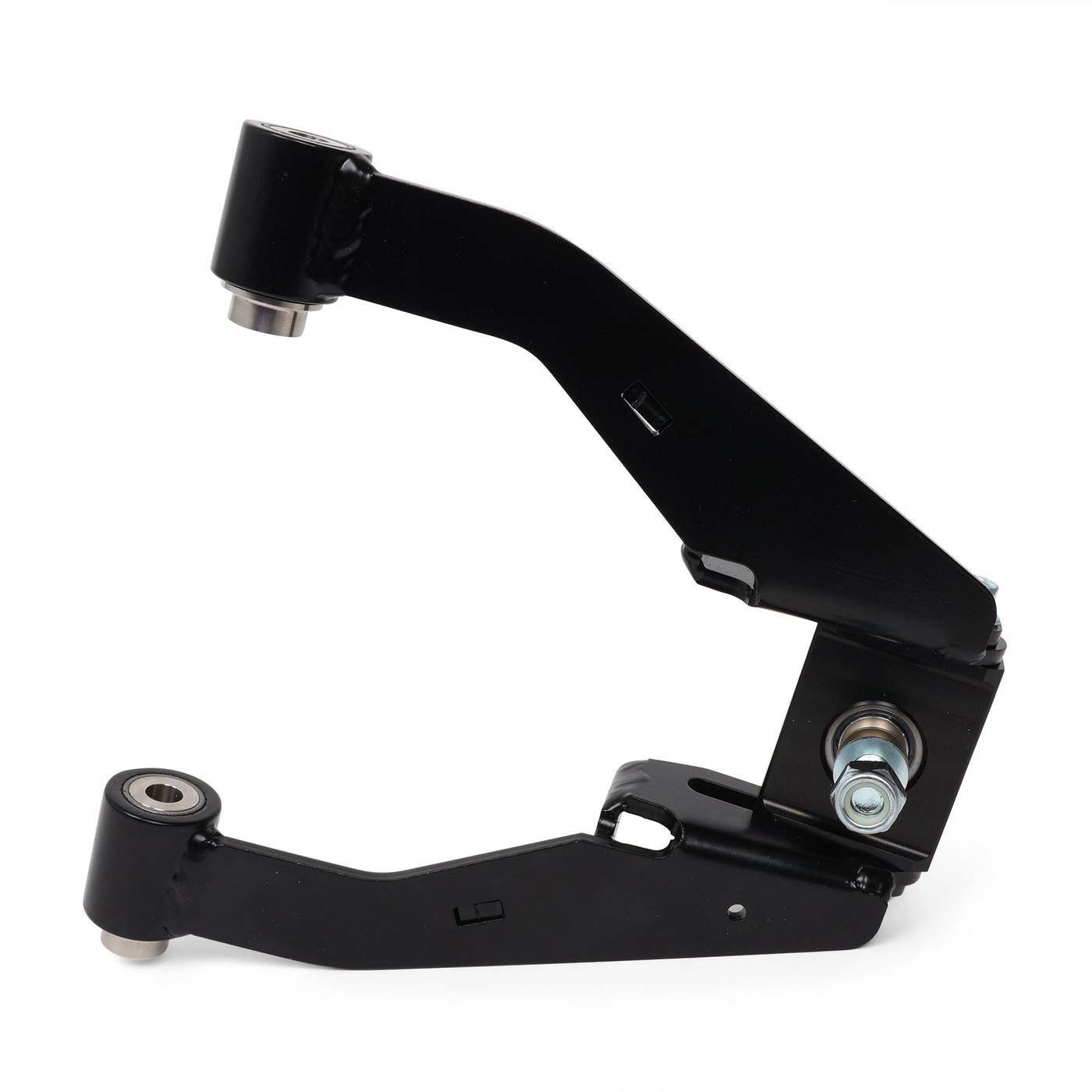

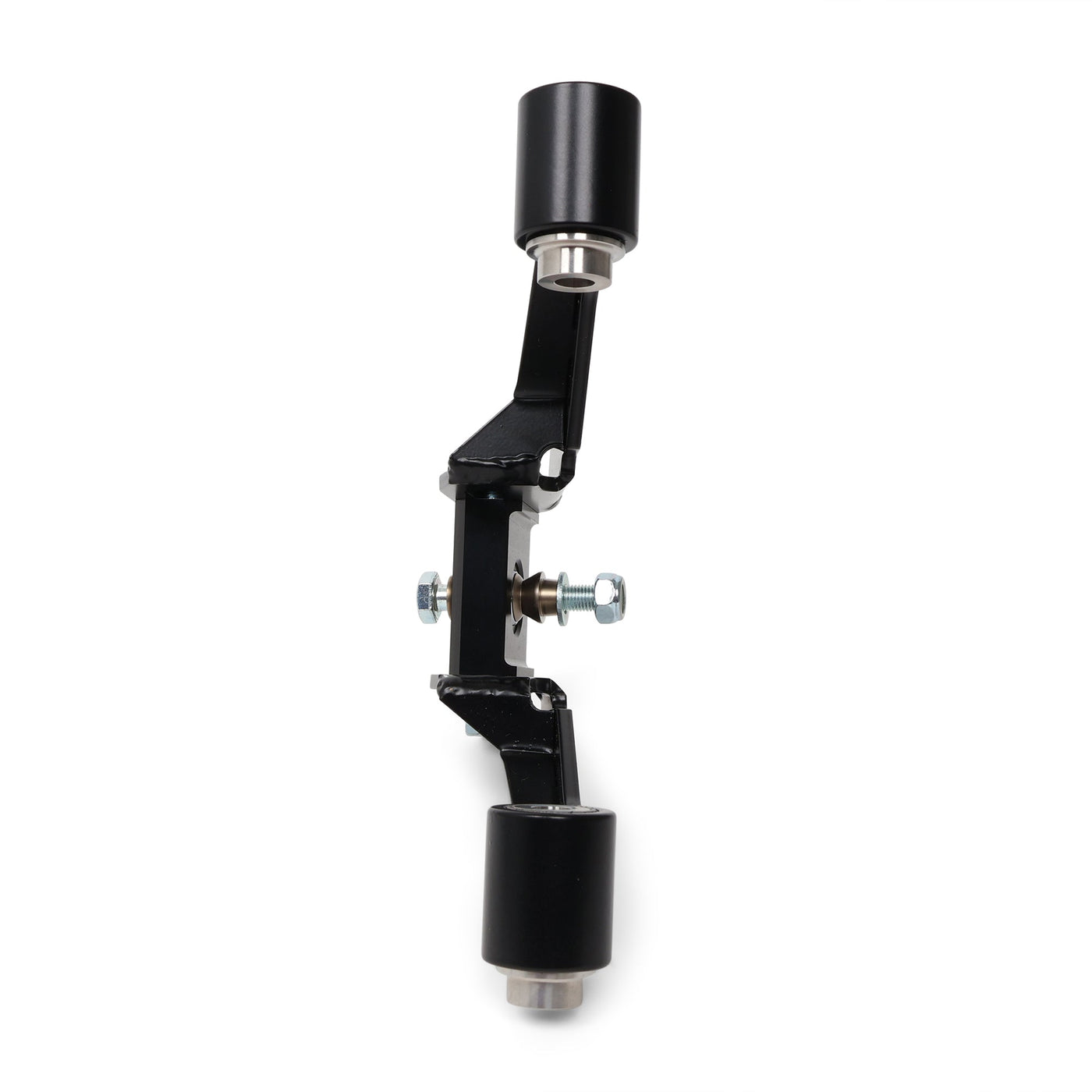

• Front Upper Camber/Caster Arms (CA-EK-FU):
  • Adjustable camber up to +1.5° / -2.5° over OEM
  • Dual caster adjustment of +2° over stock
  • CNC-machined 2024 aluminum spherical bearing block for high load capacity
  • High-load 863 bronze bearings with stainless offset pins for precise caster tuning
  • 3/16" powder-coated steel arms eliminate flex and increase rigidity
  • Fine thread M10 10.9 hardware included
  • Compact design maintains full OEM suspension travel
  • Long-lasting, maintenance-free, and fully rebuildable

  • Note

    • This arm will not work with the one-piece EM1 Si arms.
    • Must use 50mm shock fork

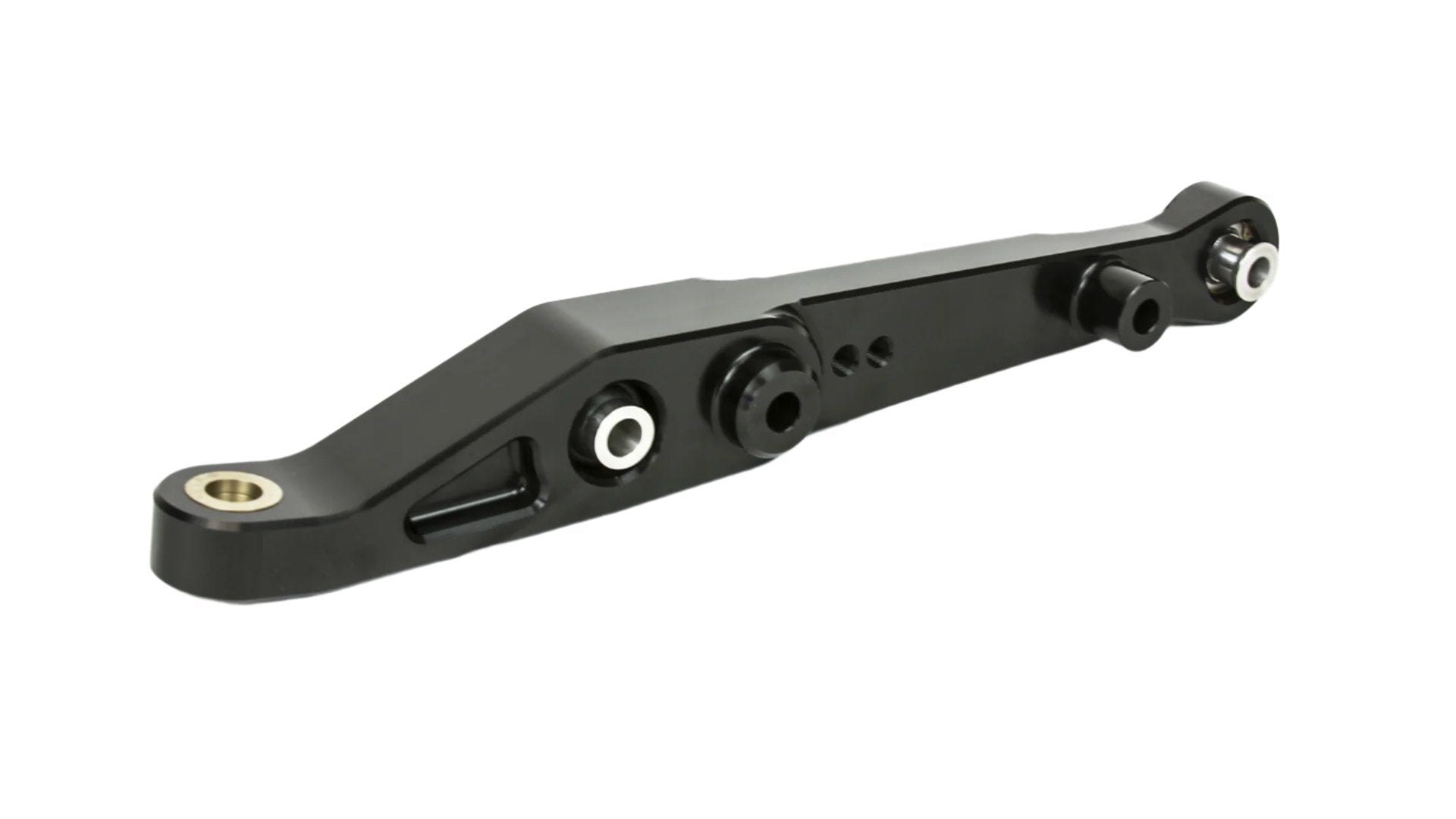

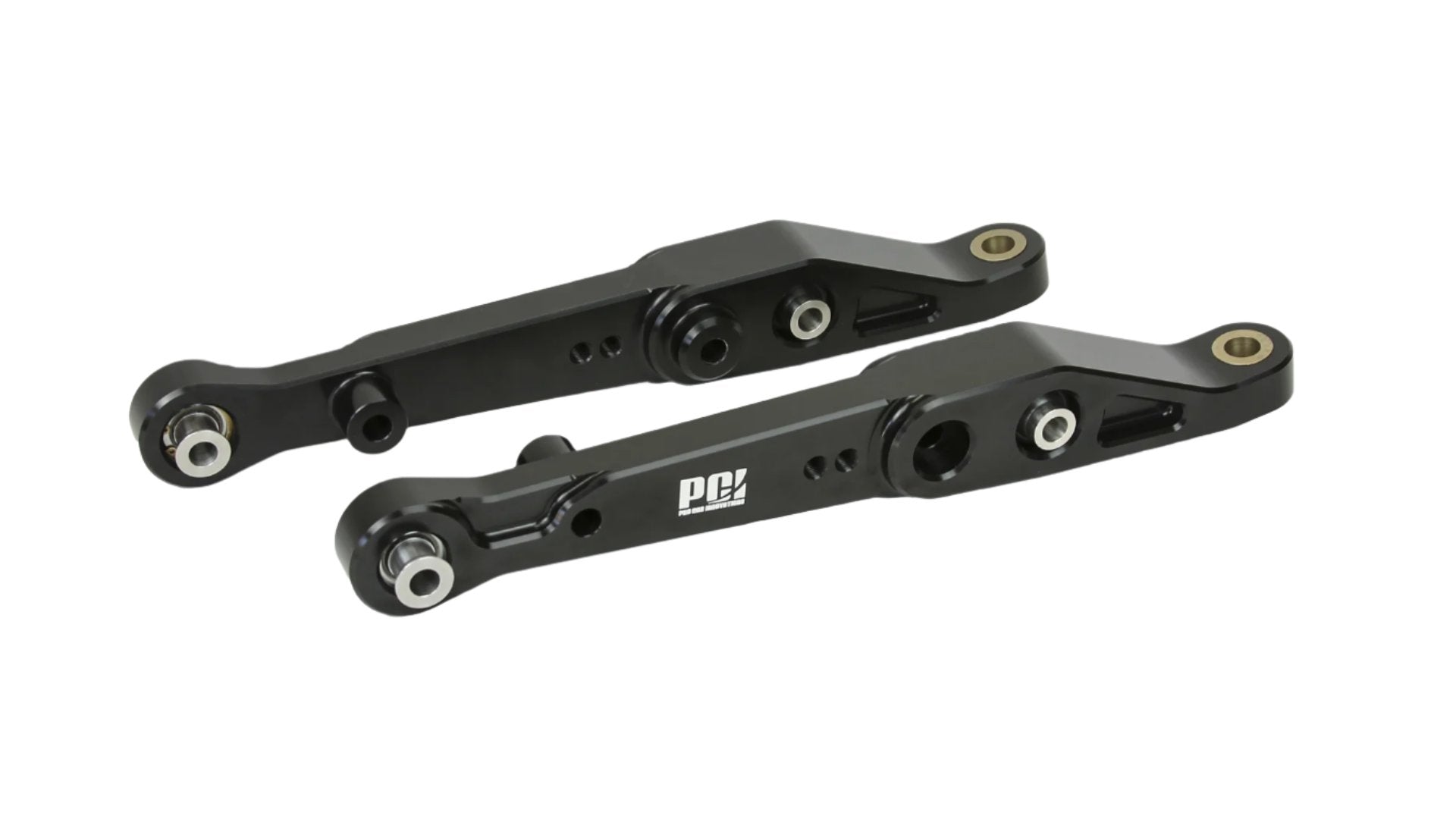

• Front Lower Spherical Control Arms (CA-EK-FL):
  • Precision-built from 6061 T6 aluminum
  • Equipped with 304 stainless steel spacers and 5/8" COM10T spherical bearings
  • Improves ball joint angle on lowered vehicles
  • Increases positive caster by up to 2°—without added steering effort
  • No need for traction bars—spherical joints reduce binding and boost articulation
  • 2.8 lbs weight savings per arm vs OEM—reduces unsprung mass
  • Built to endure harsh conditions—street and race ready
  • M10x1.25 threaded sway bar holes for OEM or aftermarket sway bars (trimming required for spherical endlinks)
  • Fully rebuildable for long-term performance and value

Product Description

These Front Lower Control Arms are designed for the 1996-2000 Civic. CA-EK-FL are engineered to provide the strength and performance demanded by racing enthusiasts while maintaining the same arm to rotor clearance as OEM arms.
With the ball joint angle correction, the control arms improve suspension travel by keeping the upper arm in a more centered OEM location, resulting in improved clearance and more travel. This design increases the positive caster up to 2 degrees, allowing for less negative camber and eliminates the need for traction bars. The spherical stay true and centered, holding precise alignments, and eliminating suspension deflection and geometry changes under load seen with rubber or urethane bushings.

The Pro Car Innovations Front Lower Control Arms are lightweight, weighing only 3.2lbs compared to the 6lbs stock. They come with M10X1.25 threaded sway bar holes for aftermarket sway bars using spherical end links, while still allowing the use of OEM sway bar mounting locations.

Please note that these control arms are not compatible with the one-piece EM1 SI arms or shock fork.
