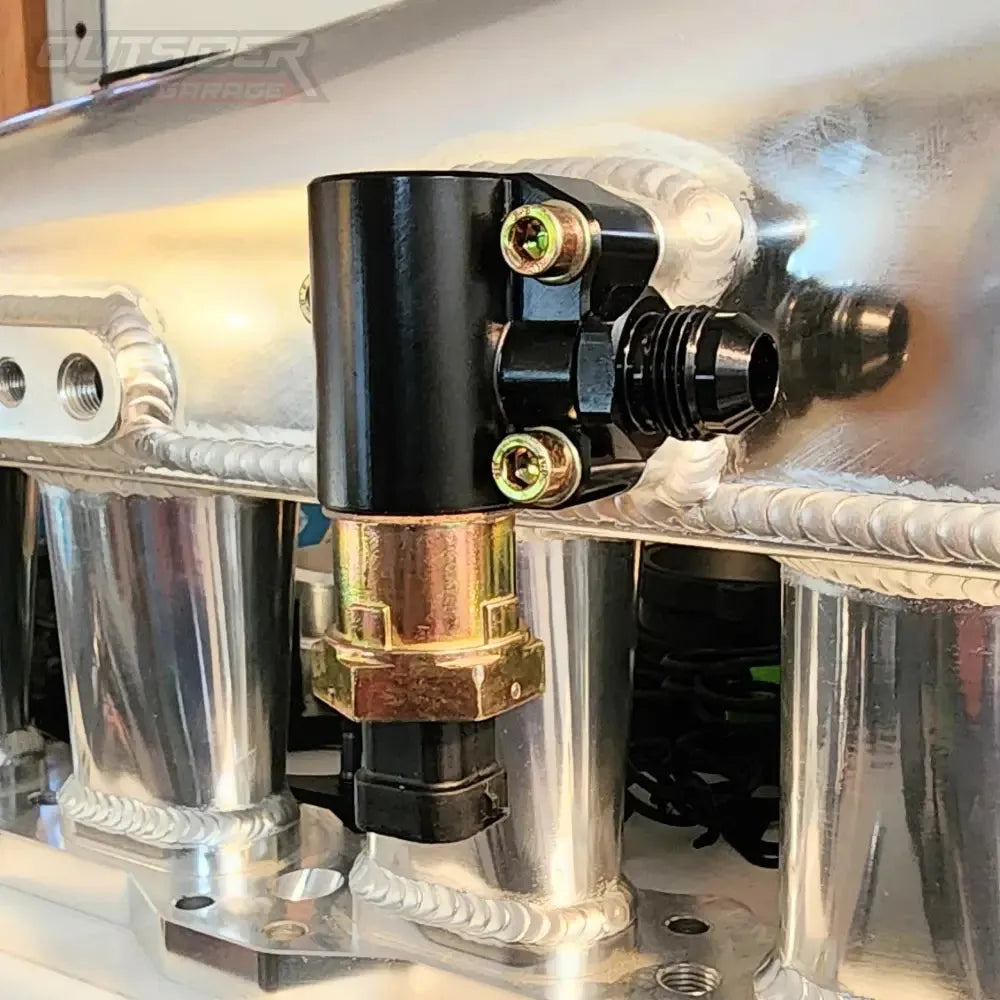

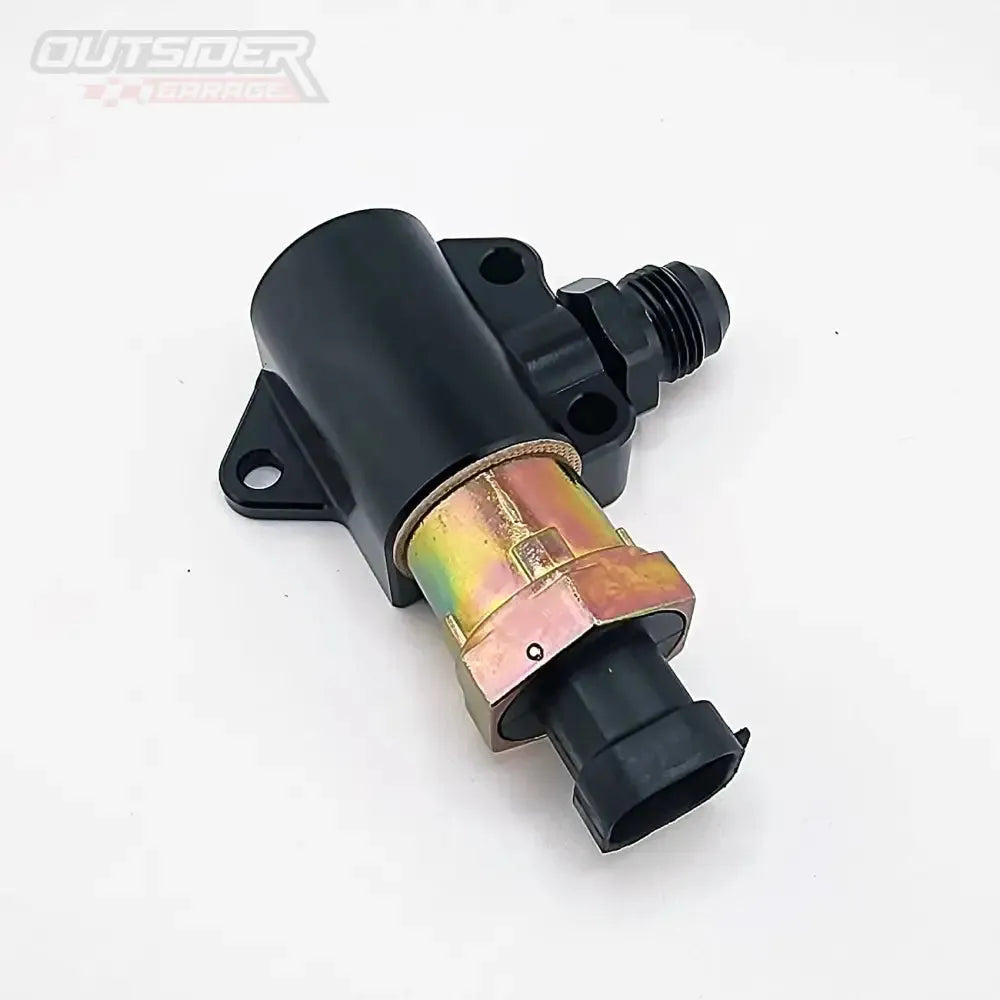

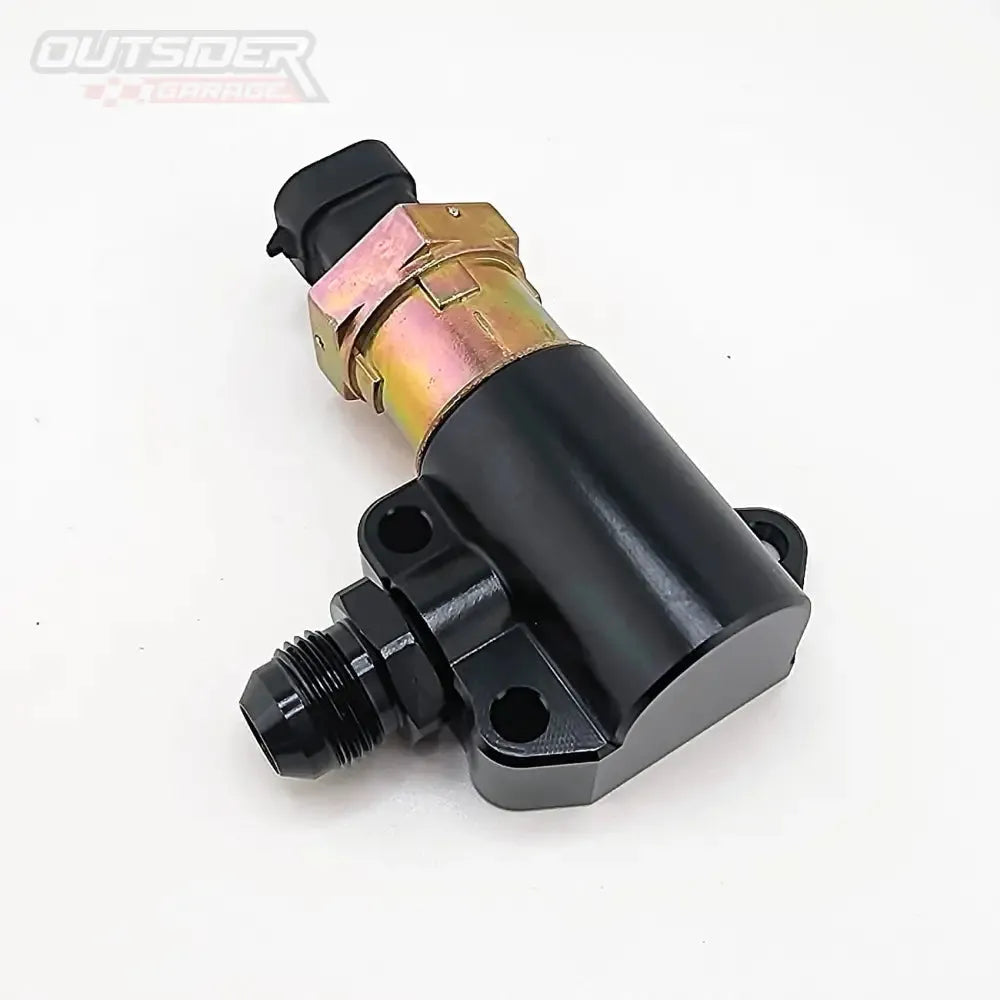

Replace the aging factory idle air control valve on your R33 Skyline with this billet IACV from Outsider Garage. It bolts to the factory three-bolt RB25DET flange and uses a common GM four-pin stepper motor that gives a standalone ECU more control over idle speed.
This is a useful upgrade for an RB25DET that has larger injectors, aftermarket cams, a front-facing intake manifold or other changes that make the factory idle valve harder to tune around. It flows approximately 20% more air than the original valve and includes a fitting for either a regular hose or an upgraded AN line.
Fitment Information
- Nissan Skyline R33 GTS25t / ECR33 with RB25DET engine (1993, 1994, 1995, 1996, 1997, 1998)
- OEM Nissan R33 RB25DET intake manifold with three-bolt IACV flange
- Aftermarket RB25DET intake manifolds using the Nissan three-bolt IACV flange
- RB25DET-swapped vehicles using a compatible three-bolt intake-manifold flange
Important ECU Requirement
This IACV requires an aftermarket ECU capable of controlling a four-pin stepper motor. It will not work with the factory Nissan ECU.
The supplied plug and terminals must be wired to the standalone ECU, then the stepper direction, step count and idle-control settings must be configured by the tuner.
Manifold Adapter Options
- None: Fits the standard R33 RB25DET three-bolt IACV flange
- RB20 / RB26 Adapter: Allows installation on a compatible four-bolt RB20 or RB26 manifold
- RB25DET NEO Adapter: Allows installation on a compatible four-bolt RB25DET NEO manifold
Select an adapter only if your intake manifold does not have the standard R33 RB25DET three-bolt flange.
Specs & Features
- CNC-machined billet aluminum IACV housing
- Common GM four-pin stepper motor
- Approximately 20% more airflow than the factory IACV
- More precise idle-air adjustment than the original two-pin valve

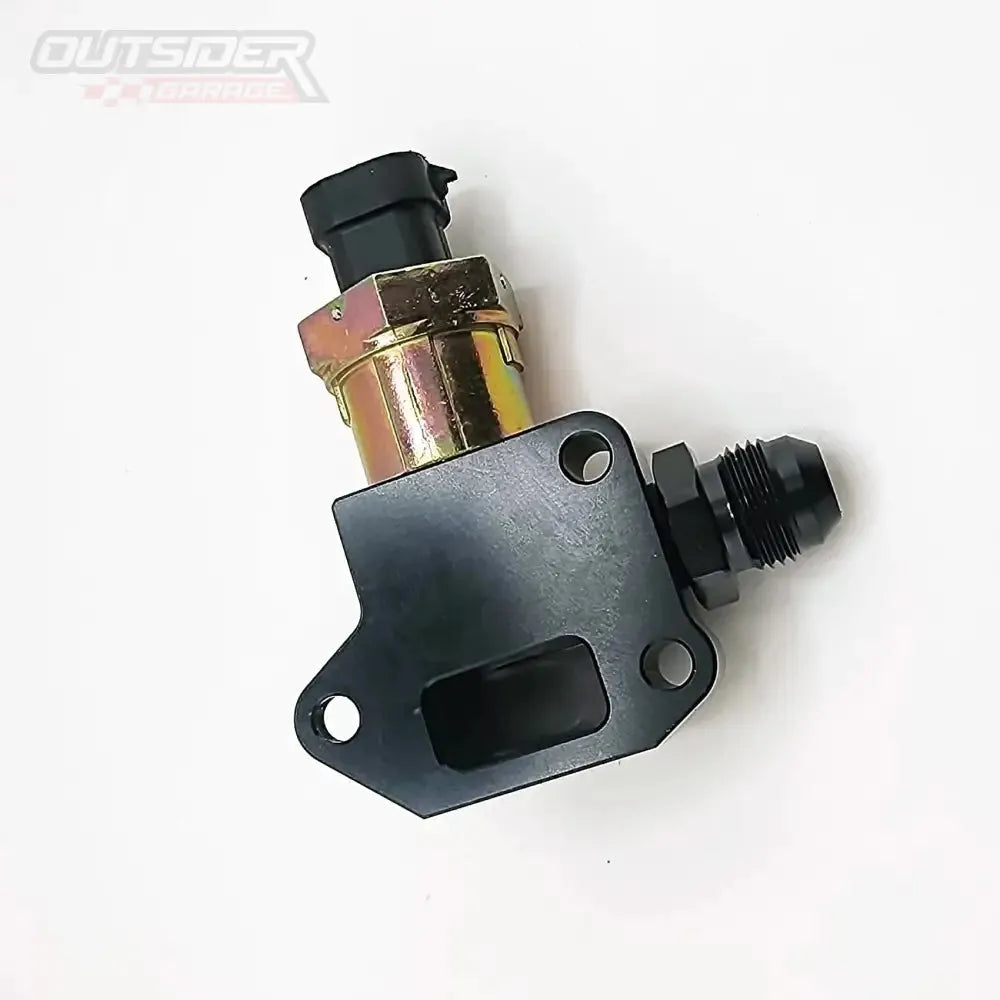

- Designed for the Nissan three-bolt R33 RB25DET IACV flange
- 6AN ORB inlet threads
- Includes 6AN ORB to 8AN hose adapter
- Works with a conventional hose or custom AN idle-air plumbing
- Replacement GM stepper motors are readily available

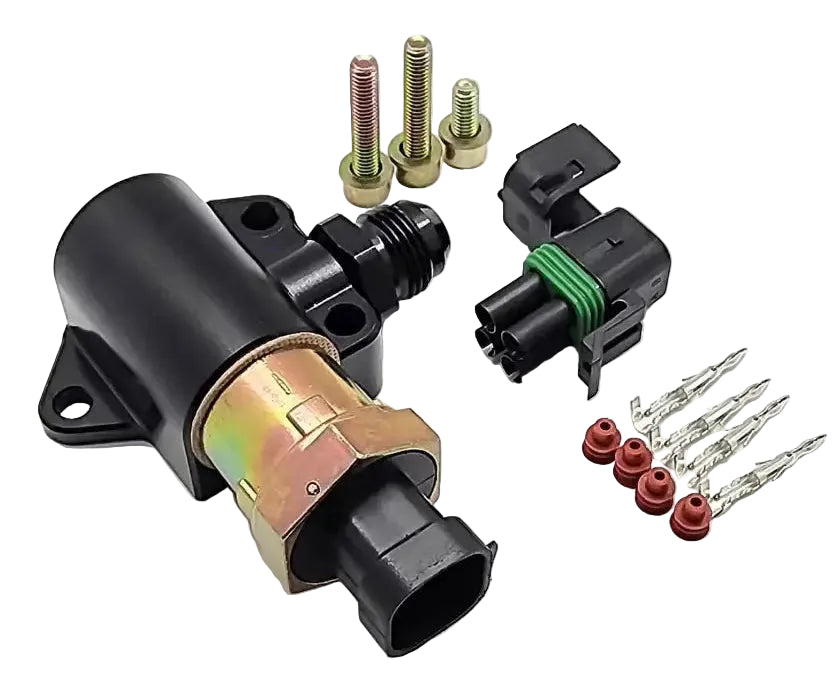

What's Included
- Outsider Garage billet IACV housing
- GM four-pin stepper motor
- Electrical plug and terminals
- 6AN ORB to 8AN hose adapter
- Mounting bolts
- Selected manifold adapter, if ordered
Installation Notes
- Confirm the intake manifold has the correct three-bolt flange or select the required adapter.
- Install the valve with a properly sealed mounting surface to prevent an idle-air leak.
- Wire the supplied four-pin connector to a compatible standalone ECU.
- Configure and test the stepper motor before starting the engine.
- Final idle settings should be completed once the engine is at normal operating temperature.
Pairs Well With
- Radium Engineering RB25DET Top-Feed Fuel Rail – Convert the RB25DET to modern top-feed injectors while upgrading the fuel system for a standalone ECU and higher-power setup.
- Outsider Garage Billet Radiator Mounts for Nissan Skyline R33 – Replace the worn factory upper mounts and add another matching billet part to the R33 engine bay.
- Dress Up Bolts Titanium Hardware Kit for Nissan RB25 – Clean up the rest of the RB25 engine bay with corrosion-resistant titanium hardware.
About Outsider Garage
Outsider Garage makes practical parts for modified and imported cars, with a strong focus on Nissan Skyline and RB-powered builds. Its lineup includes idle-control parts, drive-by-wire adapters, wiring components and billet engine-bay hardware designed around the upgrades people are actually doing.
