Mishimoto Intercooler Mitsubishi Lancer EVO 7 / 8 / 9 (01-07) Race or Street Edition

Mishimoto aluminum radiators and intercoolers deliver superior cooling for both daily drivers and high-performance vehicles. Their radiators feature all-aluminum construction and a tube-and-fin design, offering exceptional heat dissipation to maintain optimal engine temperatures, even in heavy traffic or during spirited driving.

Fitment Information

• Mitsubishi Lancer EVO 7/8/9 (2001, 2002, 2003, 2004, 2005, 2006, 2007)

Note

• Street Edition: Recommended for stock or lightly modified vehicles.
• Race Edition: This intercooler can be used with stock or aftermarket intercooler pipes. This intercooler is not universal and has application-specific mounting points. The upper intercooler pipes are not designed to work with the stock airbox; an aftermarket Open Element air filter is required to use with these upper intercooler pipes.

Specs & Features

• CARB EO #: D-759

• Key Differences between Race and Street Edition:
  • Performance Capacity: The Race Intercooler is designed for higher performance applications, supporting up to 600 whp, while the standard intercooler is suitable for stock or lightly modified vehicles, supporting up to approximately 400 whp.
  • Core Thickness and Size: The Race Intercooler has a thicker and larger core (3.5 inches thick) compared to the standard version (2.7 inches thick), allowing for greater cooling capacity.
  • Weight: The Race Intercooler is heavier (27 lbs) due to its larger size and thicker core, whereas the standard intercooler weighs 11.7 lbs.​

  • Design and Construction: The Race Intercooler features all-aluminum cast end tanks for improved airflow and durability, whereas the standard intercooler is constructed with TIG-welded aluminum
• Mishimoto Lifetime Warranty


• Purchase Includes

  • Race Edition Intercooler Kit:
    • (1) Mishimoto Intercooler
    • (2) Upper Intercooler Pipes
    • (1) Lower Intercooler Pipe
    • (3) Upper Pipe Couplers
    • (2) Lower Pipe Couplers
    • (1) 3" T-bolt Clamp
    • (8) 2.75" T-bolt Clamps
    • (1) 2" T-bolt Clamp
    • Mishimoto Lifetime Warranty

• Silicone Couplers (Race Edition)

  • UPPER PIPES SILICONE COUPLERS
    Coupler 1: I.D. – 2.83" / 2.44" / O.D. – 3.00" / 2.83"
    Coupler 2: I.D. – 2.44" / O.D. – 2.83"
    Coupler 3: I.D. – 2.44" / O.D. – 2.83"
  • LOWER PIPE SILICONE COUPLERS
    Coupler 1: I.D. – 1.73" / 2.44" / O.D. – 2.125" / 2.83"
    Coupler 2: I.D. – 2.44" / O.D. – 2.83"

Product Description

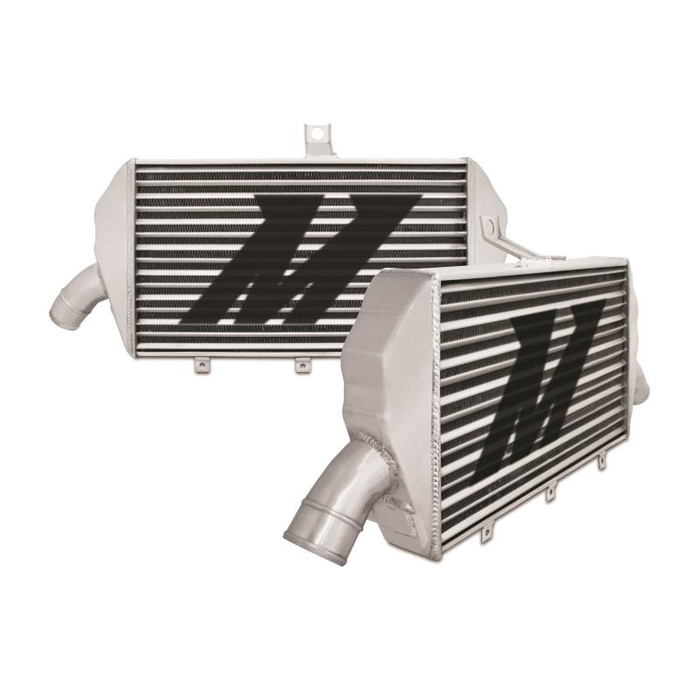

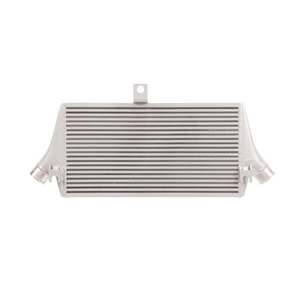

Maximize the effect of your Evo intercooler setup with the Mishimoto Mitsubishi Lancer Evolution 7/8/9 Intercooler Kit! This full kit includes the Mitsubishi Lancer Evolution 7/8/9 Race Intercooler, as well as the Mitsubishi Lancer Evolution 7/8/9 Intercooler Pipe Kit. This kit provides a direct-fit unit and completely replaces the restrictive and inefficient factory setup.

The Mishimoto Evo intercooler utilizes a large, 3.5 thick bar-and-plate core that has been designed with a strategic core composition to provide optimal reductions in intake temperatures and minimal pressure loss. This kit will support vehicles from stock to 600 whp! Our 350 whp test vehicle showed an 8 whp / 10 wtq increase in power compared to the stock intercooler, and the Mishimoto Evo intercooler was able to reduce temperatures by 28°F (16°C). Not only was this intercooler kit designed with power and efficiency in mind, but our engineers also crafted smooth cast end tanks to promote proper air dispersion through the core, improved airflow, and exceptional durability. Low air intake temperatures are vital for maximum power output, tuning, and performance.

Whether you are taking your Evo to the local rallycross or competing in a time-attack, lower temperatures will be beneficial. Mishimoto intercooler pipes are crafted from lightweight, mandrel-bent aluminum and eliminate restrictions in the factory piping, which allows for improved airflow and quicker turbocharger spool. The included silicone couplers provide improved heat and pressure tolerance and can handle all the boost you can throw at them. This kit is available with a Sleek Silver or Stealth Black powder-coated intercooler finish for enhanced durability and protection against road debris. As with all our products, the Mishimoto Evolution Race Intercooler Kit includes the Mishimoto Lifetime Warranty.

Mishimoto Lifetime Warranty when purchased through an authorized dealer such as Redline360
