- Cadillac ATS 2.0T (2013, 2014, 2015, 2016, 2017, 2018)
- There is an O-ring inside of the stock intercooler pipe on the end that connects to the intercooler. This O-ring must be removed and installed into your Mishimoto intercooler pipe. Take note when removing it from the stock pipe as the O-ring must be installed in the correct direction. Please reference our installation video for additional information.
Specs & Features
- Direct fit for 2013-2018 Cadillac ATS 2.0T
- 11+ hp increase and 9 ft-lbs of torque
- 2" thick intercooler design optimized for maximum airflow with a minimal pressure drop
- 45% increase in internal core volume & 239% increase in external fin surface area
- 78% increase in core size

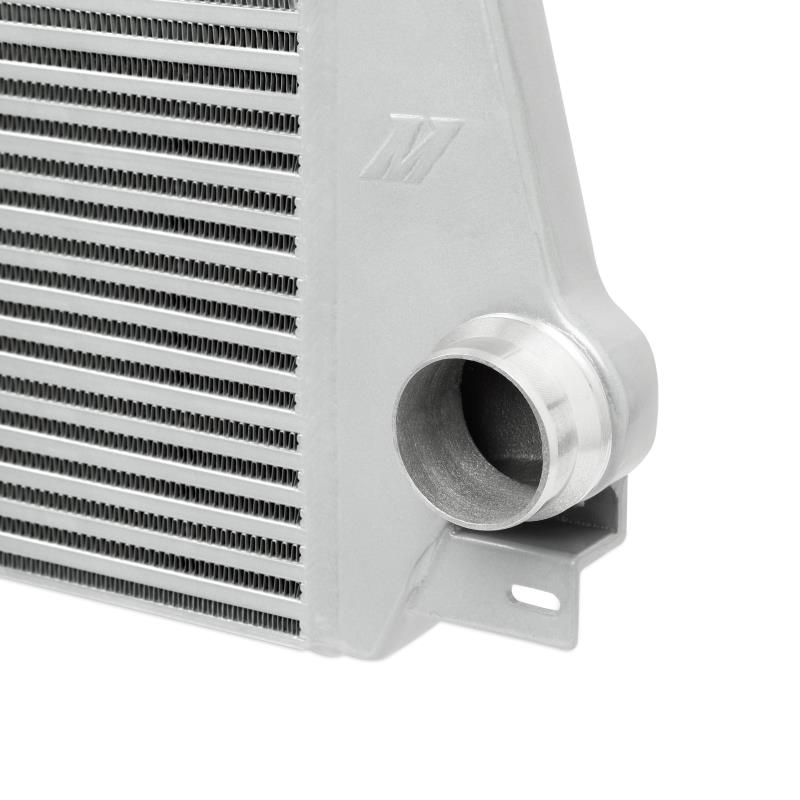

- Cast end tanks with internal air diverter provide optimal airflow through intercooler
- 30% greater internal volume than stock
- 10% increase in flow
- Utilizes stock quick-disconnect fittings for easy installation
- Pre-welded NPT port on cold-side pipe allows for quick install of aftermarket meth injection or boost gauge

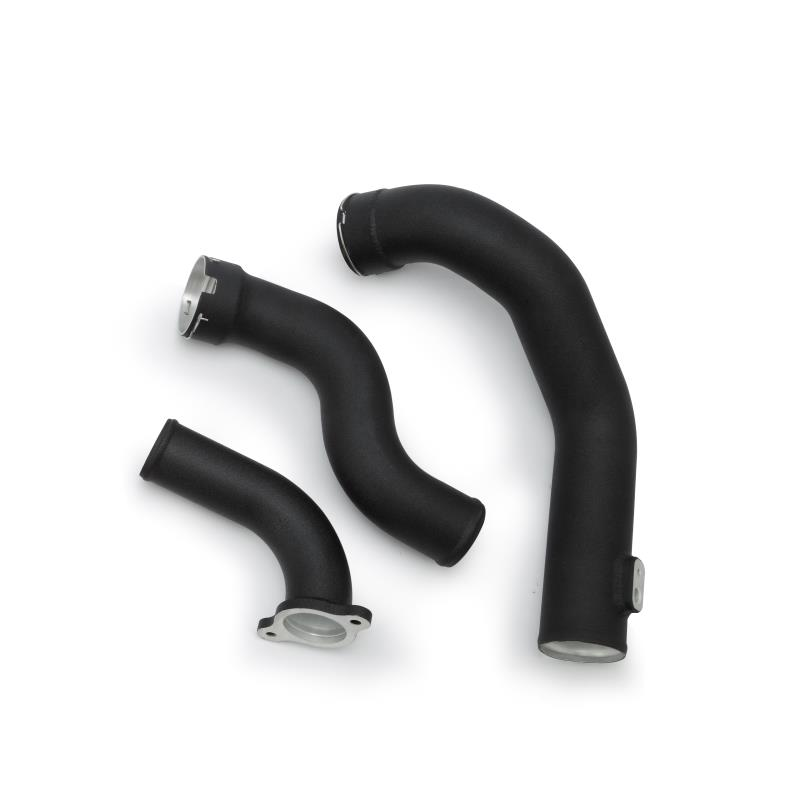

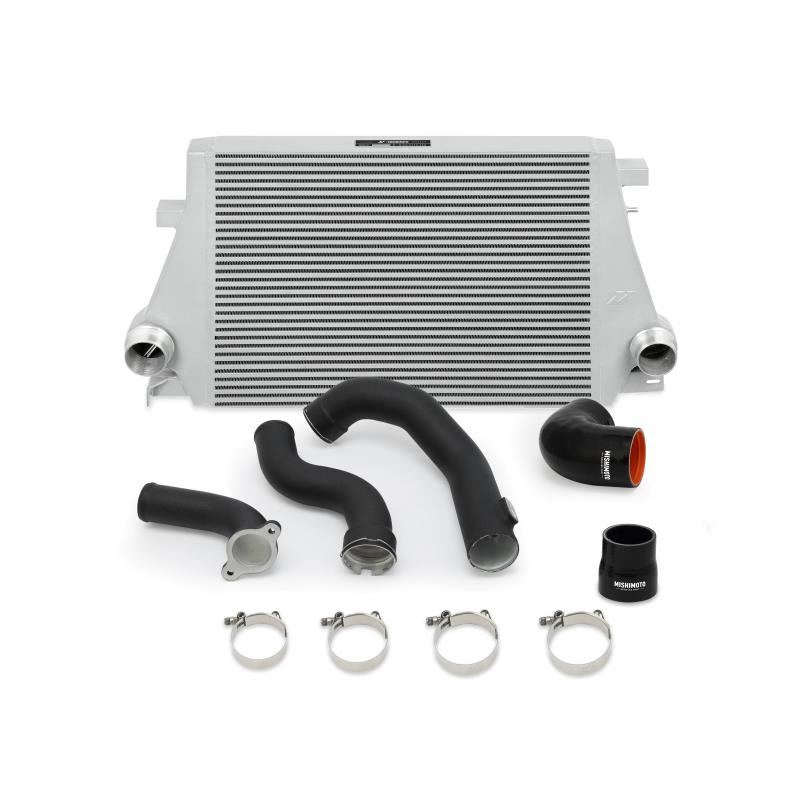

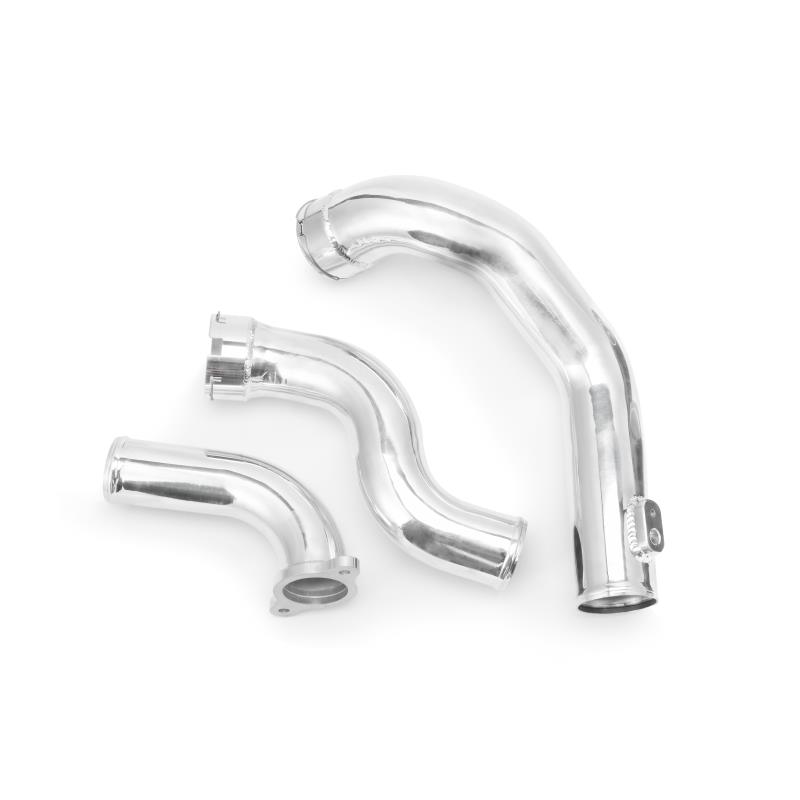

- Piping available in polished and wrinkle black
- Mishimoto Lifetime Warranty

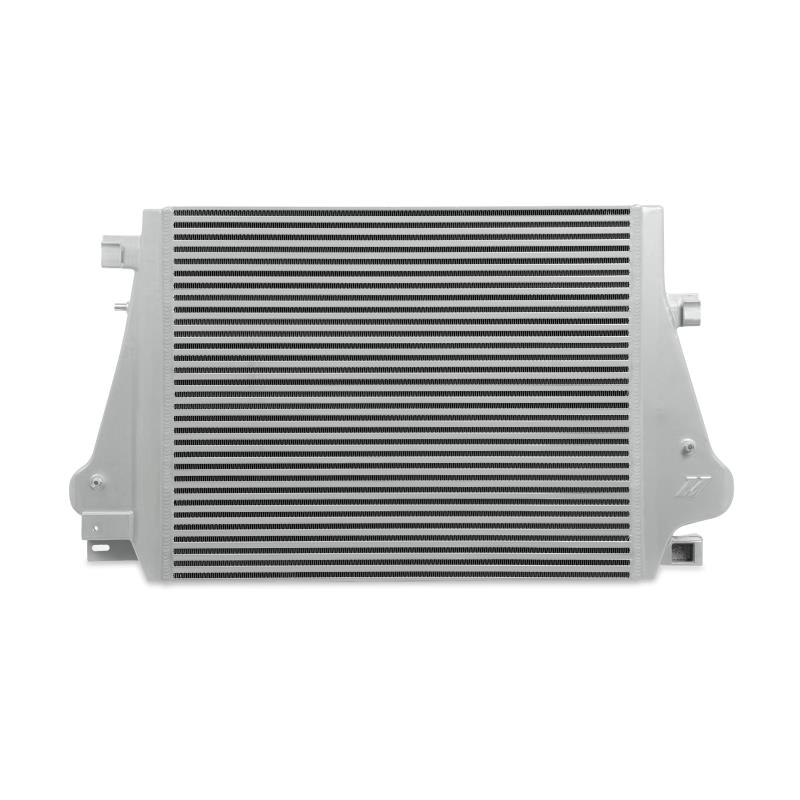

- (1) Aluminum Intercooler
- (2) Aluminum Pipes w/ CNC-machined quick-disconnects
- (1) Aluminum Pipe w/ CNC-machined 2-bolt flange
- (2) Quick-Disconnect Spring Clips

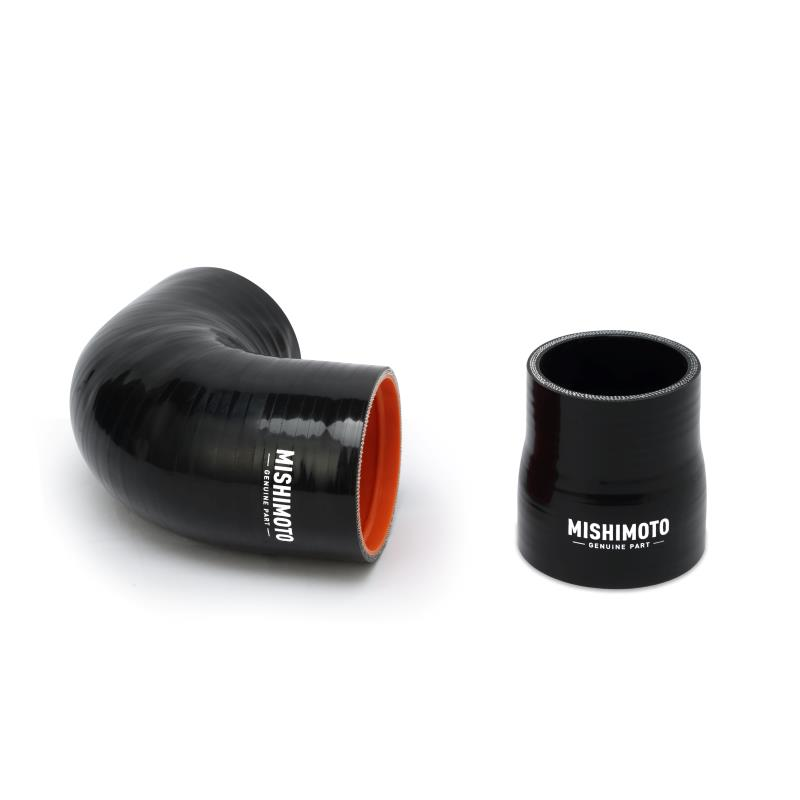

- (1) 2.75" 90° Silicone Coupler
- (1) 2.25" to 2.5" Silicone Transition Coupler
- (1) 2.5" T-Bolt Clamp
- (1) 2.75" T-Bolt Clamp
- (2) 3" T-Bolt Clamps
- (3) Tree Clips
- Mishimoto Lifetime Warranty

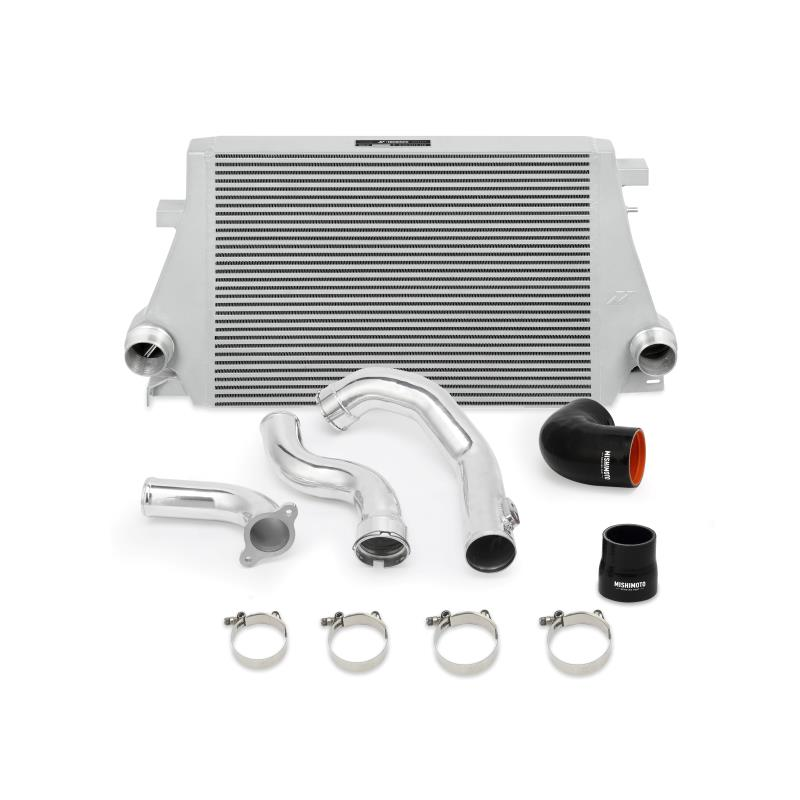

It's time to give the intercooling system in your 2013+ Cadillac ATS 2.0T a complete overhaul with the Mishimoto Performance Intercooler Kit. The bar-and-plate constructed core picks up the slack from the stock unit by offering increased heat rejection characteristics, as well as a boost in airflow. On top of the new construction, the design increases the internal core volume by 45%, and offers a whopping 239% gain in external fin surface area, making sure that the charged air running through your LTG is as chilled as possible.
The kit also includes a set of mandrel-bent intercooler piping featuring a range of 2.25-2.75” diameters equating in a 30% increase in volume and 10% better flow of the charged air. Altogether, the piping kit gets your LTG powered ATS up to 11 additional horsepower and 9 ft-lbs of torque. We have also included a pre-welded NPT port on the cold side piping that not only allows for easy installation of your stock equipment but also adding an aftermarket boost gauge or meth injection is a breeze.
The Mishimoto Performance Intercooler Kit for your 2013+ ATS is available with your choice of polished or wrinkle black piping, and as always this kit is covered under the Mishimoto Lifetime Warranty.
