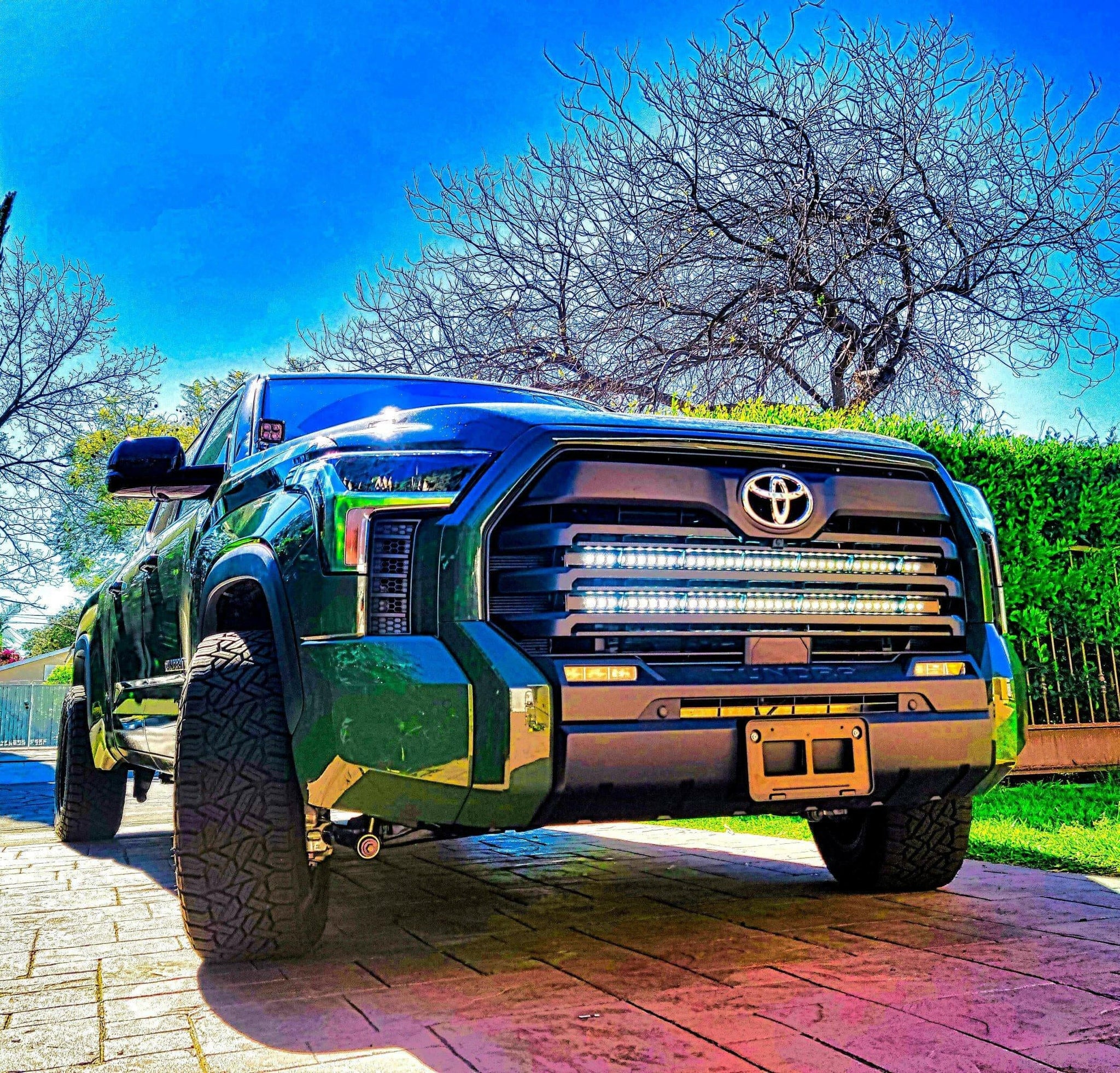

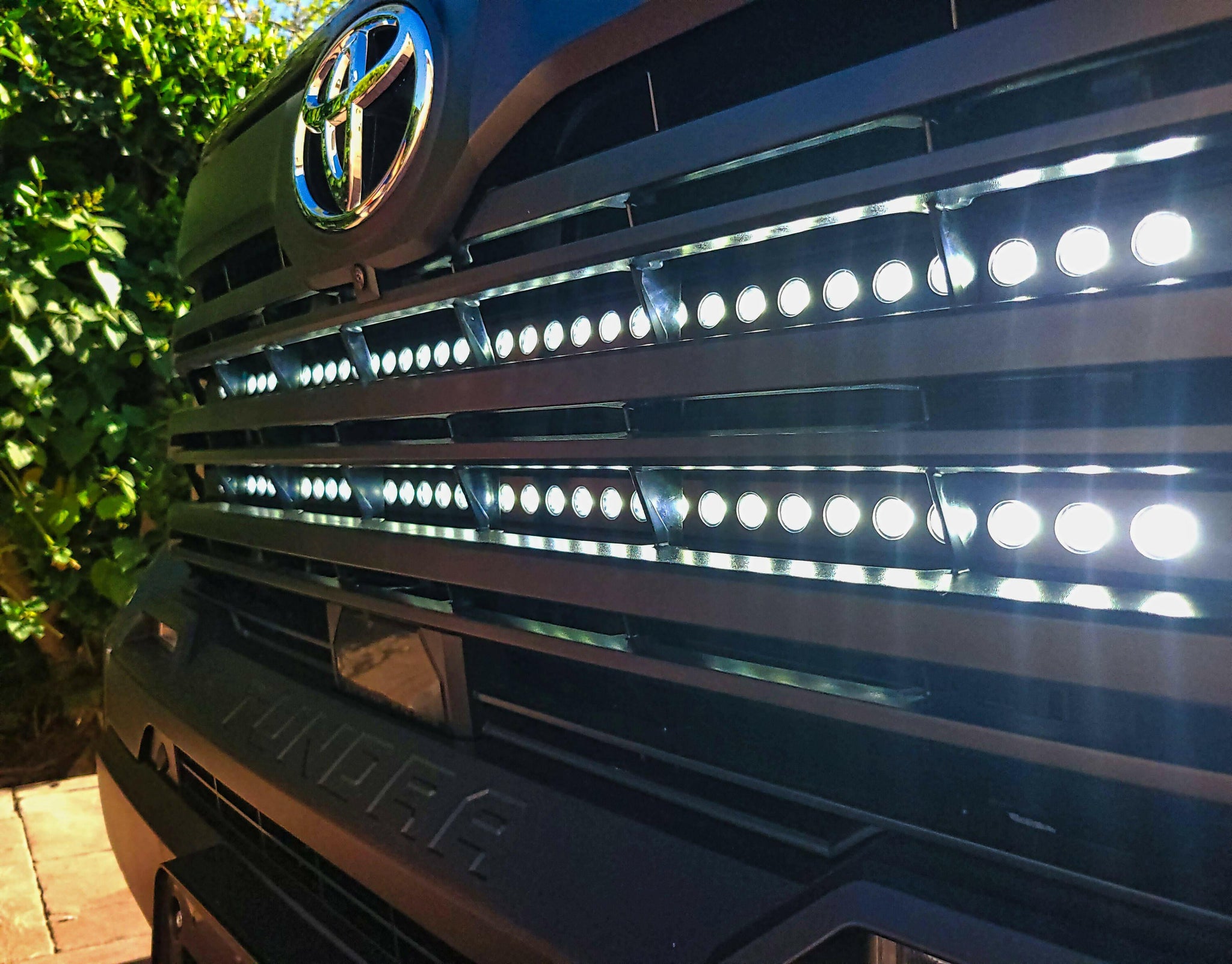

Add serious off-road lighting to your 3rd gen Tundra without hanging a large light bar off the bumper. This M&R Automotive kit mounts two slim 40-inch LED light bars behind the factory grille, giving you a clean setup with both spot and flood coverage.
The brackets use factory mounting points, so there is no cutting or drilling required. The slim light bars sit in front of the active grille shutters without interfering with their operation, while leaving most of the grille open for radiator airflow.
Fitment Information
- Toyota Tundra 3rd Gen SR (2022, 2023, 2024, 2025, 2026)
- Toyota Tundra 3rd Gen SR5 (2022, 2023, 2024, 2025, 2026)
- Toyota Tundra 3rd Gen Limited (2022, 2023, 2024, 2025, 2026)
Fitment Note: M&R lists this kit specifically for the SR, SR5 and Limited trims. Fitment is not listed for the Platinum, 1794 Edition, Capstone or TRD Pro grilles.
Choose Your Light Output
Every M&R SLIM light bar uses a spot and flood beam pattern, giving you focused distance along with wider coverage. Each bar can be selected separately, so you can run two matching bars or combine different outputs.
- White: M&R rates the white bar at up to 15,000 lumens. This is the brightest option for maximum distance and coverage.
- Amber: M&R rates the amber bar at up to 7,000 lumens. Amber light provides better contrast in dust, fog, rain and snow.
- White with Amber DRL: Provides the same white main beam as the white option, plus a separate amber backglow. The amber DRL is an accent light and does not produce significant forward lighting.
Important: The white and amber main beams are for off-road use only. They are bright enough to blind oncoming drivers and are not intended for use on public roads.
Light Bar Specifications
- Beam pattern: Spot and flood combination
- Dimensions: 38.93 × 0.75 × 1.63 inches per bar
- Number of LEDs: 36 per bar
- White LED type: CREE XT-E
- Amber LED type: CREE XP-E2 Amber
- White color temperature: 6000K
- White actual power: 102 watts per bar
- White theoretical maximum power: 180 watts per bar
- Amber actual power: 78 watts per bar
- Amber theoretical maximum power: 140 watts per bar
- White measured output with lens: 8,340 lumens per bar
- White measured output without lens: 11,376 lumens per bar
- Amber measured output with lens: 5,387 lumens per bar
- Amber measured output without lens: 7,380 lumens per bar
- Weather protection: IP68 rated
- Rated lifespan: Up to 50,000 hours
Current Draw at 12 Volts
- White main light: 8.50 amps per bar
- Amber main light: 6.50 amps per bar
- Amber DRL backglow: 0.46 amps per bar
Make sure the wiring harness, relay and fuse are rated for the combined current draw of both light bars.
Installation Features

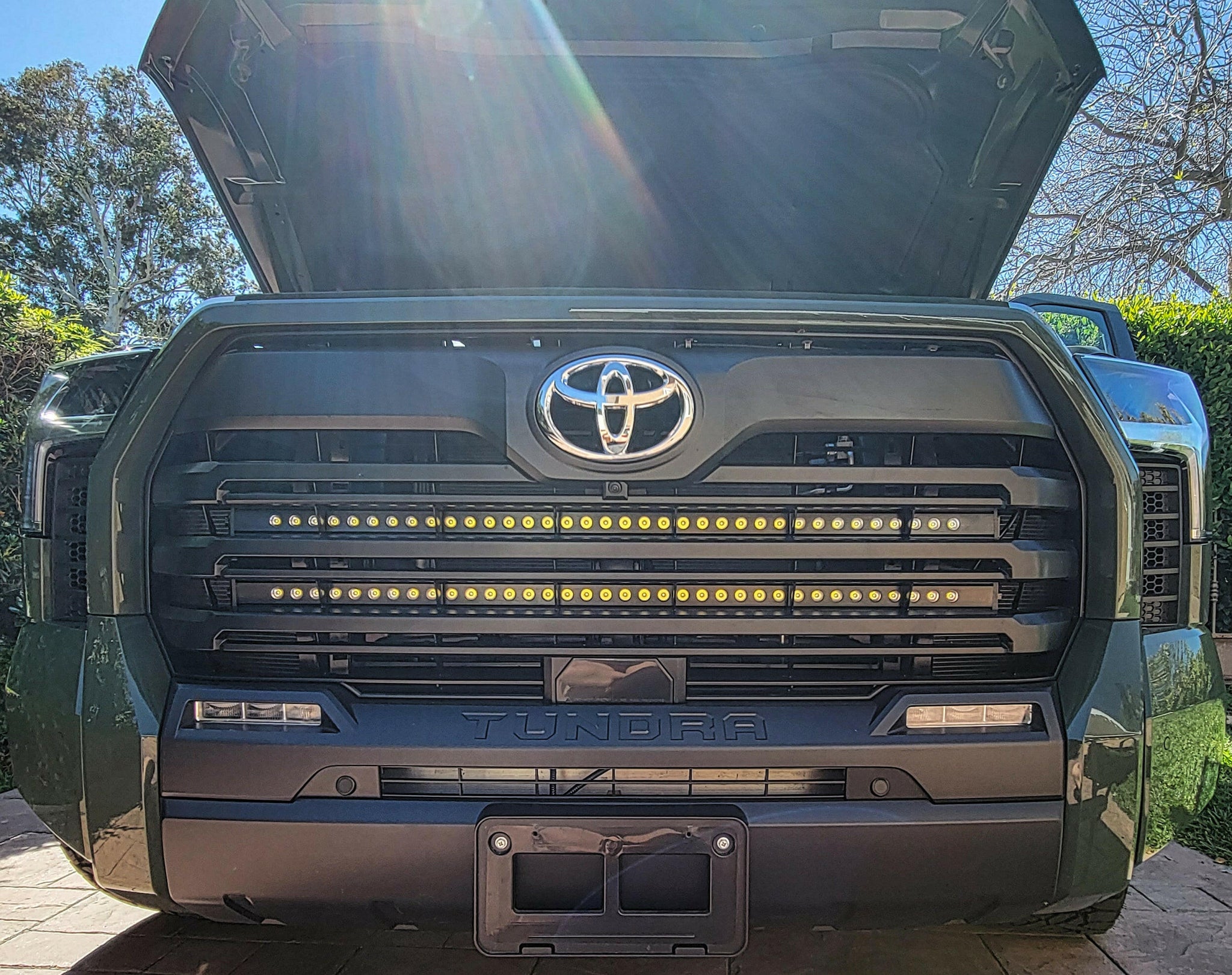

- Mounts behind the factory grille
- Does not interfere with the active grille shutters
- Leaves the surrounding grille mesh open for radiator airflow

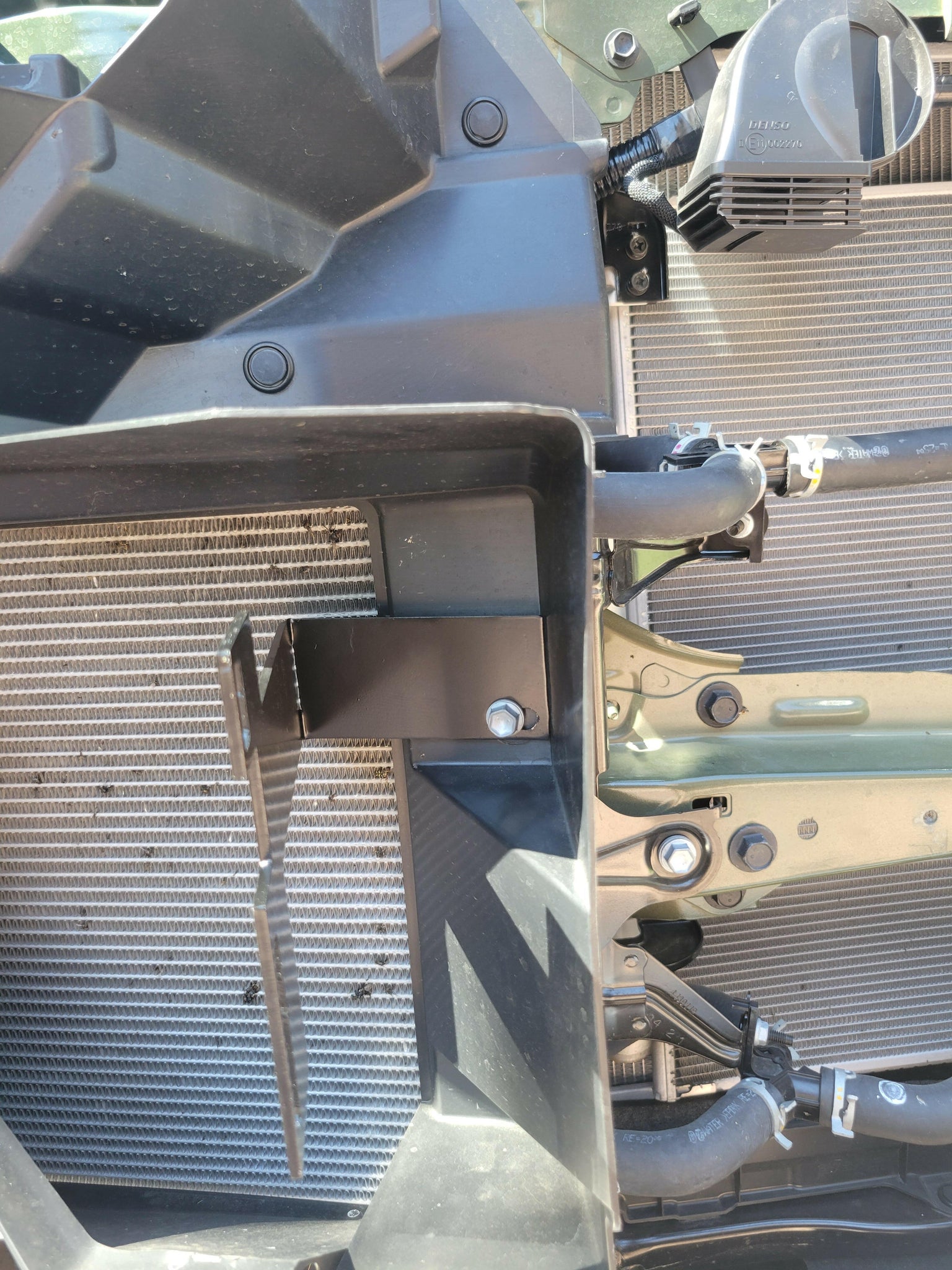

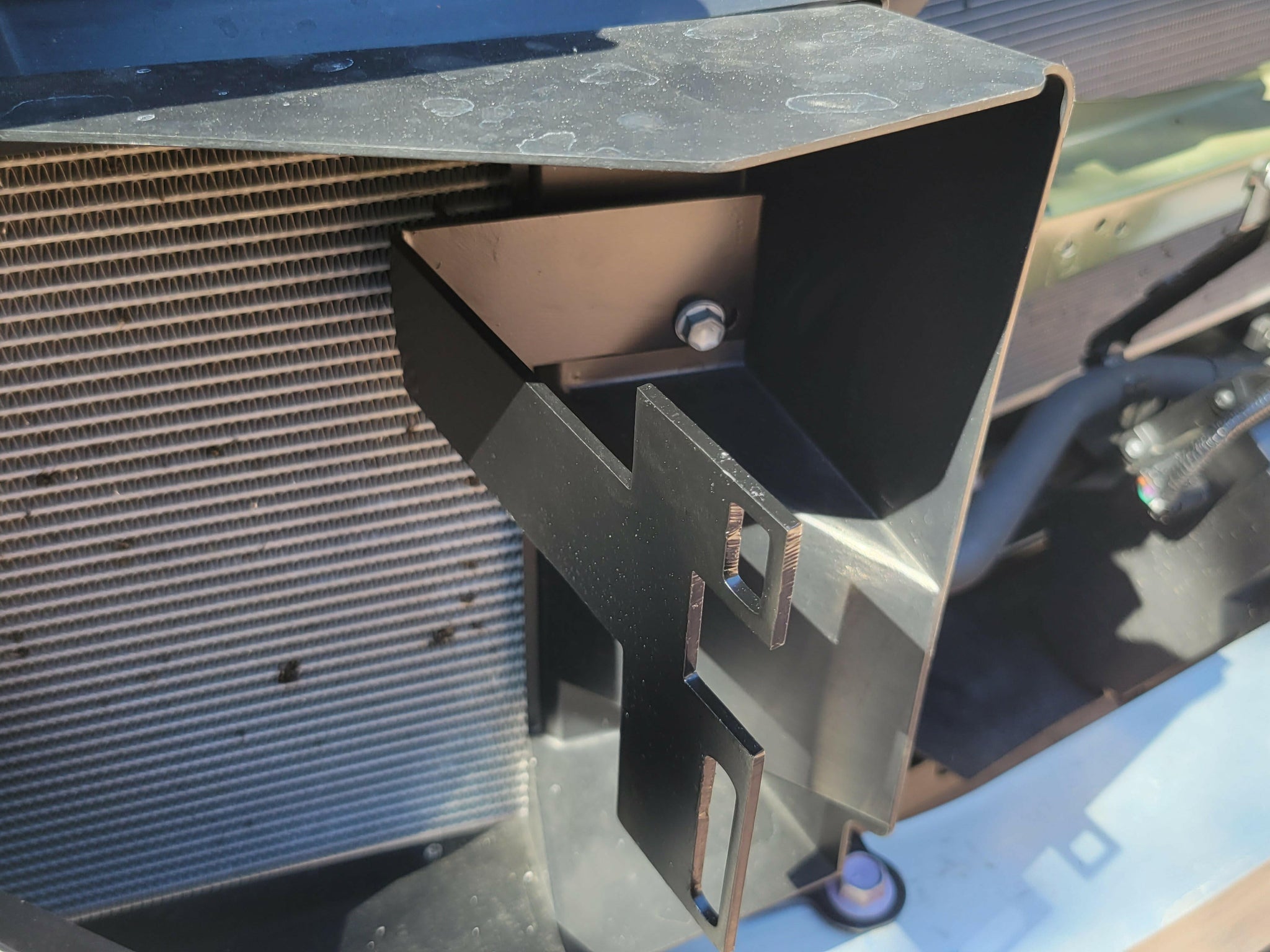

- Vehicle-specific black powder-coated metal brackets
- UV-resistant black powder-coated light housings
- Uses factory mounting points
- No cutting or drilling required
- M&R Automotive lifetime warranty
What's Included
- Two 40-inch M&R SLIM LED light bars
- Two vehicle-specific metal mounting brackets
- Required mounting hardware
Wiring Information
- A wiring harness is not included.
- Each light bar has more than six feet of wire.
- The bars can be connected to the factory auxiliary switch wiring when equipped.
- Trucks without factory auxiliary wiring will require a properly rated aftermarket wiring harness, relay, fuse and switch.
- Make sure the wiring and fuse capacity are rated for the combined current draw of both light bars.
Off-Road Use Only
The main white and amber light-bar outputs are intended for off-road use only and should not be used around oncoming traffic. Check your local lighting laws before using the amber DRL backglow on public roads.
Watch the Installation Video
Here is an install video from M&R Automotive showing how the dual 40-inch light bars mount behind the grille of a 3rd gen Toyota Tundra.
Pairs Well With
- AlphaRex LED Projector Fog Lights for Toyota Tundra – Add white and yellow fog-light coverage closer to the truck while the M&R light bars handle longer-distance off-road lighting.
- AlphaRex LUXX LED Projector Headlights for Toyota Tundra – Upgrade the factory headlights and give the front of your 3rd gen Tundra a more complete LED lighting setup.
About M&R Automotive
M&R Automotive builds vehicle-specific off-road lighting kits designed for a clean installation. Their kits combine slim LED lighting with brackets made for the vehicle, helping owners add usable trail lighting without making the front of the truck look cluttered.
