Koyo Hyper V Aluminum Radiator Mazda MX-5 Miata NB 1.8L Manual (1999-2005) VH060650

Upgrade your NB Miata cooling system with Koyorad's lightweight, all-aluminum Hyper V-Core radiator, designed for direct installation in 1999-2005 manual-transmission models.

Fitment Information

• Mazda MX-5 Miata NB 1.8L with manual transmission (1999, 2000, 2001, 2002, 2003, 2004, 2005)
• Mazda Mazdaspeed MX-5 Miata NB 1.8L turbo with manual transmission (2004, 2005)

Fitment Note

• Designed for manual-transmission models.
• Does not contain an internal automatic-transmission fluid cooler.
• Retains the factory radiator hose connections and fan-shroud mounting points.
• Radiator cap is not included.
• On some vehicles, the A/C condenser mounts may require minor adjustment to prevent contact with the thicker radiator.
• Carefully check condenser and A/C line clearance before securing the radiator.

Specs and Features

• Koyorad part number: VH060650
• Hyper V-Core performance radiator
• High-density 2-row core
• 36mm core thickness
• All-aluminum construction
• Crossflow radiator design
• Approximately 32mm upper and lower hose connections
• Nocolok furnace-brazed core
• Precision TIG-welded aluminum tanks
• Billet aluminum filler neck
• Aluminum drain plug
• Application-specific mounting brackets
• Retains factory fan-shroud mounts
• Compatible with factory-style radiator hoses
• Triple pressure tested for quality control
• Radiator cap not included
• UPC: 847839010851

Product Description

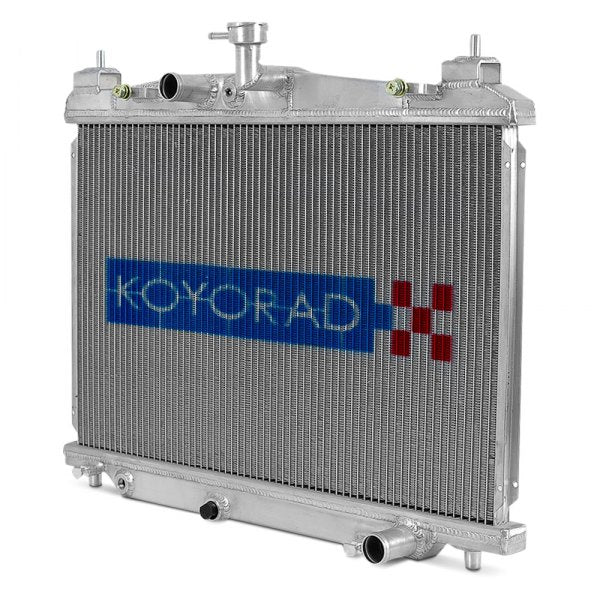

The Koyorad VH060650 is a direct-fit aluminum radiator developed for the second-generation Mazda MX-5 Miata. Its 36mm Hyper V-Core increases coolant capacity and heat-transfer surface area while maintaining a compact profile for the NB Miata engine bay.

A specialized tube-and-fin arrangement helps increase surface area without excessively restricting airflow through the core. The aluminum tanks are precision welded to the furnace-brazed core, eliminating the crimped plastic-tank construction commonly found on factory-style replacement radiators.

The radiator retains the original hose locations and fan-shroud mounting provisions, making it suitable for street-driven, autocross, track and turbocharged Miata applications.

Mazdaspeed Miata Fitment

The VH060650 also fits the 2004-2005 Mazdaspeed MX-5 Miata with a manual transmission. Because the thicker radiator occupies more engine-bay space, carefully inspect the A/C condenser brackets and refrigerant-line clearance during installation. Minor adjustment of the condenser mounting position may be required to prevent contact with the radiator core.

Installation Notes

• Inspect the upper and lower radiator hoses, clamps, thermostat and cooling fans before installation.
• Flush old or contaminated coolant from the system before installing the new radiator.
• Transfer the factory fans and fan shrouds to the new radiator.
• Confirm that the condenser, A/C lines and fan shrouds do not contact the radiator core.
• Use a radiator cap with the correct fit and pressure rating for the vehicle.
• Refill the system with Mazda-compatible coolant and thoroughly bleed trapped air.
• Check for leaks and verify cooling-fan operation after the engine reaches operating temperature.

Pairs Well With

• HPS Silicone Radiator and Heater Hose Kit for Mazda Miata NB 1.8L (1999-2005)
• HPS Ancillary Coolant Hose Kit for Mazda Miata NB 1.8L (1999-2000)
• HPS Ancillary Coolant Hose Kit for Mazda Miata NB 1.8L (2001-2005)

Select the ancillary coolant hose kit matching your Miata's model year.

About Koyorad

Koyorad manufactures application-specific cooling components for street and motorsport use. Its performance radiators use aluminum construction, furnace-brazed cores and precision-welded tanks to deliver increased cooling capacity without relying on universal mounting components.
