Injen Exhaust Ford F150 Raptor 3.5 Ecoboost SuperCrew (17-19) Catback - SES9102

Fitment Information

• Ford F-150 Raptor V6-3.5L (tt) ECOboost (2017, 2018, 2019)
• Fits Super Crew (4 Door) models only


Attributes

• GTIN: 00843115027254
• Brand Name: Injen
• Catalytic Converter Quantity: 0
• Compatible Throttle Controller: PT0013B
• Exhaust System Connection: Flanged
• Finish: Polished
• Grade Type: Performance
• Hangers Included: Yes
• Hardware Included: Yes
• Muffler Body Diameter: 5.0X8.5
• Muffler Body Length: 15
• Muffler Body Material: 304 Stainless Steel
• Muffler Body Shape: Oval
• Muffler Flanged Inlet: No
• Muffler Flanged Outlet: Yes
• Muffler Let Size: 3
• Muffler Outlet Quantity: 2
• Muffler Outlet Size: 3
• Muffler Quantity: 1
• Pipe Material: 304 Stainless Steel
• Primary Pipe OD: 3
• Secondary Pipe OD: 3
• Stepped Pipe Diameter: No
• Tail Pipe Material: Black Chrome
• Tail Pipe Outlet Outside Diameter: 4
• Tail Pipe Quantity: 2
• Y-Pipe Included: No


Specs & Features

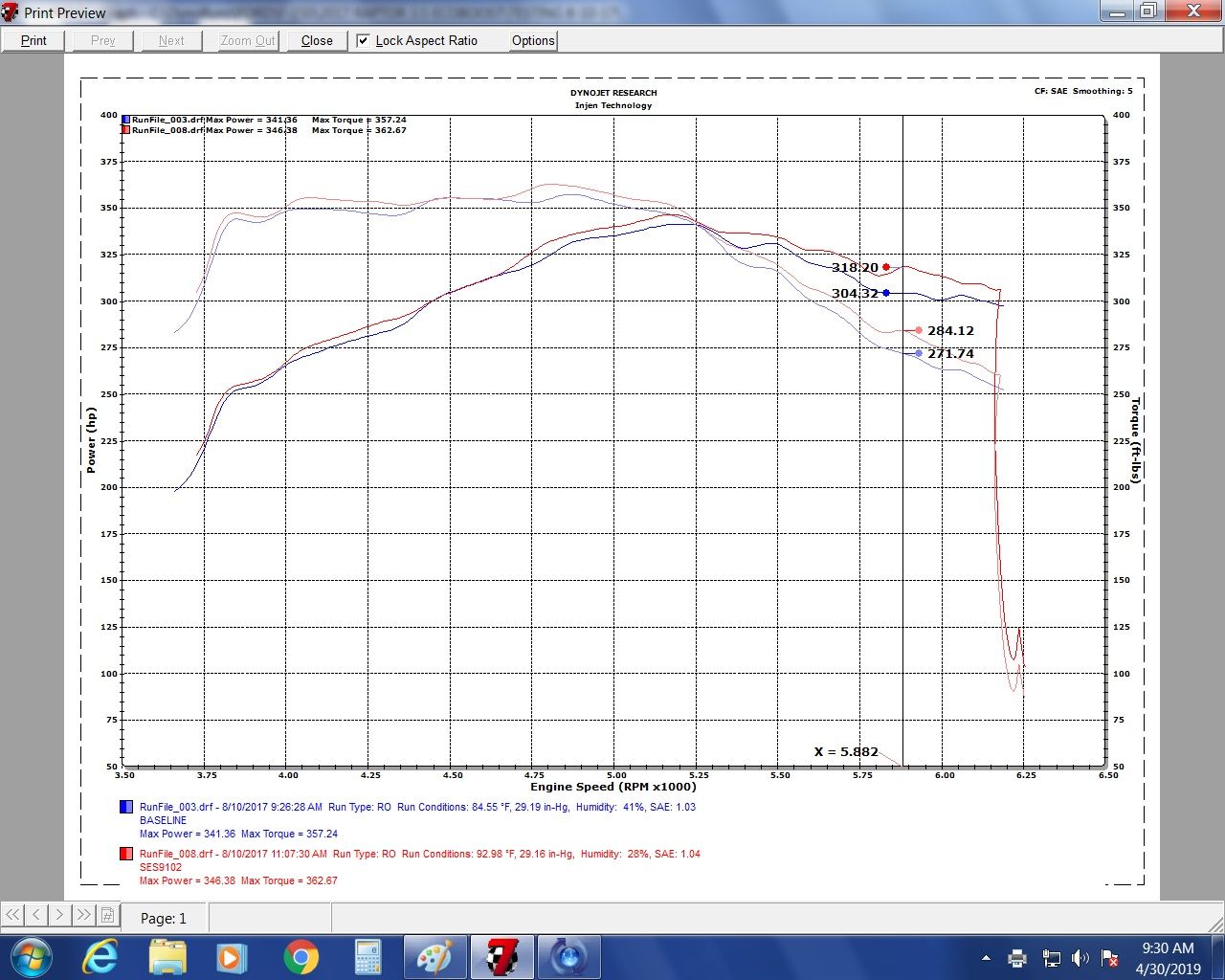

• Dyno Proven gains of up to 14 hp and 15 lb-ft. of torque
• Full 76MM piping made from premium 304 SS Mandrel-Bent Tubing
• Beautiful dual 4.0"black chrome exhaust tips
• Features Injen's dual in/out muffler designed specifically for the 3.5L Raptor
• Unique design and muffler delivers a clean, crisp, distinctively Injen sound

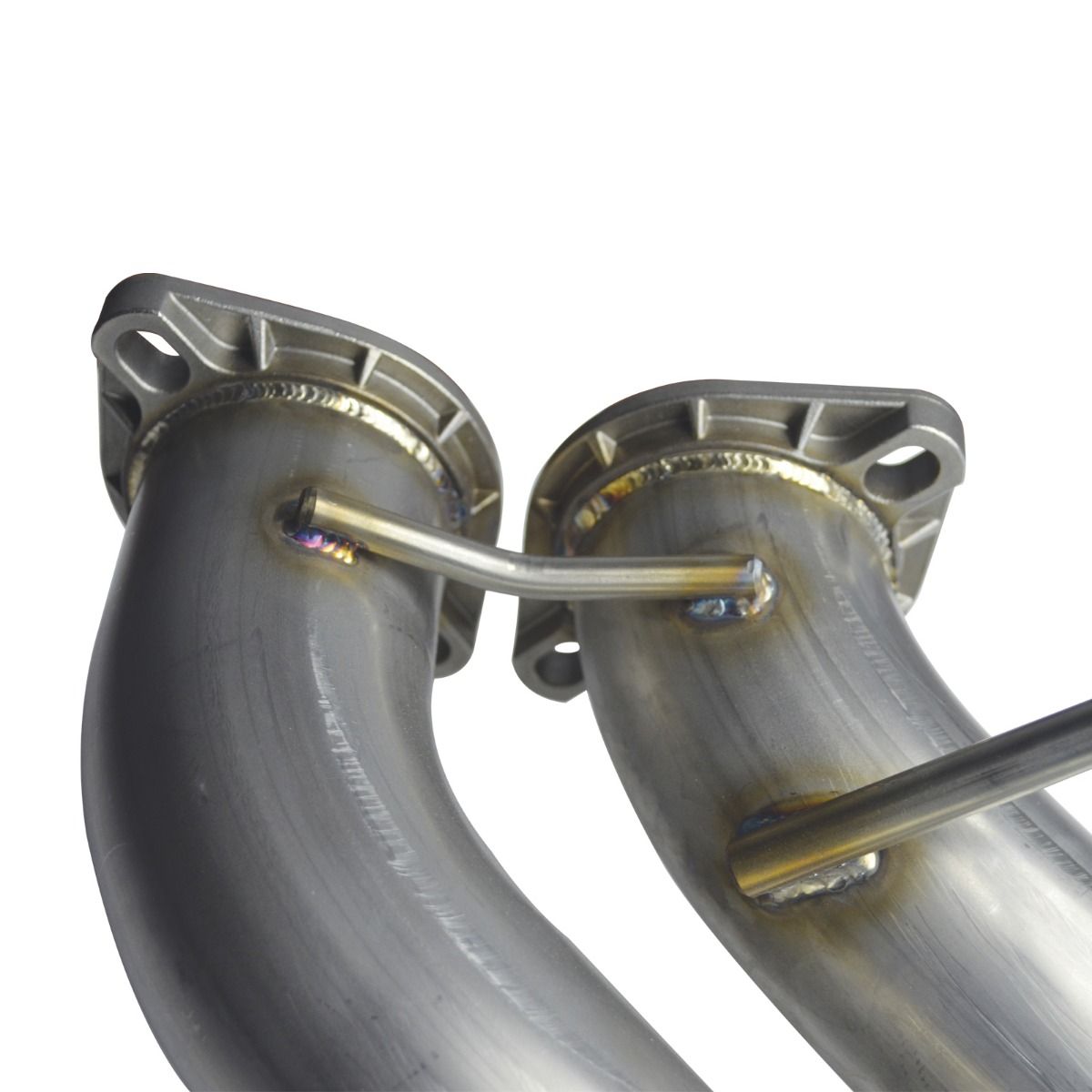

• Stainless Steel Investment Cast Flange for a Fast and Easy Install
• Hand Crafted and TIG Welded to Perfection for Strength and Durability
• Premium Stainless Steel Hardware and Hangers for a simple install
• No Cutting or Welding Required
• If you're looking to improve sound, power, and looks then this is the system for you!
• Designed and Manufactured in Pomona, CA


Product Description

The Injen Exhaust System is designed to increase exhaust flow and improve horsepower.  This exhaust features smooth mandrel bends that do not neck down, providing the least amount of resistance and allowing your engine to breathe easy.  Straight through mufflers specially designed by Injen are some of the highest flow mufflers on the market, and have been designed to give a unique Injen tone that's deep and strong.  This exhaust is a straight bolt-on and comes with all of the necessary hardware and gaskets required to place your factory exhaust.

Injen SES Exhaust Features:

• 100% Stainless Steel for long life and rust prevention
• High flow straight through mufflers with the unique Injen sound
• Clean and robust robotic tig welds
• Mandrel bent piping for smooth flow with minimal restriction
• Dyno tested to provide the best exhaust flow.

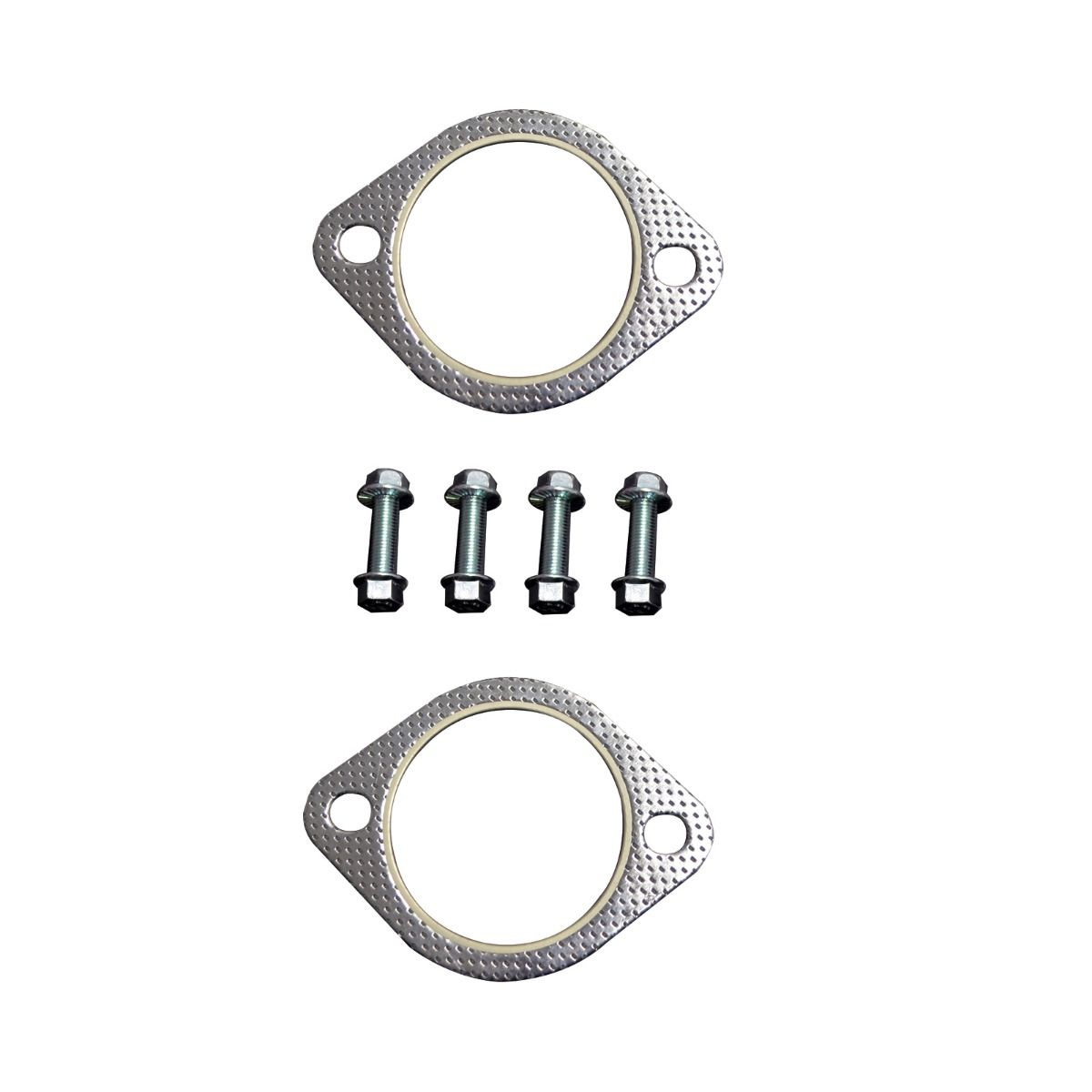

• True bolt on exhaust - includes all necessary gaskets and hardware for installation.

Injen Technology is proud to introduce our new true dual, side exit exhaust system for the 2017-2019 Ford F-150 Raptor Supercrew with the V6-3.5L EcoBoost twin-turbo engine.  You asked for a system that delivered a unique and throaty sound for the 3.5L Raptor and Injen Technology has delivered.  Injen has spent countless hours testing and fine tuning the sound that this side exit exhaust system makes and it’s second to none.  Our engineers were not satisfied with an off the shelf muffler, so we completely designed our own to provide you with the power and the sound that you crave!

This Injen Technology dual side exit cat-back exhaust is also designed with bolt-on “black chrome” exhaust tips that have our beautiful Injen badge attached.  Those same tips exit in front of the rear passenger tire for an aggressive and captivating appearance that will surely set your Raptor apart from the crowd.

Redline360 is an authorized Injen dealer.
