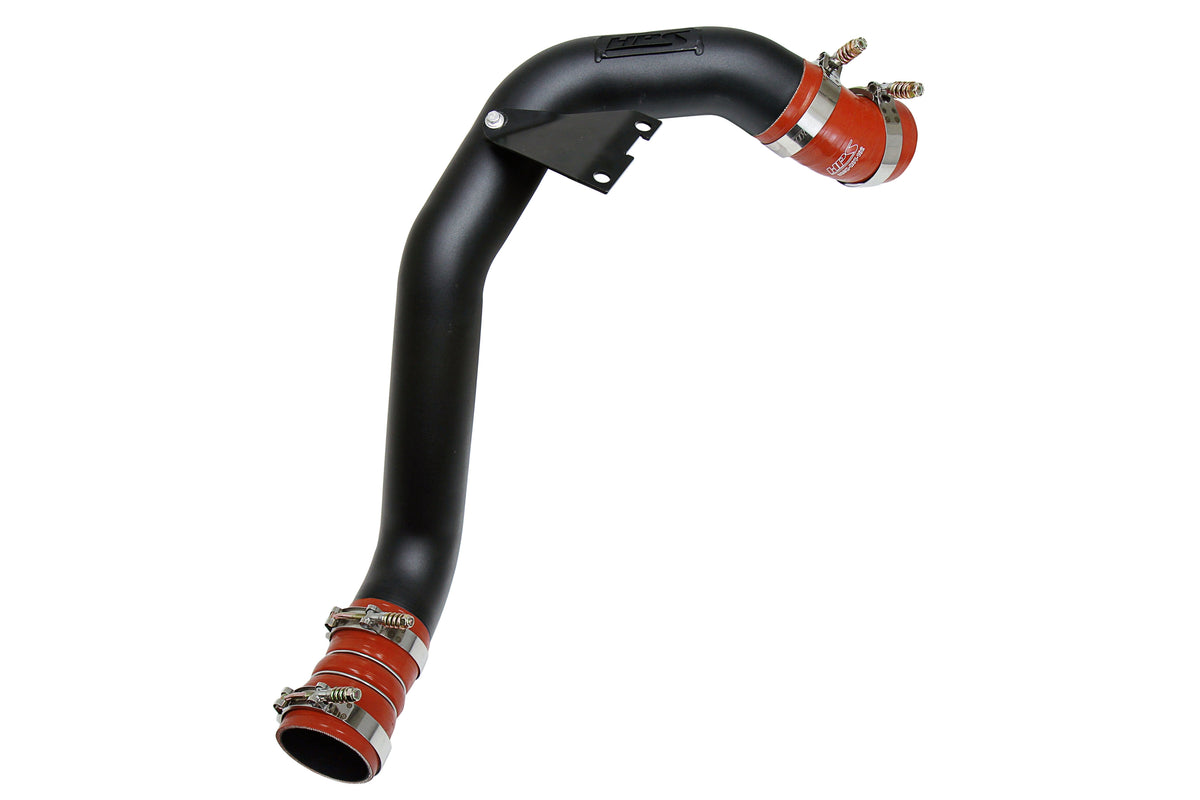

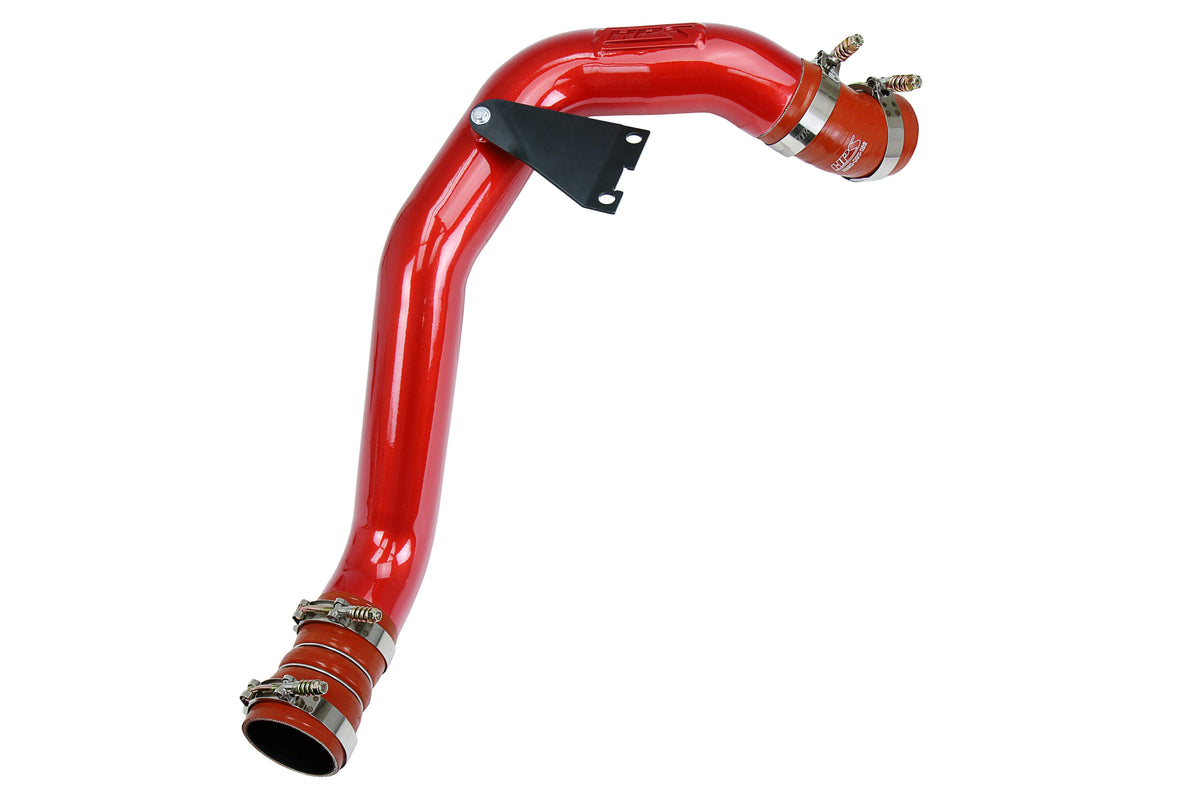

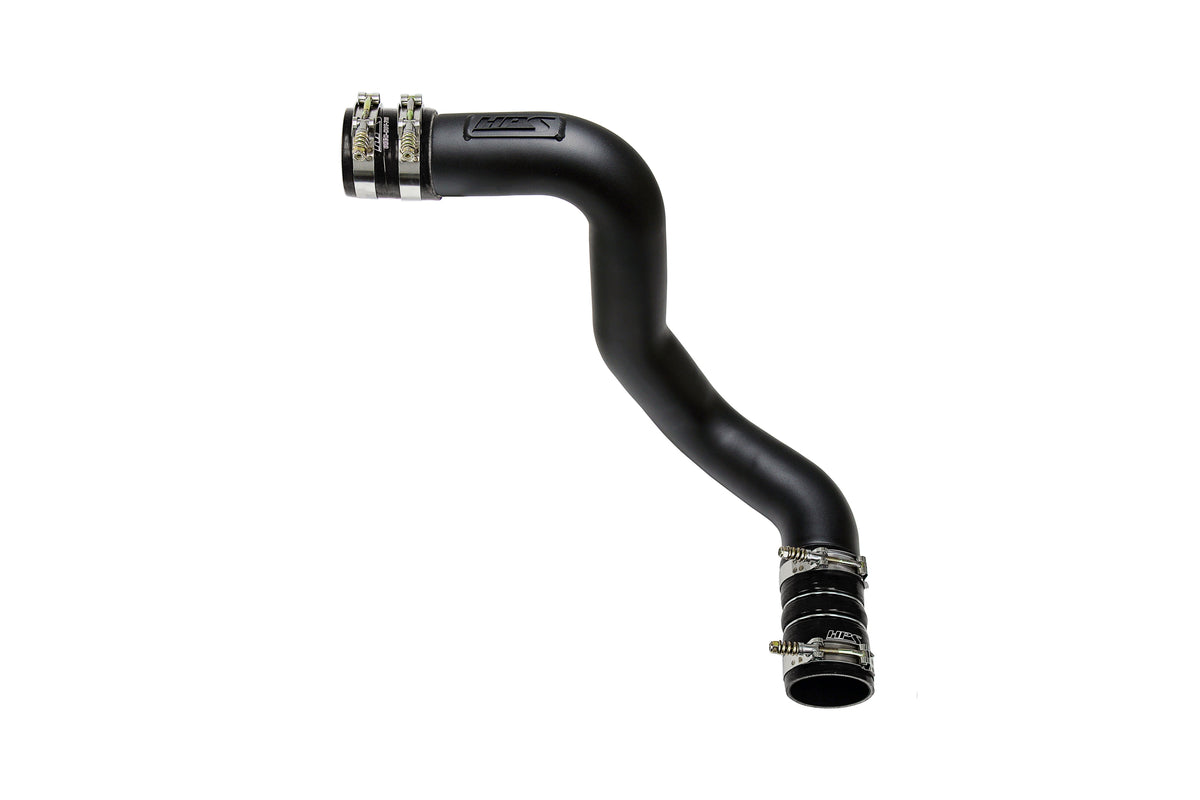

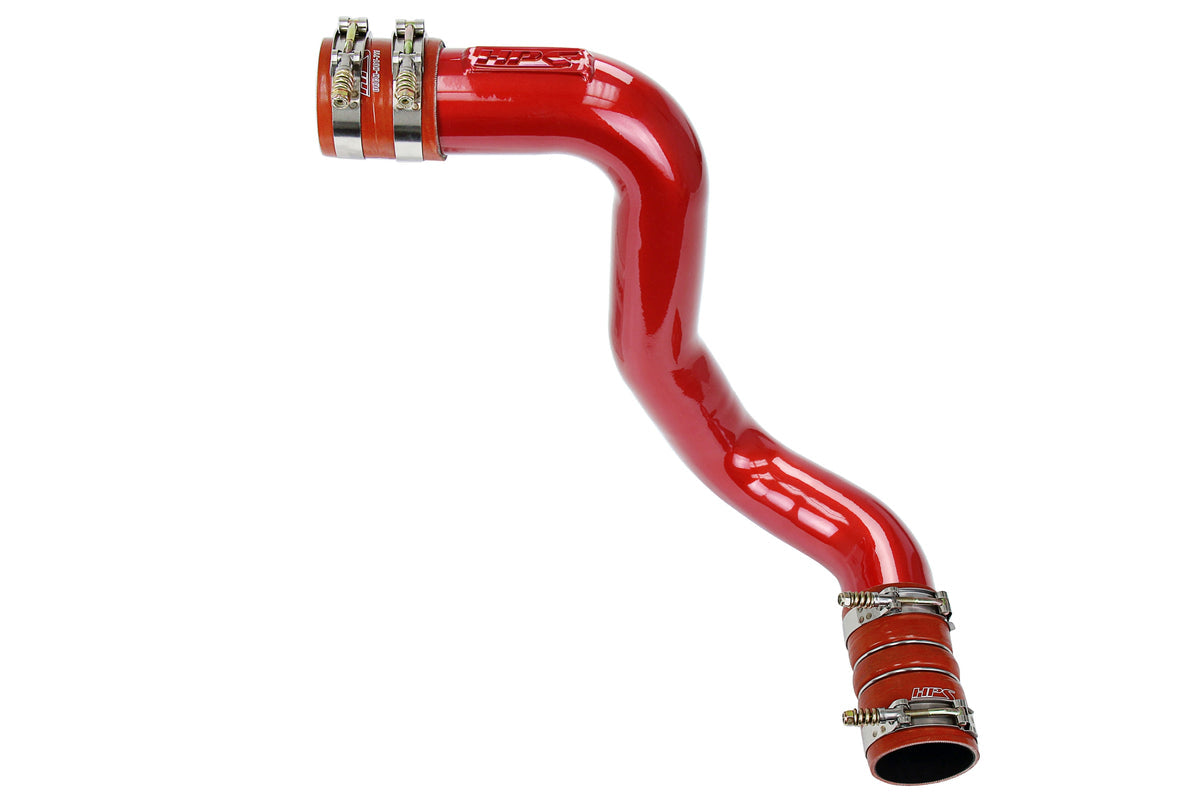

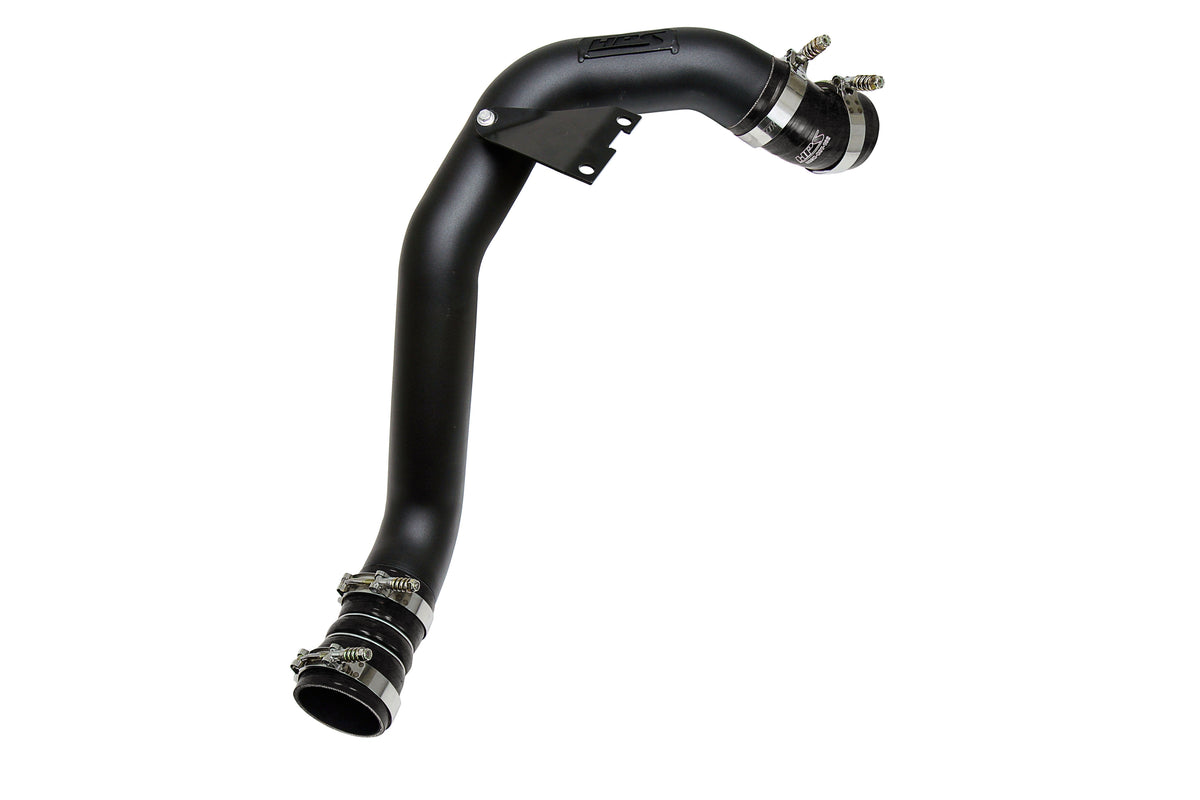

HPS Performance Intercooler Charge Pipe for Ford F250 F350 F450 F550 Super Duty 6.0L V8 (2003- 2007) Hot or Cold Side

Fitment Information

• Ford F250 F350 F450 F550 Super Duty 6.0L V8 Powerstroke Diesel Turbo (2003, 2004, 2005, 2006, 2007)
• Note: This hot side charge pipe does not fit Dual Alternator.

Emissions

• California Restriction: This product does not have a CARB EO and cannot be sold or shipped to California.


Specs & Features

• Improves acceleration and throttle response for a better driving experience.

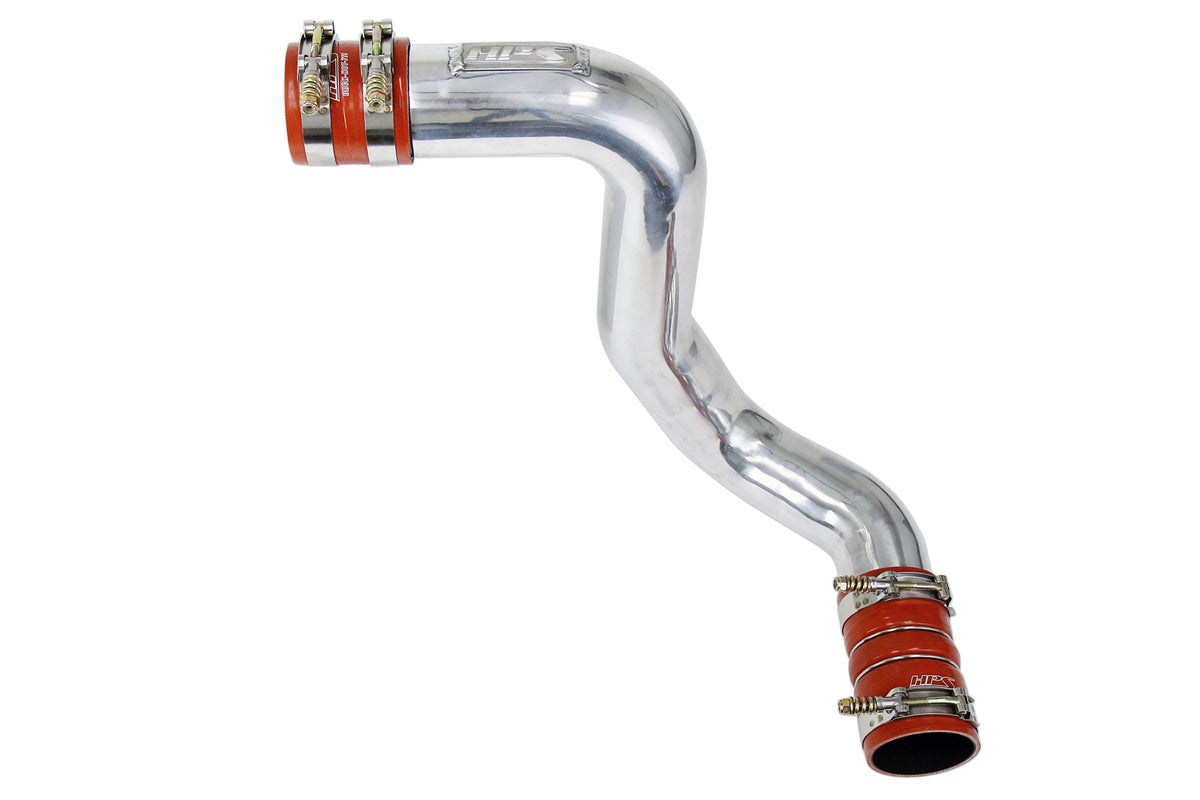

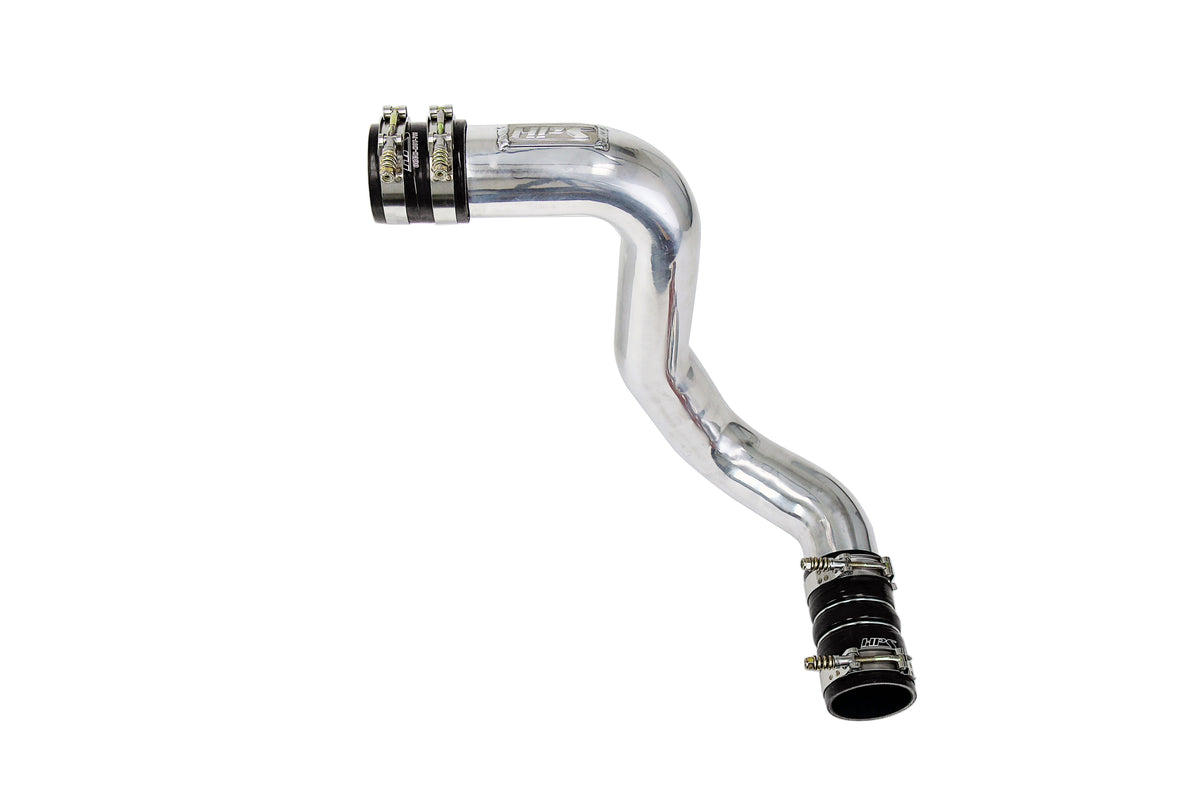

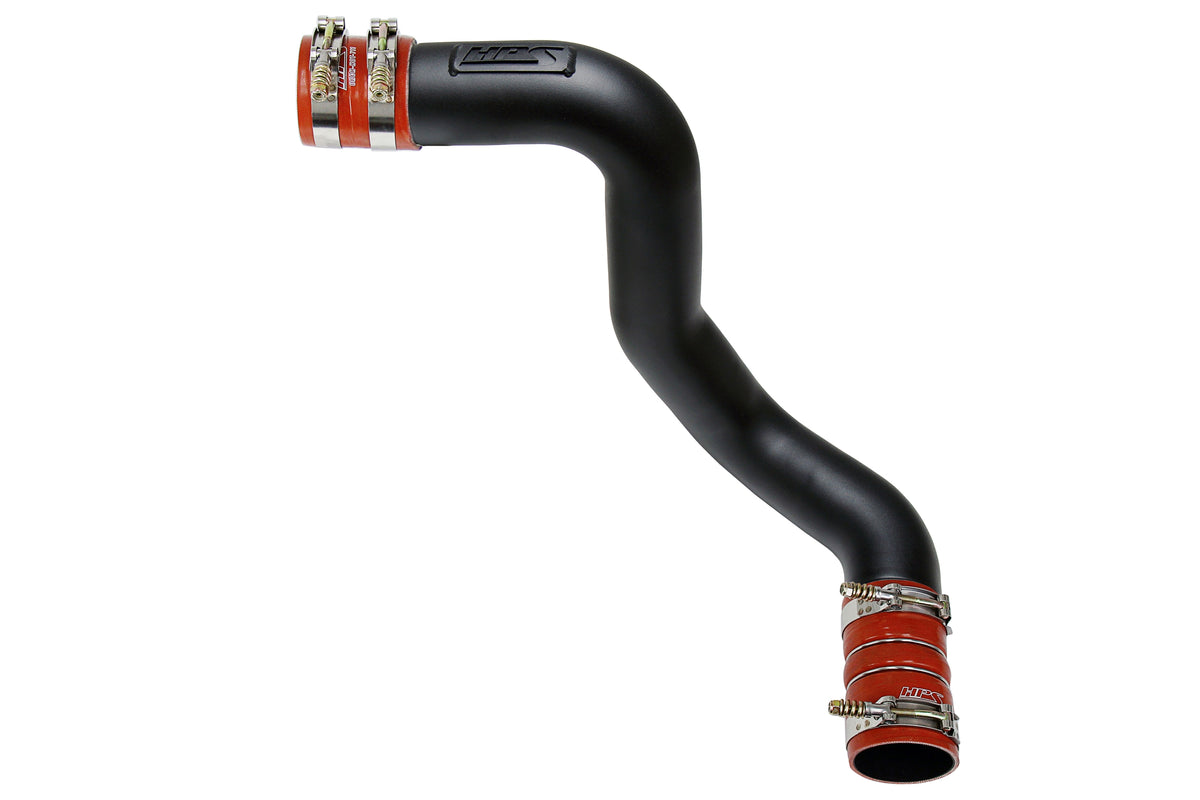

• Upgraded replacement product for the inferior cold side factory plastic charge pipe.
• Does NOT require retuning or any additional modifications.

• Ultra high-temperature, high-pressure-resistant, oil-resistant 4-ply aramid-reinforced silicone couplers for excellent durability against the harshest operating conditions.

• Includes industrial-grade, spring-loaded T-bolt clamps that provide constant tension and eliminate the need for maintenance in fluctuating temperature conditions.

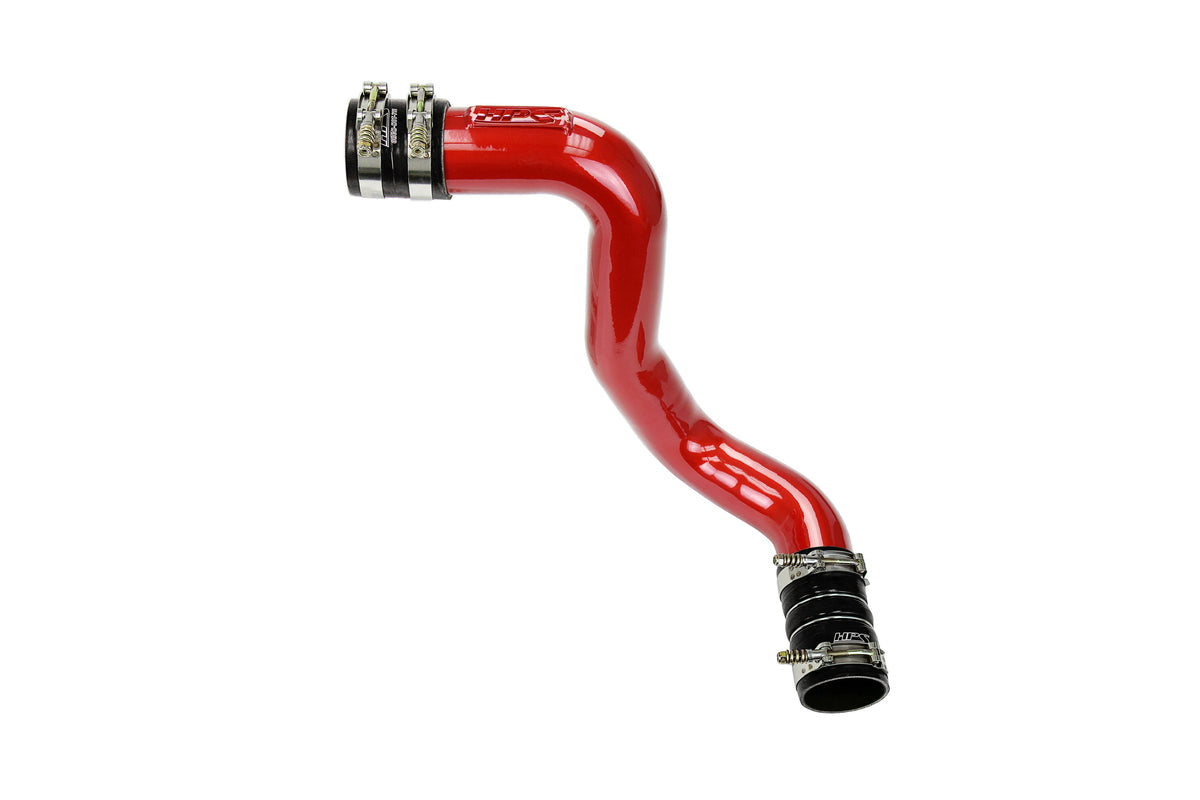

• Product Type: 17 Series Performance Charge Pipe (Cold or Hot Side)

• Intake Tube Material: Aluminum

• Intake Tube Size: 3 inch

• Warranty: 2 Years

In the Box

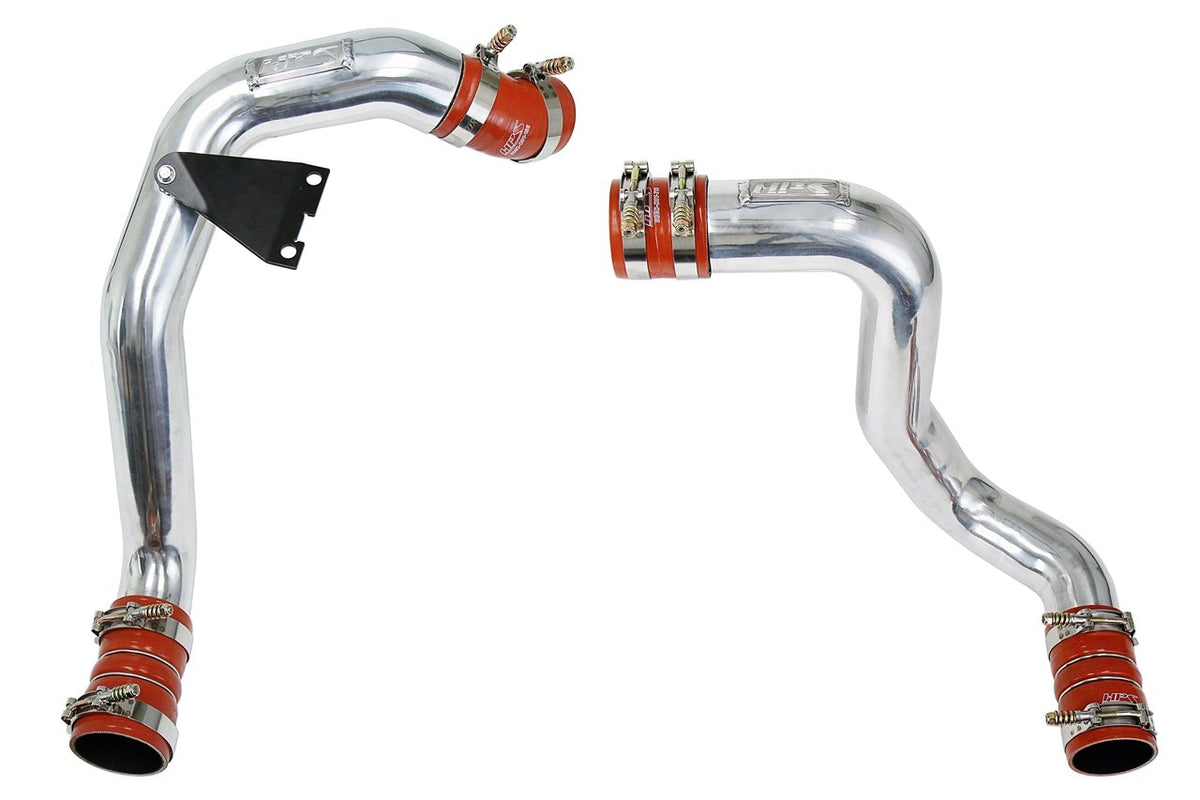

• HPS Performance Aircraft Grade Aluminum Charge Pipe

• HPS Performance Stainless Steel Spring Loaded T-Bolt Clamps

• HPS Performance Ultra High Temperature Reinforced Oil-resistant Silicone Couplers

• Digital Installation Instruction

Product Description

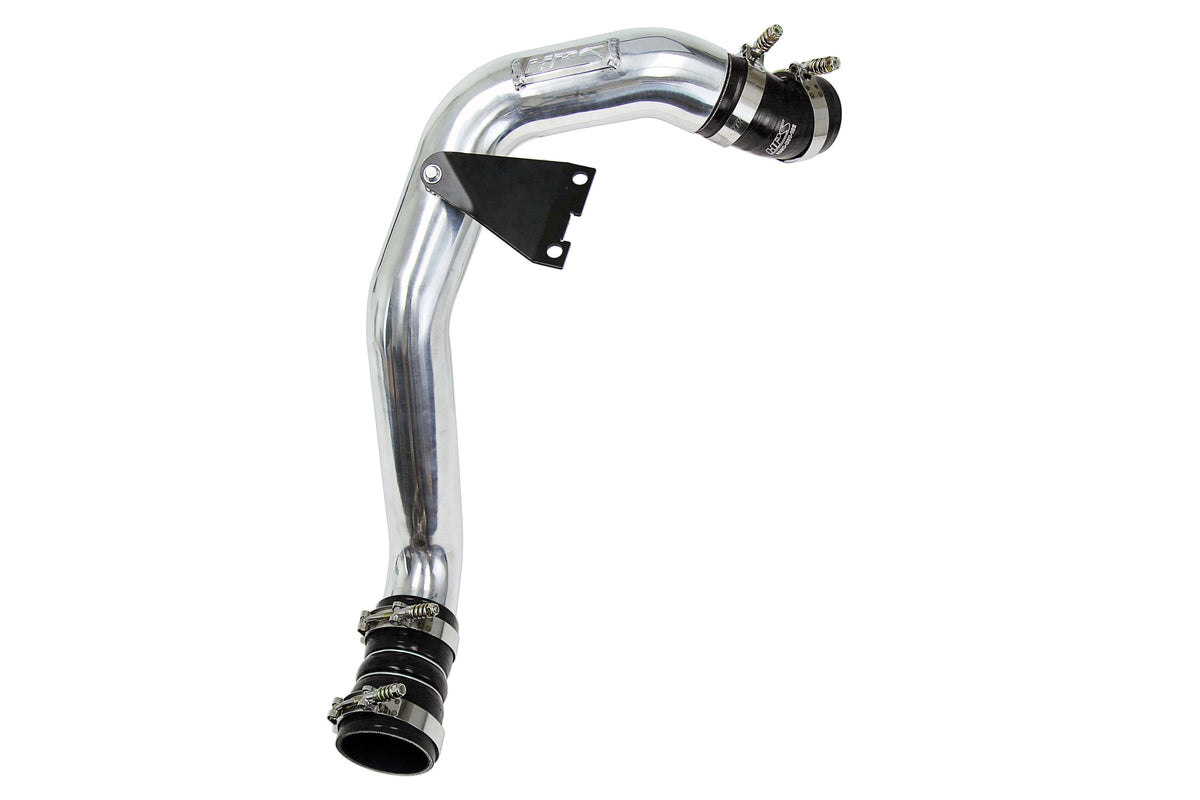

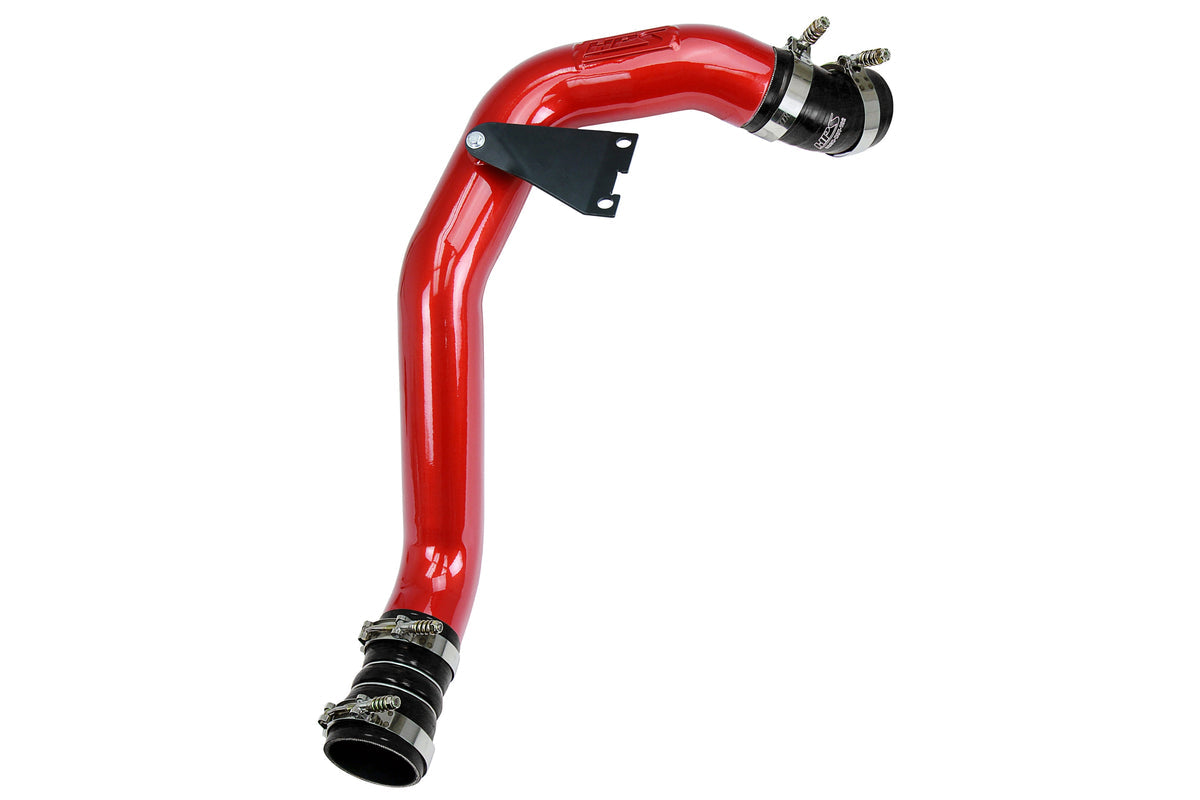

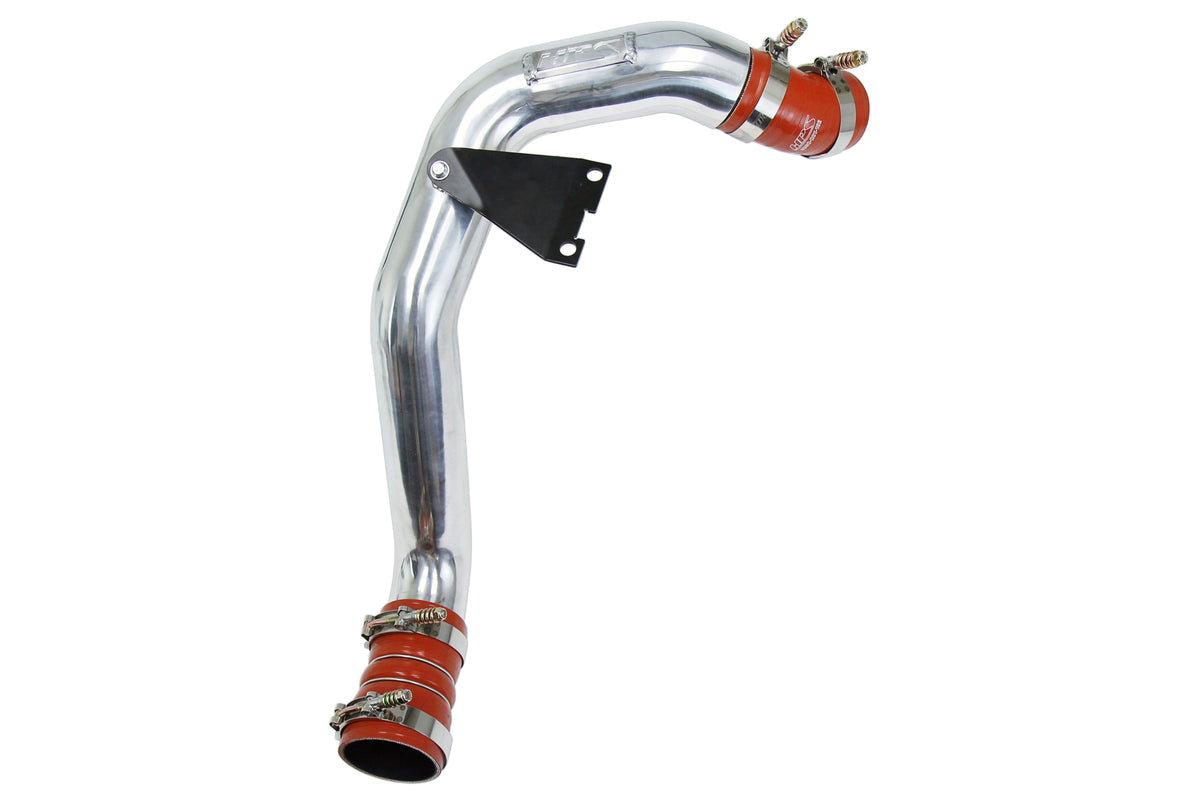

This HPS Hot Charge Pipe Kit addresses some of the most common issues that Ford F250 Super Duty owners eventually come across on their 6.0L Powerstroke Diesel Turbo. From cracked piping to worn out boots, HPS has the solution to keep your truck up and running regardless of how harsh the operation conditions are - even the hottest days. The factory hot side pipe is notorious for failing at the boots as it sits in the engine bay without any reinforcements to hold it in place. This puts a lot of stress on the boots and often leads to premature failure. A custom brace is included in the kit to help mount it in place and take the pressure off of the connecting points.

HPS Performance has engineered this charge pipe using mandrel-bent 6061-grade aluminum tubing to reduce weight by approximately 50%. This upgraded intercooler pipe also boasts performance gains as the smoother pathway improves air flow, allowing better throttle response and faster acceleration for better drivability. The stock intercooler boots are made of silicone and are reinforced with just two layers of polyester.

Because the 6.0L Powerstroke engines breathe a lot of oil through the turbo, these stock parts will degrade, become soft, and eventually rip or blow through. The custom boots in this kit are designed with 4-plies of high-temperature, high-pressure, and oil-resistant silicone material that will withstand the constant flow of oil without compromising their integrity. Held in place using HPS Stainless Steel Spring-Loaded T-bolt Clamps, fluctuations in temperature do not require maintenance as they provide constant tension to accommodate for these changes. Crafted to resist corrosion, these clamps will stand up against the elements with ease.
