Fitment Information
- Scion FR-S ZN6 (2013, 2014, 2015, 2016)
- Subaru BRZ ZC6 (2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021)
- Toyota 86 ZN6 (2017, 2018, 2019, 2020, 2021)
- FA20 engine, rear-wheel drive models
Fitment Note
This HKS Hipermax S kit fits the first-generation 86 platform only. It does not fit the 2022 and newer Toyota GR86 or Subaru BRZ ZN8/ZD8 models. Front pillowball upper mounts provide camber adjustment.
Specs and Features
-
Coilover System

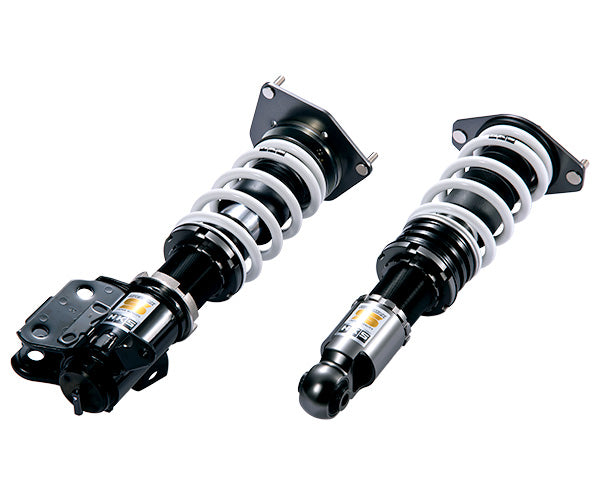

- HKS Hipermax S full coilover kit
- Manufacturer part number: 80330-AT001P
- Full-length ride-height adjustment
- Front inverted dampers, rear standard dampers
- Coilover spring and damper layout at all four corners
-
Damping and Mounts
- 30-way damping adjustment, front and rear
- Front adjustable pillowball camber plates with spherical bearings
- Rear rubber upper mounts
- Rear helper springs, 19.8 N/mm
-
Spring Rates
- Front: 5.0 kgf/mm, 170 mm straight-barrel spring
- Rear: 5.0 kgf/mm, 170 mm straight-barrel spring
-
Ride Height Range
- Front: factory setting is approximately 16 mm lower, with an adjustable range from stock height to approximately 46 mm lower
- Rear: factory setting is approximately 12 mm lower, with an adjustable range from stock height to approximately 40 mm lower
-
Warranty
- One-year HKS limited warranty against manufacturing defects when purchased through an authorized dealer
Product Description
HKS Hipermax S coilovers give the Scion FR-S, Subaru BRZ, and Toyota 86 a lower ride height with a broad range of damping adjustment for street driving, back-road use, and track days. The 30-step adjusters let you set the dampers around HKS's middle setting for regular driving or fine-tune the response as tires, alignment, and driving conditions change.
The kit uses 5 kgf/mm springs front and rear, front inverted dampers, and front pillowball camber plates. Ride height is adjusted separately from spring preload, so the car can be lowered while retaining appropriate damper stroke. The front mounts allow camber adjustment, while the rear uses rubber upper mounts to help control transmitted noise.
Product Video

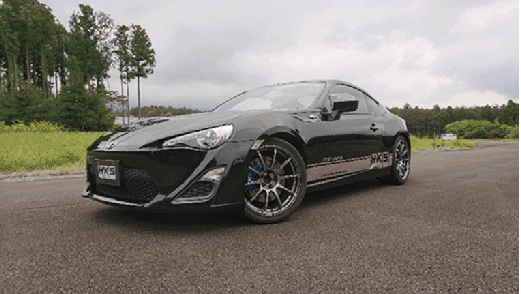

This HKS video covers the Hipermax S coilover series and its approach to ride quality, damping adjustment, and vehicle-specific suspension tuning.
Before You Buy
Set the final ride height before completing the alignment. The front camber plates provide adjustment, but lowered FR-S, BRZ, and 86 models may also need rear camber and toe correction to bring the alignment back into specification. HKS lists the lowest height settings as potentially unsuitable for road use or free of tire, arm, and body interference, especially with non-stock wheels and tires.
Related Suspension and Performance Upgrades for Your FR-S, BRZ, or 86
- Godspeed Rear Camber Arms for FR-S, BRZ and 86 - provide rear camber correction after lowering.
- SPC Adjustable Rear Toe Arms for FR-S, BRZ and 86 - allow rear toe to be reset after suspension and camber changes.
- HKS Legamax Exhaust for FR-S, BRZ and 86 - a vehicle-specific HKS exhaust upgrade for the same first-generation platform.
About HKS
HKS is a Japanese performance brand with a long history of building vehicle-specific intake, exhaust, turbo, engine-management, and suspension components. The Hipermax line combines application-specific spring rates, damper valving, and ride-height adjustment for street and performance driving.
