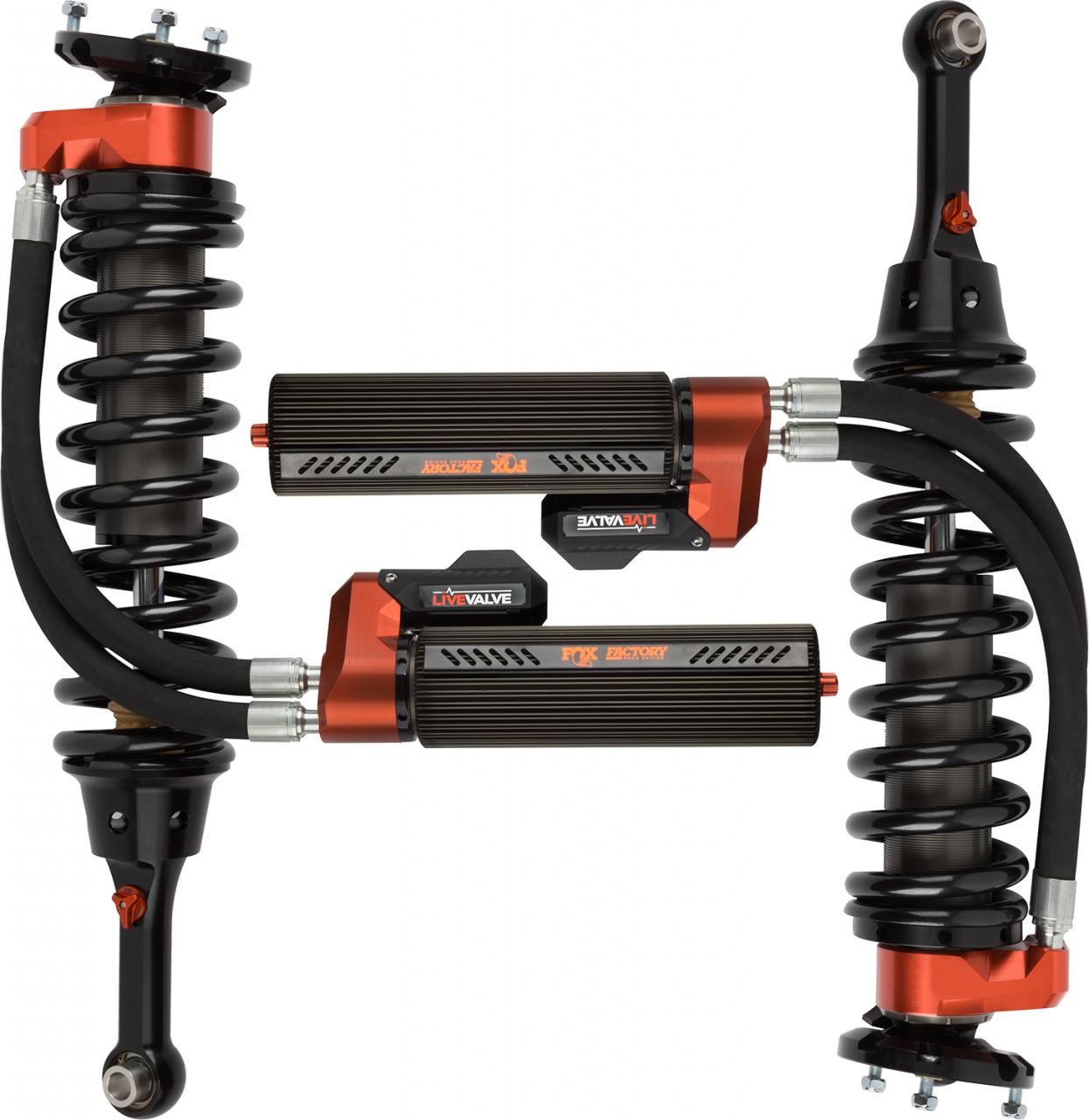

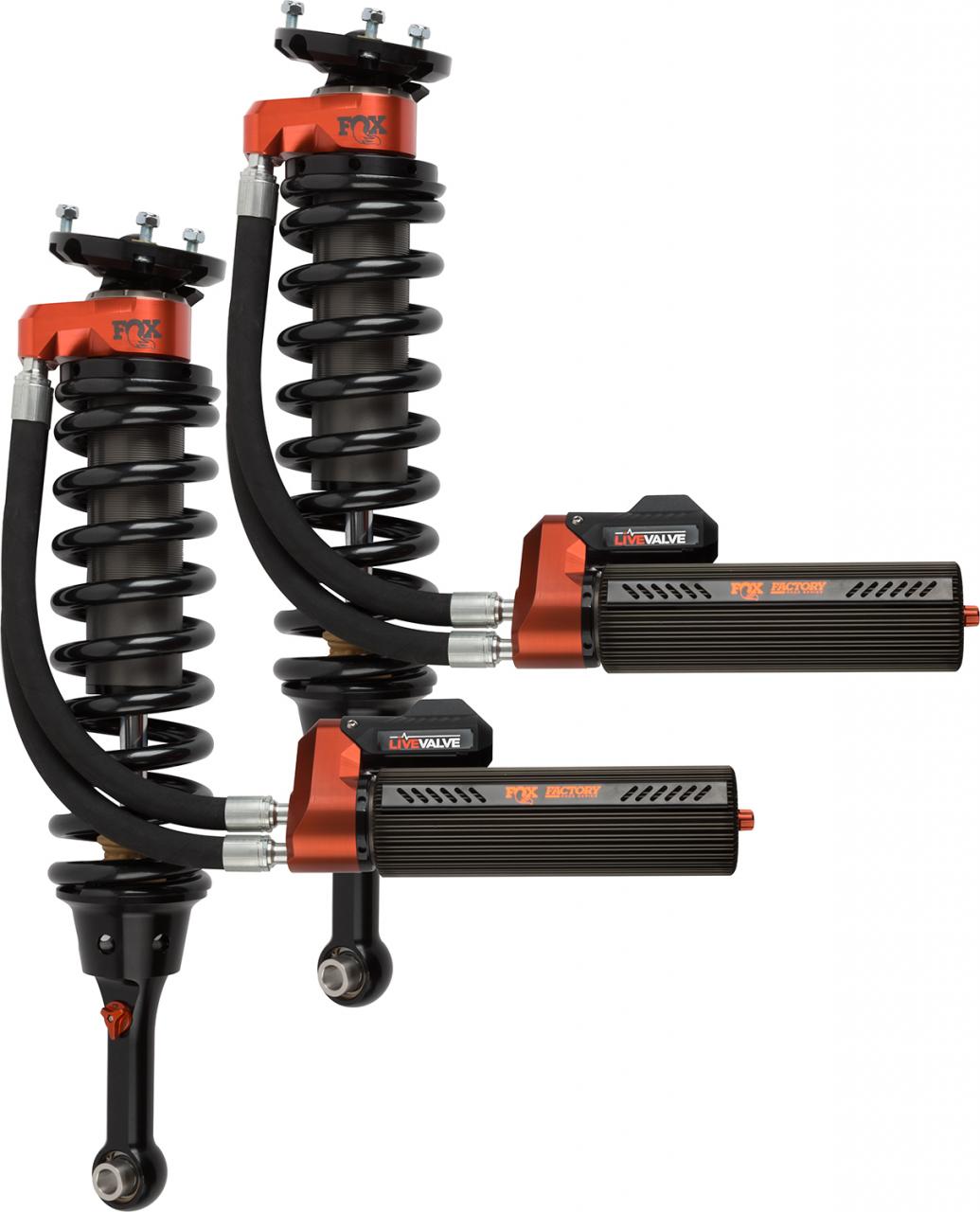

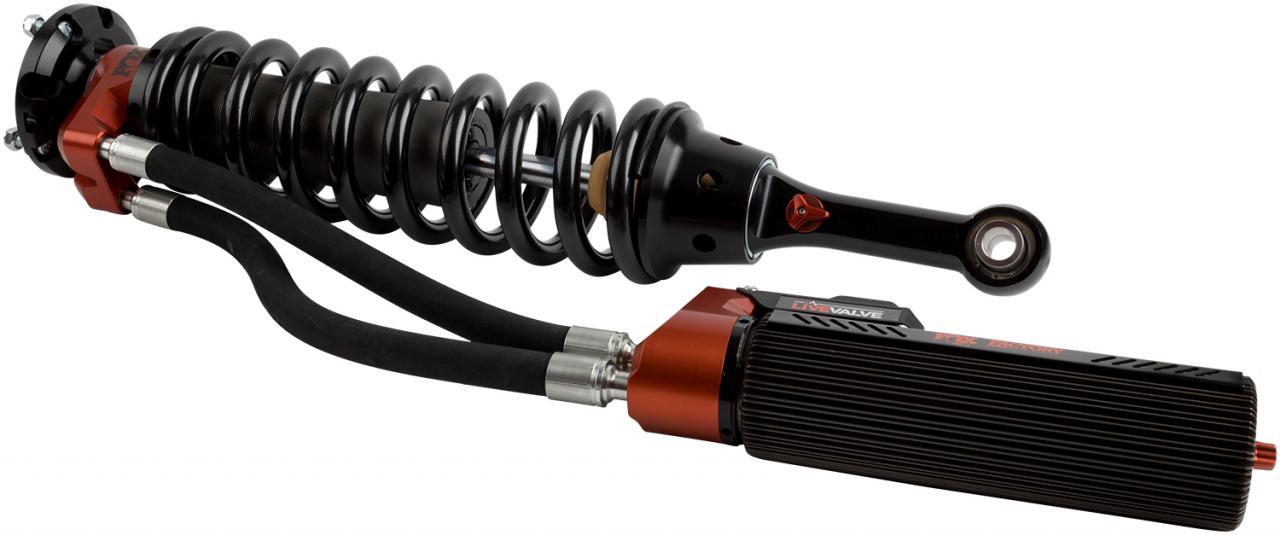

FOX Factory Race Coilovers Ford F150 Raptor (19-20) [7.9 in., 0-2 in. LIFT] Front 3.0 Live Valve Internal Bypass - 883-06-153

$3,989.95
$3,989.95

Free Shipping - Lower 48 US States

In Northern California? Get this professionally set up & installed!

Fitment Information

  • Ford F150 Raptor (2019, 2020)

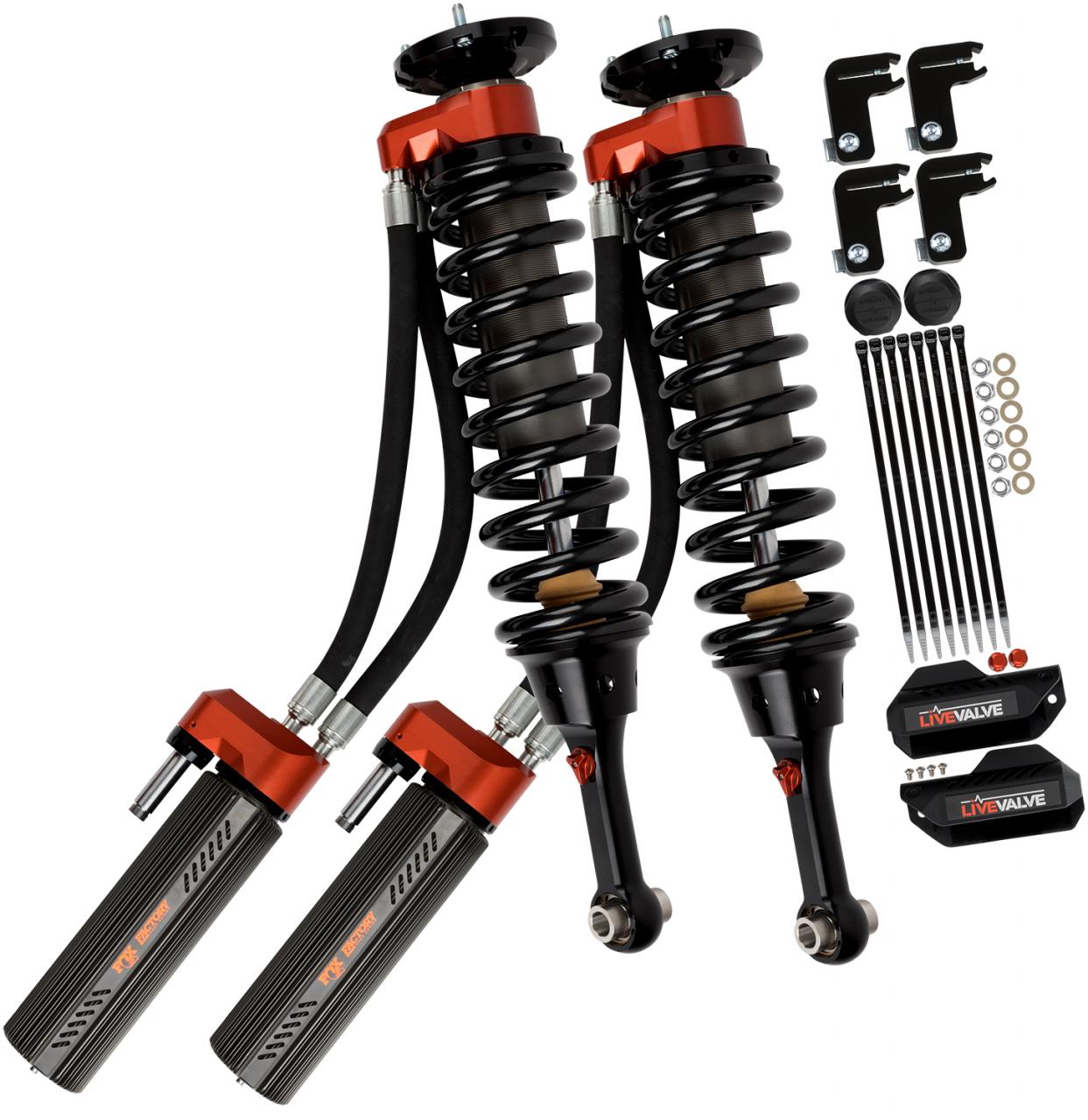

  • Reservoir Mounting Hardware Included

      Specs & Features

      • Sold as Pair
      • Fitment notes: Reservoir Mounting Hardware Included

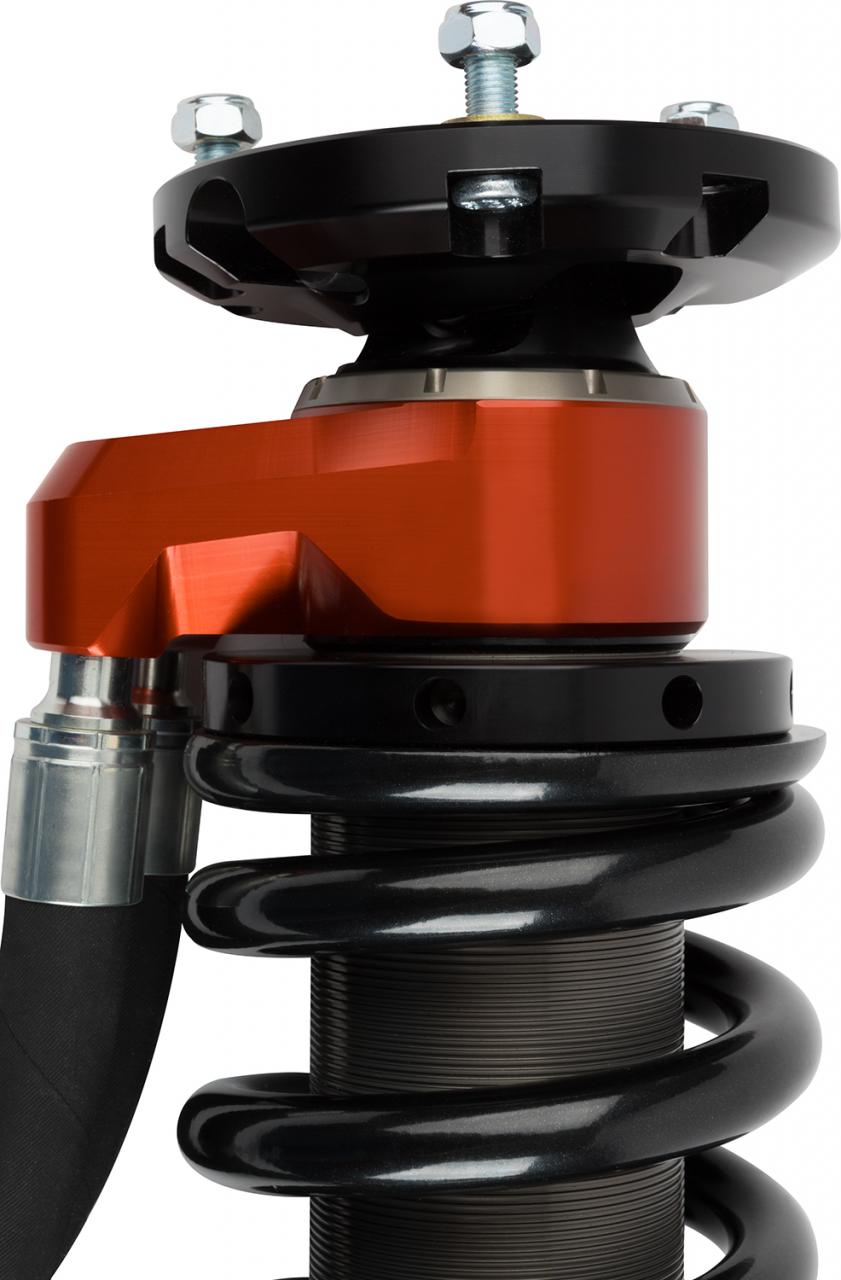

      • 3.0 Factory Race Series Coilover
      • Body: 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel
      • Body Plating: Hard-anodized for a durable finish

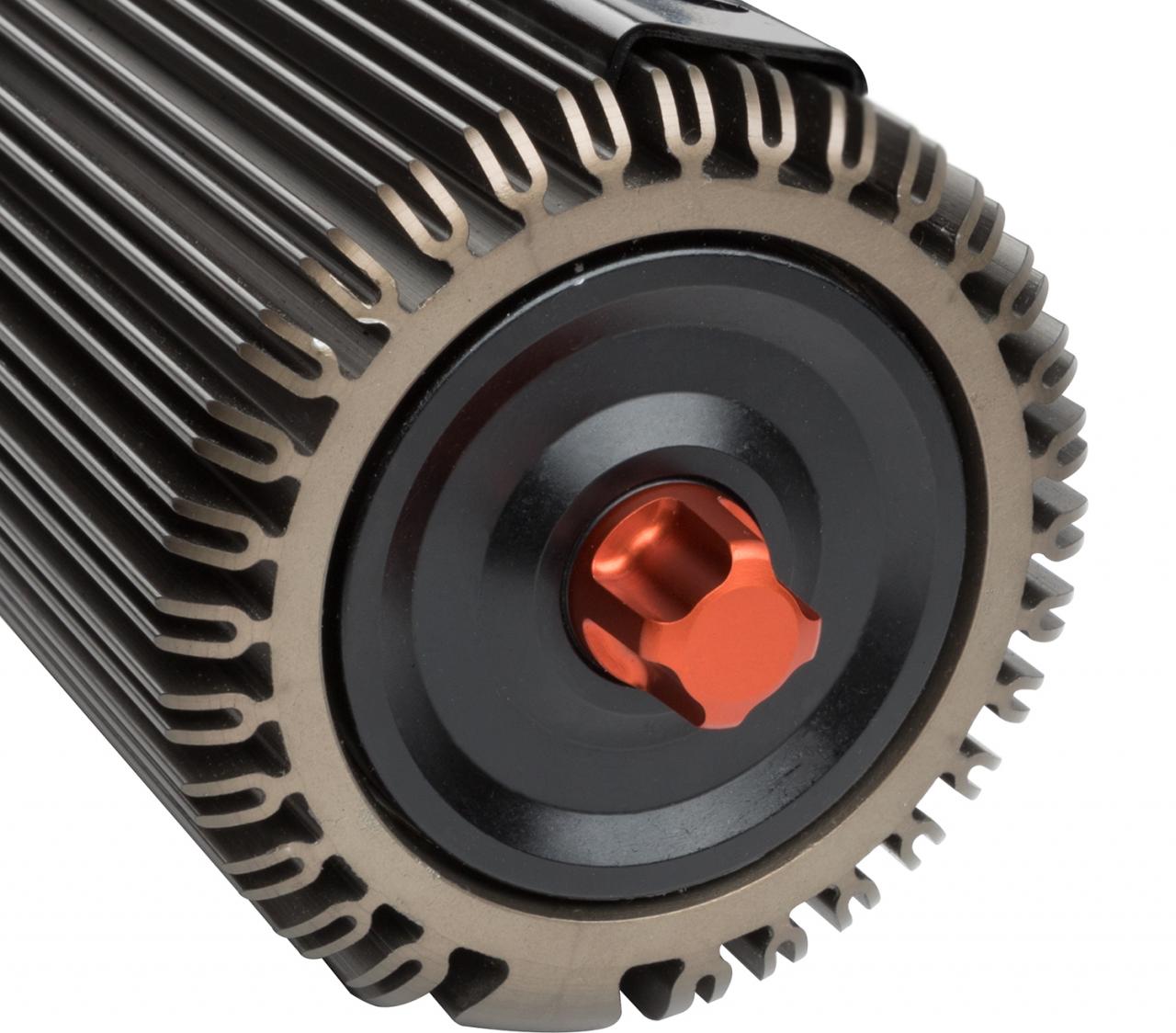

      • Reservoir: Hard anodized aluminum finned remote reservoir (front) and piggyback reservoir and cooler (rear) resist corrosion and help dissipate heat fast. External fins act as heat sinks for increased heat dissipation.
      • Components: Anodized, CNC-machined 6061-T6 billet aluminum
      • Spring: Heavy duty 3.75? racing spring (fronts)
      • Shaft: 7/8" hard chrome plated 17-4 H900 stainless steel
      • Piston: Hard anodized 6061-T6 billet aluminum high flow race piston
      • Valving: Application-specific valving to maximize performance
      • Seals: Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions
      • Bearing: PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth
      • Mounting: Heat treated steel spherical heim mounting

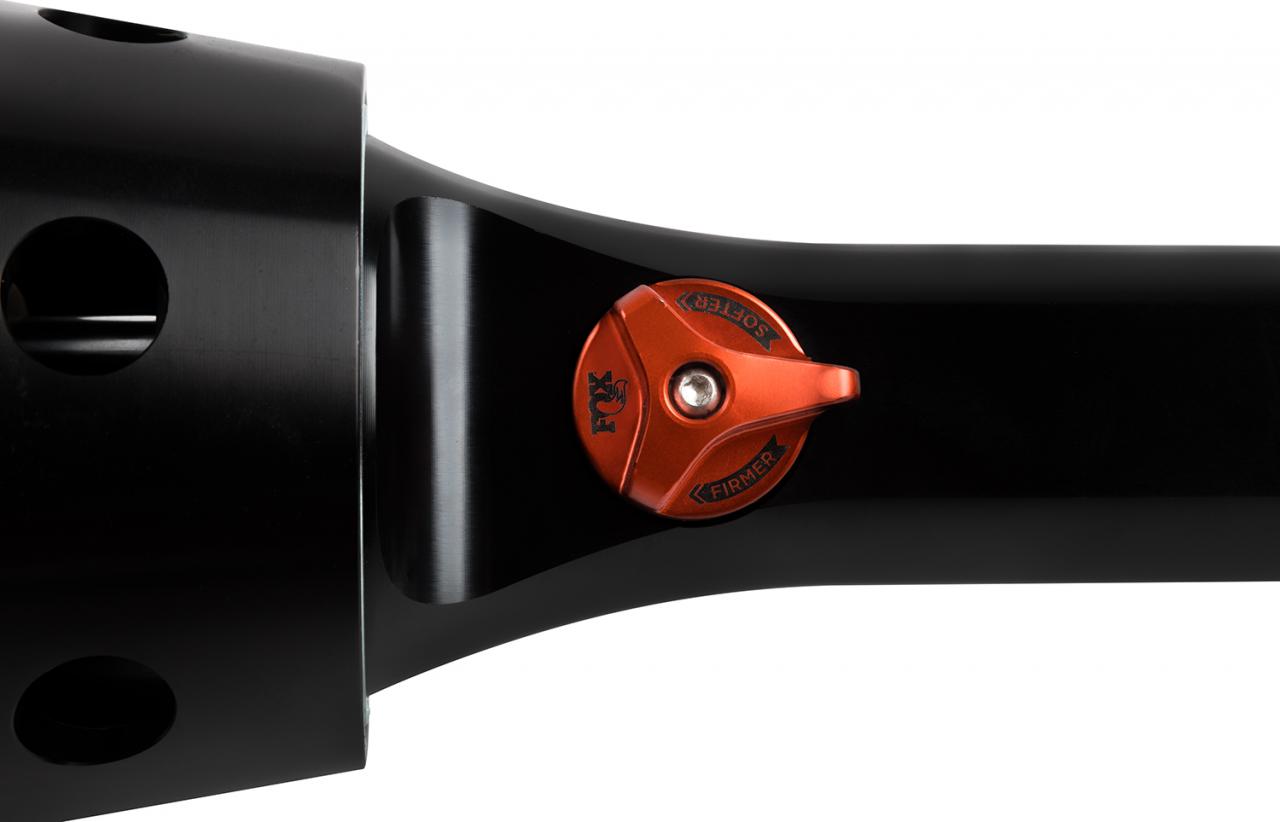

      • Adjustments: Adjustable ride-height/preload / QS3 rebound and compression adjuster
      • Adjuster Type: Live Valve/Quick Switch Technology (QS3) - Compression and Rebound
      • Extended: 28.490
      • Compressed: 20.600
      • Travel: 7.890
      • Top Mount: OEM
      • Bottom Mount: Eyelet

        Product Description

        By using vehicle sensors and accelerometers, Live Valve can instantly adapt to inertial, steering, braking, and acceleration inputs to actively maximize handling, comfort, and bottom-out resistance. Three-way quick switch adjusters allow the shocks to be optimized for On-Road Performance, On-Road Comfort, or Off-Road Performance while the external cooling system ensures they will perform at their best when you are blasting through the desert.

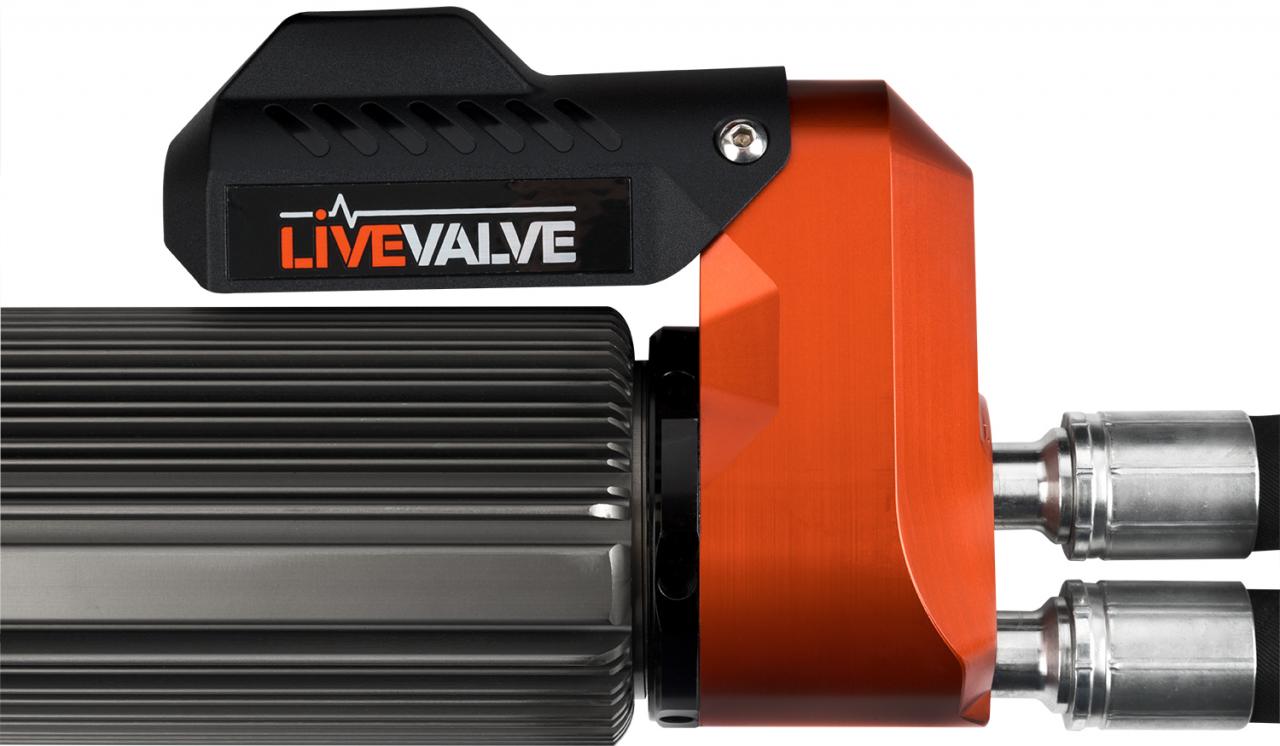

        • NEW Live Valve semi active technology equipped, plug and play integration to factory electronics
        • NEW Rebound and compression adjustable via Quick Switch Technology (QS3)

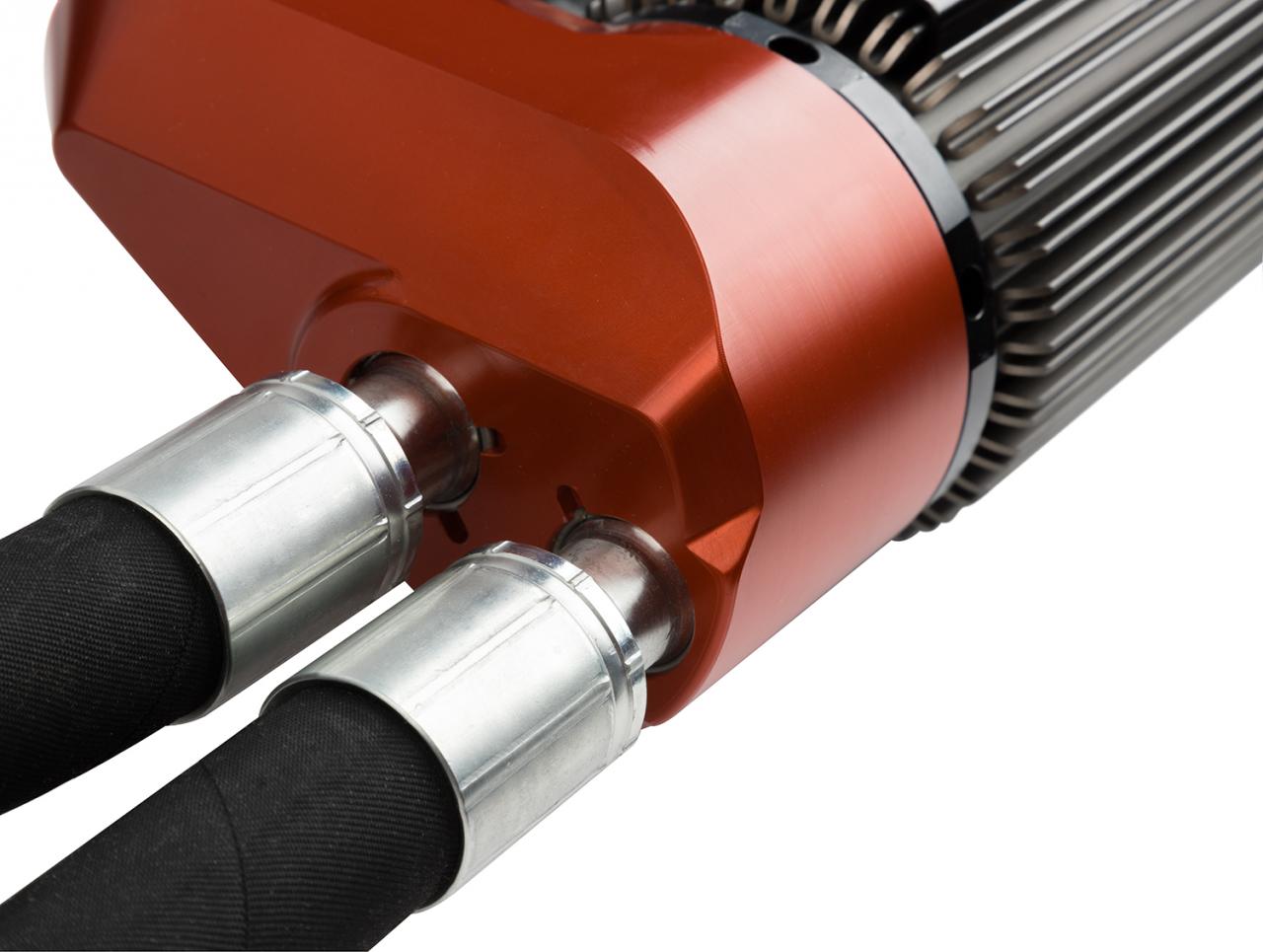

        • NEW Rotatable hose fittings for easy installation
        • FOX patented, position-sensitive Internal Bypass damping technology
