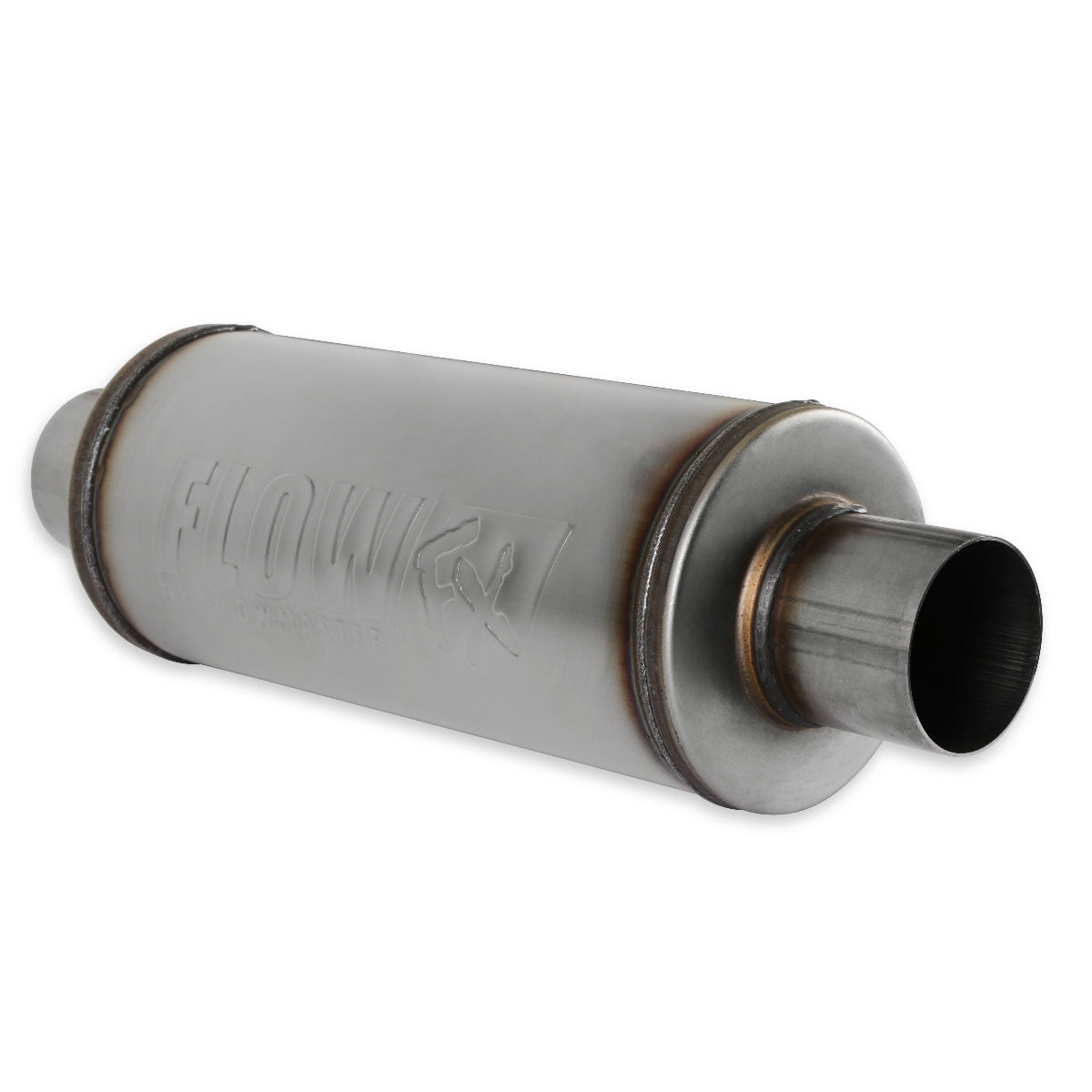

Flowmaster Flow FX Muffler 3" Center In / Center Out Round Stainless Steel 72619

Fitment Information

• Universal muffler
• One 3.0-inch center inlet
• One 3.0-inch center outlet
• Requires custom fabrication, welding, or clamp-on exhaust installation

Fitment Note

This is a universal single-inlet, single-outlet muffler. It has one 3.0-inch center inlet and one 3.0-inch center outlet. It is not a dual-inlet or dual-outlet muffler, and it does not include clamps, hangers, exhaust tips, or vehicle-specific installation hardware.

Emissions Compliance

Flowmaster lists this as Emission Code 5. It is legal for sale and use on emissions-controlled vehicles because the muffler does not alter emissions equipment.

Specs and Features

• Configuration
  • Flowmaster Flow FX universal muffler
  • Manufacturer part number: 72619
  • UPC: 090127807774
  • One 3.0-inch center inlet
  • One 3.0-inch center outlet
  • Reversible internal flow design
• Dimensions
  • 6.0-inch round body
  • 14.0-inch body length
  • 20.0-inch overall length
• Construction and Sound
  • Fully MIG-welded 409 stainless steel case
  • 3.0-inch straight-through perforated stainless steel core
  • High-temperature sound-absorption material
  • Moderate exterior tone with a mild to moderate interior tone
  • One-year Flowmaster limited warranty when purchased through an authorized dealer such as Redline360

Product Description

The Flowmaster 72619 Flow FX is a compact universal 3-inch muffler for custom exhaust builds that use a single inlet and single outlet. Its straight-through perforated core and high-temperature packing give it a deep, mellow tone that is different from a traditional chambered Flowmaster muffler.

The 6-inch round case fits where space is tight, while the 3-inch core keeps the exhaust path open for larger-displacement gas engines and performance street builds. The internal layout is reversible, so an exhaust shop can install it in either direction to suit the available space and pipe routing.

Measuring for a Universal 3-Inch Muffler

Check your available space before ordering. The case is 6 inches round and 14 inches long, while the muffler measures 20 inches overall. You will need a single 3-inch inlet pipe and a single 3-inch outlet pipe to match this muffler.

This is a fabrication part, not a direct-fit replacement. Plan for the correct tubing, hangers, clamps or welding, and an exhaust tip if your build uses one. If your vehicle has dual 3-inch inlets and dual 3-inch outlets, this is not the right muffler.

Need a Dual 3-Inch Inlet and Outlet?

• Flowmaster Flow FX 3-Inch Dual In / Dual Out Muffler, Part 72469 - The correct Flow FX option for builds that need dual 3-inch inlets and dual 3-inch outlets.

About Flowmaster

Flowmaster builds mufflers and exhaust systems for street, truck, off-road, and performance applications. The Flow FX line uses a packed, straight-through design for a deep, mellow tone and more open exhaust flow than a traditional chambered muffler.
