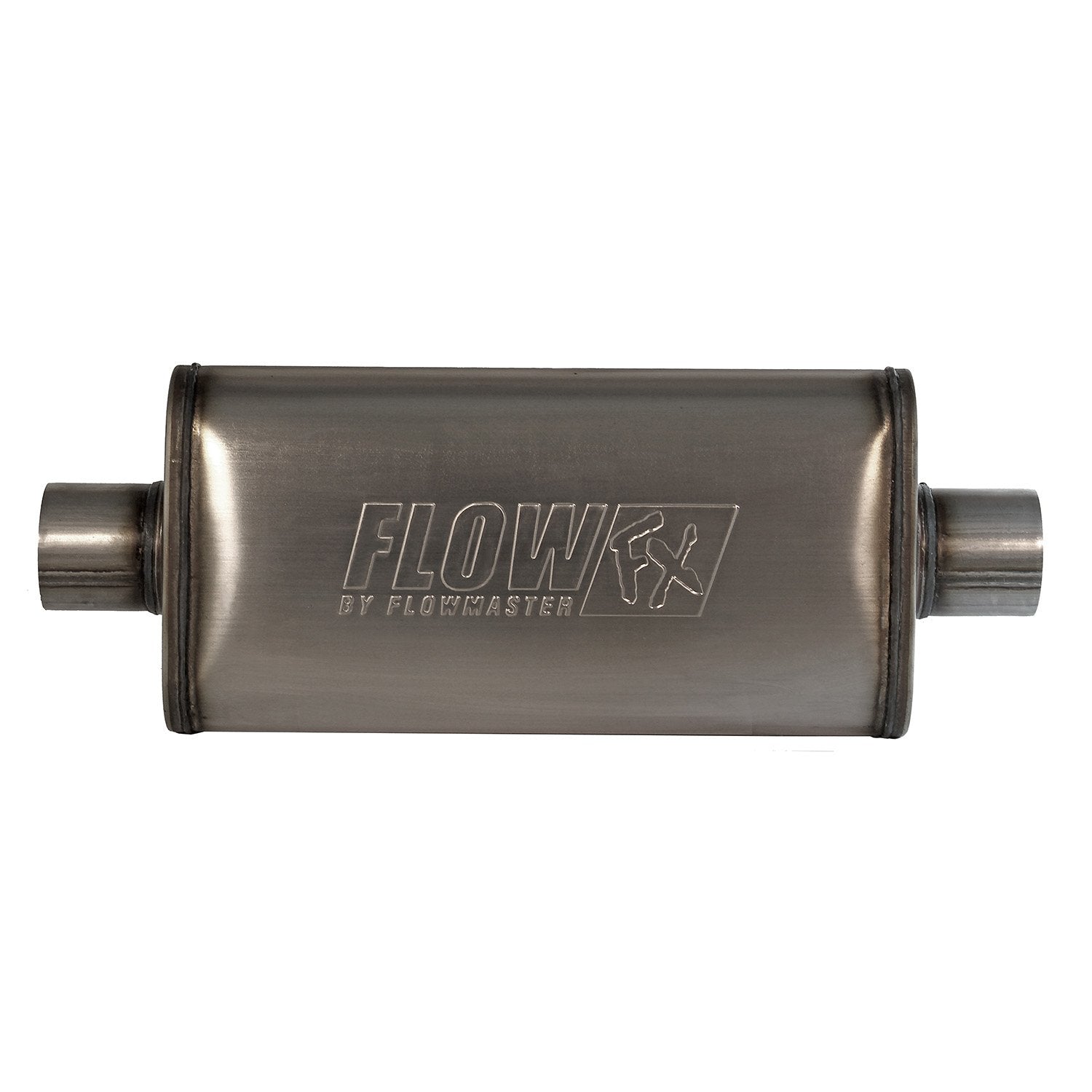

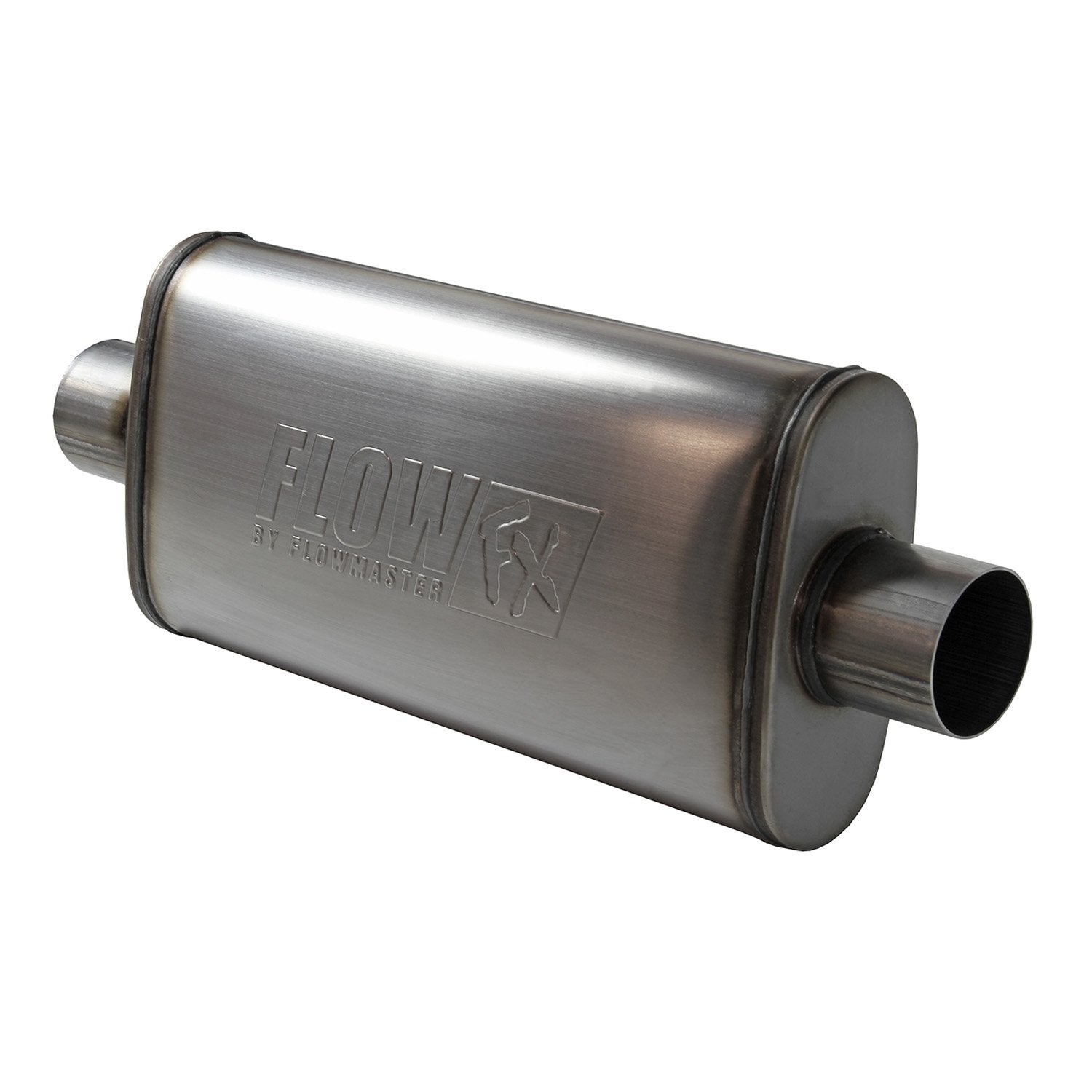

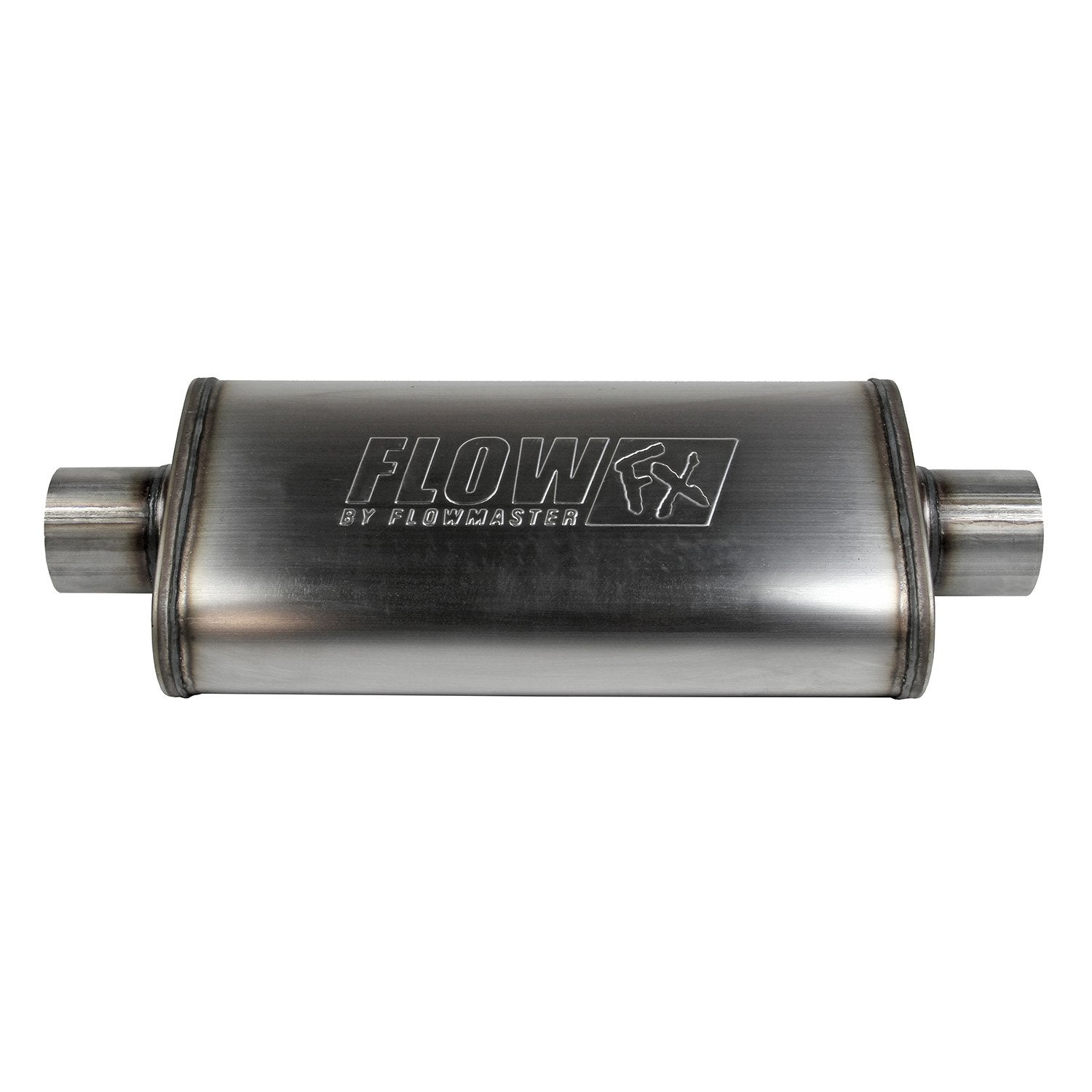

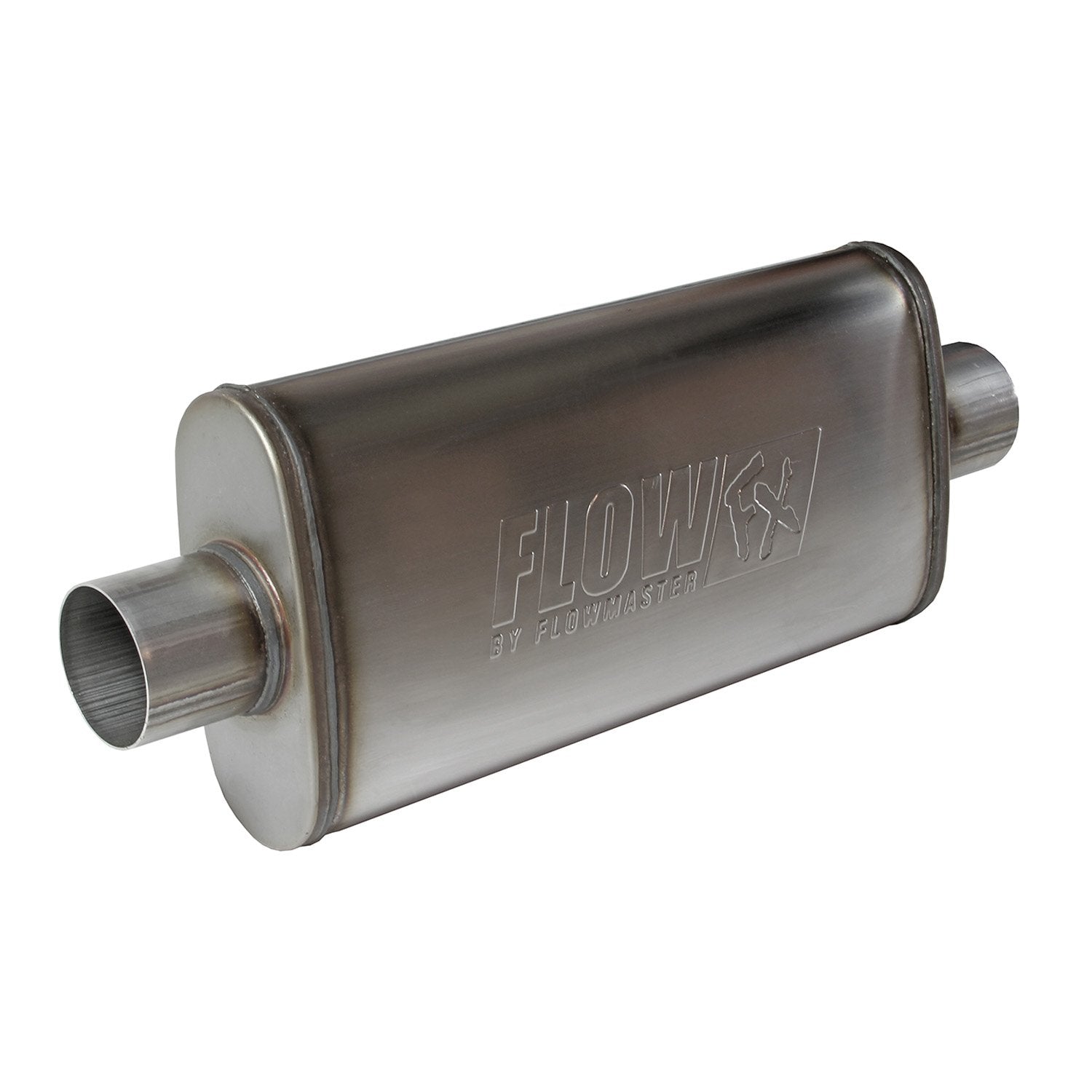

Flowmaster Flow FX Muffler 3" Center In/Out Straight-Through 71249

Fitment Information

• Universal exhaust muffler
• Single 3.0-inch center inlet
• Single 3.0-inch center outlet
• Requires custom exhaust fabrication, welding, or clamp-on installation

Fitment Note

This is a universal 3-inch muffler, not a direct-fit replacement for a specific vehicle. Measure the available space, pipe diameter, hanger locations, and planned exhaust routing before ordering.

Emissions Information

Flowmaster lists this muffler as Emission Code 5. It does not affect vehicle emissions equipment and is legal for sale and use on emissions-controlled, non-emissions-controlled, and racing vehicles.

Specs and Features

• Flowmaster Flow FX Muffler
  • Manufacturer part number: 71249
  • UPC: 090127088463
  • Universal single-inlet, single-outlet muffler
  • Reversible internal design
• Dimensions
  • 3.0-inch center inlet
  • 3.0-inch center outlet
  • 4.0-inch body height
  • 9.0-inch body width
  • 18.0-inch body length
  • 24.0-inch overall length
• Construction and Sound
  • Oval 409 stainless steel case
  • Fully MIG-welded construction
  • 3.0-inch perforated straight-through core
  • High-temperature sound-absorption material
  • Moderate exterior tone with a mild to moderate interior sound level
  • Slip-fit connections for clamp-on or weld-on installation
• What Is Not Included
  • Exhaust clamps
  • Hangers
  • Exhaust tip
  • Heat shield

Product Description

The Flowmaster Flow FX 71249 is a universal 3-inch straight-through muffler for a custom exhaust that needs a center inlet and center outlet. Its 4 x 9-inch oval case gives you a little more room for sound control than a small round muffler while still fitting many street-car, truck, classic, and custom exhaust layouts.

Inside, the Flow FX uses a perforated 3-inch core and high-temperature sound-absorption material instead of a traditional chambered design. The result is a deep, mellow performance tone with a moderate exterior sound level. It is a good fit for someone who wants the exhaust to sound stronger without making every drive overly loud inside the vehicle.

The 409 stainless steel case is fully MIG welded, and the reversible design lets your exhaust shop install it in either direction to suit the layout. It accepts 3-inch pipe on both ends and can be clamped or welded into place.

Planning a Custom 3-Inch Exhaust

Make sure the 24-inch overall length works with your available space before ordering. You will need a single 3-inch pipe entering and leaving the muffler, plus the appropriate clamps, hangers, tubing, and exhaust tip for your build. It is also good to mock up the final location before welding so the case clears suspension travel, driveshaft movement, and heat-sensitive components.

Other 3-Inch Flow FX Options

• Flowmaster Flow FX 3-inch dual-in / dual-out muffler - for true dual-exhaust builds that need two 3-inch inlets and two 3-inch outlets.

Warranty

One-year Flowmaster warranty when purchased through an authorized dealer such as Redline360.

About Flowmaster

Flowmaster has been building performance exhaust systems, mufflers, tips, and exhaust components for street cars, trucks, muscle cars, and custom builds for decades. The Flow FX line is made for enthusiasts who want a straight-through muffler with a deeper tone and a more refined sound than a typical race-style setup.
