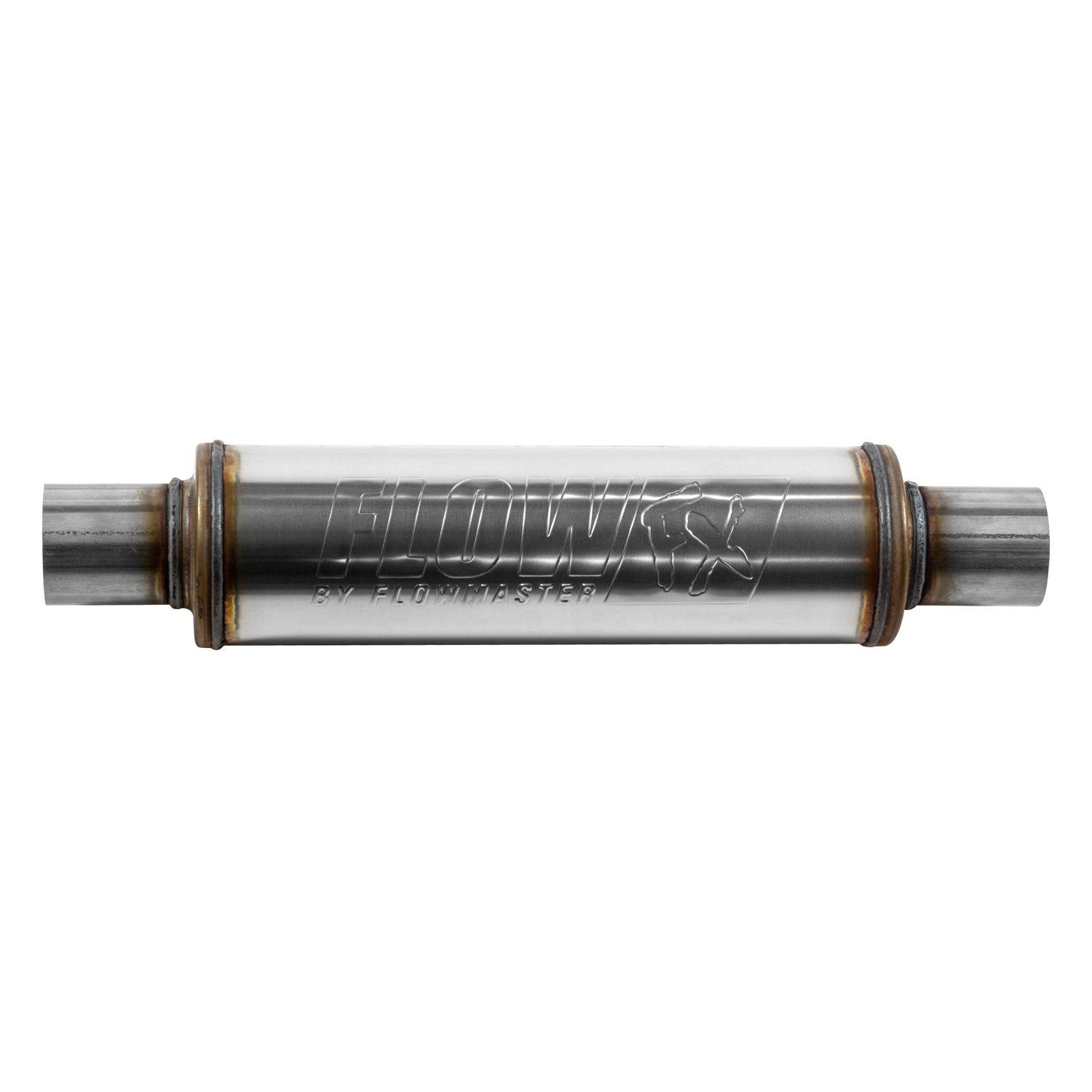

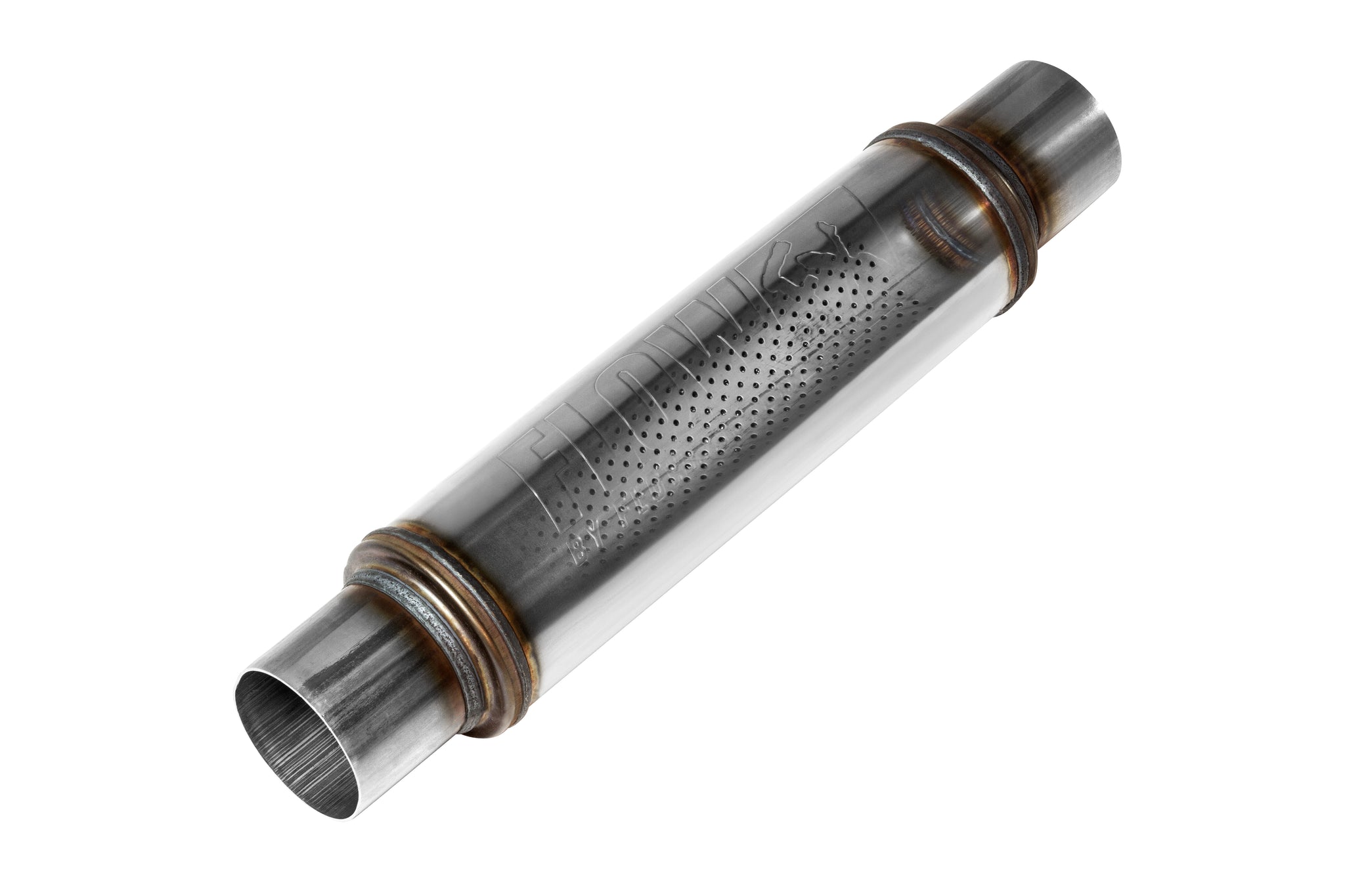

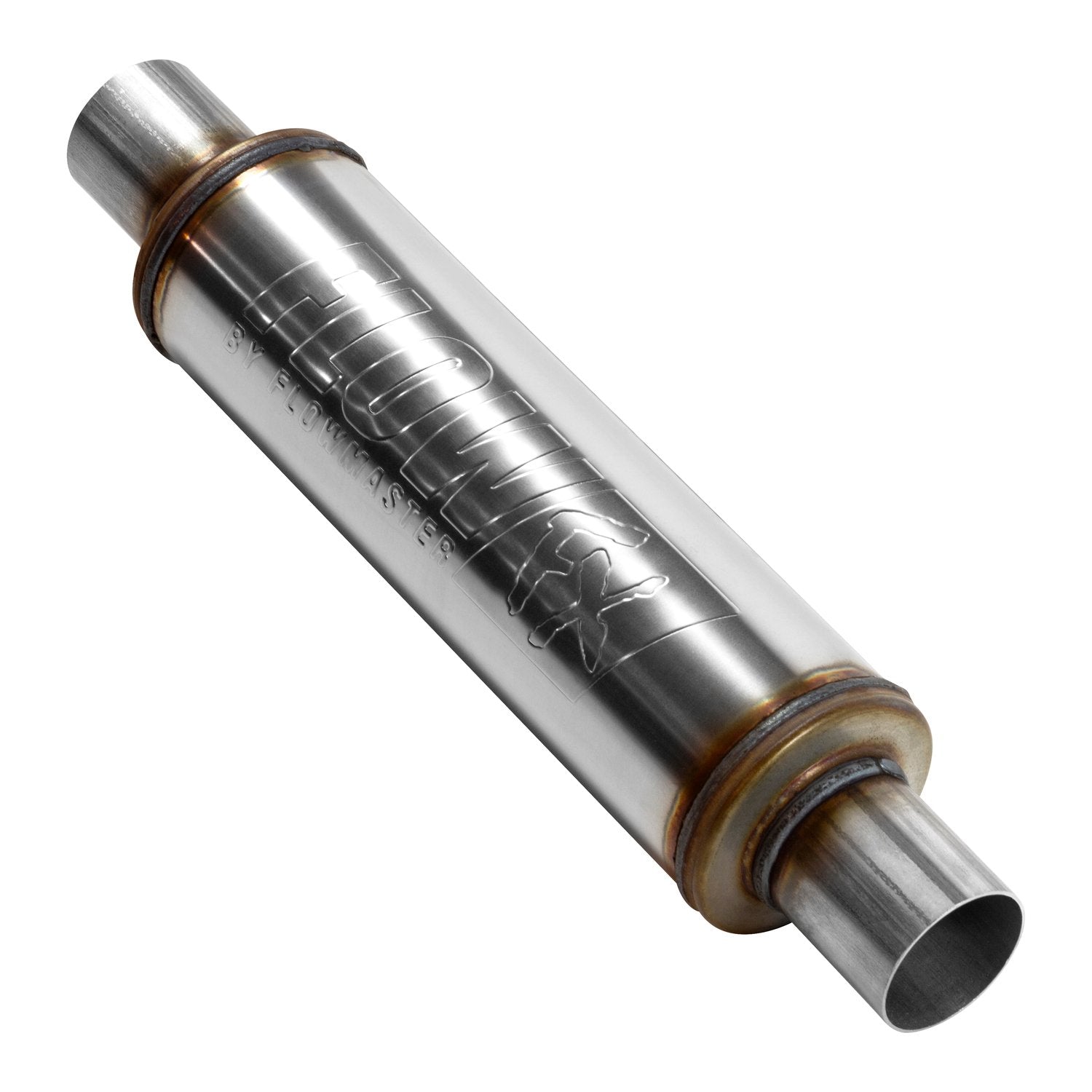

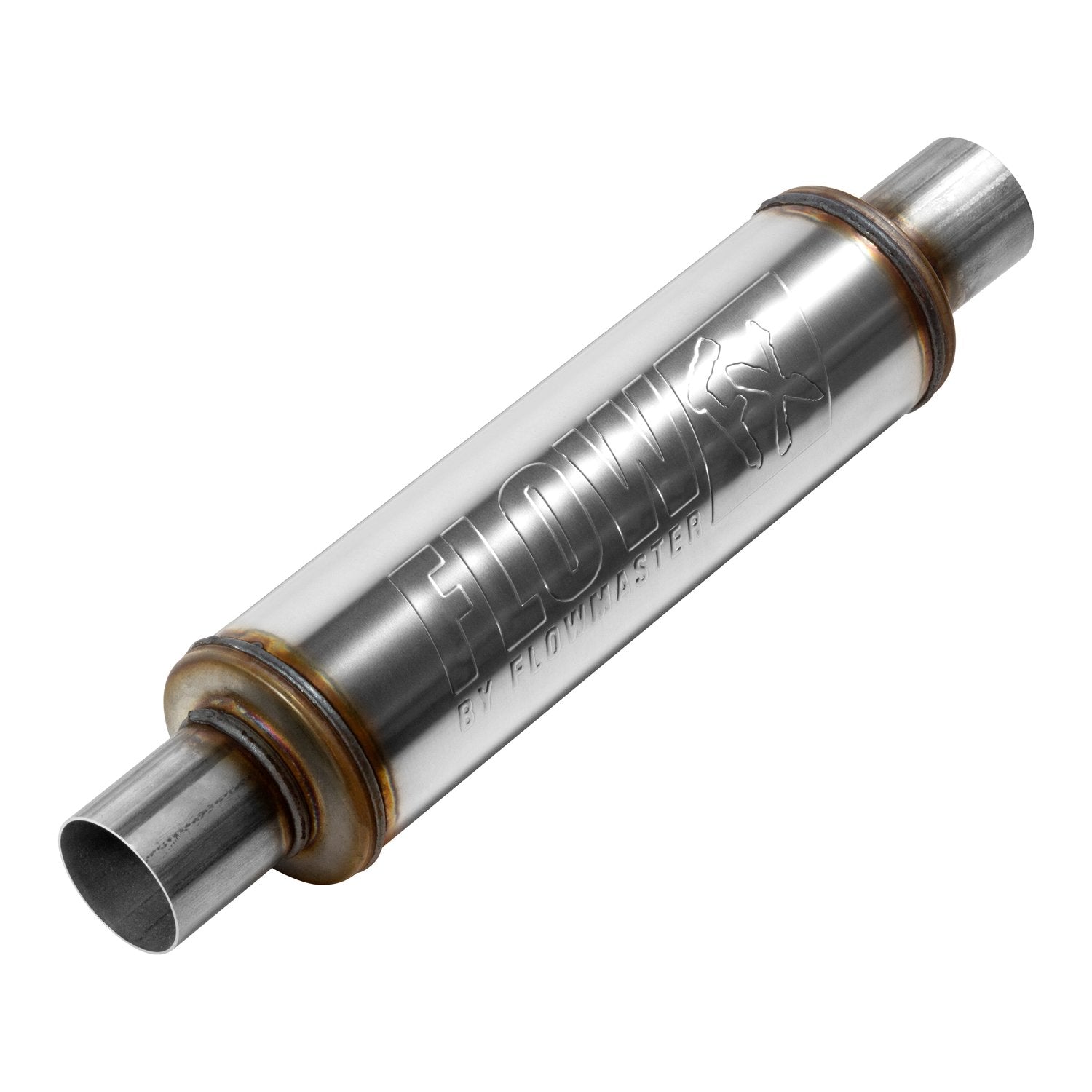

Flowmaster Flow FX Muffler 2.25" Center In/Out Round Body Stainless Steel 71415

Compact 2.25-Inch Performance Muffler

The Flowmaster Flow FX 71415 is a compact 4-inch round muffler for a custom exhaust that uses a single 2.25-inch center inlet and center outlet. Its straight-through design and fully welded 409 stainless case give a custom build a deeper, moderate exhaust tone without the traditional chambered-muffler sound.

Fitment Information

• Universal exhaust muffler
• Single 2.25-inch center inlet
• Single 2.25-inch center outlet
• Requires custom exhaust fabrication, welding, or clamp-on installation

Emissions Information

Flowmaster lists this muffler as Emission Code 5. It does not affect emissions equipment and is legal for sale and use on emissions-controlled, non-emissions-controlled, and racing vehicles.

Specs and Features

• Flowmaster Flow FX Muffler
  • Manufacturer part number: 71415
  • UPC: 700042038473
  • Universal single-inlet, single-outlet absorption muffler
  • Reversible internal design
• Dimensions
  • 2.25-inch center inlet
  • 2.25-inch center outlet
  • 4.0-inch round body diameter
  • 14.0-inch body length
  • 20.0-inch overall length
• Construction and Sound
  • Fully welded 409 stainless steel case
  • Straight-through internal design
  • Moderate exterior performance tone
  • Slip-fit connections for clamp-on or weld-on installation
• What Is Not Included
  • Exhaust clamps
  • Hangers
  • Exhaust tip
  • Heat shield

Product Description

The Flowmaster Flow FX 71415 is a universal 2.25-inch muffler for builds that need a compact, straight-through center-in and center-out layout. The 4-inch round case is useful where space is tight, while the 14-inch body provides more sound control than a short race-style muffler.

Rather than using Flowmaster’s traditional chambered design, the Flow FX uses a straight-through core to deliver a smoother, deeper tone. It is a good choice for a street-driven four-cylinder, six-cylinder, classic, truck, or custom project where you want more exhaust character without stepping into an excessively loud setup.

The 409 stainless case is fully welded for durability, and the reversible layout gives your exhaust shop flexibility when positioning the muffler. It accepts 2.25-inch pipe on both ends and can be clamped or welded into the system.

Measuring for a 2.25-Inch Muffler

Measure the available room before ordering. This muffler is 20 inches long overall with a 4-inch round body, and it needs a straight center-to-center pipe path through the case. You will need a single 2.25-inch pipe entering and leaving the muffler, along with the appropriate clamps, hangers, tubing, and tip for your build.

It is also good to mock up the muffler before welding. Make sure it clears suspension movement, driveshafts, brake lines, and heat-sensitive components. This is a universal part, so final fitment depends on the vehicle and the exhaust work being done.

Need an Offset 2.25-Inch Layout?

• Flowmaster Flow FX 2.25-inch offset-in / offset-out muffler - for exhaust layouts that do not have a straight center-to-center pipe path.

Warranty

One-year limited Flowmaster warranty when purchased through an authorized dealer such as Redline360.

About Flowmaster

Flowmaster builds performance exhaust systems, mufflers, tips, and fabrication components for street cars, trucks, muscle cars, and custom projects. The Flow FX line is made for enthusiasts who want a straight-through muffler with a deeper, more refined tone than a typical race-style setup.
