Flowmaster Exhaust for Nissan Titan V8 5.6L (2017-2024) Flow FX Catback Dual Same Side or Single Side Exit

Fitment Information

• Nissan Titan V8 5.6L (2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024)

• Fits Platinum Reserve, PRO-4X, S, SL, SV


Emissions Compliance

This exhaust does not remove or replace any emissions components and is 50 state emissions legal.

Specs & Features

• Finish: Natural 409 Stainless Steel with Black Ceramic-Coated Tips

• Inlet Diameter: 3.00 inches at muffler; configuration-specific upstream piping

• Main Piping Diameter: 3.00 inches, with dual 2.50-inch tubing

• Tail Pipe Quantity: #718105 - Dual / #717910 - Single

• Exhaust Type: Cat-Back

• Exit Style: #718105 - Dual Out Same Side / #717910 - Single Out Side

• Sound Level: Aggressive / Moderate

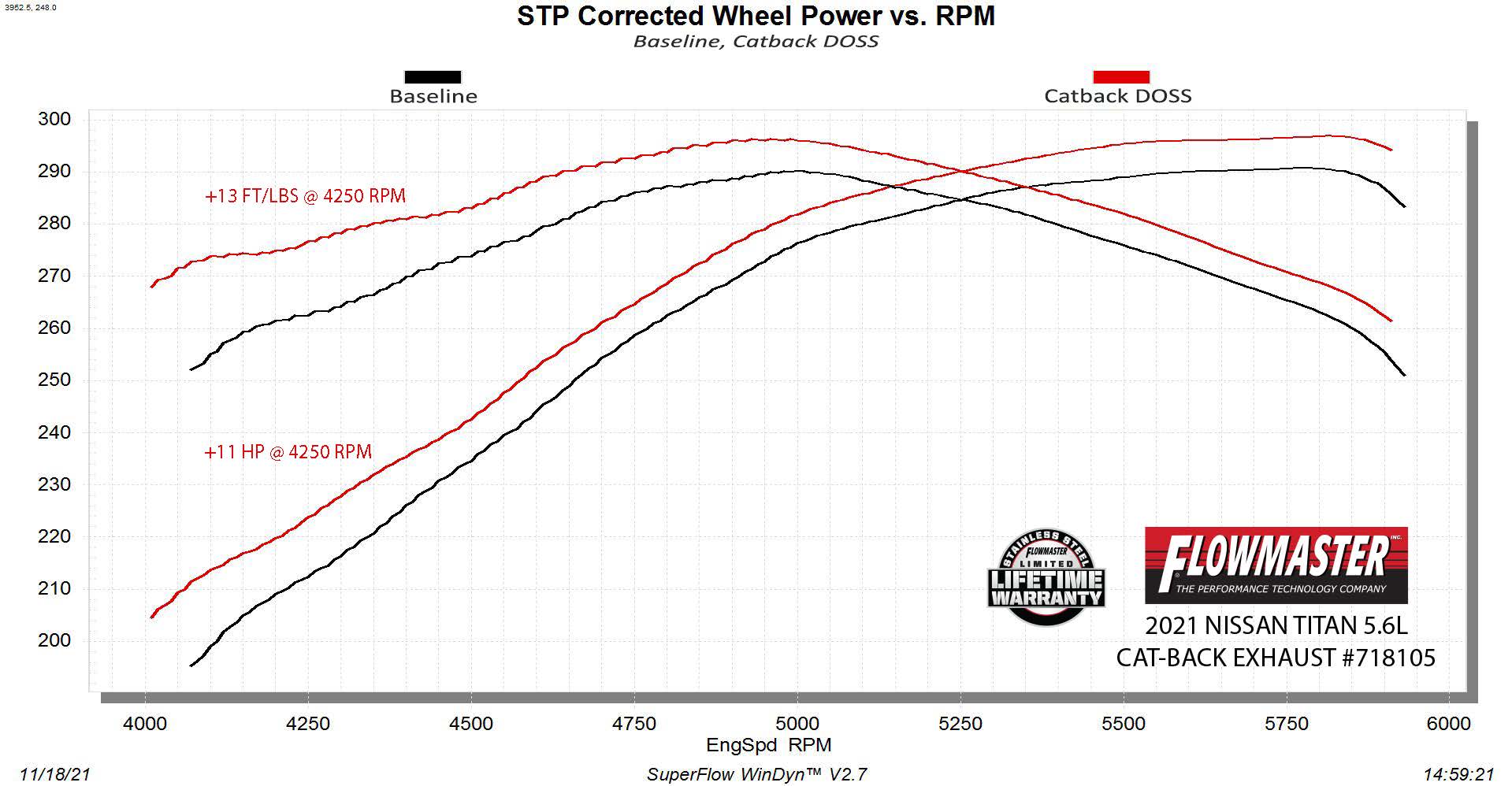

• Maximum gains of up to 11 HP and 13 lb-ft of torque at the rear wheels over the stock exhaust

• Scavenger Series Y-pipe designed to maximize torque gains

• 3.00-inch inlet transitioning to dual 2.50-inch mandrel-bent, 16-gauge 409 stainless steel tubing for improved exhaust flow and durability

• Flow FX straight-through performance muffler delivers a deep, powerful exhaust tone ranging from aggressive to moderate

• Exhaust tip options include dual 4.00-inch black ceramic-coated tips or a single 4.50-inch black ceramic-coated stainless steel tip, depending on configuration

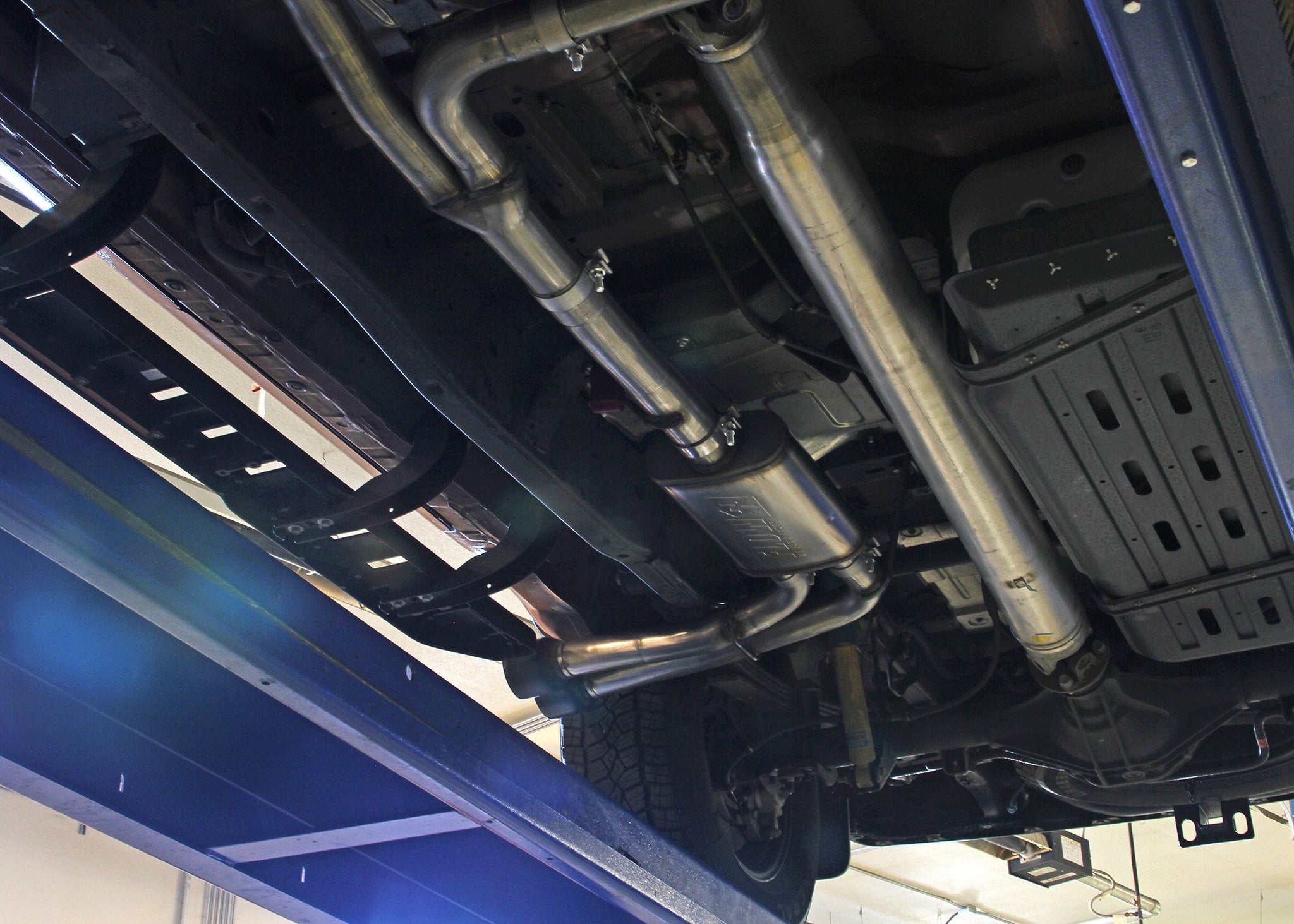

• Factory-style hangers positioned in stock locations for easy installation

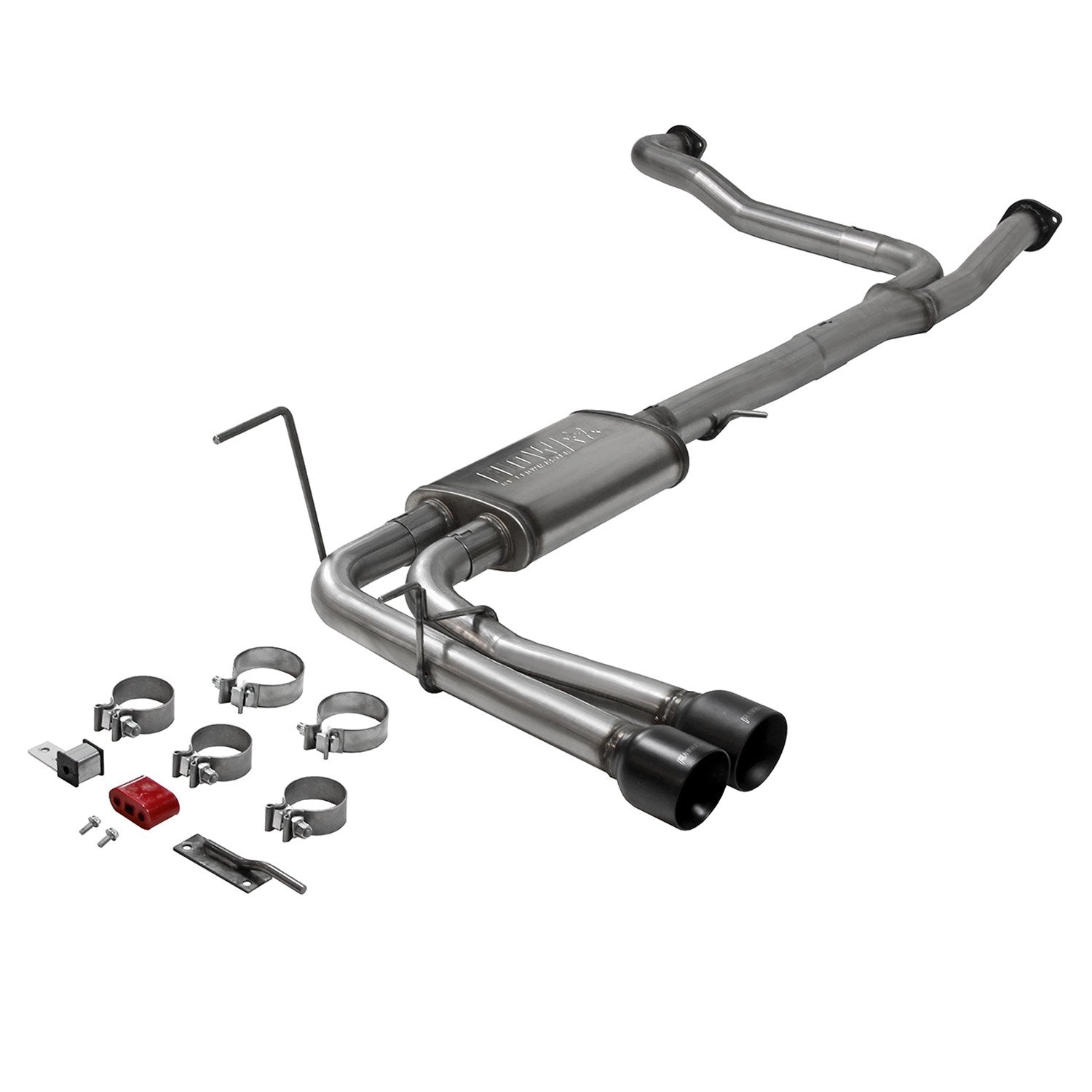

• Includes all necessary installation hardware

• Lifetime Limited Warranty
• Dual Same-Side Exit (718105)

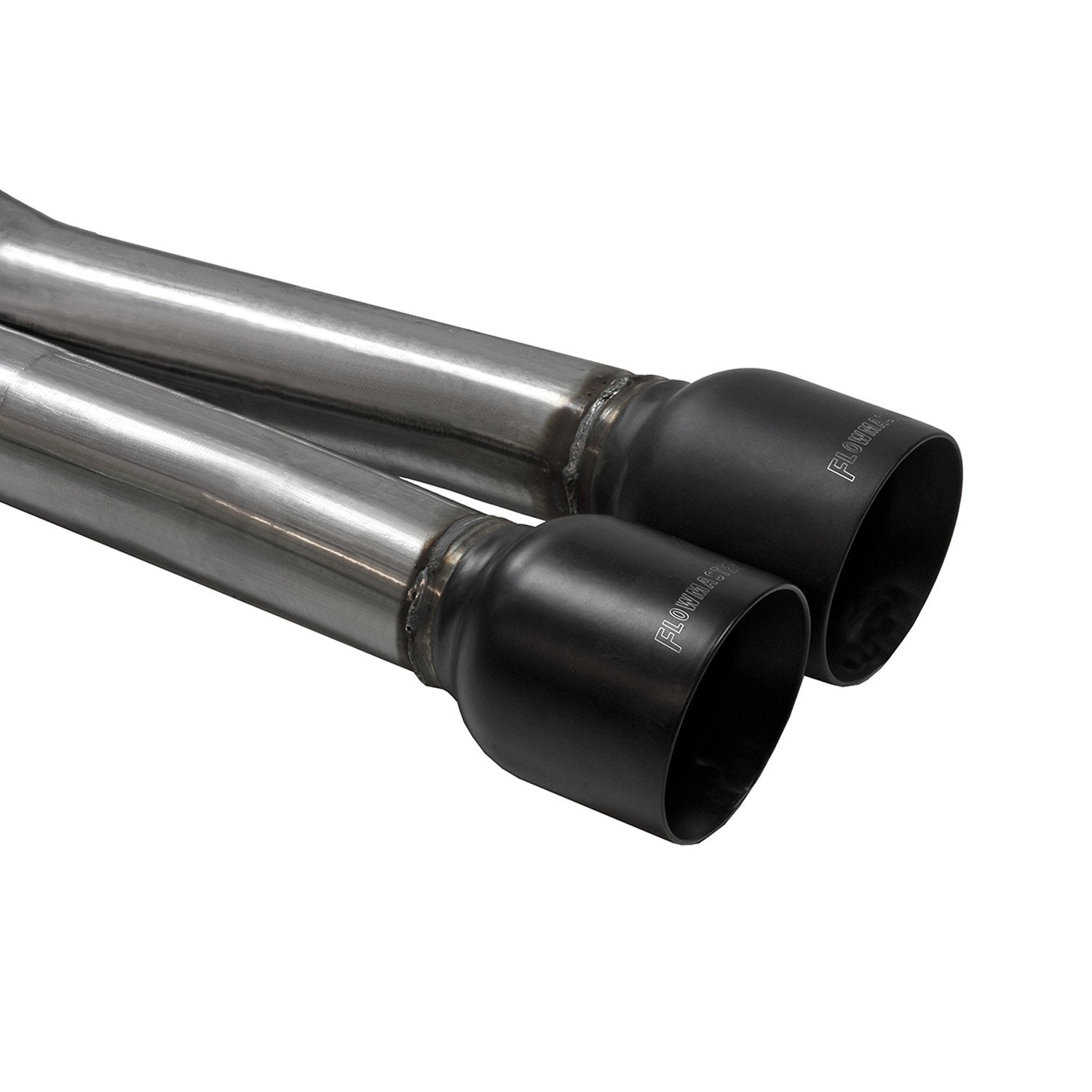

  • Dual 4.00-inch black ceramic-coated tips

  • Exit: Passenger side, ahead of the rear wheel

  • 3.00-inch inlet to dual 2.50-inch tubing

  • Fits 139.8-inch short wheelbase only

  • Reported gains: up to 11 HP and 13 lb-ft at the rear wheels
• Single Side Exit (717910)
  • Single 4.50-inch black ceramic-coated tip

  • Exit: Behind the passenger-side rear tire

  • Dual 2.50-inch tubing into 3.00-inch tubing and muffler

  • Fits all wheelbases, 2WD and 4WD

  • Does not fit Titan XD models


Product Description

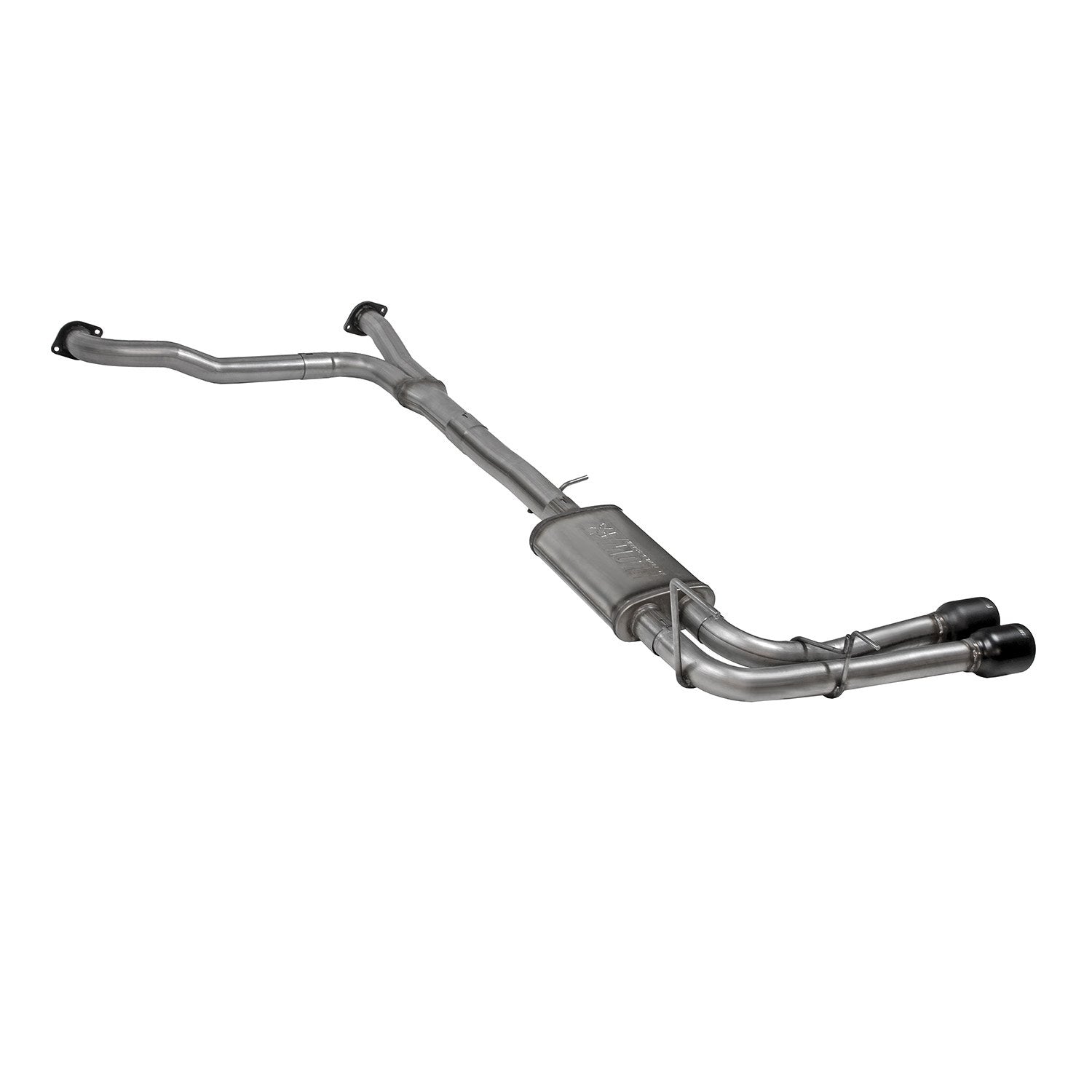

Upgrade your 2017–2024 Nissan Titan with the Flowmaster Flow FX Cat-Back Exhaust System, engineered to improve exhaust flow, durability, and performance. Manufactured from durable 409 stainless steel, the system features mandrel-bent 16-gauge tubing, a Flow FX straight-through performance muffler, and Flowmaster's Scavenger Series Y-pipe design. It delivers a deep, powerful exhaust tone with an aggressive-to-moderate sound outside the vehicle and a more moderate tone inside the cabin. The Scavenger Y-pipe is designed to improve exhaust scavenging and support increased horsepower and torque.

Choose between two configurations to match your Titan and preferred exhaust appearance. Part #718105 features a dual same-side exit ahead of the passenger-side rear wheel, finished with two 4.00-inch black ceramic-coated tips, while part #717910 exits behind the passenger-side rear tire with one large 4.50-inch black ceramic-coated tip. Both systems use factory hanger locations and connections and include the necessary installation hardware and instructions. Backed by Flowmaster's Lifetime Limited Warranty.

Redline360 is an authorized Flowmaster dealer and sells only genuine Flowmaster products.
