SXTH Element Intercooler Kit for Hyundai Elantra N (2022-2026) V2.0 Bar and Plate, 30% Thicker Than OEM, Up to 10 WHP, No Tune Required, 15-03-103

Fitment Information

• Hyundai Elantra N CN7 2.0L Turbo (2022, 2023, 2024, 2025, 2026)
• Note: Direct bolt-on, no cutting or modifications required
• Note: DCT transmission models may require minor trimming of the cold side hose where it contacts the transmission wiring loom
• Note: This product is not CARB exempt and does not ship to California

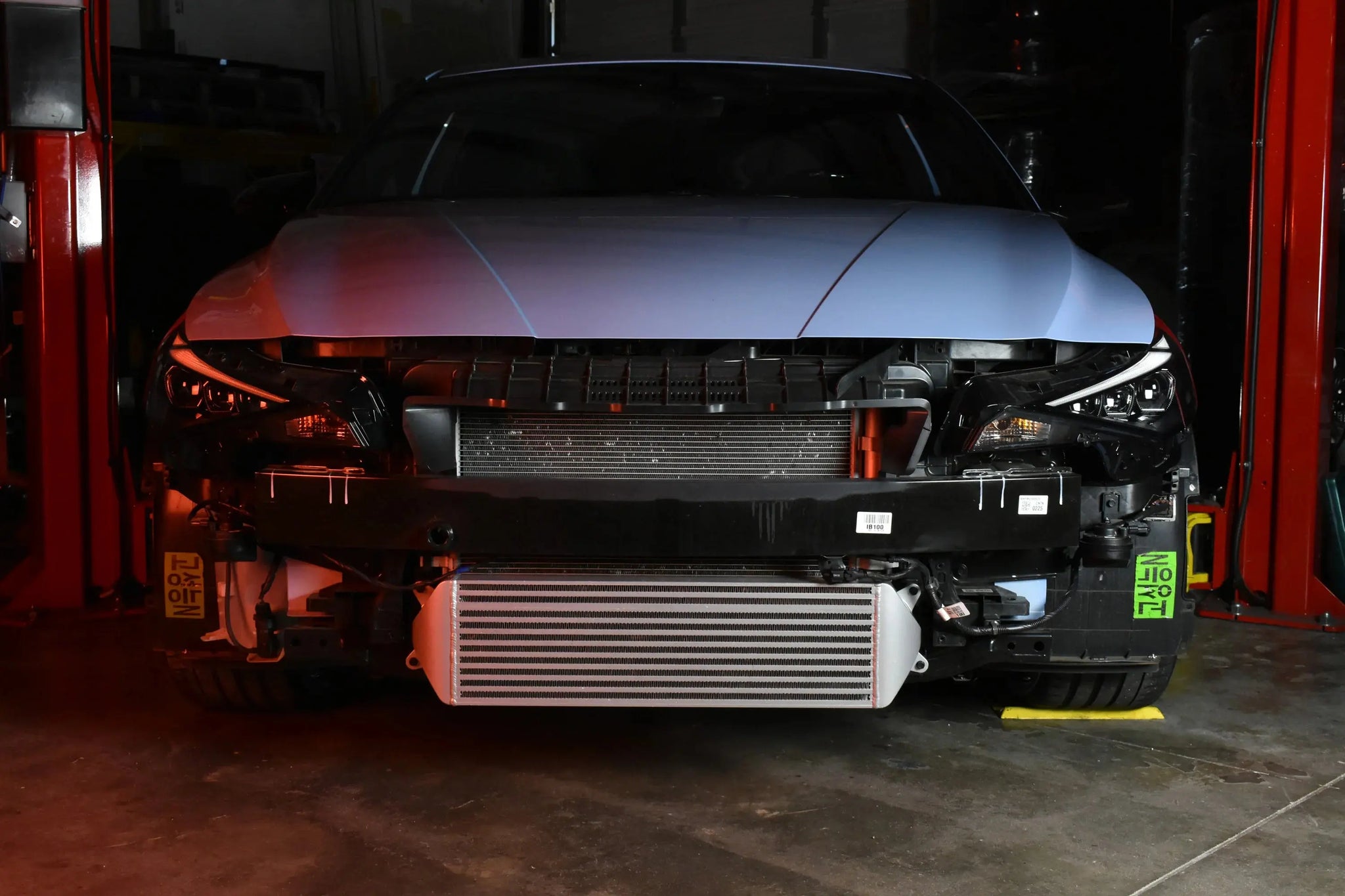

Fitment Note: This intercooler kit fits all 2022-2026 Hyundai Elantra N models. DCT transmission owners should be aware that the cold side hose may make contact with the transmission wiring loom and may require minor trimming for clearance. No tune required on OEM calibration. Direct bolt-on installation using factory mounting points and connections.

Specs and Features

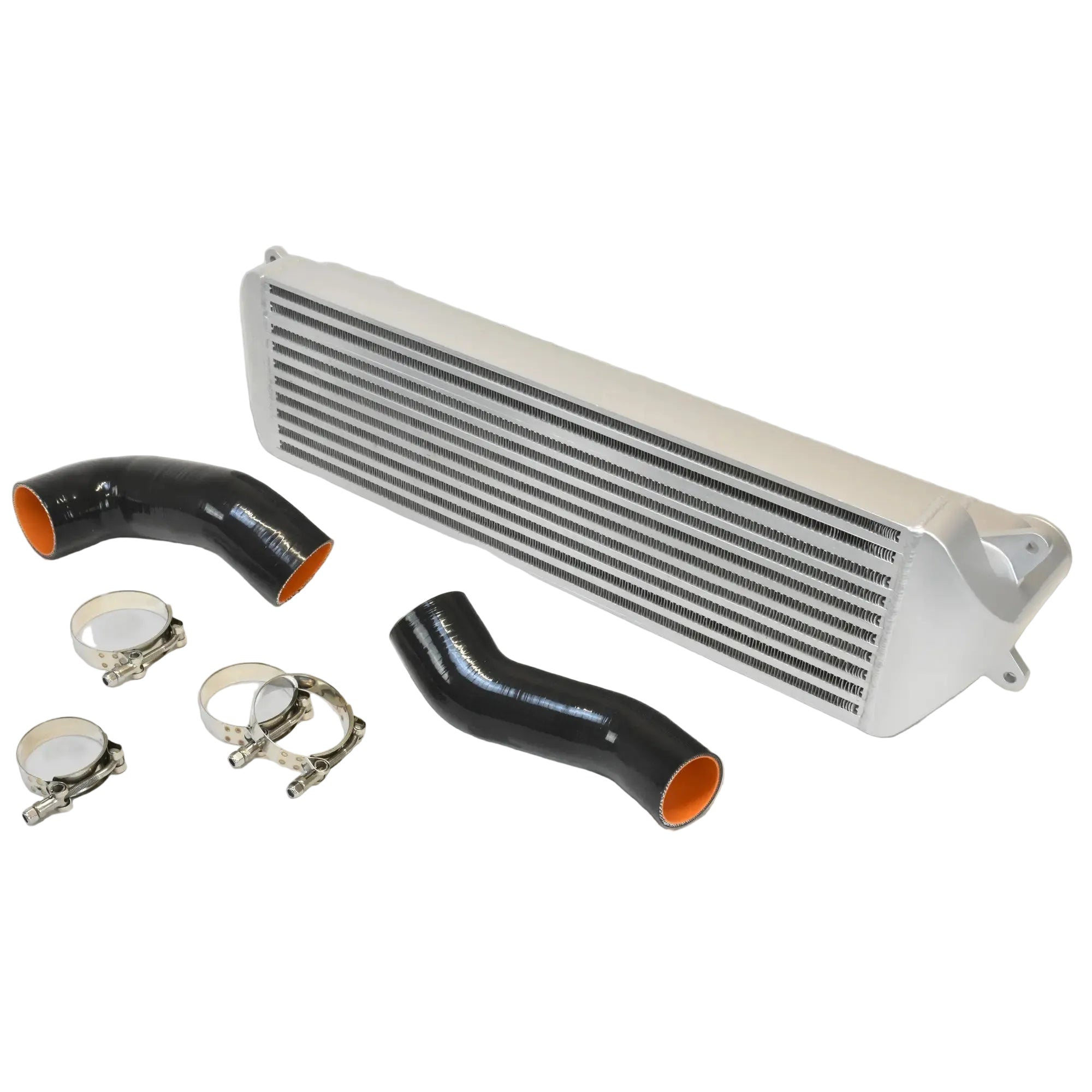

• SXTH Element Part Number: 15-03-103
• Dyno-proven gains of up to 10 whp and 10 wtq on OEM tuning across the majority of the powerband
• Up to 15 whp on Stage 1 setups with added boost
• During extended wide-open throttle runs, holds as much as 30 whp over OEM through superior heat soak resistance

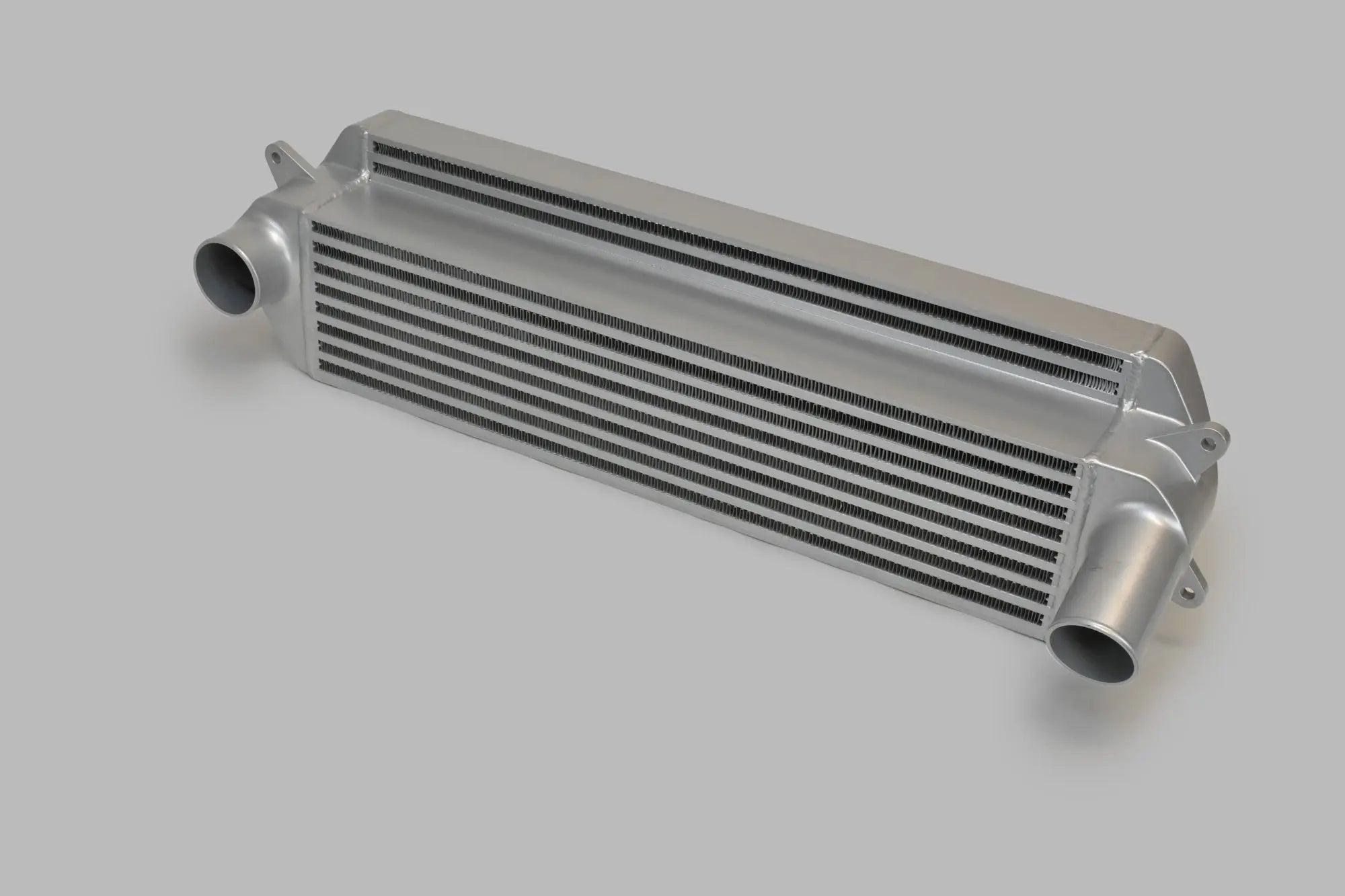

• Bar and plate core, 30% thicker than OEM for improved heat transfer and heat soak resistance
• Stepped core design maximizes available space in the Elantra N engine bay using 3D scans of the factory bay
• Thermal paint coating on the core for additional heat protection
• Cast aluminum end tanks shaped for smooth airflow and high efficiency
• 4-ply silicone couplers custom designed for the Elantra N application
• Stainless steel T-bolt clamps throughout
• No tune required on OEM calibration
• Direct bolt-on, no cutting or modifications required
• This product is not CARB exempt and does not ship to California

The bar and plate core on the V2.0 is denser than the previous version, which means more internal fin surface area to transfer heat out of the compressed charge air. The stepped shape is what makes the size increase possible without modifying the bumper or supports. SXTH 3D-scanned the Elantra N engine bay and designed the core to use every cubic inch available within that envelope. The thermal paint adds another layer of heat protection on top of the bar and plate construction. The gains on OEM tuning are consistent across the powerband, and the 30 whp advantage over stock that shows up during extended WOT runs is a direct result of the V2.0's improved heat soak resistance compared to the factory tube-and-fin unit.
