Eibach Sway Bar Kit for Tesla Model 3 (17-23) Anti Roll - Front 32mm / Rear 22mm

Fitment Information

• Tesla Model 3 Standard Range RWD (2017, 2018, 2019, 2020, 2021, 2022, 2023)
• Tesla Model 3 Long Range RWD (2017, 2018, 2019)
• Tesla Model 3 Long Range AWD (2017, 2018, 2019, 2020, 2021, 2022, 2023)
• Tesla Model 3 Performance AWD (2018, 2019, 2020, 2021, 2022, 2023)

Note

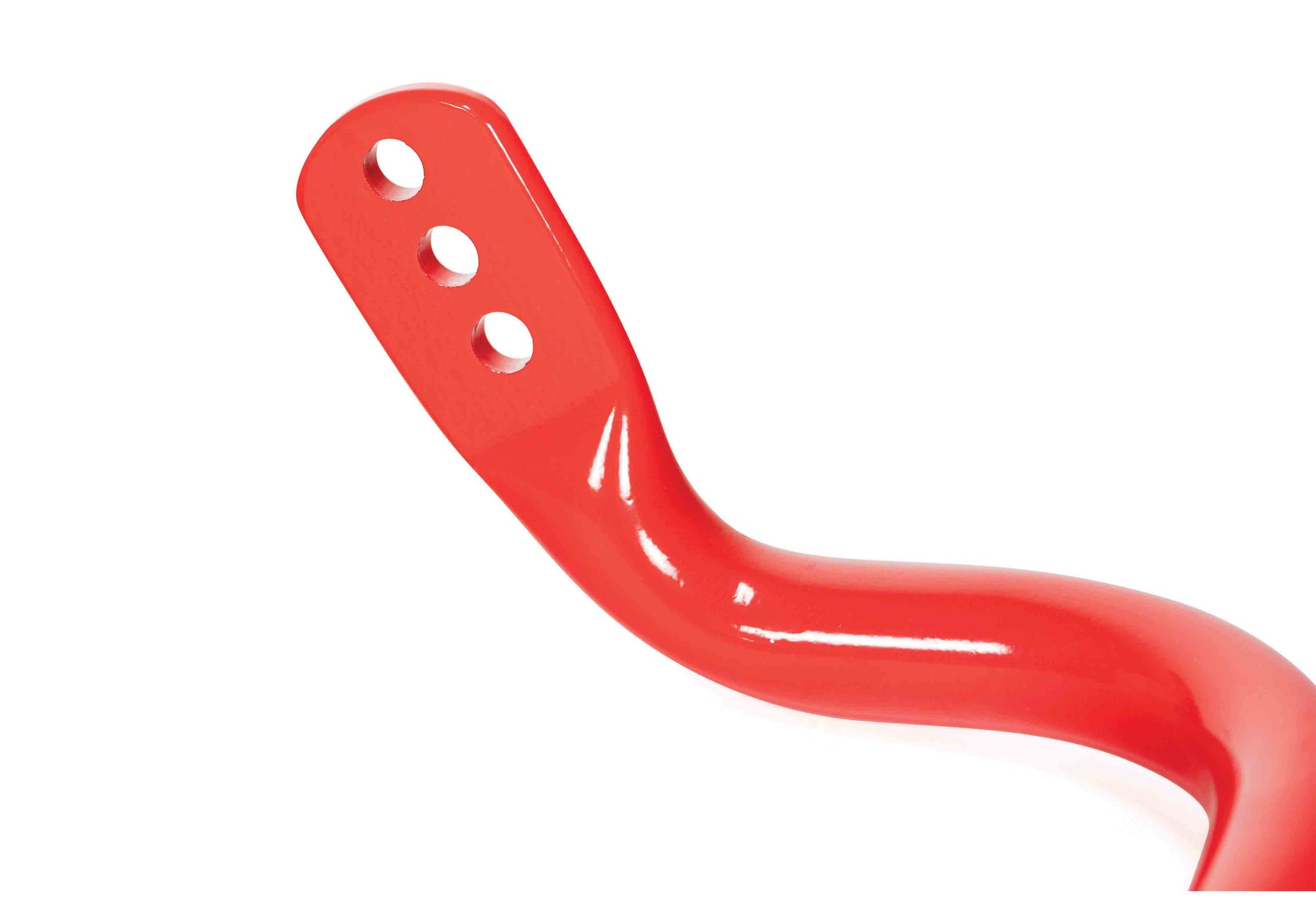

• Front Sway Bar is Tubular and 3 Way-Adjustable Rear Sway Bar is Tubular and 2 Way-Adjustable.
• Two options are available on this listing. The front and rear kit (E40-87-001-01-11) includes both the 32mm front sway bar and the 22mm rear sway bar. The front only option (E40-87-001-01-10) includes the 32mm front bar only. If you want to address both axles, select the front and rear kit.
• Both bars are tubular hollow construction, which provides increased stiffness over the factory solid bars at a lower weight. The front bar offers 3 adjustment positions and the rear bar offers 2 adjustment positions, allowing you to tune the balance of the car toward understeer or oversteer depending on your preference and driving conditions. A stiffer rear bar relative to the front will increase oversteer tendency, while a stiffer front bar relative to the rear increases understeer tendency.

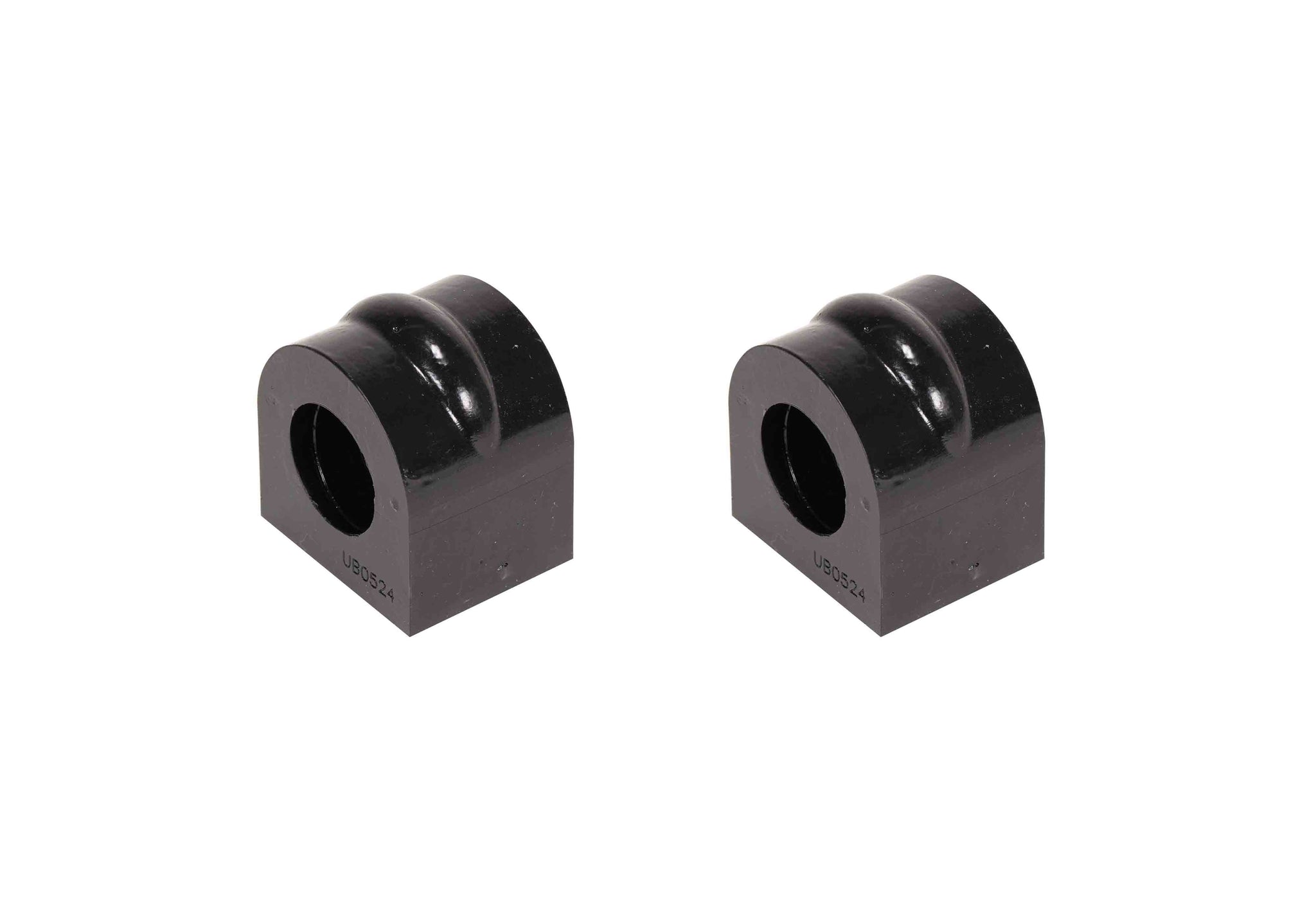

• All mounting hardware is included.
• Compatible with factory ride height and lowered setups using springs or coilovers.
• Eibach does not guarantee fitment, height, or warranty coverage on any vehicle application not listed above.
• Made in the USA.
• Backed by Eibach's 5-year warranty against factory defects in material and workmanship under normal use conditions.

Pairs well with:

• Eibach Pro Kit Lowering Springs Tesla Model 3 Performance (2018-2024) — Eibach specifically engineers the Anti-Roll-Kit to pair with the Pro-Kit spring set as part of a complete handling upgrade. Installing both is the intended Eibach PRO-PLUS system for the Model 3.

Specs & Features

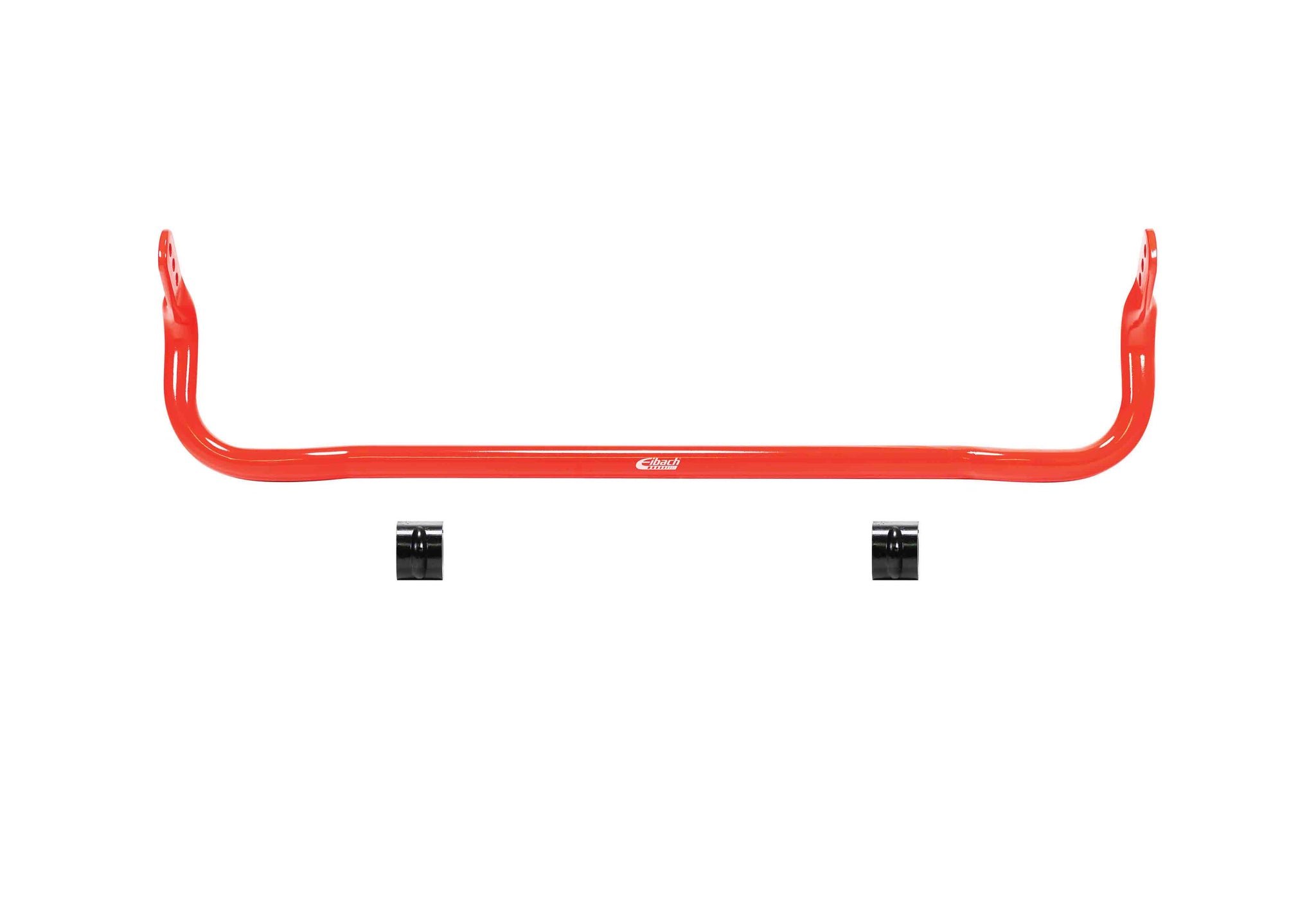

• Front 32mm / Rear 22mm Tubular design
• Precision-Tuned for Balance and Control: Designed to reduce body roll and improve handling response during cornering, acceleration, and braking.
• Increased Vehicle Stability: Enhances chassis feel and promotes flatter cornering for a more confident, controlled driving experience.
• Compatible with OEM and Performance Setups: Integrates seamlessly with stock suspension systems or Eibach lowering springs and coilovers for full-system tuning.
• Engineered and Tested for Each Vehicle Application: Each sway bar is specifically designed and tested for its vehicle platform for optimal performance.
• Made by Eibach in the USA


Product Description

Eibach's ANTI-ROLL-KIT increases stability, reduces body roll, and increases grip resulting in improved vehicle dynamics and performance.

Complete your suspension upgrade with an Eibach ANTI-ROLL-KIT. While our PRO-KIT and SPORTLINE spring sets are regarded as the primary suspension enhancement components, the Eibach ANTI-ROLL-KIT allows critical fine-tuning of your car’s handling characteristics.

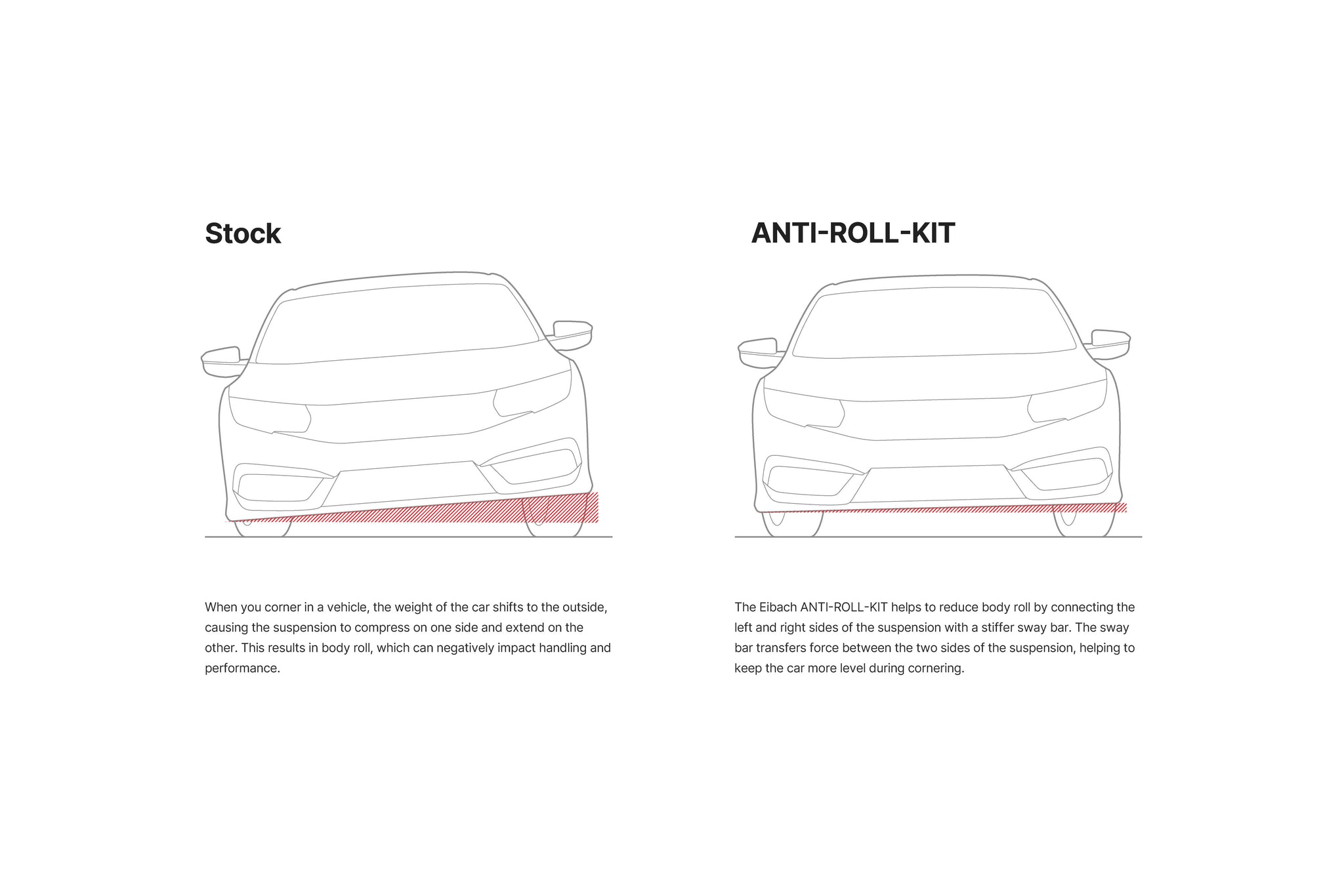

Our ANTI-ROLL-KITs reduce body roll through increased design stiffness over stock bars. The result: increased handling and cornering grip in any performance-driving situation. Manufactured from cold-formed steel alloy for precision performance, and finished with a longlasting red powder coat finish, the ANTI-ROLL-KIT comes complete with all mounting hardware.

Five-Year Warranty

Eibach's 5 Year Warranty covers products against factory defects in material and workmanship, other than coatings, when used on passenger cars and light duty (class 1-3) trucks under normal use and operating conditions.
