Eibach Pro Truck Lift Kit for Lexus GX470 (2003-2009) Stage 1 / Stage 1 Plus / 2 / 2R / Front & Rear / Front Only / Rear Only / Rear HD Springs w/ Air Bag Delete Kit or Springs Only

 Fitment Information

• Lexus GX470 Base (2003, 2004, 2005, 2006, 2007, 2008, 2009)

Stages

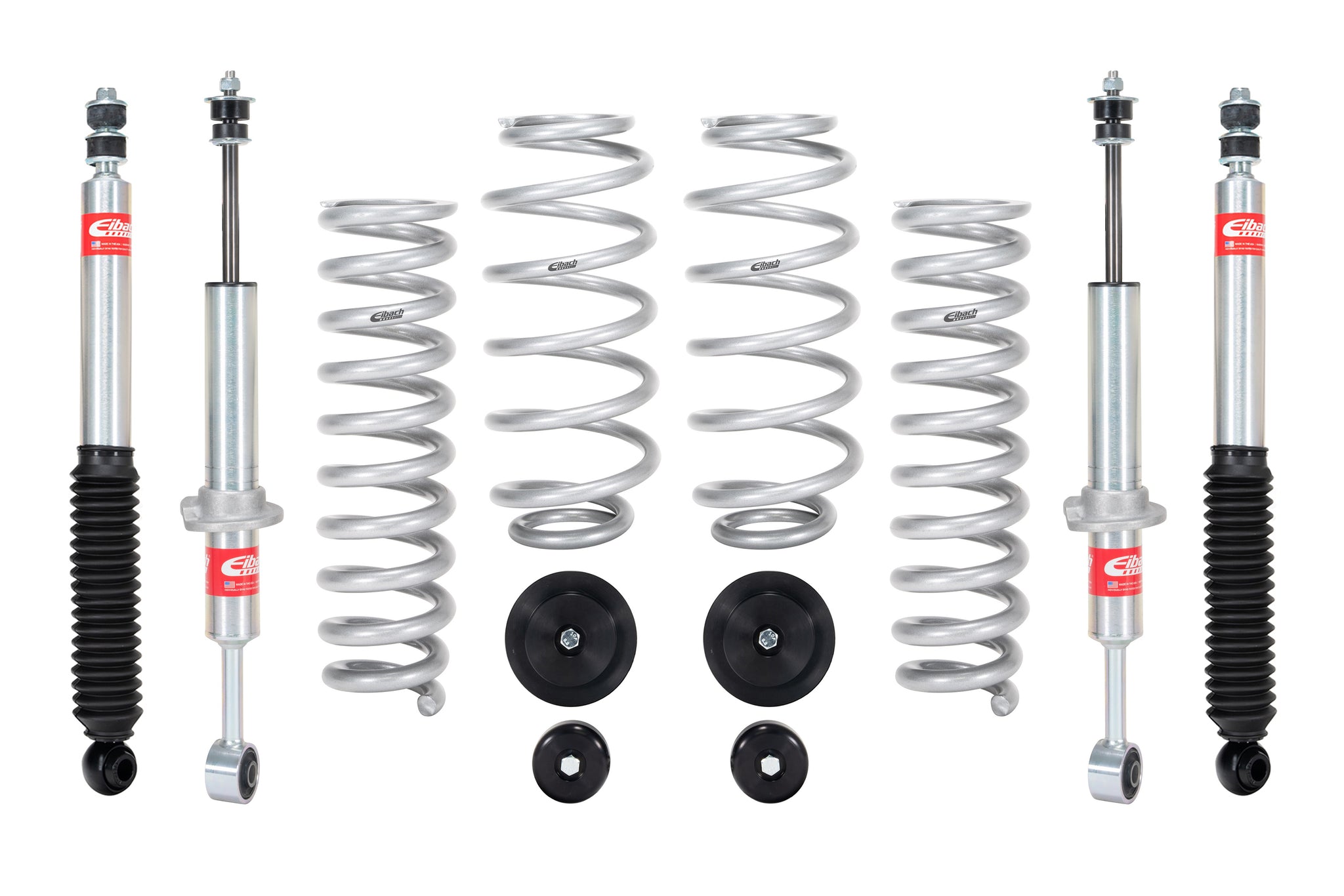

• Stage 1
  • Ride Height: +2.0-3.0" Front | +2.2 in Rear
  • Set of 4 Shocks + 4 Springs
  • Stage 1 combines our lift springs and sport shocks with height adjustable clips for increased tire clearance and improved on-and-off road performance.

  • Matched system of lift springs and shocks designed for increased travel and performance

  • Provides balanced ride quality, control and off-road capability

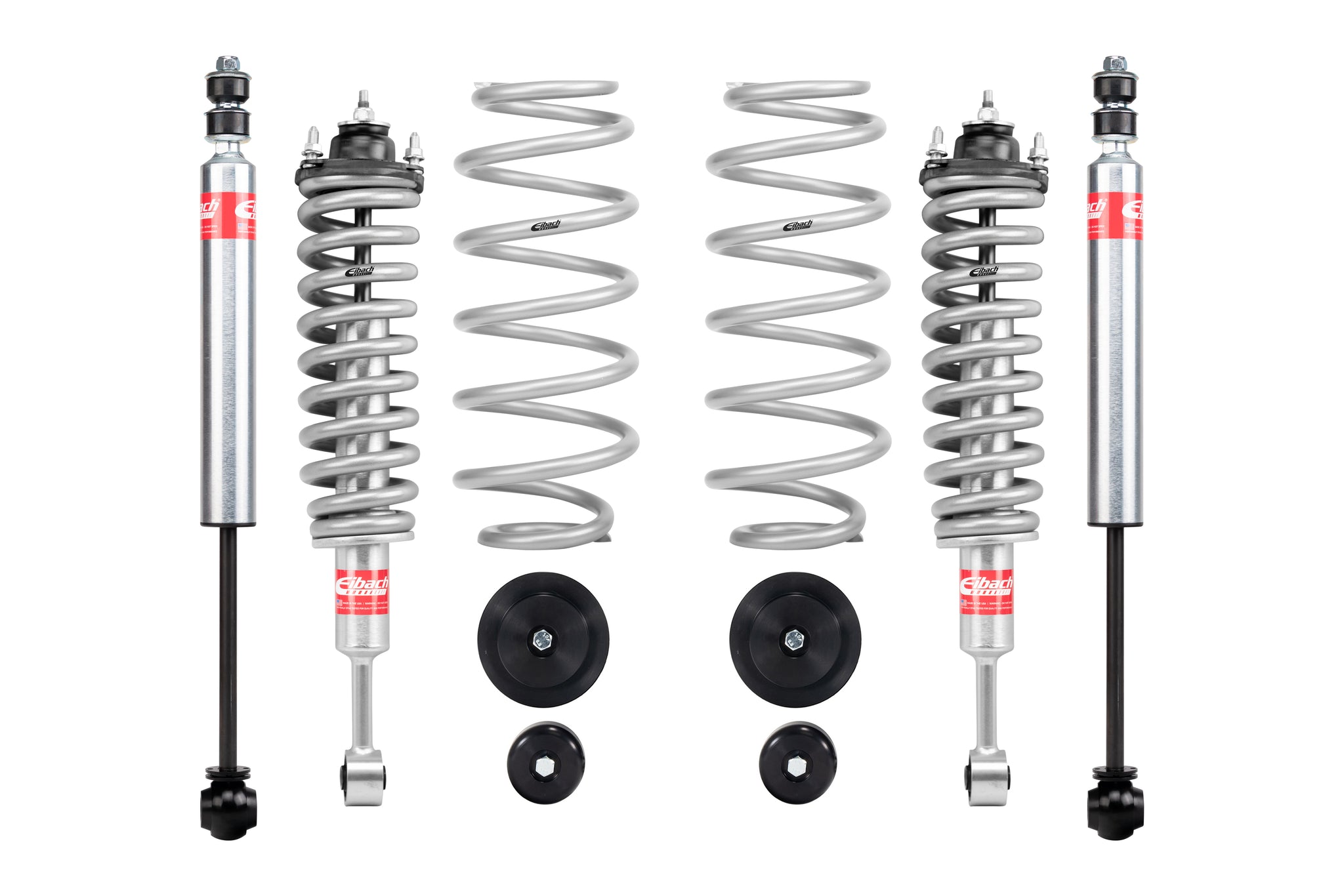

• Stage 1 Plus

  • Ride Height: +2.0" Front | +2.2" Rear
  • Set of 2 Assembled Front Shocks, Springs, Mounts + 2 Springs + 2 Rear Shocks
  • Front assembled Stage 1 with OE top mount, assembled with Eibach spring on bottom clip. (Level with OE rear)

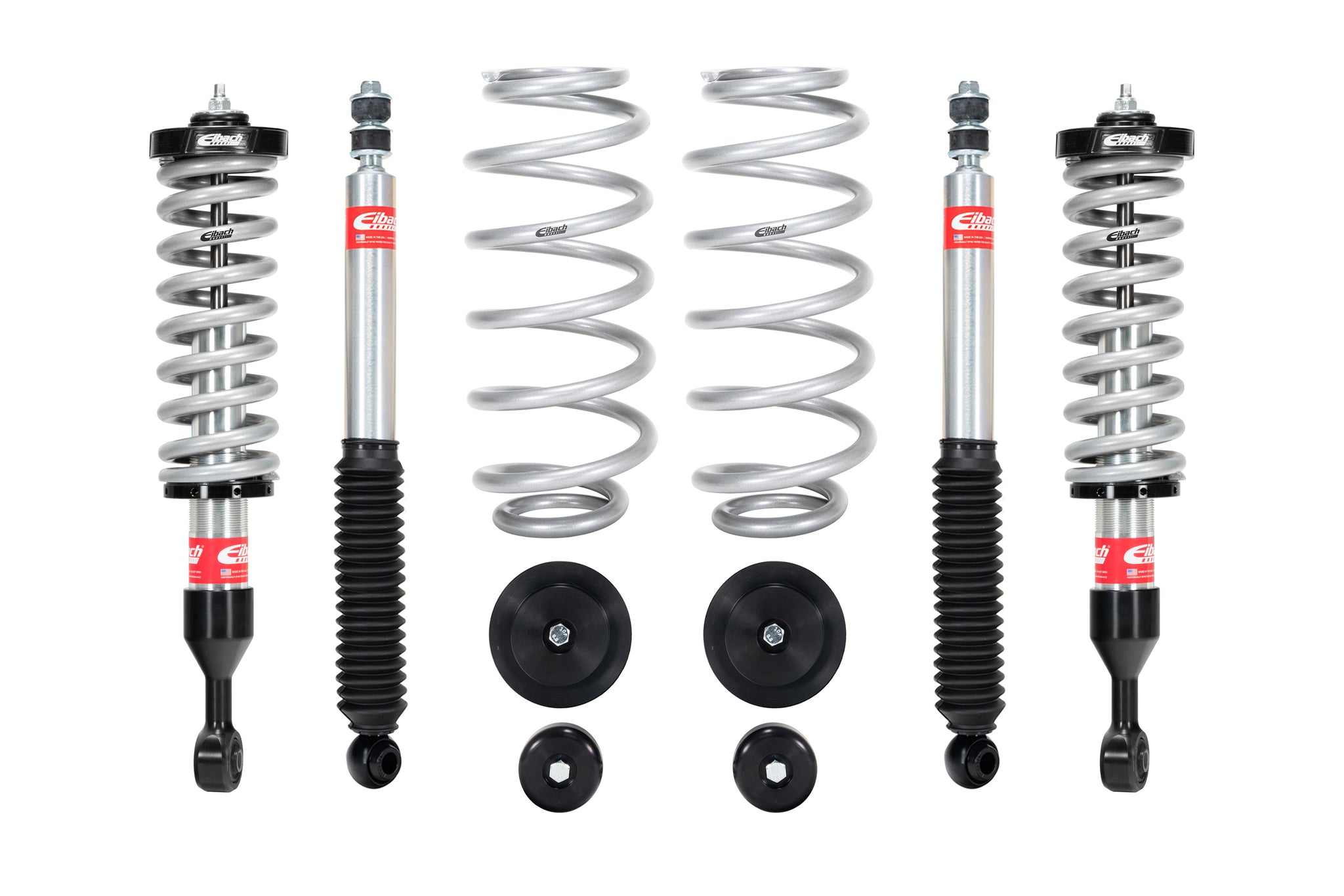

• Stage 2
  • Ride Height: +1.5"-3.0" Front | +2.2" Rear
  • Pair of Front Coilovers + Rear Shocks + Rear Springs
  • STAGE 2 combines our threaded height adjustable coilovers and sport shocks for fine tuning of ride height, delivering improved off-road performance.

  • Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks + Pro-Lift-Kit Springs

  • Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.

  • Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.

  • Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.

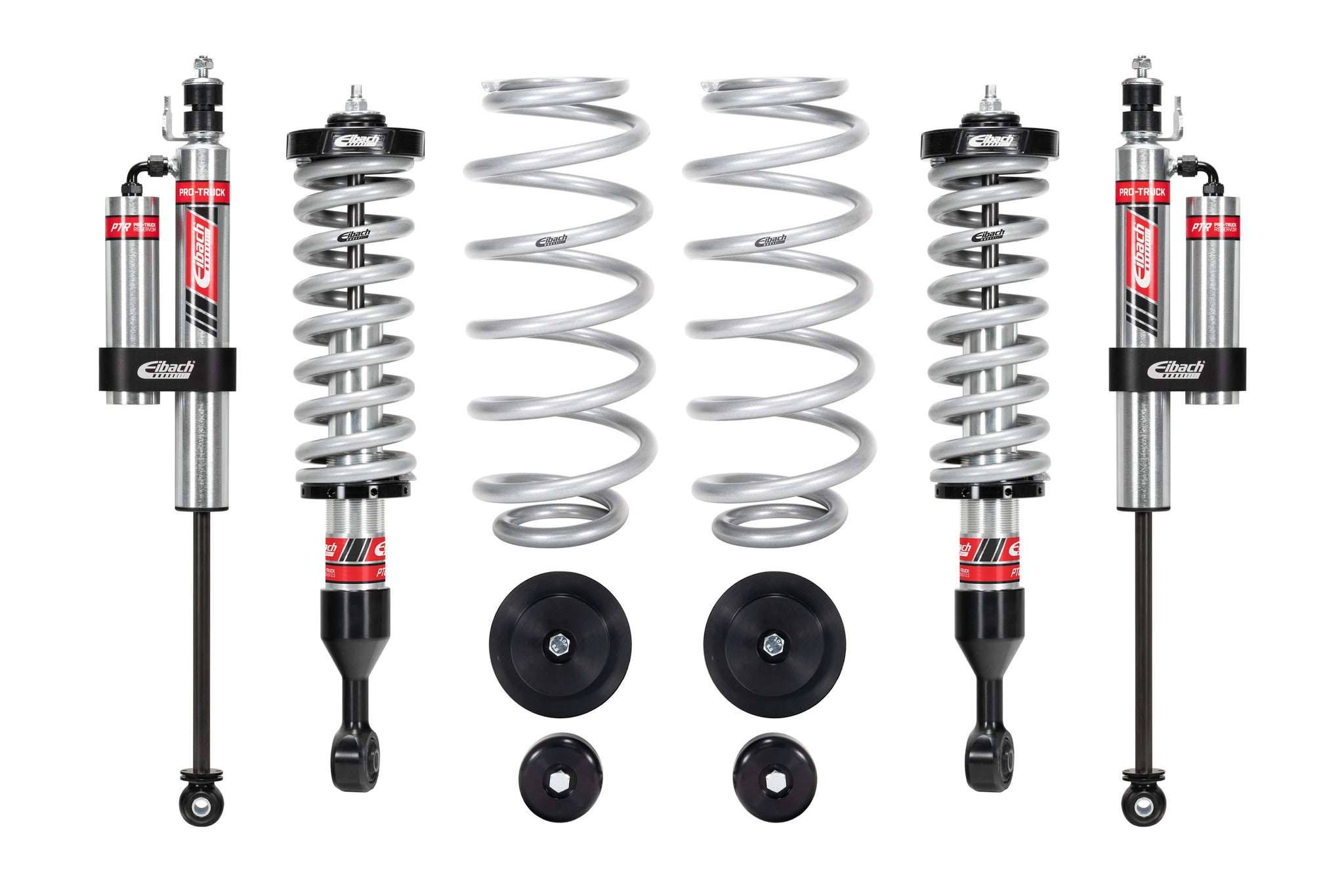

• Stage 2R
  • Ride Height: +1.5-3.0" Front | +2.2" Rear
  • Stage 2 system featuring Pro-Truck-Coilover 2.0's + Pro-Truck Reservoir Sport Shocks + Pro-Lift-Kit Springs

  • Height Adjustable Front Coilover and External Reservoir Rear Shocks for Increased Off-Road Performance
  • Front out of the box height is set to be level with OE rear spring. Preload will need to be added to be level with Eibach rear spring.

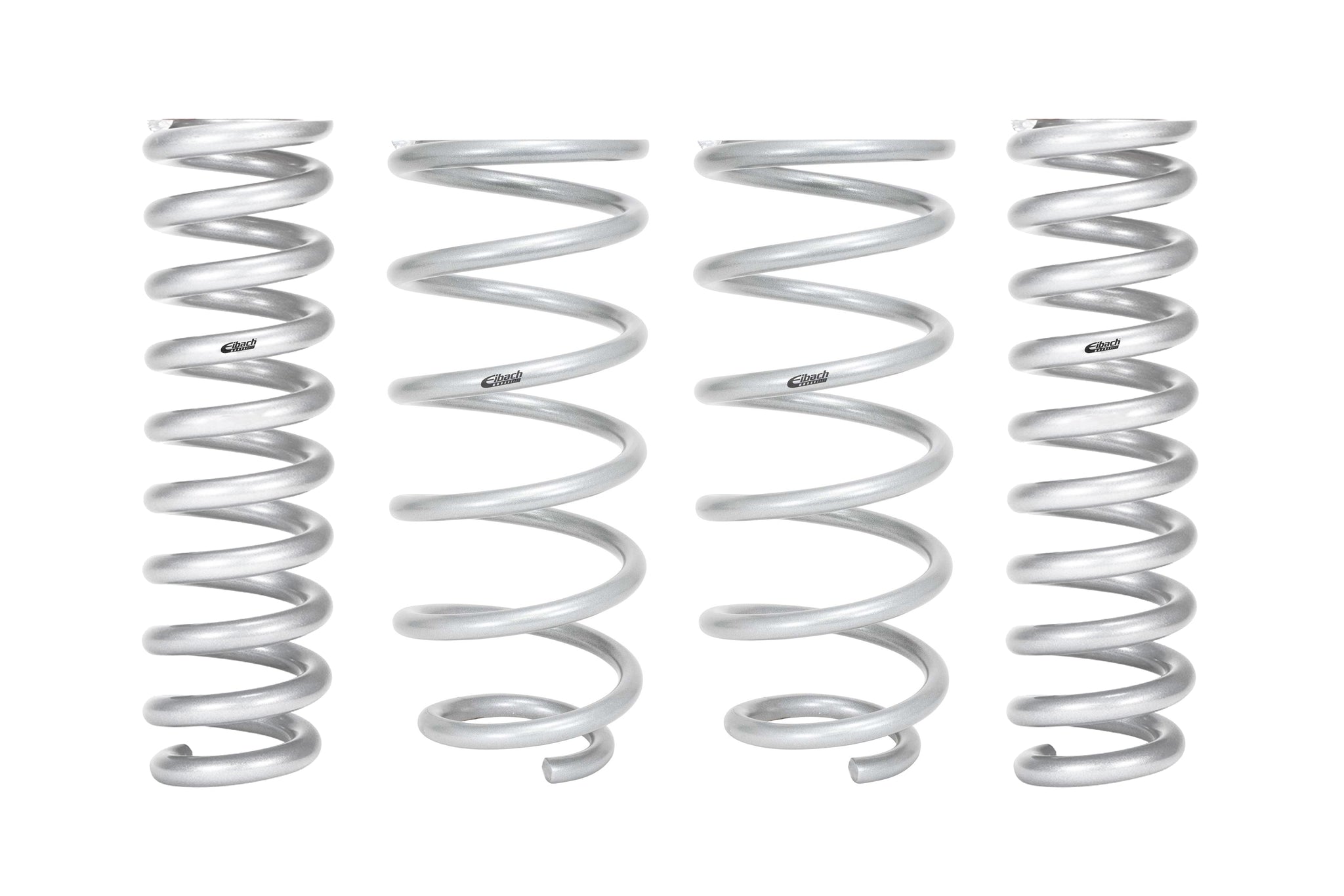

• Front & Rear Springs Set

  • Ride Height: +2.0 in Front | +2.2 in Rear
  • Pro-Lift Kit Springs must be used with Pro-Truck Sport Shocks.
  • Springs are developed using championship winning off-road race technology providing maximum lift without compromising factory components or ride quality.

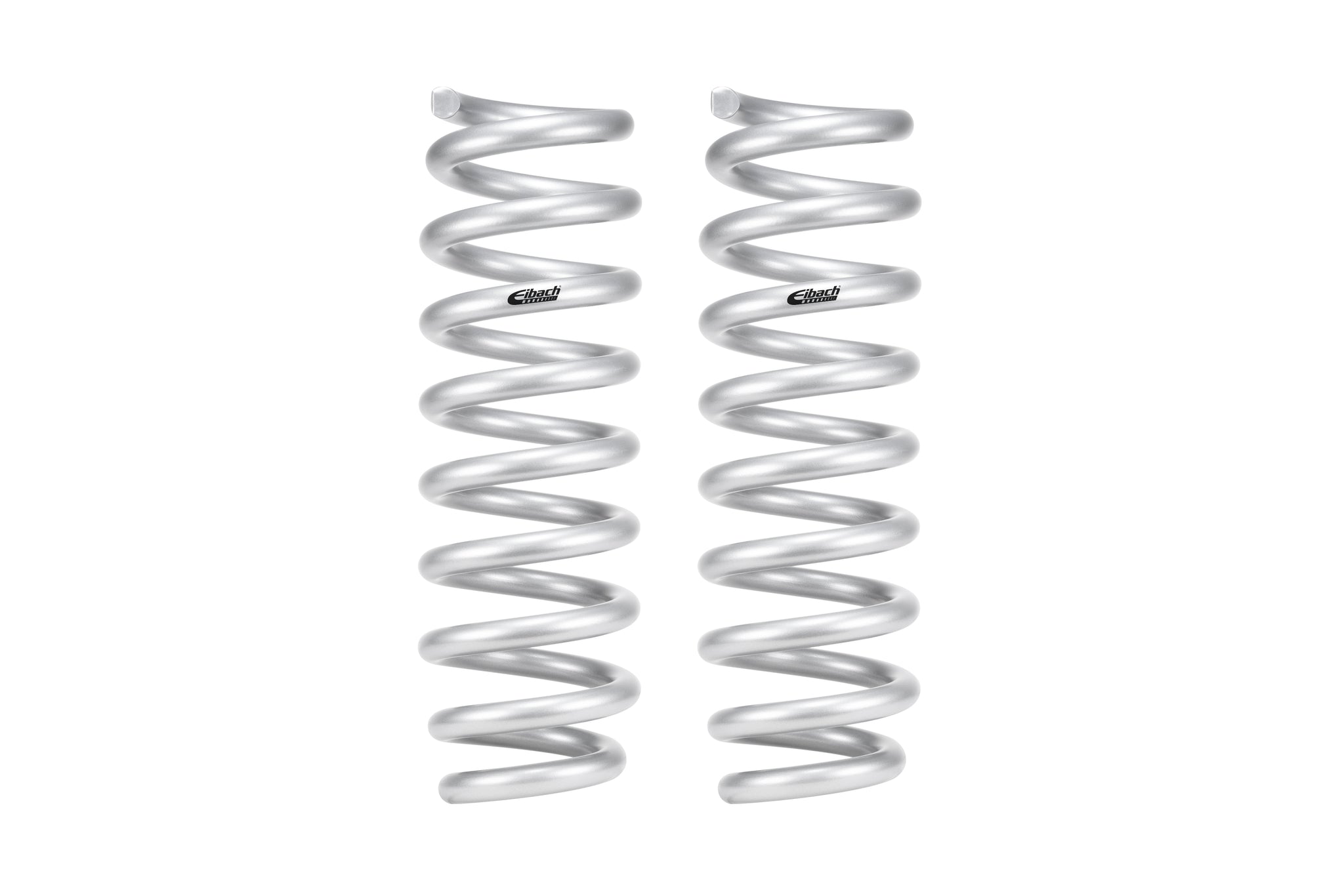

• Front Springs Only

  • Ride Height: +2.0 in Front
  • Set of 2 Springs
  • Front Springs Only. Must be used with Eibach Pro-Truck Sport Front Shocks.
  • Springs are developed using championship winning off-road race technology providing maximum lift without compromising factory components or ride quality.

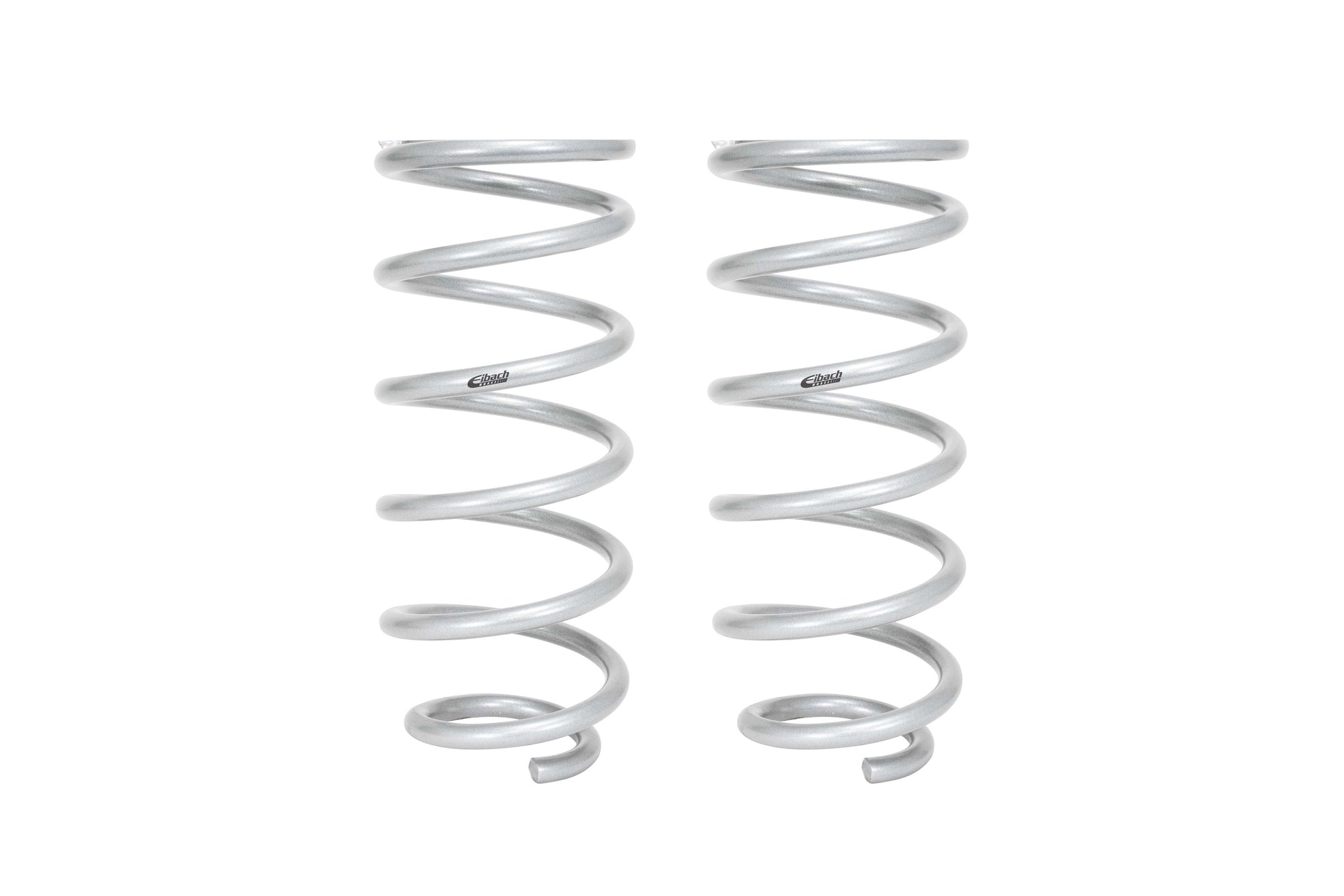

• Rear Springs - Standard Lift w/ Air Bag Delete Kit
  • Ride Height: +2.2 in Rear
  • Set of 2 Springs
  • Rear Springs Only. Must be used with Eibach Pro-Truck Sport Rear Shocks. Includes Rear Springs and Airbag Delete Kit

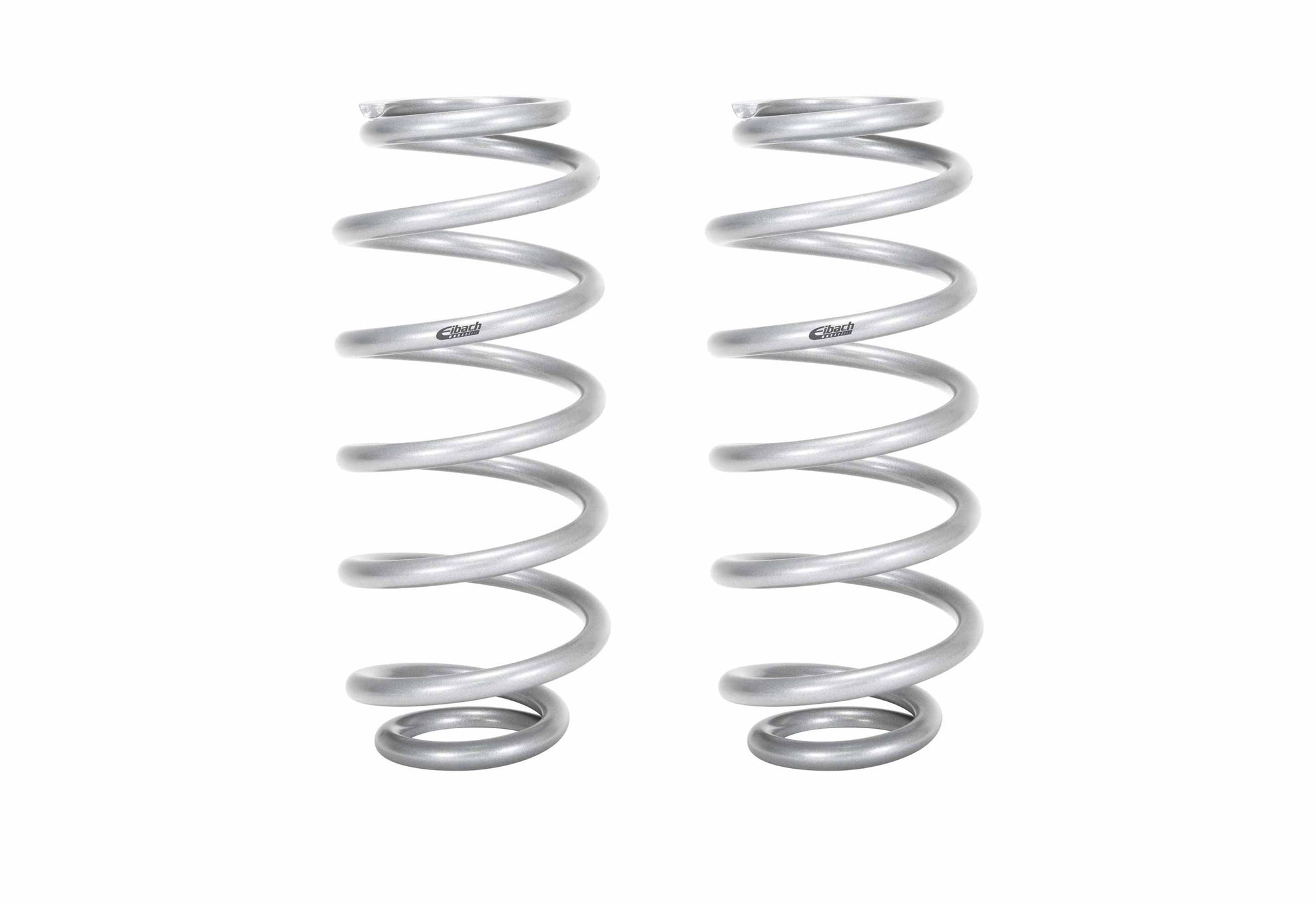

• Rear Springs Only - Heavy Duty
  • Ride Height: +2.75 to 2.25" Rear
  • Does not include hardware and adapters. Only meant for vehicles with additional weight in the rear (200–400 lbs)
  • Increased Ground Clearance.

  • More Fender Clearance for Larger Wheels and Tires.

  • Precision Engineered for Improved Off-Road Capability.

  • Excellent On-Road Stability and Handling.

• Rear Springs - Heavy Duty w/ Air Bag Delete Kit
  • Ride Height: +2.75" to 2.25" Rear
  • Conquer new heights with Eibach's robust PRO-LIFT-KIT-HD, delivering unmatched off-road capability.
  • Only meant for vehicles with additional weight in the rear (200-400lbs) Includes rear springs and airbag delete kit.

• Note:

• Stage kits are covered by a two-year warranty.

• Springs-only kits are covered by a five-year war

Product Description

Built upon decades of offroad racing victory, the Eibach PRO-TRUCK-LIFT combines a series of Pro-Lift-Kit springs and Pro-Truck Sport shocks to create a perfectly tuned suspension system engineered for both, on and off-road performance. Each PRO-TRUCK-LIFT is designed and tested to deliver maximum ride height without compromising the integrity of factory bushings, ball joints and other components.

For vehicles with front coil-over-shock suspension, height adjustable spring perch grooves allow for fine tuning of the vehicles€™ ride height. As winches, armor and accessories are added, this system maintains proper ride height allowing for more clearance and full use of available shock travel.

With the same spring technology found in our ERO offroad race springs, the block resistant Pro-lift-kit springs can be taken to the limit mile after mile ensuring consistent performance and ride height. Matched with our heavy duty Pro-Truck Sport shock system, this combination is capable of handling anything in its path. Precision shock valving allows compliance over large obstacles and control through rough terrain while also improving on road comfort and performance.
