Specs
- Condition: New
- Metering Rod Size: .073 x .042 in
- Gasket Or Seal Included: Yes
- Barrel Quantity: 4 Barrel
- Flange Type: Square
- Secondary Jet Diameter: 0.098
- Main Venturi Diameter: 1.19
- Body Height: 3.25
- Bore Diameter: Primary Bore 1.44; Secondary Bore 1.75
- Spring Force: 5" Hg (Orange)
- Availability Note: Available to Order
- Warranty: 12 Months
- Choke Type: Electric
- Finish: Satin
- Material: Aluminum
- CFM Rating: 650 cfm
- Primary Jet Diameter: 0.104
Install Notes
- N/A
Description and Information

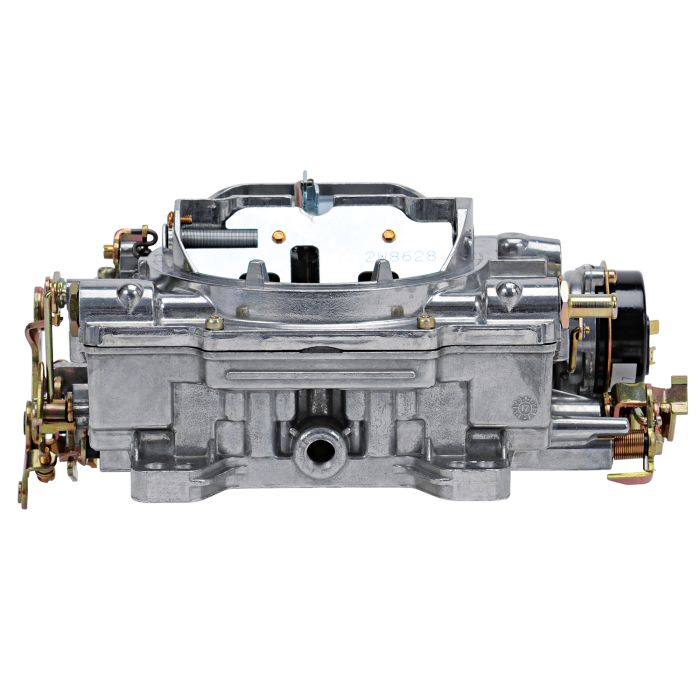

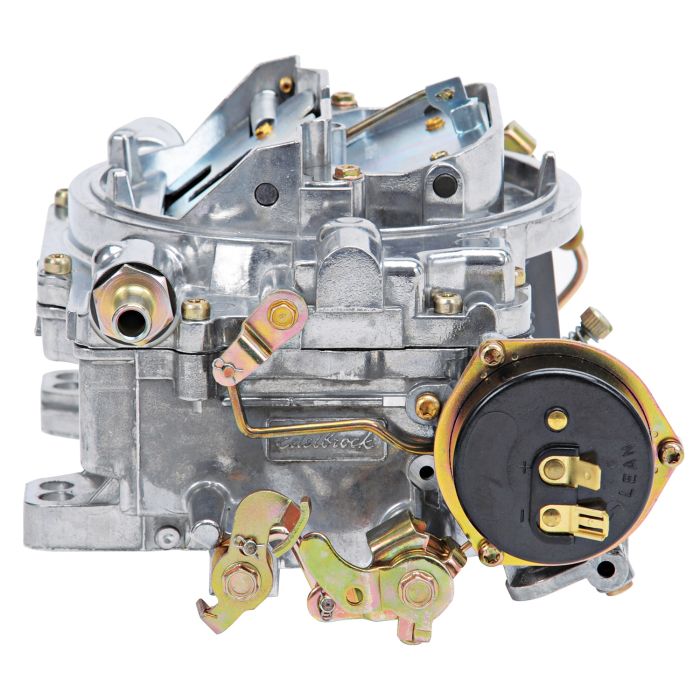

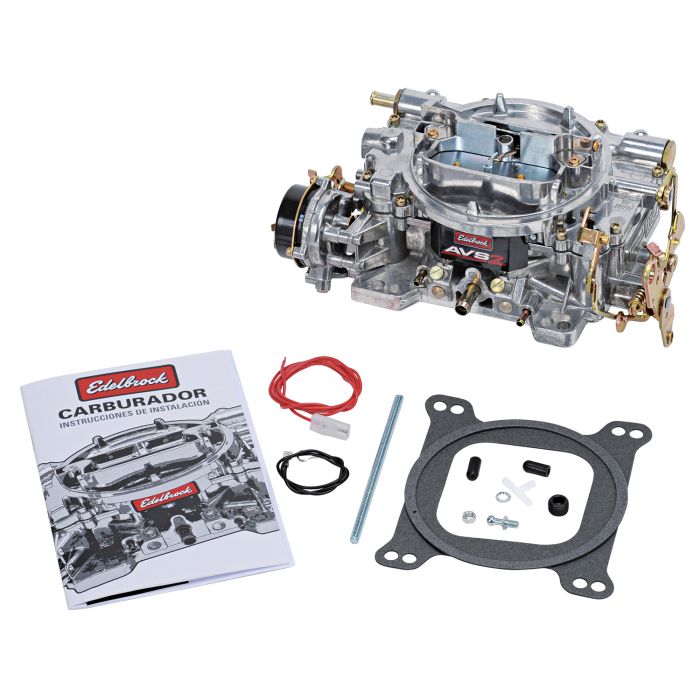

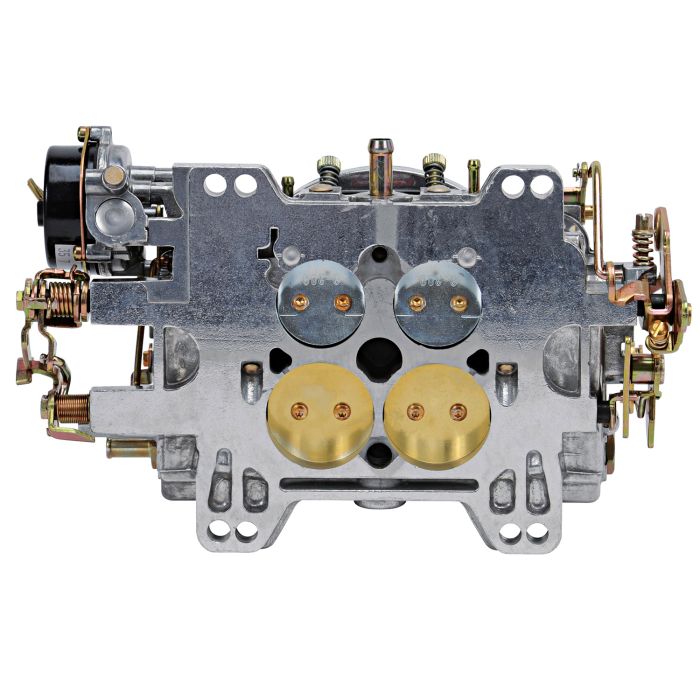

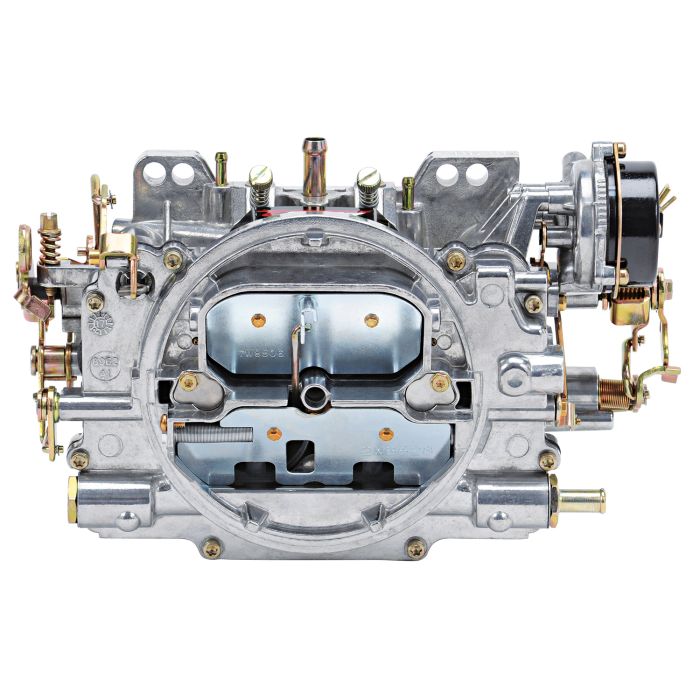

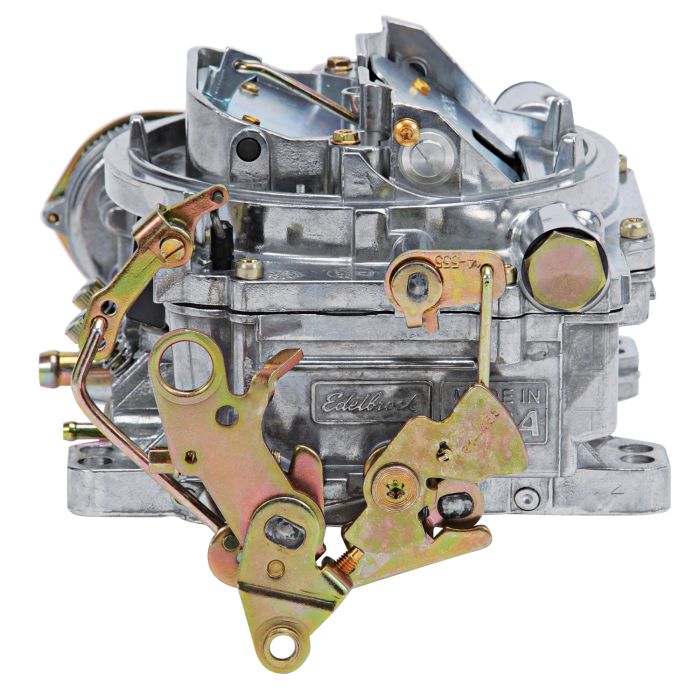

Edelbrock's AVS2 Off-Road Carburetor #1916 with Electric Choke is a special 650 CFM version of the proven #1906 street carb with Annular Flow Booster technology for near-EFI-like drivability that you can feel as soon as you step on the gas. Like AVS2 street carbs, the AVS2 Off-Road features an annular ring with eight evenly spaced orifices that replaces the standard single brass tube (down-leg) fuel feed. The AVS2 Off-Road booster ring distributes fuel into the airflow stream with an even spray that eliminates flat spots and greatly improves throttle response in the low-to mid-RPM range without sacrificing top-end power. For superior fuel control over rough terrain, the AVS2 Off-Road features a new spring-loaded needle and seat along with a spring-loaded anti-syphon ball in the accelerator pump circuit to prevent fuel drip common with standard carbs in off-road situations. The AVS2 Off-Road is unaffected by engine backfires since there are no power valves to blow out. For fast and simple part-throttle tuning, metering rods and springs can be changed in seconds without carburetor removal or fuel draining. AVS2 Off-Road carbs have the unique ability to hold a tune when compared to other carburetors. Your tuning and adjustments stay unchanged, so performance remains consistent. Updated primary and secondary booster clusters in the AVS2 Off-Road offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Additionally, the unique Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit. Adjustments can be with simple hand tools in seconds to suit your application. AVS2 Off-Road Carburetors feature a two-piece design for easy tuning that allows you to make float level adjustments or replace internal components without draining the carburetor or removing it from the engine. The AVS2 Off-Road 650 CFM is available with a manual (#1915) or electric (#1916) choke and are manufactured by Edelbrock in the USA
Edelbrock's AVS2 Off-Road Carburetor #1916 with Electric Choke is a special 650 CFM version of the proven #1906 street carb with Annular Flow Booster technology for near-EFI-like drivability that you can feel as soon as you step on the gas.
