Dynavin D9-DF432 Radio Mercedes GL-Class w/ Premium Audio (06-12) 9" Touchscreen Android Auto / Apple Carplay

Fitment Information

• Mercedes GL-Class W164 (2006, 2007, 2008, 2009, 2010, 2011, 2012)
• with Premium Audio (Harman Kardon)

Specs & Features

• INCLUDED MOST ADAPTER INTEGRATES WITH OEM FIBER OPTIC AUDIO SYSTEM (HARMAN KARDON). MOST LOOP MAY BE REQUIRED.

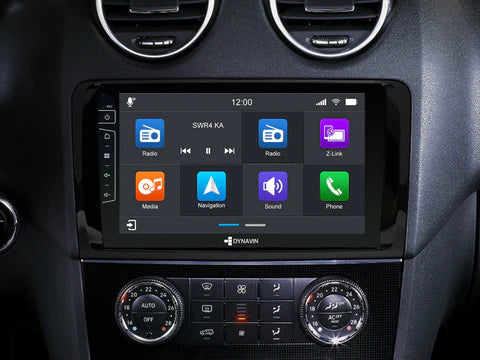

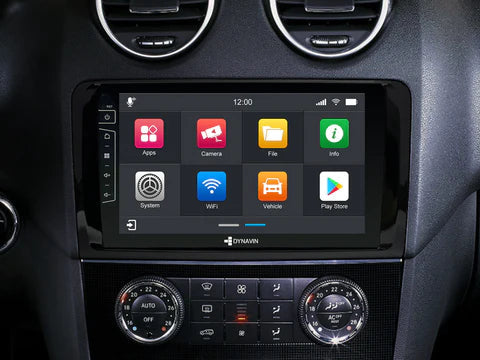

• High-quality 9″/16:9 LCD capacitive touchscreen display (resolution 1280 x 720)
• Android 11 OS with 4GB RAM
• Select 64GB or 192GB app storage capacity

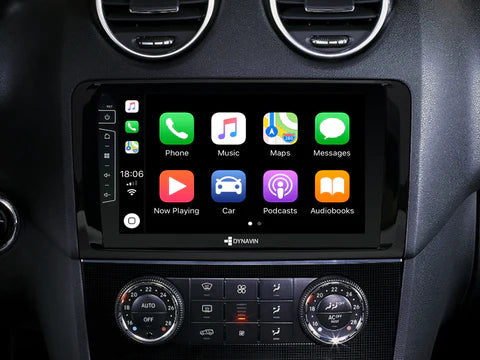

• Apple CarPlay Wireless & Wired

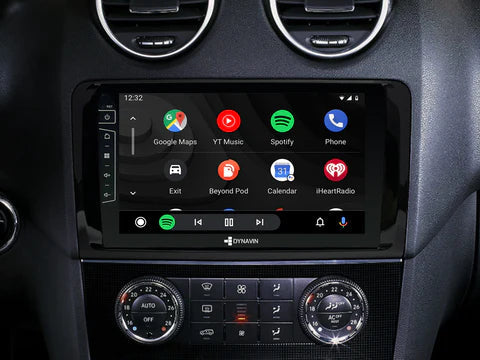

• Android Auto Wireless & Wired
• Supports smartphone screen-mirroring
• Google Play Store preinstalled. Connects to the internet via built-in WiFi module.
• Integration of the CANBUS solution for steering wheel operation and parking sensor.
• Bluetooth for audio streaming and hands-free calls via any smartphone (Android, Apple, etc.). External microphone included.
• FM RDS TMC tuner with DSP noise masking and 15 preset stations
• Integrated sound DSP processor with 16-band EQ and time correction.
• AV input/output for aftermarket subs/amps, etc.
• We recommend a Flush Mount USB Extension for easy access to a USB port otherwise there are two 3ft USB extensions included to route to the glove compartment.

• Reverse/backup and/or front camera ready; compatible with aftermarket backup cameras (backup cameras sold separately)
• Pre-installed Dynaway GPS navigation software (maps for North America)
• Periodic firmware updates available here
• One year warranty through Dynavin North America - Fresno, CA


General

• Android 11 OS with 4GB RAM and 64GB or 192GB storage capacity
• Output power: 4 x 45 W high-power amplifiers
• 3 pre-outs (3 V, front / rear / subwoofer)
• CANBUS integration
• Menu language: English / German / French / Spanish / Portuguese / Dutch / Greek / Italian / Polish / Danish
• Camera connection & built-in controls for Dynavision multi-view cameras
• Camera guidelines setting
• Rear view camera display Automatic / Fast boot up
• 16-band EQ
• Automatic dimmer
• Firmware upgradable
• Compatible with start-stop system
• Supports AHD backup cameras
• Supports Dynavin Heads-up Display (sold separately)

SCREEN

• Display: 9-inch (LVDS)
• Resolution 1280 x 720 pixels (RGB)
• Capacitive touch screen
• Anti-reflective display
• Working system: TFT active matrix
• Active area: 196.608 (H) x 114.15 (V) mm


Z-Link

• Compatible with wireless Apple CarPlay
• Compatible with Android Auto
• Compatible with SmartPhone Mirroring

BUILT-IN BLUETOOTH

• Integrated BT module
• Included a compact digital dual microphone with a unique noise-canceling algorithm that ensures excellent call voice quality
• Specification standard: 3.0 and 2.1 + EDR
• -95dBm sensitivity, excellent anti-interference performance
• Support low power scan function
• PBAP phone book synchronization with 1000 entries
• Hands-free calling with HFP
• Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
• Individual profile connection: hands-free function and music streaming
• Phone book: Automatic transfer of the phone book
• Dashboard display support for caller alerts
• Support for saving connection history from multiple mobile phones
• Device name display
• Call history: dialed number / received calls / missed calls
• Voice volume adjustment: adjustable for incoming and outgoing calls
• Adjustable microphone gain
• GSM signal strength display
• Display of the battery level


USB

• USB specification: USB 2.0, support fast charging
• Audio playback (supported formats: APE/FLAC/M4A/MP3/WMA/WAV)
• Video playback (supported formats: MPEG-4/AVI/FLV/MPEG/MPG/DAT/VOB/MKV)
• Image browsing (supported formats: JPG/BMP/PNG/JPEG)
• Playback Mode: Shuffle / Single Loop / All Loop / Folder Loop
• Image can be set as start screen
• Sync Song Album Pictures
• Movable progress bar
• Video playback speed x2/ x4
• Save Playback Progress
• Support for dashboard display of songs/composers
• Support steering wheel to control song/volume level up/down
• Search by file/folder name
• Supports up to 256GB USB storage device


SOUND TUNING

• Maximum output power: 4 x 45 W
• Adjustable subwoofer level
• Subwoofer, bass, middle, treble phase selectable
• Equalizer: Pop, Rock, Classic
• 16-band parametric equalizer
• Digital Time Correction
• Adjustable volume reduction when parking
• Maximum switch-on volume adjustable


RADIO

• FM Frequency Range: 87.5-108.0MHz
• AM Frequency Range: 530-1710KHZ
• FM Utility Sensitivity: 5-6db
• FM Stop Sensitivity: 22db
• AM Stop Sensitivity: 21db
• With left and right stereo channels
• Signal to noise ratio: 56db
• Manual station storage for 15 stations
• RDS functions: AF, TA, station text
• Automatic channel search function
• High-cut high-frequency attenuation function
• Support for changing FM/AM memory space images
• Optional switching on and off of the radio antenna


GPS NAVIGATION

• Preinstalled Dynaway navigation software
• Maps: North America
• Online map update via flex.dynavin.com
• Free map update within 30 days after first use


GPS

• GPS antenna included
• GPS reception frequency 1,575.42 ± 1 MHz
• GPS reception sensitivity -165 dB max
• Positioning accuracy: 10 m, 2D RMS
• Data update rate: 1HZ
• Reacquisition time: 0.1 s on average


A2DP

• Sync BT music to cellphone
• Display song title/lyrics/composer/singer
• Steering wheel can control song/volume up/down
• Song titles/lyrics can be displayed on the dashboard
