If your Tacoma's factory speakers sound flat or struggle when you turn up the radio, this DS18 package gives you new front and rear speakers, separate tweeters and an amplifier to power them. The VS-TACOMABEST combines 6x9-inch front speakers, 6.5-inch rear speakers and PRO-ST replacement tweeters with a four-channel amplifier and installation wiring kit.
Fitment Information
- Toyota Tacoma 2nd Gen Double Cab (2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015)
- Toyota Tacoma 2nd Gen Access Cab (2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015)
- Toyota Tacoma 3rd Gen Double Cab (2016, 2017, 2018, 2019, 2020, 2021)
- Toyota Tacoma 3rd Gen Access Cab (2016, 2017, 2018, 2019, 2020, 2021)
Fitment Notes
- For Double Cab and Access Cab trucks. Regular Cab applications are not included.
- Match the speaker mounting adapters and wiring connections to your model year, cab and factory audio system.
- Trucks with factory JBL audio require an installation plan for integrating or bypassing the factory amplifier.
- Toyota-specific door speaker mounting brackets, speaker wiring adapters and factory radio integration parts are sold separately.
Specs & Features
- Manufacturer part number: VS-TACOMABEST
- Front and rear two-way coaxial speakers with glass-fiber cones and rubber surrounds
- Separate Toyota replacement tweeters for clearer high-frequency sound
- Full-range Class D four-channel amplifier with adjustable crossovers
- Includes a 4-gauge CCA amplifier installation kit
- The advertised 1,800-watt rating is the amplifier's maximum power rating, not its continuous RMS output.
Door Speaker Specifications

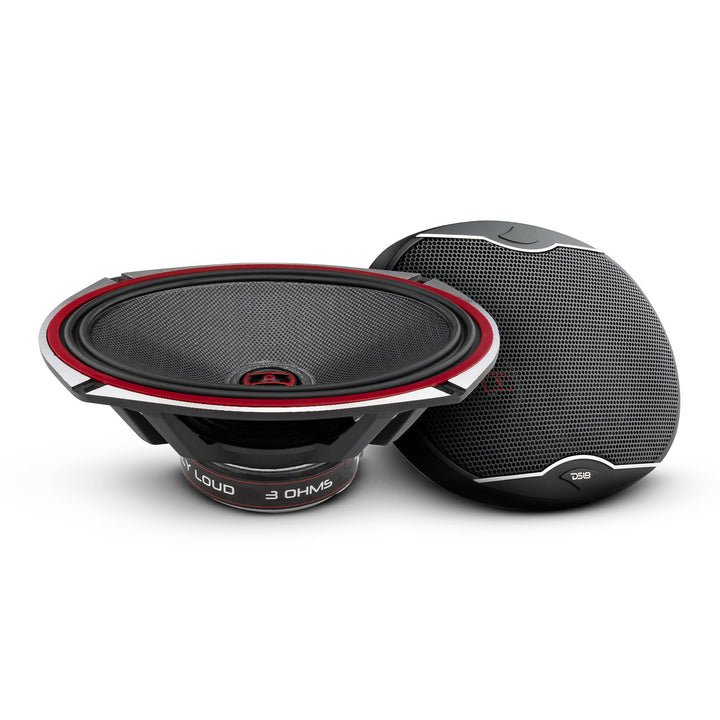

- Front speakers: two EXL-SQ6.9 6x9-inch two-way coaxials
- Front speaker power handling: 160 watts RMS / 560 watts maximum per speaker
- Front speaker impedance: 3 ohms
- Front speaker frequency response: 55Hz-22kHz

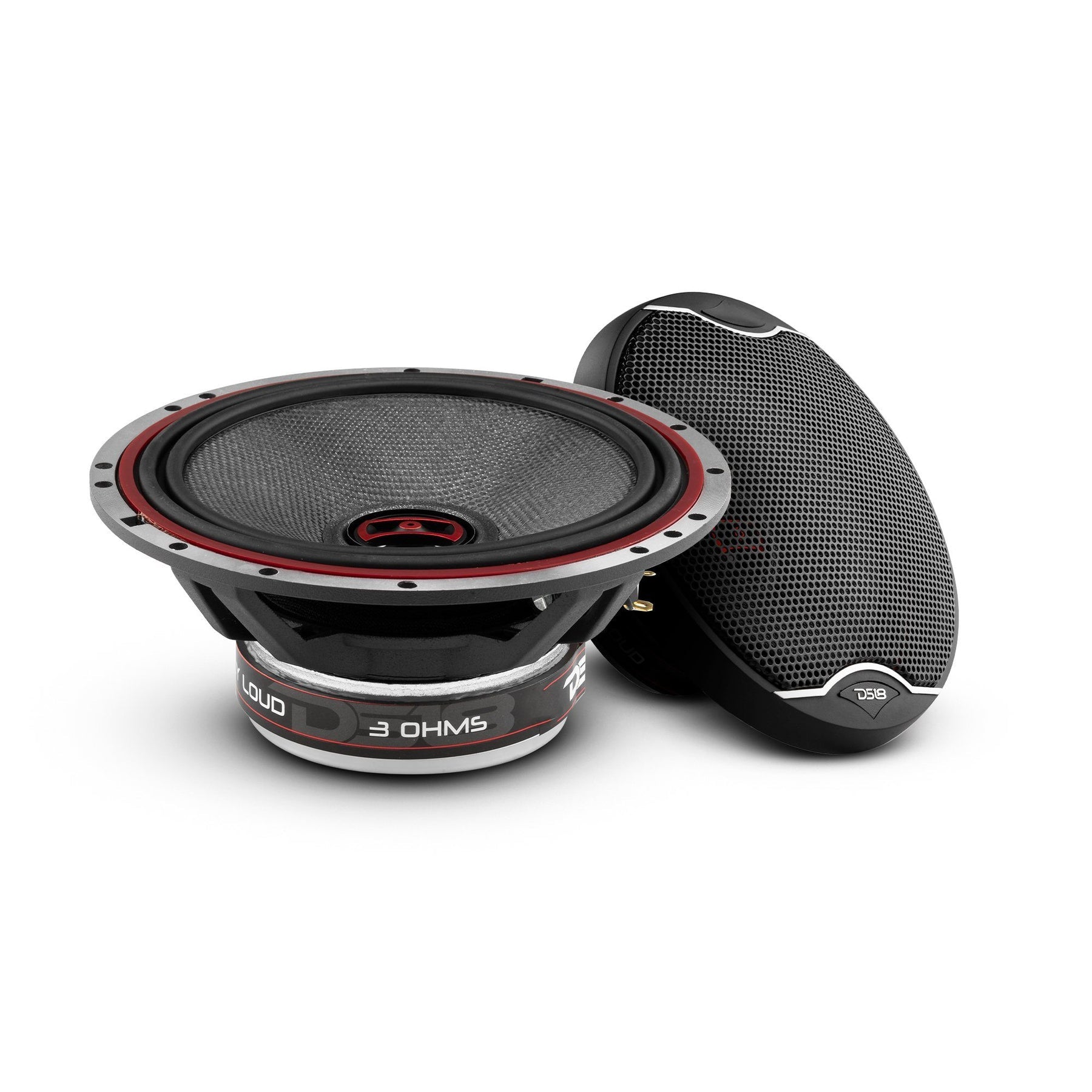

- Rear speakers: two EXL-SQ6.5 6.5-inch two-way coaxials
- Rear speaker power handling: 120 watts RMS / 400 watts maximum per speaker
- Rear speaker impedance: 3 ohms
- Rear speaker frequency response: 80Hz-22kHz
- Both speaker models feature 1.14-inch PEI dome tweeters and 90dB sensitivity.

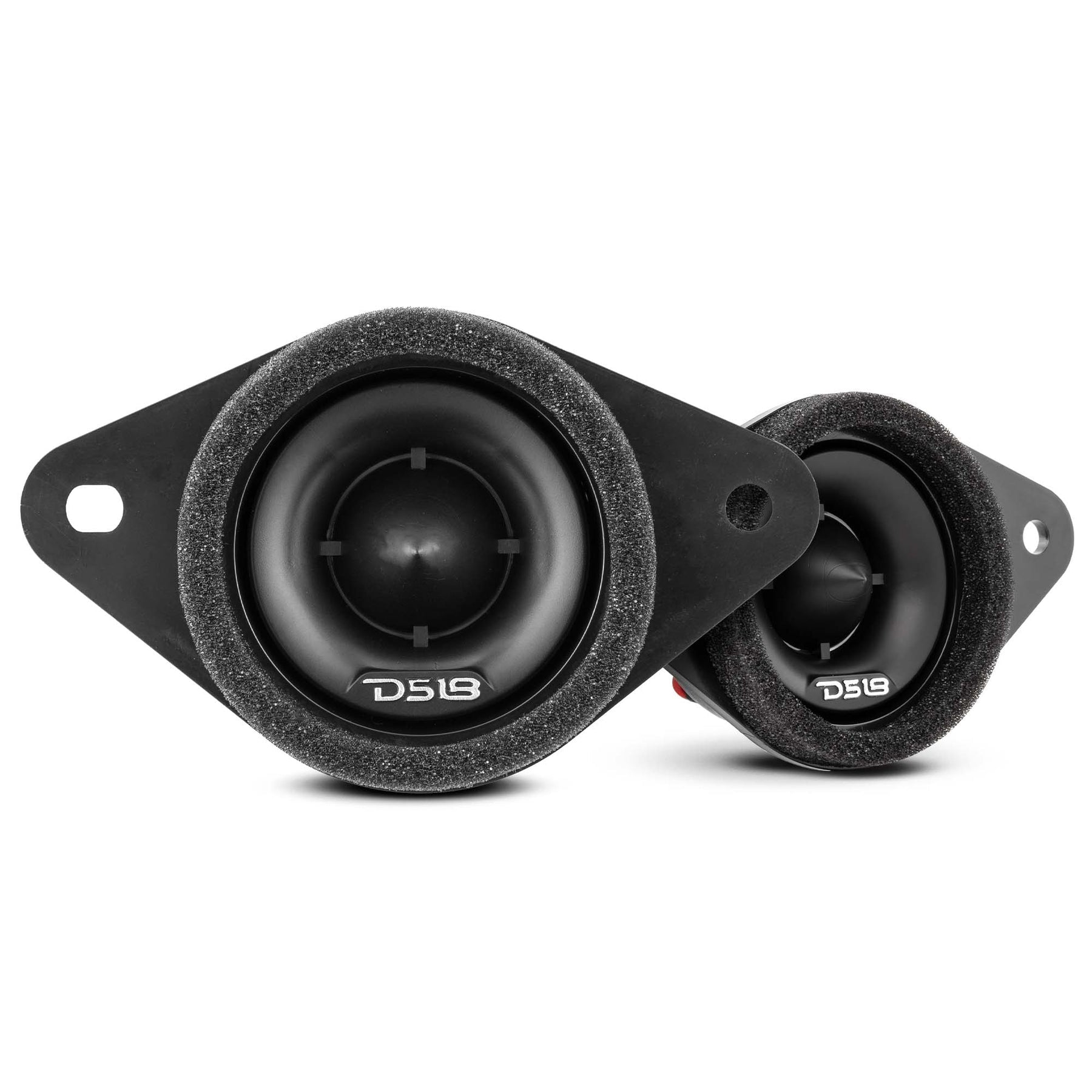

PRO-ST Tweeter Specifications
- 1-inch nominal tweeter with a neodymium magnet
- Impedance: 4 ohms
- Power handling: 50 watts AES / 100 watts program / 200 watts peak per tweeter
- Sensitivity: 98dB
- Frequency response: 1kHz-20kHz
- Recommended high-pass crossover: 4kHz
- Installs in the front door tweeter locations on 2005-2015 trucks and dashboard tweeter locations on 2016-2021 trucks.

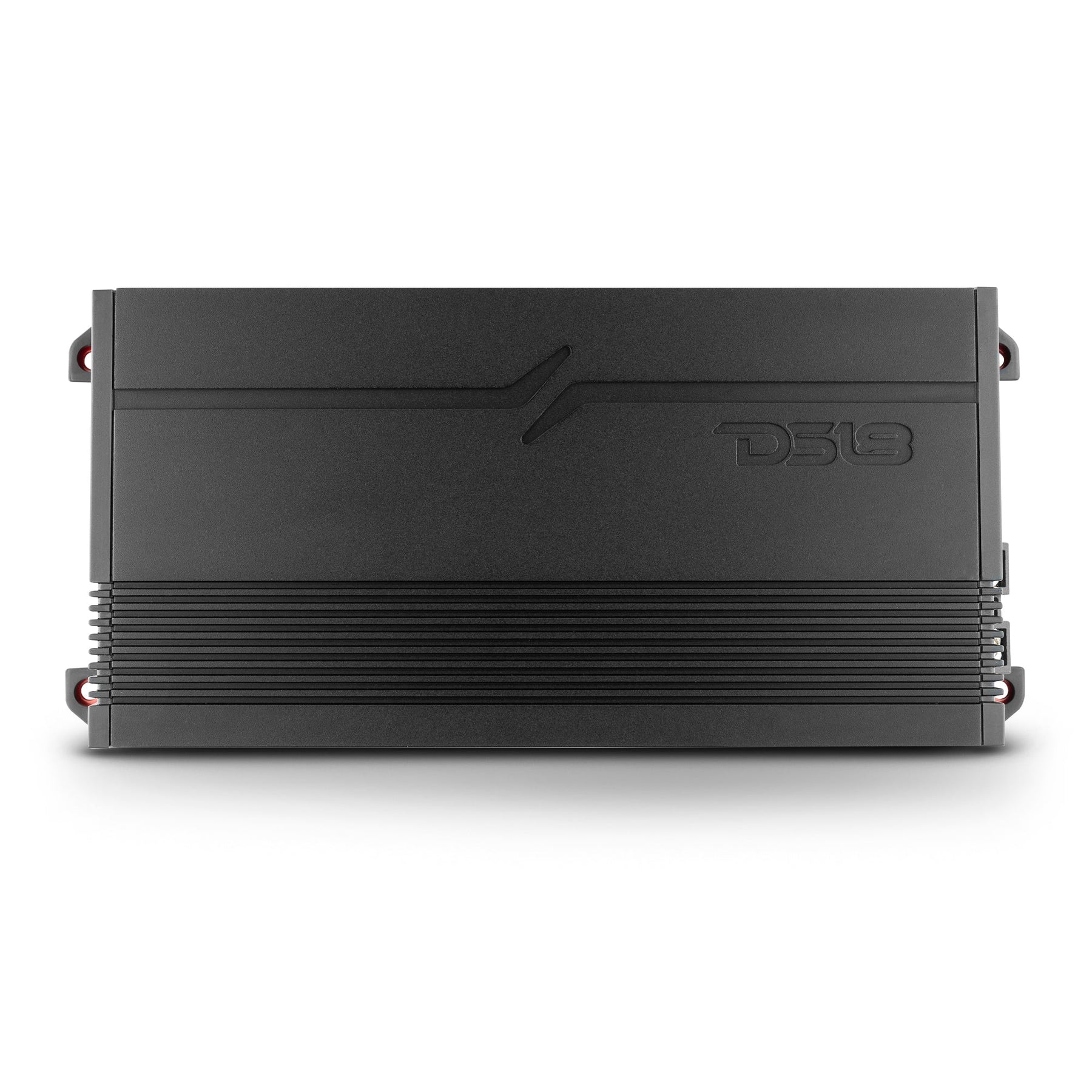

G1800.4D Amplifier Specifications
- Four-channel full-range Class D amplifier
- RMS output at 4 ohms: 150 watts x 4 channels
- RMS output at 2 ohms: 230 watts x 4 channels
- Bridged RMS output at 4 ohms: 430 watts x 2 channels
- Maximum power: 1,800 watts
- Minimum impedance: 2 ohms stereo / 4 ohms bridged
- Frequency response: 20Hz-20kHz
- Selectable high-pass, low-pass and full-range operation
- Adjustable crossover range: 50Hz-4kHz
- Accepts low-level RCA and high-level speaker signals
- Dimensions: 10.43 inches long x 4.72 inches wide x 1.96 inches high

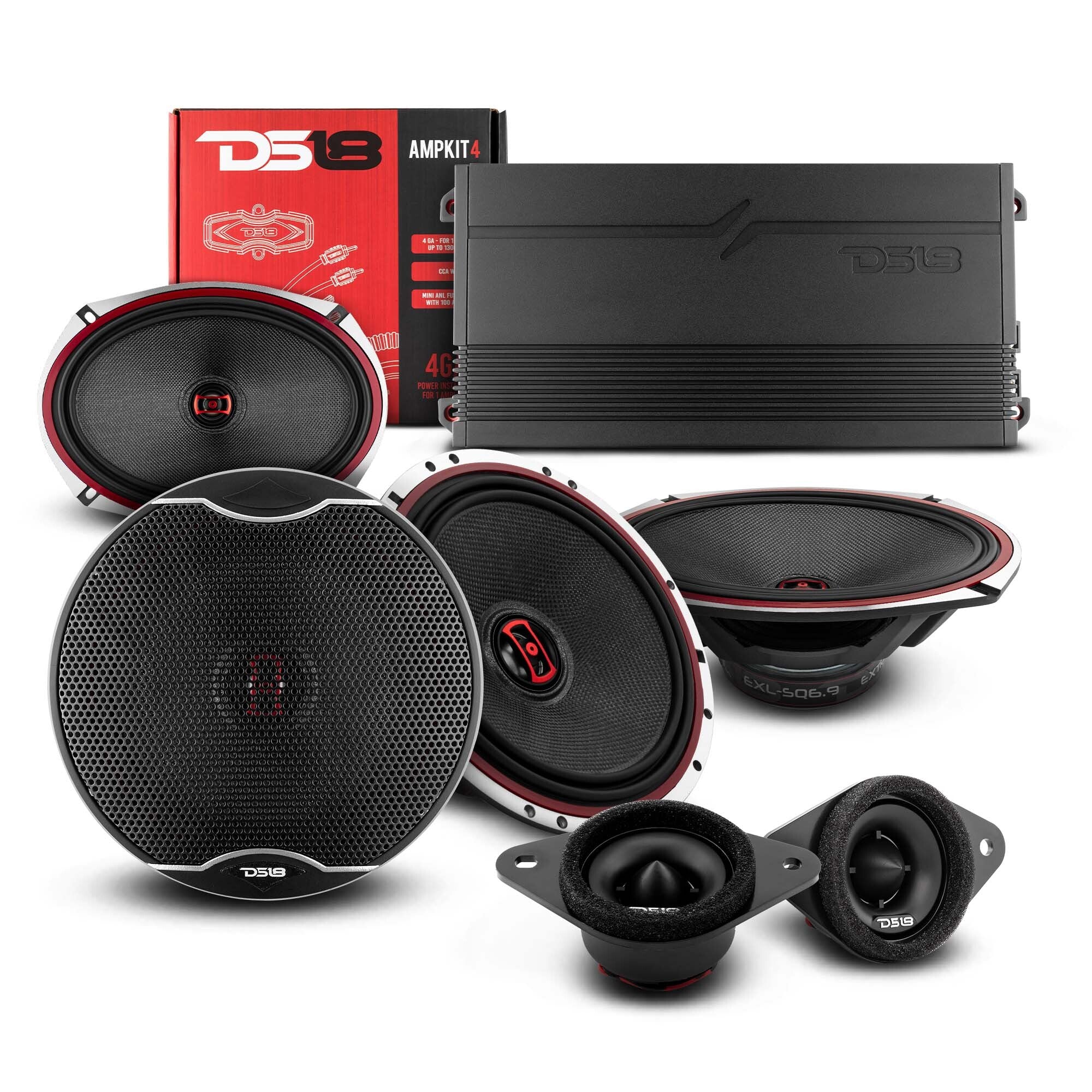

What's Included
- Two DS18 EXL-SQ6.9 6x9-inch coaxial speakers
- Two DS18 EXL-SQ6.5 6.5-inch coaxial speakers
- Two DS18 PRO-ST replacement tweeters
- One DS18 G1800.4D four-channel amplifier
- One DS18 AMPKIT4 amplifier installation kit with power and ground cables, RCA cable, remote turn-on wire, speaker wire, fuse holder and installation accessories
Installation
Installation involves removing the speaker trim, mounting the replacement speakers with the correct adapters, securing the amplifier and running fused power from the battery. Choose the radio connection method before installation, especially if you are keeping a factory JBL system.
Set amplifier gains and crossovers to suit the speakers. The separate PRO-ST tweeters need high-pass protection, and the combined speaker load must stay within the amplifier's impedance limits. A head unit, subwoofer and vehicle-specific integration hardware are not included.
Pairs Well With
- Tacoma speaker mounting brackets and wiring adapters: Match these to your truck's year and cab to secure the door speakers and connect them to the vehicle wiring.
- Door sound-deadening material: Add it while the door panels are off to help control panel vibration and rattles.
- Factory radio integration harness: Choose one for your Tacoma's audio system to connect the included amplifier while retaining the original radio.
About the Brand
DS18 makes speakers, amplifiers, subwoofers and installation accessories for car audio, marine and powersports systems. Its vehicle audio packages bring compatible components together for owners upgrading their factory sound system.
