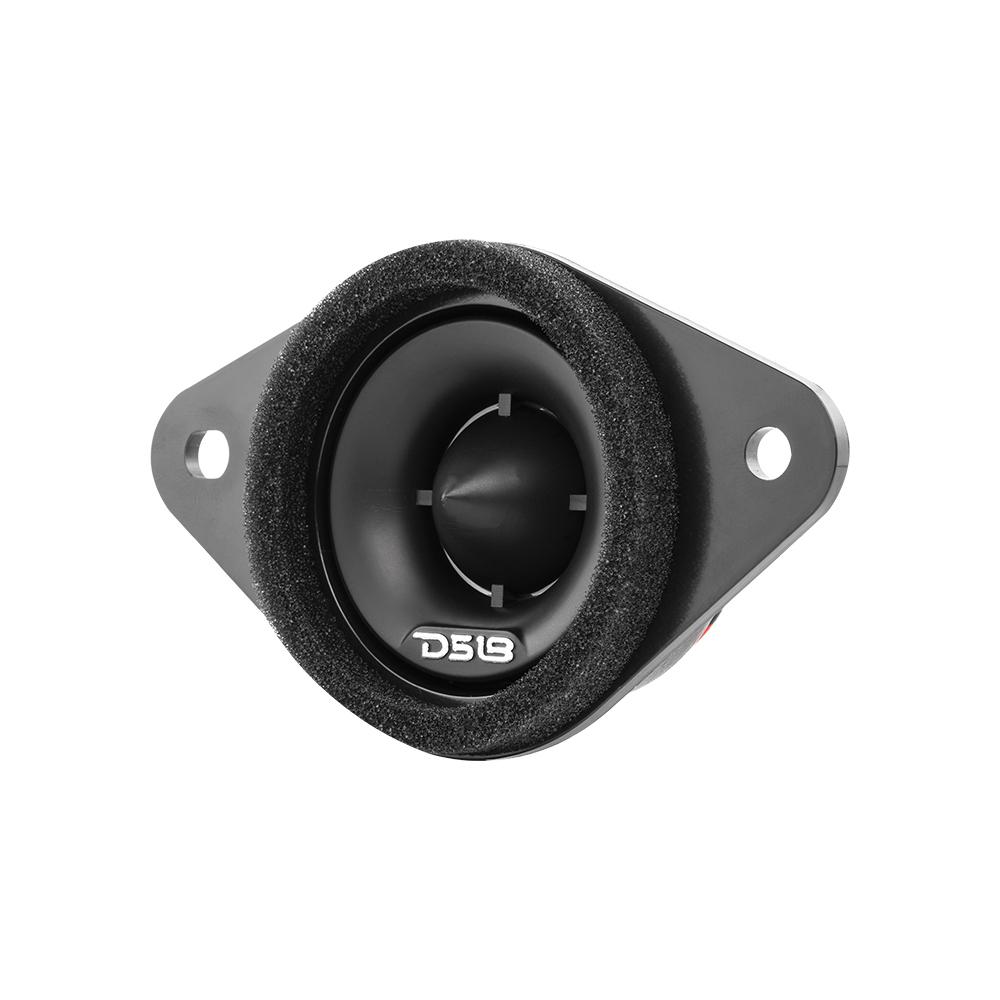

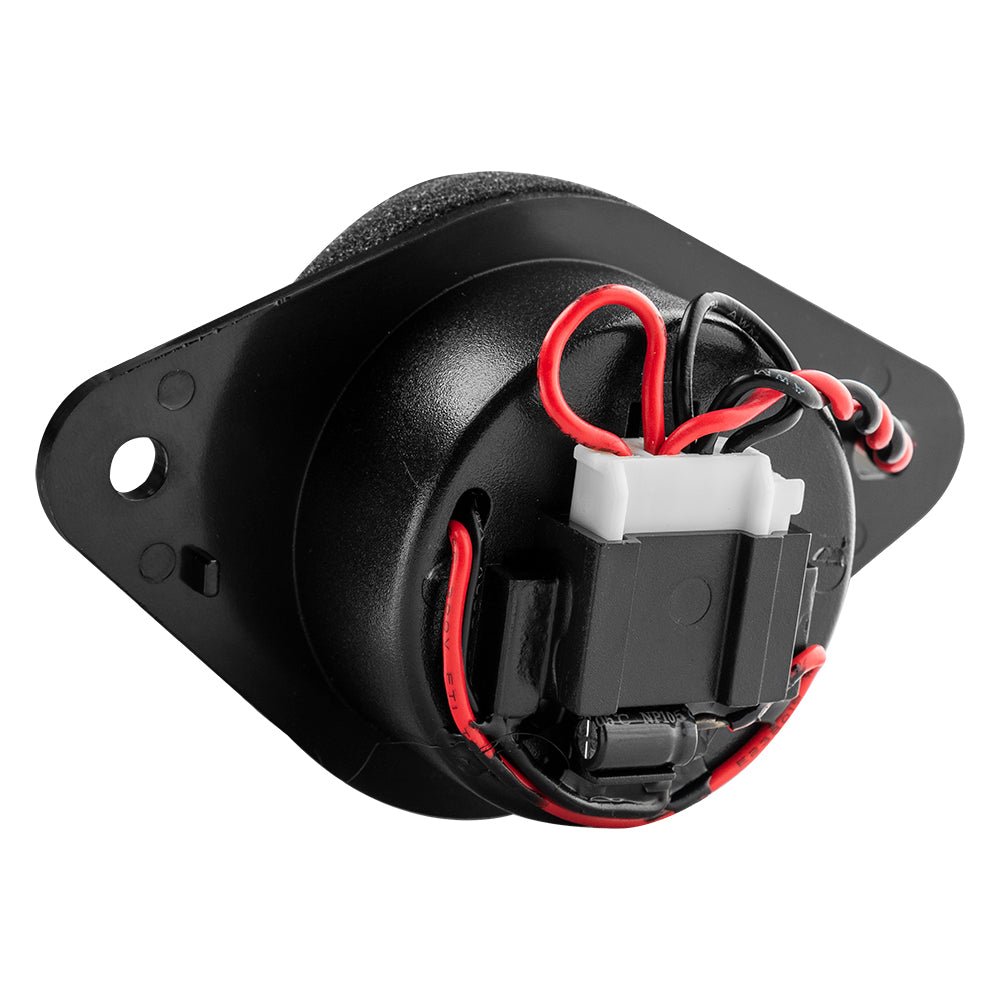

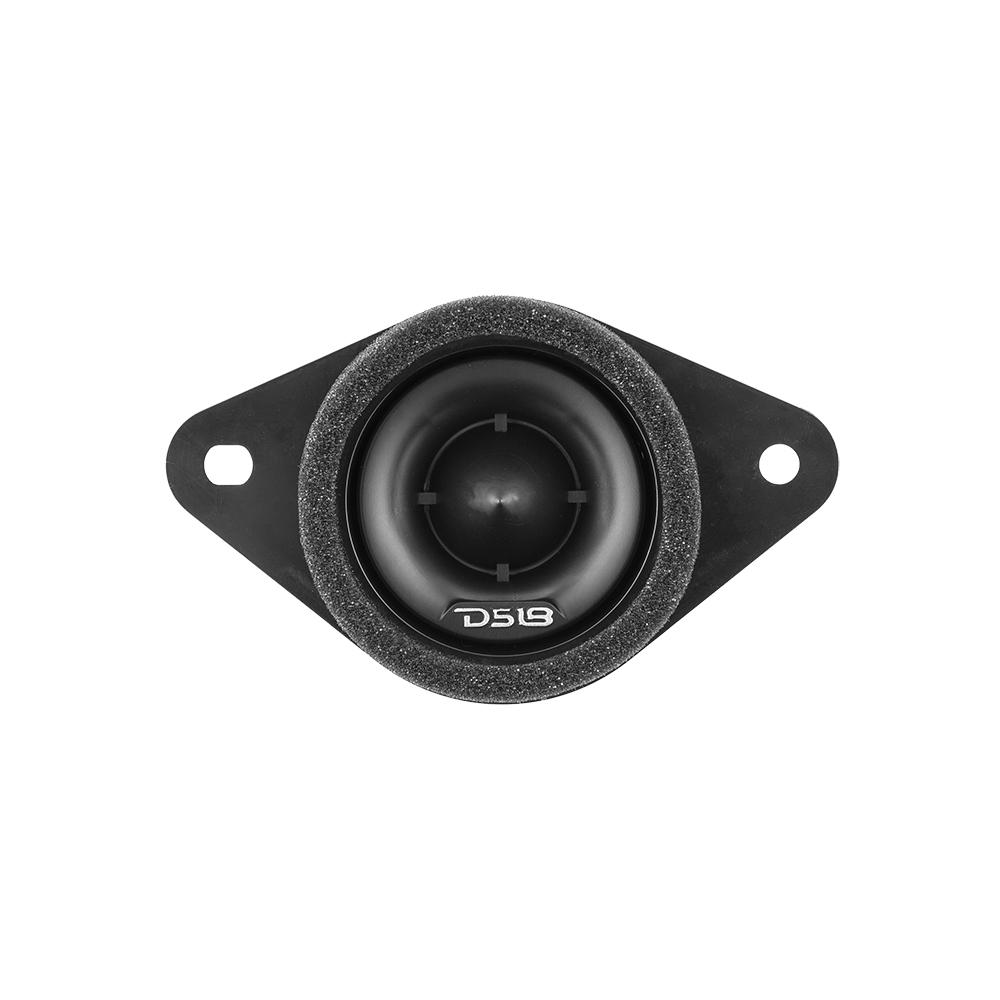

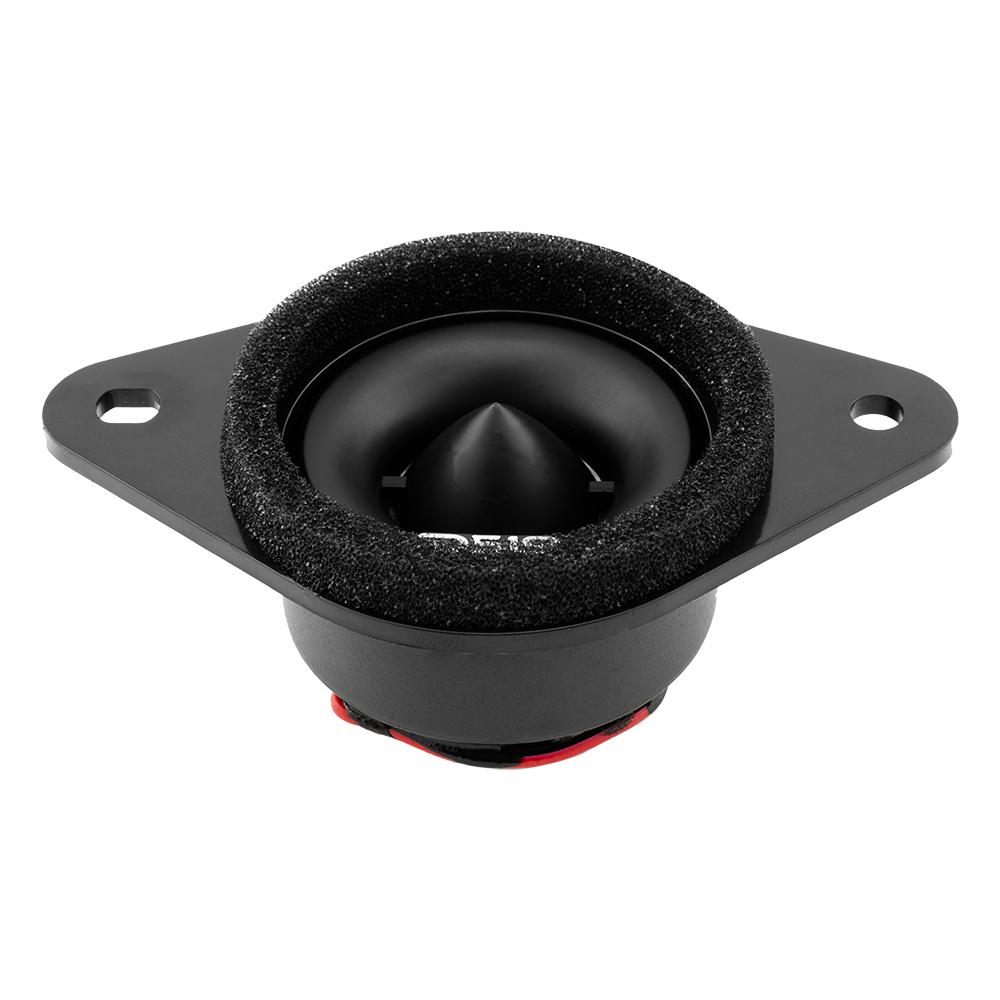

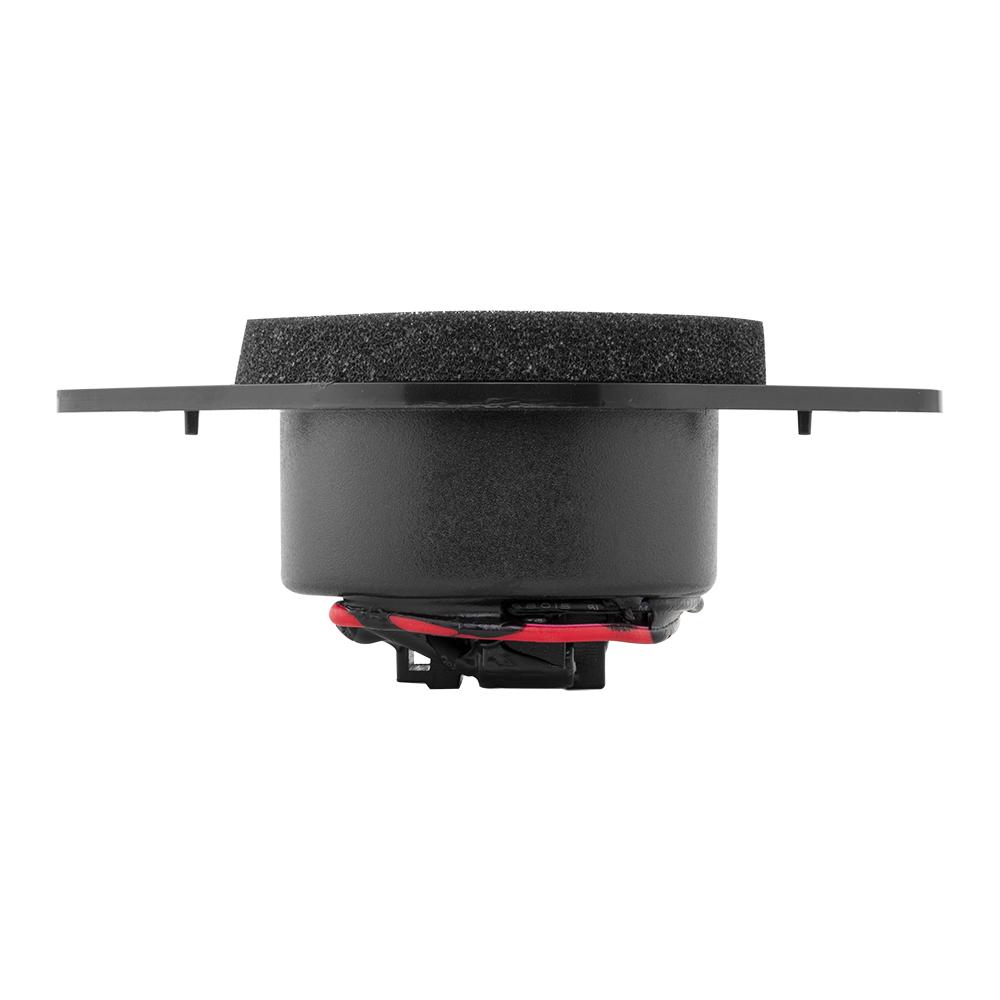

Bring more detail to vocals, cymbals and guitar with these DS18 PRO-ST replacement tweeters. They mount in the factory speaker locations on the Toyota and Subaru applications listed below, making them a useful upgrade when the original tweeters sound dull or need replacing. Sold as a pair.
Fitment Information
- Toyota Venza, dashboard (2011, 2012, 2013, 2014, 2015)
- Toyota Sienna, dashboard (2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021)
- Toyota Tacoma 2nd Gen, front door tweeter locations (2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015)
- Toyota Tacoma 3rd Gen, dashboard (2016, 2017, 2018, 2019, 2020, 2021)
- Toyota Camry, dashboard (2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011)
- Toyota Sequoia 2nd Gen, dashboard (2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020)
- Toyota Tundra 2nd Gen, dashboard (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020)
- Toyota Solara 2nd Gen, dashboard (2004, 2005, 2006, 2007, 2008)
- Toyota Prius 3rd Gen, dashboard (2010, 2011, 2012, 2013, 2014, 2015)
- Toyota 4Runner 4th Gen, front door tweeter locations (2003, 2004, 2005, 2006, 2007, 2008, 2009)
- Toyota 4Runner 5th Gen, dashboard (2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021)
- Toyota Highlander, dashboard (2008, 2009, 2010, 2011, 2012, 2013)
- Subaru Impreza (2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020)
- Subaru WRX / WRX STI (2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020)
- Subaru Forester (2014, 2015, 2016, 2017, 2018, 2019, 2020)
- Subaru Crosstrek (2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020)
Fitment Notes
- For the listed factory speaker locations. Match the mounting pattern, available depth and electrical connector before ordering.
- Check the original speaker impedance and wiring when installing in a JBL, Harman Kardon or other factory amplified system.
- These are high-frequency tweeters. When replacing a factory dashboard midrange speaker, the door speakers must handle the lower frequencies.
- Vehicle-specific wiring adapters or modifications may be required and are not included.
Specs & Features
- Manufacturer part number: PRO-ST
- OEM replacement bullet compression tweeters
- Nominal tweeter diameter: 1 inch
- Impedance: 4 ohms per tweeter
- Power handling per tweeter: 50 watts AES / 100 watts program / 200 watts peak
- Sensitivity: 98dB at 1 watt / 1 meter
- Frequency response: 1kHz-20kHz
- Recommended high-pass crossover: 4kHz
- Neodymium magnet and PEN diaphragm
- 1-inch voice coil with Kapton former

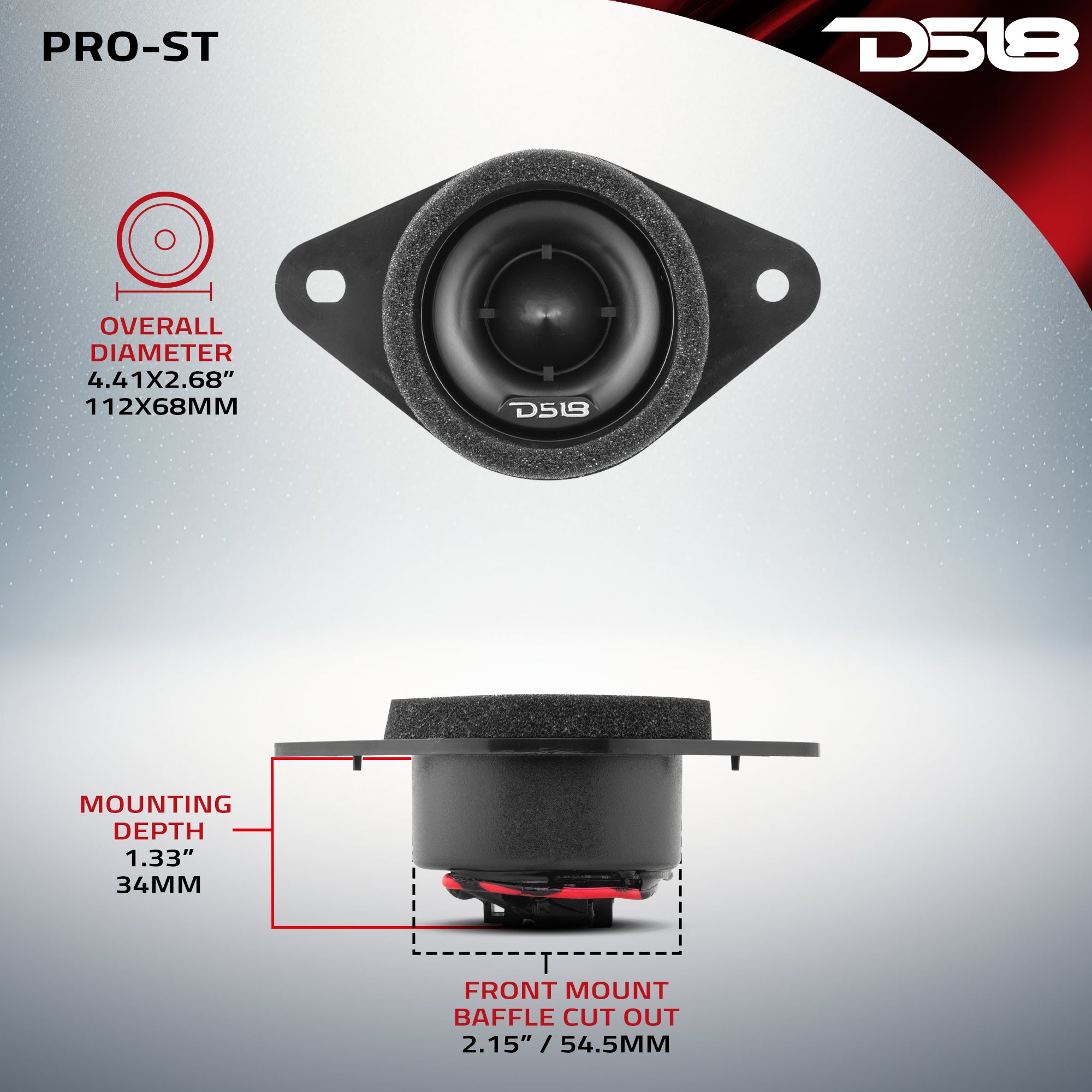

Mounting Dimensions
- Overall mounting footprint: 4.41 x 2.68 inches / 112 x 68mm
- Overall depth: 1.77 inches / 45mm
- Baffle cutout: 2.15 inches / 54.5mm
- Mounting depth: 1.33 inches / 34mm
What's Included

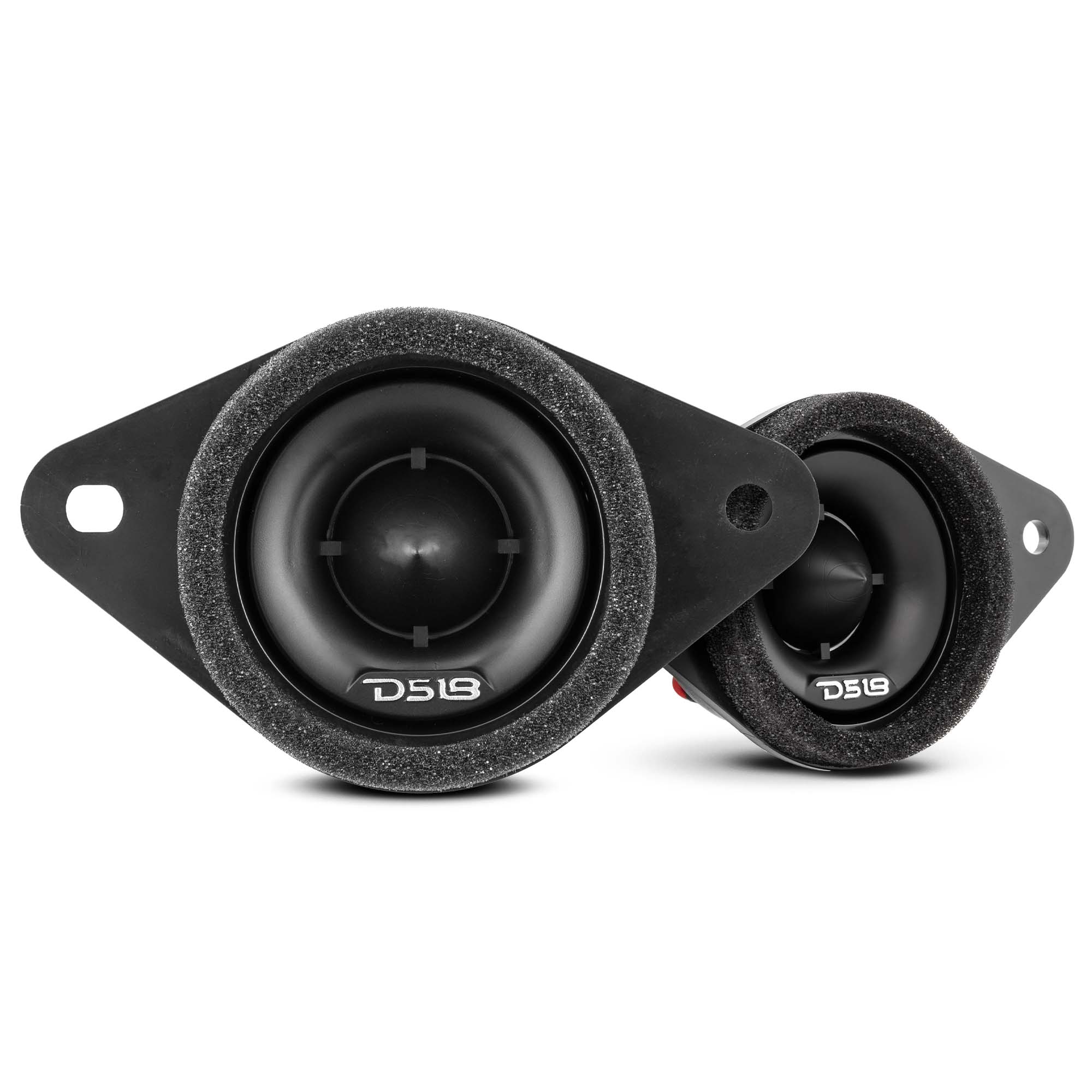

- Two DS18 PRO-ST OEM replacement tweeters
Installation
Remove the factory speaker grilles or door trim, disconnect the original tweeters and install the PRO-ST pair in the matching locations. Check polarity and preserve any wiring connections that also feed the door speakers.
Use high-pass protection suited to DS18's recommended 4kHz crossover point. Match the tweeter level to the door speakers so the highs stay clear without overpowering the rest of the music. Any additional crossover or wiring hardware needed for your installation is sold separately.
Pairs Well With
- Compatible front door speakers: Pair these tweeters with door speakers that handle vocals and midbass for a more balanced front speaker system.
- Vehicle-specific speaker wiring adapters: Use the correct adapters for your Toyota or Subaru to connect the replacements while retaining the factory wiring.
- Matched tweeter crossover components: Provide the high-pass protection needed when adding these tweeters to an aftermarket audio system.
About the Brand
DS18 makes speakers, tweeters, amplifiers and subwoofers for car audio, marine and powersports applications.
