Add real bass to your third-gen Tundra without putting a large subwoofer box in the middle of the cab with this loaded under-seat system from DS18. It includes two 10-inch subwoofers, a truck-specific sealed enclosure and the monoblock amplifier needed to give the subs their full 1,200 watts RMS.
The enclosure fits beneath the rear seat of non-hybrid Double Cab and CrewMax trucks. The subs are already matched to the enclosure and wired to a one-ohm final load, while the included S-3500.1SL amplifier produces 1,200 watts RMS at one ohm. You still need an amplifier wiring kit and a way to get a signal from the factory or aftermarket radio.
Fitment Information
- Toyota Tundra XK70 Double Cab 3.4L Twin-Turbo V6 Non-Hybrid (2022, 2023, 2024, 2025, 2026)
- Toyota Tundra XK70 CrewMax 3.4L Twin-Turbo V6 Non-Hybrid (2022, 2023, 2024, 2025, 2026)
Fitment Notes
- Fits third-generation Tundra Double Cab and CrewMax models
- Fits non-hybrid i-FORCE 3.4L twin-turbo V6 trucks only
- Does not fit i-FORCE MAX hybrid models
- Does not fit the hybrid-powered TRD Pro or Capstone
- The hybrid battery occupies the under-seat area required by this enclosure
- Installs beneath the rear seat
- Factory under-seat storage components may need to be removed
- Trucks with the factory JBL system may require an aftermarket integration harness or line-output converter
Specs & Features
- Complete loaded subwoofer enclosure and amplifier package
- Two DS18 IXS10.4D 10-inch subwoofers
- DS18 S-3500.1SL digital monoblock amplifier
- 1,200 watts total RMS subwoofer power handling
- 2,400 watts total maximum subwoofer power handling
- One-ohm final enclosure impedance
- 92dB sensitivity
- 25Hz-200Hz frequency response
- Recommended low-pass crossover: 70Hz
- Sealed enclosure for tight, controlled bass
- Vehicle-specific rear under-seat design
- Black carpeted finish
- DS18 package part number: ENS-TUNDRA210LDA
Subwoofer Specifications
- Model: DS18 IXS10.4D
- Size: 10 inches
- Voice-coil configuration: Dual four-ohm
- Voice-coil diameter: 2.5 inches
- Aluminum voice-coil former
- Copper winding
- Non-pressed paper cone
- Glass-fiber dust cap
- Stitched rubber surround
- Aluminum basket
- Ferrite magnet
- Magnet weight: 62 ounces
Amplifier Specifications
- Model: DS18 S-3500.1SL
- Digital monoblock subwoofer amplifier
- 3,500 watts maximum power
- 500 watts RMS at four ohms
- 800 watts RMS at two ohms
- 1,200 watts RMS at one ohm
- One-ohm minimum impedance
- 20Hz-500Hz frequency response
- Remote bass level control included
- Thermal, overload, short-circuit and DC output protection
Enclosure Specifications
- Enclosure type: Sealed
- Material: 1/2-inch MDF
- Finish: Black carpet
- Internal volume: 26 liters / 0.92 cubic feet
- Subwoofer wiring configuration: Parallel
- -3dB point: 45Hz
- Height: 4.92 inches
- Width: 52.75 inches
- Depth: 17.5 inches

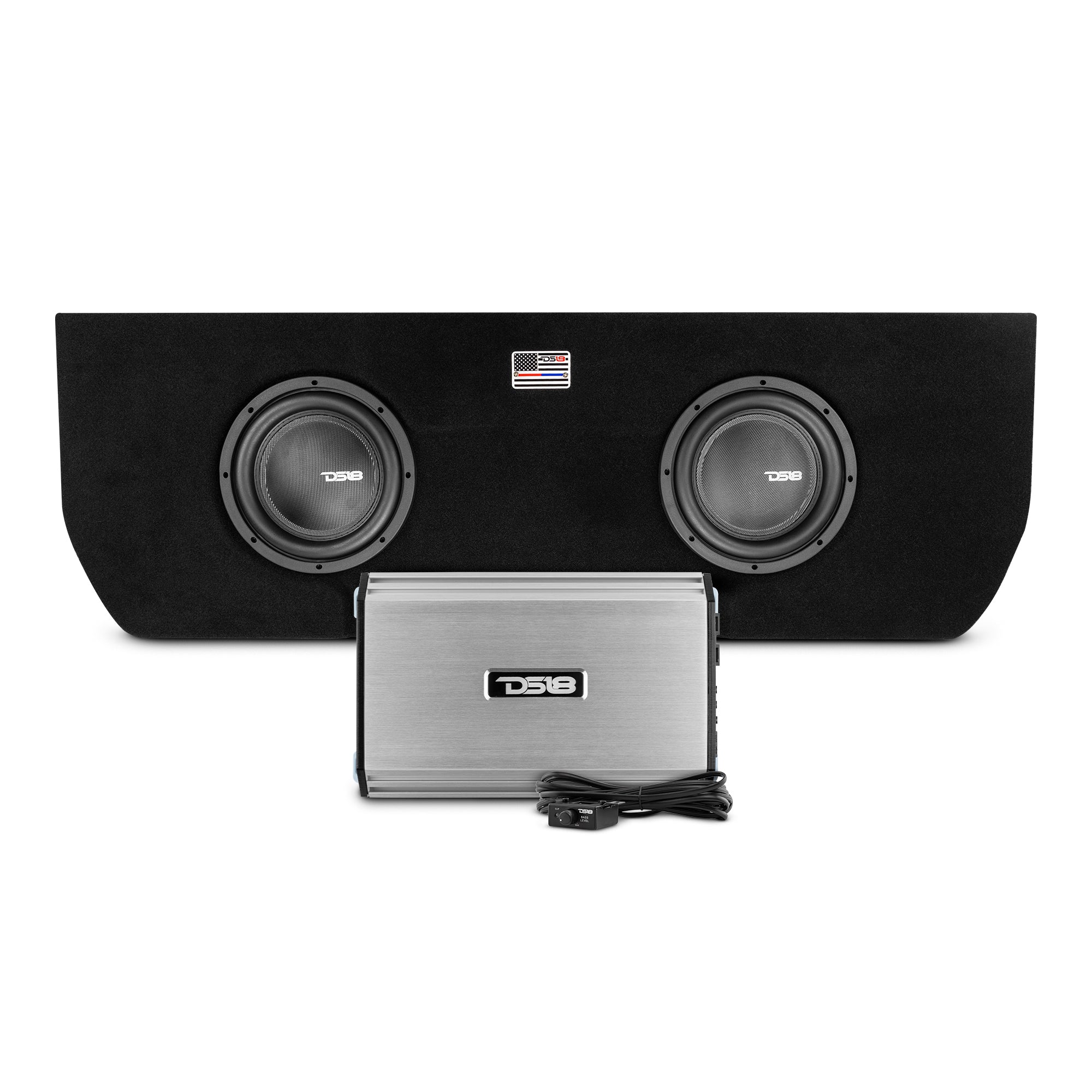

What's Included
- DS18 sealed under-seat subwoofer enclosure
- Two DS18 IXS10.4D 10-inch subwoofers
- One DS18 S-3500.1SL monoblock amplifier
- Remote bass level control
An amplifier wiring kit, factory-radio integration parts and RCA or signal wiring are not listed as included and must be purchased separately.
Installation
The enclosure installs beneath the Tundra's rear seat. Remove any factory storage pieces that interfere with the box, place the enclosure into position and make sure the seat can open and close without contacting the subwoofer surrounds.
The amplifier needs a properly fused power cable from the battery, a solid chassis ground, remote turn-on and an audio signal. Trucks retaining the factory radio may need a line-output converter or vehicle-specific integration harness, especially when working with the JBL system.
Wire the enclosure to the included amplifier at its one-ohm load, set the gain correctly and start with the low-pass crossover near DS18's recommended 70Hz setting. Professional installation is recommended if you are not familiar with high-current amplifier wiring or integrating an amplifier into the factory Tundra audio system.
Pairs Well With
- Four-Gauge Amplifier Wiring Kit: The included S-3500.1SL amplifier needs a properly fused power cable, ground cable, remote wire and signal wiring. Choose a kit rated for the amplifier's current demand.
- Factory Radio Integration Harness: A vehicle-specific harness or line-output converter gives the amplifier a clean signal while keeping the factory Toyota radio and avoiding unnecessary wire cutting.
- Sound-Deadening Material: Adding sound treatment beneath the rear seat and along the back wall helps control rattles and keeps more of the bass inside the cab.
About DS18
DS18 builds car, marine and powersports audio equipment, including loaded vehicle-specific subwoofer systems that take the guesswork out of matching the enclosure, subwoofers and amplifier.
